Find Y-Intercept of a Graph in Excel

The Critical Role of the Y-Intercept in Data Analysis

The y-intercept is perhaps one of the most fundamental concepts in quantitative analysis and graphing. It represents the specific point where a line, typically one representing a linear relationship derived from a dataset, crosses the vertical y-axis. Mathematically, this intersection always occurs precisely when the value of the independent variable, conventionally denoted as x, is zero. Understanding the y-intercept is paramount because it provides immediate insight into the baseline or initial condition of the dependent variable (y) before any effect or influence from the independent variable takes place.

In practical application, the significance of the y-intercept extends across numerous fields. For example, in economics, it might represent the fixed costs or overhead incurred even when production (x) is zero. In experimental science, it could denote the initial measurement of a system before any treatment or intervention is applied. Recognizing and accurately identifying this baseline value is crucial for establishing context and ensuring that any subsequent analysis or predictive modeling starts from a logically sound foundation. This foundational understanding allows analysts to interpret the true starting point of a trend rather than relying solely on the relationship as the independent variable increases.

While one can attempt to visually estimate the y-intercept from a chart, relying on visual inspection alone introduces significant potential for error, especially when dealing with complex or noisy data. For applications requiring high precision—such as professional reporting, financial modeling, or academic research—a reliable, computational method is essential. This comprehensive guide details the efficient methodology for accurately calculating the y-intercept using Microsoft Excel, the industry-standard tool for data management and the backbone of many linear regression models.

Leveraging Excel’s Dedicated INTERCEPT Function

To streamline the process of statistical analysis, Excel provides a highly specific function, the INTERCEPT function. This powerful statistical tool is engineered specifically to calculate the point where a least-squares regression line intersects the y-axis, based on a given set of paired data points. By automating this calculation, Excel eliminates the need for manual algebraic manipulation or complex formula construction, thereby significantly improving both efficiency and the reliability of the result.

The syntax required to properly execute the INTERCEPT function is remarkably simple, requiring only two arguments, both of which must be ranges or arrays of numerical values:

INTERCEPT(known_y’s, known_x’s)

It is vital to understand the precise role of each required argument:

• known_y’s: This argument mandates the range of numerical values representing the dependent y-values. These are the outcomes or measurements that are hypothesized to be influenced by the independent variable.
• known_x’s: This second argument requires the corresponding range of numerical values for the independent x-values. These are the predictor variables that are thought to affect the y-values.

A crucial prerequisite for the successful execution of the INTERCEPT function is that both the known_y’s and known_x’s ranges must contain an equal count of numeric data points. If the arrays are mismatched in size or if they contain non-numeric entries, Excel will return an error value. When executed correctly, the function utilizes the rigorous method of least squares to find the best-fit line through the data and calculates the statistically sound intersection point, providing a precise estimate of the y-intercept for the linear relationship being modeled.

Preparing and Structuring Your Data in Excel

Before any statistical calculation can commence, the data must be meticulously prepared and organized within Excel. Effective data preparation is the cornerstone of accurate analysis. For our demonstration, we will arrange a simple dataset that clearly pairs observations of two distinct variables. Best practices dictate that columns should be clearly labeled, for instance, “Independent Variable (X)” and “Dependent Variable (Y),” to ensure maximum clarity, especially when working with extensive spreadsheets.

In this example, we will populate columns A and B with numerical values, designating column A for our independent (X) variables and column B for the corresponding dependent (Y) variables. This arrangement is standard for bivariate data analysis and perfectly mimics the structure required for the INTERCEPT function. It is essential to ensure that your data points are entered accurately and are placed in contiguous cells, as this simplifies the necessary range selection for subsequent formula application.

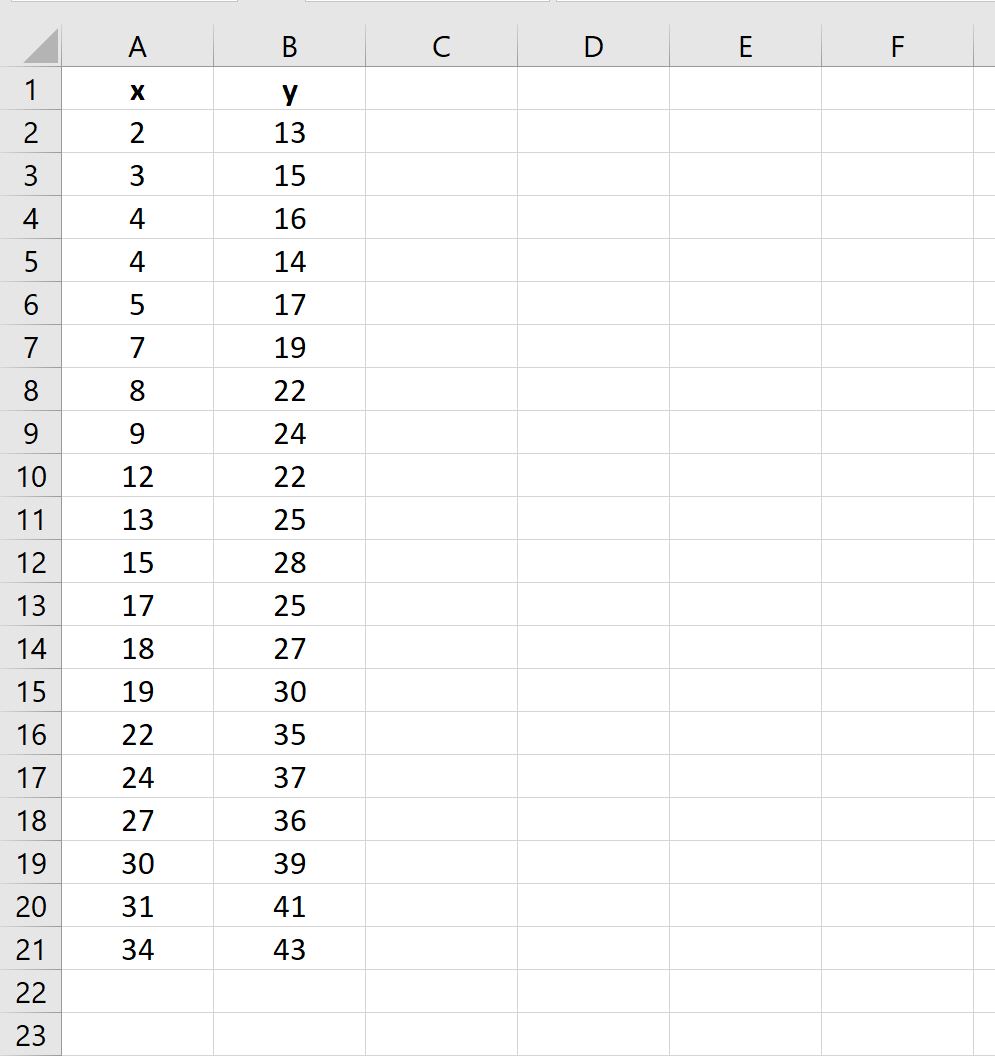

The visual representation below illustrates the ideal data structure within an Excel worksheet. Note the distinct allocation of X and Y values into separate, well-defined columns, ensuring the data is primed and ready for immediate statistical analysis.

Executing the Y-Intercept Calculation

Once the data is meticulously arranged in the required format, the next logical step is to deploy Excel’s INTERCEPT function to derive the precise numerical value. This calculation will identify the point at which the best-fit linear relationship across our data points crosses the vertical y-axis, providing the quantitative baseline value.

To execute the calculation, select an unoccupied cell where you wish the result to be displayed—for instance, cell E1. In that cell, enter the following formula. Strict adherence to the argument order is mandatory: the range containing the known y-values (dependent variable) must be specified first, followed by the range containing the known x-values (independent variable). Based on our example structure, B2:B21 represents the y-values, and A2:A21 represents the x-values.

=INTERCEPT(B2:B21, A2:A21)

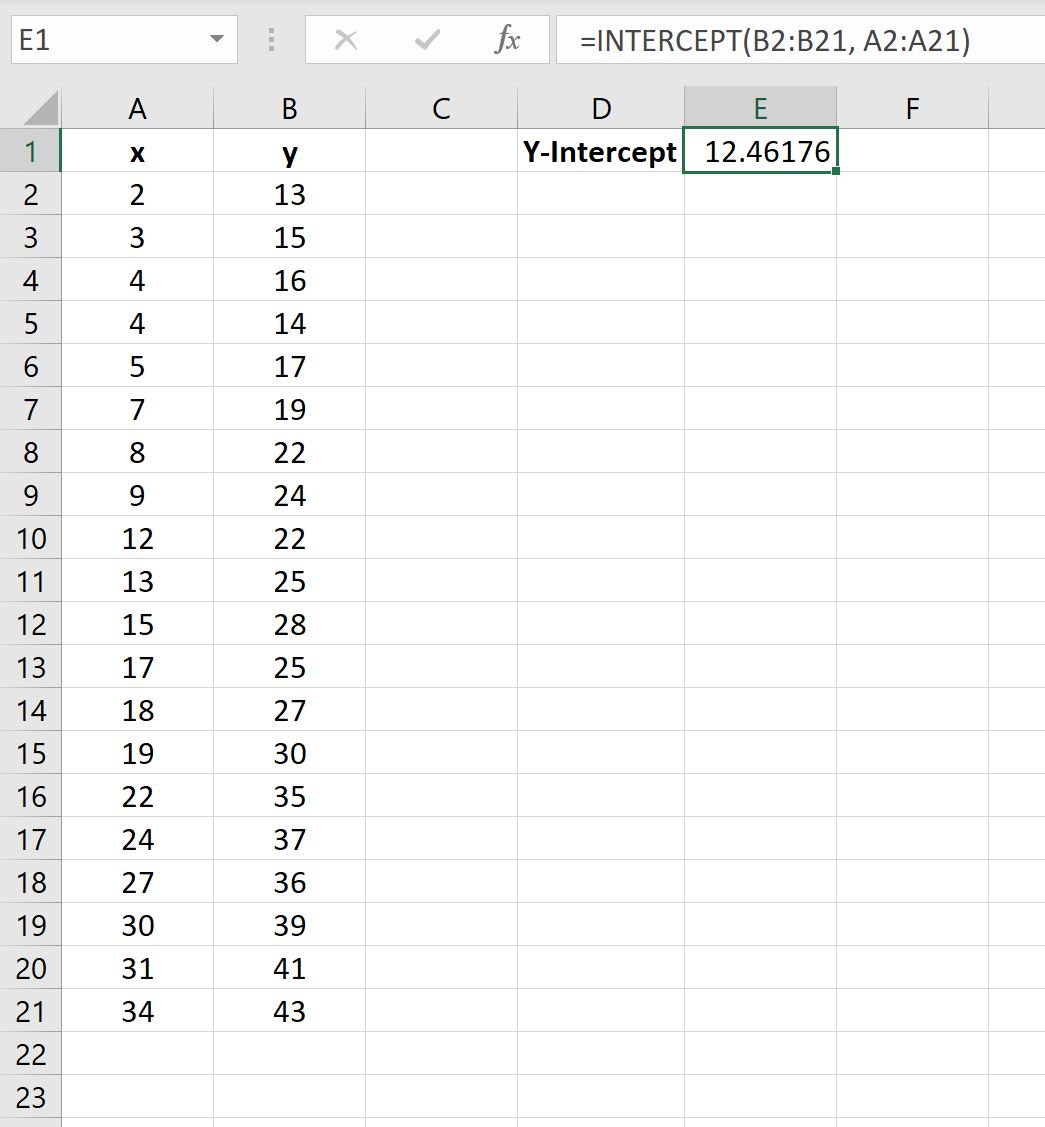

Upon entering the formula and pressing the Enter key, Excel instantly computes and displays the calculated y-intercept in the chosen cell. The accompanying image below clearly demonstrates the process, showing the formula input and the resulting numerical output in cell E1. This resulting figure is the statistically sound point at which the calculated regression line for your specific dataset would intersect the y-axis.

From the results generated by the function, we can conclude that the calculated y-intercept is approximately 12.46176. This numerical quantification provides the expected value of the dependent variable (Y) precisely when the independent variable (X) is equal to zero, based on the established linear trend within the data.

Visualizing the Y-Intercept with a Scatterplot

While the INTERCEPT function delivers a precise numerical answer, visualizing the data is often the most effective method for confirming the calculation and deepening the interpretive understanding of the relationship. The scatterplot is the definitive chart type for this application, as it graphically displays the correlation between the two numerical variables and is necessary for adding a descriptive trendline.

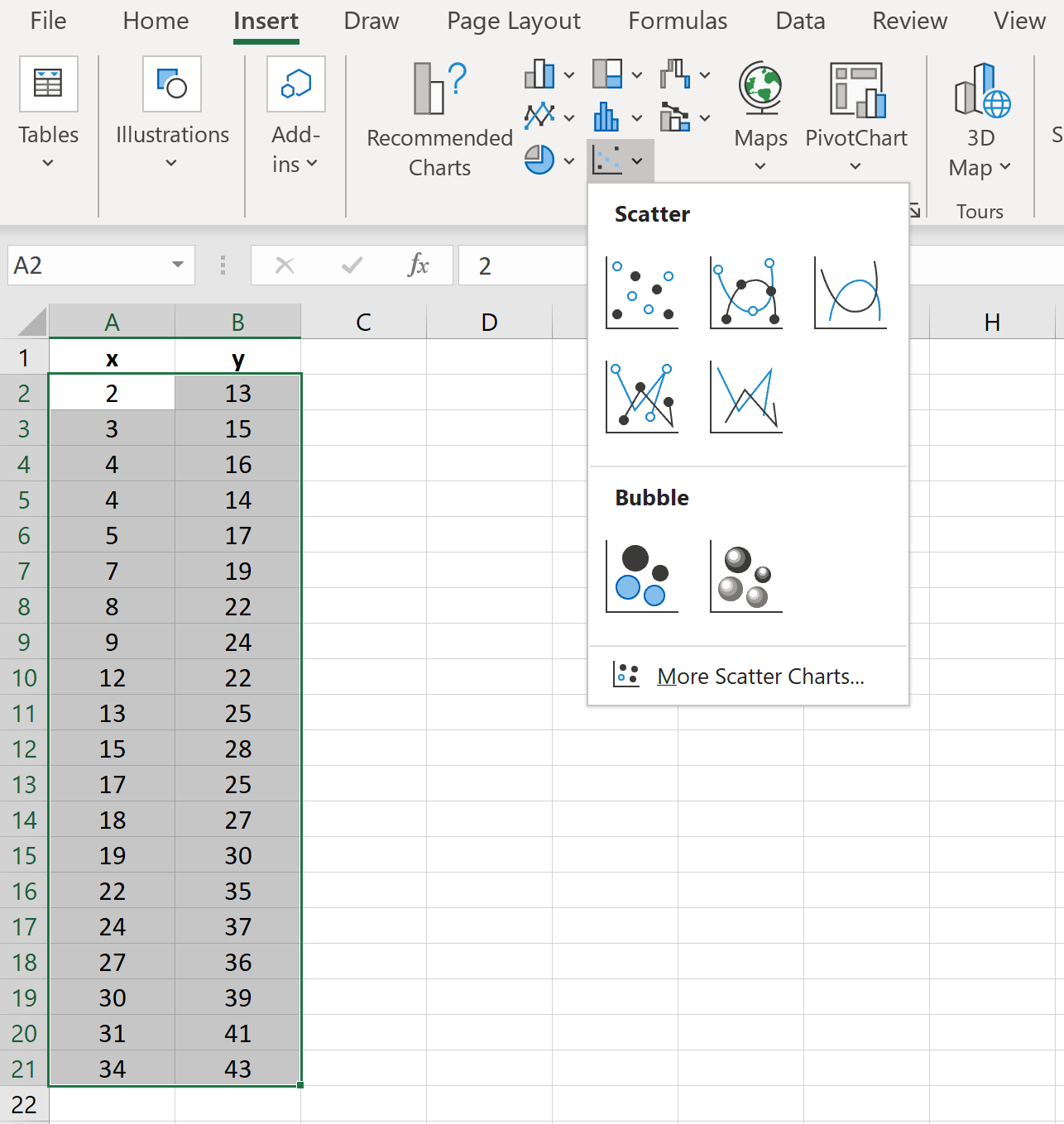

To construct the scatterplot in Excel, follow this sequential procedure:

1. Begin by highlighting the entire data range, specifically cells A2:B21, which encompasses both the X (independent) and Y (dependent) values.
2. Navigate to the Insert tab, which is located on the main Excel ribbon.
3. Locate the Charts group and click on the icon labeled Insert Scatter (X, Y).
4. Select the first scatterplot option, which typically displays only the markers, to generate the foundational visualization of your data points.

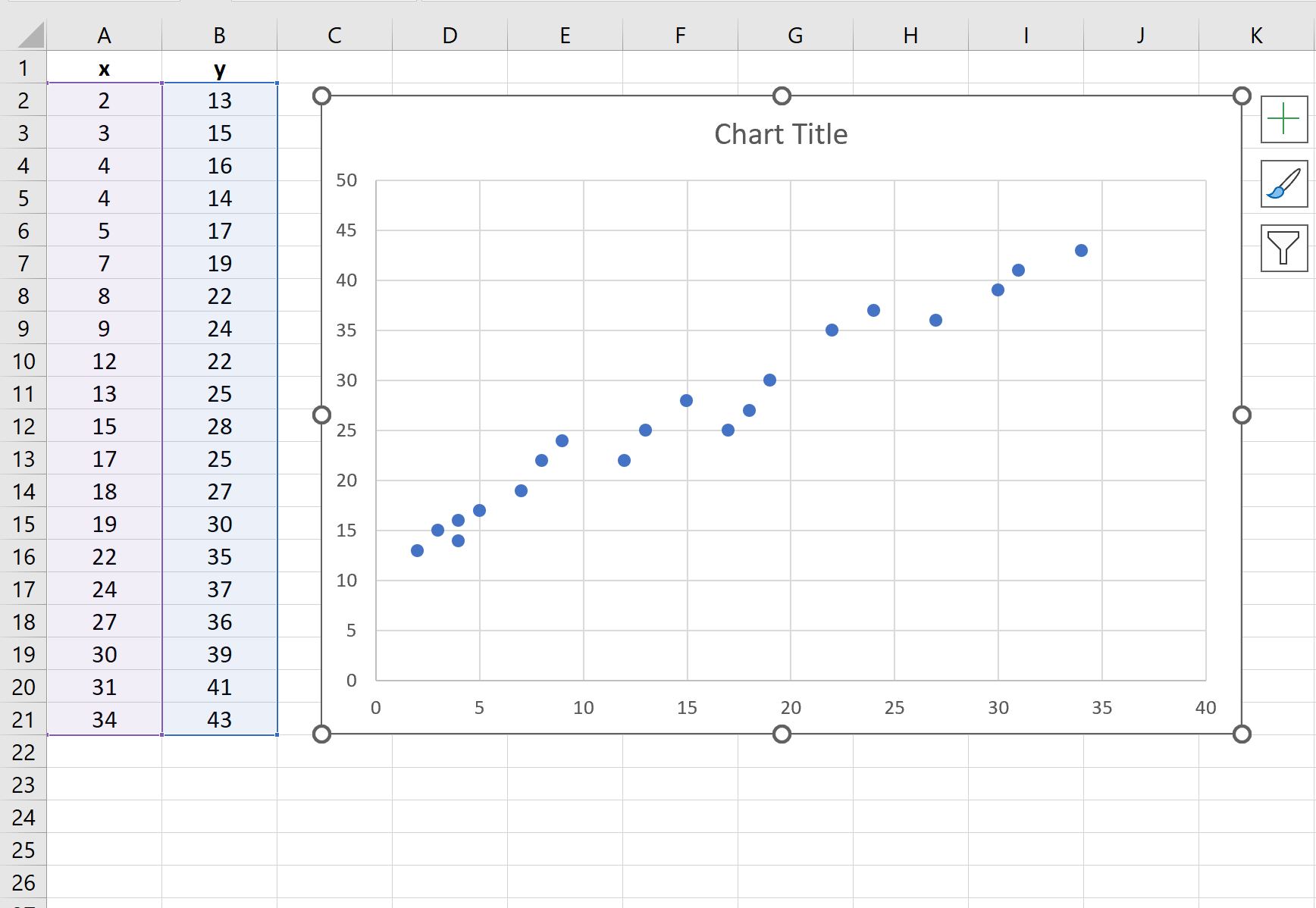

This action will immediately render a scatterplot that visually represents the distribution of your paired data points. This chart is the prerequisite upon which we will build, adding the linear trendline required to explicitly visualize the regression model and, subsequently, the y-intercept.

The resulting scatterplot provides an essential preliminary view of the data distribution, allowing the analyst to quickly observe the density and direction of the points, thus giving an initial qualitative assessment of the linear relationship between the variables.

Interpreting the Visualized Trendline and Equation

To finalize our visualization and formally identify the y-intercept graphically, we must add the linear trendline to the scatterplot and instruct Excel to display its algebraic equation. The resulting formula will be presented in the familiar slope-intercept form (y = mx + b), where the constant ‘b’ is the value of our y-intercept.

To complete this crucial step, proceed with the following actions:

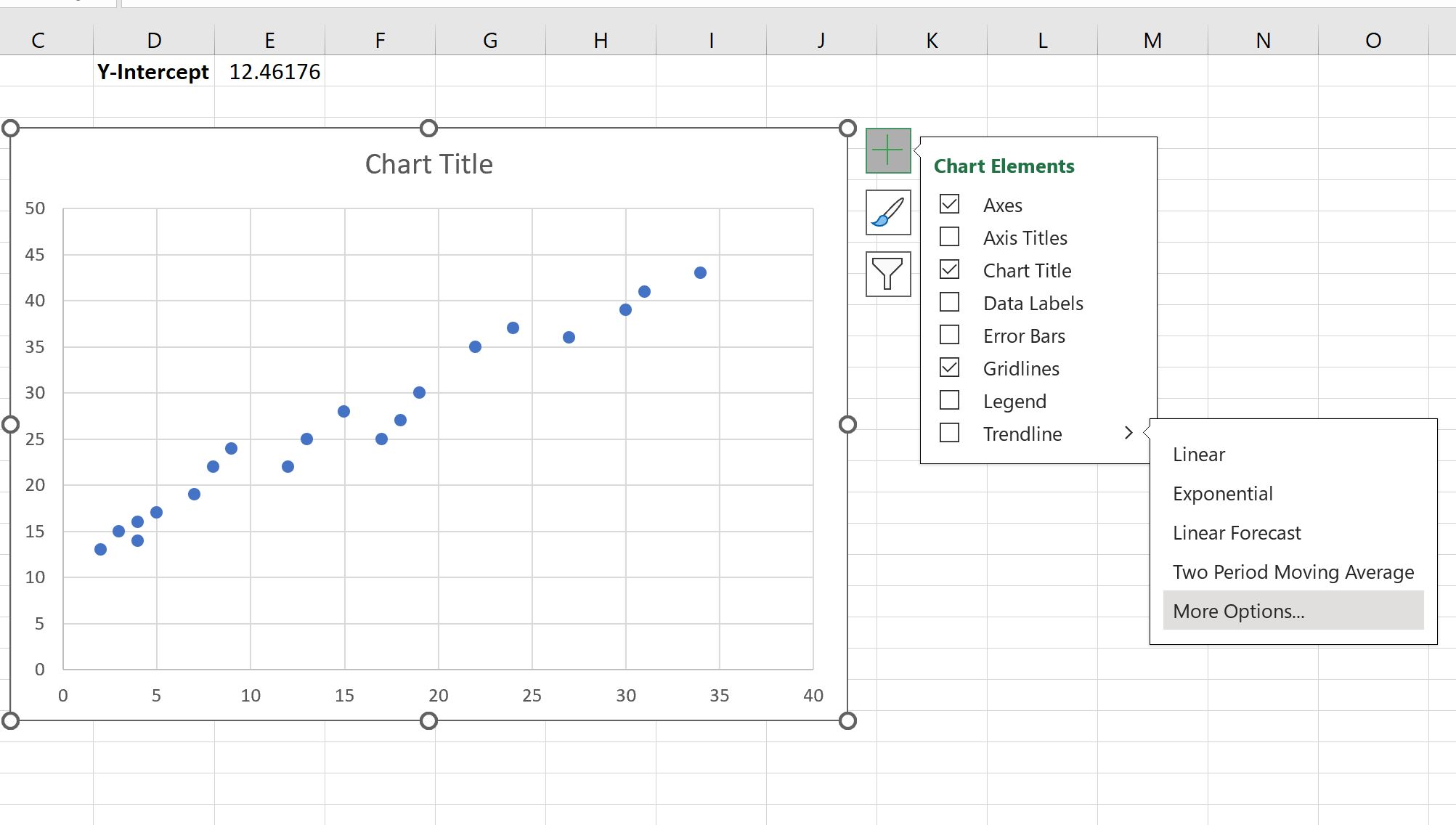

1. Click anywhere on the body of the scatterplot to ensure it is selected. A green plus sign (the Chart Elements icon) will appear near the top-right corner of the chart area. Click this icon.
2. In the resulting dropdown menu, hover your mouse over the Trendline option, and then click the small arrow that appears beside it.
3. Select More Options to launch the dedicated Format Trendline task pane, which typically opens on the right side of the Excel interface.

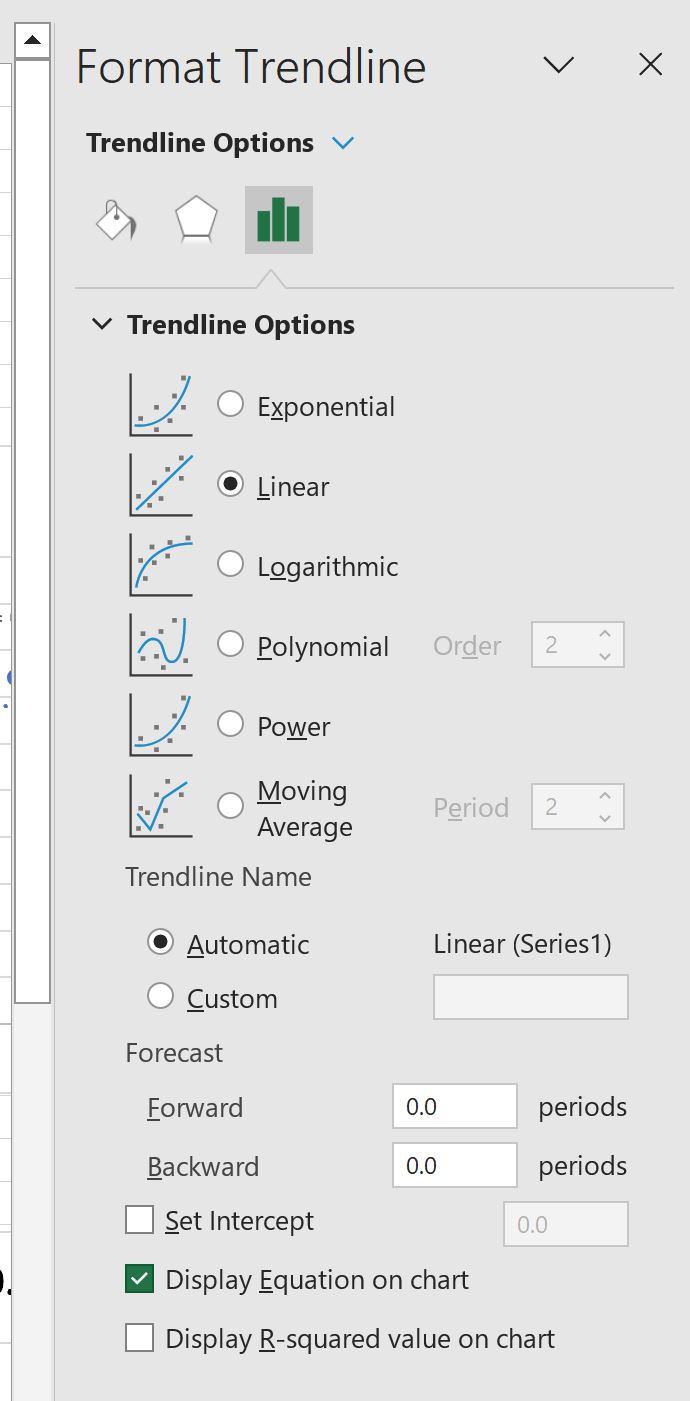

Within the Format Trendline pane, confirm that the Linear option is selected under the Trendline Options, as this aligns with the calculations performed by the INTERCEPT function. Crucially, locate and check the box labeled Display Equation on chart. This command instructs Excel to overlay the mathematical expression of the regression line directly onto the visualization, making both the slope and the y-intercept immediately accessible and verifiable.

Once these settings are applied, your scatterplot will be enhanced with a statistically optimized linear trendline, accompanied by the precise equation that models the relationship observed in your data.

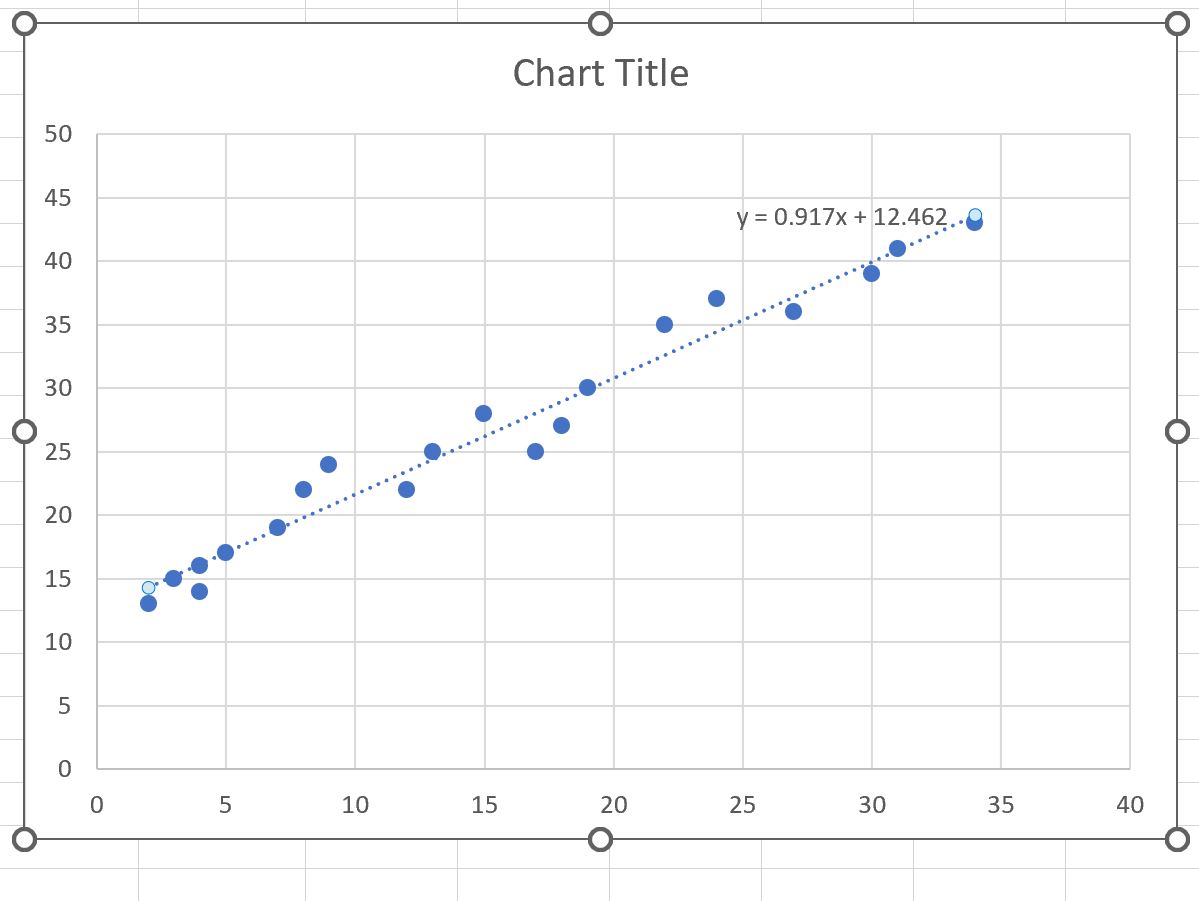

By observing the chart, the formula for the best-fit linear trendline is explicitly displayed as: y = 0.917x + 12.462. In this context, the coefficient of x (0.917) represents the slope, which quantifies the rate of change in Y relative to X. The constant term, 12.462, is the graphically confirmed y-intercept. This graphical result perfectly aligns with the numerical value (12.46176) obtained earlier using the INTERCEPT function, providing robust confirmation of the calculation. Visually extending this trendline confirms that the predicted value of Y when X is zero is indeed approximately 12.462.
