Learning to Calculate and Interpret a Covariance Matrix in SPSS

1. The Foundation: Understanding Covariance and the Covariance Matrix

In the expansive field of statistical analysis, the ability to quantify the relationship between different measures is paramount. At the core of this quantification lies the concept of Covariance, a powerful metric designed to assess the degree to which changes in one variable are linearly associated with changes in a second variable. Unlike simple correlation, covariance expresses this joint variability in the original units of the data, providing a fundamental measure of how two variables tend to move together—either increasing or decreasing simultaneously, or moving in opposite directions. This initial insight into linear association is critical for almost all subsequent multivariate statistical modeling, forming the basis for understanding complex data structures.

While covariance effectively handles the relationship between just two factors, most real-world research involves datasets comprised of numerous interacting variables. To manage, visualize, and analyze these intricate, multi-variate relationships efficiently, statisticians employ the Covariance matrix. This structure is fundamentally a square matrix that systematically maps out the descriptive statistics for every possible pair of variables within a defined dataset. The matrix not only includes the covariances between different variable pairs (the off-diagonal elements) but also contains the individual variable variances along its main diagonal. Analyzing this centralized structure allows researchers to quickly grasp the interconnectedness and dispersion characteristics of their data components, serving as the essential starting point for complex procedures like Principal Component Analysis or Factor Analysis.

This comprehensive, expert tutorial provides a detailed, step-by-step guide explaining precisely how to generate and, more importantly, how to accurately interpret a covariance matrix using SPSS (Statistical Package for the Social Sciences). SPSS remains a dominant and powerful software tool widely utilized across academic research, social sciences, and professional data analysis environments for complex statistical computing. By mastering the specific workflow in SPSS needed to extract the raw components of this matrix, users can move beyond simple correlation and gain a deeper understanding of the joint variability present in their observations.

2. Unpacking the Mathematical Foundation of Covariance

Before relying solely on the software output generated by SPSS, it is highly beneficial for the analyst to understand the mathematical definition underpinning the calculation. Covariance quantifies the joint variability of two random variables, designated here as X and Y, relative to their respective means. The formula used for calculating the descriptive covariance, assuming a dataset size of n observations, is expressed as:

COV(X, Y) = Σ(x-x̄)(y-ȳ) / n

The critical element in this equation is the numerator, which is mathematically defined as the Sum of Squares and Cross-products (SSCP). This SSCP value, represented by Σ(x-x̄)(y-ȳ), essentially captures the total raw deviation from the mean across both variables simultaneously. It is this specific raw component—the SSCP—that SPSS calculates directly when we adjust the standard correlation output settings. Once this total sum of joint deviation is calculated, we then divide it by the total number of observations, n, to normalize the result and obtain the final descriptive covariance value, representing the average joint variability.

The resulting covariance value offers key insights into the relationship’s direction. A result that is positive indicates a positive linear relationship, meaning that as variable X increases in value, variable Y tends to increase as well. Conversely, a negative covariance suggests an inverse relationship, where an increase in X is typically associated with a decrease in Y. A value close to zero suggests a very weak or non-existent linear relationship. However, it is fundamentally important to recognize a key limitation: the magnitude of covariance is directly affected by the scale and units of measurement of the variables, making it unsuitable for directly comparing the strength of relationships across different datasets or differently scaled variables.

3. Practical Application Setup: Preparing Example Data in SPSS

To provide a clear, practical demonstration of the covariance generation process, we will utilize a small, hypothetical dataset. This example tracks the test scores of 10 individual students across three distinct academic subjects: Math, Science, and History. Our core research objective is highly practical: to accurately determine the interconnectedness of performance across these subjects—specifically, whether high achievement in one area is statistically associated with high or low achievement in another. Such an analysis is crucial in educational research for identifying complementary or competing skill sets.

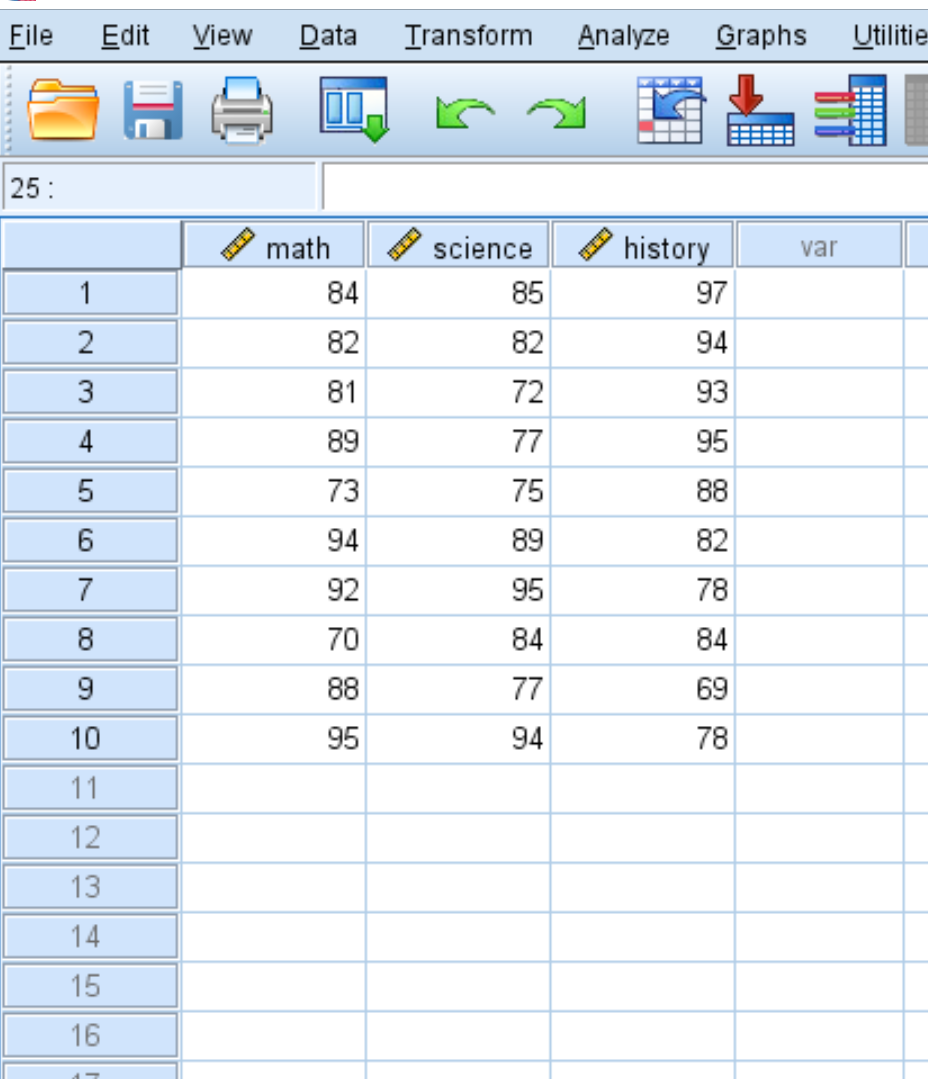

The initial and critical requirement for any statistical procedure in SPSS is the correct organization of the data structure. Within the SPSS Data View, each academic subject (Math, Science, History) must be defined as a separate variable and thus occupy a distinct column. Correspondingly, the complete set of scores for each student must occupy a single, continuous row. The correct layout, essential for triggering the multivariate analysis, is visually represented below, illustrating the 10 observations (N=10) across the three variables:

Once the data entry is verified for accuracy and the variables are appropriately defined and labeled in the Variable View, we are prepared to proceed to the analysis phase. A common point of confusion for new users is that calculating the covariance matrix in SPSS does not involve the standard Descriptive Statistics menu. Instead, it necessitates accessing the correlation routine and making a specific, necessary modification to the output options, a process we will detail in the following section.

4. Executing the Analysis: Generating Covariance Output in SPSS

Generating the covariance components in SPSS requires a non-standard approach, utilizing the Bivariate Correlation procedure, which includes the necessary hidden option to output the raw Sum of Squares and Cross-products (SSCP) values. Follow these specific, precise steps to successfully initiate the procedure and generate the required statistical output:

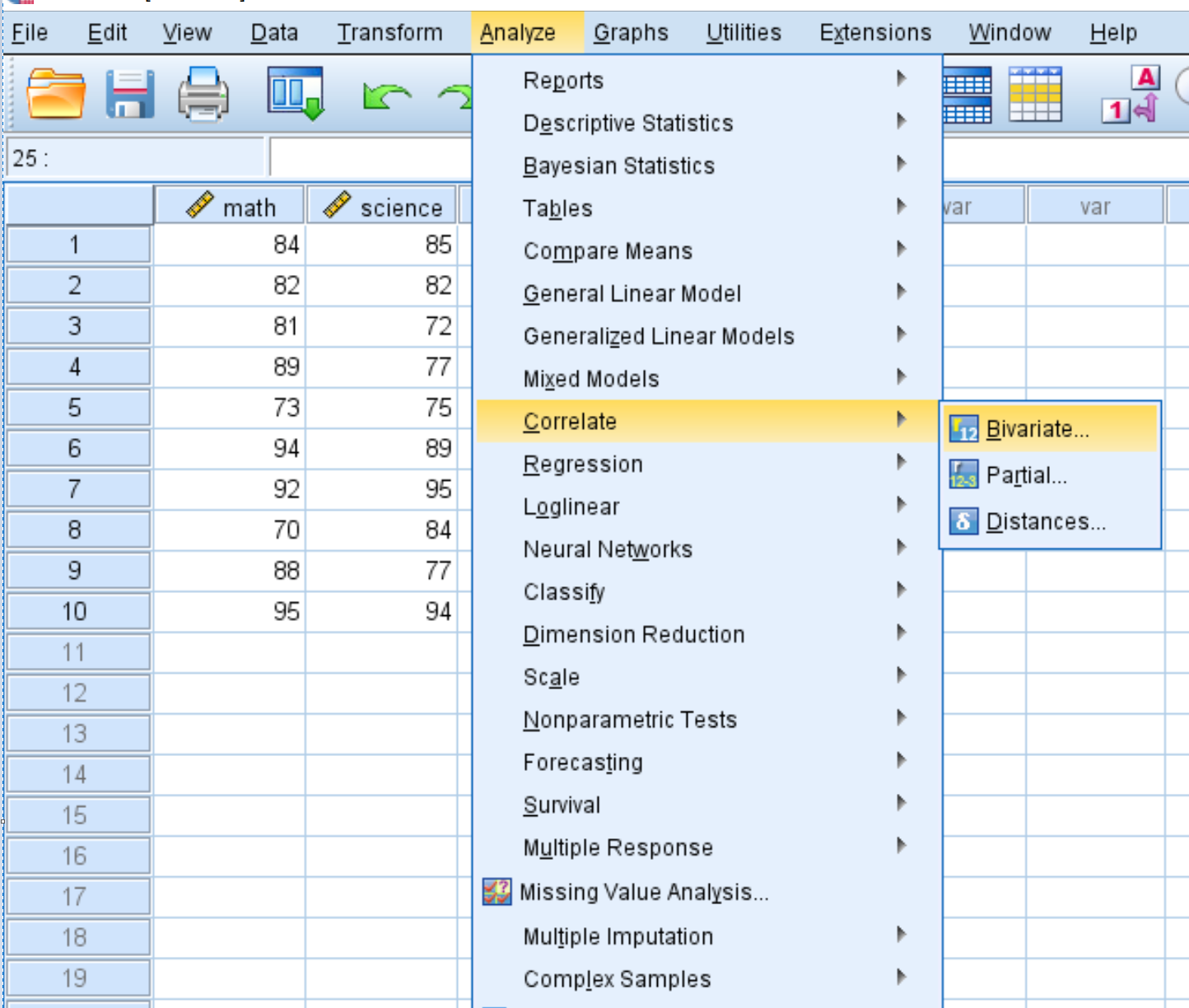

1. Navigate to the main menu bar located at the top of the SPSS application window and click the Analyze tab.
2. Hover your cursor over the Correlate option within the dropdown menu that appears.
3. Select Bivariate. This action opens the primary dialog box typically used for calculating Pearson correlation coefficients.

This menu sequence opens the core statistical procedure we need. While its default purpose is correlation, the Bivariate routine is versatile enough for our goal by allowing us to adjust the specific calculation parameters, moving from standardized correlation coefficients to raw measures of joint variability. The visualization below confirms the necessary path through the menus:

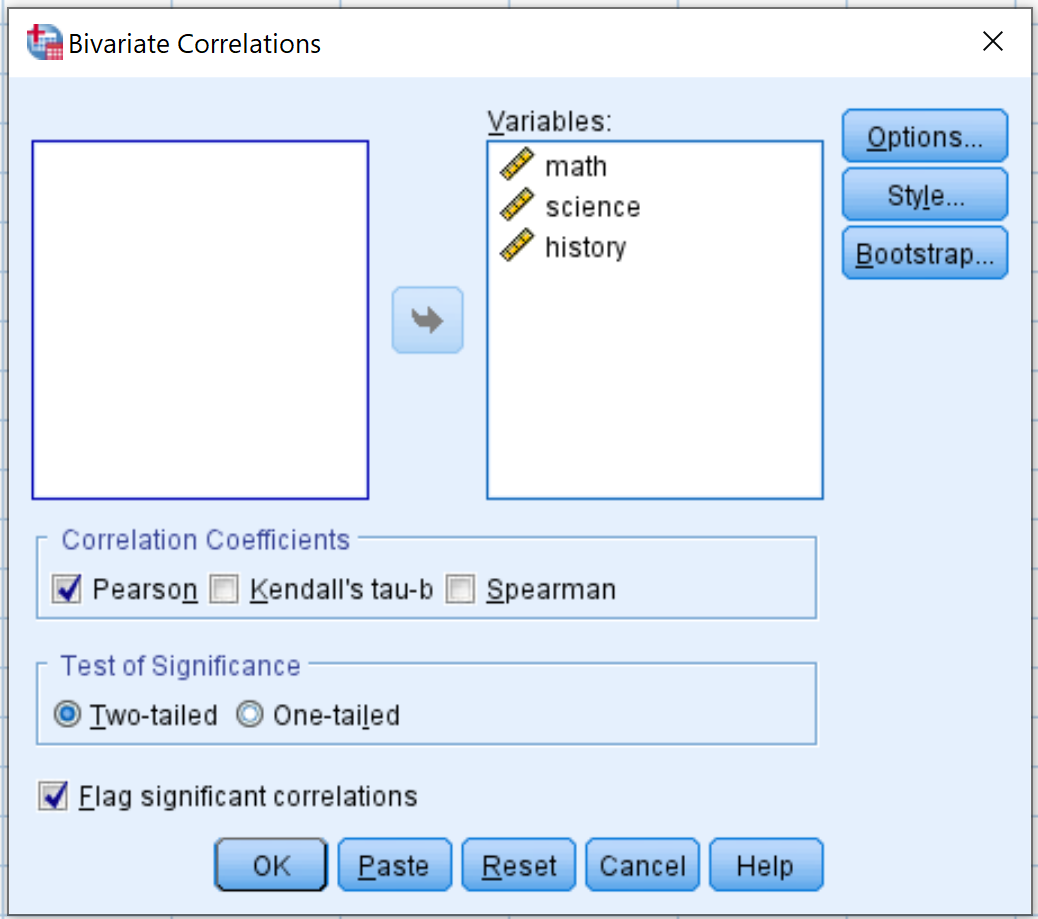

Within the newly opened Bivariate Correlations dialog window, the next step involves clearly specifying all the variables that must be included in the matrix calculation. You must drag each of the three subject variables—Math, Science, and History—from the list on the left side and transfer them into the box labeled Variables on the right. It is essential to ensure that every variable intended for the final covariance matrix is selected, as the output matrix will be constructed based on all possible pairwise combinations of the variables currently listed in that box. Failure to include a variable here means it will be omitted from the joint variability analysis.

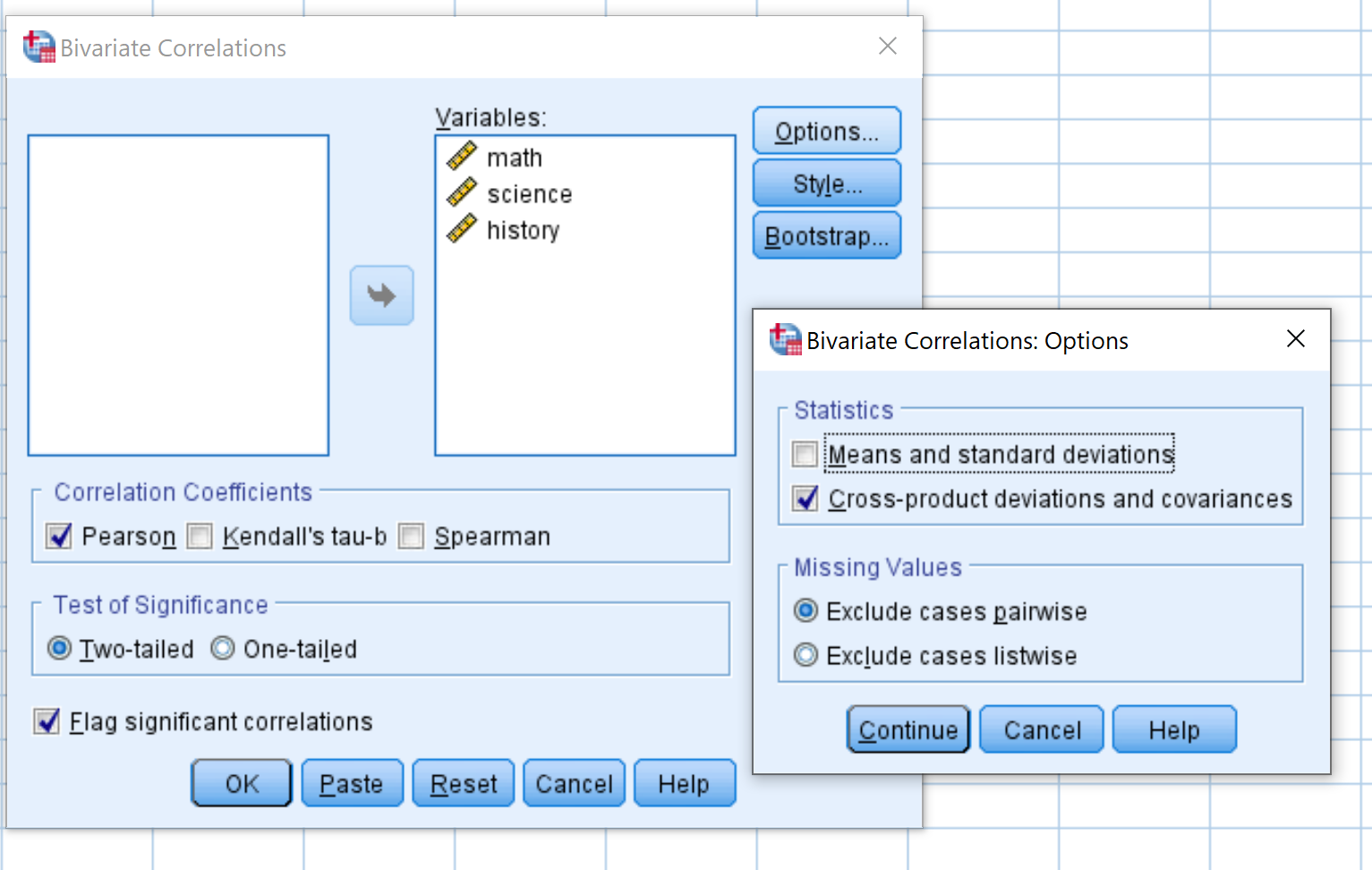

The final, most crucial modification required to obtain the covariance values involves accessing the output settings. Click the Options button, conveniently located on the right side of the Bivariate Correlations window. A secondary dialog box, titled “Bivariate Correlations: Options,” will immediately appear. Within this box, you must locate the Statistics section and check the option next to Cross-product deviations and covariances. This specific selection is the key instruction to SPSS, compelling it to calculate and display the raw Sum of Squares and Cross-products (SSCP), which, as established, constitutes the numerator of the covariance formula. After carefully checking this box, click Continue to apply the setting, and finally click OK in the main dialog window to execute the statistical analysis and generate the output table.

5. Decoding the SPSS Output and Constructing the Covariance Matrix

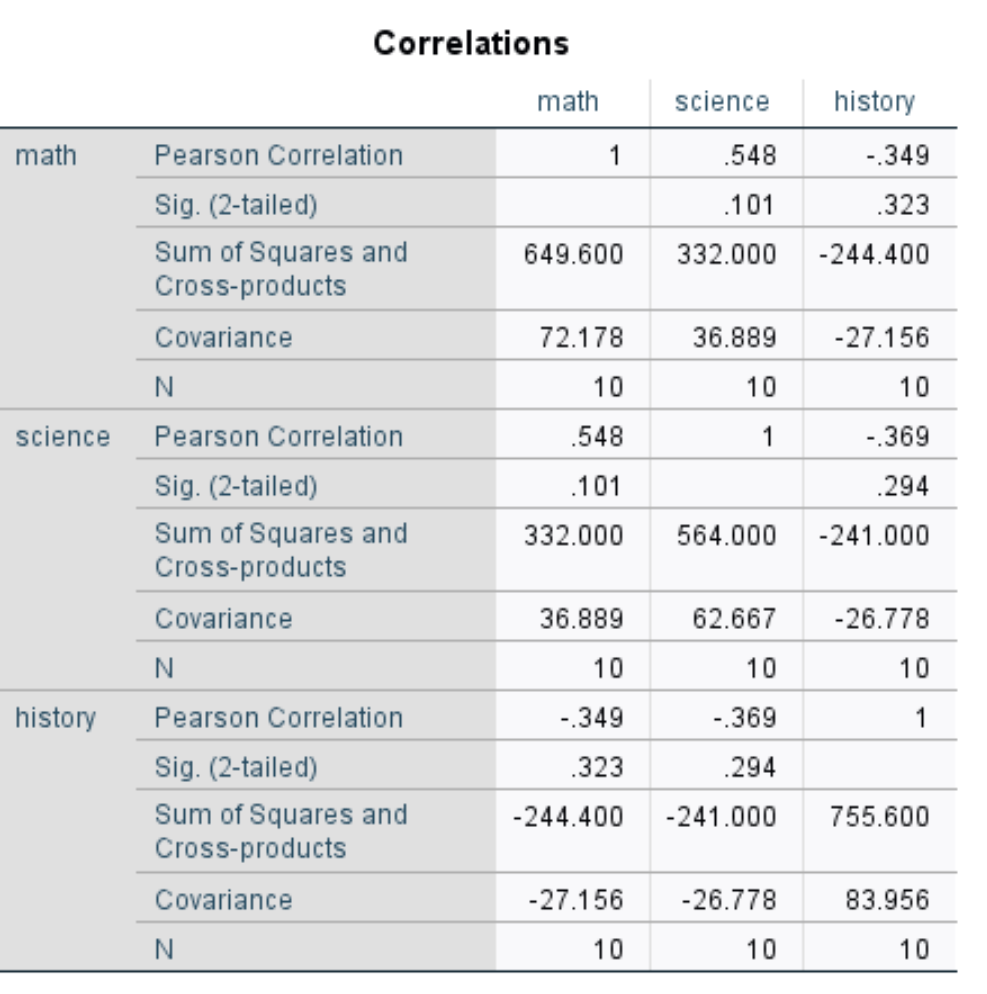

Upon successfully running the procedure, the SPSS output window will display a generated table titled “Cross-product deviations and covariances.” This table systematically lists the Sum of Squares and Cross-products (SSCP) for every pairwise combination of the selected variables, along with the total number of observations (N=10) used in the analysis. This raw output provides all the necessary components required for the analyst to manually construct the final covariance matrix.

As we established in the mathematical review, converting the raw SSCP values into descriptive covariance (COV) requires one final step: dividing the corresponding SSCP value by the sample size, N. In this specific example, N equals 10. This manual division step effectively converts the total raw sum of deviations into the average joint deviation, yielding the true covariance figure. Let us perform this calculation for the off-diagonal elements, which represent the joint variability between subjects:

• For Math and Science: The reported SSCP is 332.000.

  COV(Math, Science) = 332.000 / 10 = 33.2.

• For Math and History: The reported SSCP is -244.400.

  COV(Math, History) = -244.400 / 10 = -24.44.

• For Science and History: The reported SSCP is -241.000.

  COV(Science, History) = -241.000 / 10 = -24.1.

Furthermore, we must address the diagonal elements, which are equally important. The values located along the main diagonal of the SSCP table represent the Sum of Squares (SS) for each individual variable. Dividing this value by N yields the descriptive variance (VAR) for that subject, quantifying the spread of scores around the mean:

• For Math: The SS is 649.600.

  VAR(Math) = 649.600 / 10 = 64.96.

• For Science: The SS is 564.000.

  VAR(Science) = 564.000 / 10 = 56.4.

• For History: The SS is 755.600.

  VAR(History) = 755.600 / 10 = 75.56.

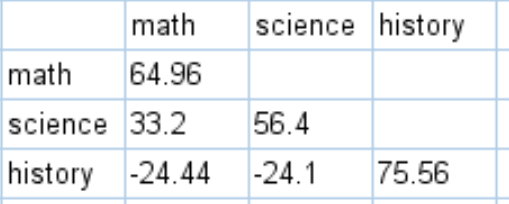

By compiling these calculated values, we finalize the structure. The resulting matrix below represents the complete descriptive covariance matrix for the student score dataset, ready for expert interpretation.

6. Interpreting the Key Insights from the Covariance Matrix

The completed covariance matrix is a symmetrical square arrangement, providing a consolidated view where rows and columns correspond to the analyzed variables. Interpreting this structure requires focusing on two distinct types of values: the diagonal elements, which represent the individual variable spread, and the off-diagonal elements, which quantify the joint linear relationship between pairs.

The values resting along the main diagonal of the matrix are the descriptive variance figures for each respective subject. This statistic is crucial as it quantifies the average squared deviation of scores from the mean for a single subject, serving as a robust measure of the data’s dispersion or spread. A higher variance indicates a greater heterogeneity of scores among the students in that subject, suggesting a wider range between the highest and lowest performers. Based on our calculations:

• The variance of the Math scores is 64.96.
• The variance of the Science scores is 56.4.
• The variance of the History scores is 75.56.

The remaining off-diagonal values represent the covariance between pairs of subjects. These figures are the primary indicators of the linear association between the two variables, detailing both the direction (positive or negative) and the degree of that relationship. Because the matrix is inherently symmetric, the covariance of Math and Science (33.2) is mathematically identical to the covariance of Science and Math, reflecting the non-directional nature of the relationship measure. The key pairwise relationships observed in our matrix are:

• The covariance between the Math and Science scores is 33.2.
• The covariance between the Math and History scores is -24.44.
• The covariance between the Science and History scores is -24.1.

These calculated figures enable powerful, actionable conclusions regarding student performance patterns. For instance, the highly positive covariance observed between Math and Science (33.2) suggests a robust, directly proportional relationship; students who achieve high scores in Math generally tend to perform equally well in Science. Conversely, the significant negative covariance observed between Science and History (-24.1) indicates a strong inverse relationship. This pattern suggests that students who achieve high scores in Science may concurrently achieve lower scores in History, potentially indicating competitive demands on study time, differing cognitive skill requirements, or a common preference among the student population for one subject type over the other. Interpreting these signs correctly is vital for targeted intervention or curriculum design.

7. Conclusion: The Importance of Covariance in Multivariate Analysis

The covariance matrix stands as an indispensable tool within the domain of multivariate statistics, offering analysts a comprehensive and consolidated view of the joint variability and data dispersion across multiple measures. By systematically navigating the Bivariate Correlation routine in SPSS and specifically utilizing the Sum of Squares and Cross-products output, researchers can accurately construct and interpret this matrix, gaining immediate clarity on the linear relationships inherent in their dataset.

Mastery of covariance analysis is not merely an end in itself; rather, it is crucial because it establishes the foundational understanding necessary for executing and interpreting far more complex statistical methods. These advanced techniques rely heavily on the concepts quantified in the matrix, including sophisticated procedures such as multivariate regression, Principal Component Analysis (PCA), and Factor Analysis (FA). Understanding how variables co-vary allows researchers to select appropriate models and properly interpret the outputs derived from these powerful statistical frameworks.
