Learning MANOVA: A Step-by-Step Guide Using SPSS

The Analysis of Variance (ANOVA) stands as a foundational technique within inferential statistics, specifically designed to test the null hypothesis that the means of two or more independent groups are equal. At its core, ANOVA assesses whether a categorical explanatory variable causes statistically distinct outcomes in a single continuous response variable. This procedure is critical for researchers comparing the effects of different treatments, conditions, or demographic factors.

To illustrate, imagine a study focused on determining if specific levels of higher education—say, Associate’s, Bachelor’s, and Master’s degrees—lead to significant variation in reported annual earnings. In this classical one-way ANOVA framework, the analysis is limited to evaluating the impact on that singular outcome.

• Explanatory Variable (Factor): The subject’s level of education (a categorical factor with three levels).
• Response Variable (Outcome): The measured annual income (a continuous metric).

Introducing the Multivariate Analysis of Variance (MANOVA)

While highly effective, standard ANOVA possesses a significant limitation: it can only handle one dependent variable at a time. Research in the social sciences, business, and medicine often involves complex relationships where a single factor influences multiple correlated outcomes simultaneously. When researchers need to analyze the simultaneous effect of a categorical factor on two or more continuous response variables, the appropriate statistical methodology is the Multivariate Analysis of Variance (MANOVA).

MANOVA is a powerful extension that enhances the statistical rigor of the analysis. By testing the effect on the combined set of dependent variables, MANOVA effectively controls the overall Type I error rate (the risk of false positives) that would be severely inflated if multiple independent ANOVA tests were performed on correlated outcomes. This control is essential for maintaining the integrity of multivariate research findings.

Expanding on our educational attainment example, suppose we broaden the research objective to investigate whether the level of education influences not only annual income but also the total amount of student loan debt accumulated. The factor remains the same, but we now have a set of two distinct, potentially correlated, dependent variables that must be analyzed holistically:

• Explanatory variable: Level of education.
• Response variables: Annual income and total student loan debt.

Because this study involves one categorical independent variable and multiple continuous dependent variables, the MANOVA becomes the required and most statistically rigorous method. The remainder of this guide provides a detailed, step-by-step tutorial on how to execute and interpret a MANOVA using the IBM SPSS Statistics software package.

Setting Up the Sample Data in SPSS

To clearly illustrate the procedure for running a MANOVA, we will utilize a simulated dataset containing information for 24 distinct individuals. Successful execution of the analysis in SPSS requires careful definition of the variables in the Variable View, ensuring that their types (Nominal, Ordinal, Scale) accurately reflect their role in the statistical model.

The dataset is structured with three primary variables necessary for our analysis:

• educ: This is the Fixed Factor (independent variable) representing educational level. It is coded numerically: 0 = Associate’s degree, 1 = Bachelor’s degree, 2 = Master’s degree. Crucially, this variable must be set as categorical (Nominal or Ordinal) in SPSS.
• income: The first continuous response variable, representing annual income measured in monetary units. This should be defined as a Scale variable.
• debt: The second continuous response variable, representing total student loan debt in monetary units, also defined as a Scale variable.

The figure below illustrates the structure of the data as it should appear in the SPSS Data View, clearly showing the contrast between the coded categorical factor and the two continuous outcomes, ready for immediate statistical processing.

Step 1: Executing the MANOVA Procedure in SPSS

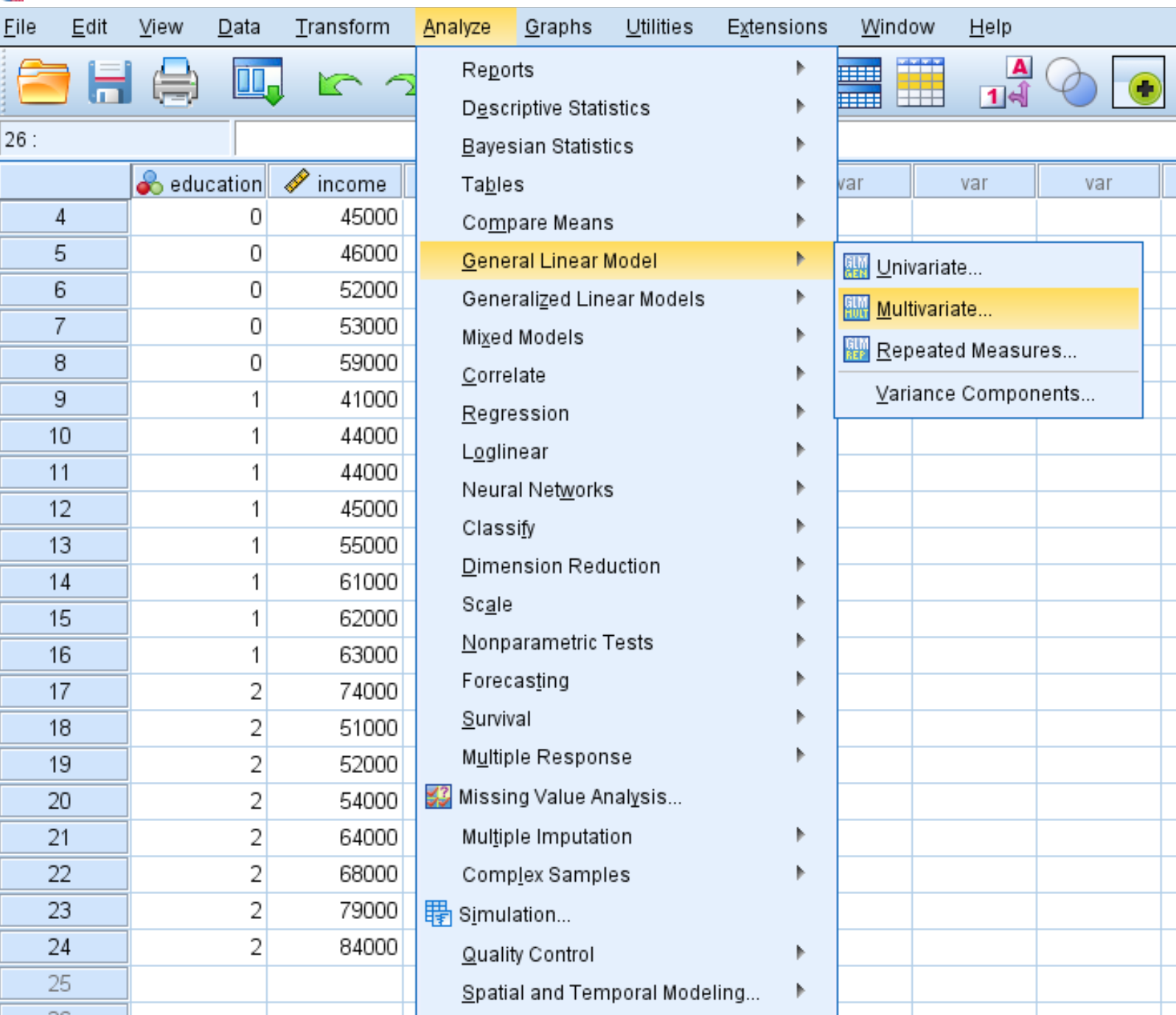

The MANOVA procedure in SPSS is housed within the General Linear Model (GLM) module, which is designed to handle linear models involving combinations of categorical and continuous predictors. Follow these precise navigation steps to initiate the analysis:

1. Access the menu bar and click the Analyze tab.
2. Hover the cursor over General Linear Model.
3. Select the Multivariate option.

This sequence opens the core Multivariate dialogue box, which requires the correct specification and assignment of both the dependent variables and the independent factors.

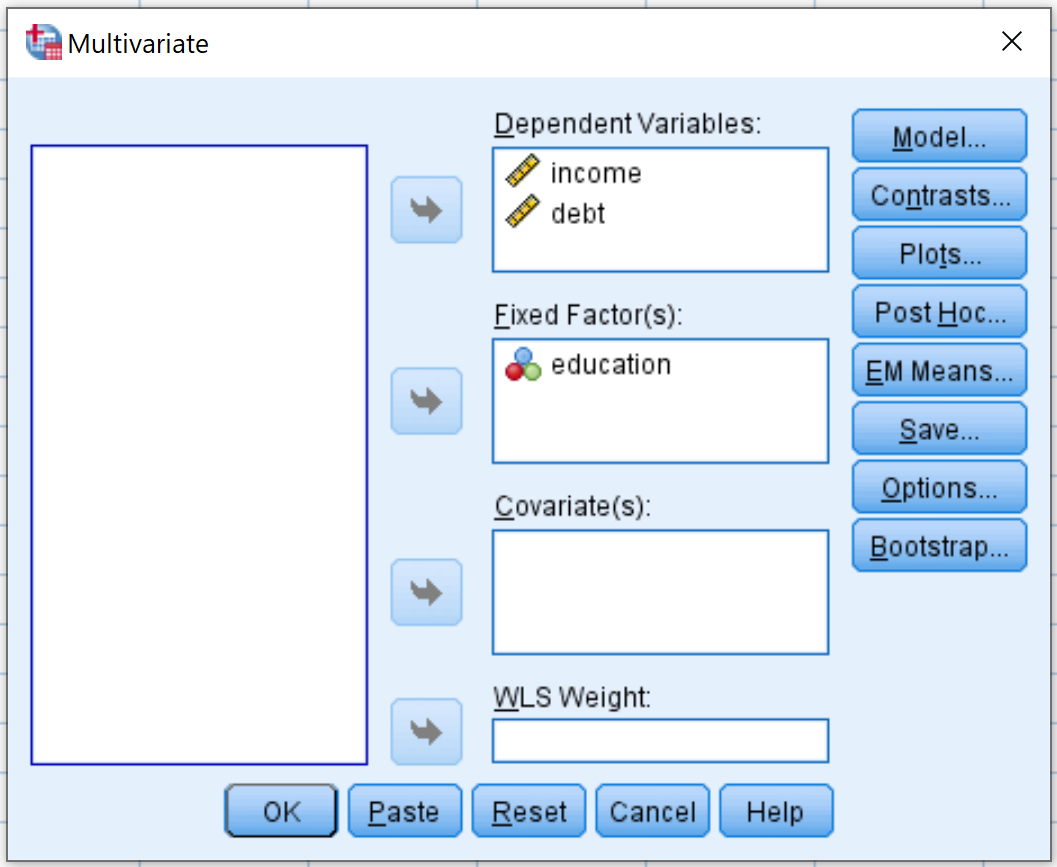

Within the Multivariate window, you must assign the variables to their appropriate roles. Drag the two continuous outcome variables, income and debt, into the box labelled Dependent Variables. Subsequently, drag the categorical predictor variable, education, into the box designated as Fixed Factors. The interface must reflect this configuration before moving on to defining the necessary output parameters.

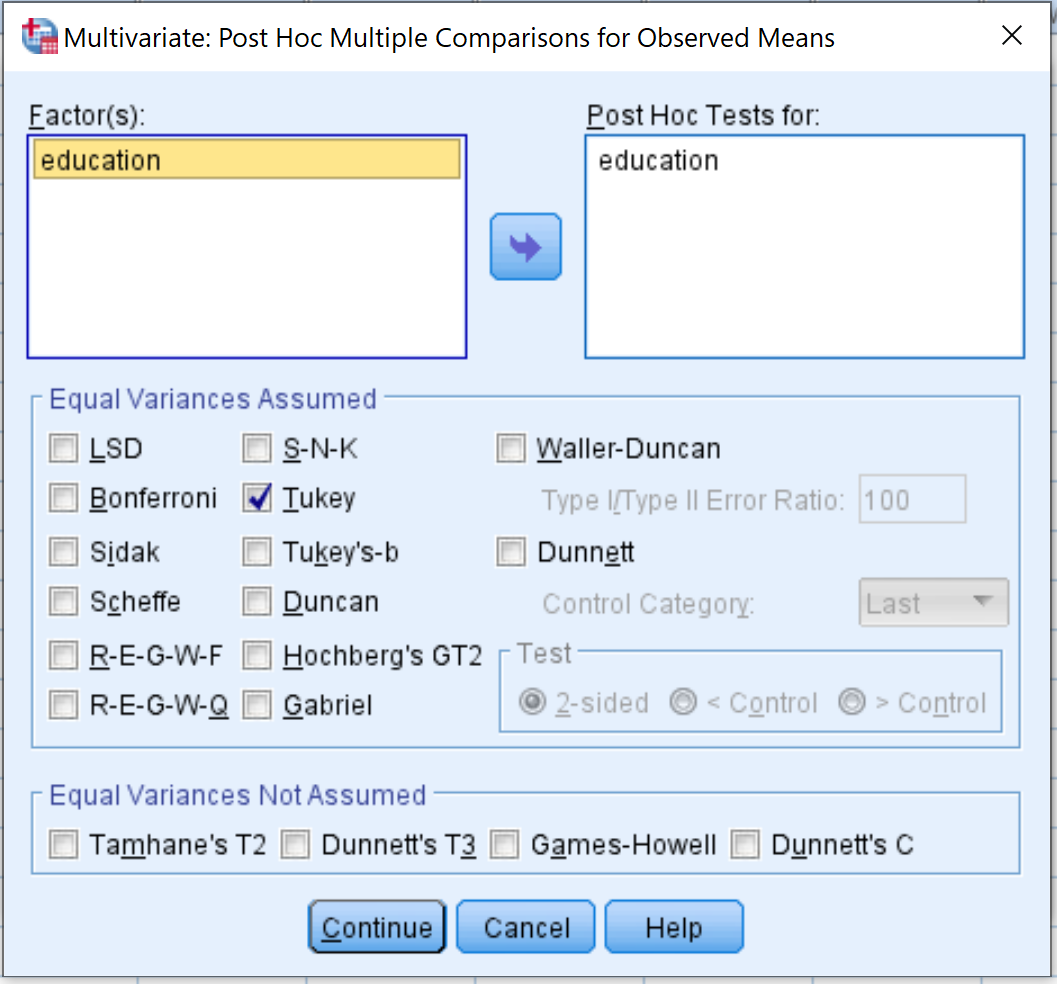

Before running the analysis, it is essential to configure additional options that aid in the comprehensive interpretation of results. Click the Options button to request crucial output such as Descriptive Statistics, Estimates of Effect Size, and Homogeneity Tests. More critically, click the Post Hoc button. Move the factor (education) to the Post Hoc Tests for box, and then select the Tukey test from the list of comparison methods. Requesting the Tukey HSD (Honestly Significant Difference) ensures that pairwise comparisons are generated, which are necessary if the overall multivariate test yields a significant result.

After defining all parameters and selecting the desired options, click Continue in the sub-dialogue boxes and then click OK in the main Multivariate window. SPSS will then generate the extensive output required for step-by-step interpretation.

Step 2: Interpreting the Overall Multivariate Test Results

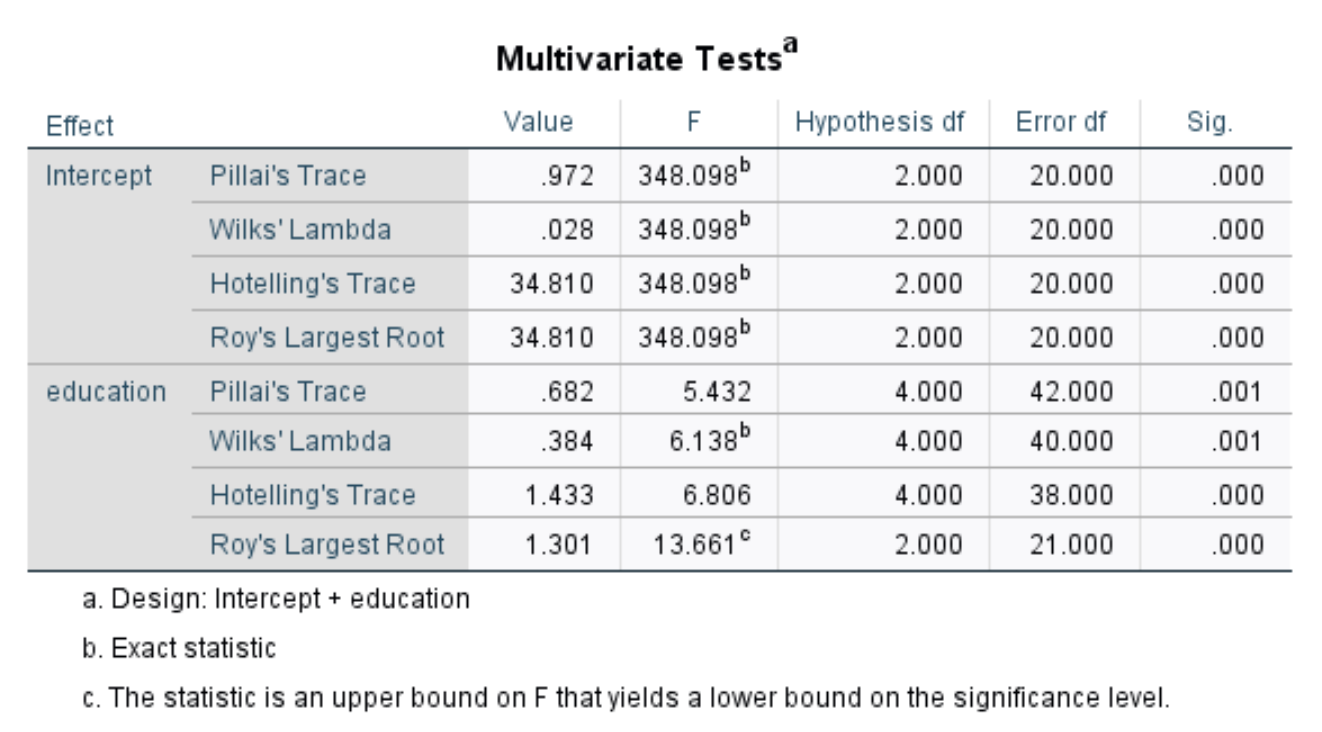

The initial and most fundamental output generated by MANOVA is the Multivariate Tests table. This table directly addresses the primary research hypothesis: Does the factor variable (level of education) have a statistically significant effect on the centroid of the dependent variables (the combined set of income and debt)? If this overall test is non-significant, researchers typically stop here, as there is no evidence of a multivariate effect.

The table presents various multivariate test statistics, including Pillai’s Trace, Hotelling’s Trace, Roy’s Largest Root, and Wilks’ Lambda. While all these statistics often lead to the same conclusion, Wilks’ Lambda is the most widely accepted and conventionally reported statistic, particularly when the underlying assumptions of MANOVA are reasonably met. We focus our interpretation on the row corresponding to the factor variable (education) and the Wilks’ Lambda metric.

In our simulated data, the Wilks’ Lambda value is associated with an overall F statistic of 6.138. The critical element for hypothesis testing is the corresponding significance value, or p-value, which is reported as .001. Since this p-value is substantially lower than the conventional alpha level of .05, we must reject the null hypothesis of no difference. We conclude that the level of education does, in fact, exert a statistically significant influence on the combined response variables of annual income and total student debt. This significant multivariate finding provides the justification for proceeding to examine the individual effects on each dependent variable.

Step 3: Analyzing Individual Response Variables (Tests of Between-Subjects Effects)

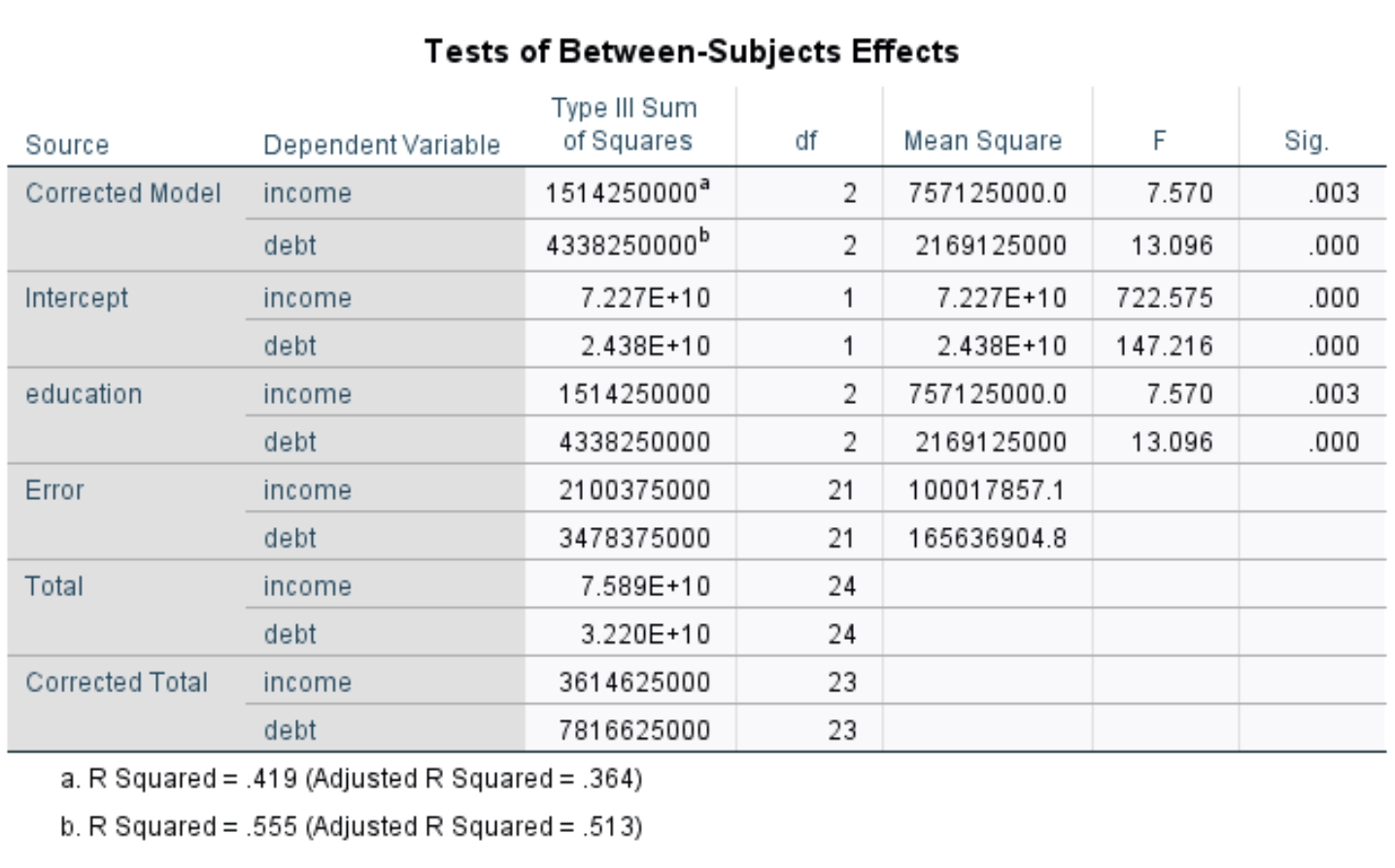

Once the overall MANOVA confirms a significant difference across the educational groups, the next logical step is to examine the Tests of Between-Subjects Effects table. This section effectively partitions the multivariate effect, presenting the results of individual ANOVA tests for each dependent variable (income and debt), allowing us to ascertain precisely which outcomes contribute to the overall group separation.

This table isolates the individual F statistics and p-values for the effect of the education factor on income and debt separately. We assess each response variable against the standard alpha level of .05 to determine its unique, significant contribution to the overall effect detected in the previous step.

A careful review of the output reveals the following specific results:

• For the response variable income, the corresponding p-value is .003.
• For the response variable debt, the corresponding p-value is .000 (which indicates a value less than .001).

Since both of these individual p-values are below the .05 threshold, we conclude that the level of education has a statistically significant effect on both annual income and total student debt. This detailed examination confirms that the group differences identified by the MANOVA are attributable to meaningful variation in the means of both dependent measures, necessitating further investigation into specific pairwise differences.

Step 4: Utilizing Post Hoc Tests for Specific Group Differences

The significant results from the overall MANOVA and the subsequent individual ANOVA tests confirm that differences exist somewhere among the three educational groups. However, these tests do not specify precisely which pairs of groups are significantly different from one another (e.g., is Associate’s different from Bachelor’s, or Bachelor’s from Master’s?). To answer these critical questions, we must utilize Post Hoc Tests. Since we pre-selected the Tukey HSD test in Step 1, SPSS generates the required output. The Tukey method is highly recommended as it rigorously controls the family-wise error rate across multiple pairwise comparisons, thus maintaining statistical accuracy.

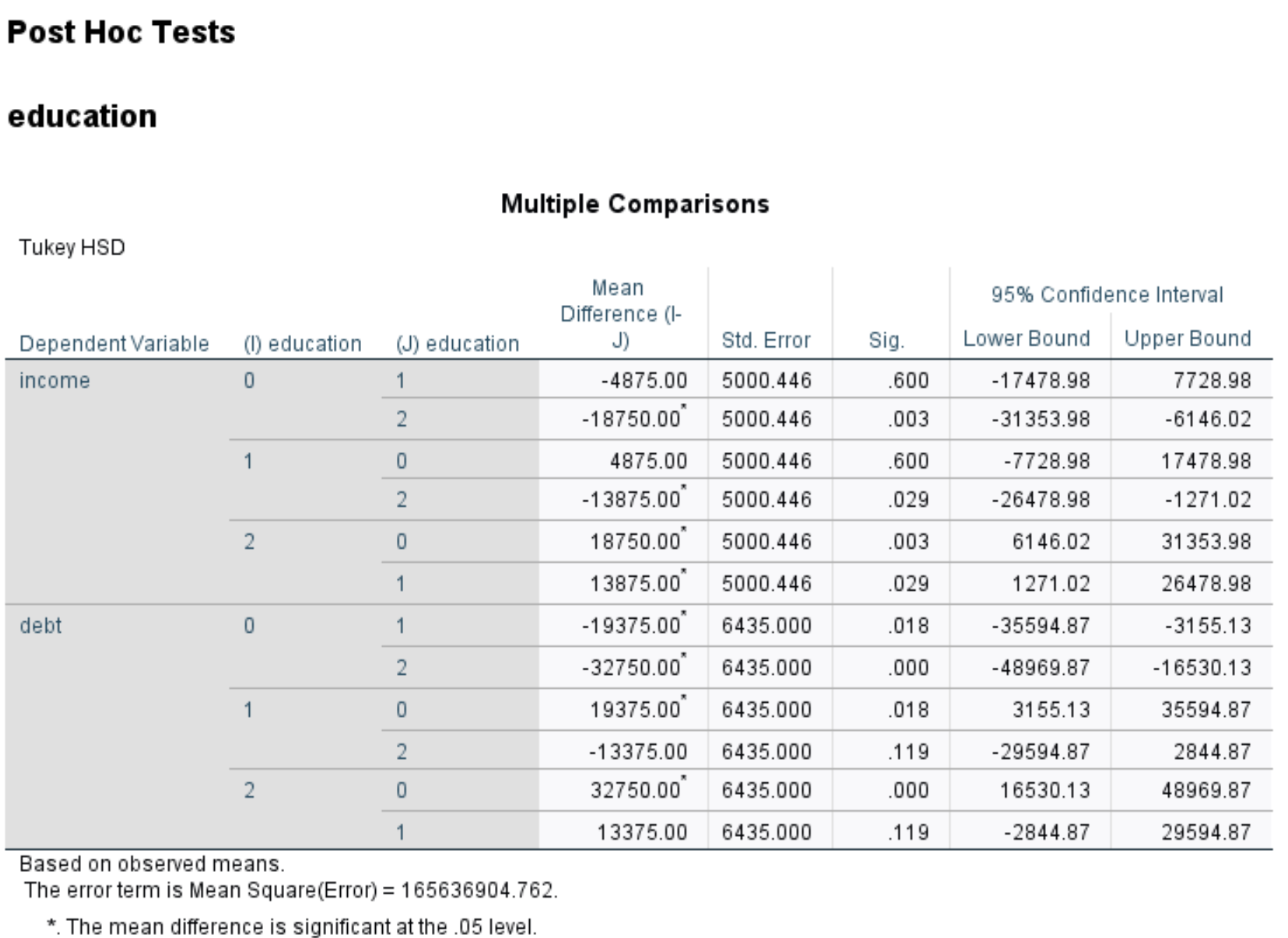

The Post Hoc Tests table displays the results of the Tukey comparisons for each level of education on each dependent variable. We focus specifically on the comparisons for annual income below, examining the Mean Difference column alongside its associated significance values to identify significant pairs.

By carefully analyzing the significance column of the Tukey table, we can delineate the specific differences in annual income based on educational attainment:

• The difference in income between individuals with an Associate’s degree (coded 0) and those with a Bachelor’s degree (coded 1) is statistically significant, indicated by a p-value of .018.
• The income difference between those holding an Associate’s degree (coded 0) and those with a Master’s degree (coded 2) is highly significant, evidenced by a p-value of .000.
• The comparison between the Bachelor’s degree group (coded 1) and the Master’s degree group (coded 2) also reveals a statistically significant difference in income, with a p-value of .029.

These Post Hoc Tests conclusively confirm that all three educational groups are significantly distinct from one another regarding annual income. A similar, systematic interpretation would be applied to the corresponding output section pertaining to total student loan debt to comprehensively determine the specific pairwise differences for that second dependent variable. The structured application of MANOVA provides a controlled and comprehensive analysis of multivariate group differences, essential for robust quantitative research.

Further Reading: For a deeper understanding of the necessary assumptions underpinning MANOVA (such as multivariate normality, homogeneity of variance-covariance matrices, and linearity), consult authoritative statistical textbooks or advanced resources specializing in multivariate statistical methods.
