How to Create a Cumulative Line Chart in Power BI: A Step-by-Step Tutorial

Analyzing time-series data is fundamental to modern business intelligence, but understanding true performance requires looking beyond daily fluctuations. A highly effective and insightful method for tracking long-term progress is visualizing cumulative values over a defined period. This technique allows analysts and stakeholders to see the running total of a critical metric, such as revenue, sales volume, or expenses, providing an immediate and clear representation of overall growth momentum.

Within the world of business intelligence, particularly when utilizing Power BI, the ability to generate a line chart that accurately displays these running totals is vital for robust financial reporting and operational monitoring. This comprehensive tutorial provides a precise, step-by-step guide on how to implement the necessary Data Analysis Expressions (DAX) formula and configure the visual elements. By following these instructions, you will produce a clean, accurate, and insightful cumulative line chart, mirroring the professional output shown below:

We will lead you through the crucial process of defining a new calculated column and subsequently setting up the visualization within the Power BI Report View, ensuring you gain proficiency in this essential DAX technique for context modification.

The Essential Role of Cumulative Data Visualization

A standard line chart in Power BI typically plots discrete data points, showing the specific value recorded for each period—for example, the sales recorded on a particular day. While this view is useful for observing immediate daily variations and outliers, it often fails to clearly illustrate the long-term progress and overall momentum toward organizational goals. This limitation is precisely why cumulative charts are necessary, as they shift the analytical focus from isolated period performance to the aggregate, overarching trend.

The calculation necessary to derive a cumulative sum requires sophisticated context modification, a capability handled by the powerful functional language of DAX. To ensure the running total is calculated correctly, the formula must effectively manipulate the data filters to include all preceding dates in the dataset up to the current evaluation point. This meticulous process guarantees that the resulting line chart accurately reflects the true growth trajectory of the measured variable, which is absolutely critical for reliable forecasting, performance comparison, and milestone tracking.

Crucially, before proceeding to the visualization layer, the foundation must be set by adding a new column to the underlying data table. This new calculated column will dynamically hold the running total values, calculated based on the chronological sequence of the date and the corresponding sales figures. Without this pre-calculated cumulative metric, Power BI’s standard line visual would only display the raw, non-cumulative sales values over time, rendering the intended trend analysis impossible.

Preparing the Data Model for Analysis

To follow this tutorial effectively, we assume the existence of a core data table within your Power BI model, which we will refer to as my_data. This table is presumed to contain essential transactional information, specifically tracking the daily sales figures generated by a company over a certain period. For the cumulative calculation to function, the dataset must include at least two foundational columns: a date field (used for the X-axis) and a numerical field representing the sales amount (used for the summation).

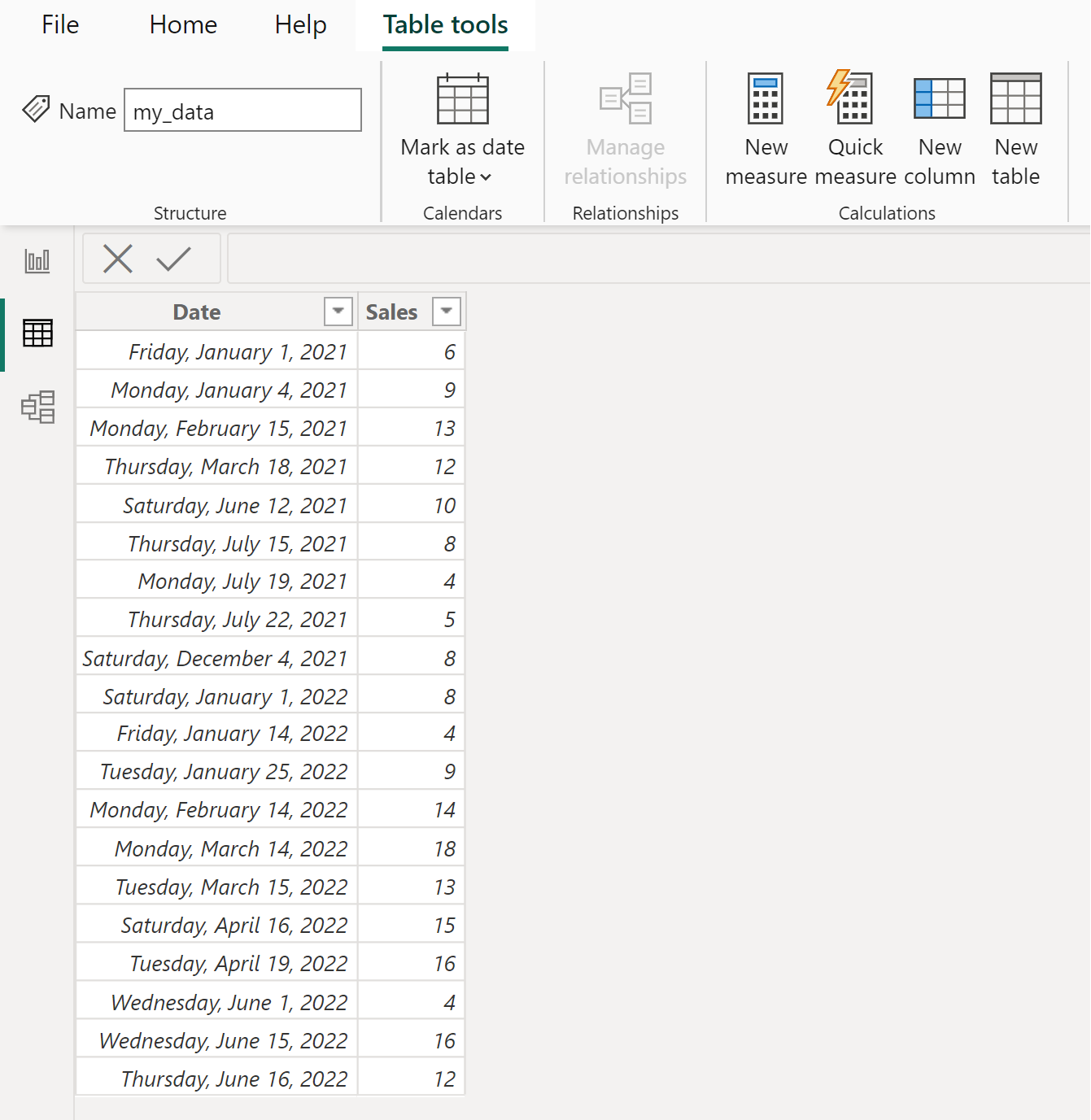

The structure of our sample data, my_data, is displayed below. This image illustrates the raw sales figures recorded chronologically. It is important to recognize that the initial Sales column only records the total sales for that specific day or period; it does not yet contain the running total, which is the metric we aim to derive:

Our primary objective is to transform this raw, discrete data into a continuous cumulative view. This transformation enables us to instantly observe the total sales accumulated up to any given point in time, providing superior insight compared to daily figures alone. Achieving this requires the creation of a calculated column that systematically iterates through the dataset, accumulating and summing all prior sales entries corresponding to the current row’s date context. This preparatory step ensures the visualization layer receives accurate, pre-processed running totals, which is the key to success.

Implementing the DAX Formula for Running Totals

To initiate the calculation process, you must first navigate to the Data View within the Power BI interface. Select the target table, my_data, and then locate the Table tools tab in the top ribbon. Within this tab, click the New column icon. This action will open the formula bar, preparing the environment for entering the Data Analysis Expressions (DAX) required to define our running total column.

Once the formula bar is visible, input the following robust DAX expression. This formula is engineered to leverage advanced context modification functions to calculate the sum of sales for all dates less than or equal to the current row’s date. It is essential that the formula be typed precisely as shown to ensure the proper functioning of the row context iteration necessary for accurate cumulative calculations:

Cumulative Sales =
CALCULATE (
    SUM ( 'my_data'[Sales] ),
    ALL ( 'my_data' ),
    'my_data'[Date] <= EARLIER ( 'my_data'[Date] )
)

Upon execution, this expression will instantaneously populate a new column titled Cumulative Sales within your my_data table. This column now holds the accurate running total of sales. Observe how each sequential row reflects the sum of its corresponding daily sale plus the entire previous cumulative total. This newly engineered column represents the definitive metric that will be assigned to the Y-axis value for our visualization, providing the necessary continuity for the line chart.

Deconstructing the Advanced DAX Syntax

For any advanced Power BI developer, understanding the internal mechanism of the DAX formula is paramount. The successful calculation of a running total hinges entirely on the manipulation of the filter context, a complex yet powerful concept primarily managed by the central function: CALCULATE. This function allows DAX to override default filters and apply custom calculation logic.

The formula operates through a sequence of three critical components, each serving a specific role in achieving the cumulative summation:

1. SUM('my_data'[Sales]): This serves as the core expression, defining the desired outcome: summing the values found in the Sales column. However, this summation is not performed across the entire table unconditionally; rather, it is strictly controlled by the subsequent filter arguments placed within the CALCULATE function.
2. ALL('my_data'): This function is absolutely fundamental for creating a cumulative sum. By utilizing ALL, we explicitly remove any existing filters that might restrict the calculation scope on the my_data table, particularly those originating from the current row context. This removal ensures that the subsequent summation can “look back” across the entire table, rather than being confined only to the current row’s date.
3. 'my_data'[Date] <= EARLIER('my_data'[Date]): This conditional statement is the critical filter that defines the running total logic. It introduces a new filter context that effectively overrides the broad scope set by ALL. This expression compares every date in the table against the current row’s date context. The EARLIER function is key here; it retrieves the value of the Date column in the outer row context (the row currently being calculated), thereby limiting the sum to include only those rows where the date is less than or equal to the date of the row currently being evaluated.

In summary, this potent DAX construction instructs Power BI to calculate the sum of all sales across the entire dataset, but only for those records whose date occurred on or before the date of the row currently under calculation. This powerful combination of filter context manipulation and iterative comparison is the industry standard pattern for generating precise and reliable cumulative metrics in Power BI.

Constructing the Final Line Chart Visualization

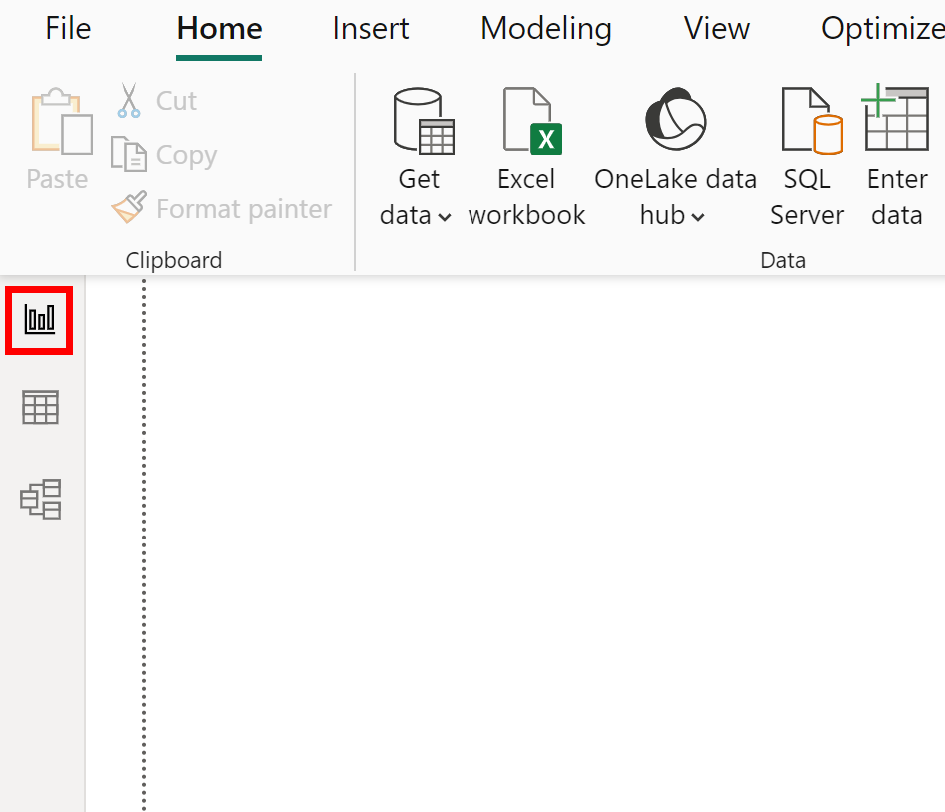

With the required Cumulative Sales column successfully created and validated in the Data View, the final stage involves transitioning to the visualization process. Click the Report View icon, typically situated on the left-hand navigation pane of the Power BI interface. This view is the environment where you design and assemble your visual reports and dashboards.

Navigate to the Visualization pane and select the Line Chart visual icon. This action will place an empty chart canvas onto your report page, ready for field assignment. The line chart is inherently the most appropriate choice for displaying cumulative data due to its continuous nature, which perfectly illustrates sustained change and accumulated growth over a defined timeline.

Once the empty visual is inserted, the next critical step is populating its fields with the correct variables from your dataset. This involves careful and precise mapping of the chronological date variable to the X-axis and the newly calculated cumulative metric to the Y-axis. The relationship established between these two axes is what defines and renders the cumulative trend accurately.

Drag the Date variable from the Fields pane and place it onto the X-axis label of the Line Chart visual. Subsequently, drag the Cumulative Sales variable and place it onto the Y-axis label. Power BI will instantly render the visualization, accurately displaying the running total as a continuously ascending line across the timeline specified by the date field. This visual transformation is immediate and highly impactful.

The resulting visual provides an extremely informative representation of the company’s financial accumulation and growth over time. The X-axis clearly progresses through time, while the Y-axis tracks the constantly increasing metric of cumulative sales. This chart is indispensable for quickly assessing performance velocity, identifying key sales milestones, and communicating overall success to stakeholders.

Next Steps and Advanced Time Intelligence

Mastering cumulative calculations is far more than an isolated skill; it is a fundamental milestone toward achieving proficiency in Power BI and DAX. The ability to manipulate the filter context using powerful functions like CALCULATE and EARLIER establishes a foundation that opens the door to creating significantly more sophisticated time intelligence metrics. These advanced techniques include calculations for year-over-year growth, precise moving averages, complex ranking systems, and dynamic basket analysis.

By understanding how to control context, you gain the ability to ask and answer complex business questions directly within the data model. We strongly encourage further exploration of these advanced DAX concepts to maximize the analytical power of your Power BI reports. The following resources offer deeper dives into common and complex analytical tasks, leveraging context manipulation techniques similar to those employed here:
