Power BI Tutorial: Calculating Cumulative Sums by Category Using DAX

Introduction: The Necessity of Cumulative Sums and the DAX Hurdle

Calculating running totals, often referred to as cumulative sums or running totals, is an indispensable technique in the field of business intelligence and data analysis. These calculations are fundamental for modeling time-series data, providing critical insights into sequential growth, cash flow accumulation, or progress tracking against established metrics. For instance, a finance team might need to track cumulative revenue throughout the year, or a logistics team might monitor the running total of units shipped per region. In Power BI, achieving a simple running total across a date dimension is relatively straightforward; however, the challenge escalates significantly when the requirement is to calculate a cumulative sum that must automatically reset based on a specific grouping variable, such as ‘Team,’ ‘Product Line,’ or ‘Fiscal Quarter.’

The inherent difficulty lies in how DAX (Data Analysis Expressions) processes calculations. Standard aggregation functions like SUM operate strictly within the current filter context applied by the visual elements on the report canvas (e.g., slicers, rows in a table visual). When we attempt a cumulative sum, we are asking DAX to violate the current filter context by simultaneously aggregating data from the current row and all preceding rows, while ensuring this aggregation remains constrained only to the rows belonging to the defined category. A simple measure cannot inherently handle this requirement because it lacks the necessary mechanism to look back sequentially across rows within a group and dynamically modify the filter set for each iteration.

To successfully execute a categorical cumulative sum, we must move beyond conventional measures and leverage the advanced capabilities of DAX for context manipulation. This sophisticated approach requires deploying a calculated column combined with an iterative formula that coordinates three powerful DAX components: context transition, which is activated by the CALCULATE function; the ability to selectively ignore most filters while preserving the category filter, achieved through ALLEXCEPT; and the capacity to reference the current row’s position relative to others, which is the role of the EARLIER function. Crucially, this method demands the prior creation of a reliable, sequential Index column, which serves as the ordered anchor for defining “previous” rows.

Deconstructing the Categorical Cumulative Sum Logic

The structure of the DAX formula designed for categorical cumulation provides a robust template for solving this common analytical challenge. This formula must be implemented as a calculated column rather than a measure to ensure the availability of the necessary row context required by the EARLIER function. The resulting calculated column will evaluate row-by-row, dynamically generating the running total based on the sequential order defined by the Index and the grouping defined by the Category column (e.g., Team).

The core syntax below represents the blueprint for calculating a running total of ‘Points’ that is guaranteed to reset whenever the value in the ‘Team’ column changes. Understanding the interaction between the functions is key to mastering this technique, as the formula essentially creates a dynamic filter for every row being evaluated.

Cumulative Sum =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    ALLEXCEPT ( 'my_data', 'my_data'[Team] ),
    'my_data'[Index] <= EARLIER ( 'my_data'[Index] )
)

Conceptually, for the row currently being calculated, the CALCULATE function initiates an aggregation. It first uses ALLEXCEPT to filter the entire ‘my_data’ table down to only the rows that share the same ‘Team’ as the current row, thereby establishing the category boundary. It then applies a second filter using the EARLIER comparison: this filter ensures that only those rows within the current team that have an Index value less than or equal to the current row’s Index are included in the SUM calculation. The combination of these two filters ensures precise accumulation within the category, guaranteeing that the total restarts when the team changes.

It is imperative to emphasize the prerequisite role of the Index column. Without a sequential, non-repeating index column, the comparison clause—'my_data'[Index] <= EARLIER ( 'my_data'[Index] )—cannot function logically. The index provides the objective order needed to distinguish “previous” rows from “subsequent” rows. If the index is missing or unreliable, the DAX calculation will either fail or produce an incorrect running total, as the engine will be unable to determine the correct sequence of accumulation. Therefore, meticulous data preparation is the most critical foundational step before writing the DAX code.

Critical Prerequisite: Generating the Sequential Index Column

The success of any sequential calculation in DAX hinges entirely on a reliable method for ordering the data. Since DAX calculated columns operate on a row-by-row basis and require a stable point of reference, we must explicitly define the calculation order using a dedicated Index column. Attempting to rely solely on implicit sorting (e.g., sorting by date in the visual) is unreliable for complex context manipulation. For optimal performance and data integrity, the creation of this index column should be handled within the Power Query Editor, which is Power BI’s robust data transformation engine.

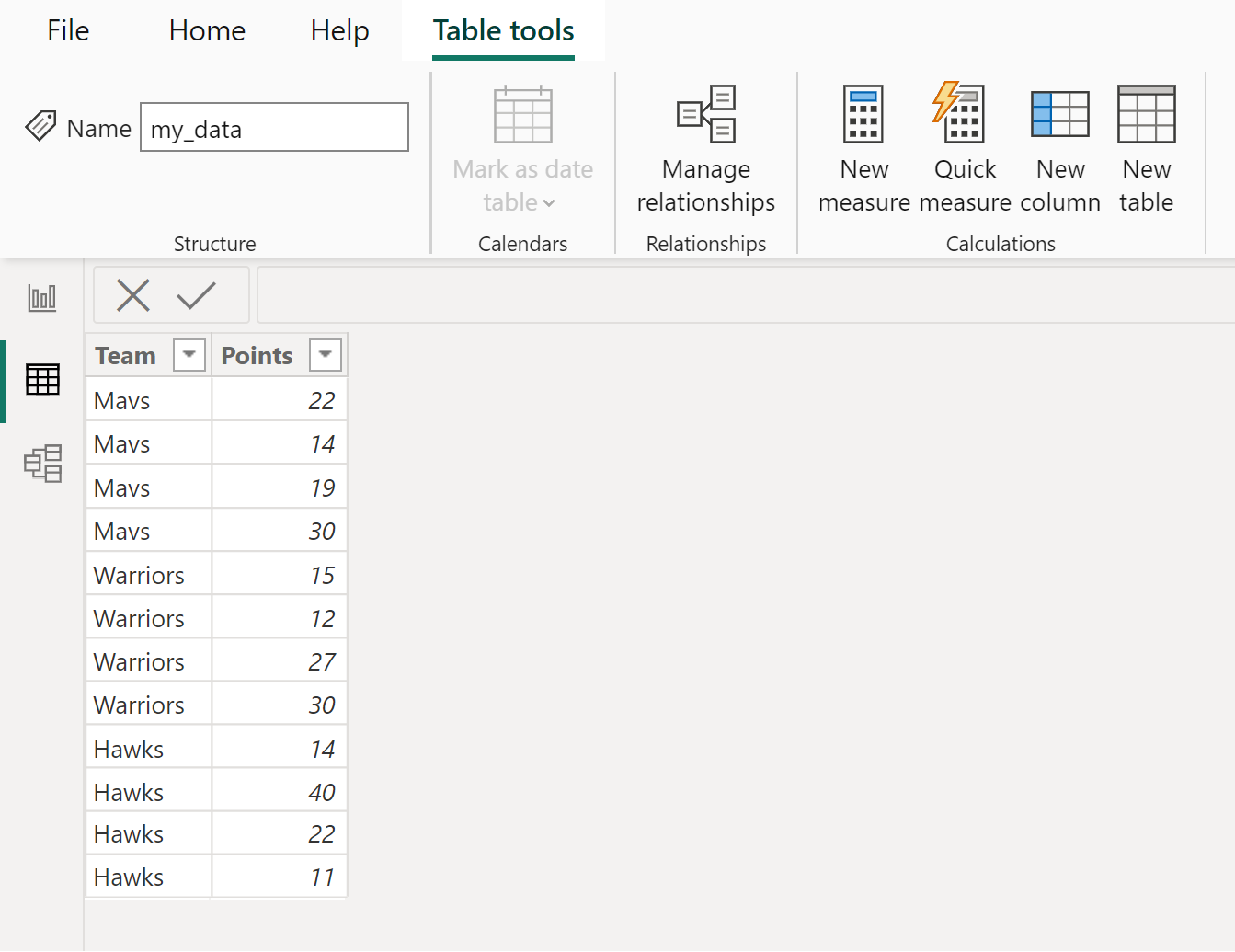

Let us assume we are working with a table named my_data, tracking performance metrics (e.g., Points) across various teams and players. The goal is a running total of points that resets per team. The initial dataset, illustrated below, clearly shows the categorical variable (Team) and the value to be summed (Points). Notice that the order is crucial—if you want the cumulative sum to follow a specific chronological order, the data must be sorted correctly before the index is applied.

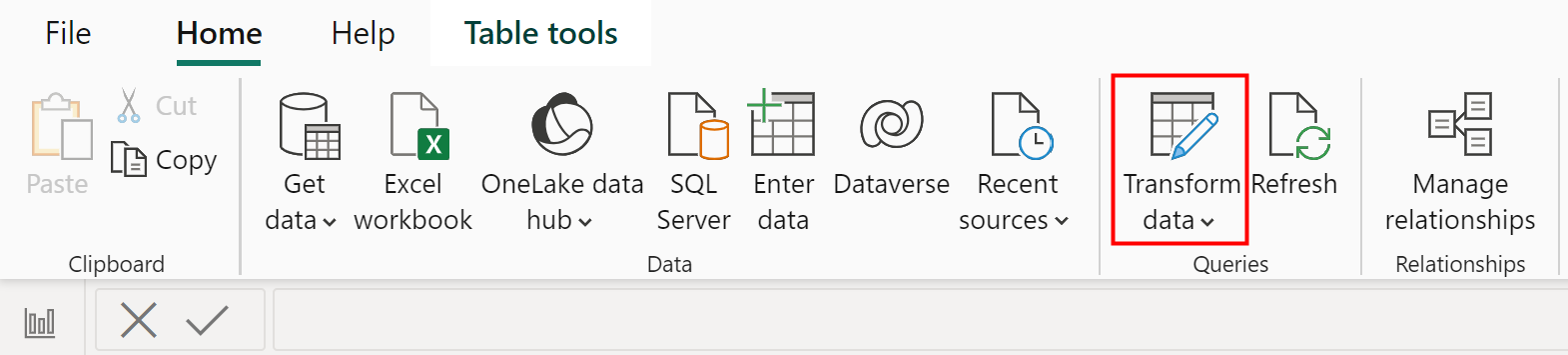

To begin the preparation process, navigate to the Home tab in Power BI Desktop and select the Transform data button. This action launches the Power Query Editor. Once inside, select the target table (my_data). Before adding the index, ensure the table is sorted by the desired category (Team) and the secondary sorting key (e.g., Player or Date) to define the exact sequence of accumulation. After sorting, navigate to the Add Column tab within the Power Query ribbon.

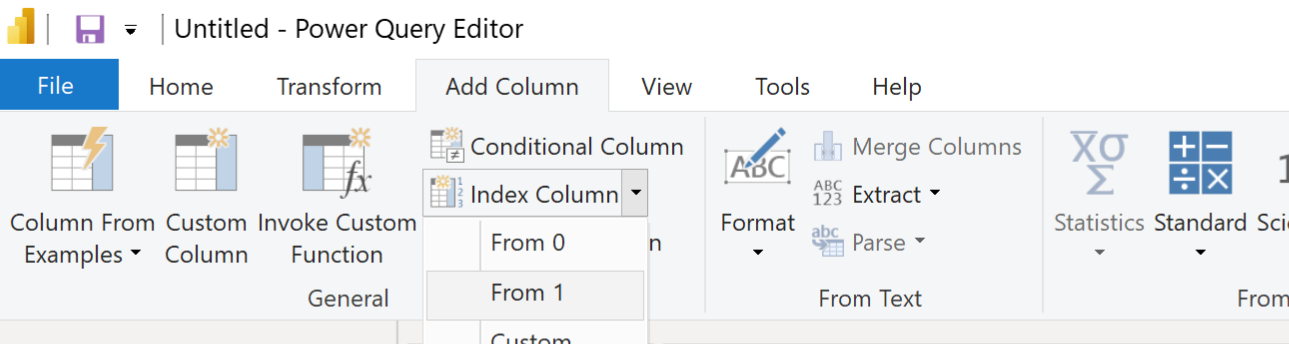

Locate the Index Column dropdown menu. Power Query offers options to start the index from 0 or 1, or to create a custom index. While starting from 0 is common in programming, starting the index From 1 is generally recommended for better alignment with human-readable sequencing and easier debugging when performing sequential comparisons within DAX.

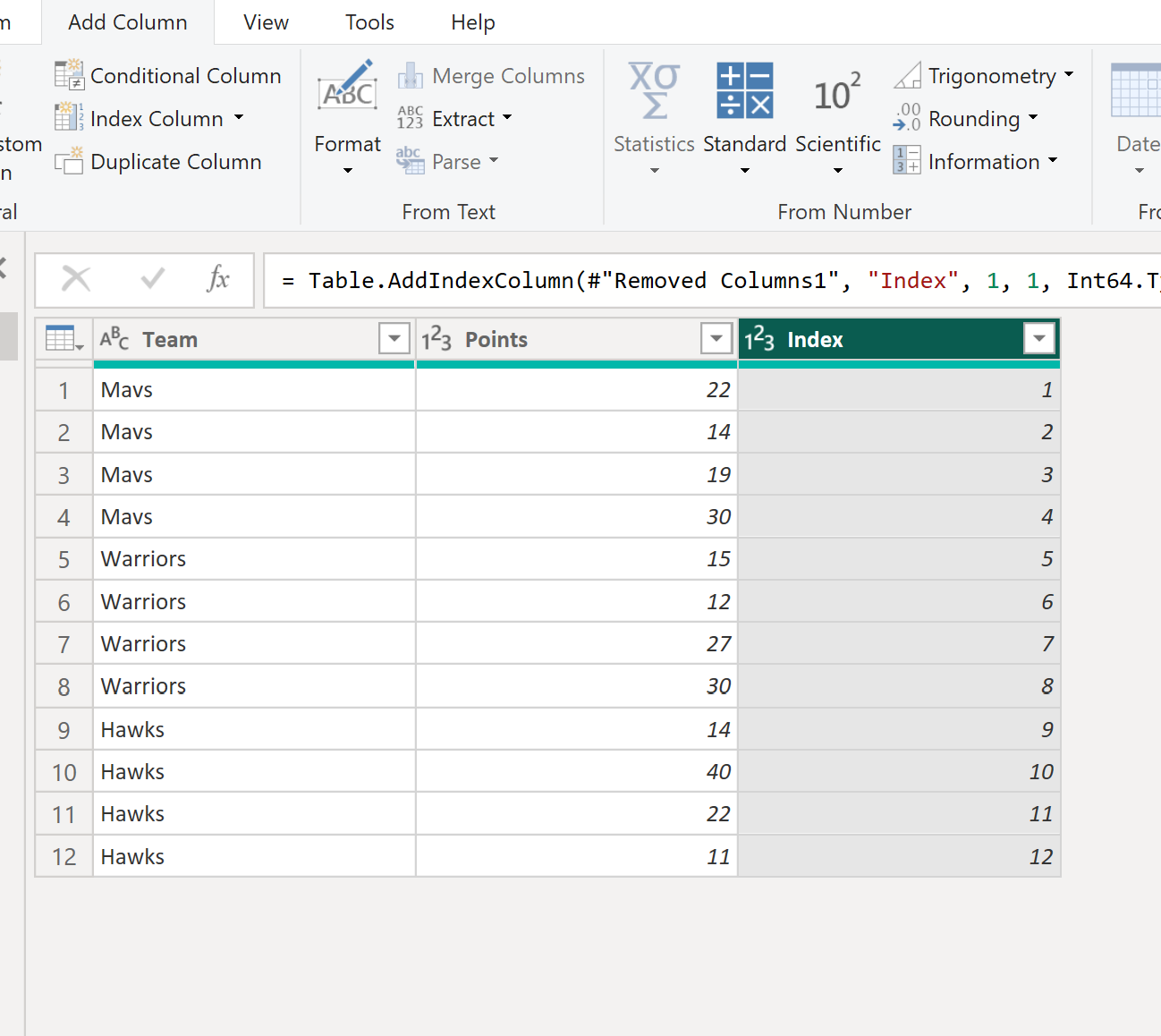

By selecting From 1, Power Query generates a new column containing a unique, sequential integer for every row in the table, respecting the pre-applied sorting order. After completing this step, click Close & Apply on the Home tab of the Power Query Editor to load the modified table, now featuring the essential Index column, back into the Power BI data model. This indexed table is now ready for the advanced DAX calculation, providing the stable reference point necessary for the EARLIER function.

Implementing the Calculation: The DAX Formula in Action

With the foundational Index column successfully integrated into the my_data table, the stage is set for writing the complex DAX formula. This implementation requires creating a calculated column, ensuring that the calculation is performed row-by-row, which is mandatory for the EARLIER function to operate correctly. Return to the Power BI Desktop environment, navigate to the Data View tab, and ensure the my_data table is active.

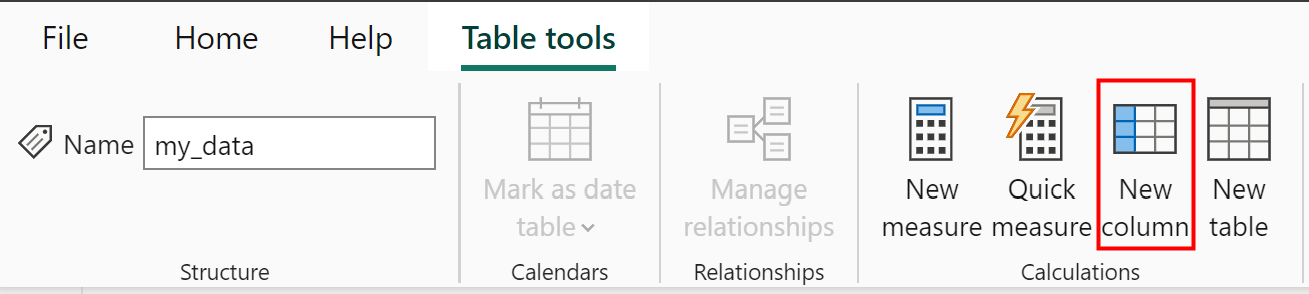

To initiate the creation of the new column, locate the Table tools ribbon, and click the New column icon. This action opens the DAX formula bar, where the logic for the categorical cumulative sum will be entered.

The following comprehensive formula must be entered precisely. It is important to remember that column and table names are case-sensitive in DAX, so ensure that 'my_data', [Points], [Team], and [Index] match your model exactly.

Cumulative Sum =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    ALLEXCEPT ( 'my_data', 'my_data'[Team] ),
    'my_data'[Index] <= EARLIER ( 'my_data'[Index] )
)

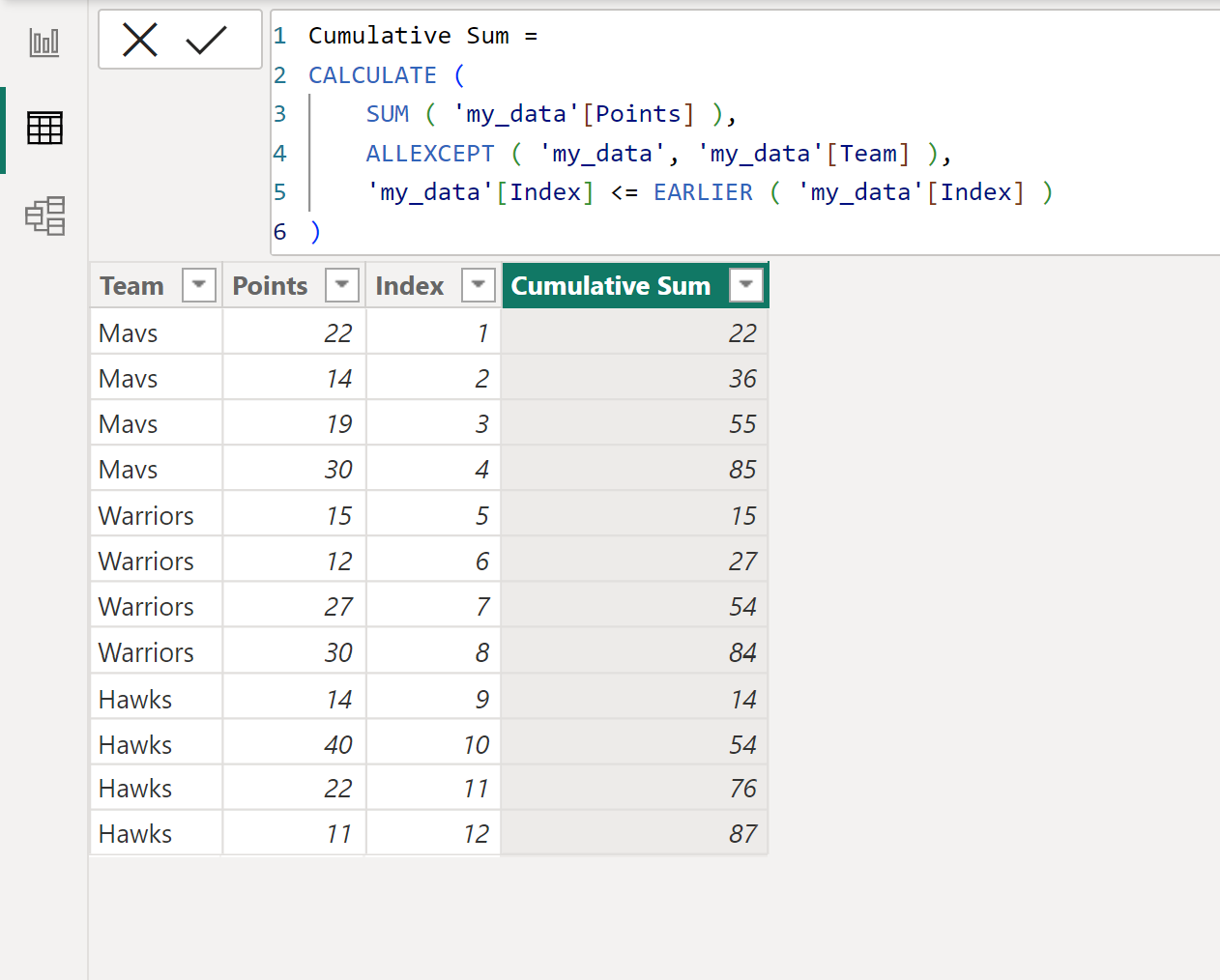

Upon successful commitment of the formula (by pressing Enter or clicking the checkmark), the new column, Cumulative Sum, will be instantly populated with the running totals. A careful inspection of the resulting data confirms the successful implementation of the categorical grouping logic. When the calculation reaches the end of the records for ‘Team A’, the cumulative value holds steady; however, upon moving to the first row of ‘Team B’, the sum correctly resets, starting the accumulation sequence anew from the first point value recorded for Team B. This outcome validates that the combination of ALLEXCEPT (for category isolation) and EARLIER (for sequence tracking) has been utilized effectively.

Deep Dive: How Context Transition Enables Categorical Grouping

To truly master advanced DAX techniques like categorical running totals, a thorough understanding of context transition is paramount. When DAX evaluates a calculated column, it begins in a Row Context, meaning it is aware of the values in the current row being processed. Aggregation functions like SUM, however, require a Filter Context to define which data subset they should operate upon. The CALCULATE function serves as the bridge, performing the essential context transition by converting the row context into a filter context, thereby allowing the aggregation to take place based on the current row’s values.

The first filter argument within CALCULATE is handled by ALLEXCEPT, which is the engine driving the categorical reset. The syntax ALLEXCEPT ( 'my_data', 'my_data'[Team] ) instructs the DAX engine to clear all existing filters that might be applied to the ‘my_data’ table, except for those filters that specifically affect the Team column. This mechanism ensures that, regardless of what other columns (like Player Name or Date) might be present in the row context, the filter context for the aggregation calculation is solely constrained by the current Team value. This guaranteed isolation is what forces the cumulative total to restart whenever the team identifier changes, as the set of rows available for summation is completely redefined.

The second filter argument, 'my_data'[Index] <= EARLIER ( 'my_data'[Index] ), defines the sequential accumulation logic. The EARLIER function is highly specialized and exclusively available within calculated columns. Its purpose is to capture the value of the specified column (in this case, Index) from the initial, external Row Context—the row currently being processed. The comparison then dynamically filters the table (which is already restricted to the current team by ALLEXCEPT) to include only those rows whose Index value is less than or equal to the captured Index value. This dynamic filtering process ensures that the SUM('my_data'[Points]) expression aggregates the points from the start of the current team’s sequence up to the current row, completing the cumulative calculation.

Conclusion and Advanced Considerations

Mastering the technique of calculating running totals by category using calculated columns and the EARLIER function is a fundamental milestone in advanced Power BI development. This method provides robust, row-by-row guaranteed sequencing, making it ideal for auditing, historical analysis, and ensuring stable results irrespective of visual interactions. The reliance on the pre-sorted Index column makes the logic transparent and highly reliable.

While the calculated column approach is highly effective for materialized, sequential totals, experienced DAX developers often explore alternatives for scenarios where the cumulative total must respond dynamically to slicers and report-level filters. These advanced methods involve creating non-materialized measures that utilize functions like FILTER combined with context modifiers such as ALL or ALLSELECTED. However, such measure-based solutions introduce additional complexity related to handling virtual row context and performance overhead. For guaranteed sequence tracking derived directly from the underlying data structure, the Index column and EARLIER approach demonstrated here remains the most straightforward and reliable method for achieving category-level resets.

To further solidify your skills in DAX and context manipulation, consider exploring the relationships between different calculation types and contexts. Understanding when to use a calculated column versus a measure, and how filter context differs from row context, is crucial for building efficient and accurate data models in Power BI.

Additional Resources for DAX Mastery

The following related topics are essential for building upon the concepts of context manipulation and sequence definition discussed in this tutorial:

• How to create calculated columns versus measures in Power BI and the performance implications of each.
• A detailed understanding of filter context and row context in DAX, and how context transition occurs.
• Using the RANKX function for sophisticated, non-sequential ordering and ranking scenarios.
