Create a Dot Plot in Google Sheets (Easiest Method)

A dot plot is a highly intuitive and effective statistical visualization tool specifically designed to display the distribution of small to moderate data sets. Its fundamental mechanism involves showing frequencies using individual dots stacked vertically above a single numerical axis. Although Google Sheets does not feature a dedicated, native “Dot Plot” function, data analysts can ingeniously leverage the flexibility of the Scatter Chart type to construct this precise visualization with relative ease.

This comprehensive, step-by-step tutorial details the exact methodological requirements needed to transform standard raw frequency data into a polished, professional dot plot visualization. By following these instructions, you can achieve a result identical to the sophisticated example presented below:

The Power and Purpose of the Dot Plot

Before diving into the technical execution within the spreadsheet environment, it is crucial to appreciate the analytical utility and conceptual strength of the dot plot. This visualization is a staple in Exploratory Data Analysis (EDA) because it offers an immediate, clear visual representation of data concentration, spread, and symmetry. Unlike more abstract charts, a dot plot ensures that each dot represents a single observation or a specific frequency count, making it exceptionally valuable for rapidly visualizing numerical data distributions.

The inherent simplicity of the dot plot allows for straightforward identification of key characteristics within the data set. For instance, analysts can quickly pinpoint modes (represented by the tallest stack of dots), gaps (unrepresented values within the range), and outliers (dots significantly removed from the main cluster). This level of clarity is difficult to achieve with raw numbers alone.

To successfully construct this graph in a spreadsheet application that lacks native support, like Google Sheets, the primary technical challenge lies in preparing the source data. The chart engine must be convinced to interpret the data as vertically stacked points rather than connecting them with a line or grouping them into bars. Our approach cleverly bypasses the feature limitation by utilizing the X-Y coordinate system native to scatter charts, mapping the data values onto the horizontal axis (X) and their calculated frequency indices onto the vertical axis (Y).

Step 1: Preparing Data for Visualization (The Frequency Table)

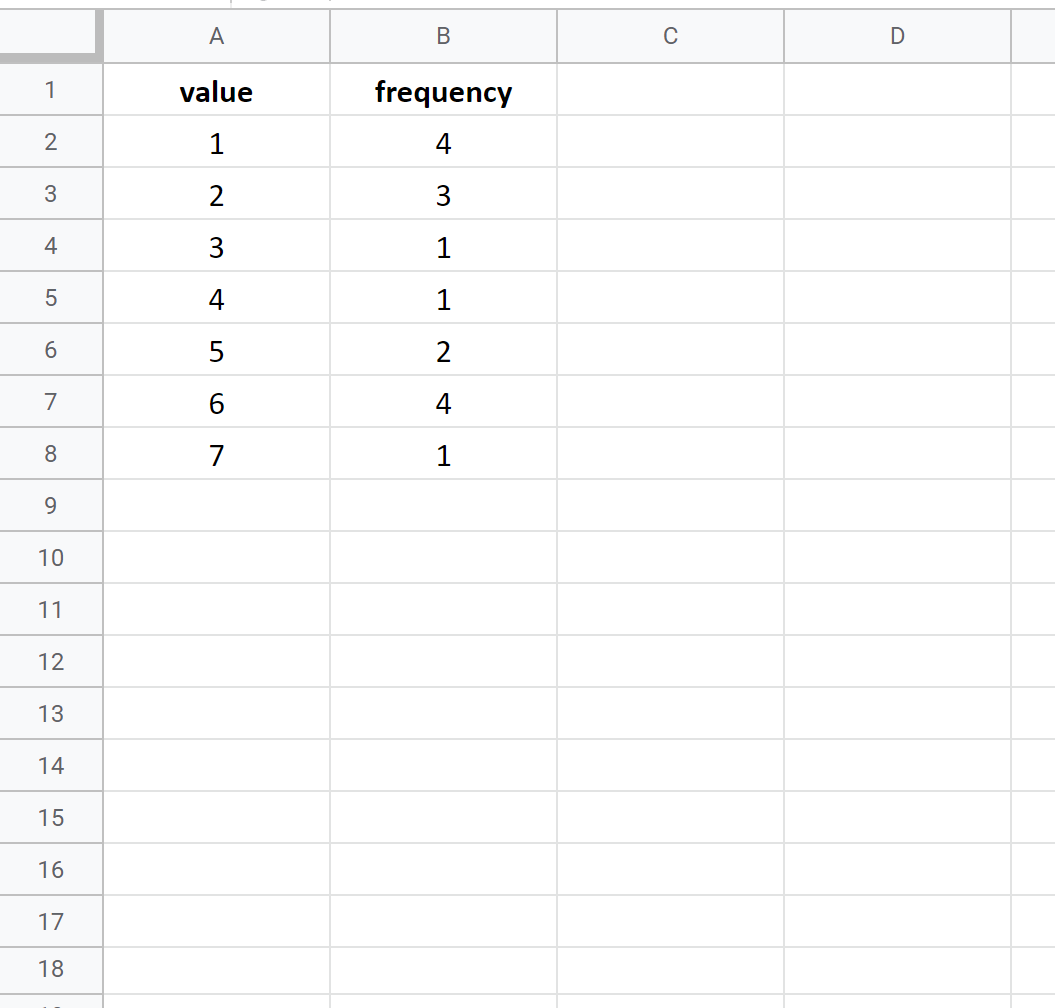

The foundational step in generating any statistical visualization is correctly structuring the input data. We typically begin with a compact frequency table, which efficiently lists specific data values alongside their corresponding counts, or frequencies. For the purposes of this walkthrough, we will assume we are working with the following example data set compiled within a Google Sheets workbook:

While this format is highly efficient for calculating summary statistics and managing data entry, it is structurally inadequate for direct generation of a dot plot visualization. Spreadsheet charting functions are designed to plot discrete points, meaning they require individual data points—each precisely defined by an X and Y coordinate—to position a mark on the canvas. Therefore, before we can proceed to chart creation, a crucial reorganization of the data must take place.

The Critical Transformation: From Compact to “Long” Format

To successfully generate the desired stacked visualization, we must transform the compact frequency table into what is known as the “long” data format. This conversion represents the most critical conceptual hurdle in the entire process. The transformation requires creating a separate, unique row entry for every single observed data point, essentially “unrolling” the original frequency counts.

The resulting long structure must consist of two distinct, necessary columns. The first column holds the numerical value (which will map directly to the chart’s X-axis). The second column holds its calculated cumulative position within its value group (which will map to the chart’s Y-axis). This calculated Y position is what mathematically simulates the visual stacking action of the dots.

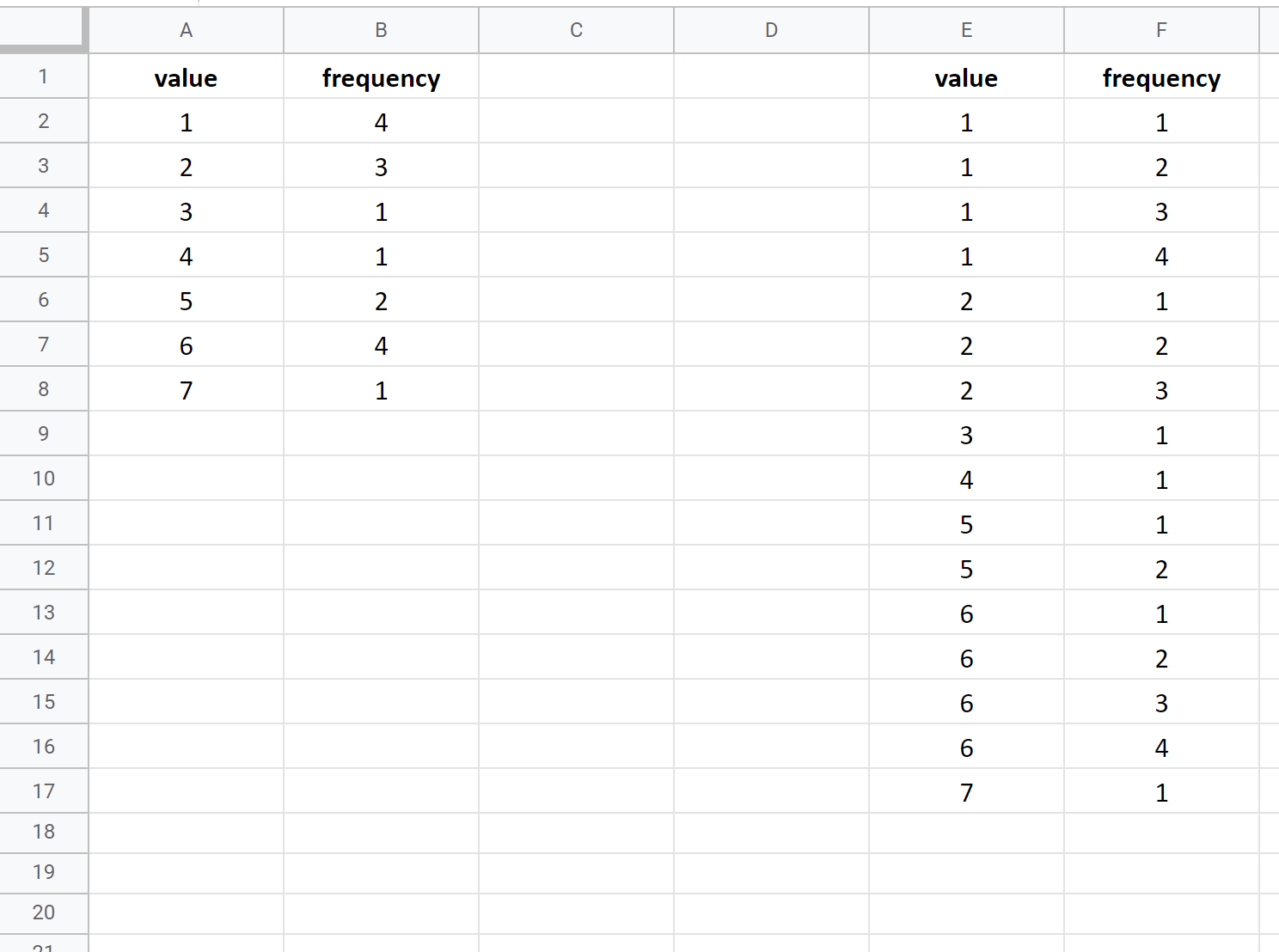

To illustrate this, if the data value ‘1’ appears four times in the initial frequency table, the new long format will require four separate rows. Each of these rows will contain ‘1’ in the X column, but their corresponding Y-coordinates will be 1, 2, 3, and 4. This systematic assignment ensures that when the scatter chart is rendered, the dots stack perfectly vertically above the ‘1’ mark on the horizontal axis. The outcome of this necessary data reorganization is demonstrated below, showing the original data expanded across cells E2 through F17:

Step 2: Initiating the Chart and Selecting the Scatter Type

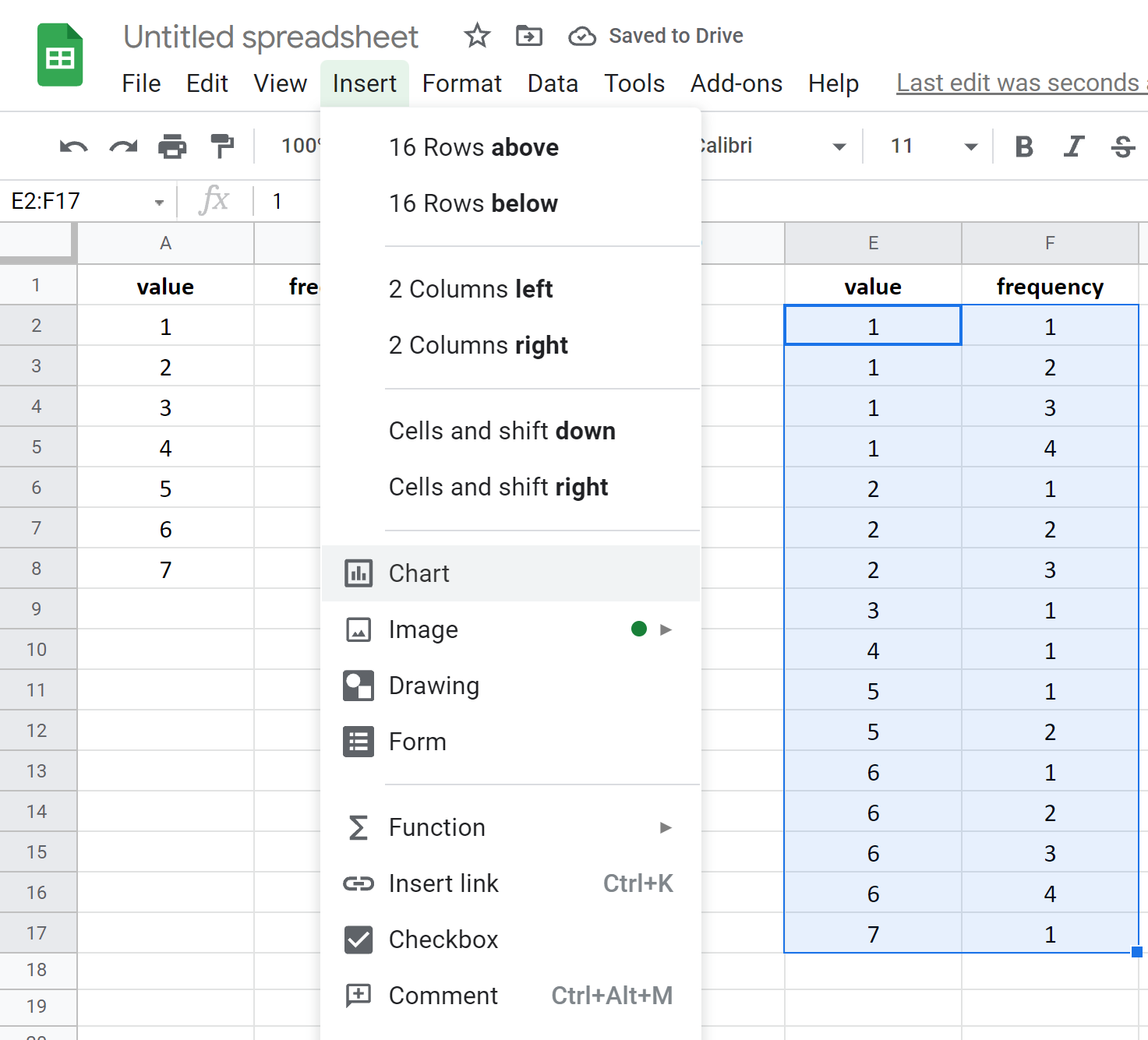

With the data meticulously organized into the required long format (E2:F17), we are prepared to initiate the chart creation process. Start by carefully selecting the entire reorganized data range, specifically cells E2:F17. Once the range is highlighted, navigate to the main menu bar, click the Insert tab, and then choose the Chart option.

Given the input data structure, Google Sheets will frequently insert a default chart type, most often a Histogram or a column chart. While this is not the intended final visualization, it serves as the necessary container for the next crucial step: changing the chart type. To transform this default chart into the required dot plot configuration, we must switch the underlying visualization engine to one that strictly honors the X-Y coordinate pairs we calculated.

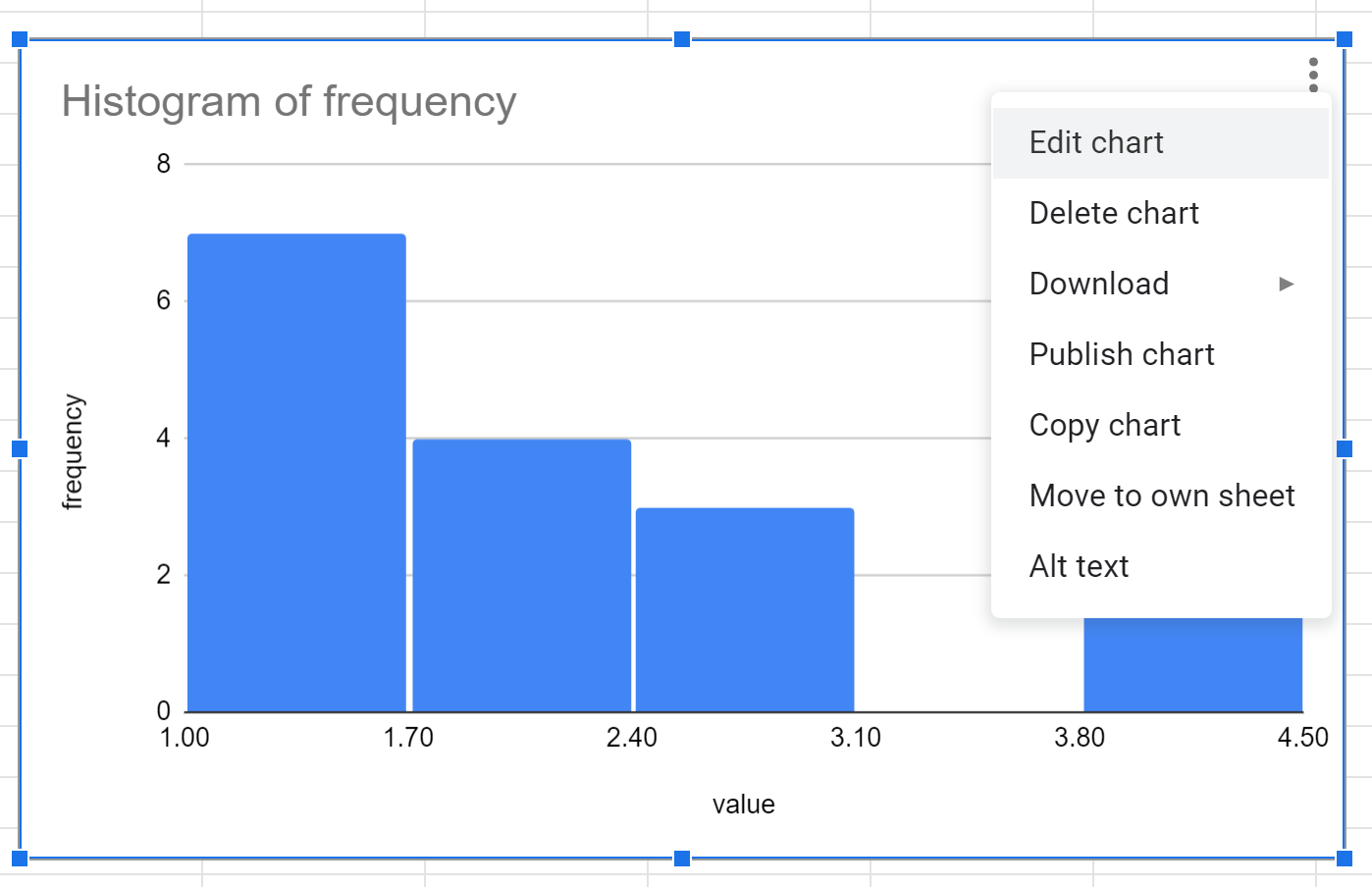

Click anywhere on the newly inserted chart to activate the editing tools. Next, click the three vertical dots located in the top right corner of the chart container, and select the Edit chart option from the menu that appears.

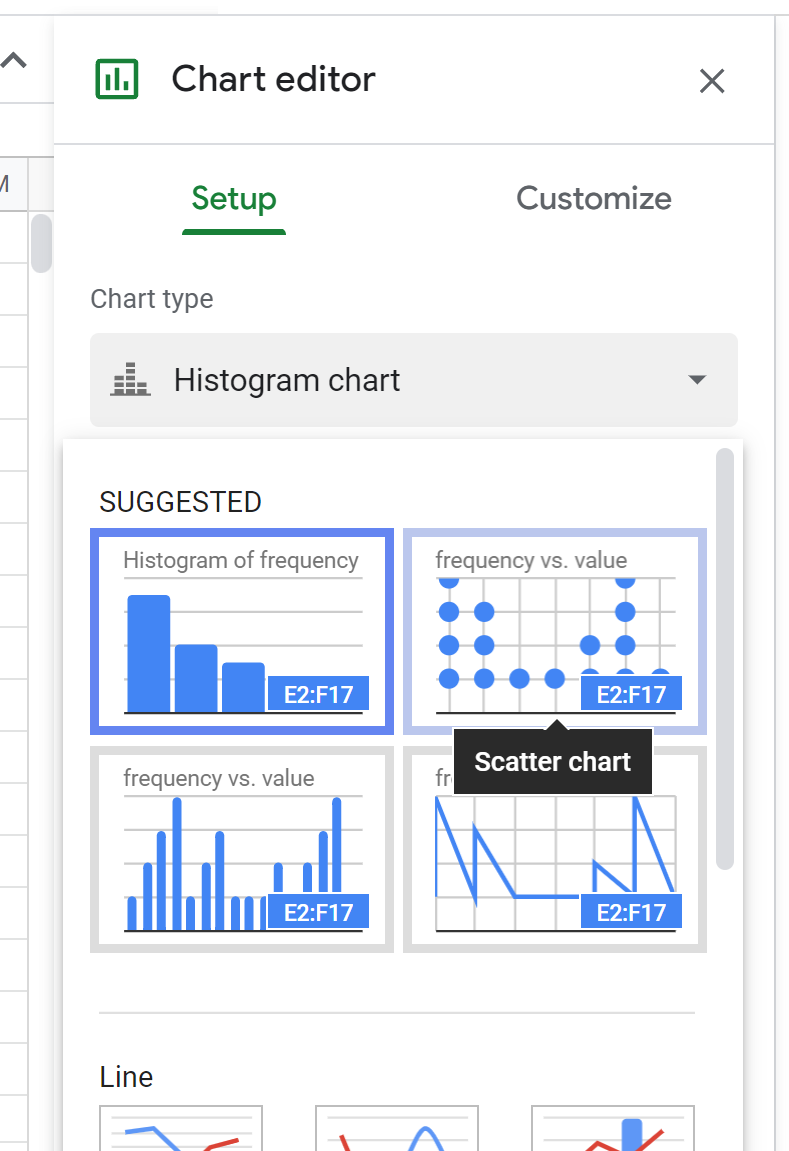

The Chart editor panel will immediately open on the right side of the screen. Under the Setup tab, locate and click the Chart type dropdown menu. Scroll through the available options until you find and select the Scatter chart. This selection is absolutely vital because the scatter chart is the only type that accurately plots the individual X (value) and Y (frequency index) coordinates that were meticulously prepared in the long data format, thus creating the visual stacks necessary for a dot plot.

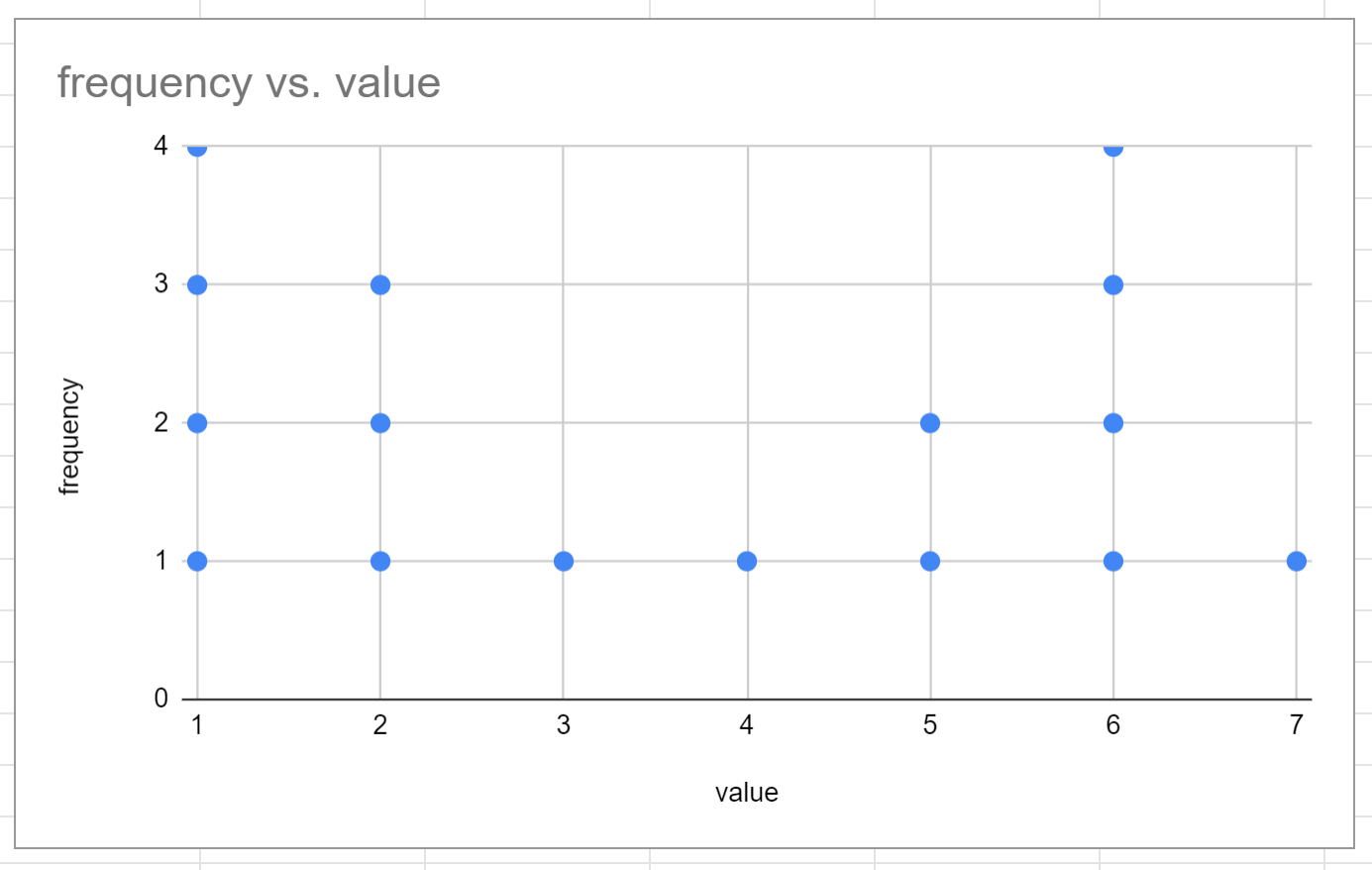

Immediately after confirming the chart type change, a preliminary version of the dot plot will be rendered directly in your spreadsheet, demonstrating the successful transformation:

Step 3: Customizing the Scatter Plot into a Professional Dot Plot

While the resulting scatter chart is functionally a dot plot, it typically requires significant aesthetic customization to achieve a clean, publication-ready appearance. The goal in this final stage is to remove redundant labels and distracting visual elements, ensuring the viewer’s attention is focused solely on the data distribution and structure.

Utilize the Customize tab within the Chart editor to perform the following critical adjustments for visual clarity:

• Y-Axis Label Removal: If the y-axis label was automatically generated, double-click it and delete the text. In a dot plot, the vertical position inherently signifies the count or stacking height, making a formal Y-axis label redundant and potentially confusing.
• Y-Axis Range Adjustment: Access the options for the vertical axis. Adjust the minimum value to approximately 0.75 and set the maximum value to a figure slightly exceeding the highest frequency count (e.g., 5). This subtle adjustment ensures that the bottom row of dots rests cleanly just above the horizontal axis line, enhancing the visual anchor.
• Gridline Minimization: Navigate to the Gridlines and Ticks section. For both major and minor gridlines, select the options to delete or hide them completely. A minimalist, clean background is highly preferred for this type of precise statistical visualization.
• Point Size Enhancement: To significantly improve visibility and visual impact, navigate to the Series section. Select the data series and dramatically increase the Point size, often setting it to 14px or larger, depending on the overall size of the chart container.
• Chart Title Update: Finally, double-click the default chart title and rename it to a descriptive phrase that clearly communicates the content, such as “Distribution of Sample Scores” or “Observed Frequencies of Test Data.”

After successfully implementing these detailed customization steps, the basic scatter chart is transformed into a highly readable and aesthetically professional dot plot:

The resulting graph effectively displays individual data values along the x-axis, while the frequency of those values is accurately represented visually by the corresponding number of stacked dots. This sophisticated method successfully harnesses the native charting capabilities of Google Sheets to produce a powerful statistical visualization that is not natively supported by the application interface.
