Dot Plot vs. Histogram: What’s the Difference?

When seeking to understand the underlying structure of numerical information, data visualization stands as an indispensable tool. Two of the most frequently utilized graphical representations for illustrating the distribution of values within a dataset are the dot plot and the histogram. While both visualizations are designed to help analysts quickly discern how data points cluster, spread, and vary, their fundamental methodologies for representing raw data and calculating frequencies are inherently distinct.

The primary differentiating factor lies in the level of detail provided. A dot plot maintains maximum precision by meticulously charting every individual observation, making it the ideal choice for small samples or discrete variables where the identity of each value is paramount. Conversely, a histogram employs a technique of aggregation, grouping observations into predefined intervals or bins. This approach sacrifices individual data point visibility to provide a macro-level overview of the data’s overall shape and spread, a necessary compromise when dealing with vast or highly continuous datasets.

The strategic selection between a dot plot and a histogram must be guided by several critical factors: the volume and nature of the data being analyzed (i.e., whether it is discrete or continuous), the size of the sample, and the specific analytical insights the researcher aims to extract concerning value frequency and the structural characteristics of the data. Understanding these distinctions is crucial for accurate statistical interpretation and effective communication of results.

The Core Principles of Data Distribution Visualization

Regardless of the visualization technique employed, the overarching objective remains consistent: to translate complex numerical data into an accessible graphical format that reveals hidden patterns. Both dot plots and histograms serve as powerful diagnostic tools, enabling analysts to rapidly assess key statistical characteristics, including the measure of central tendency (the typical value), the degree of variability (how spread out the data is), and the skewness (the asymmetry of the distribution).

Structurally, these charts share a common foundation rooted in the Cartesian coordinate system. The horizontal axis, or x-axis, invariably represents the measured quantitative variable itself, displaying the actual data values or the ranges into which they fall. Correspondingly, the vertical axis, or y-axis, is dedicated to measuring the frequency—the count or proportion indicating how many times a particular value or set of values occurs within the observed dataset. This consistent framework ensures that the visual height of the data representation directly corresponds to the recurrence rate of that data point or interval.

However, it is precisely how the data is mapped onto the x-axis that creates the fundamental conceptual divide between these two plots. In a dot plot, the x-axis is a strict number line upon which individual observed values are plotted directly, preserving their exact numerical location. Conversely, the histogram requires a preliminary step of binning, where the continuous range of the x-axis is segmented into discrete, non-overlapping intervals. This aggregation process, while essential for managing large datasets, inherently obscures the exact value of any single observation within a given bin.

Defining the Dot Plot: Granularity and Small Dataset Analysis

The dot plot, sometimes referred to descriptively as a line plot or a strip chart, offers an exceptionally detailed and transparent view of data structure. Its construction involves plotting every single data observation directly above its corresponding value on the horizontal x-axis. When multiple observations share the same value, dots are stacked vertically, creating a visual representation where the height of the stack directly indicates the frequency of that specific outcome. This methodology ensures that the integrity of every individual data point is maintained, preventing any loss of detail through grouping.

The primary advantage of employing a dot plot is its unparalleled clarity and straightforward interpretability. An observer can determine the precise count of any single observation merely by counting the stacked dots aligned above that value. This characteristic makes dot plots exceptionally valuable during the initial phases of data exploration, particularly when analyzing data derived from discrete variables (like counts or small integers) or when the sample size is relatively small (typically fewer than 30 observations). The visibility of individual points also facilitates the rapid identification of outliers and gaps in the data.

Furthermore, dot plots excel when the analytical task involves comparing the distributions of two or more small groups. Because the individual data points remain entirely visible, an analyst can immediately compare differences in central tendency, the spread (range), and the presence or absence of extreme values (outliers) between the groups. This transparency allows for rapid visual assessment of subtle differences. However, the scalability of the dot plot is severely limited; as the dataset grows beyond a modest size, the resulting chart becomes overcrowded, cluttered, and ultimately difficult to interpret, rendering the detailed information useless.

Defining the Histogram: Aggregation for Large Datasets

In contrast to the granular nature of the dot plot, the histogram is fundamentally designed for visualizing aggregated data ranges. It displays these ranges, known technically as bins or intervals, along the x-axis, using contiguous rectangular bars to represent the cumulative frequency of all values that fall within each defined range. The power of the histogram lies in its ability to summarize large amounts of data, effectively trading the visibility of individual data points for a clear depiction of the overall distributional characteristics.

The successful construction of a histogram hinges critically on the analyst’s decision regarding the number and width of the bins. This choice is not arbitrary; if too few bins are selected, the resulting bar chart may oversimplify the true underlying distribution, potentially masking important features or clusters. Conversely, selecting too many bins can introduce unnecessary noise, creating a jagged, misleading representation that fails to summarize the data effectively. This essential process of aggregation and bin optimization makes the histogram the necessary tool for visualizing large, highly variable, or continuous datasets where plotting thousands of unique points would be impractical or impossible.

The histogram is the preferred visualization when the primary objective is to assess the underlying probability distribution of a variable. It is highly effective at illustrating whether the data is unimodal (one peak) or bimodal (two peaks), whether it is symmetric around its center, or if it exhibits positive or negative skewness. These characteristics are vital in fields such as statistical inference, quality control, and process improvement where understanding the population distribution is key to making reliable predictions and decisions.

Illustrative Example: Visualizing Data Differences

To fully appreciate the functional differences in how these two plots represent data, we will examine a practical illustration using a small, manageable dataset containing 18 discrete observations. This comparison will highlight how the choice of visualization directly impacts the interpretability of the frequency data.

Data: 1, 1, 1, 1, 2, 2, 2, 3, 4, 5, 5, 6, 6, 6, 6, 7, 8, 10

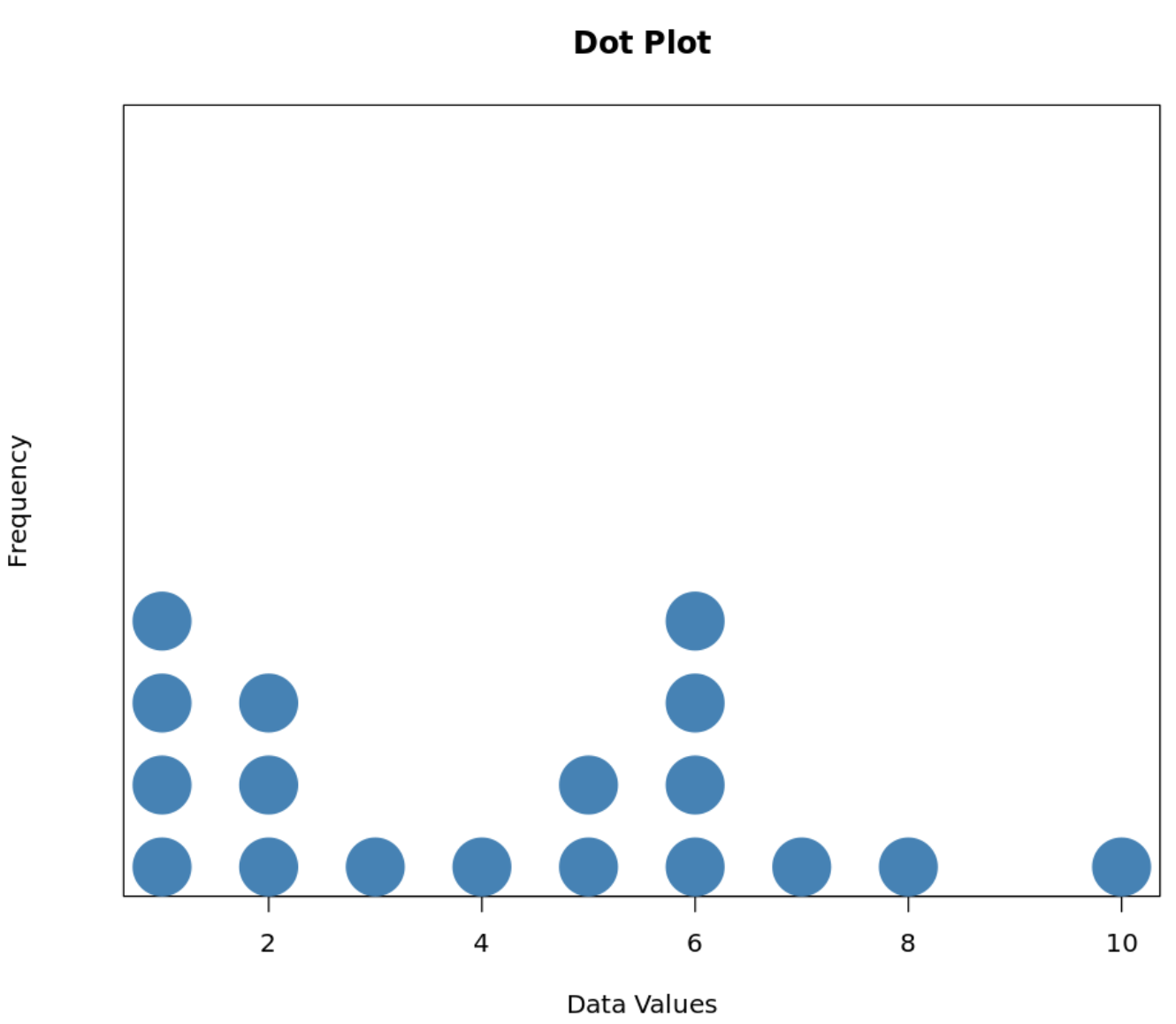

First, observe the representation of this data using a dot plot, which adheres to the principle of individual observation plotting:

In the dot plot presented above, the x-axis serves as a precise scale, clearly displaying every unique data value observed in the set. The clarity here is absolute: we can instantly verify the exact frequency of each observation. For instance, by counting the vertically stacked dots, we confirm that the value “1” appears four times, the value “2” appears three times, and the values “3,” “4,” “7,” “8,” and “10” all occur precisely once. This granular view leaves no ambiguity regarding the distribution of specific values.

Now, let us examine the representation of this identical dataset when processed and displayed using a histogram:

In this histogram, the x-axis no longer plots individual values but instead utilizes predefined ranges (bins), such as 0-2, 2-4, 4-6, and so on. The height of each rectangular bar corresponds to the total cumulative frequency of all data points captured within that specific interval. For example, the first bar, spanning the range of 0 to 2, has a height of 7. This tells us that a total of seven data points fell between 0 and 2 (inclusive of 1, exclusive of 2, depending on bin definition convention). Crucially, the histogram does not inform us how those seven points are distributed between 1 and 2—that detail is lost in the aggregation.

Bonus Resource: For those engaged in statistical programming and utilizing the R environment, the following code snippet was used to precisely generate the preceding dot plot and histogram visualizations, demonstrating the underlying computational steps involved:

#define dataset
data <- c(1, 1, 1, 1, 2, 2, 2, 3, 4, 5, 5, 6, 6, 6, 6, 7, 8, 10)

#create dot plot
stripchart(data, method = "stack", offset = .5, at = 0, pch = 19, cex=5,
           col = "steelblue", main = "Dot Plot",
           xlab = "Data Values", ylab="Frequency")

#create histogram
hist(data, col='steelblue', main='Histogram', xlab='Data Values')

Strategic Selection: Dataset Size, Precision, and Analytical Goals

While both graphical techniques provide legitimate methods for visualizing the distribution of quantitative variables, the choice between them is primarily driven by the scale of the available data and the specific requirements for detail and precision in the analysis. A reliable rule of thumb dictates that the size and nature of the dataset should be the deciding factor.

We typically employ dot plots when the dataset is small (e.g., n < 30) or when dealing exclusively with discrete variables that possess a limited number of possible outcomes. The ability of the dot plot to show precisely how many times each individual value occurs ensures maximum granularity, which is often essential in exploratory data analysis or in educational settings where the precise location of every data point must be understood. This retention of detail makes the dot plot highly effective for identifying specific modes, gaps, and the exact range of the data without relying on aggregation.

Conversely, the necessity of summarizing vast quantities of information means that we must utilize histograms when the dataset is large or when analyzing highly variable continuous data. Imagine attempting to plot 5,000 unique measurements using a dot plot; the result would be an impenetrable wall of dots that provides no useful insight. The histogram’s strength lies in its scalability, aggregating data into manageable bins that clearly illustrate the overall shape, modality, and spread of the distribution, making it an indispensable tool for large-scale data visualization in statistical modeling and advanced analysis.

The key analytical trade-off inherent in the histogram is the loss of precision regarding individual values. Because data is grouped, we cannot rely solely on the visualization to determine the exact frequency of any single observation. For example, knowing that seven values fall between 0 and 2 does not allow us to calculate precise measures of central tendency, such as the exact median or the true average, as these calculations require knowledge of the original, ungrouped data points. If the goal is purely to understand the general shape of the distribution—to see if it is symmetric, skewed, or multimodal—then this loss of individual precision is acceptable and even beneficial for clarity.

Summary of Structural and Analytical Differences

The distinction between the dot plot and the histogram can be succinctly captured by comparing their core structural characteristics, their ideal use cases, and the resulting level of data precision they offer to the analyst:

Dot Plot Characteristics:

1. Data Representation: Displays every single observation individually. Data points are stacked vertically above their exact value on the x-axis.
2. Optimal Application: Best suited for small datasets (n < 30), or discrete variables with a limited set of unique values. Ideal for initial data inspection and classroom instruction.
3. Precision Level: Provides maximum precision, allowing direct determination of the frequency for every individual value.
4. Scalability: Poorly scalable; becomes cluttered and ineffective as the dataset size increases.

Histogram Characteristics:

1. Data Representation: Groups data into predefined bins or intervals (ranges). The height of the bar represents the cumulative frequency within that range.
2. Optimal Application: Essential for large datasets and highly continuous variables where individual plotting is impractical. Preferred for assessing underlying probability distributions.
3. Precision Level: Sacrifices individual value precision to visualize the overall shape and spread of the distribution. Exact frequencies of individual values are not retrievable.
4. Scalability: Highly scalable; effectively summarizes thousands of data points into a clear visual representation.

Conclusion and Further Exploration

Selecting the appropriate visualization—the dot plot for detailed, small-scale analysis or the histogram for large-scale distributional assessment—is a fundamental step in effective statistical practice. The choice reflects a balance between the need for granularity and the necessity of summarization. Mastery of both tools ensures that data insights are extracted efficiently and communicated clearly, regardless of the complexity or volume of the data involved.

For those interested in deepening their understanding of these statistical graphics, the following resources provide comprehensive tutorials and detailed methodological information:

• Resources focusing on the intricacies of constructing and interpreting Histograms, including guidance on optimal bin selection.
• Tutorials offering additional information on Dot Plots and their application in descriptive statistics, particularly for comparing multiple small groups.
