Learning to Create Grouped Barplots in R: A Step-by-Step Guide

A grouped barplot is an indispensable data visualization technique specifically designed to compare quantitative data across multiple categorical dimensions simultaneously. Unlike a standard bar chart that presents a single dimension, a grouped barplot segments the bars based on a secondary variable, allowing analysts to reveal complex multivariate relationships and perform direct comparisons within and across groups. This method is particularly effective when visualizing metrics that are nested within higher-level categories.

This comprehensive tutorial serves as an expert guide to constructing sophisticated and informative grouped barplots using R, leveraging the industry-leading data visualization library, ggplot2. Mastery of this technique is essential for anyone seeking to clearly present how different subgroups contribute to an overall metric, thereby maximizing the clarity and communicative power of their statistical findings.

Setting Up the Environment and Structuring Data

To begin the visualization process, it is essential to ensure that the required packages are accessible within your R environment. The primary tool we will utilize is the ggplot2 package. If it is not already installed, it can be added using the standard command install.packages("ggplot2"). Once installed, the package must be loaded using library(ggplot2) before any functions from the library can be called.

The structure of the input data is critical for successful visualization with ggplot2, which operates on the principles of the Grammar of Graphics. We require data organized in a “long” format, typically stored in an data frame. This structure dictates that each observation (or row) contains specific columns identifying the primary grouping variable (e.g., Team), the secondary grouping variable (e.g., Position), and the measured continuous variable (e.g., Points). This clear segregation ensures ggplot2 can accurately map the necessary layers for the grouped structure.

For demonstration purposes, we will employ a synthetic data frame representing average points scored per game for nine basketball players, categorized by their team affiliation and their specific on-court position:

#create data frame
df <- data.frame(team=rep(c('A', 'B', 'C'), each=3),
                 position=rep(c('Guard', 'Forward', 'Center'), times=3),
                 points=c(14, 8, 8, 16, 3, 7, 17, 22, 26))

#view data frame
df

  team position points
1    A    Guard     14
2    A  Forward      8
3    A   Center      8
4    B    Guard     16
5    B  Forward      3
6    B   Center      7
7    C    Guard     17
8    C  Forward     22
9    C   Center     26

In this structure, the variable ‘team’ will establish the groups along the X-axis, while ‘position’ will be used to differentiate the individual bars within those groups, typically by using distinct color fills.

Generating the Basic Grouped Barplot with ggplot2

The foundational step in creating any ggplot2 visualization is defining the mapping between the variables in the data frame and the visual aesthetics (aes). For a grouped barplot, this involves specifying the variables that control the horizontal placement (X-axis), the height (Y-axis), and the color segmentation (fill).

The core visualization layer for bar charts is the geom_bar function. This geometric object accepts the aesthetic mappings and renders the bars accordingly. To achieve the grouped effect, we must accurately map the primary group (team) to the X-axis, the measured value (points) to the Y-axis, and the secondary category (position) to the fill aesthetic.

The following code snippet provides the minimum required syntax for rendering the initial grouped barplot:

library(ggplot2)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='dodge', stat='identity')

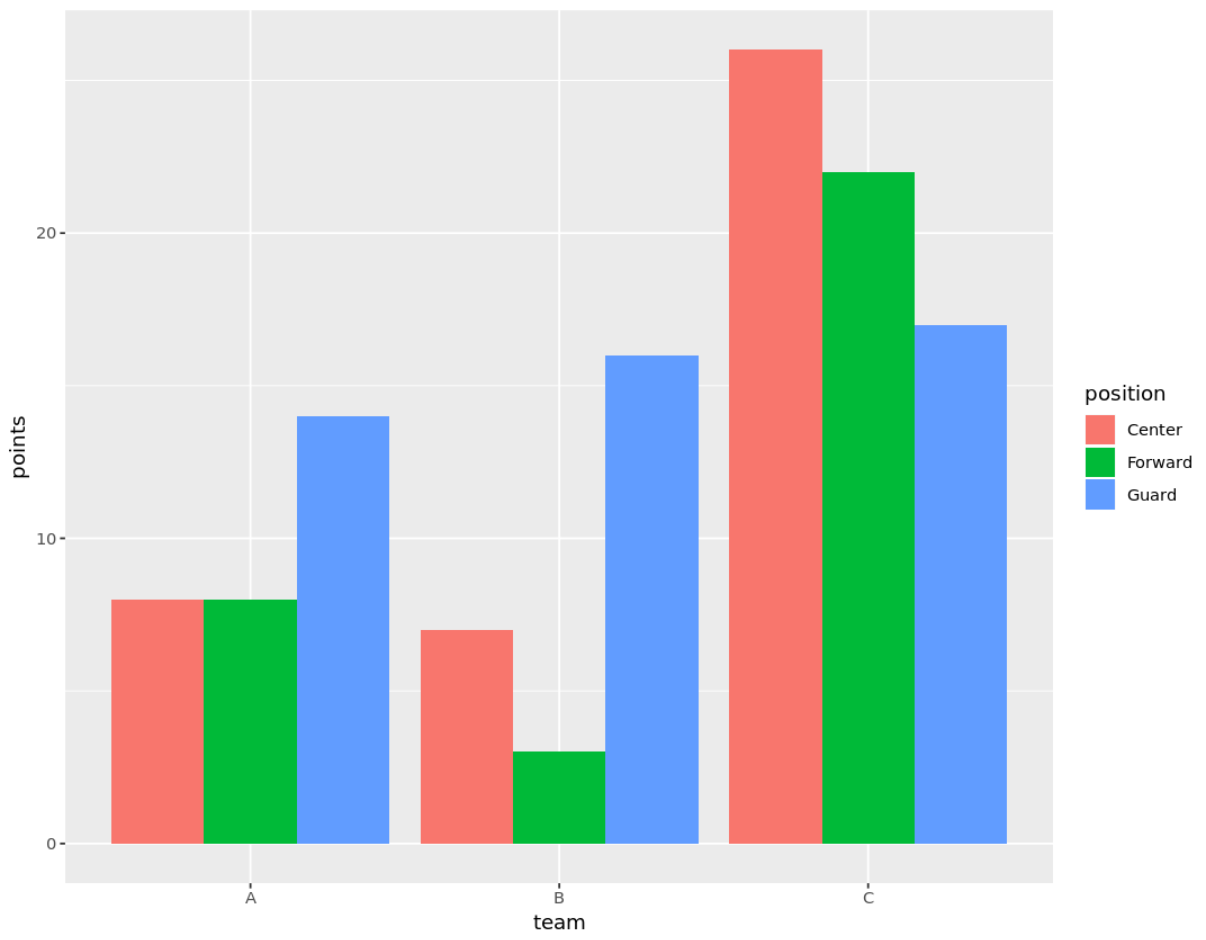

Executing this code produces a visualization where the bars corresponding to each position are clearly separated and displayed side-by-side within the context of their respective teams. This structure facilitates immediate visual comparison of scoring averages across all subgroups. The subsequent section will delve into the critical function of the two specialized parameters used within the geom_bar layer.

Mastering the Essential Parameters: Position and Stat

To successfully transition from a standard or stacked bar chart to a true grouped barplot, two specific arguments within the geom_bar function must be meticulously configured: position and stat. Misunderstanding these parameters is a common hurdle when utilizing ggplot2 for complex visualizations.

The argument position='dodge' is the mechanism that defines the grouping layout. By default, when a fill aesthetic is applied, ggplot2 attempts to use position='stack', resulting in bars layered vertically. By explicitly setting the position to dodge, we instruct the plotting engine to intelligently offset the bars horizontally, placing them adjacent to one another. This side-by-side arrangement is what creates the visual grouping effect, which is necessary for clear comparison across the secondary categorical variable.

Equally important is the argument stat='identity'. By default, geom_bar is designed to perform a statistical transformation, specifically counting the number of observations (stat='count') for each category. However, in scenarios like ours, where the Y-axis variable (points) already contains the final, calculated metrics we intend to plot, we must override this default behavior. Setting stat='identity' tells ggplot2 to treat the values provided in the y aesthetic as the literal heights of the bars, thereby plotting the raw calculated data directly.

If these two parameters are not correctly configured—position for separating the bars and stat for using pre-calculated values—the resulting output will either be an unhelpful count of observations or a stacked chart, failing to deliver the required comparative visualization of the grouped barplot structure.

Advanced Customization for Professional Visuals

While the initial plot provides functional data representation, production-ready visualizations demand aesthetic refinement to ensure maximum clarity, accessibility, and professionalism. ggplot2 offers a multilayered approach to customization, allowing fine-grained control over titles, axis labels, background themes, and color palettes. Key functions for this enhancement include theme(), labs(), and scale_fill_manual().

• theme_minimal(): This layer applies a clean, minimalist background style, minimizing unnecessary graphical elements and focusing the viewer’s attention solely on the data ink.
• labs(): This function is crucial for assigning informative and human-readable titles to the entire plot and descriptive labels to the X and Y axes, significantly improving context.
• theme(): This provides granular control, enabling specific adjustments such as centering the plot title (using hjust=0.5) and defining its font size and emphasis (face='bold').
• scale_fill_manual(): Essential for assigning precise, customized colors to the categorical groups defined by the fill aesthetic (in this instance, the player positions). This ensures brand consistency or improved visual differentiation.

Integrating these layers transforms the basic plot into a publication-quality figure, as demonstrated below:

library(ggplot2)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='dodge', stat='identity') +
  theme_minimal() +
  labs(x='Team', y='Points', title='Avg. Points Scored by Position & Team') +
  theme(plot.title = element_text(hjust=0.5, size=20, face='bold')) +
  scale_fill_manual('Position', values=c('coral2', 'steelblue', 'pink'))

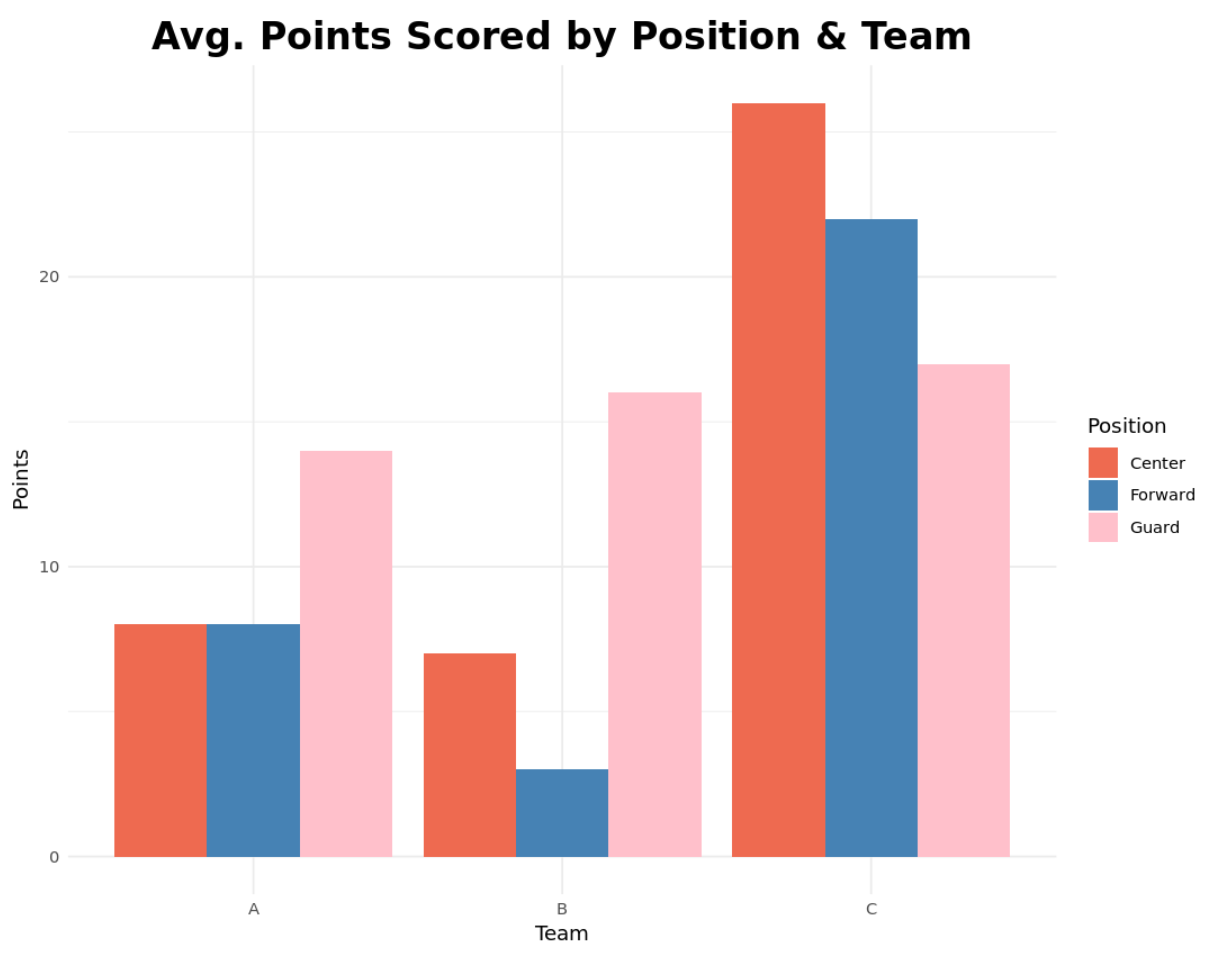

The resulting visualization is significantly enhanced, offering distinct color coding and an informative, centered title, thereby dramatically increasing its effectiveness in communicating the underlying data patterns.

Simplifying Style with External Themes (ggthemes)

For data scientists and analysts requiring rapid application of professional, predefined styles, external packages offer an invaluable resource. The ggthemes library is a powerful extension of ggplot2, providing a curated collection of high-quality themes inspired by reputable sources such as academic journals, or mainstream publications like The Economist or the Wall Street Journal (WSJ).

Utilizing these external themes streamlines the customization workflow, as a single function call can replace several complex lines of manual theme() adjustments. This method is highly recommended for maintaining a consistent and polished visual identity across large projects or diverse reports.

To implement these styles, the ggthemes package must first be installed and loaded. We can then easily apply functions like theme_wsj() to our existing plot structure:

install.packages('ggthemes')

library(ggplot2)
library(ggthemes)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='dodge', stat='identity') +
  theme_wsj()

By integrating the Wall Street Journal theme, the plot instantly adopts a sophisticated, news-report aesthetic, demonstrating the efficiency and power of leveraging external theme libraries within the R visualization ecosystem. Exploring the diverse themes available within ggplot2 and its extensions is key to selecting the presentation style that best suits the data’s narrative.

For users interested in a broader selection of styling options, further resources are available. Refer to our Complete Guide to the Best ggplot2 Themes for an exhaustive list.

Summary: Key Takeaways for Grouped Barplots

Creating an accurate and effective grouped barplot in R using ggplot2 relies on a precise understanding of the underlying mappings and parameters. This technique offers a robust solution for visualizing the complex relationships between two or more categorical variables and a continuous measurement. The core success of this visualization hinges on two specific configurations within the geom_bar layer:

1. Setting position='dodge' to ensure the bars are placed side-by-side rather than stacked, thereby facilitating direct visual comparison.
2. Setting stat='identity' to instruct ggplot2 to use the raw, pre-calculated values provided in the Y-axis aesthetic, overriding the default count statistic.

Beyond the structural elements, leveraging ggplot2‘s extensive customization capabilities—including manual color scales (scale_fill_manual()) and external theme libraries like ggthemes—ensures that the resulting plots are not only statistically accurate but also visually compelling, professional, and optimized for publication or presentation.
