Learning to Create Stacked Barplots in R: A Step-by-Step Guide

A stacked barplot is an exceptionally insightful graphical tool employed extensively in modern data visualization and analytical reporting. Unlike simple bar charts that compare totals across categories, this specialized chart type is meticulously designed to simultaneously display two crucial pieces of information: the total magnitude of a primary category and the compositional breakdown of that total based on a secondary, nested variable. Essentially, the bars representing the quantities are physically stacked upon one another, providing a clear visual representation of part-to-whole relationships. This structure makes stacked barplots invaluable for comparing how the internal distribution of a metric varies across different groups.

This comprehensive tutorial serves as an expert guide, walking you through the precise, step-by-step process required to generate professional-quality stacked barplots within the leading open-source environment for statistical computing, R. Our methodology will lean heavily on the capabilities of the widely adopted and highly versatile data visualization library, ggplot2. Utilizing ggplot2 allows for declarative visualization construction, enabling analysts to build complex plots layer by layer, adhering to the principles of the grammar of graphics.

Understanding how to manipulate the geometric layers and aesthetic mappings within ggplot2 is foundational for any serious R user. The specific challenge when creating a stacked barplot is correctly instructing the visualization engine to use pre-calculated values for bar heights, rather than counting observations, which is the default behavior. We will cover everything from initial data preparation and basic plotting syntax to advanced aesthetic customization, ensuring the resulting visualization is both accurate and presentation-ready for high-level reporting.

Setting Up the Environment and Data in R

The prerequisite for any successful data visualization project in R involves ensuring that the necessary packages are installed and loaded, and, critically, that the input data structure is properly organized. For ggplot2, data must typically reside in a tidy format, most often a data frame, where each column represents a variable and each row represents an observation. Our example scenario utilizes a hypothetical dataset designed to track the average points scored per game for nine distinct basketball players, categorized across three different teams (A, B, and C).

Preparing the data structure involves explicitly defining the variables that will drive the plot’s aesthetics. We need a categorical variable for the primary axis (Team), a categorical variable for the stacking segments (Position), and a continuous numerical variable representing the measured height of the bars (Points). This explicit definition ensures that ggplot2 can correctly map these variables to the visual elements—the x-axis location, the fill color, and the y-axis height—according to the grammar of graphics principles upon which the library is built. Proper data structuring is the most critical first step in generating accurate visualizations.

The following R code snippet details the construction of this sample data frame. It employs base R functions like rep() (replicate) to efficiently generate the categorical variables, ensuring that we have a balanced structure for demonstration purposes. This code block should be executed first in your R console to create the necessary object, named df, which will serve as the single source of truth for all subsequent plotting commands. Pay close attention to the structure of the resulting table, as this format is absolutely crucial for ggplot2 to correctly interpret and map the variables to the graphical aesthetics.

# Create the sample data frame for basketball statistics
df <- data.frame(team=rep(c('A', 'B', 'C'), each=3),
                 position=rep(c('Guard', 'Forward', 'Center'), times=3),
                 points=c(14, 8, 8, 16, 3, 7, 17, 22, 26))

# Display the resulting data frame structure
df

  team position points
1    A    Guard     14
2    A  Forward      8
3    A   Center      8
4    B    Guard     16
5    B  Forward      3
6    B   Center      7
7    C    Guard     17
8    C  Forward     22
9    C   Center     26

The resulting object, appropriately named df, now holds the summarized input data in the correct tidy format. In the context of our visualization goals, the team variable will serve as the primary grouping factor, defining the distinct columns (bars) in the plot. Meanwhile, the position variable, which is a key categorical descriptor, will define the distinct segments that are vertically stacked within each of those team bars. The successful execution of this setup phase ensures a smooth transition to the plotting stage, where we define the visual rules.

Constructing the Foundational Stacked Barplot using ggplot2

The creation of any visualization in ggplot2 begins with the initialization function, ggplot(), which sets the data source and the global aesthetic mappings (aes). For a stacked barplot, the fundamental visualization is achieved by combining the base function with the crucial geom_bar() layer. This geometry function is responsible for drawing the rectangular bars that represent the data values. Since our data frame df already contains the final calculated heights (the points column) we intend to plot, we must override the default behavior of geom_bar(), which usually involves calculating counts of observations.

The aesthetic mapping (aes) is defined within the ggplot() call, linking the three essential variables to visual properties. We must explicitly map the x-axis to team, the y-axis to points, and the segmentation color to fill=position. The fill aesthetic is the mechanism that dictates which variable defines the stacked components. The two critical arguments required within geom_bar() for this specific type of plot are stat='identity' and position='stack'. Setting the statistical transformation to 'identity' ensures that the bar heights are taken literally from the value provided in the y aesthetic. Simultaneously, setting the position argument to 'stack' instructs ggplot2 to vertically layer the segments defined by the fill variable, rather than placing them side-by-side.

Executing the following minimal code block will generate the initial, functional stacked bar chart. This initial plot accurately displays the total points scored per team, with each bar segmented precisely according to the player position distribution. While this output is technically correct, analysts should recognize the importance of the two key arguments: stat='identity' indicates that the data is already summarized, and position='stack' executes the desired compositional layout.

library(ggplot2)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='stack', stat='identity')

Refining Aesthetics: Custom Titles, Labels, and Color Palettes

Although the basic plot is mathematically correct and provides the necessary data insight, raw visualizations often lack the polish required for professional reports or public presentations. Transforming a functional chart into a production-ready artifact necessitates meticulous attention to aesthetic details, including clear labeling, appropriate color selection, and a clean overall theme. ggplot2 is perfectly suited for this, offering a flexible system of layers that can be appended to the base plot object to control nearly every visual element.

To enhance readability, we typically append layers such as theme_minimal(), which strips away distracting background elements, resulting in a cleaner, professional appearance. Crucially, the labs() function allows us to define descriptive axis labels (for x and y) and establish a clear, informative main title for the entire visualization. A well-crafted title immediately conveys the chart’s purpose and the relationship being illustrated. Furthermore, fine-tuning the title’s appearance—such as centering it and adjusting the font size and weight—is achieved using the theme() layer, allowing for precise control over text elements like titles, subtitles, and captions.

Color selection is paramount in data visualization, as colors distinguish categories and can impact accessibility. While ggplot2 provides default color schemes, analysts often need to use specific brand colors or palettes optimized for accessibility or print. This customization is handled effectively by scale_fill_manual(). This function allows the user to explicitly map a vector of preferred colors (e.g., ‘coral2’, ‘steelblue’, ‘pink’) to the unique categorical values found in the fill variable (position). Using manual scales ensures consistency and adherence to specific design standards, overriding the potentially arbitrary defaults chosen by the plotting engine and providing maximum control over the visual impact.

library(ggplot2)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='stack', stat='identity') +
  theme_minimal() +
  labs(x='Team Designation', y='Average Points Scored', title='Avg. Points Scored by Position & Team Composition') +
  theme(plot.title = element_text(hjust=0.5, size=20, face='bold')) +
  scale_fill_manual('Player Role/Position', values=c('coral2', 'steelblue', 'pink'))

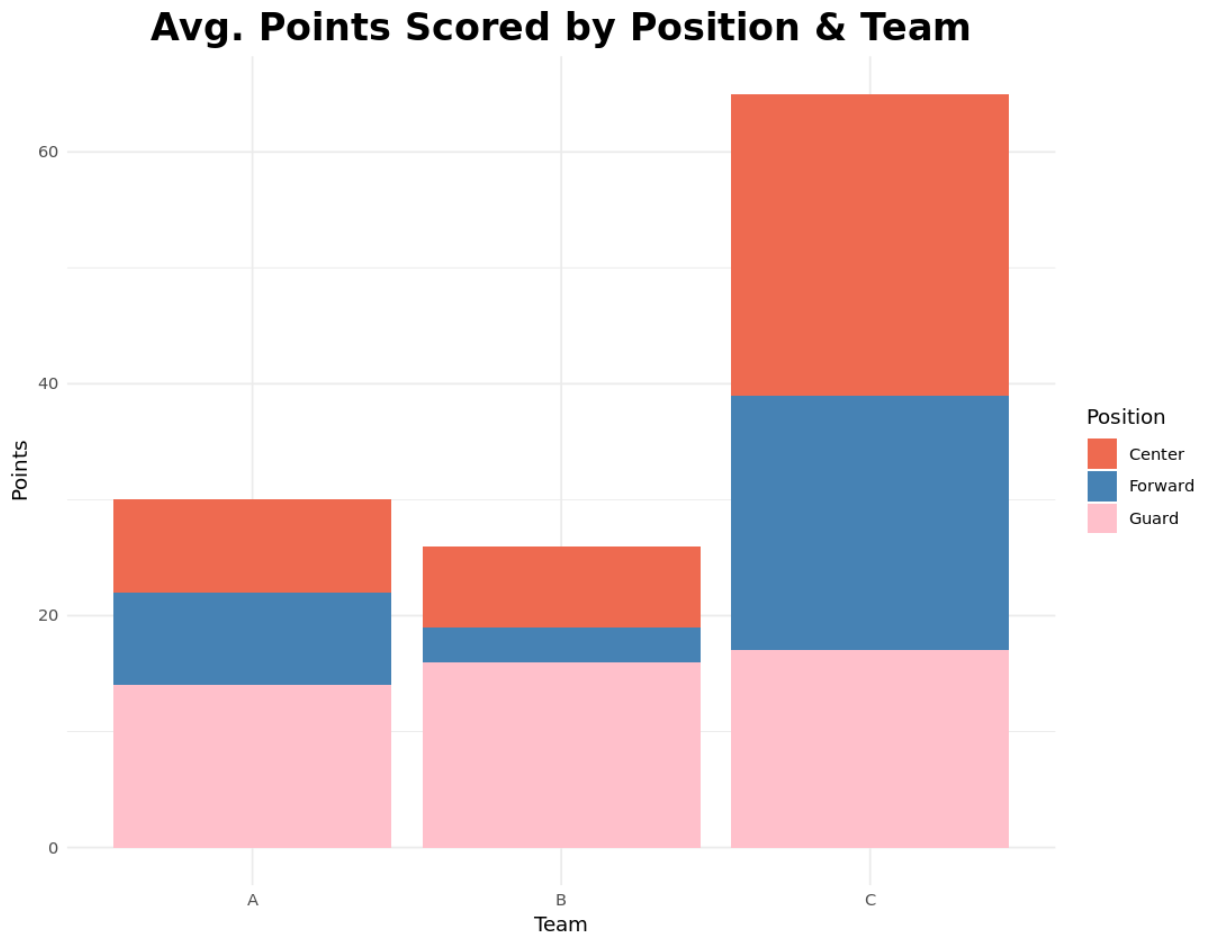

The resulting visualization, shown below, demonstrates the immediate and profound impact of these aesthetic adjustments. The plot is now significantly easier to read, the title clearly communicates the content, and the manually assigned colors help distinguish the different player positions (Guard, Forward, Center) consistently across all teams, providing a much higher standard of visual communication.

Leveraging External Libraries for Pre-Defined Themes (ggthemes)

While manual customization using theme() offers maximum control, it can be time-consuming, especially when aiming to replicate established, professional design standards. For analysts who require rapid, high-quality stylistic transformations, external R packages provide extensive collections of pre-defined themes. The ggthemes library stands out as an exceptionally popular resource, offering themes inspired by the aesthetics of major publications, statistical software outputs, and established design principles, such as those used by the Wall Street Journal (WSJ) or the Economist.

Implementing these sophisticated themes is remarkably straightforward. The first step involves installing the ggthemes package, followed by loading it into your current R session using the library() function. Once loaded, the desired theme function—such as theme_wsj(), which replicates the distinct gridlines, font styles, and color palette optimized for financial and economic reporting—is simply appended as a single layer to your existing ggplot2 object. This approach bypasses the need for multiple lines of manual theme() adjustments, streamlining the workflow considerably.

This method significantly boosts efficiency without sacrificing visual quality. By utilizing pre-vetted themes, the analyst can immediately adopt highly readable and standardized visualizations that are instantly recognizable and trusted. Note that when applying a theme like theme_wsj(), it often overrides many previously defined theme elements (like theme_minimal() or manual title styling) to maintain stylistic consistency, making it an efficient “one-stop-shop” for aesthetic transformation.

install.packages('ggthemes')

library(ggplot2)
library(ggthemes)

ggplot(df, aes(fill=position, y=points, x=team)) +
  geom_bar(position='stack', stat='identity') +
  theme_wsj()

The output below clearly illustrates the transformation achieved by applying theme_wsj(). The resulting plot features a distinct aesthetic, optimized for clarity and professional presentation, demonstrating how external packages can provide immediate, impactful changes to the visualization’s overall presentation and design with minimal coding effort.

Advanced Considerations for Stacked Barplots

While the standard stacked barplot is excellent for visualizing totals and their internal compositions, analysts must be aware of certain limitations and alternative visualizations that may be more suitable depending on the analytical goal. For instance, when the primary objective is comparing the *proportions* of segments across different groups, a normalized stacked barplot (often achieved using position='fill' instead of position='stack' in geom_bar()) is often more appropriate. The normalized version scales all bars to 100%, making proportional comparisons immediate, though it sacrifices the ability to easily compare the absolute total magnitude of the primary category.

Furthermore, careful consideration must be given to the ordering of the segments within the stack. For clarity and ease of visual tracking, it is generally recommended to order the segments consistently across all bars, often by size (from largest to smallest) or by a logical hierarchy defined by the data. In R, this ordering is critical and is achieved by converting the categorical variable (e.g., position) into a factor variable and explicitly defining the level order prior to plotting. Ignoring factor levels can lead to visual inconsistencies that confuse the viewer and hinder data interpretation.

Finally, when dealing with a large number of stacking segments, stacked barplots can become cluttered and difficult to read, especially if the segments are very thin or numerous. In such complex cases, alternatives such as **diverging stacked barplots** (for data around a midpoint) or different visualization types like **mosaic plots** or **treemaps** might offer a clearer representation of hierarchical or compositional data. However, for datasets involving a manageable number (two to five) of clear compositional categories, the stacked barplot remains an indispensable tool due to its intuitive nature and immediate interpretability.

Summary and Further Resources

Mastering the creation of stacked barplots in the R environment using the powerful ggplot2 library is a foundational skill for any data analyst. The key to successful implementation lies in correctly initializing the plot with the data, accurately defining the aesthetic mappings for the x-axis, y-axis, and fill, and critically, applying the geom_bar function with the arguments stat='identity' (to use the data values directly) and position='stack' (to achieve the vertical layering). This chart type remains an invaluable tool for analysts who need to effectively communicate both the total quantities across distinct groups and the simultaneous composition of those totals across different categorical variables.

By learning to append layers for customization—including descriptive labels via labs(), stylistic improvements via theme() or dedicated theme packages like ggthemes, and precise color control via scale_fill_manual()—you can ensure your stacked barplots are not only statistically accurate but also visually compelling and optimized for professional communication. Consistent practice with aesthetic adjustments will elevate your visualizations from simple data dumps to powerful storytelling tools.
