Learning to Visualize Data: Creating Histograms from Pandas Series

Histograms stand as essential tools in the field of data visualization, providing a critical overview of the underlying distribution of a numerical dataset. When conducting data analysis using Python, especially within the powerful data manipulation framework provided by the Pandas library, generating a high-quality histogram is remarkably efficient. This guide is specifically tailored to demonstrate how to leverage the built-in functionality of a Pandas Series to produce various types of histograms—from basic frequency counts to normalized density plots—using highly concise and intuitive syntax.

The core methodology relies on the native integration of plotting capabilities within Pandas objects. Any Pandas Series object inherently possesses the .plot() accessor method, which acts as a wrapper around the Matplotlib library. To generate a histogram, we simply invoke this method and specify the required plot type using the kind parameter set to 'hist'. Understanding this fundamental operation is the key to mastering Pandas visualization.

The basic structure required to instantiate the plot is deceptively simple, yet powerful, allowing for rapid exploratory data analysis (EDA). The syntax below highlights the minimal requirement for visualization:

my_series.plot(kind='hist')

Throughout this guide, we will explore practical examples that move beyond this basic command, showing how to customize the visual output, interpret different types of histograms, and ensure that the plots are displayed correctly across various computational environments.

Setting Up Your Environment for Visualization

Before diving into the code examples, it is crucial to ensure your environment is configured for plotting. Since Pandas utilizes Matplotlib under the hood to render the visualizations, the display behavior can vary depending on where you execute your Python code. If you are working within a standard script environment or an older terminal, the plot might not appear automatically upon execution of the .plot() command.

For users developing in environments like Visual Studio Code, PyCharm, or standard command-line interfaces, explicitly calling the display function from Matplotlib is often necessary to force the rendering of the graphical output. This function is matplotlib.pyplot.show(), commonly aliased as plt.show() after importing Matplotlib’s pyplot module. This ensures that the generated visual artifact is opened in a separate window or inline, depending on your interpreter settings.

In contrast, modern interactive environments, particularly Jupyter Notebooks or Google Colab, benefit from magic commands like %matplotlib inline (or simply relying on the notebook’s default inline backend), which typically handle the automatic display of plots immediately after the plotting command is run. Regardless of your chosen environment, having a foundational understanding of this rendering requirement prevents common troubleshooting issues related to invisible plots.

Generating the Standard Frequency Histogram

The most fundamental type of histogram is the frequency histogram. This visualization maps the numerical data distribution by showing the raw count of observations that fall within defined intervals, known as bins. The height of each rectangular bar directly corresponds to the absolute frequency of data points in that specific range. This provides an immediate visual representation of where data is concentrated and identifies potential skewness or outliers.

To demonstrate this, we will first construct a representative numerical dataset encapsulated within a Pandas Series. This Series contains thirty integer values representing a hypothetical dataset. We then call the .plot() method, implicitly instructing Pandas to create a frequency histogram since density=False is the default setting.

The following code block imports the necessary Pandas library, initializes the sample Series, and executes the plotting command to visualize the distribution of our numerical data.

import pandas as pd

# Create a sample Pandas Series
data = pd.Series([2, 2, 2, 3, 3, 4, 5, 7, 8, 9, 12, 12, 14, 15, 16, 16, 18,
                    19, 22, 22, 22, 25, 26, 27, 30, 33, 33, 33, 34, 35])

# Generate a frequency histogram from the Series
data.plot(kind='hist')

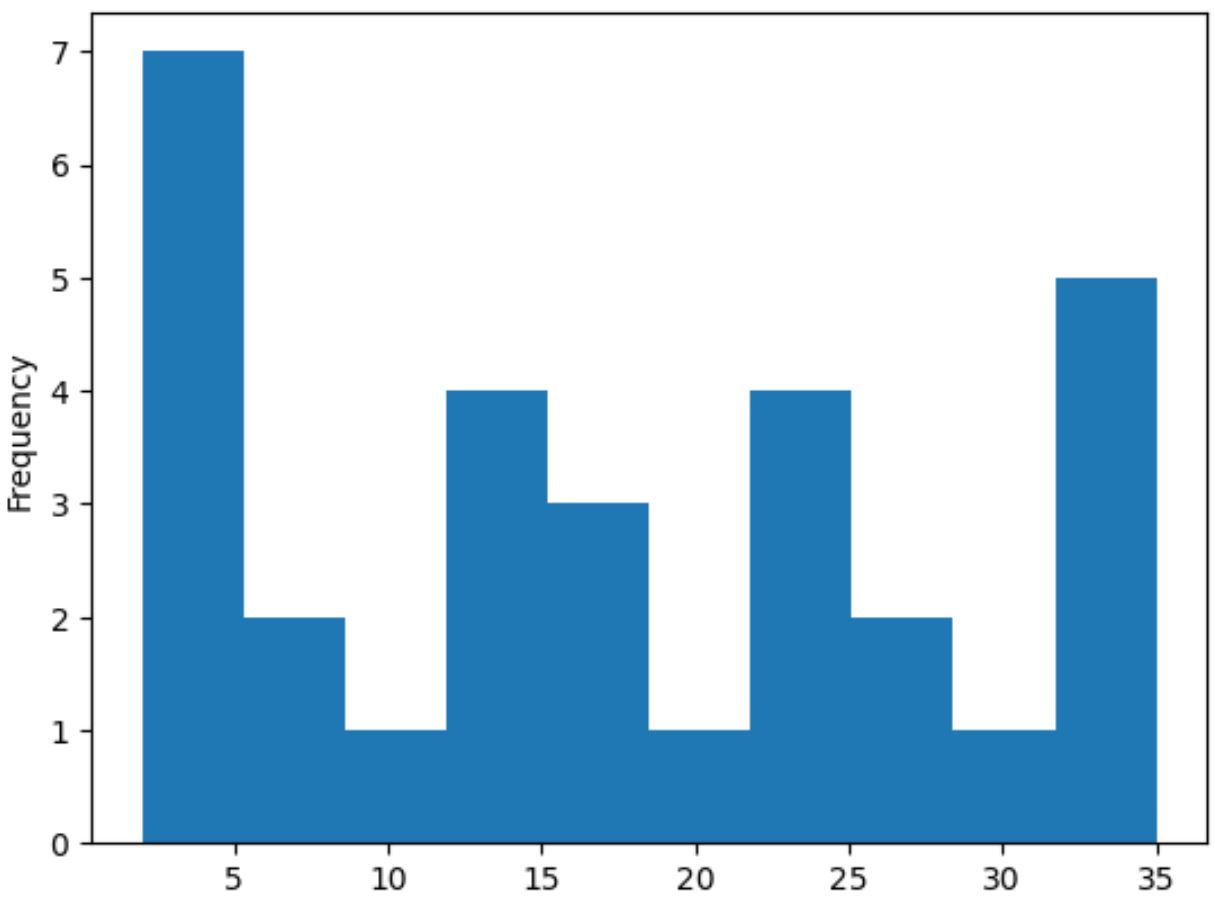

Upon examining the resulting plot, two key axes define the visualization: the x-axis, which represents the range of values contained within our sample Series, and the y-axis, which precisely quantifies the absolute frequency. Each bar’s height tells us how many observations fell into the value range represented by that specific bar’s width (the bin size). This visualization clearly demonstrates the concentration of data points around certain low and high values in our sample set.

Normalizing Data with the Density Histogram

While frequency histograms are excellent for showing raw counts, they can be misleading when comparing distributions from datasets of vastly different sizes. For instance, comparing the frequency plot of 100 observations to one with 10,000 observations is difficult. This is where the density histogram becomes invaluable. A density histogram normalizes the height of the bars such that the total area of all bars sums exactly to 1.

This normalization effectively transforms the y-axis from showing raw counts to displaying the probability density, allowing the plot to serve as an estimate of the underlying probability distribution function (PDF). By ensuring the total area is unity, we can accurately compare the shape and spread of different distributions, irrespective of the sample size. The visualization shifts the focus from counting occurrences to understanding the proportional likelihood of observations falling within specific ranges.

To activate this normalization when plotting with Pandas, we introduce the optional parameter density=True within the .plot() function call. This subtle modification is all that is required to transform the output from a count-based plot to a probability-based plot, offering a clearer statistical interpretation of the data shape.

import pandas as pd

# Create a sample Pandas Series (same as Example 1)
data = pd.Series([2, 2, 2, 3, 3, 4, 5, 7, 8, 9, 12, 12, 14, 15, 16, 16, 18,
                    19, 22, 22, 22, 25, 26, 27, 30, 33, 33, 33, 34, 35])

# Generate a density histogram from the Series
data.plot(kind='hist', density=True)

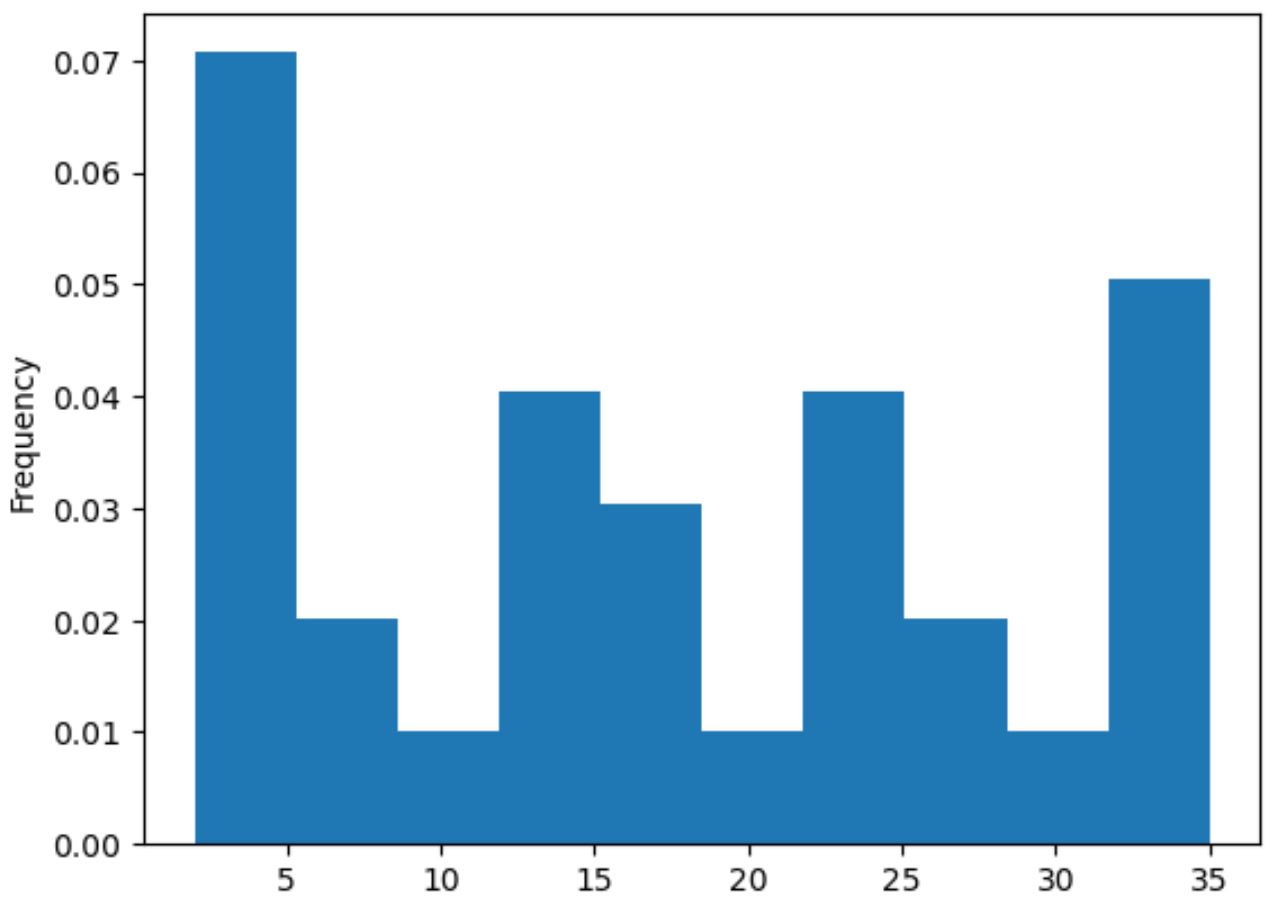

In this resulting density histogram, the x-axis retains its meaning—representing the continuum of values from the Pandas Series. However, the y-axis now displays the density value. It is crucial to remember that this value is not a direct probability but rather the height necessary for the bar’s area (height multiplied by bin width) to reflect the proportion of observations falling within that bin. This allows analysts to visualize the probability landscape of the data distribution.

Advanced Customization of Histogram Aesthetics

Effective data visualization goes beyond simply plotting the raw numbers; it requires tailoring the plot’s aesthetics to maximize clarity and communication. Pandas and its underlying Matplotlib integration offer a rich set of parameters within the .plot() method, enabling extensive customization of the histogram‘s appearance.

Key customization options include manipulating the visual properties of the bars, such as setting the primary color and defining a contrasting edgecolor for outlines. More importantly, we can control the granularity of the visualization by adjusting the number of bins using the bins parameter. Increasing the number of bins results in narrower bars and a more detailed, yet sometimes noisier, view of the data distribution, while decreasing the number of bins provides a smoother, more generalized representation.

Furthermore, for professional presentation, plots must include descriptive metadata. The .plot() function returns a Matplotlib Axis object, which provides convenient methods for adding meaningful labels and titles. We can use methods like set_xlabel() to describe the variable on the horizontal axis and set_title() to give the entire plot appropriate context.

Let’s apply these advanced features to our sample dataset. We will specify a distinct bar color (red), a clear outline (black), and significantly increase the bin count to 20 to observe a finer resolution of the data’s frequency distribution.

import pandas as pd

# Create a sample Pandas Series
data = pd.Series([2, 2, 2, 3, 3, 4, 5, 7, 8, 9, 12, 12, 14, 15, 16, 16, 18,
                    19, 22, 22, 22, 25, 26, 27, 30, 33, 33, 33, 34, 35])

# Create a histogram with custom color, edge color, and number of bins
my_hist = data.plot(kind='hist', color='red', edgecolor='black', bins=20)

# Add a custom x-axis label
my_hist.set_xlabel('Values')

# Add a custom title to the plot
my_hist.set_title('Distribution of Values')

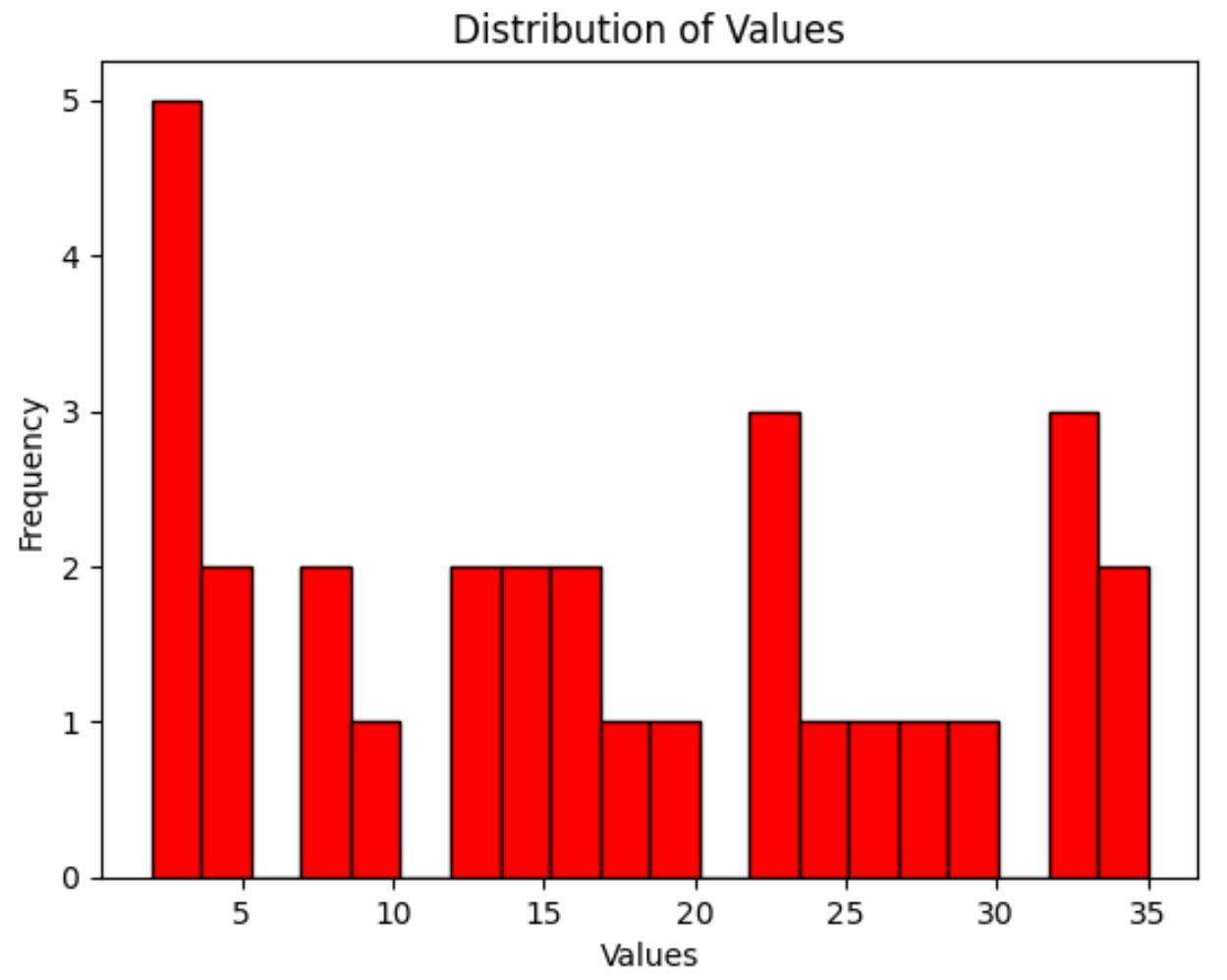

The result is a significantly more refined and informative visualization. By utilizing 20 bins, we gain greater insight into the specific peaks and valleys of the data. The applied color scheme enhances visual separation and impact. Crucially, the addition of the “Values” x-axis label and the “Distribution of Values” plot title transforms a raw plot into a publication-ready figure, providing necessary context for any reader analyzing the data.

Interpreting the Role of Bins and Density in Data Analysis

A critical decision when creating any histogram lies in selecting the appropriate number of bins. The choice of bin count profoundly influences the visual message conveyed by the distribution. Too few bins can oversimplify the data, masking important underlying patterns and details. Conversely, too many bins can introduce noise, leading to a jagged plot that makes it difficult to distinguish true trends from random fluctuations. Analysts often employ rules of thumb, such as the Square-Root Rule or Sturges’ formula, though manual exploration remains the most reliable method for finding the optimal bin count that balances smoothness and detail for a given dataset.

Furthermore, the choice between displaying raw frequency (default) and density histogram (density=True) dictates the statistical interpretation. Frequency plots are best for understanding the absolute size and count of data within ranges, often used in preliminary quality checks or reporting exact totals. Density plots, however, are preferred for statistical modeling and distribution comparison, as they provide a normalized view that directly relates to probability theory.

By understanding these parameters—bins, frequency, and density—data scientists can move beyond basic visualization and use histograms as precise tools for statistical inference, identifying characteristics like modality (number of peaks), symmetry, and the presence of heavy tails in the data. The flexibility of the Pandas .plot() method makes toggling these parameters simple and accessible.

Conclusion and Further Visualization Tools

The ability to quickly and effectively generate a histogram from a Pandas Series is a cornerstone skill in modern data analysis using Python. Pandas streamlines the process, wrapping the complexity of the underlying Matplotlib library into a single, intuitive function call. Whether you need a simple frequency count or a statistically robust density histogram, the .plot(kind='hist') syntax offers immense power and flexibility.

Mastering histograms is just one step in building a complete data visualization toolkit. Pandas, in conjunction with Matplotlib, supports a wide range of graphical representations essential for comprehensive exploratory data analysis (EDA). We highly encourage expanding your knowledge beyond distributional plots to encompass relationships, temporal changes, and categorical comparisons.

To further enhance your data visualization skills and explore other plotting types available within the Pandas and Matplotlib ecosystem, consider reviewing the following specialized tutorials:

• How to Create a Line Plot in Pandas
• How to Generate a Scatter Plot from a DataFrame
• Creating Bar Charts for Categorical Data

These resources will equip you with the diverse visualization techniques needed to communicate complex data insights compellingly and effectively across various domains.
