Learning to Visualize Data: Plotting Grouped Histograms with Pandas

Analyzing complex datasets frequently requires segmenting and examining information by subgroups. This fundamental practice in data analysis allows researchers and analysts to uncover crucial variations, hidden patterns, and differences in the underlying behavior of categories within a population. When the goal is to visualize and understand the inherent statistical distribution of a numerical variable across these distinct categories, histograms serve as an essential and highly effective visualization tool. This comprehensive guide details two robust and flexible methods for plotting histograms based on group membership, leveraging the immense power of the Python libraries Pandas and Matplotlib.

Data visualization strategies often involve a choice between isolation and comparison. Whether your analytical need dictates visualizing each group’s distribution in separate, clean plots for clear individual examination or demands overlaying them on a single graph for direct, immediate comparison, the Pandas ecosystem provides adaptable solutions. We will meticulously walk through both primary approaches, delivering practical, reproducible code examples and detailed explanations. This structured overview will empower you to select the most suitable visualization technique, ensuring your results are both accurate and profoundly insightful.

Setting Up Your Environment and Sample Data

Before diving into the plotting mechanics, it is necessary to establish our Python environment and generate a controlled sample Pandas DataFrame. This synthetic dataset will simulate a common real-world scenario: tracking a numerical metric (points scored) across three distinct categorical groups (teams A, B, and C). We rely heavily on the NumPy library for efficient generation of random, statistically sound data, ensuring the entire demonstration is fully reproducible and easy to follow.

The initial step involves importing the required libraries: pandas, which is foundational for efficient data manipulation and structuring, and numpy, essential for generating the numerical data used in our simulations. A critical line in the setup is np.random.seed(1). Setting the random seed is paramount in analytical demonstrations, as it guarantees that the sequence of “random” numbers generated remains identical every time the code is executed. This consistency ensures our example plots and statistical outcomes are perfectly reproducible, eliminating variability caused by random initialization.

Following the imports, we construct the DataFrame itself. The categorical grouping variable, 'team', is built using np.repeat(), effectively assigning 100 simulated players to each of the three defined teams (A, B, C). The target numerical variable, 'points', is populated with data drawn from a normal distribution using np.random.normal(). We center this distribution around a mean (loc) of 20 with a standard deviation (scale) of 2, creating a total dataset of 300 players. This rigorous setup enables us to simulate realistic, yet perfectly controlled, data ideal for demonstrating the grouping and plotting techniques.

import pandas as pd
import numpy as np

#make this example reproducible
np.random.seed(1)

#create DataFrame
df = pd.DataFrame({'team': np.repeat(['A', 'B', 'C'], 100),
                   'points': np.random.normal(loc=20, scale=2, size=300)})

#view head of DataFrame
print(df.head())

  team     points
0    A  23.248691
1    A  18.776487
2    A  18.943656
3    A  17.854063
4    A  21.730815

The output from df.head() validates the successful creation and structure of our DataFrame, displaying the initial rows complete with the categorical 'team' assignments and their corresponding numerical 'points' values. This prepared DataFrame now serves as the essential foundation for demonstrating both the separate and overlaid histogram plotting methods we will explore.

Method 1: Generating Separate Histograms Using Pandas’ Built-in Plotting

The first and arguably simplest approach leverages the inherent plotting functionality integrated directly into the Pandas DataFrame object. This method allows for the quick generation of individual histograms for every category within the grouping variable using a single, highly concise line of Python code. It is the preferred technique when the analyst’s primary objective is to inspect the shape, spread, and central tendency of each group’s distribution in complete isolation, thereby avoiding potential visual interference from other groups.

The core syntax involves calling the .hist() method on the numerical column (e.g., df['points']) and specifying the categorical grouping column (e.g., df['team']) using the by argument. Pandas automatically handles the internal data segmentation, the creation of a figure containing multiple subplots, and the plotting of the distribution for each unique group category into its own distinct plot.

df['values_var'].hist(by=df['group_var'])

This powerful yet simple syntax instantly yields a grid of histograms, offering an efficient and rapid overview of multiple distributions simultaneously. Each plot within the grid corresponds to a distinct group defined by your specified grouping variable, visually displaying the frequency distribution of the target numerical variable. While highly efficient for initial exploration, the default output often benefits from aesthetic refinements to improve overall readability, as shown in the following example.

Example 1: Plotting Separate Histograms by Group Using Pandas

This example applies Method 1 to our sample dataset, providing a clear, segregated visualization of the points distribution for each team. This approach is invaluable for quickly grasping the individual characteristics of Teams A, B, and C without the visual clutter associated with overlaid visualizations. We initiate the visualization by calling the .hist() method on the 'points' column and passing the 'team' column to the by argument.

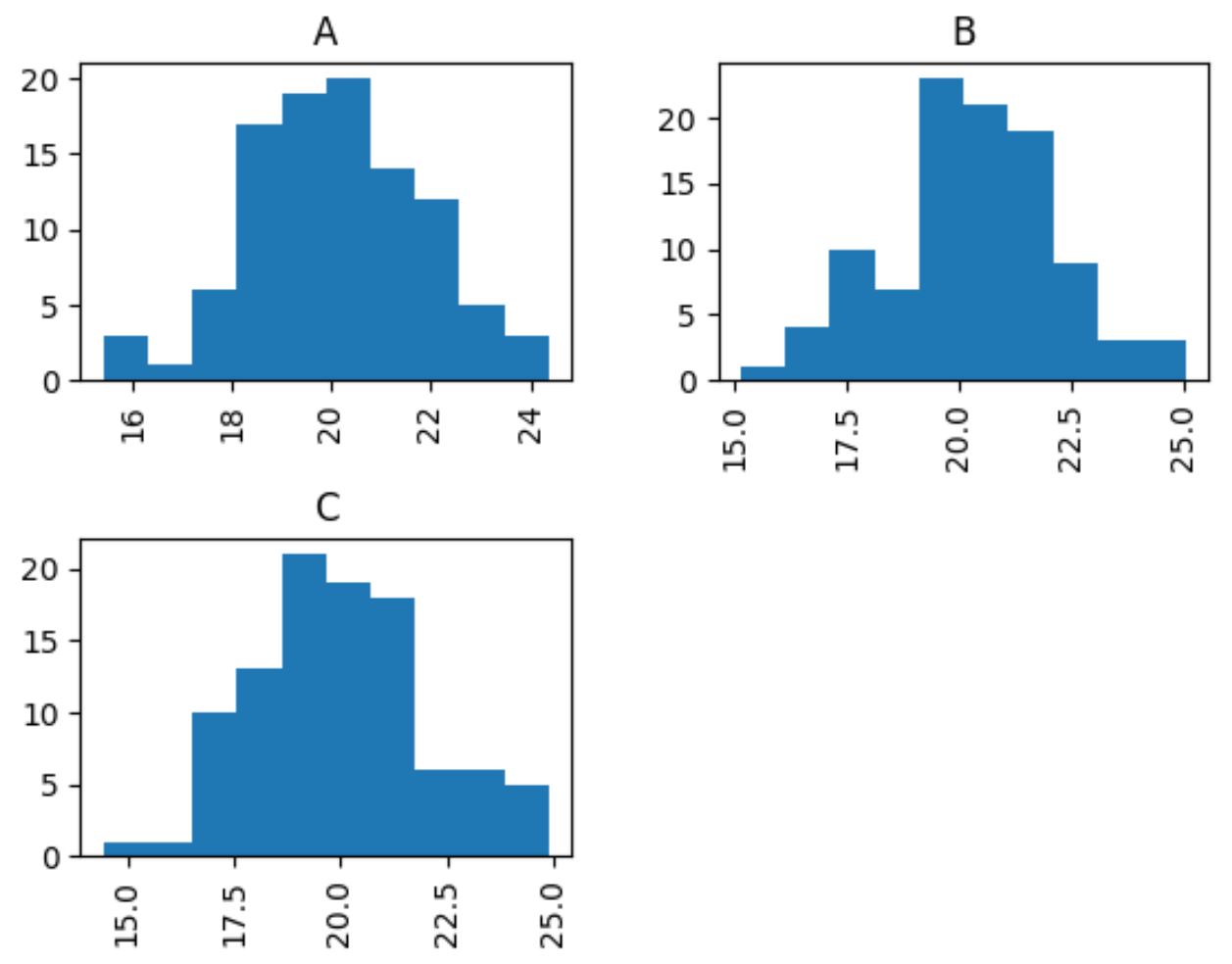

The initial execution generates three separate histograms, each dedicated to displaying the frequency of point ranges scored by players on teams A, B, and C. This default visualization is effective for initial exploration, immediately showing the relative concentrations of scores for each team.

#create histograms of points by team
df['points'].hist(by=df['team'])

Although the default plots convey the necessary information, enhancing their visual appeal and clarity is generally recommended practice. We can easily improve the visualization by adding distinct edge lines to the histogram bars, which helps clearly delineate them, and by adjusting the overall figure size to optimize interpretability.

To achieve this improvement, we utilize the edgecolor argument, which defines the border color around each bar (setting it to 'black' typically provides excellent contrast). More importantly, the figsize argument allows us to dictate the dimensions (width and height in inches) of the entire figure. Adjusting figsize is crucial for improving the readability of visualizations, especially when dealing with multiple subplots arranged in a grid.

#create histograms of points by team
df['points'].hist(by=df['team'], edgecolor='black', figsize = (8,6))

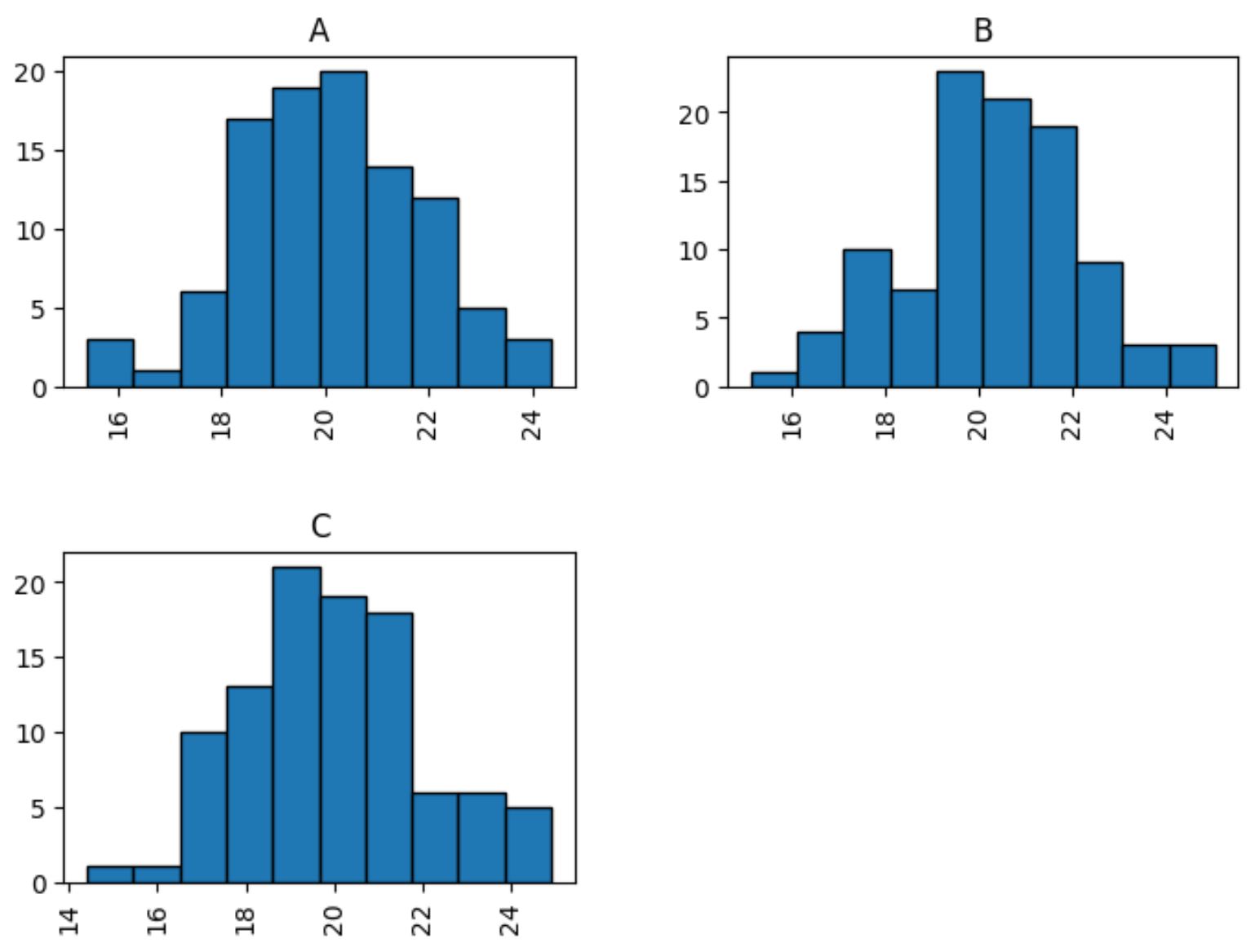

These simple but effective customizations significantly enhance the visual quality of the histograms, making it much easier to clearly discern the individual statistical distributions of points for each team. Method 1 is highly recommended for its straightforward implementation and effectiveness in providing clear, separate views of complex grouped data.

Method 2: Creating Overlaid Histograms for Direct Comparison

Conversely, when the key analytical objective shifts to directly comparing the distributions of different groups, overlaying their histograms onto a single plot becomes the superior strategy. This advanced technique, which requires direct interaction with the underlying plotting library Matplotlib, specifically the matplotlib.pyplot module, facilitates an immediate visual assessment of how the groups vary in terms of central tendency, spread, and overall shape.

To implement this method, we must first import matplotlib.pyplot, conventionally aliased as plt. The fundamental principle involves isolating the numerical data for each group independently. We achieve this highly efficiently using the Pandas DataFrame‘s powerful .loc accessor. This accessor allows for precise, label-based indexing, enabling us to filter the 'points' data based on the matching 'team' category (A, B, or C).

Once the data subsets are prepared, we sequentially call plt.hist() for each distinct group, plotting them onto the same graphical axes. A critical parameter in this process is alpha, which manages the transparency of the histogram bars. By setting alpha to a value such as 0.5 (where the range is 0 to 1), we ensure that overlapping areas of the bars from different histograms remain visible. This transparency prevents one distribution from completely masking others, which is essential for effective comparison. Furthermore, the label argument is indispensable for correctly identifying each group within the resulting plot’s legend.

import matplotlib.pyplot as plt

#define points values by group
A = df.loc[df['team'] == 'A', 'points']
B = df.loc[df['team'] == 'B', 'points']
C = df.loc[df['team'] == 'C', 'points']

#add three histograms to one plot
plt.hist(A, alpha=0.5, label='A')
plt.hist(B, alpha=0.5, label='B')
plt.hist(C, alpha=0.5, label='C')

#add plot title and axis labels
plt.title('Points Distribution by Team')
plt.xlabel('Points')
plt.ylabel('Frequency')

#add legend
plt.legend(title='Team')

#display plot
plt.show()

Example 2: Plotting Overlaid Histograms by Group on a Single Plot

Beyond the fundamental plotting of the distributions, integrating standard plot elements is mandatory for ensuring clarity and robust interpretability. This includes adding a meaningful and descriptive title using plt.title(), clearly labeling both the X and Y axes with plt.xlabel() and plt.ylabel(), and incorporating a comprehensive legend via plt.legend(). The legend, particularly when enhanced with a title, clearly maps each assigned color to its corresponding team, making the resulting comparative analysis immediate and straightforward for the viewer.

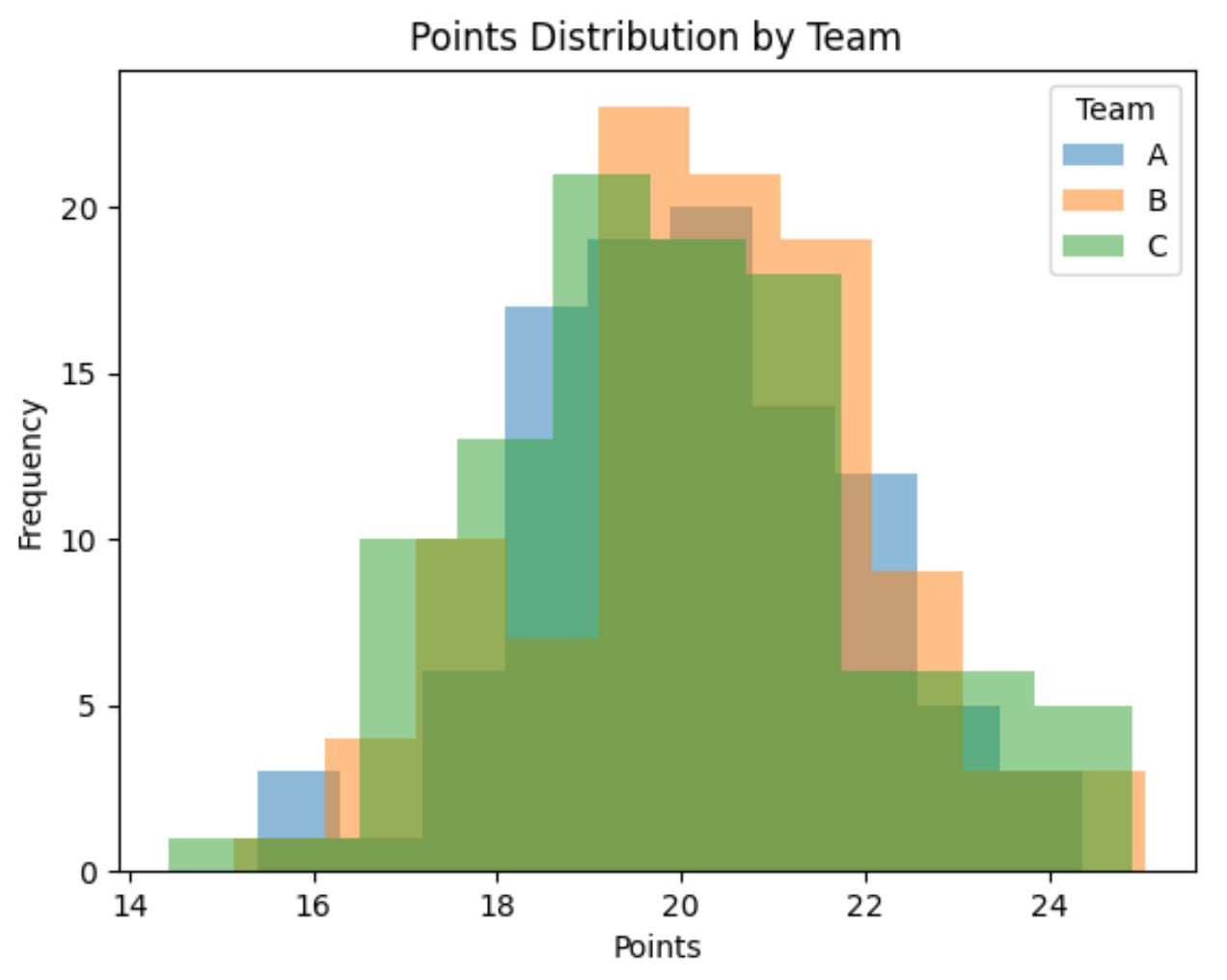

The final output is a single, integrated plot that masterfully displays three distinct, overlaid histograms. This powerful visual summary significantly facilitates a direct comparison of the points distributions across the different teams, enabling viewers to swiftly identify any overlaps, subtle shifts in central tendency, or unique distributional characteristics of each group.

Note on Transparency: The alpha argument specifies the level of transparency for each histogram. This value operates on a continuous scale from 0 (completely transparent) to 1 (completely opaque). By strategically setting this value to 0.5, we maximize the visibility of all overlaid histograms, especially in areas where their distributions intersect and overlap. Achieving effective transparency is the defining factor in creating successful comparative plots.

Choosing the Right Method: A Comparative Perspective

Both demonstrated methods for plotting histograms by group offer compelling and distinct advantages, meaning the selection of the appropriate technique must be fundamentally driven by your specific analytical objective. A clear understanding of these differences is essential for selecting the visualization strategy that will yield the most accurate and actionable insights from your data.

Method 1, which produces multiple, separate histograms (using the concise Pandas call df['values_var'].hist(by=df['group_var'])), is perfectly suited for situations demanding an unobstructed, detailed view of each group’s individual distribution. It excels at revealing intrinsic characteristics such as specific skewness, modality, and the full range of variation within each group, entirely free from visual interference. This technique is highly valuable during the initial phases of data analysis or when presenting findings that prioritize the internal structure of individual categories. However, analysts must recognize that making direct quantitative comparisons between groups becomes inherently more difficult as the eye must continually transition and reconcile information across different subplots.

Conversely, Method 2, which involves generating overlaid histograms on a single plot (by making sequential calls to matplotlib.pyplot.hist for each subset), is superior when the primary analytical goal is direct comparison. By positioning all histograms on the same axes, you gain the ability to instantly observe disparities in central tendency (e.g., shifts in means or medians), differences in spread (e.g., variance or standard deviation), and overall shape divergence between groups. The managed use of transparency (the alpha parameter) is crucial here, ensuring that overlapped data remains interpretable. While unmatched for comparative power, this method can quickly lead to visual complexity and clutter if the dataset includes too many groups or if the group distributions overlap too extensively, potentially obscuring the true individual shape of each distribution.

In summary, if your focus is on a deep, detailed examination of each group in isolation, the simplicity and clarity of separate plots are preferable. If, however, comparing the relative positions, spreads, and shapes of distributions across groups is the paramount objective, then overlaid plots offer the most direct and effective visual evidence. For comprehensive understanding, a hybrid approach—employing separate plots for detailed individual analysis and overlaid plots for quick comparative insights—often provides the greatest utility.

Conclusion

Effectively visualizing the underlying data distributions based on group membership is a fundamental capability in modern data visualization and rigorous analysis. Throughout this guide, we have explored two highly effective and distinct methodologies using the powerful Python libraries Pandas and Matplotlib: generating separate histograms for each group and creating complex overlaid histograms on a single plot.

The first methodology, which utilizes Pandas’ intuitive built-in .hist(by=...) function, provides a streamlined and clean pathway to producing individual plots for every category. This allows for straightforward, isolated inspection of each group’s unique distribution characteristics. We demonstrated how this approach can be immediately enhanced by incorporating edgecolor and adjusting figsize, leading to substantially improved clarity and visual aesthetic.

The second methodology, requiring more manual construction with Matplotlib’s plt.hist(), grants the analyst granular control over every aspect of the plot, enabling the precise creation of overlaid histograms. This technique is invaluable when the goal is a direct and immediate comparative analysis between groups, with the essential alpha argument serving as the key mechanism for regulating transparency and ensuring the visibility of all overlapping distributions. We also covered the non-negotiable customizations—such as descriptive titles, clear axis labels, and comprehensive legends—which are vital for accurate interpretation of any complex visualization.

By mastering these two core techniques, you acquire powerful tools capable of uncovering nuanced insights within your grouped numerical data. Regardless of whether your analytical requirement is to highlight unique individual group characteristics or to emphasize overall comparative trends across the population, Pandas and Matplotlib furnish you with the necessary flexibility to create compelling, informative, and analytically rigorous histograms.
