Learning to Customize the X-Axis Range in Pandas Histograms

When generating histograms to effectively visualize underlying data distributions, controlling the boundaries of the x-axis is often a critical requirement for accurate and impactful data visualization. Plotting libraries typically determine the default range automatically, but this may not always align with the specific analytical insights you are trying to convey or the precise segment of the data you need to emphasize. Fortunately, the widely used data analysis libraries, Pandas and Matplotlib, provide robust mechanisms for defining this range manually, giving you complete control over the visual presentation.

The standard and most efficient technique for adjusting the x-axis range within a Pandas histogram relies on utilizing the specific range argument. This parameter is integral to the plt.hist() function. By supplying a sequence (typically a list or tuple) of two values—a minimum and a maximum—you can precisely dictate the extent of the x-axis, thereby concentrating the visualization on a targeted interval of your overall dataset.

Imagine a practical scenario where your objective is to strictly limit the x-axis of your histogram to observations falling between the values of 10 and 30. The following streamlined code snippet perfectly illustrates how to execute this focusing technique using the powerful range parameter within the Matplotlib function call, allowing for immediate visual customization:

plt.hist(df['var1'], range=[10, 30])

As demonstrated in this foundational example, the resulting histogram generated for the 'var1' column will exclusively present the distribution spanning the interval from 10 to 30. This behavior occurs regardless of whether the dataset contains values outside of this scope. This ability to exercise such granular control is indispensable for tailoring data visualizations to meet highly specific analytical requirements and ensuring the clarity of data communication.

The Significance of Histograms and X-Axis Control

A histogram serves as an exceptionally powerful graphical tool designed to organize and represent a group of continuous data points categorized into user-defined intervals. It offers an immediate visual summary of the frequency distribution of a dataset, providing crucial insights into its overall shape, central tendency, and dispersion. Fundamentally, each bar (or bin) in the histogram corresponds to the frequency—the count or proportion—of data points that fall within that particular numerical range.

In standard practice, the x-axis of a histogram defines the range of values for the variable under examination, while the y-axis meticulously tracks the frequency or count of observations within each corresponding bin. By default, most modern plotting libraries, including Matplotlib when utilized through the Pandas interface, automatically calculate the x-axis limits based on the absolute minimum and maximum values found within the source data. While this automation is convenient for rapid data prototyping, this automatic scaling can sometimes obscure subtle but important details or, worse, exaggerate the visual impact of irrelevant outliers that stretch the scale unnecessarily.

The manual adjustment of the x-axis range transitions from a convenience to an absolute necessity when the analytical goal requires focusing intensely on a specific subset of values, maintaining a standardized scale for direct comparison of distributions across multiple datasets, or deliberately mitigating the visual influence caused by extreme outliers. This highly targeted approach is key to achieving a clearer and more focused communication of specific data patterns, anomalies, and underlying trends that might otherwise be masked by the full dataset range.

Setting Up Your Data: Creating a Pandas DataFrame

To provide a tangible demonstration of how to modify the x-axis range effectively, we must first establish a representative sample dataset. We will begin by constructing a Pandas DataFrame containing a continuous numerical variable that is suitable for histogram visualization. This simulated DataFrame is structured to model a typical real-world data collection scenario, thereby providing a clear and reproducible foundation for our subsequent visualization demonstration.

We will leverage the capabilities of the NumPy library to generate our random data, specifically drawing values from a normal distribution. This methodology is a cornerstone in data analysis for generating examples that are both predictable and reproducible, making it ideal for testing and illustrating visualization techniques. Crucially, the np.random.seed() function will be employed before data generation to guarantee that the random values produced are consistent and identical every single time the code block is executed, ensuring the reproducibility of our results.

The following Python code details the creation of our sample DataFrame, which includes a categorical variable named ‘team’ and the primary numerical variable, ‘points’, which we intend to analyze:

import pandas as pd
import numpy as np

#make this example reproducible
np.random.seed(1)

#create DataFrame
df = pd.DataFrame({'team': np.repeat(['A', 'B', 'C'], 100),
                   'points': np.random.normal(loc=20, scale=2, size=300)})

#view head of DataFrame
print(df.head())

  team     points
0    A  23.248691
1    A  18.776487
2    A  18.943656
3    A  17.854063
4    A  21.730815

The execution of this code successfully generates 300 distinct data points for the ‘points’ column. These values are mathematically centered around a mean (specified by the loc argument) of 20, with a standard deviation (controlled by scale) of 2, effectively simulating a common, slightly dispersed score distribution. The size parameter determines the total quantity of observations created. The immediate output, which displays the first five rows of the newly constructed DataFrame, confirms its structural integrity and verifies the successful initialization of the ‘points’ variable.

Visualizing Data with a Default Pandas Histogram

Before we proceed with the customization of the x-axis, it is highly instructive to first examine the appearance of the histogram for our ‘points’ variable when rendered using Matplotlib’s default settings. When the plt.hist() function is invoked without any explicit range specification, the library intelligently employs internal heuristics to automatically calculate the optimal bin edges and subsequently sets the x-axis limits. This calculation is entirely based on the absolute minimum and maximum values present in the input data array.

While this automatic scaling capability is undoubtedly convenient for preliminary data exploration and quick checks, as it guarantees all data points are encapsulated within the plot boundaries, it often falls short of providing the most insightful visual representation. Specifically, if the dataset contains extreme outliers, the resulting compression of the primary distribution body due to the stretched axis can significantly hinder accurate interpretation and visual analysis of the core data trends.

To generate the baseline, default histogram for the ‘points’ variable stored within our DataFrame, execute the following concise code block. Note that we introduce an aesthetic enhancement to improve visual clarity:

import matplotlib.pyplot as plt

#create histogram for points variable
plt.hist(df['points'], edgecolor='black')

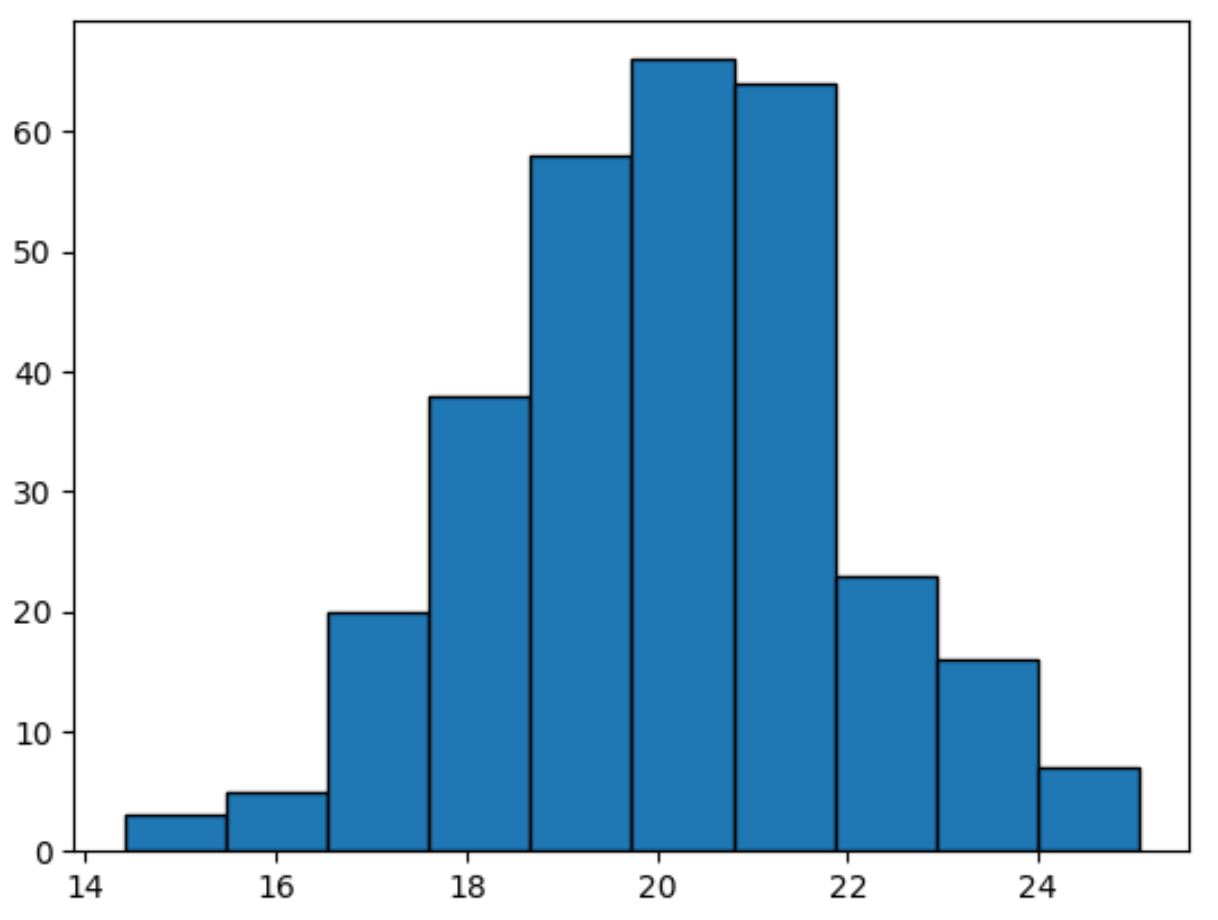

The inclusion of edgecolor='black' serves to provide enhanced visual separation between the individual histogram bars. The resulting plot, displayed immediately below, clearly illustrates the distribution of ‘points’, with the x-axis automatically scaled to perfectly accommodate every single observed value in the dataset.

Analyzing the Default X-Axis Range

A careful inspection of the default histogram reveals that the x-axis spans a range from approximately 14 to 25. This defined range is not arbitrarily selected; rather, it is a direct consequence of the statistical properties inherent in the ‘points’ data. Developing a thorough understanding of these underlying statistics is paramount to comprehending precisely how the plot is automatically scaled and, crucially, why manual customization of the axis boundaries might become essential for advanced analysis.

To definitively confirm the exact minimum and maximum values that determine this default axis configuration, we can effectively utilize the comprehensive describe() method, a highly powerful feature offered by Pandas. This method efficiently computes and returns a variety of descriptive statistics, providing a succinct summary of the dataset’s central tendency, measure of dispersion, and distribution shape, including the necessary minimum and maximum values that anchor the visualization.

Let us now apply the describe() method specifically to our ‘points’ variable to extract these critical summary statistics:

#summarize distribution of points variable
df['points'].describe()

count    300.000000
mean      20.148800
std        1.890841
min       14.413830
25%       18.818254
50%       20.176352
75%       21.372843
max       25.056651
Name: points, dtype: float64

The resulting output from describe() unambiguously confirms that the minimum observed value within the ‘points’ column is approximately 14.41, and the maximum value reaches about 25.06. These statistics align perfectly with the boundaries observed on the x-axis of the default histogram, confirming that Matplotlib successfully executed its automatic scaling routine to encompass all data points present in the variable.

Customizing the X-Axis Range with the ‘range’ Argument

Equipped with a clear understanding of how the default x-axis range is initially established, we can now proceed to the crucial step of defining a custom range using the range argument. This powerful feature allows the analyst to entirely override the library’s automatic scaling logic, thereby enabling the definition of specific lower and upper boundaries for the x-axis, leading to a much more controlled and analytically focused view of the underlying data.

For example, if the primary analytical objective requires examining the distribution of ‘points’ within a context that is deliberately broader or narrower than the data’s natural spread, a custom range must be set. Let us impose an axis limit that spans from 10 to 30. This choice intentionally extends beyond the actual minimum (14.41) and maximum (25.06) values in our current dataset. Such an extension can be profoundly useful when comparing the observed data against a theoretical distribution, benchmarking performance against a predefined standard, or simply contextualizing the current scores within a larger potential spectrum.

To implement this precise customization, the syntax is straightforward: we pass a list or tuple formatted as [min_value, max_value] directly to the range argument within the plt.hist() function call. The following code snippet demonstrates the exact steps required to achieve this for our ‘points’ variable:

import matplotlib.pyplot as plt

#create histogram for points variable with custom x-axis range
plt.hist(df['points'], edgecolor='black', range=[10, 30])

Executing this modification will render a new histogram where the x-axis explicitly scales from 10 to 30. It is important to observe how the histogram’s bars are now visually situated within this user-defined interval, potentially resulting in empty space at either end if the data does not fully occupy the entire specified range. This empty space, rather than being a flaw, often provides crucial context about where the data sits relative to a predefined or theoretical boundary.

Interpreting the Customized Histogram

The histogram generated using the custom x-axis range (10 to 30) offers a significantly different visual perspective compared to the default plot. The most immediate and noticeable difference is the substantially broader span of the x-axis, which now explicitly includes values well below the actual minimum observed point (14.41) and above the actual maximum (25.06) in our dataset.

This expansion of the range is instrumental because it furnishes essential context. For instance, if the scores were theoretically capable of ranging from 0 to 40, setting a range of 10–30 clearly demonstrates that our observed scores are tightly clustered within the middle of this potential spectrum. The empty bins between 10 and 14, and between 25 and 30, visually confirm the absence of scores in those specific lower and upper parts of our custom boundaries. This visual evidence is vital for assessing whether the data’s observed spread aligns correctly with predetermined theoretical expectations or practical operational limits.

It is paramount to continuously bear in mind that while the visual presentation is customized by adjusting the range, the integrity of the underlying data points remains absolutely unchanged. The histogram merely adjusts its visual boundaries to adhere to the specified limits. A critical cautionary note is that setting a range that is too narrow—that is, narrower than the actual spread of the data—will result in the unintentional exclusion of some data points from the visualization. Such exclusion leads directly to a visual misrepresentation of the true distribution. Therefore, the selection of the range argument must always be a thoughtful decision, guided by analytical rigor, to ensure the resulting visualization is both accurate and genuinely meaningful.

Conclusion and Further Exploration

Achieving proficiency in modifying the x-axis range in Pandas histograms through the use of Matplotlib’s range argument is an indispensable skill for any practicing data analyst or scientist. This technique empowers you to meticulously fine-tune your data visualization, making the plots more precise, significantly more informative, and perfectly tailored to address specific analytical questions. Whether the goal is to isolate and highlight a particular data segment, facilitate standardized comparisons of distributions, or proactively counteract the visual distortion frequently caused by extreme outliers, the range parameter provides the necessary level of detailed control.

By diligently following the comprehensive steps outlined throughout this guide, you can confidently take command of the visual presentation of your histograms. This mastery enables you to move decisively beyond the limitations of default settings and construct plots that are demonstrably more impactful and insightful. Always remember to carefully consider the broader context and your core analytical objectives when selecting a custom x-axis range to ensure that your final visualizations faithfully and accurately narrate the underlying data story.
