Create a Horizontal Legend in Base R (2 Methods)

Producing clear, unambiguous graphical outputs is the cornerstone of effective data visualization. Within the robust plotting infrastructure of Base R, legends function as vital explanatory keys, meticulously translating the visual language of a graph—including specific colors, plotting symbols, or line styles—into understandable categories. Although the default vertical stacking of legends is perfectly serviceable, many modern design requirements and publication standards necessitate a horizontal arrangement, which can significantly improve a plot’s aesthetic harmony and overall readability, particularly when vertical space is restricted or when the number of categories is manageable.

This comprehensive tutorial meticulously outlines two primary and highly effective methods for generating professional horizontal legends utilizing the R programming language. We will deeply explore the application of the horiz argument, which is optimally suited for creating concise, single-row layouts, and contrast this with the versatile ncol argument, which grants sophisticated control for structuring more complex, multi-column arrangements. A deep mastery of these two techniques is fundamental for achieving complete flexibility in legend design and precise placement, thereby ensuring your statistical visualizations are both technically precise and highly engaging.

Furthermore, we will provide detailed, actionable explanations of the critical parameters within the legend() function that govern exact spatial positioning. Specifically, we will analyze inset and xpd, which are indispensable tools for accurately placing legends, often strategically outside the main plotting region, to eliminate any potential overlap or interference with the core data presentation. Practical examples, complete with fully runnable code snippets and corresponding visual outputs, will rigorously illustrate the implementation of these methods, empowering you to confidently master all facets of horizontal legend creation in Base R.

Foundational Concepts of Horizontal Legends in Base R

The legend() function serves as the primary utility in Base R for integrating these explanatory keys into graphical displays. Conventionally, this function renders legends vertically, arranging each category entry one beneath the other. However, transitioning to a horizontal orientation frequently offers substantial benefits, primarily by conserving valuable vertical screen real estate and offering a more compressed, immediate view of categories, especially when the total count of legend items is relatively small and linear flow is preferred.

A successful horizontal legend can be implemented using one of two principal strategies, each meticulously designed to address distinct presentation requirements. The first, and arguably the most direct, method involves utilizing a specific logical argument that forces all legend entries to align sequentially on a single line. The second, more adaptable approach, requires the user to define the precise number of columns desired, which inherently creates a horizontal, multi-column structure if the specified column count exceeds one. This inherent flexibility allows visualization developers to select the optimal layout based on the density of their data and the constraints of the available plotting space.

The decision between these two robust approaches should be carefully guided by the complexity of the legend content and the desired overall visual impact. If the legend is concise and contains only a small number of entries, the single-row method offers maximum efficiency and compactness. Conversely, for a significantly larger number of entries that require thoughtful grouping or a multi-line horizontal flow, the column-based method provides superior organizational capability. We will now proceed to meticulously analyze both techniques, providing the necessary technical insights for selecting and applying the most appropriate strategy for your specific data visualization tasks in R.

Method 1: Implementing a Single-Row Layout with `horiz`

The most straightforward and often simplest technique for generating a horizontal legend in Base R is through the activation of the horiz argument within the legend() function. When this horiz parameter is explicitly set to TRUE, the function effectively overrides the default vertical stacking behavior and mandates that all corresponding legend entries be arranged side-by-side on a single, continuous row. This technique is highly effective and recommended for legends containing a moderate count of items that can comfortably occupy the plot’s horizontal dimension without overlapping the data or becoming unmanageably wide.

legend('bottom', fill=fill_cols, legend=c('A', 'B', 'C', 'D', 'E', 'F'),
        horiz=TRUE, inset=c(0, -.1), xpd=TRUE)

The provided code snippet clearly demonstrates the proper utilization of the horiz argument. It directs R to position the legend, typically centered at the bottom of the plot area, ensuring that every entry is meticulously aligned horizontally. Here, the fill_cols variable supplies the necessary corresponding colors for the legend keys, while the legend character vector defines the precise textual labels associated with each category being represented. The outcome of this method is a highly compact, clean, and immediately understandable visual presentation.

Employing horiz = TRUE is particularly well-suited when presenting distinct, non-hierarchical categories that benefit from a compressed, single-line display positioned strategically either directly below or above the primary visualization. By explicitly forcing all elements onto a single row, this method fosters a visually organized and easily interpretable layout, which significantly enhances the speed and accuracy of the viewer’s understanding of the plot’s explanatory keys.

Method 2: Creating Structured Legends with Multiple Columns using `ncol`

When the visualization involves a greater volume of legend items, or when the design demands a more structured, organized arrangement than a single row permits, the ncol argument offers an exceptionally robust and flexible alternative to the rigid single-row horiz method. Instead of strictly forcing all entries onto one line, ncol allows the developer to specify the exact number of columns for the legend layout. Critically, if ncol is set to any value greater than one, the resulting organization automatically adopts a horizontal, multi-column format that can gracefully span several rows if required by the total number of items.

legend('bottom', fill=fill_cols, legend=c('A', 'B', 'C', 'D', 'E', 'F'),
        ncol=3, inset=c(0, -.15), xpd=TRUE)

In the illustrative example provided above, setting ncol = 3 instructs R to systematically distribute the six defined legend items across three distinct columns. This powerful capability is highly advantageous because it enables the construction of legends that efficiently utilize horizontal space while spreading the content across multiple rows vertically. This ensures that even numerous items can be neatly contained within a constrained space, crucially maintaining an intuitive horizontal reading flow across the columns.

The intelligent use of the ncol argument is especially beneficial when a single, continuous horizontal row would become spatially impractical or visually overwhelming, or when specific groups of legend entries need to be visually clustered into separate columns for logical clarity. By providing a structured and adaptable mechanism to manage legend complexity, ncol significantly enhances both the immediate readability and the overall aesthetic harmony of your plots, establishing it as an indispensable tool for advanced data visualization in R.

Mastering Precise Placement: The Role of `inset` and `xpd`

While establishing the legend’s orientation (whether horizontal or vertical) is a key design decision, achieving precise control over its location relative to the main graph is absolutely paramount for generating professional-grade visualizations. The inset and xpd parameter are the fundamental arguments used for fine-tuning legend placement, especially when the crucial objective is to position the legend clearly outside the boundaries of the primary data plotting region.

The inset argument requires a numerical vector, typically provided as c(x, y), which defines the fractional distance the legend should be moved inward or outward relative to the plot edge. Positive values strategically shift the legend inward toward the plot center, while negative values push it outward, away from the plotting frame. For instance, employing inset=c(0, -.1) shifts the legend downward by 10% of the plot’s total height, successfully relocating it beneath the main plot boundary. This critical functionality is essential for preventing the legend elements from overlapping and thereby obscuring vital data points within the graph itself.

The xpd parameter, an acronym for “eXternal Plotting Device,” is directly responsible for managing plot clipping behavior, a critical graphics setting. By default, R automatically clips (or cuts off) any graphical elements that extend beyond the defined plot region. However, when xpd=TRUE is activated, R permits objects—including the legend—to be drawn freely outside the main plotting area, potentially extending into the overall figure region or even the device region itself. This setting is absolutely indispensable when negative inset values are used to place legends entirely outside the immediate data frame, guaranteeing they are fully rendered, visible, and uncensored.

When used in conjunction, inset and xpd=TRUE provide robust, granular control over legend positioning. They empower developers to construct highly customized layouts where explanatory components are strategically placed to flawlessly complement the visual information without causing any form of visual conflict or interference. Achieving mastery over these specific parameters is the definitive key to generating polished, professional-grade plots within the R programming language environment.

Practical Application: Example 1 – Streamlined Single-Row Horizontal Legend

We now proceed to apply the horiz argument practically, demonstrating the creation of a streamlined, single-row horizontal legend positioned effectively beneath a bar plot. This example provides the complete, working code necessary, covering all stages from initial data definition and plot rendering to the final, crucial addition of the legend, emphasizing the combined utility of horiz = TRUE and the precise placement controls.

The preliminary steps involve defining a numerical vector of values that will constitute the basis of our bar plot, alongside a corresponding array of distinct fill colors. Consistency is rigorously maintained by utilizing these specified colors in both the primary barplot() function call and the subsequent legend() function. The barplot() function then visualizes this data, establishing the foundational structure and context for our graph.

#create vector of values
data <- c(4, 10, 7, 5, 4, 3)

#specify fill colors to use
fill_cols <- c('red', 'pink', 'blue', 'green', 'purple', 'brown')

#create bar plot to visualize values in vector
barplot(data, col=fill_cols)

#add legend to bottom of plot
legend('bottom', fill=fill_cols, legend=c('A', 'B', 'C', 'D', 'E', 'F'),
        horiz=TRUE, inset=c(0, -.1), xpd=TRUE)

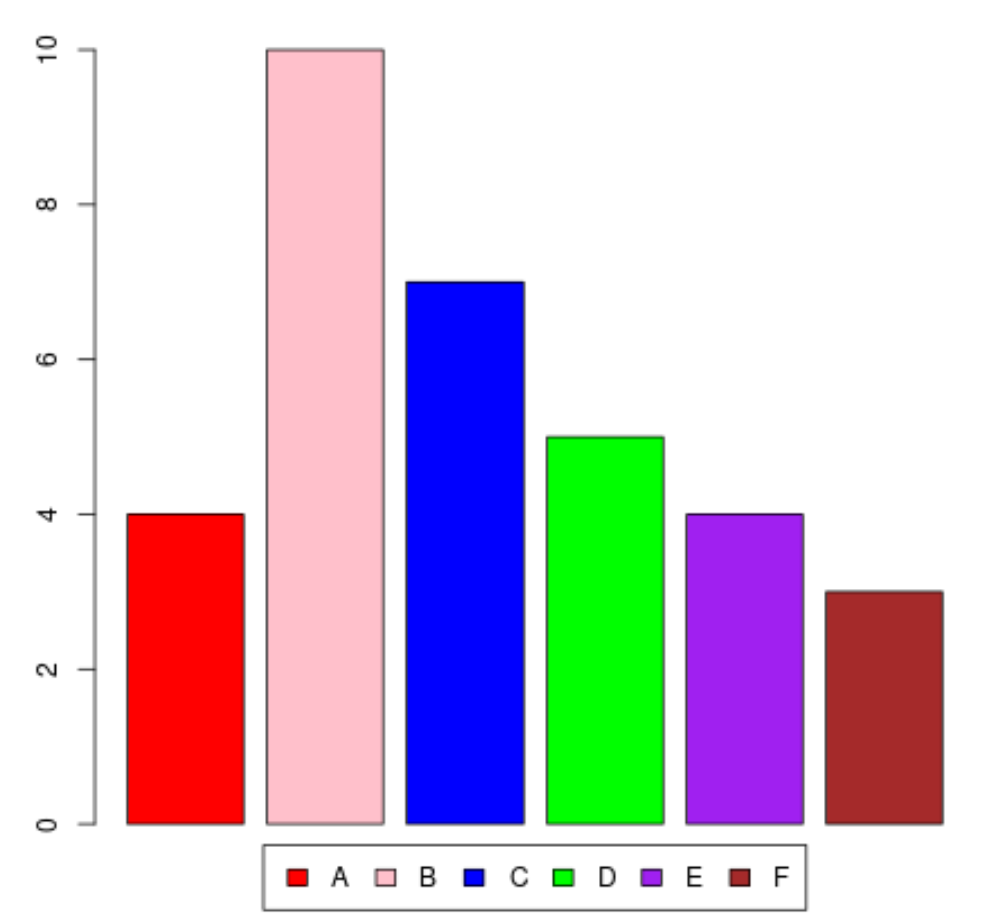

The resulting visual output successfully displays a horizontal legend positioned clearly outside and below the main plotting boundary. Every category, distinctly identified by its associated color, is aligned seamlessly on a single horizontal line, which significantly aids immediate interpretation. Crucially, the careful combination of a negative y-value in the inset argument and the mandatory inclusion of xpd=TRUE ensures that the legend is successfully moved outside the plot frame but remains entirely visible, rendered, and uncensored. Developers are strongly encouraged to experiment with varying inset values to achieve optimal and precise positional adjustments tailored to their specific visualization needs.

To deliberately increase the spatial separation between the main plot and the legend, one can simply amplify the negative magnitude of the y-component within the inset vector. This capability for minute placement adjustments vividly demonstrates the high degree of control offered by these parameters in establishing the exact visual hierarchy required for superior data presentation and readability.

#create vector of values
data <- c(4, 10, 7, 5, 4, 3)

#specify fill colors to use
fill_cols <- c('red', 'pink', 'blue', 'green', 'purple', 'brown')

#create bar plot to visualize values in vector
barplot(data, col=fill_cols)

#add legend to bottom of plot
legend('bottom', fill=fill_cols, legend=c('A', 'B', 'C', 'D', 'E', 'F'),
        horiz=TRUE, inset=c(0, -.2), xpd=TRUE)

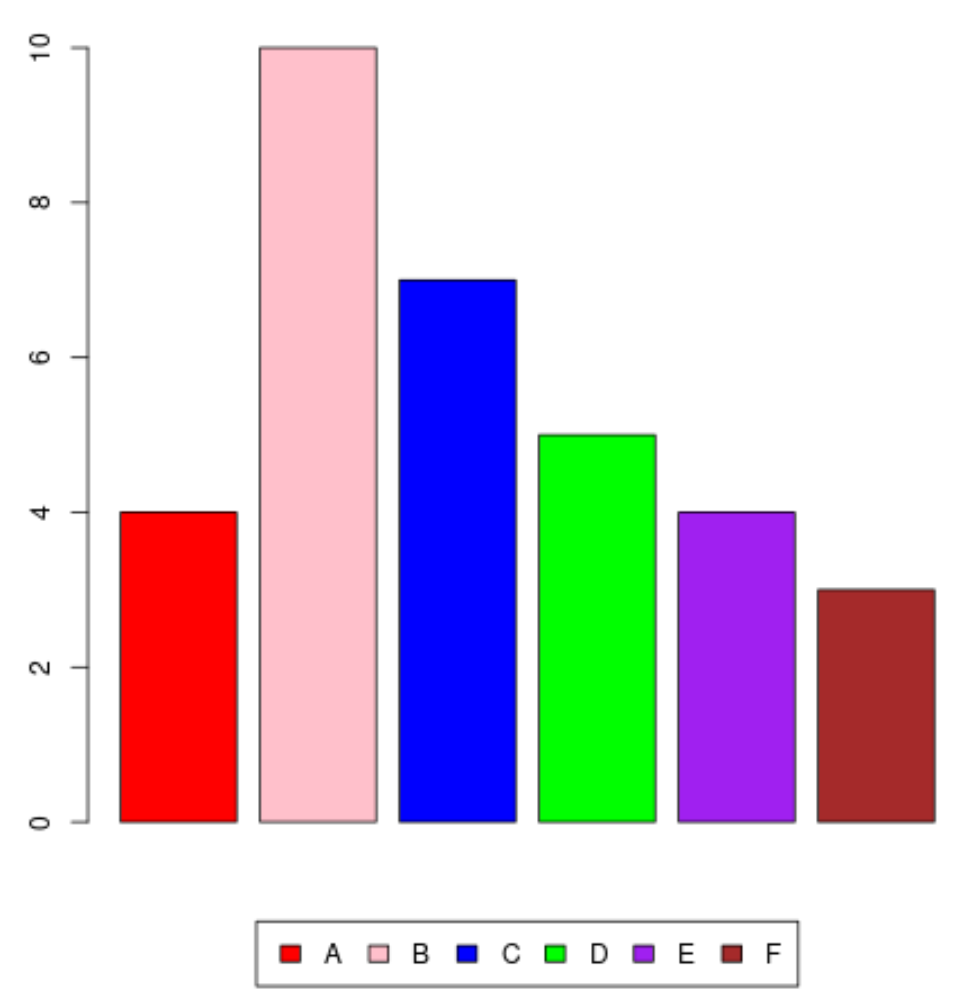

As clearly demonstrated by the second graphical output, adjusting the y-inset value to -.2 successfully displaces the legend further away from the plot’s lower boundary. This confirms the availability of granular control for precise positioning, allowing for the strategic introduction of ample white space between the data visualization and its explanatory components, which ultimately enhances overall visual clarity and contributes significantly to professional appeal.

Practical Application: Example 2 – Organized Multi-Column Horizontal Legend

For scenarios that necessitate a complex, yet highly organized horizontal legend, especially when the goal is to efficiently accommodate a larger quantity of categorized items, employing the ncol argument provides an outstanding and highly adaptable solution. This next example illustrates the construction of a horizontal legend that is efficiently structured into multiple columns, thereby preserving readability and optimizing spatial utilization simultaneously. For methodological continuity, we will reuse the identical data and color specifications established in the preceding application.

The critical procedural variation in this approach involves substituting the singular horiz=TRUE argument with the parameter ncol=3. This specific instruction compels the legend() function to systematically arrange the six entries into three distinct columns. This configuration automatically yields a horizontal layout that is capable of spanning multiple rows, a necessary feature for densely categorized plots. We retain the crucial inset and xpd arguments to ensure accurate external positioning relative to the main plot area, guaranteeing full visibility.

#create vector of values
data <- c(4, 10, 7, 5, 4, 3)

#specify fill colors to use
fill_cols <- c('red', 'pink', 'blue', 'green', 'purple', 'brown')

#create bar plot to visualize values in vector
barplot(data, col=fill_cols)

#add legend to bottom of plot
legend('bottom', fill=fill_cols, legend=c('A', 'B', 'C', 'D', 'E', 'F'),
        ncol=3, inset=c(0, -.15), xpd=TRUE)

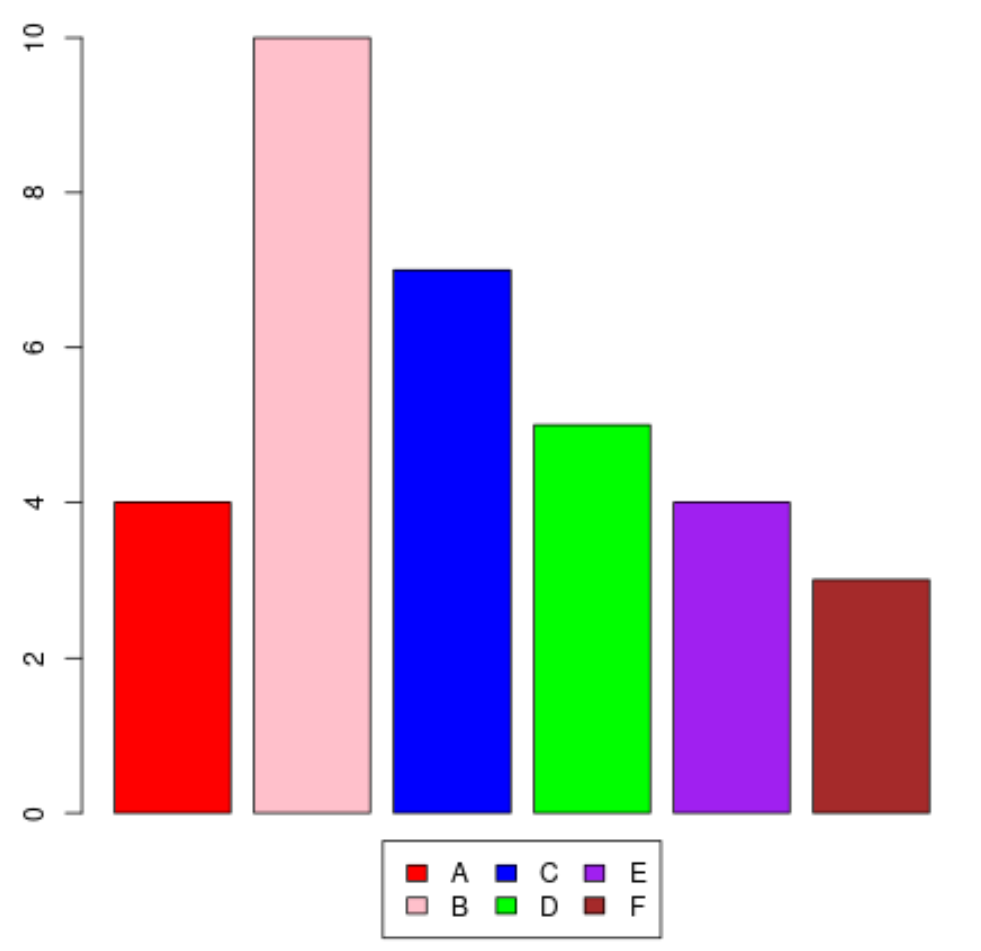

The resulting visual output distinctly presents the legend structure arranged into three separate columns, successfully maintaining a clean horizontal aesthetic while being positioned beneath the plot. This sophisticated multi-column approach proves invaluable when the number of legend items is too high to fit into a single row effectively, yet still requires a compact, efficient horizontal visual flow. By carefully modulating the integer value of the ncol argument, one gains the ability to precisely dictate the number of columns and, consequently, the number of rows the legend occupies, providing extensive design flexibility for diverse data presentations.

We strongly recommend experimenting with diverse values for the ncol argument to explore various multi-column arrangements that are best suited to the density and complexity of your specific dataset. For instance, setting ncol=2 would yield a two-column layout, while setting ncol=6 (for six items) would functionally replicate the behavior of horiz=TRUE by placing all items in a single, six-column row. This inherent adaptability establishes the ncol argument as an exceptionally powerful tool for crafting bespoke legends that perfectly complement and significantly enhance your data visualization efforts.

Conclusion and Recommendations for Further Exploration

Effective communication of analytical insights through graphical representation fundamentally relies on the clarity and robust organization of all plot components, with legends playing an absolutely essential, interpretative role. As rigorously demonstrated throughout this guide, the creation of horizontal legends in Base R is a direct and efficient process, expertly accomplished through two equally effective, yet distinct, methodologies: the horiz argument for rapid, space-saving single-row layouts, and the ncol argument for highly flexible, multi-column configurations suitable for handling complex and extensive datasets.

By skillfully employing these core techniques in combination with precise positioning mechanisms such as inset and xpd, you can guarantee that your legends consistently augment, rather than detract from, the overall interpretability of your visualizations. The strategic capability to position legends outside the immediate plotting area and to meticulously configure their orientation is a significant differentiator in producing professional-grade and aesthetically superior data visualizations within the R programming language environment.

We strongly encourage readers to practice and iterate extensively with the various parameters discussed, adapting them carefully to meet the specific requirements of their individual datasets and overarching presentation objectives. Achieving mastery in legend customization represents a highly valuable and necessary addition to any data analyst’s toolkit, empowering you to consistently generate clearer, significantly more engaging, and profoundly informative graphical outputs.
