Automating Cell Merging in Excel VBA: A Step-by-Step Guide

Introduction to Automating Cell Merging in Excel VBA

Handling large datasets in Excel often necessitates data consolidation to improve visual clarity and reporting efficiency. While merging cells is a common requirement for presentation, performing this task manually across hundreds or thousands of rows is incredibly time-consuming, repetitive, and highly susceptible to error. This efficiency bottleneck is precisely where automation becomes essential, and VBA (Visual Basic for Applications) proves indispensable, offering the specialized tools required to automate complex structural changes, particularly merging adjacent cells based on predefined, shared criteria.

This comprehensive guide is designed to walk you through the creation and deployment of a powerful macro specifically engineered to efficiently merge vertically contiguous cells containing identical values within a defined Range object. We will not only provide the functional code but also meticulously break down the underlying logic, emphasizing the crucial role of the iterative loop structure required to correctly handle blocks of data larger than two cells. By mastering this technique, you will gain a significant advantage in managing and formatting your data.

The solution presented here offers a high-performance method for tackling one of the most frequent formatting challenges encountered by advanced Excel users. It is particularly valuable for generating professional reports, inventory lists, or structured data where repeating labels must be grouped visually. The resulting consolidation enhances the readability of the spreadsheet without altering the underlying data structure in adjacent columns, ensuring data consistency while drastically reducing manual effort.

The Core VBA Solution for Efficient Merging

The foundational logic required to automatically identify and merge cells that possess identical, consecutive values is encapsulated within a dedicated Sub procedure. Achieving accurate merging for chains of three or more matching cells demands careful iterative control flow, which is implemented here using a specific looping mechanism combined with a jump statement. Below is the complete and operational VBA code snippet, ready for insertion into your module:

Sub MergeSameCells()

    'turn off display alerts while merging
    Application.DisplayAlerts = False

    'specify range of cells for merging
    Set myRange = Range("A1:C13")

    'merge all same cells in range
MergeSame:
    For Each cell In myRange
        If cell.Value = cell.Offset(1, 0).Value And Not IsEmpty(cell) Then
            Range(cell, cell.Offset(1, 0)).Merge
            cell.VerticalAlignment = xlCenter
            GoTo MergeSame
        End If
    Next

    'turn display alerts back on
    Application.DisplayAlerts = True

End Sub

This powerful macro is specifically engineered to scan a designated area—initially set to A1:C13—and execute merging operations only when the value of a cell precisely matches the value of the cell immediately below it. The strategic use of the GoTo statement is essential here; it enforces an iterative process, guaranteeing that the code restarts its evaluation from the beginning of the range after every successful merge. This crucial mechanism ensures correct consolidation of extended blocks of identical data. We will now proceed to a detailed examination of each command line to fully grasp their exact function within the procedure.

Detailed Line-by-Line Code Analysis

Customizing this merging routine to accurately fit diverse worksheet layouts and unique data requirements hinges on a deep understanding of the purpose of each command. The following breakdown meticulously explains the function of every component, from the initial setup commands used for optimizing execution to the core conditional logic that performs the cell consolidation.

• Sub MergeSameCells(): This standard declaration serves as the entry point, initiating the executable Sub procedure. All commands within this routine are executed sequentially until the corresponding End Sub marker is reached, clearly defining the scope of the automation.

• Application.DisplayAlerts = False: A critical best practice for automated structural changes is the suppression of disruptive user prompts. When cells are merged, Excel normally displays a warning regarding data retention. By setting the Application.DisplayAlerts property to False, we prevent these pop-ups, ensuring the macro runs autonomously and without interruption.

• Set myRange = Range("A1:C13"): This line is vital as it defines the precise boundaries of the operation. It assigns the string literal "A1:C13" to the myRange variable, establishing it as the target Range object for merging. Users must adjust this specific address (e.g., "B2:E50") to match the exact dimensions of the data they wish to process, being careful to exclude header rows if necessary.

• MergeSame:: This line establishes a functional label within the code. Its sole purpose is to act as the destination for the GoTo statement. Immediately following a successful merge operation, the program execution jumps back to this label, forcing a complete re-evaluation of the defined range.

• For Each cell In myRange: This command initiates the iteration loop. It guarantees that every single cell within the defined myRange is systematically inspected. In each cycle of the loop, the current cell under examination is assigned temporarily to the variable cell.

• If cell.Value = cell.Offset(1, 0).Value And Not IsEmpty(cell) Then: This statement represents the core conditional logic, performing two essential checks simultaneously:

  • cell.Value = cell.Offset(1, 0).Value: This verifies if the content of the current cell is identical to the content of the cell immediately below it. The Offset method is used to reference the cell one row down (1) and zero columns across (0).

  • And Not IsEmpty(cell): This ensures that the current cell actually contains valid data. This is a crucial guard clause to prevent the accidental merging of adjacent empty cells. The IsEmpty function confirms the presence of data.

  If both conditions are met, the commands within the If block are executed.

• Range(cell, cell.Offset(1, 0)).Merge: If the conditional logic returns True, this instruction executes the structural modification. It defines a two-cell Range object and applies the Merge method, combining the cells into a single, consolidated unit.

• cell.VerticalAlignment = xlCenter: Following the merge, this instruction enhances visual clarity by applying vertical centering to the text within the newly combined cell, significantly improving the aesthetic appeal and professionalism of the resulting data layout.

• GoTo MergeSame: This critical statement overrides the natural flow of the For Each loop, forcing execution to jump back to the MergeSame label. As merging physically alters the worksheet structure, restarting the loop is the only reliable way to ensure the newly merged cell is immediately checked for potential merging with the cell directly below it, correctly handling long groups of identical values.

• Application.DisplayAlerts = True: Upon completing all merging operations, the display alerts are promptly re-enabled, restoring the Excel application to its standard default operational state.

Practical Data Consolidation Example

To fully grasp the immense utility and visual impact of this VBA solution, let us examine a practical, common data scenario: a table detailing basketball player statistics. Before applying the automation, the dataset contains repetitive entries in key categorization columns, which significantly clutter the visual space and make data grouping difficult to discern quickly.

This illustration demonstrates the initial, unformatted state of the data. Notice the redundant listings under “Conference” and “Team,” which require consolidation:

Our objective is the clear consolidation of entries within the “Conference” and “Team” columns wherever the values repeat consecutively. To achieve this powerful visual transformation, we utilize the provided macro code, ensuring that the target Range object is correctly configured to encompass the relevant data columns (A:C in this specific example):

Sub MergeSameCells()

    'turn off display alerts while merging
    Application.DisplayAlerts = False

    'specify range of cells for merging
    Set myRange = Range("A1:C13")

    'merge all same cells in range
MergeSame:
    For Each cell In myRange
        If cell.Value = cell.Offset(1, 0).Value And Not IsEmpty(cell) Then
            Range(cell, cell.Offset(1, 0)).Merge
            cell.VerticalAlignment = xlCenter
            GoTo MergeSame
        End If
    Next

    'turn display alerts back on
    Application.DisplayAlerts = True

End Sub

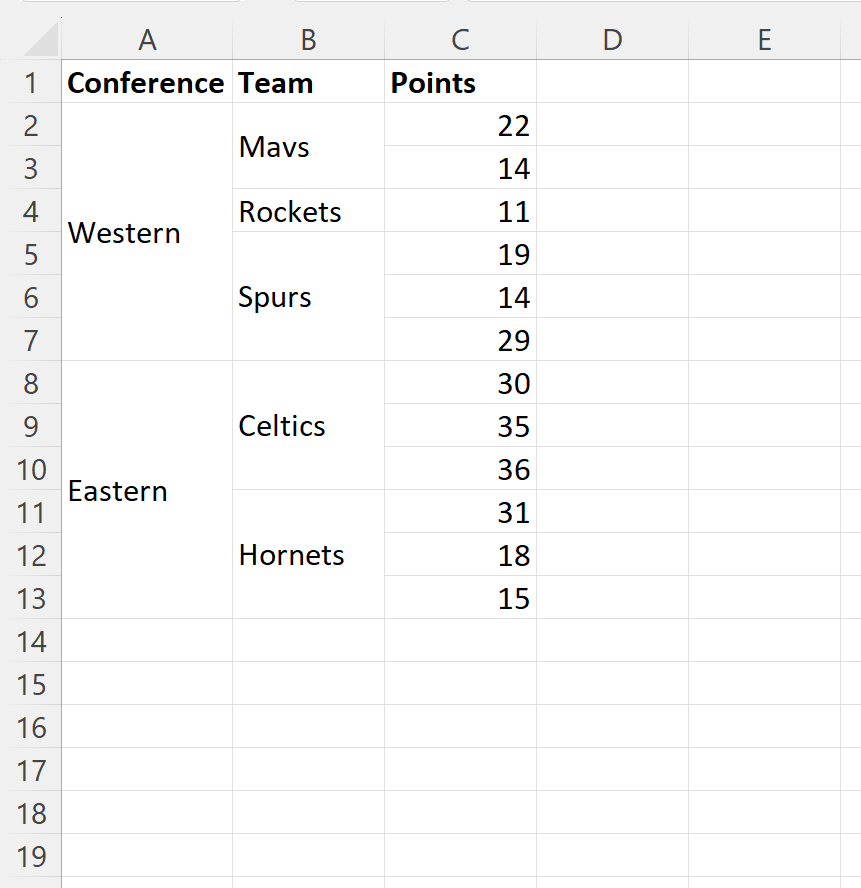

After successfully inserting this code into a VBA module and executing the MergeSameCells routine, the data is instantly and elegantly restructured. The resulting layout, shown below, powerfully illustrates how automation achieves a professional, clean data presentation, grouping related items visually without manual intervention:

Observe the transformation: all “East” conference cells are now consolidated into a single entity, and the “Hawks” team entries are similarly grouped vertically. Furthermore, the inclusion of the vertical alignment command ensures the text is perfectly centered within the newly combined cells, maximizing the visual impact and greatly enhancing the overall readability of the organized data.

Crucial Operational Best Practices and Limitations

While the provided macro delivers highly effective results, advanced users must be fully cognizant of its specific operational constraints and adhere to critical best practices. Automated cell merging constitutes a permanent structural change in Excel, and understanding its limitations is key to ensuring data integrity and optimizing performance across various scenarios.

The design of this solution dictates that it is exclusively intended for merging cells that are vertically consecutive and share identical values. If two identical data points are separated by even a single row with different content, the merge condition will fail, and the operation will not be executed. This specific design choice guarantees that only true, contiguous blocks of data are consolidated, maintaining the structural logic of the data groupings.

Two crucial configuration points require attention before execution. First, always define the myRange variable accurately. If your dataset includes headers, ensure the range starts from the first row of data (e.g., A2:C50), preventing unintended header merges. Second, be mindful of performance on massive datasets. The use of the GoTo statement, while necessary for merging long chains of cells, forces the entire Range object to be re-scanned repeatedly. For tables exceeding twenty thousand rows, this iterative re-scanning can lead to noticeably slow execution times, suggesting that alternative, array-based processing methods might be necessary for enterprise-scale operations.

Finally, always prioritize data safety. Merging cells via VBA is a destructive operation in terms of the standard user interface; it cannot typically be reversed using the standard Excel undo function. Therefore, it is a non-negotiable best practice to create a backup copy of your worksheet or workbook before running any macro that performs structural or permanent modifications. Customization for multi-column comparison (e.g., merging based on A1=A2 AND B1=B2) requires expanding the conditional statement to include additional checks using the Offset method for each required column.

Conclusion

The automated merging of cells based on identical values using VBA represents a critical skill set for professional data reporting and management in Excel. The robust macro demonstrated in this guide provides a clean, highly effective solution for consolidating repetitive data entries in consecutive rows, culminating in spreadsheets that are both visually appealing and logically organized.

By fully comprehending the procedural structure of the code, especially the iterative looping mechanism achieved through the essential GoTo statement, developers can confidently deploy and adapt this solution to solve a wide spectrum of data consolidation and formatting challenges. Remember to always apply these techniques thoughtfully, testing the code on a duplicate of your data to ensure the desired visual outcomes while rigorously maintaining the integrity of your core information.
