Understanding and Creating Log-Log Plots in Excel: A Comprehensive Tutorial

A log-log plot represents one of the most powerful graphical techniques available to data analysts, utilizing logarithmic scales on both the independent (x) and dependent (y) axes. This specialized visualization method is indispensable when dealing with datasets where variable values span several orders of magnitude. In standard linear charts, such wide ranges often lead to patterns being obscured, data points clustering near the origin, and outliers dominating the visual field. The log-log approach elegantly solves this problem by ensuring that changes in magnitude are given equal visual weight across the entire spectrum.

The primary analytical utility of this type of visualization is centered around identifying and verifying relationships that follow a power law. A power law describes a critical functional relationship where one quantity varies proportionally to a power of another. On a traditional linear graph, this relationship typically manifests as a complex, often difficult-to-analyze curve. However, when plotted on a dual-logarithmic scale, this curved power law relationship is transformed into a straight line. This linearization is invaluable, simplifying the complex process of identifying the characteristic exponent and constant of the underlying physical or mathematical law. This technique is routinely employed across diverse scientific disciplines, including physics, astronomy, economics, and population dynamics.

This comprehensive tutorial is designed to provide researchers and data professionals with a clear, step-by-step methodology for generating an accurate and professional log-log plot for bivariate data using Microsoft Excel. By following these precise instructions, users will be able to effectively visualize and analyze complex scaling behaviors hidden within their data.

Understanding the Mechanics of Log-Log Plots and Power Laws

The fundamental reason for adopting a log-log plot lies in its ability to linearize data that adheres to a power-law distribution. Mathematically, a power law is defined by the equation y = ax^k, where a is a constant scaling factor and k is the crucial exponent. The magic of the log-log plot occurs when we apply the logarithm to both sides of this equation, resulting in the transformed expression: log(y) = log(a) + k * log(x). This transformation is pivotal because it converts the original multiplicative relationship into a simple linear additive relationship between $log(y)$ and $log(x)$. Consequently, if a dataset truly follows a power law, plotting the logarithm of Y against the logarithm of X will yield a perfectly straight line, where the slope of that line directly corresponds to the exponent k.

Standard linear charts often fail when data points are spread across a wide range of values, leading to visual compression. Points with small values become nearly indistinguishable near the origin, while large values dominate the visual space, minimizing the perceived importance of smaller details. By employing logarithmic scales, the chart utilizes geometric progression, meaning that equal distances on the axis represent equal multiplicative ratios (e.g., the distance from 1 to 10 is the same as the distance from 10 to 100). This geometric scaling ensures that the chart maintains high resolution across the entire dynamic range, allowing for precise observation of correlation and the functional form of the relationship, which is typically masked by sheer scale differences in linear representations.

Despite their analytical power, log-log plots are not universally applicable. A crucial constraint must be satisfied: the data must consist exclusively of positive values. This is because the mathematical operation of taking the logarithm of zero or any negative number is undefined. Therefore, before initiating the visualization process in Excel, analysts must rigorously confirm that their bivariate data (both x and y variables) contains only positive measurements. Attempting to create a logarithmic axis with non-positive values will result in an error or an invalid chart representation.

Example Data Setup for Log-Log Visualization

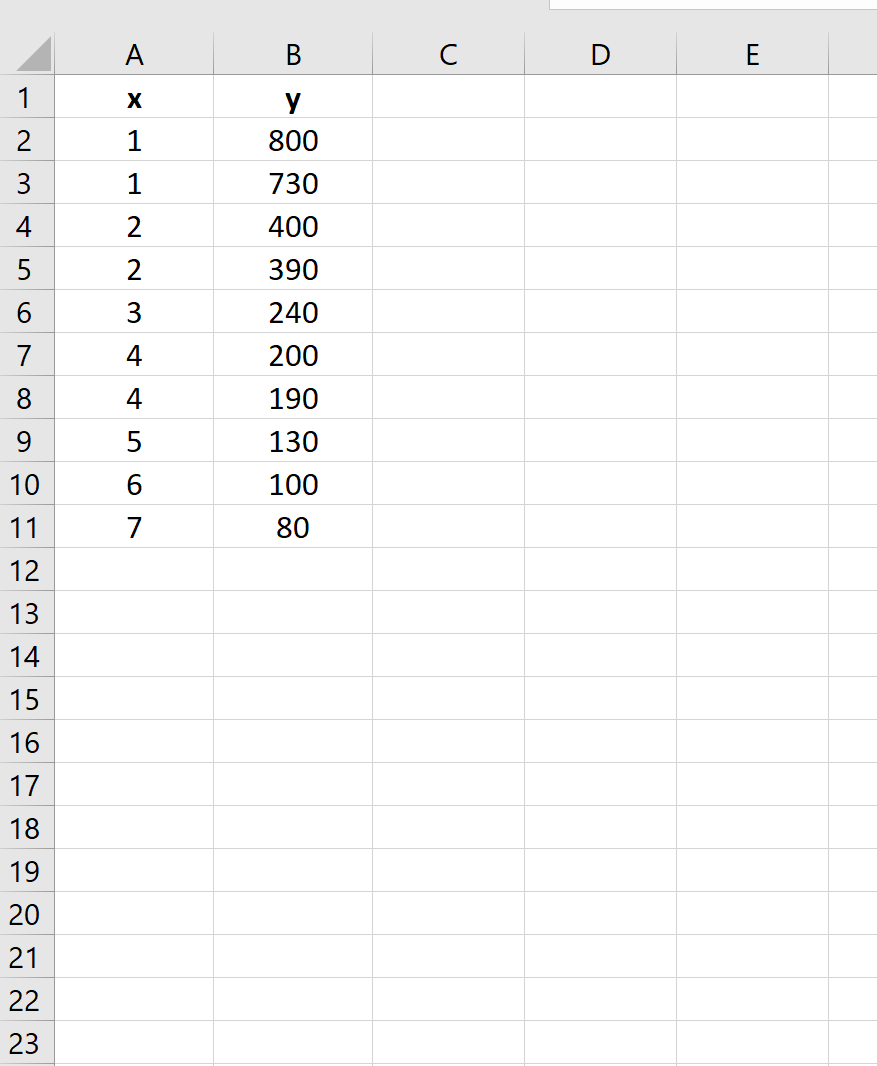

To properly demonstrate the steps necessary for generating a log-log plot, we will utilize a hypothetical dataset that is engineered to clearly exhibit a power-law relationship between two variables, x (independent) and y (dependent). This sample data is intentionally structured to span several orders of magnitude to effectively illustrate the utility of the logarithmic transformation in achieving visual linearity. The data is organized within a standard Excel spreadsheet, with the x-values occupying Column A and the corresponding y-values residing in Column B.

The sample data, which ranges from row 2 to row 11, presents a significant disparity in magnitude across the dataset. For instance, the minimum x value is 1, while the maximum y value reaches 1,000. This stark contrast in scale across the variables confirms the necessity of a dual-logarithmic scale to ensure the data is displayed clearly and without distortion.

The sequence of steps outlined below will guide you meticulously through the process of converting this raw numerical data into a readable and analytically robust log-log plot within the Excel environment. The procedure starts with the creation of a standard scatterplot, which then serves as the essential foundation for modifying the necessary axis properties.

Initializing the Visualization: Creating the Scatterplot

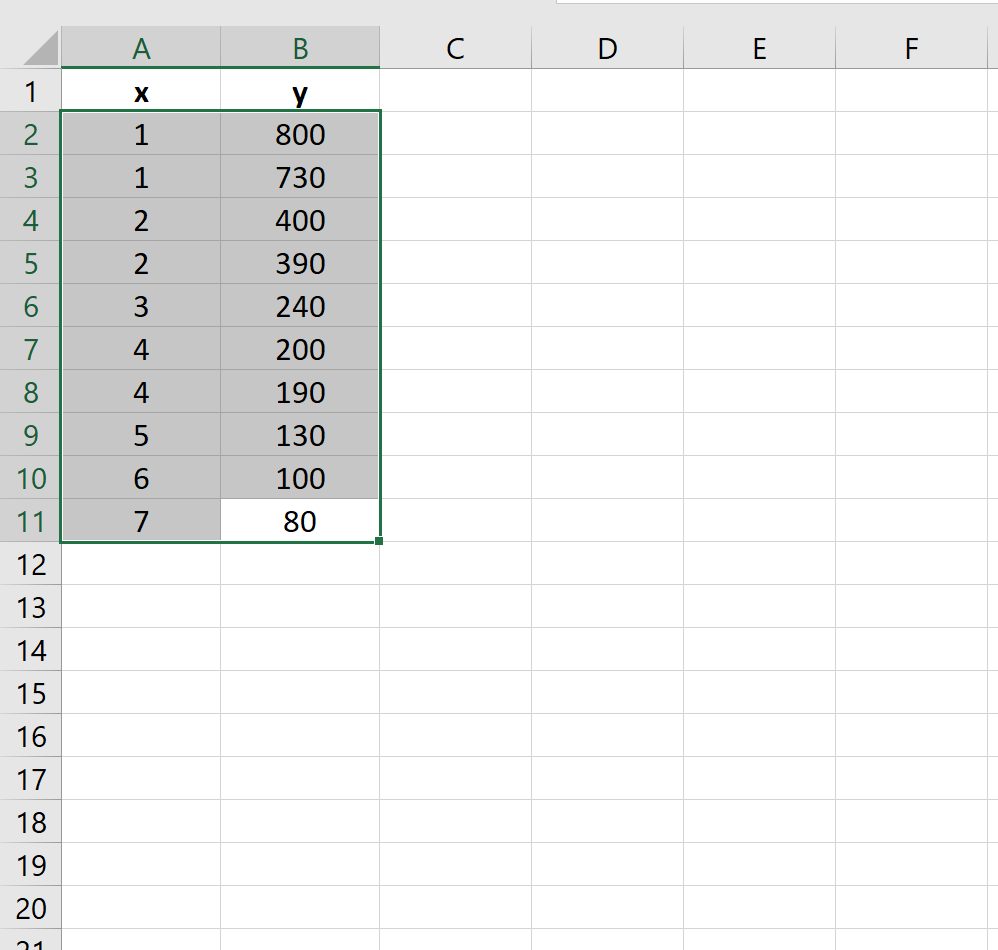

The first crucial maneuver in visualizing quantitative data in Excel involves selecting the appropriate data range and chart type. Given that we are comparing two related numerical variables, the scatterplot is the mandatory starting point, as it accurately maps the relationship between pairs of (x, y) coordinates. To begin this initialization process, highlight the entire data range containing both the independent and dependent variables—specifically the cells ranging from A2:B11 in the worksheet. It is generally advisable to highlight only the numerical values, excluding the header rows, unless you wish Excel to automatically designate the headers as series names.

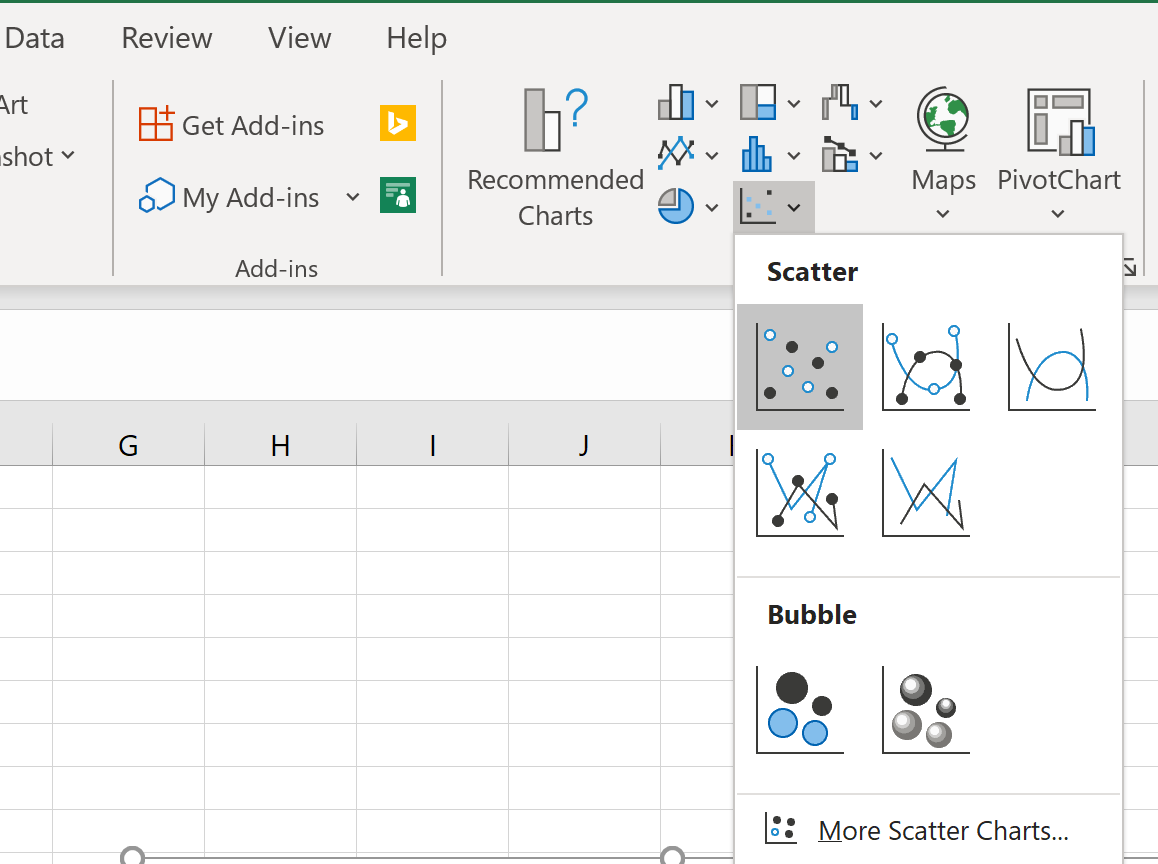

With the data successfully selected, direct your attention to the main ribbon interface situated at the top of the Excel application window. Click the Insert tab to reveal the various charting options. Within the dedicated Charts group, locate and click the Scatter chart icon. From the resulting drop-down menu, choose the simple scatter chart option, which plots only the individual data points without connecting them with lines.

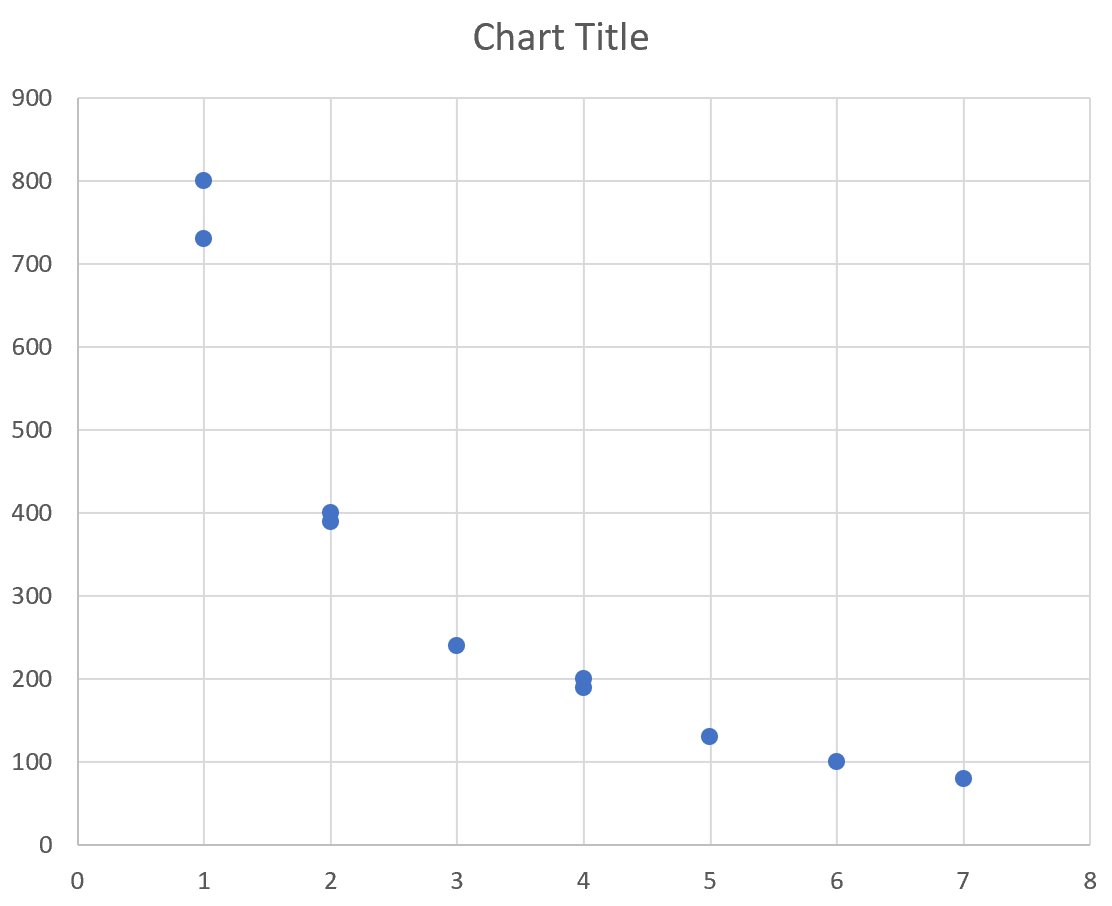

Immediately upon selection, Excel will automatically generate the initial scatterplot. Due to the vast range of the dataset, the data points on this default linear chart will likely appear severely clustered or distorted, particularly near the lower end of the x-axis. This visual anomaly is expected and confirms the necessity of proceeding with the logarithmic transformation, which will redistribute the points more uniformly across the chart area and unveil the underlying mathematical structure of the relationship.

Transforming the X-Axis to a Logarithmic Scale

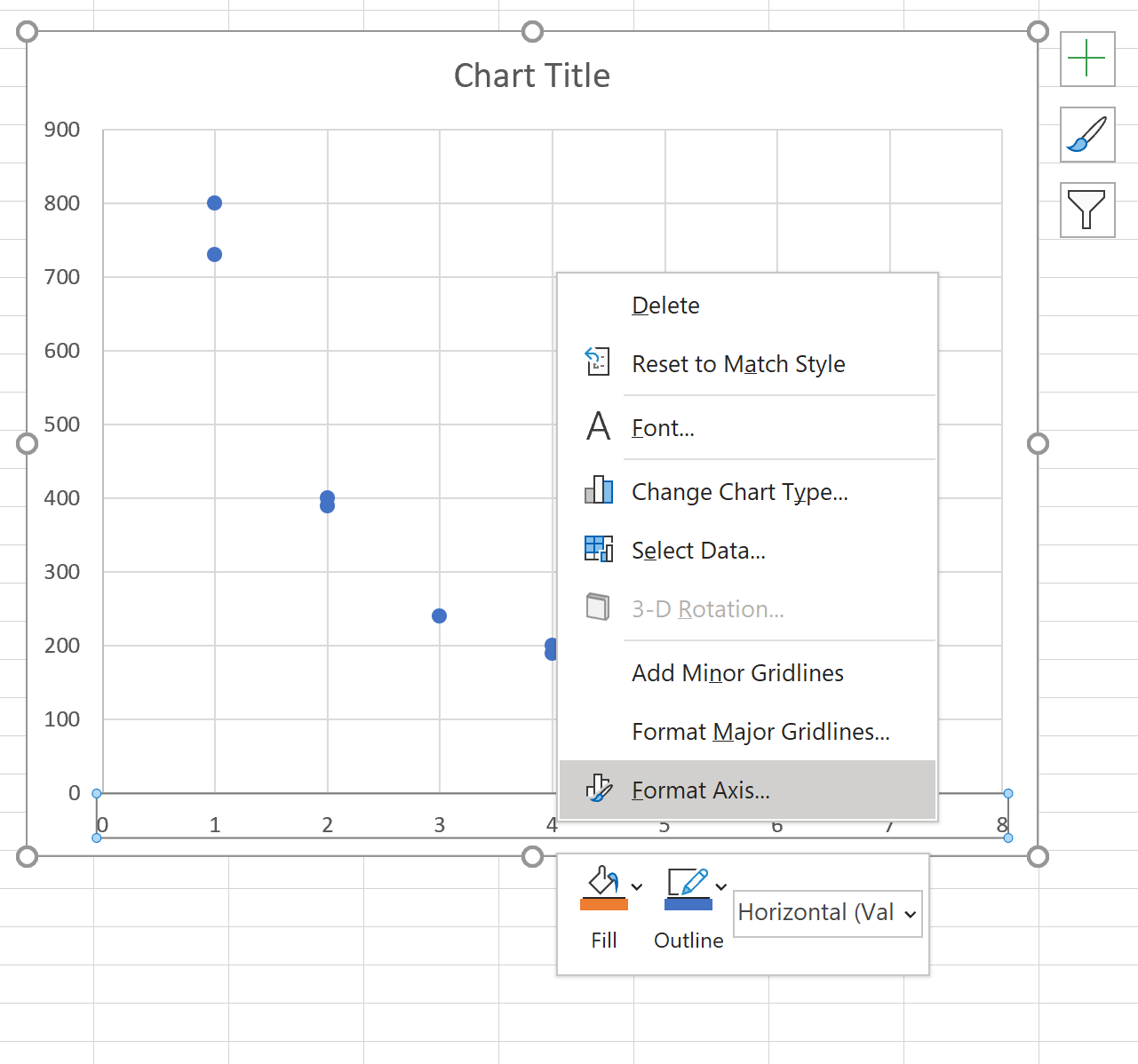

The conversion from a standard linear scale to a logarithmic scale is performed directly on the generated chart object through the axis formatting tools. We begin this process with the horizontal axis, which represents the independent variable, x. To access the formatting options, right-click directly on any of the numerical labels along the x-axis. This action prompts a context menu to appear, from which you must select the Format Axis option. This will open the specialized Axis Options pane, which typically docks itself on the right side of the Excel workspace.

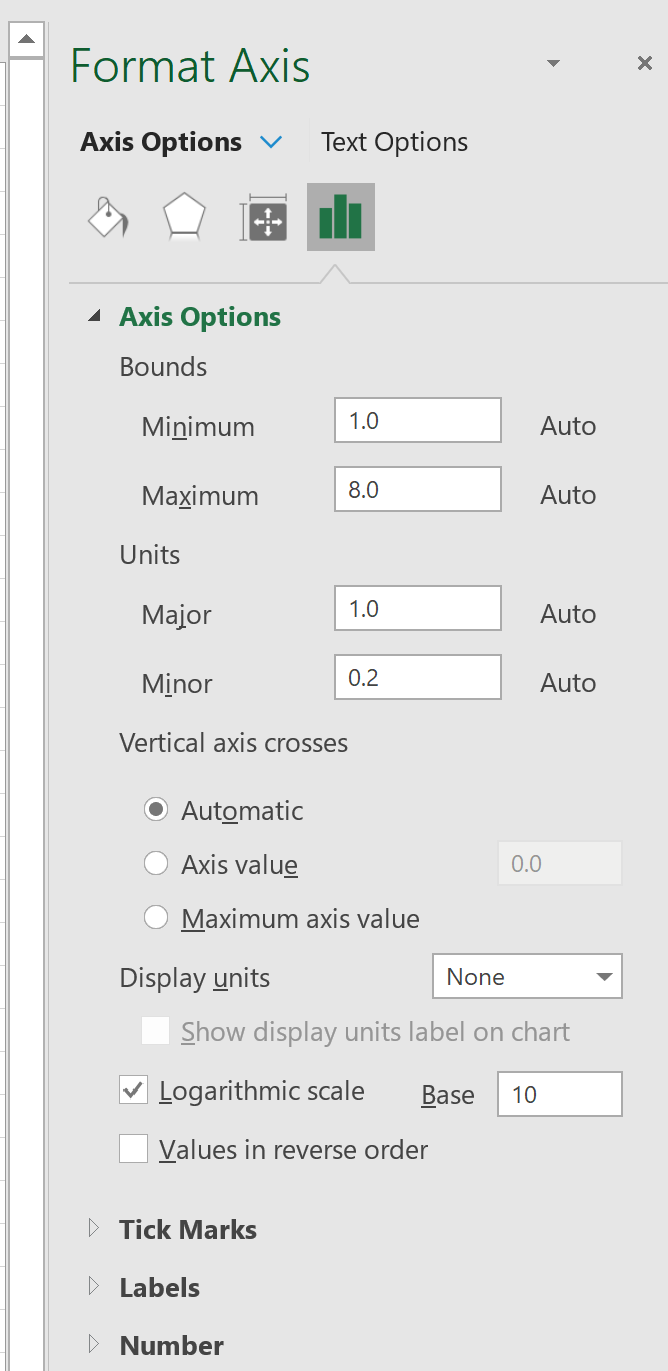

Within the Format Axis pane, ensure that the main Axis Options settings are selected. Scroll down this menu until you reach the section designated “Axis Options.” Here, you will find a critical checkbox labeled Logarithmic scale. Click this checkbox to immediately enable the logarithmic transformation for the x-axis. Excel will update the chart instantly, and you will observe that the x-axis labels now reflect a geometric progression (e.g., 1, 10, 100) rather than the standard arithmetic progression (e.g., 0, 2, 4).

In addition to enabling the scale, it may be necessary to verify the Base setting for the logarithmic scale. By default, Excel typically uses Base 10, which is universally accepted as the standard for scientific and engineering log-log plots. While you can adjust this value if your specific application demands a different base (such as base e or base 2), for the standard analysis of data exhibiting a power law, Base 10 is almost always the correct selection, as it optimizes the visualization for multi-decade ranges.

Applying the Logarithmic Scale to the Y-Axis

The culmination of the log-log plot creation process requires applying the identical logarithmic transformation to the vertical (y) axis. This dual transformation is non-negotiable; a plot with only one logarithmic axis is known as a semi-log plot, which is useful for analyzing exponential growth, but it is insufficient for achieving linearity in power law relationships. To proceed, click directly on the y-axis numerical labels to select the vertical axis for formatting.

You must now repeat the exact formatting procedure previously followed for the x-axis. Right-click the y-axis labels, select Format Axis, and then locate the Logarithmic scale checkbox within the Axis Options pane. Checking this box finalizes the necessary dual-axis transformation. The resulting graph is now a true log-log plot, where the visual distances between data points are proportional to the logarithm of their absolute values, thereby normalizing the vast scale differences present in the raw data.

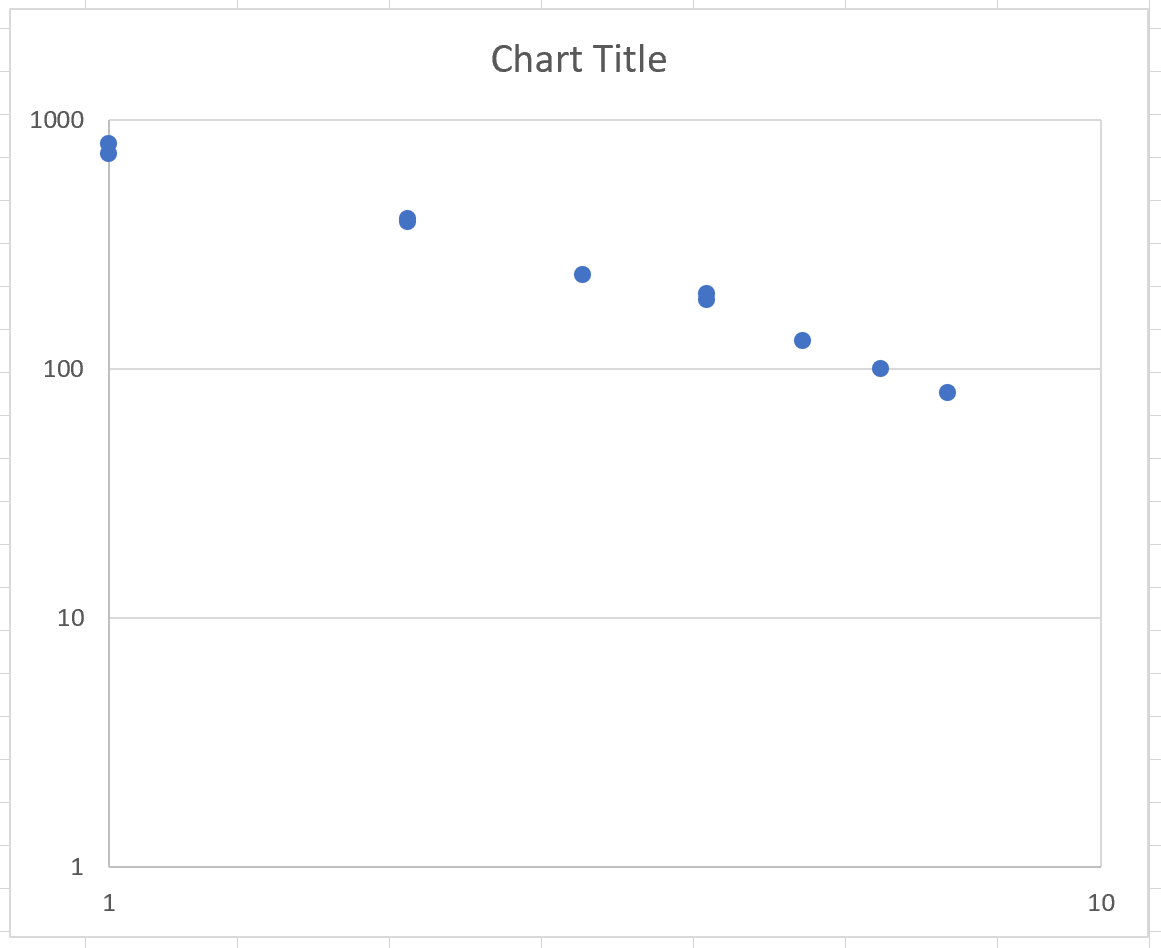

Once both axes have been converted, the visual representation of your dataset will undergo a dramatic change. The points that were previously compressed or appeared highly curved should now be spread out evenly, and—most importantly—if the underlying data truly follows a power law—the points will align along a straight trajectory. This compelling linear alignment serves as the definitive visual proof that the relationship between your variables can be accurately modeled by a power function. The final, correctly formatted plot, illustrating the perfect linearity achieved through the transformation, should resemble the image provided below.

Interpreting and Analyzing the Log-Log Transformation

A thorough examination of the final log-log plot reveals several critical interpretive elements. Note first how the axes are scaled: the x-axis spans from 1 to 100, and the y-axis spans from 1 to 1,000, yet the major grid lines are spaced geometrically (1, 10, 100, 1000). This proportional spacing ensures that points previously crowded near 1 are now adequately separated, providing a clear and unbiased view of the data’s behavior across all magnitudes.

Most significantly, observe the relationship between the variables x and y, which now appears distinctly linear. This linearity is the strongest possible indication that the two variables share a power law relationship. Conversely, if the data points had formed a curve even on the log-log plot, it would signal that the relationship is likely exponential or governed by a different complex function, necessitating an alternative analytical approach (such as using a semi-log plot for exponential data).

For quantitative analysis, the next logical and highly recommended step is to add a linear trendline to the scatterplot (using the “Add Chart Element” tool in Excel). By selecting a linear fit and instructing Excel to display the equation of the line, you gain immediate access to the core parameters. The slope of this resulting linear equation (often denoted as m) corresponds directly to the exponent k in the original power law equation (y = ax^k). This powerful ability to easily derive the underlying scaling constant from a simple linear fit is the ultimate analytical advantage of utilizing a log-log plot for phenomena governed by scaling laws.
