Plotting Equations and Functions in Excel: A Comprehensive Guide

Visualizing the mathematical concept of a function is essential across disciplines such as engineering, physics, and financial analysis. While sophisticated graphing software is available, Excel provides powerful, built-in capabilities that are both accessible and highly accurate for generating visual plots of almost any equation. This skill enables users to rapidly analyze data trends, verify algebraic solutions, and clearly illustrate complex relationships.

This comprehensive guide is designed to help users master the technique of plotting intricate equations and functions within the familiar Excel environment. We will proceed step-by-step through several practical examples, beginning with the simplicity of straight lines and advancing to the complexity of quadratic, reciprocal, and periodic trigonometric relationships. We detail the exact procedures necessary for data setup and visual output.

Establishing the General Methodology for Plotting

Before attempting specific plots, it is crucial to understand the fundamental mechanics of how Excel operates. Unlike dedicated mathematical graphing calculators that interpret equations directly, Excel functions by plotting discrete data points. Therefore, our primary objective is to generate a sufficiently dense set of (x, y) coordinates that accurately satisfy the given mathematical relationship. This process is divided into two fundamental steps: first, defining the domain (the independent x-values), and second, calculating the range (the dependent y-values) using the formula.

To initiate the process, designate one column (conventionally Column A) for the independent variable, x. The selection of these x-values determines the visible scope and resolution of the resulting graph. For most common equations, choosing an evenly distributed range—such as integers spanning from -10 to 10—is appropriate. The subsequent column (Column B) is reserved for the dependent variable, y. Here, you must input the Excel formula that precisely corresponds to the equation being plotted, ensuring that this formula dynamically references the corresponding x-value located in Column A.

Once the coordinate pairs are accurately established, the visualization phase is straightforward. Excel utilizes the selected data range to automatically configure the axes and scaling, effectively translating the numerical relationship into a clear visual form. The selection of the appropriate chart type is essential; the Scatter Plot is paramount for accurate function plotting, as it correctly assigns the independent variable (x) to the horizontal axis and the dependent variable (y) to the vertical axis, preserving the mathematical integrity of the relationship.

Example 1: Plotting a Fundamental Linear Relationship

The linear equation represents the simplest mathematical relationship, manifesting as a perfect straight line when graphed. These equations universally conform to the general structure y = mx + b, where the parameter ‘m’ dictates the slope or rate of change, and ‘b’ specifies the y-intercept. For our initial demonstration, we will plot the specific equation:

y = 2x + 5

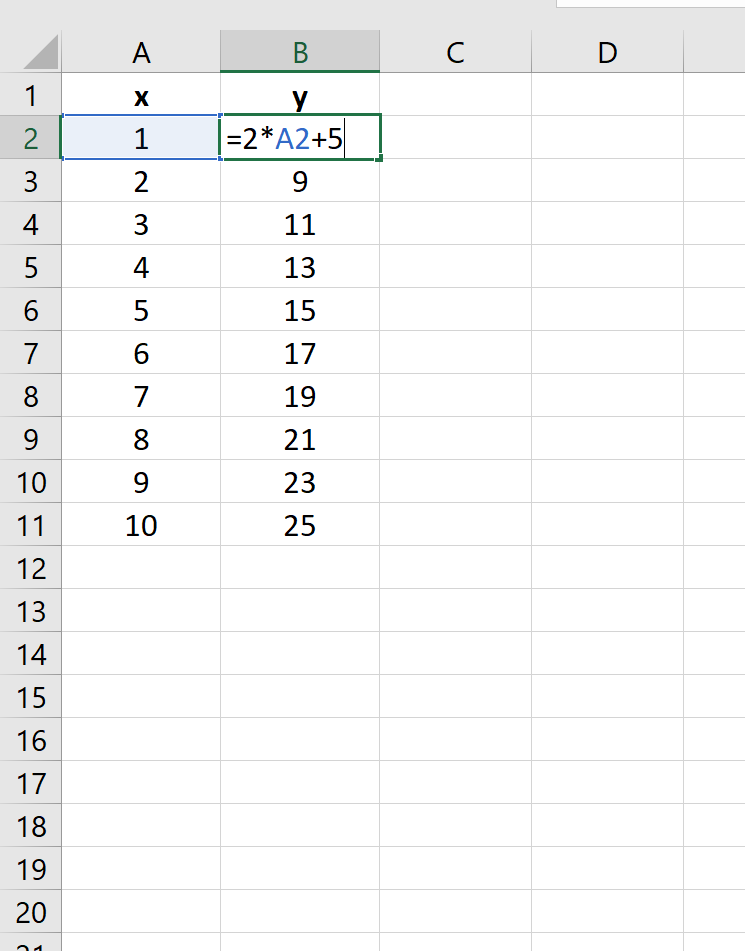

To generate the requisite data, begin by populating Column A with a domain of x-values, for instance, ranging from 1 to 10. In cell B2, we enter the specific Excel formula equivalent to our equation: =2*A2 + 5. This instruction tells the software to retrieve the numerical value of x from cell A2, multiply it by 2, and subsequently add 5 to determine the y-coordinate. By utilizing the Fill Handle to drag this formula down through cell B11, we instantaneously complete the comprehensive set of y-values corresponding to our chosen domain.

With the data table finalized, the visualization is next. First, highlight the entire calculated data range, specifically A2:B11. Navigate to the Insert tab located on the Excel ribbon. Within the Charts group, select the option labeled Scatter Plot. Choosing a scatter chart type is absolutely critical to guarantee that the x-values are correctly interpreted as the horizontal independent variable, preventing the chart from simply plotting y-values against their row numbers.

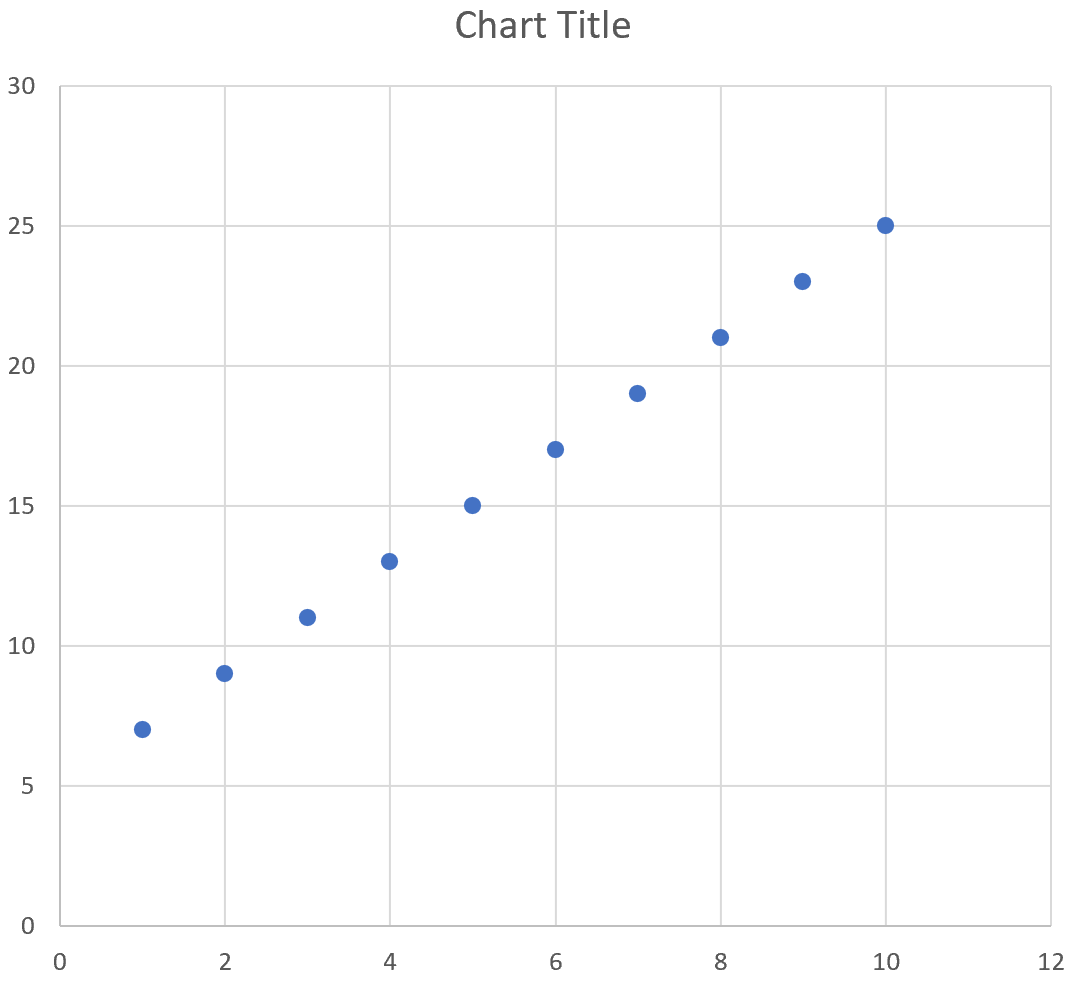

Upon selection, the chart will render automatically. The resulting plot clearly exhibits a straight-line trajectory, visually confirming the intrinsic nature of the linear equation used. This immediate visual confirmation is invaluable for analyzing the rate of change: in this specific instance, a constant increase in x results in a constant, proportional increase in y.

As expected, the plotted line is perfectly straight, a direct consequence of using a linear mathematical model.

Example 2: Introducing Curvature with Quadratic Equations

Progressing beyond simple linearity, quadratic equations introduce the concept of curvature into the plot. These mathematical functions are characterized by a polynomial of degree two, meaning the variable x possesses an exponent of 2 as its highest power. The graphical representation of any quadratic equation is consistently a parabola, which is uniquely defined by a single turning point known as the vertex (either a minimum or maximum point). For this particular demonstration, we will plot:

y = 3x²

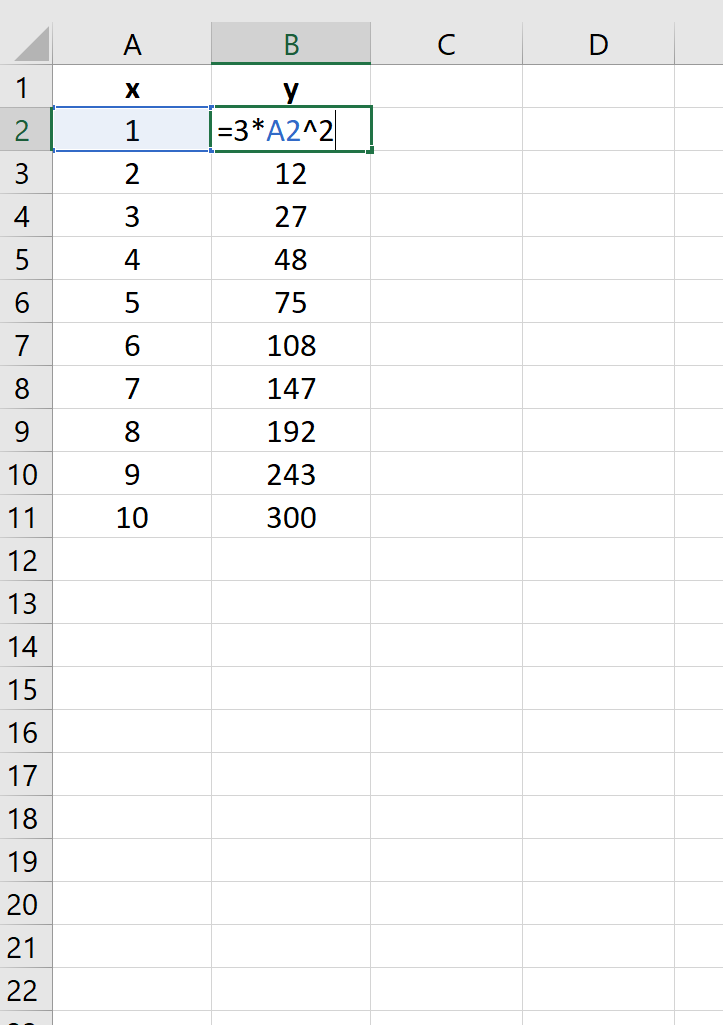

Following the established methodology, we define our domain of x-values (1 through 10) in Column A. The formula required for calculating y necessitates the utilization of the exponentiation operator (the caret symbol, ^) in Excel. In cell B2, the precise formula is =3*(A2^2). This powerful syntax instructs Excel to first calculate the square of the x-value (A2) and then multiply that intermediate result by 3. Copying this formula down the column generates the set of rapidly increasing y-values, which is characteristic of a steep quadratic function.

The subsequent plotting procedures remain identical to the linear example: select the range A2:B11, navigate to the Insert tab, and choose the Scatter Plot type. The resulting visualization immediately provides a stark contrast to the straight line observed previously, emphasizing the exponential increase in y relative to x.

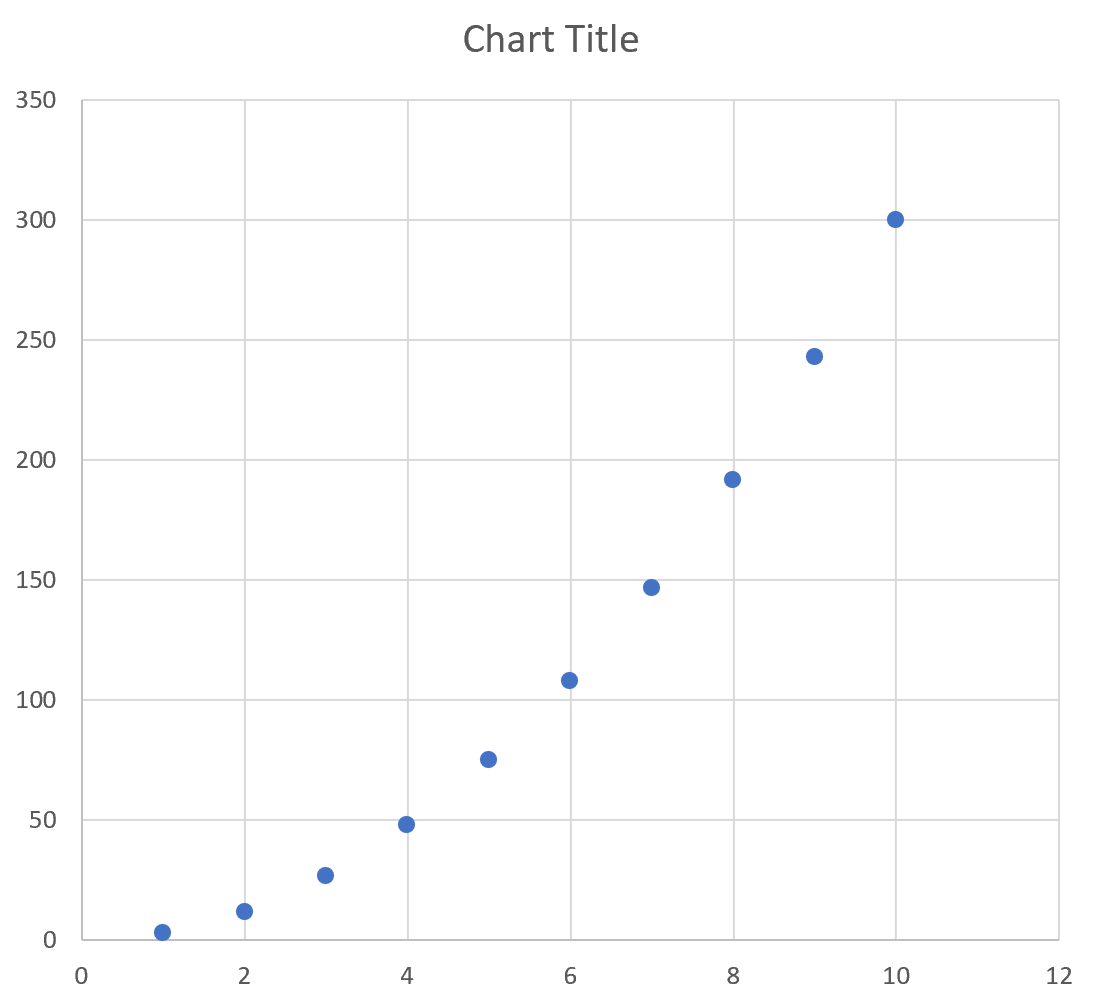

The plot generated below clearly displays the distinctive parabolic curve associated with this mathematical function:

The graph exhibits a clear, upward curve, definitively confirming the underlying relationship is quadratic. It is important to note that because our defined domain only included positive x-values (1 to 10), we only visualize the right-hand side of the parabola. Expanding the domain to include negative x-values would be necessary to fully capture the symmetrical shape.

Example 3: Modeling Inverse Relationships with Reciprocal Equations

Plotting a reciprocal equation introduces the mathematical complexity of asymptotes—imaginary lines that the curve approaches infinitely closely but never actually intersects. These equations typically follow the form y = c/x or similar structures where the independent variable is located in the denominator. Reciprocal relationships are frequently encountered in physics and economics when modeling inverse proportions, such as the relationship between light intensity and distance, or supply and price. We will plot the foundational reciprocal equation:

y = 1/x

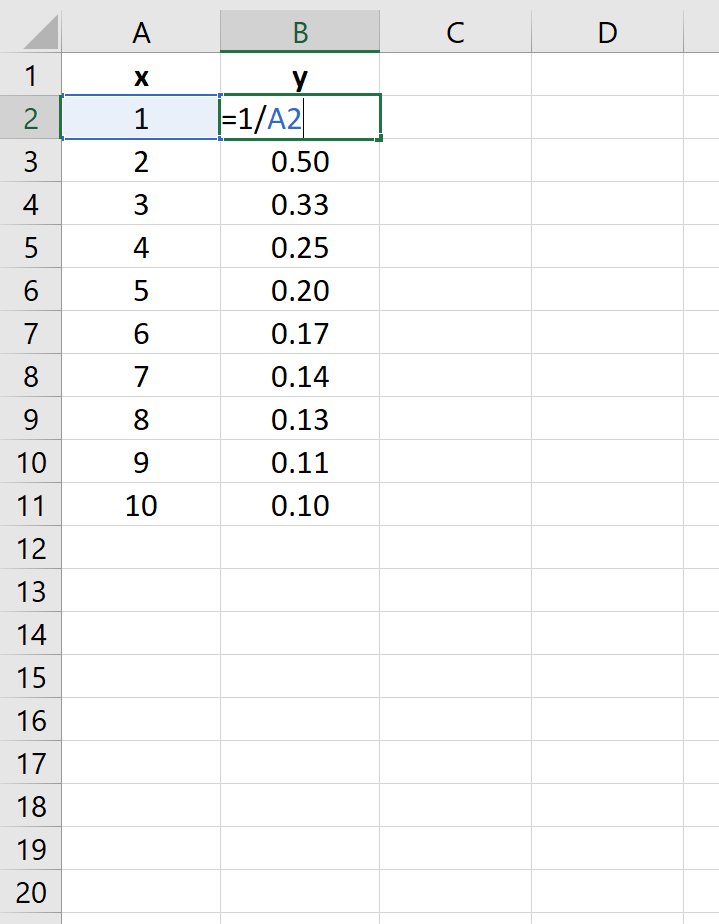

We utilize the consistent x-range of 1 to 10 in Column A. The calculation of the corresponding y-values in Column B is achieved using the simple division formula: =1/A2. When observing the resulting coordinate pairs, you will notice a rapid mathematical behavior: y-values are large when x is small, and they quickly diminish toward zero as x increases. This specific behavior is the critical feature that the graph is designed to illustrate.

To visualize this inverse relationship, select the complete data range A2:B11. Following the established procedure, click the Insert tab and then choose the Scatter Plot option from the Charts group. This action generates the characteristic decreasing, convex curve.

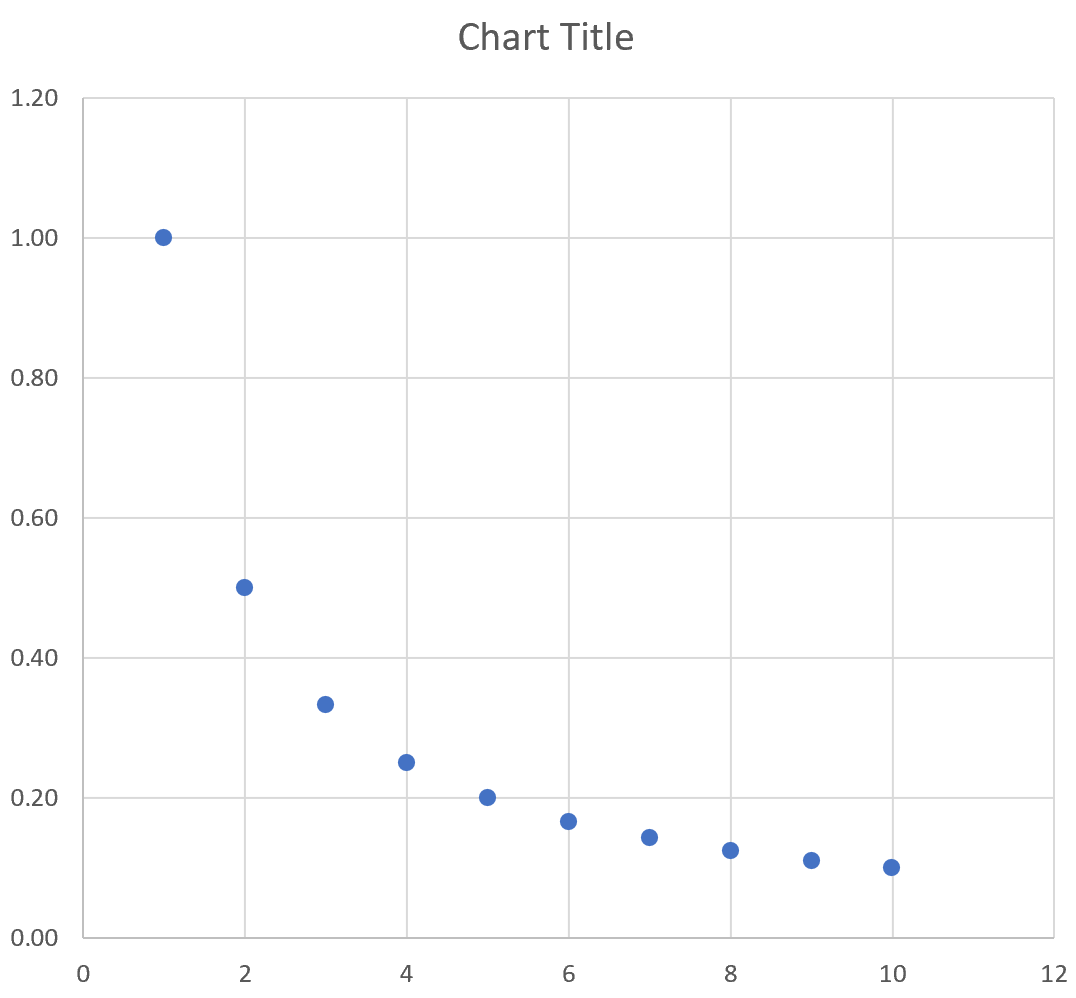

The resulting plot vividly demonstrates the curve dropping steeply at first and then gradually leveling out as it approaches the horizontal axis (where y=0). This horizontal line serves as the asymptote for the positive domain we selected.

This powerful visual representation confirms the inverse proportionality inherent in the reciprocal equation y = 1/x. As the independent variable x increases, the dependent variable y must decrease toward zero.

Example 4: Modeling Periodicity with Trigonometric Functions

Trigonometric functions, including sine, cosine, and tangent, are fundamentally important for accurately modeling periodic phenomena such as sound waves, alternating current, and cyclical seasonal movement. Unlike the previous algebraic examples, these functions are defined by their repetitive, wave-like patterns. When plotting trigonometric functions in Excel, a critical point to remember is that Excel’s intrinsic trigonometric functions (e.g., SIN) operate exclusively using the unit of radians, not degrees, unless an explicit conversion function is applied. We will plot the basic sine wave:

y = sin(x)

To properly generate a smooth, oscillating wave plot, the selected x-domain must be extensive enough to display at least one full period (which is 2π radians, or approximately 6.28). For this demonstration, we maintain the x-range of 1 to 10. In cell B2, we implement the Excel function: =SIN(A2). Since our chosen domain (1 to 10) only covers a limited angular measurement, the resulting visualization will show only a segment of the complete sine wave cycle.

The final plotting steps for trigonometric functions require a slight adjustment to the chart type for optimal visual continuity. After highlighting the coordinate pairs in the range A2:B11 and clicking the Insert tab, look specifically within the Charts group. Instead of selecting the standard Scatter Plot with just markers, choose the specialized option designated as Scatter with Smooth Lines and Markers. This selection connects the discrete calculated data points with a continuous, smooth curve, which is essential for accurately representing the inherently continuous nature of a sine wave.

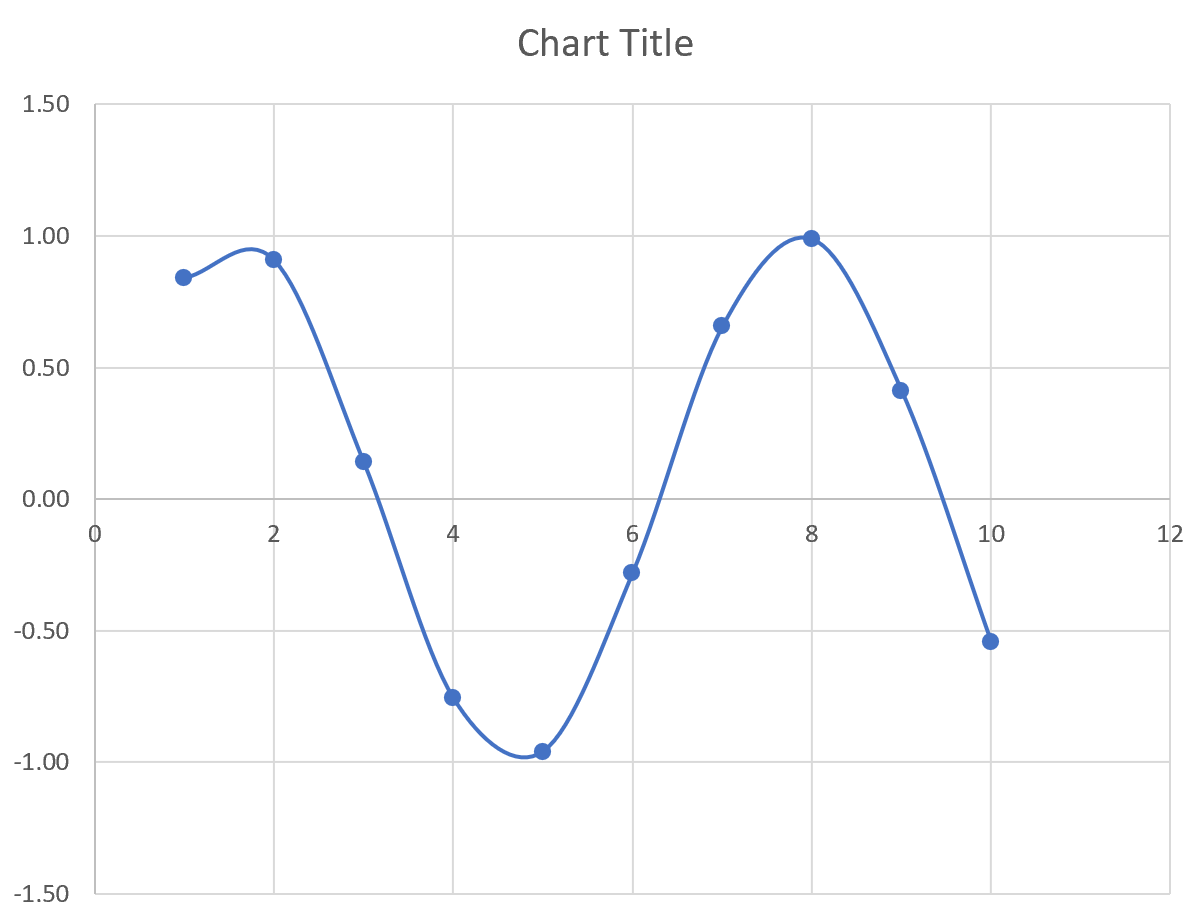

The resulting plot, which automatically appears, displays the unmistakable oscillating pattern characteristic of a sine wave:

Conclusion: Universal Applicability of the Technique

The standardized technique detailed across these four diverse mathematical examples is universally applicable across all analytical disciplines. Whether you are modeling exponential growth, analyzing logarithmic decay, or visualizing complex polynomial expressions, the core methodology remains entirely consistent: define a suitable domain of x-values in the first column, utilize a specific Excel formula in the second column to dynamically calculate the corresponding y-values, and finally, visualize the resulting coordinate pairs using an appropriate Scatter Plot type.

By successfully mastering this essential skill, you effectively transform Microsoft Excel from a basic data entry tool into a highly powerful graphical analysis utility. This capability allows for the generation of clear, mathematically accurate representations of virtually any algebraic equation or complex mathematical function, vastly improving data comprehension and verification.
