Understanding Q-Q Plots: A Practical Guide with Excel

The Quantile-Quantile (Q-Q) plot is a sophisticated yet accessible graphical instrument essential for modern statistical data analysis. Its core utility lies in diagnosing whether a set of observed data aligns convincingly with a hypothesized theoretical distribution. While it can compare any two distributions, it is most frequently deployed to test for adherence to the normal distribution (or Gaussian distribution), a fundamental requirement for many inferential procedures. By plotting the quantiles of the sample against the corresponding quantiles of the theoretical model, the Q-Q plot offers an immediate, visual assessment of distributional fit. Generating this plot in Microsoft Excel requires careful, sequential calculation steps to transform raw data into comparable standardized metrics. This comprehensive guide details the precise methodology for constructing and accurately interpreting a Q-Q plot using Excel’s native functions.

Why Normality Matters: The Role of the Q-Q Plot

Many powerful parametric statistical tests, such as the widely used t-test, Analysis of Variance (ANOVA), and linear regression, rely on the critical assumption that the underlying data, or the residuals derived from the model, follow a normal distribution. When this foundational assumption is significantly violated, the resulting p-values and confidence intervals may become unreliable, potentially leading to erroneous conclusions. Consequently, validating this assumption is a mandatory step in responsible statistical practice.

While statisticians often employ formal, mathematical tests like the Shapiro-Wilk or Kolmogorov-Smirnov tests to check for normality, the Q-Q plot provides a superior, highly intuitive diagnostic tool. It allows the researcher to visually identify how and where the distribution deviates from normality, offering insights into potential skewness or kurtosis that formal tests might summarize with a single p-value. A Q-Q plot effectively graphs two sets of quantiles against one another: the empirical quantiles derived from your dataset and the theoretical quantiles (often standard normal quantiles, or Z-scores) that would be expected if the data were perfectly normally distributed. If the observed data points align closely with the theoretical reference line, the assumption of normality is strongly supported.

The procedure outlined below details the four essential phases required to transform raw observational data into a usable Q-Q plot within the Microsoft Excel environment, starting with data preparation and concluding with graphical interpretation.

Phase 1: Organizing and Ranking the Dataset

The initial phase of constructing a reliable Q-Q plot involves meticulous preparation of the raw data. Since the plot compares positional statistics—specifically, the rank-ordered quantiles—it is absolutely essential that the dataset is properly organized before any formulas are applied. The underlying principle requires knowing the ordered position of every single observation, making data sorting the non-negotiable first step.

Step 1: Enter and sort the data.

Begin by entering all your raw data values into a dedicated column in Excel, for instance, Column A. For illustrative purposes, we will use a small sample dataset:

If your data is not already arranged in ascending order (from the smallest value to the largest), you must sort it immediately. To execute this crucial step, navigate to the Data tab along the top ribbon in Excel, locate the Sort & Filter group, and select the Sort A to Z option. Ensuring the data is correctly sorted is fundamental to all subsequent calculations, as the accurate determination of the positional rank depends entirely on the data’s ordered sequence.

Phase 2: Calculating Empirical Probabilities (Percentiles)

Once the data is sorted, the next crucial phase is to calculate the statistical rank and the associated percentile for each value. These calculations establish the empirical probability—the observed cumulative probability—that a randomly selected value from the sample would be less than or equal to the current data point.

Step 2: Find the rank of each data value.

In the column immediately adjacent to your data (e.g., Column B), determine the rank of each observation. Using Excel’s ranking function provides a direct numerical representation of the position (i) within the sorted list. Assuming your data begins in cell A2 and ends at A11, use the following formula for the first value:

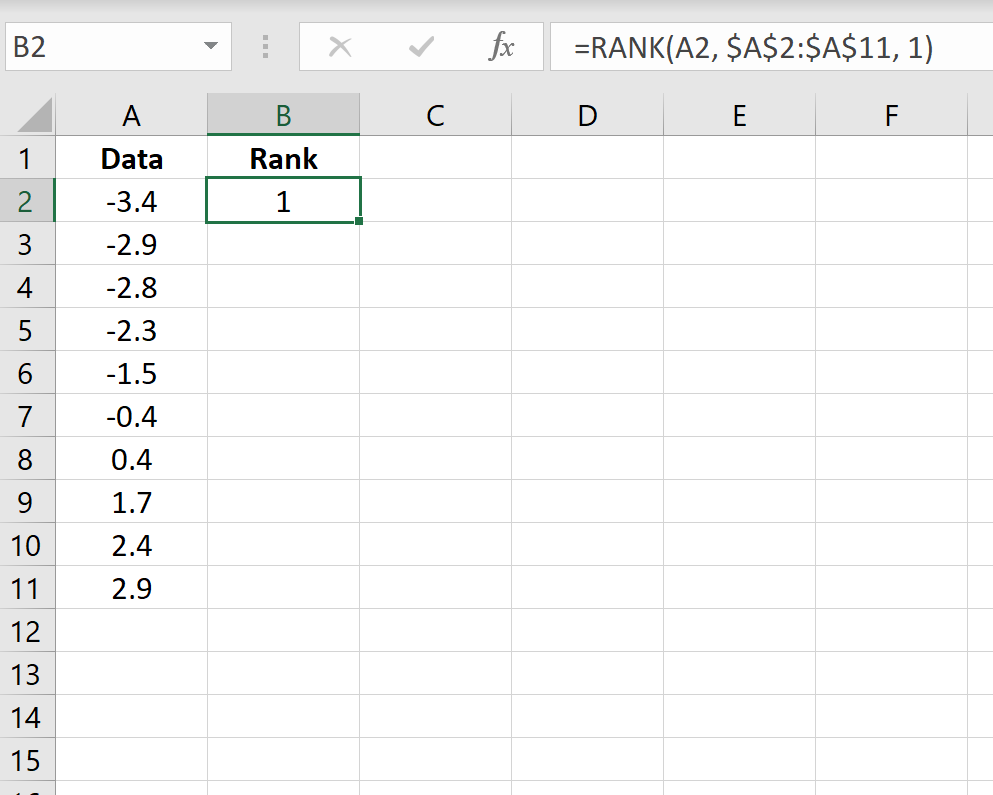

=RANK(A2, $A$2:$A$11, 1)

The use of absolute references (the dollar signs: $A$2:$A$11) is mandatory here. This ensures that the reference range remains fixed when the formula is copied down the column, calculating the rank relative to the entire dataset. The trailing parameter, 1, specifies that the ranking should be performed in ascending order, consistent with our sorted data.

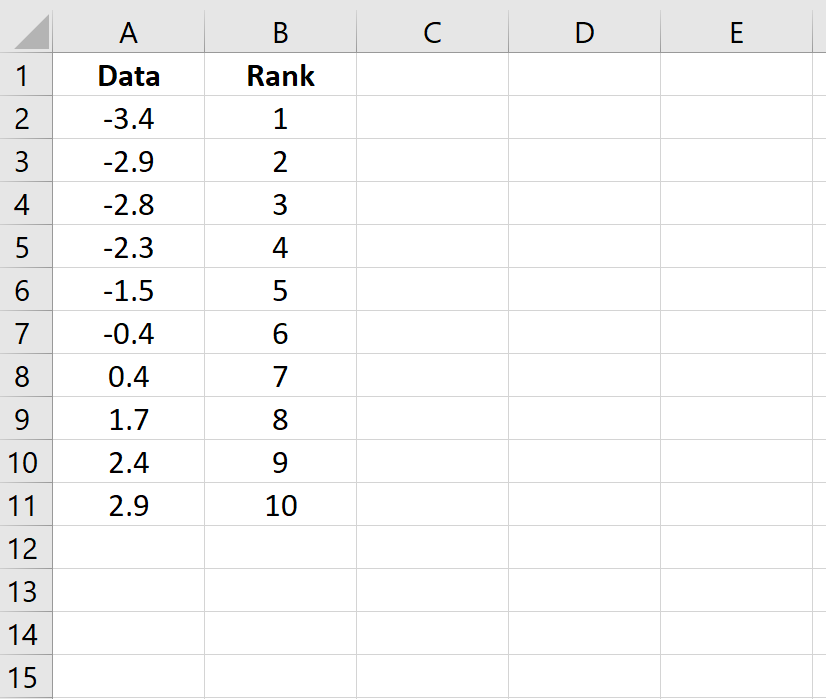

Apply this formula consistently down through all rows corresponding to your dataset:

Step 3: Find the percentile (Plotting Position) of each data value.

The percentile, or plotting position, transforms the rank into a cumulative probability estimate. The standard statistical formula for determining the plotting position for the i-th ordered observation in a sample of size n is: (i – 0.5) / n. The subtraction of 0.5 (the “plotting position adjustment”) is a common convention used to avoid the extremes of 0% and 100% probability, ensuring the inverse normal calculation in the next step is valid.

In Column C, apply the plotting position formula, referencing the calculated rank (i) from Column B and using the COUNT function to dynamically determine the total sample size (n). Use the following formula for the first value:

=(B2-0.5)/COUNT($B$2:$B$11)

The COUNT($B$2:$B$11) portion determines n, the denominator, which must also be fixed using absolute references. This ratio yields the empirical cumulative probability for that specific data point—the observed quantile.

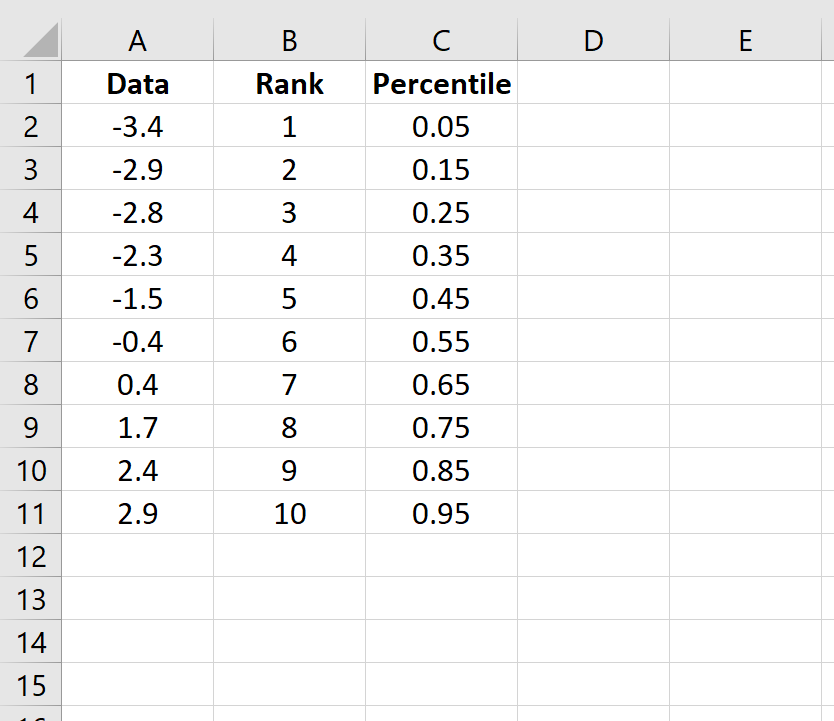

Ensure this formula is copied down to complete the calculation of the empirical quantiles for the entire sample:

Phase 3: Deriving Theoretical Quantiles (Z-Scores)

The core principle of the Q-Q plot is comparing the observed data quantiles (calculated in the previous steps) against the quantiles one would expect if the data perfectly followed the standard normal distribution. These expected quantiles are standardized scores, universally known as Z-scores.

Step 4: Calculate the Z-score (Theoretical Quantile) for each data value.

We convert the calculated percentiles (cumulative probabilities) from Column C into theoretical Z-scores using Excel’s inverse standard normal distribution function: NORM.S.INV. This function is essential because it takes a probability value (the area under the curve) and returns the corresponding Z-score on the standard normal curve. These resulting Z-scores constitute the theoretical quantiles that serve as the benchmark for perfect normality.

In Column D, use the following formula, referencing the percentile calculated in Column C:

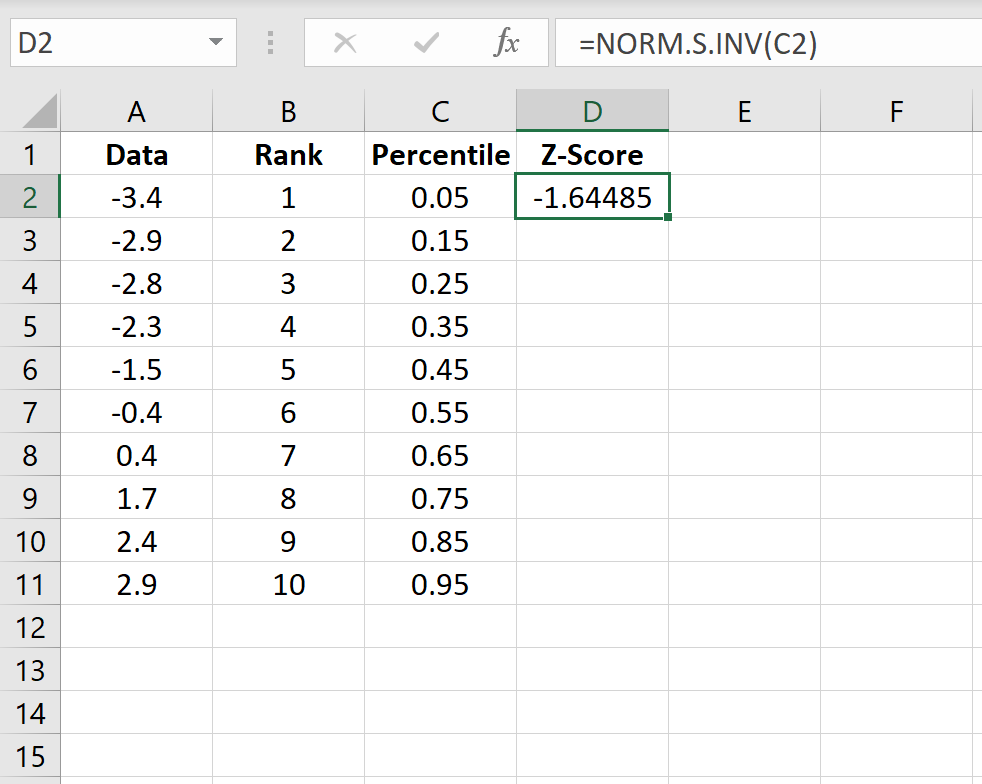

=NORM.S.INV(C2)

This calculation essentially answers the question: “If the data were perfectly normal, what Z-score would correspond to this observed cumulative probability?”

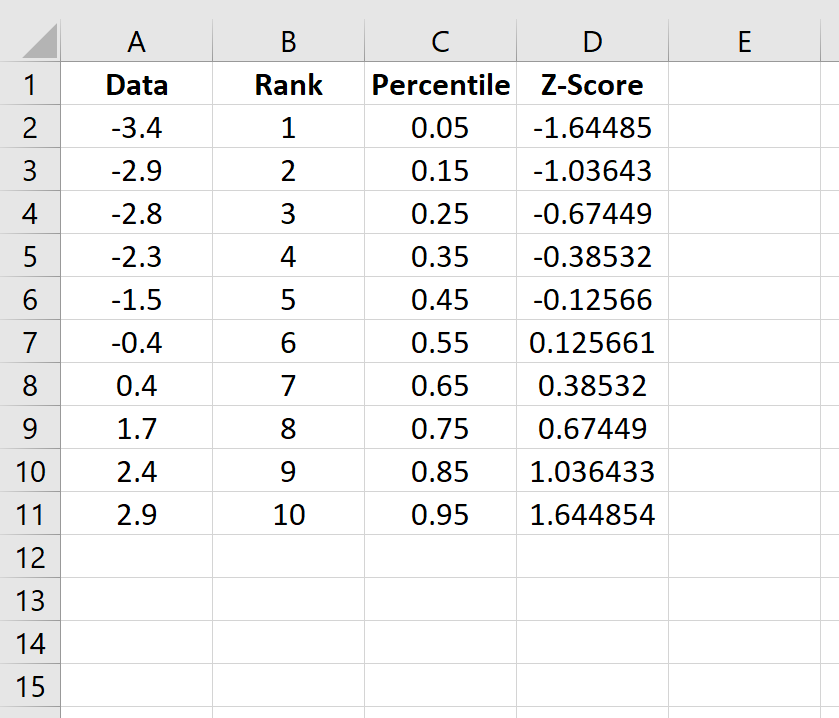

Once copied down the column, Column D will contain the full set of theoretical quantiles required for plotting. If the original data in Column A were truly normally distributed, the values in Column A and the corresponding Z-scores in Column D would share a perfect linear relationship.

Phase 4: Constructing and Refining the Visual Plot

With all necessary statistical calculations complete, the final phase involves the graphical construction. The Q-Q plot is graphically represented by a scatter plot where the X-axis plots the theoretical quantiles (Z-scores) and the Y-axis plots the original observed data values (empirical quantiles).

Step 5: Create the Q-Q plot.

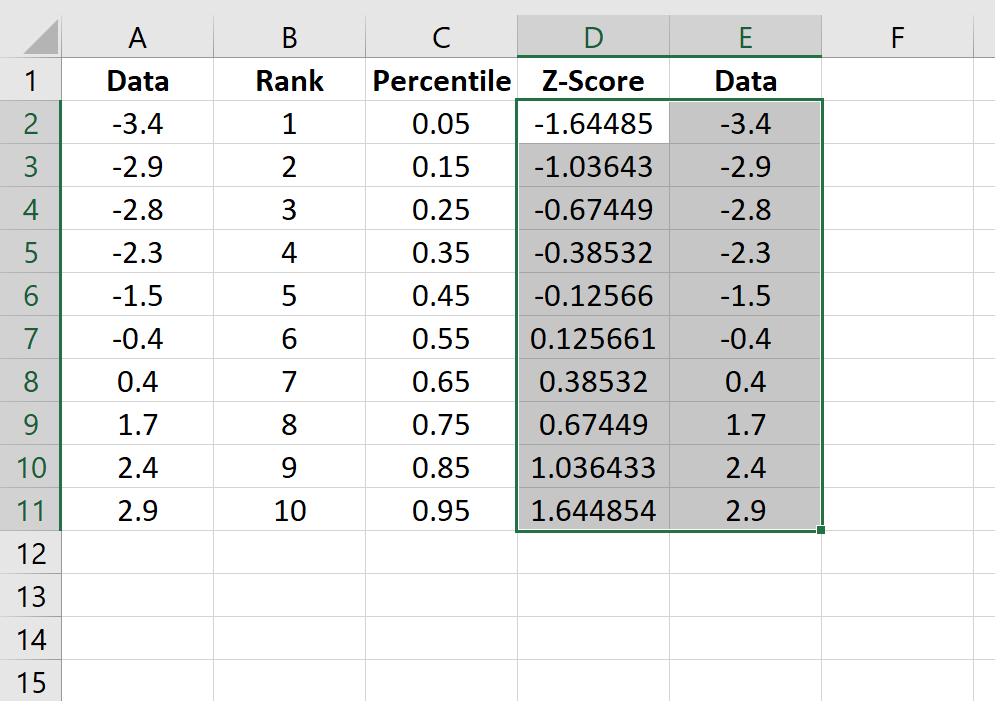

To facilitate the plotting process, it is helpful to copy the original sorted data from Column A into a new column, Column E, placing it directly adjacent to the theoretical quantiles in Column D. This arrangement streamlines the selection of the X and Y variables. Select the data range encompassing both Column D (Theoretical Quantiles) and Column E (Observed Data).

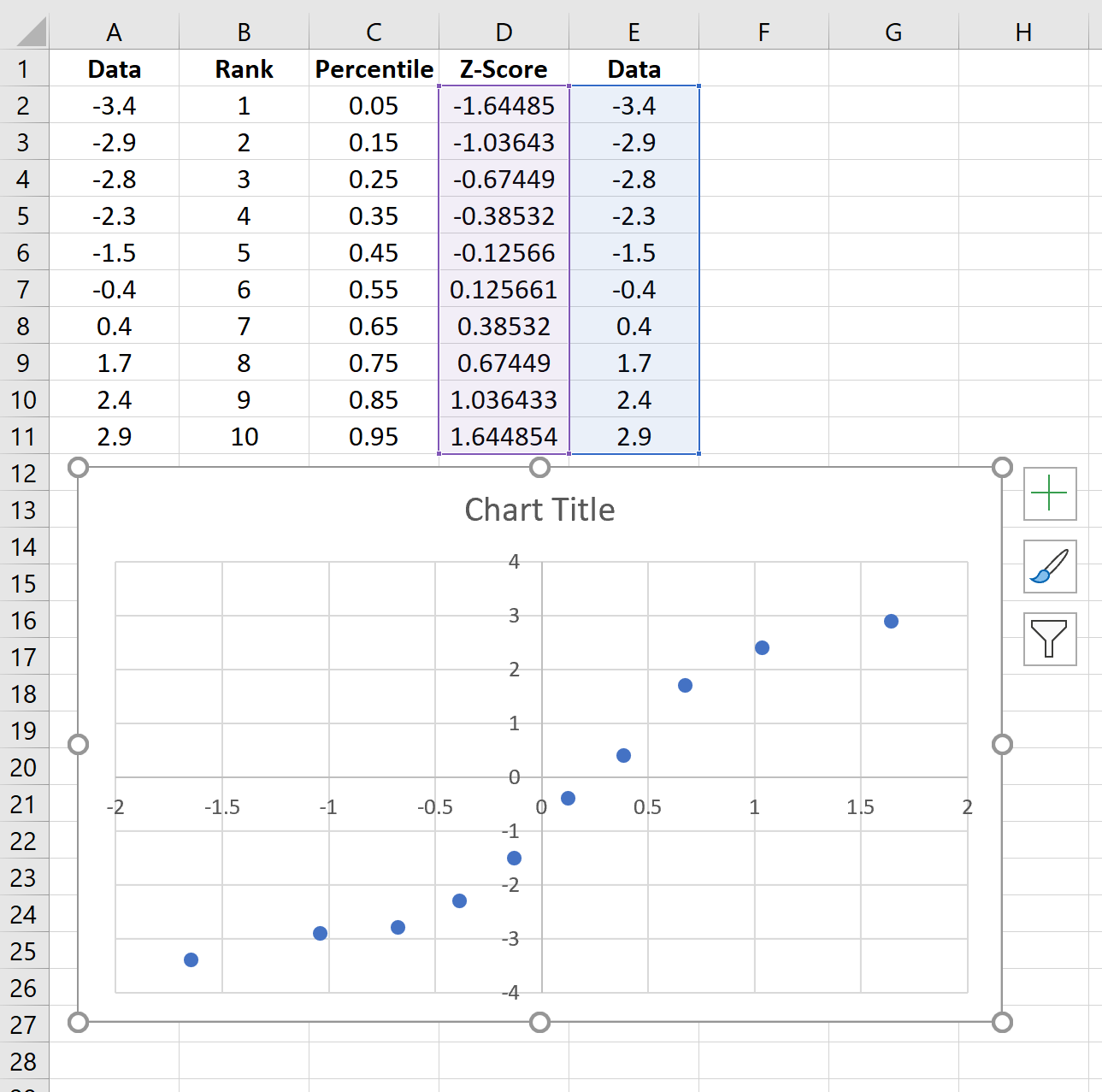

Navigate to the Insert tab on Excel’s top ribbon. In the Charts group, select Insert Scatter (X, Y) and choose the basic Scatter option (dots only). By default, Excel correctly assigns the first selected column (D, Theoretical Quantiles) to the X-axis and the second selected column (E, Observed Data) to the Y-axis. This action generates the initial Q-Q plot visual.

For accurate and efficient interpretation, a reference line must be added. This line represents the ideal scenario of perfect normality. Click the plus sign (Chart Elements) located near the upper right corner of the chart, and check the box labeled Trendline. This adds a linear regression line that acts as a visual proxy for the perfect 45-degree correlation line, making even subtle deviations from the expected distribution immediately apparent.

Finally, adhere to best practices for professional reporting by adding clear and descriptive labels. Ensure the chart title is accurate (e.g., “Normal Q-Q Plot of Sample Data”), the X-axis is explicitly labeled “Theoretical Quantiles (Z-scores),” and the Y-axis is labeled “Observed Data Quantiles.” Clear labeling ensures the plot is immediately comprehensible to any audience.

Interpreting Deviations and Drawing Conclusions

The interpretation of the completed Q-Q plot is arguably the most critical step. The basic rule is simple: if the plotted data points hug the straight reference line closely, it provides strong visual evidence that the observed data quantiles are highly consistent with the theoretical quantiles of the assumed distribution, thus supporting the assumption of normality.

Conversely, any substantial and systematic departure from the line suggests that the data does not follow the hypothesized normal distribution. In our example plot, we can observe distinct characteristics of non-normality. While the central mass of the data appears relatively linear, the points at the extremities—the tails of the distribution—show marked curvature away from the trendline. Specifically, the high-end points curve below the line, and the low-end points curve above the line.

These specific patterns of deviation are indicative of problems in the tails. For instance, if the points form an S-shape, it usually suggests that the data has lighter tails (less extreme values) than the standard normal distribution, a condition known as platykurtosis. If the points curve sharply away from the line at both ends, it often indicates heavier tails (more extreme outliers) than expected, known as leptokurtosis. Skewness also presents clear patterns: positive (right) skew results in points curving up and to the left of the line, while negative (left) skew causes points to curve down and to the right.

• The middle observations generally track the trendline, suggesting the bulk of the data is close to normal.

• However, the points at the extreme ends (the tails) deviate noticeably from the straight line. The points on the upper end curve below the line, and those on the lower end curve above the line.

Although the Q-Q plot is not a formal inferential statistical test, its power as a diagnostic tool is unmatched. It quickly reveals the distribution’s shape, guiding the statistician on whether to proceed with parametric tests, employ non-parametric alternatives, or attempt data transformation to achieve better normality. Mastering the creation and interpretation of the Q-Q plot in Excel provides any data analyst with an essential skill for validating distributional assumptions prior to advanced statistical modeling.
