Data Normalization in Excel: A Comprehensive Tutorial

In the expansive and rigorous field of data analysis, the crucial first step before any meaningful statistical modeling can occur is the diligent preparation of raw data. This preparatory phase often involves techniques designed to ensure fairness and accuracy in computation. Among the most vital of these techniques is data normalization, frequently synonymous with standardization. The process of normalization involves systematically scaling a dataset so that the resulting distribution exhibits a mean (average) of zero and a standard deviation of one. This transformation is indispensable because it guarantees that every feature or variable contributes equally to the analysis, preventing variables with inherently larger scales from unjustly dominating the analytical outcomes.

This tutorial is designed to serve as a comprehensive resource, explaining not only the theoretical methodology underlying data standardization but also offering a precise, step-by-step guide on executing this process efficiently within the powerful Microsoft Excel environment. By focusing on Excel’s integrated statistical functions, we aim to equip you with the proficiency needed to reliably transform your raw data into a standardized format, making it instantly suitable for advanced statistical comparison, robust modeling, and sophisticated quantitative analysis.

The Essential Role of Data Normalization in Analysis

Data standardization, which results in a Z-score for every individual data point, forms the bedrock of numerous analytical tasks. Consider a dataset where disparate features are measured on widely different scales—for instance, comparing a patient’s income (measured in tens of thousands) against their age (measured in tens of years). Without normalization, the sheer numerical magnitude of the income variable would swamp the variance and signal present in the age variable. Normalization meticulously addresses this significant disparity by mapping all data points onto a common, unbiased scale. Crucially, this transformation preserves the relative positional relationships between the data points while completely eliminating the inherent bias caused by differences in magnitude.

The fundamental motivation for performing this transformation is to facilitate accurate computation and equitable comparison across all features. In sophisticated analytical scenarios, including techniques like Principal Component Analysis (PCA), various regression models, or distance-based clustering algorithms, variables exhibiting large numerical ranges can severely skew distance metrics. This often leads to statistically misleading or unstable results. By centering the data around a mean of zero and scaling variability to a standard deviation of one, we effectively express all variance in universal units of deviation. This makes the data highly consistent and interpretable, irrespective of the original measurement units.

Moreover, standardization is frequently established as a prerequisite for many common statistical tests and advanced machine learning algorithms. By ensuring that all inputs contribute equally to the model’s learning process, we significantly enhance both the stability and the predictive performance of these models. This rigorous scaling procedure is therefore essential for achieving optimal, robust, and generalizable findings in both descriptive and predictive analytics, guaranteeing a fair assessment of all variables involved.

The Mathematical Foundation: Z-Score Standardization

The standard method of normalization employed by the statistical community—and specifically utilized by Excel’s dedicated STANDARDIZE function—is founded upon the Z-score calculation. This powerful type of data scaling provides a precise measure: the Z-score quantifies exactly how many standard deviations a specific raw data point lies either above or below the overall mean of the dataset. This mathematical transformation is exceptionally precise and highly effective for preparing continuous, numerical variables for analysis.

The core mathematical formula that governs Z-score standardization is elegantly simple yet profoundly effective:

Normalized Value (Z) = (x – μ) / σ

Within this formula: x represents the specific raw data value currently being standardized; μ (mu) signifies the arithmetic mean of the entire dataset; and σ (sigma) denotes the standard deviation of the entire dataset. A thorough understanding of this formula is paramount for effectively utilizing Excel’s built-in capabilities. Before the final transformation can be applied to every individual observation, we must first accurately calculate the two critical denominator components: the mean (μ) and the standard deviation (σ).

Upon the successful completion of this transformation, the interpretation is straightforward: a positive Z-score immediately indicates that the original data point was numerically greater than the dataset average, while a negative Z-score confirms it was below the average. A Z-score precisely equal to zero signifies that the data point aligned exactly with the mean. Crucially, the numerical magnitude of the Z-score is a direct reflection of the observation’s degree of deviation, providing an immediate and standardized measure of its extremity relative to the rest of the sample population.

Practical Implementation: Normalizing Data Step-by-Step in Excel

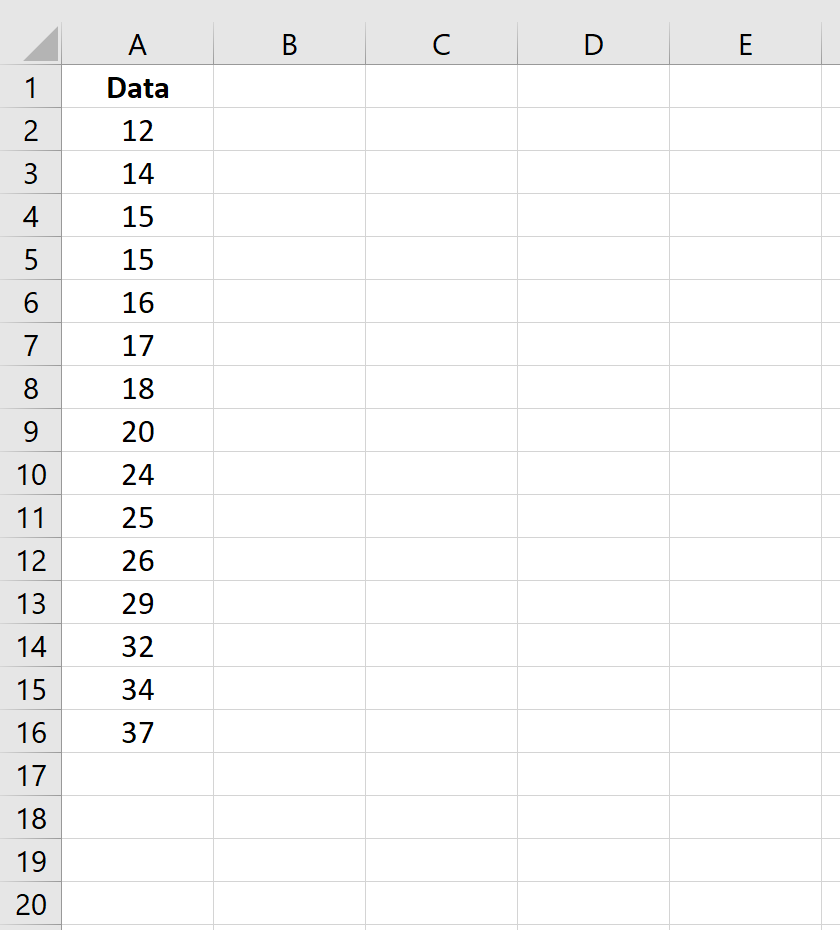

To demonstrate the practical application of this methodology, we will work through a clear example using a hypothetical numerical dataset within a Microsoft Excel spreadsheet. Our goal is to derive the normalized Z-scores for each observation by performing the necessary intermediate calculations in adjacent cells. Suppose our raw data is organized neatly within Column A of the spreadsheet, as illustrated below:

Our explicit objective is to calculate the corresponding standardized Z-score for every value listed in this initial column. To ensure accuracy and maintain an auditable workflow, we must systematically execute three primary procedural steps: first, determining the overall mean; second, calculating the standard deviation; and third, applying the powerful STANDARDIZE function across the entire relevant data range. Following these steps sequentially is key to achieving statistically accurate results.

Step 1: Calculating Central Tendency and Dispersion

Standardization requires two static parameters that describe the overall statistical shape of the dataset: the mean (central tendency) and the standard deviation (dispersion). These calculated values will serve as the constant inputs required by the Z-score formula for all individual data points.

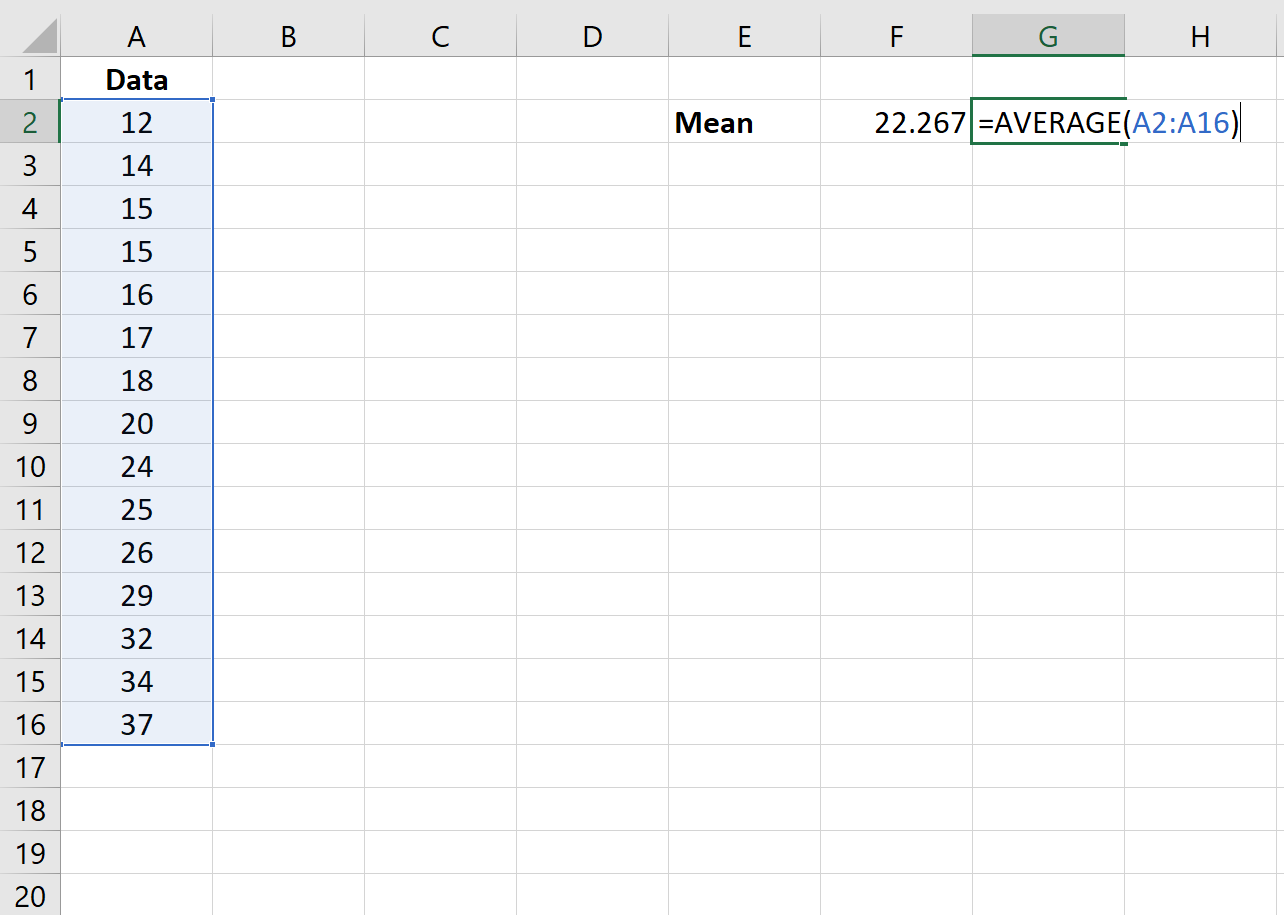

First, we must accurately locate the mean of the dataset. This measure identifies the central point around which the numerical data is distributed. In Excel, the correct function for calculating the arithmetic mean is =AVERAGE(range of values). We strongly recommend placing this resultant calculation in a clearly labeled, designated cell (for example, cell C2) to facilitate easy and consistent referencing in the subsequent steps. If our example data resides within the range A2:A16, the formula required in cell C2 would be entered as: =AVERAGE(A2:A16).

Next, it is essential to calculate the standard deviation (σ), the statistical measure that quantifies the amount of variation or spread within the set of values. Excel provides different functions based on whether your data represents a sample or the entire population. You typically use =STDEV.S(range of values) for a sample standard deviation or =STDEV.P(range of values) if your data constitutes the entire population. For practical purposes, assuming our data is a sample, we use a suitable standard deviation function such as =STDEV(A2:A16) and place the result in a distinct, labeled cell (e.g., cell C3). This separation ensures clarity and ease of maintenance.

With these two pivotal measures—the mean and the standard deviation—accurately calculated and fixed in their respective cells, we now possess all the constants required to apply the standardization transformation efficiently to every single data point within the original column.

Step 2: Applying the STANDARDIZE Function

The final and most efficient step involves leveraging Excel’s dedicated function, STANDARDIZE, which is specifically engineered to apply the Z-score formula using the mean and standard deviation we previously computed. The necessary syntax for this function is straightforward: STANDARDIZE(x, mean, standard_dev), where ‘x’ must reference the individual data point from the raw set that is currently being transformed.

To begin the standardization process for the first data point (A2), we enter the formula into the corresponding adjacent normalization cell (for example, B2): =STANDARDIZE(A2, $C$2, $C$3). The inclusion of absolute references (represented by the dollar signs, e.g., $C$2) for both the mean and the standard deviation is absolutely critical. This specific formatting ensures that when the formula is efficiently dragged down across the entire column, the reference to the individual raw data point (A2, then A3, A4, and so on) increments correctly, while the references to the calculated population statistics (the mean in C2 and the standard deviation in C3) must remain perfectly fixed and constant for every calculation.

NOTE: Utilizing the STANDARDIZE Function for Efficiency

The STANDARDIZE function is an indispensable tool in data preparation. It expertly executes the complex Z-score formula—(x – mean) / standard_dev—internally. By relying on this function, data analysts can bypass the need to manually construct and verify the subtraction and division operations for hundreds or thousands of individual cells. This not only dramatically accelerates the workflow but also substantially mitigates the risk of introducing calculation or referencing errors into the standardized dataset.

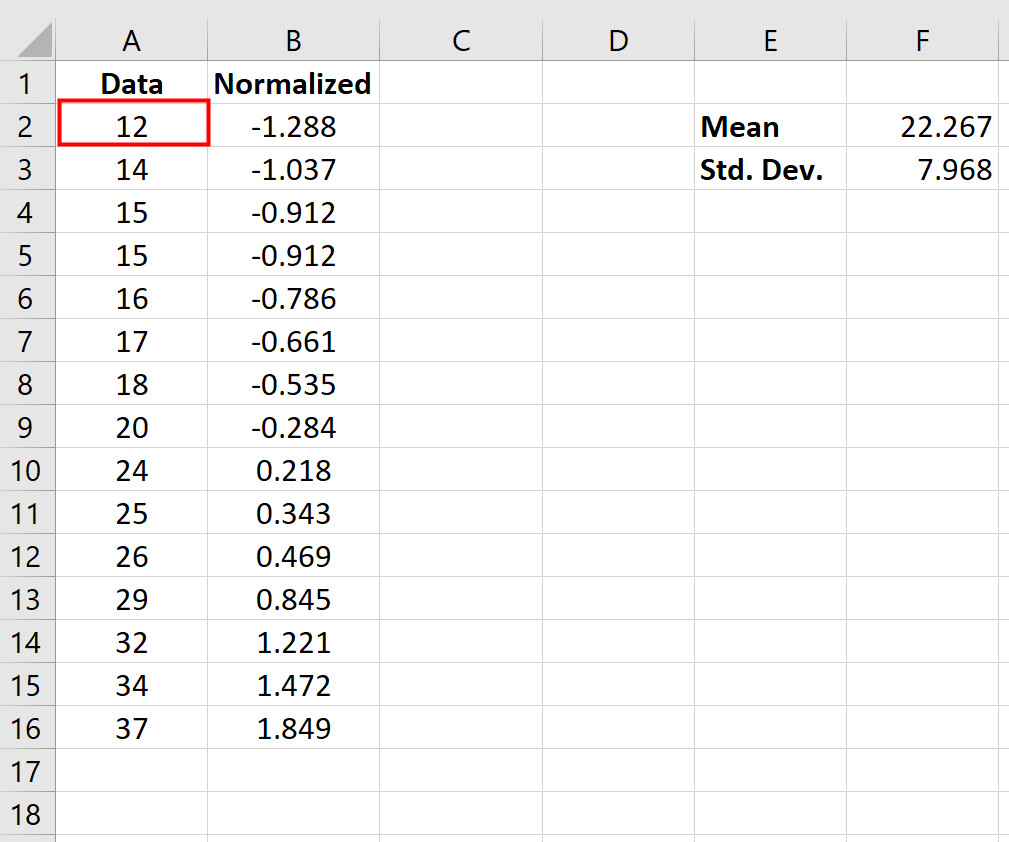

The following illustration clearly depicts the formula applied to the very first value in the dataset (A2), showcasing how it correctly references the dynamic raw data point alongside the fixed statistical measures:

Once the formula has been correctly entered and verified in the initial normalization cell, the complete set of normalized values can be rapidly generated by simply dragging the fill handle down to cover the entire raw data column. This action instantly transforms the scale of the original data, yielding the final standardized results:

At this juncture, every single value in the dataset has been successfully normalized, fulfilling the statistical requirement that the new distribution possesses a mean of 0 and a standard deviation of 1. These results are now ready for advanced analytical applications.

Interpreting the Standardized Z-Scores

Once the dataset is fully standardized, the resulting Z-scores become profoundly informative statistical metrics. The principal advantage of utilizing the normalized value is its immediate and direct interpretability: it instantly conveys the precise position of an observation relative to the average of the group, expressed cleanly in standardized units of deviation. This removes ambiguity and allows for standardized cross-comparison.

More specifically, if an individual data point yields a normalized value greater than 0, it serves as a clear indication that the data point is numerically superior to the dataset’s overall mean. Conversely, a normalized value less than 0 confirms that the data point falls numerically below the mean. The true analytical power lies in the numerical magnitude of the Z-score itself: this metric tells us precisely how many standard deviations the original data point is situated away from the calculated average.

To provide a concrete example, let us re-examine the original data point “12” from our raw dataset. Following the standardization process, its calculated Z-score was -1.288. Reviewing the underlying calculation reinforces the clarity of the process:

The resulting normalized value was mathematically derived as: Normalized value = (x – μ) / σ = (12 – 22.267) / 7.968 = -1.288. This robust result signifies that the raw value “12” is located 1.288 standard deviations below the mean of the original dataset. This standardized perspective provides a vastly richer, quantitative understanding of the value’s position compared to simply stating that it is “less than the average.”

In professional practice, analysts routinely leverage these normalized values to perform critical tasks, such as the rapid identification of outliers (values that typically fall beyond plus or minus two or three standard deviations), comparing variables measured in fundamentally different units (e.g., assessing the correlation between test scores and hours studied), and guaranteeing equitable input into sophisticated statistical and predictive models.

Strategic Context: When and Why Standardization is Necessary

While data normalization is not a universal requirement for every type of analysis, it becomes absolutely indispensable in specific analytical contexts. A primary use case involves distance-based algorithms, such as K-Nearest Neighbors (KNN) or K-means clustering. These algorithms fundamentally rely on calculating the Euclidean distance or similarity metrics between observations. If one feature’s values span a range from 1 to 10,000, and another feature ranges only from 1 to 10, the feature with the dramatically larger scale will overwhelmingly dictate the distance calculation, rendering the results statistically unreliable or even meaningless. Standardization effectively nullifies this scale dominance, placing all features on an equivalent analytical footing.

Furthermore, standardization is often a non-negotiable step when preparing input data for certain machine learning algorithms. Many optimization techniques, like gradient descent, or models that rely on assumptions of normally distributed inputs, perform poorly or fail to converge efficiently when faced with unscaled data. Scaling the data can dramatically stabilize the learning process, leading directly to faster convergence rates, reduced training time, and significantly better overall model performance. Whether the task is conducting a straightforward comparative analysis or training a highly sophisticated predictive model, mastering the ability to normalize data efficiently in Excel stands as a vital and fundamental skill for any contemporary data professional.
