Learning to Create Residual Plots: A Step-by-Step Guide

A residual plot is an essential diagnostic visualization in statistics, particularly crucial for validating assumptions within regression analysis. This visualization specifically maps the values of the predictor variable (X-axis) against the corresponding residuals (Y-axis). The primary objective of analyzing this plot is to confirm whether the underlying assumptions of the chosen regression model have been adequately met, thereby ensuring the reliability of the model’s inferences.

The plot serves two main purposes: first, to assess if the residuals are randomly distributed around zero; and second, to verify the assumption of homoscedasticity, which refers to constant variance across all levels of the predictor variable. If the residual plot exhibits any systematic patterns—such as a curved shape, a funneling effect (indicating heteroscedasticity), or distinct clusters—it signals a potential flaw in the model. Such deviations necessitate careful review and possible adjustments to the model structure or the data transformation process before conclusions can be drawn.

While statistical software typically generates these plots instantly, understanding the mechanics requires a deep dive into the underlying calculations. The following step-by-step guide meticulously demonstrates how to calculate and manually construct a residual plot for a simple linear regression model, reinforcing the foundational statistical concepts inherent in this vital diagnostic procedure.

Establishing the Linear Regression Model

The prerequisite for constructing a residual plot is the establishment of the statistical relationship summarized by the linear regression equation. This process begins with a collected dataset, where each row represents a distinct observation containing paired values for the independent variable (X) and the dependent variable (Y). The goal is to define the line that best summarizes the trend observed in these data pairs.

For demonstration purposes, we will use a small sample dataset consisting of 10 data points. Our objective is to fit a simple linear regression model to quantify the relationship between X and Y based on these specific values:

In practice, the coefficients (the intercept and the slope) that define the regression line are derived using the Least Squares Method. This method is mathematically designed to minimize the total sum of the squared distances between the actual observed Y values and the Y values predicted by the model. Although statistical packages like R, Python, or Excel handle these calculations efficiently, for this example, we assume the calculation has been performed. Applying this method to our sample data yields the following fitted regression model equation, which represents the line of best fit:

y = 10.4486 + 1.3037(x)

This derived equation is now the core tool we will use to generate the necessary components for our residual plot: the predicted values and, subsequently, the prediction errors.

Step 1: Calculating the Predicted Values

The first operational step in generating the residual plot involves calculating the predicted values for the dependent variable (Y), conventionally denoted as ŷ (pronounced “Y-hat”). These predicted values represent the points on the regression line corresponding to each input X value. To obtain them, we systematically substitute each observed X value from our original dataset back into the derived regression equation (y = 10.4486 + 1.3037(x)).

Let us illustrate this calculation using the first data point from our sample. If we take the first observation where the predictor variable (x) = 3, we use the model to estimate the corresponding Y value: y = 10.4486 + 1.3037(3). The resulting predicted Y-hat value is 14.359. This value signifies where the regression line expects the observation to fall when X equals 3.

This methodical calculation must be repeated for every single observation in the dataset. Each resulting Y-hat value is critical because it establishes the baseline against which the actual observed Y value will be compared. These comparisons will quantify the error, which is the definition of the residual itself.

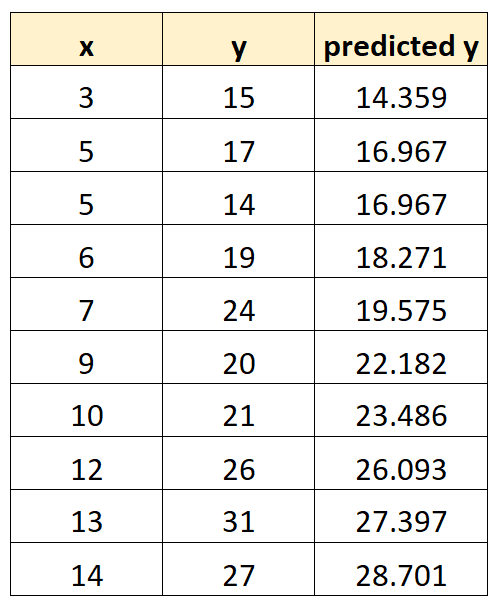

By systematically applying the formula to all 10 X inputs, we generate a complete column of predicted Y values. This complete set forms the essential foundation for calculating the prediction errors in the subsequent step, as shown in the updated table below:

Step 2: Determining the Residuals

A residual is the quantitative measure of the error in prediction for a specific data point. Conceptually, it represents the vertical distance between the actual observed value (Y) and the value estimated by the regression line (ŷ). This calculation is fundamental because it isolates the unexplained variation that remains after the linear relationship has been accounted for by the model.

The calculation of the residual for any given observation is a straightforward subtraction: Residual = observed value (Y) – predicted value (ŷ). If the resulting residual is positive, it implies that the regression model underestimated the actual outcome. Conversely, a negative residual signifies that the model overestimated the actual outcome for that specific point.

Returning to our first observation, where the actual Y was 15 and the predicted Y (ŷ) was 14.359, the calculation confirms the residual: Residual = 15 – 14.359 = 0.641. Since 0.641 is positive, the observation lies above the fitted line. We must repeat this subtraction for every observation in the dataset to obtain the full distribution of prediction errors.

This full set of residuals is the key component for the Y-axis of our diagnostic chart. Once calculated, they provide the necessary coordinates to visually assess the model assumptions. The completed table, now featuring the observed X and Y, the predicted Y, and the final corresponding residual for all points, is presented below:

Step 3: Creating the Residual Plot Manually

The final stage in this process involves transforming our calculated data into a graphical format. To construct the residual plot, we utilize a Cartesian coordinate system where the horizontal x-axis is dedicated to the original X values (the predictor variable), and the vertical y-axis is dedicated to the newly calculated residual values. Crucially, a reference line is drawn horizontally at Y=0, signifying perfect prediction where the error is zero.

The plot is populated by placing points defined by the pairwise coordinate set (X, Residual). Taking the first observation as an example, we plot the point (X=3, Residual=0.641). Since the residual is positive, this data point is situated above the horizontal zero line. This point visually confirms the slight underestimation by the regression line at this specific X value.

We proceed to plot the next observation, (X=5, Residual=0.033). This point falls extremely close to the zero line, visually confirming that the model achieved a high degree of accuracy for this particular data point. This systematic plotting ensures that every prediction error is mapped relative to its corresponding input variable:

This sequence is continued until all 10 pairwise combinations of X and residual values are accurately positioned on the graph. The resulting collection of points forms the complete and finalized residual plot, ready for visual inspection and diagnosis.

Interpreting the Residual Plot Results

Once the residual plot is constructed, the focus shifts entirely from calculation to visual diagnosis. The primary objective is to inspect the pattern of the points relative to the horizontal zero line, looking specifically for randomness, systematic curves, or changes in variance across the range of X values. The interpretation of the plot confirms or refutes the fundamental assumptions required for reliable regression model fitting.

Understanding the sign of the residual is key. A point plotted above the zero line represents a positive residual, indicating that the actual observed Y value exceeded the predicted value; the model underestimated the outcome. Conversely, any point falling below the zero line represents a negative residual, signifying that the observed Y value was lower than the predicted value, meaning the model overestimated the outcome. An ideal model exhibits points scattered evenly both above and below this line.

In the specific plot generated above, the points demonstrate a random scattering around the zero line, with no discernible curved shape or concentrated pattern. This random dispersion is the desired outcome and provides strong visual evidence that the relationship between X and Y is appropriately modeled as linear. If a curve (e.g., parabolic shape) were present, it would suggest that a non-linear model (such as polynomial regression) would be more suitable.

Furthermore, we must evaluate the assumption of constant variance. Since the spread of the residuals does not systematically widen (a funnel shape) or narrow as the predictor variable (X) increases, the assumption of homoscedasticity is confirmed. Heteroscedasticity (non-constant variance) is a serious issue that violates the reliability of standard error calculations and would require remedial measures, such as data transformation or employing weighted regression analysis techniques, to correct the model.

Utilizing Statistical Software for Efficiency

While the manual calculation of a residual plot is an invaluable exercise for reinforcing the underlying statistical principles, analyzing real-world datasets necessitates the use of computational tools. Statistical software allows for the immediate generation and interpretation of these diagnostic plots, even with thousands of observations, ensuring accuracy and efficiency in the model validation process.

For those transitioning to practical data analysis, the following resources provide guidance on generating residual plots using popular and powerful statistical environments:

• Creating Residual Plots in R: A comprehensive guide detailing the use of standard plot functions tailored for regression objects within the R environment.
• Residual Analysis in Python (using Statsmodels and Seaborn): Techniques focusing on visualizing residuals effectively in modern data science and machine learning workflows utilizing Python libraries.
• Generating Diagnostic Plots in Microsoft Excel: Step-by-step instructions for leveraging Excel’s built-in data analysis capabilities for basic residual checking.
