Understanding Skewness: How to Analyze Data Distribution with Box Plots

The Power of Box Plots in Exploratory Data Analysis

A box plot, alternatively known as a box-and-whisker plot, stands as a cornerstone visualization tool in modern statistical practice. It offers a concise, non-parametric summary of a dataset’s distribution, relying entirely on the data’s inherent structure. Its utility lies in providing an immediate visual grasp of central tendency, variability, and the shape of the data, which is essential for effective Exploratory Data Analysis (EDA).

This graphical summary is particularly invaluable for comparing multiple distributions simultaneously, efficiently identifying potential outliers, and, most critically for this discussion, diagnosing the data’s underlying symmetry or lack thereof—a property known as skewness. By focusing on key quantiles rather than the full data points, the box plot delivers deep insight without assuming a specific statistical distribution model.

The primary strength of the box plot is its robustness against extreme values. Because it relies on the median and quartiles rather than the mean and standard deviation, it provides a stable measure of spread that remains unaffected by outliers, making it a reliable tool for initial data assessment.

Understanding the Foundation: The Five-Number Summary

To correctly interpret the visual elements of a box plot, one must first grasp the statistical metrics upon which it is built: the five-number summary. This summary encapsulates the full range and quartile distribution of the dataset, forming the structural boundaries of the plot.

The five-number summary is comprised of the following key components:

• The Minimum Value: This is the smallest data observation that is not considered an outlier, anchoring the lower whisker.
• The First Quartile (Q1): Representing the 25th percentile, this point indicates that one-quarter (25%) of the data values fall below this threshold. It marks the lower edge of the central box.
• The Median (Q2): Also known as the 50th percentile, the median is the true middle value of the dataset, dividing the observations into two equal halves.
• The Third Quartile (Q3): Representing the 75th percentile, this point signifies that three-quarters (75%) of the data values fall below it. It marks the upper edge of the central box.
• The Maximum Value: This is the largest data observation that is not classified as an outlier, defining the extent of the upper whisker.

The central rectangle of the plot, which spans from Q1 to Q3, represents the Interquartile Range (IQR). The IQR contains the middle 50% of the data, providing a robust and reliable measure of data spread that is minimally affected by extreme values.

Constructing and Interpreting the Box Plot Elements

The construction of a box plot follows a standardized procedure that visually translates the five-number summary into a clear, graphical format, allowing for rapid assessment of the data’s characteristics. The process involves defining the central box and then extending the associated whiskers.

• We start by drawing the central box. This rectangular shape is defined by the First Quartile (Q1) at one end and the Third Quartile (Q3) at the other, capturing the core variability of the dataset.
• Next, a distinct vertical line is drawn within the box to denote the exact position of the median (Q2). The placement of this line is the single most critical feature for determining skewness.
• Finally, “whiskers” extend outward from the box, stretching to the minimum and maximum values (or, more commonly, to limits calculated based on a 1.5 times IQR rule to identify outliers).

A visual assessment is then made based on the relative lengths of these components. The total length of the box indicates the spread of the middle half of the data, while the total length of the whiskers shows the spread of the outer quartiles. Crucially, the position of the median line within the central box reveals the symmetry of the distribution.

Identifying Skewness Based on Median Location and Whisker Length

The shape of a distribution—specifically, its degree of asymmetry—is quantified by skewness. A box plot provides an exceptionally efficient visual mechanism to determine whether a dataset is right-skewed, left-skewed, or symmetrical. This determination relies on two key visual cues: the displacement of the median line from the center of the box, and the comparative lengths of the whiskers.

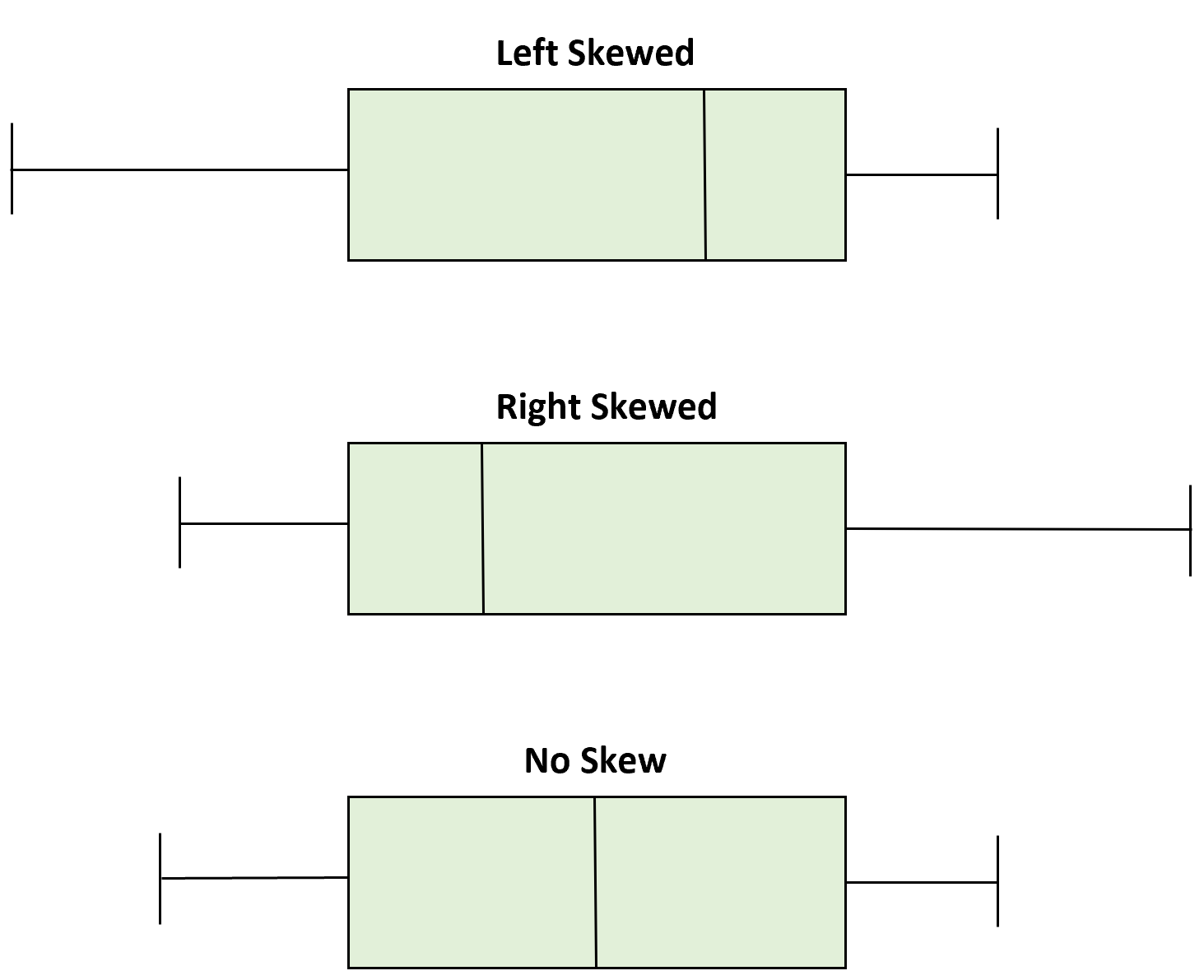

The governing principle is straightforward: the direction in which the data is stretched, forming a “long tail,” is the direction of the skew. For example, if the tail extends further into the positive values, the distribution exhibits positive skewness. The visual guide below demonstrates how the density of data points translates into the characteristic shapes of the box plot.

We can formalize this interpretation using specific criteria based on the visual evidence:

• Right-Skewed Distribution (Positive Skew): The distribution is stretched toward higher values. Visually, the median line is situated closer to the first quartile (Q1), meaning the upper half of the data (Q2 to Q3) is more spread out than the lower half. Furthermore, the whisker extending toward the maximum value is significantly longer than the lower whisker. This shape is typically caused by a few extreme positive values pulling the mean higher than the median.
• Left-Skewed Distribution (Negative Skew): The distribution is stretched toward lower values. In this case, the median line is closer to the third quartile (Q3), indicating that the lower half of the data (Q1 to Q2) is more spread out. The whisker extending toward the minimum value is noticeably shorter than the upper whisker. This pattern suggests the presence of extreme negative values that drag the mean below the median.
• Symmetrical Distribution (Zero Skew): The distribution is balanced. The median line is positioned near the exact center of the box, and both the upper and lower whiskers are approximately equal in length. This symmetry is characteristic of distributions like the normal distribution, where the mean and median are closely aligned.

Case Study 1: Diagnosing a Right-Skewed Distribution

A classic example of a right-skewed distribution is found in annual household incomes. While the majority of the population falls within a moderate income range, a small subset of individuals earn exceptionally high incomes. These high values act as outliers, exerting a strong pull on the mean and stretching the distribution tail far to the right.

In this scenario, the mean income will be higher than the median income because the extreme positive values inflate the overall average. When visualized, this positive skewness results in a highly asymmetrical box plot structure.

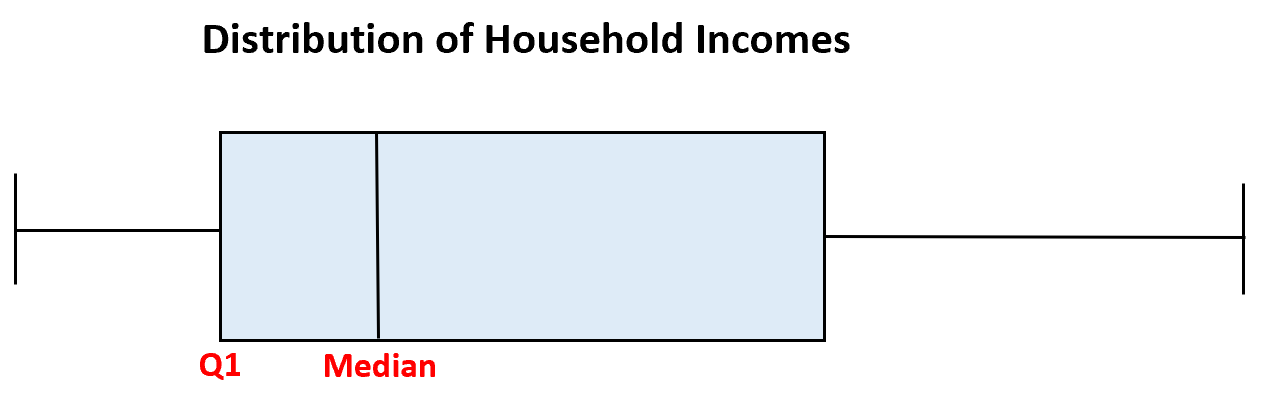

The box plot below illustrates the expected structure for a right-skewed dataset, such as household income:

A careful inspection of the plot confirms the diagnosis of positive skewness: the vertical median line is visibly closer to the first quartile (Q1), indicating that the lower 50% of the data is compressed. Furthermore, the upper whisker (extending toward higher income values) is substantially longer than the lower whisker, definitively confirming that the distribution exhibits right-skewness.

Case Study 2: Diagnosing a Left-Skewed Distribution

Conversely, the distribution of the age of death in a developed, stable population often serves as a textbook example of a left-skewed distribution. The vast majority of deaths occur at advanced ages (e.g., clustered between 75 and 90 years), while relatively few deaths occur at younger ages. This concentration of data toward the higher end of the scale creates a long tail stretching toward the lower (negative) end.

In this type of distribution, the mean age of death is typically pulled slightly lower than the median age due to the influence of earlier deaths. When plotted, this negative skewness produces a characteristic visual shape.

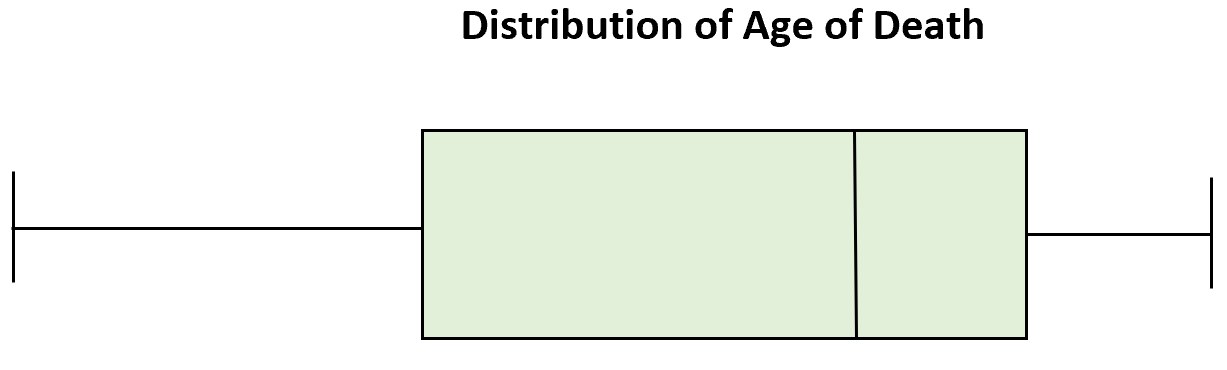

The box plot below visualizes the expected pattern for a left-skewed distribution, such as the age of death:

As anticipated, the median line is situated much closer to the third quartile (Q3) than to the first quartile (Q1), indicating that the data are highly concentrated at the upper end of the distribution. Crucially, the lower whisker (extending toward minimum values) is significantly shorter than the upper whisker. This structural asymmetry confirms that the distribution is left-skewed.

Case Study 3: Diagnosing a Symmetrical Distribution

A distribution is classified as symmetrical when data values are perfectly balanced around the central point, implying that the tails on either side are mirror images of one another. The measurement of adult male height within a specific population is a commonly cited example of a distribution that approximates symmetry, often closely resembling a normal distribution.

In a truly symmetrical dataset, the statistical measures of central tendency—the mean, the median, and the mode—are all situated at or near the same central point. This balance results in a perfectly centered visual representation on the box plot.

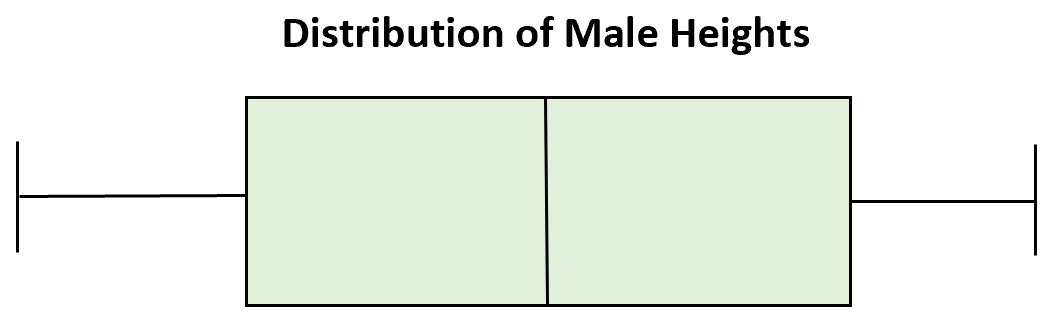

The box plot visualizing the distribution of male heights in the United States, for instance, exhibits the expected balanced appearance:

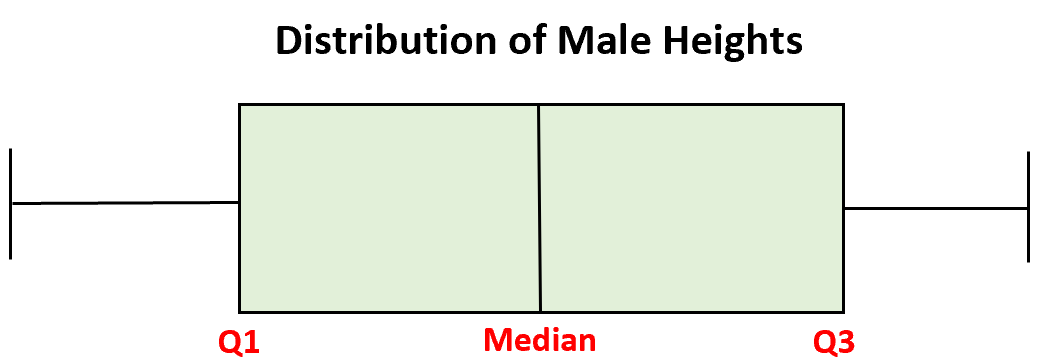

Upon careful inspection, we observe that the vertical line marking the median is precisely in the center of the box, dividing the Interquartile Range (IQR) into two equal halves. Furthermore, the whiskers extending from the box are almost identical in length. This inherent balance provides undeniable visual confirmation that the distribution is symmetrical, exhibiting practically zero skew.

Conclusion: Mastering Visual Diagnostics

The ability to rapidly interpret a box plot is a foundational skill for any data scientist or analyst. By visually inspecting the location of the median relative to the quartiles, and comparing the lengths of the whiskers, one can accurately and efficiently diagnose the underlying shape of the data distribution. This method allows for a quick differentiation between right-skewed, left-skewed, and symmetrical data without the immediate need for complex numerical calculations.

This visual diagnostic power underscores why the box plot remains an essential tool in the initial stages of any data analysis project. For those seeking to deepen their understanding of graphical methods and data distribution analysis, the following resources offer further guidance:
