Learning to Analyze Regression Models: A Step-by-Step Guide to Creating Residual Plots in Excel

The Essential Role of Residual Plots in Regression Diagnostics

A residual plot stands as a cornerstone diagnostic tool within statistical analysis, absolutely essential for validating the quality and reliability of any regression model, particularly when employing linear regression techniques. This graphical visualization meticulously maps the fitted values (the predicted outcomes generated by the model) against the corresponding residual values. The residuals represent the vertical distance between the actual observed data points and the regression line itself. Before drawing any conclusions or relying on the significance of the coefficients derived from a regression analysis, a thorough examination of this plot is not just recommended—it is mandatory for ensuring statistical integrity.

The core objective in constructing a residual plot is to rigorously assess whether the foundational assumptions underlying the linear regression framework have been satisfied by the data. These critical assumptions include, but are not limited to, the linearity of the relationship between variables, the independence of the error terms, and the crucial assumption of homoscedasticity. Homoscedasticity posits that the variance of the error terms (the residuals) must remain constant across all levels of the predictor variable. If the residual plot successfully exhibits a random, unstructured scatter of points centered horizontally around the zero axis, it serves as strong evidence that the model is appropriate and that these assumptions hold true.

Conversely, the appearance of any discernible pattern within the residual plot immediately signals serious violations of the underlying statistical assumptions. Such patterns might manifest as a widening or narrowing fan shape, suggesting non-constant variance, or a clear curved structure, indicating that a linear model is fundamentally inappropriate for describing the relationship. These violations, if ignored, can severely invalidate the standard error estimates, confidence intervals, and hypothesis tests derived from the model. Understanding how to correctly generate and interpret this diagnostic visualization is a vital skill for any data analyst, regardless of the software used.

While professional statisticians often utilize specialized software like R, Python, or SPSS for advanced diagnostic checks, Microsoft Excel remains an incredibly accessible and widely deployed tool for foundational data analysis tasks across various industries. This comprehensive guide will detail the precise, step-by-step procedures necessary to manually construct and interpret a diagnostic residual plot for a simple linear regression model directly within the Excel environment. This approach ensures that accurate and essential diagnostic checks can be performed efficiently, even without recourse to dedicated statistical packages.

Preparing the Data and Generating the Initial Scatterplot

The initial phase of any robust regression analysis involves meticulous data preparation and visualization. For simple linear regression, the analysis relies on two variables: the predictor variable (conventionally labeled X, acting as the independent variable) and the response variable (labeled Y, the dependent variable whose value we aim to predict). To begin the process in Excel, these two variables must be structured in adjacent columns within your worksheet. This alignment is critical, as Excel uses the proximity of these columns to define the pairs of observations necessary for calculating the correlation and fitting the linear line.

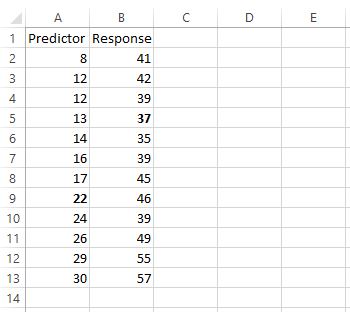

1. Step 1: Input the data observations. Begin by entering the values for your predictor variable (X) into the first column, starting, for example, in cell A2 and continuing down through A13. Immediately adjacent to this, enter the corresponding paired values for the response variable (Y) in cells B2 through B13. It is paramount that the data pairs are correctly aligned row-by-row, ensuring that each row represents a single, complete observation used in the analysis. Accurate data entry is the foundational prerequisite for all subsequent calculations.

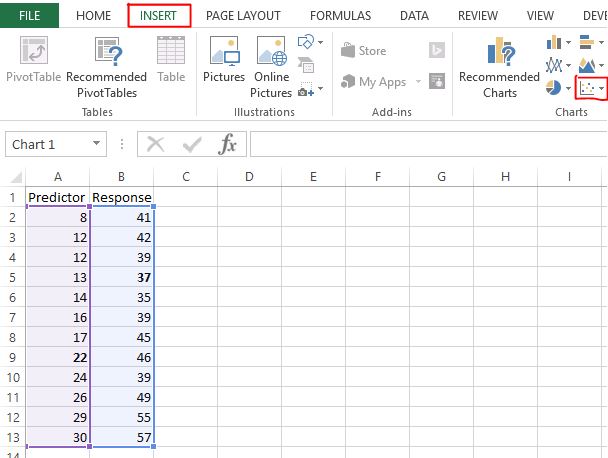

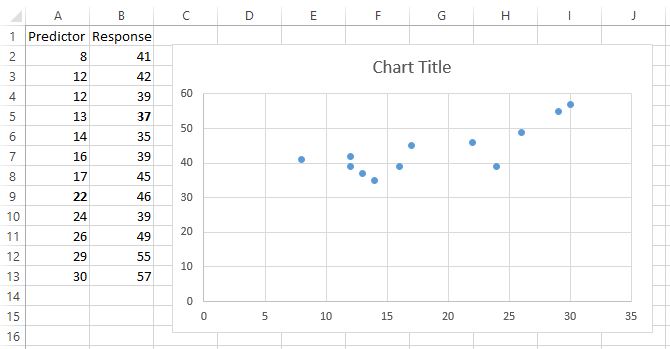

2. Step 2: Create the initial visualization (scatterplot). With the data correctly positioned, highlight the entire dataset range (A2:B13). Navigate to the INSERT tab located on the main Excel ribbon. Within the Charts group, select the Scatter chart type, typically choosing the option that displays only markers (data points). This action immediately generates the primary visualization, showing the raw relationship between your independent and dependent variables. This scatterplot is a necessary precursor to fitting the linear model and visually assessing the data’s suitability for a regression analysis.

The resulting chart provides an immediate, visual interpretation of the data trend. By observing the scatterplot, you can make a preliminary assessment: do the data points appear to follow a generally straight line, or is the relationship clearly curved or highly scattered? If the points suggest a reasonably linear pattern, you are justified in proceeding to the next phase of fitting the least squares line. If the visual pattern is distinctly non-linear, the diagnostic checks performed later will likely confirm that a simple linear regression model is unsuitable.

The chart generated should display the relationship clearly, as shown below, serving as the basis for deriving the mathematical equation that best describes the relationship between X and Y.

Deriving the Least Squares Model Equation in Excel

The heart of any regression model is its mathematical equation. To successfully calculate the fitted values (Y-hat) and, subsequently, the residuals, we must first precisely determine the equation of the least squares regression line. This line, often expressed as Y = mX + b (where m is the slope and b is the intercept), minimizes the sum of the squared vertical distances between the actual data points and the line itself. Excel offers a highly efficient method for generating and displaying this essential equation directly onto the scatterplot.

1. Step 3: Display the trend line equation on the scatterplot. Click once on the scatterplot to activate the Chart Tools contextual tabs. Locate the ‘Chart Elements’ button (a green plus sign) or navigate to the DESIGN tab on the ribbon. Select or hover over “Trendline,” and then choose “More Trendline Options.” In the resulting formatting panel, ensure that the Linear option is selected, confirming that we are fitting a straight line, consistent with linear regression assumptions. Critically, locate and check the box labeled “Display Equation on Chart.”

Upon closing the “Format Trendline” panel, the statistically derived equation describing the best-fit line will appear on your chart area. This equation represents the predictive power of your regression model. The values for the slope (m) and the intercept (b) provided in this equation are the parameters you will use to manually calculate the predicted values for every observation in the subsequent steps. These coefficients are the core output of the analysis and must be copied accurately for computation outside of the chart visualization.

This step is vital because it moves the analysis from a purely visual assessment to a rigorous mathematical definition. The equation provides the precise relationship Excel has calculated to minimize error, defining exactly how the response variable (Y) is predicted based on the input of the predictor variable (X). If the linear relationship is strong, the line will pass close to most data points; if weak, the points will be widely scattered, but the equation still represents the best linear fit possible.

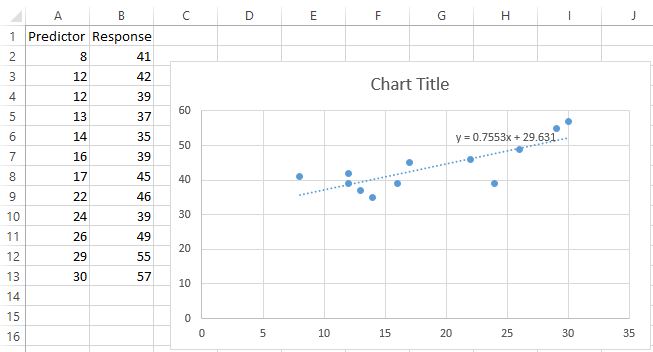

The resulting trend line equation, containing the calculated slope and intercept, will now be prominently displayed on the scatterplot, ready for use:

Calculating Predicted Values and Residuals for Diagnostics

To construct the diagnostic plot, we require two specific datasets: the predicted response values (Y-hat) and the error terms, known as the residuals. These values must be calculated for every single observation in the dataset using the equation determined in Step 3. We must allocate two new, adjacent columns in the worksheet for these computations—typically labeled “Predicted Y” and “Residuals”—to keep the data organized and traceable.

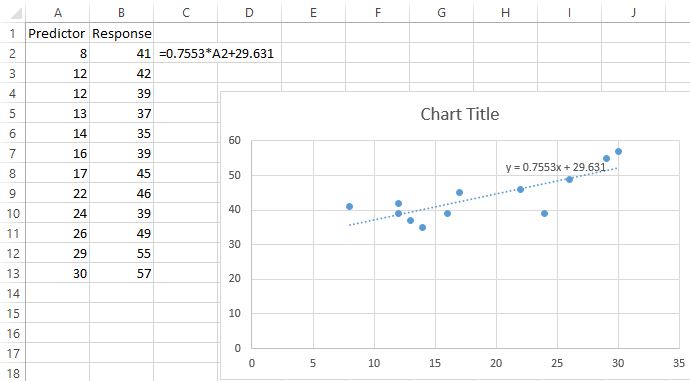

4. Step 4: Calculate the predicted values (Fitted Values). In the first cell of your new column (e.g., cell C2, labeled “Predicted Y”), input the trendline equation precisely as it appeared on the chart. Crucially, replace the variable “x” in the equation with a reference to the cell containing the corresponding predictor variable value (A2). For instance, if your displayed trendline equation is Y = 3.5X + 10.2, the formula entered into cell C2 must be =3.5*A2 + 10.2. This calculation yields the model’s prediction for the response variable based on the first observation’s X value.

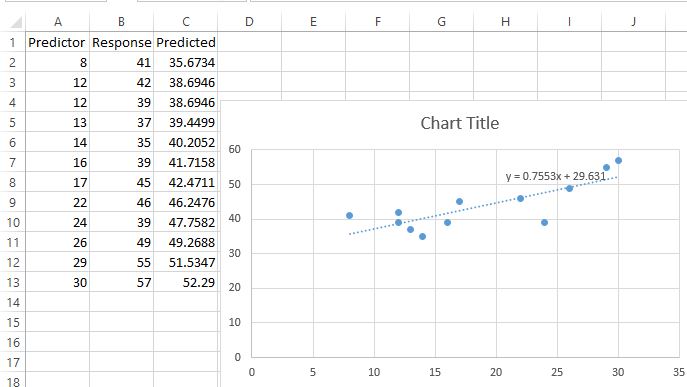

To apply this formula efficiently across the entire dataset, utilize Excel’s Fill Handle feature. Click on cell C2 and locate the small green square box at the bottom-right corner of the cell boundary. Double-click this handle. Excel will instantly copy the formula down the column (from C2 to C13 in our example), automatically adjusting the cell reference (A2 changes to A3, A4, and so forth) for each observation. Column C is now populated with all the fitted values (predicted Ys) generated by the regression model.

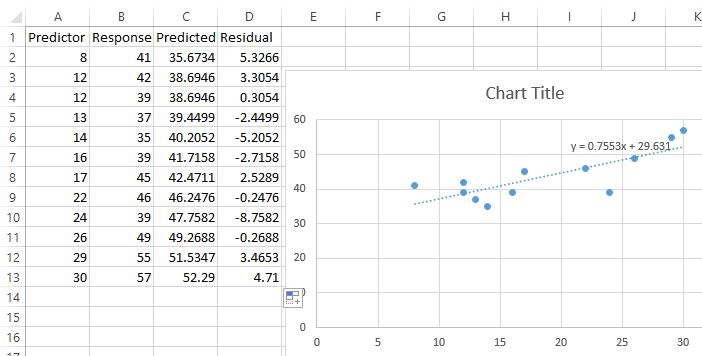

5. Step 5: Calculate the residuals (Error Terms). The residual is mathematically defined as the observed value minus the predicted value (Observed Y – Predicted Y). In the next column (e.g., cell D2, labeled “Residuals”), enter the simple subtraction formula: =B2-C2. B2 holds the actual observed response value, and C2 holds the calculated predicted value. This calculation provides the error term for the first observation—the amount by which the model missed the actual target value.

Repeat the Fill Handle process for cell D2: double-click the small square at the bottom right corner. This action copies the formula down to D13, calculating the residual for every single data point. Column D now holds the critical data set required for the diagnostic plot: the residual values, which quantify the error or unexplained variance within the model.

Constructing and Interpreting the Final Residual Plot

With the necessary predicted values and residuals calculated and verified, the final procedural step is to generate the definitive diagnostic scatterplot. This graph differs fundamentally from the initial visualization; instead of mapping X against Y, this plot maps the explanatory variable (X or Predicted Y) against the residuals (the error terms). The purpose is to isolate the errors and check for patterns, which would indicate model failure or violation of crucial statistical assumptions.

6. Step 6: Create the residual plot. To select the required non-contiguous data ranges, first highlight the cells containing the predictor variable values (A2:A13). Next, hold down the Ctrl key (or the Command key on macOS) and simultaneously highlight the cells containing the calculated residual values (D2:D13). Holding the control key is essential for selecting multiple, separated columns.

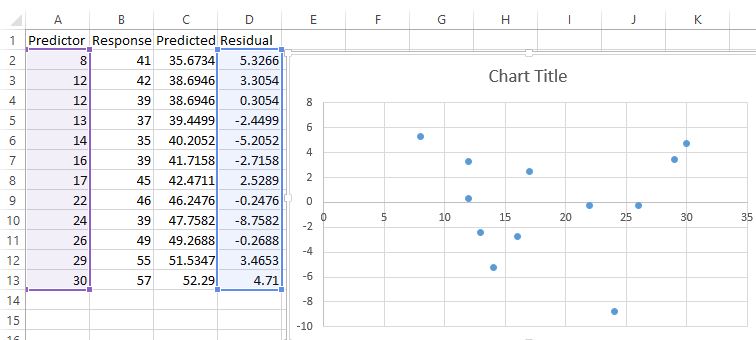

Return to the INSERT tab on the ribbon and click on the Scatter chart option within the Charts area. Excel will now generate the final residual plot. In this completed visualization, the x-axis represents the predictor values (or the fitted values, depending on the precise selection), and the y-axis strictly displays the residual values. The critical factor for a valid model is the complete absence of structure in this plot; the points must appear to be scattered randomly and evenly around the horizontal line at Y=0.

The following chart represents the raw output of the residual plot construction:

Refining Visuals and Performing Diagnostic Interpretation

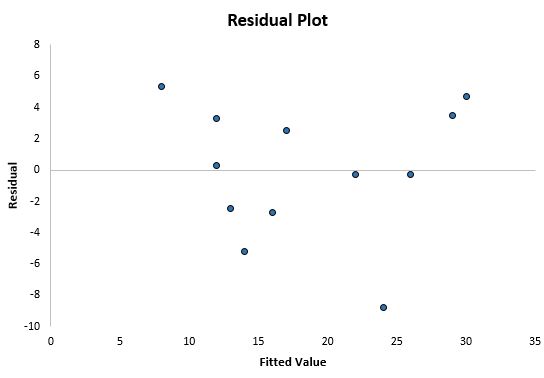

While the chart generated in Step 6 provides all the essential statistical information, refining its visual presentation significantly enhances its clarity and utility for professional reporting. Excel provides extensive tools for modifying chart elements, including titles, axis labels, and gridlines. A standard best practice is to label the x-axis clearly as “Predicted Values” and the y-axis as “Residuals” to unambiguously define the plot’s purpose. Furthermore, it is highly beneficial to add a horizontal reference line at Y=0, as this is the baseline against which the randomness and centering of the residuals are judged.

Interpreting the final plot is the most crucial analytical step. Analysts must look for specific patterns that indicate violations of the core assumptions of linear regression. Key diagnostic checks include:

• Non-Linearity: If the residual plot exhibits a distinct curved pattern (e.g., a “U” shape or an inverted “U” shape) centered around zero, it strongly suggests that the actual relationship between X and Y is non-linear. In such cases, the linear model is inadequate, and corrective measures, such as data transformation or the use of a non-linear model, are necessary.

• Heteroscedasticity (Non-Constant Variance): This serious violation occurs if the vertical spread (the variance) of the residuals systematically changes as the predicted values increase. A common manifestation is a funnel or cone shape, where the scatter widens dramatically. This finding directly violates the assumption of homoscedasticity, rendering the standard errors and significance tests (p-values) produced by the regression model unreliable.

• Outliers and Influential Points: Individual data points that fall exceptionally far away from the main cluster of residuals warrant careful investigation. These outliers can disproportionately influence the slope and intercept of the regression line, potentially skewing the entire analysis. Their presence suggests that the model may not be robust enough to handle the full range of data.

A successful and robust residual plot confirms that the error terms are randomly distributed, centered at zero, and exhibit constant variance. If these conditions are met, you can confidently conclude that the simple linear regression model is a suitable fit for your data, allowing you to proceed with interpreting the model’s coefficients and making reliable predictions. If patterns persist, the model must be adjusted and re-evaluated until the residuals demonstrate the required random scatter.
