Learn How to Calculate the Chi-Square Critical Value in Excel

The Chi-Square test is a cornerstone of quantitative research, serving as one of the most vital statistical procedures for the analysis of categorical data. This powerful test enables researchers to rigorously assess whether a statistically significant relationship exists between two variables or if the observed frequencies in a dataset deviate meaningfully from what was theoretically expected. The immediate outcome of executing this procedure is the calculation of the test statistic (often represented as $chi^2$), which provides a quantitative measure of the disparity between the collected data and the assumption of the null hypothesis. However, this raw test statistic is meaningless unless it is compared against a defined benchmark: the Chi-Square critical value.

Grasping the concept of the critical value is absolutely essential for anyone engaged in hypothesis testing. It functions as the definitive boundary that separates the rejection region from the area where the null hypothesis is accepted. If the calculated test statistic surpasses this predetermined threshold, the results are deemed sufficiently extreme to warrant the rejection of the null hypothesis, thereby allowing the researcher to confidently declare the observed association as statistically significant. Conversely, should the test statistic fall short of the critical value, the evidence is insufficient to overturn the null hypothesis, suggesting that any apparent differences in the data are most likely attributable solely to random chance or sampling variability.

While statistical analysis traditionally involved the cumbersome process of manually consulting large, physical distribution tables to locate this pivotal value, contemporary data science relies heavily on sophisticated computational resources, particularly Microsoft Excel. Excel offers highly efficient and precise built-in functions that entirely bypass the need for tedious manual lookups. These tools empower analysts to rapidly and accurately pinpoint the exact critical value based on the specific parameters of their study. This comprehensive guide is designed to walk you through the precise methods and essential considerations required to effectively utilize Excel’s statistical capabilities for determining the Chi-Square critical value.

The Statistical Foundation: Defining the Chi-Square Critical Value

The Chi-Square critical value is inextricably linked to the underlying Chi-Square distribution, a specialized probability curve that forms the backbone of many common hypothesis tests. This distribution is uniquely characterized by a single parameter: the degrees of freedom (DF). Conceptually, the critical value represents a specific point on this distribution curve where the area situated in the right tail is exactly equal to the predetermined significance level ($alpha$). This right-tail area mathematically represents the probability of observing a test statistic that is as extreme as, or even more extreme than, the critical value itself, assuming the null hypothesis is entirely true.

In the framework of standard statistical practice, the critical value precisely defines the acceptable boundary for the Type I error rate. For example, if a researcher selects a significance level of 0.05 (or 5%), the calculated critical value marks the point where exactly 5% of the distribution’s total probability mass lies to the right. By establishing this specific threshold, the analyst explicitly dictates their tolerance for error—in this case, accepting a 5% chance of incorrectly rejecting a true null hypothesis (a Type I error). Consequently, the critical value is much more than a simple numerical figure; it is the statistical manifestation of the researcher’s criteria for drawing definitive conclusions and managing the risk of false positives.

Accurate calculation of the Chi-Square critical value requires two fundamental pieces of information that must be derived directly from the design and structure of the experiment. Without these two defining parameters—the degrees of freedom and the significance level—the critical value cannot be determined accurately, regardless of whether you are using a printed table or advanced statistical software. These prerequisites ensure that the analysis correctly identifies the appropriate theoretical distribution curve, providing a reliable and valid basis for comparing the calculated test statistic. Fortunately, the process is highly intuitive and streamlined when these inputs are correctly defined within Excel.

Essential Prerequisites for Calculation in Excel

To ensure the precise identification of the Chi-Square critical value, the chosen Excel function requires two very specific numerical inputs. These inputs are vital because they fundamentally define the unique shape and relevant scale of the probability distribution curve being examined. Diligent and accurate determination of these parameters is the first and most critical step toward guaranteeing the validity and reliability of your final statistical conclusions.

The first prerequisite is the Significance Level, conventionally symbolized by the Greek letter $alpha$. This value quantifies the researcher’s willingness to commit a Type I error—the error of concluding a relationship exists when, in reality, it does not. Standard selections for the significance level include 0.10 (10%), 0.05 (5%), and 0.01 (1%). The selection of $alpha$ is typically made a priori, reflecting the required level of certainty for the study’s findings. It is important to remember that a more stringent $alpha$ (e.g., 0.01) demands a larger test statistic to achieve statistical significance, resulting in a higher critical value and a stricter overall hypothesis test.

The second, equally important prerequisite is the Degrees of Freedom (DF). In the context of a Chi-Square test for independence, the degrees of freedom are calculated directly from the dimensions of the contingency table used to summarize the categorical observations. If the table is structured with $R$ rows and $C$ columns, the DF is calculated using the formula: $(R-1) times (C-1)$. The degrees of freedom essentially act as the distribution’s shape parameter. As the DF value increases, the Chi-Square distribution gradually shifts, becoming more symmetrical and increasingly approximating the characteristics of the normal distribution. Calculation accuracy for DF is paramount, as any error will lead to the incorrect selection of the theoretical distribution curve, thereby generating a flawed critical value.

• A specific significance level ($alpha$). The most frequently used values are 0.01, 0.05, and 0.10.
• The precise number of Degrees of freedom (DF) that corresponds to the structure of the specific statistical test being conducted.

Once these two calculated values are correctly defined, the Excel function can accurately pinpoint the exact threshold on the corresponding theoretical distribution curve. It is crucial to internalize the inverse relationship between the critical value and the significance level: making the test stricter (by decreasing $alpha$) invariably increases the critical value. Conversely, increasing the degrees of freedom generally causes the critical value to decrease for any fixed significance level, until the distribution characteristics stabilize.

How to Find the Chi-Square Critical Value in Excel

Implementing the Calculation: The CHISQ.INV.RT() Function

Microsoft Excel provides a specialized, dedicated function engineered specifically to calculate the critical value for the Chi-Square distribution, which is conventionally applied to a right-tailed test (the standard approach for the Chi-Square test of independence). This powerful function is named CHISQ.INV.RT(). The design of this function is to return the inverse of the right-tailed probability of the distribution—which is, by definition, the exact critical value required for proper hypothesis testing.

To successfully implement this calculation, the user must strictly adhere to the function’s syntax, ensuring that the necessary probability (the significance level, $alpha$) and the degrees of freedom (DF) are supplied in the correct sequential order. The straightforward nature and reliability of this function establish Excel as an indispensable tool for both students and veteran professionals performing Chi-Square analysis, offering instant, high-level accuracy that significantly outperforms the manual and often error-prone method of table lookups.

The exact syntax required for the function call is explicitly defined as follows:

CHISQ.INV.RT(probability, deg_freedom)

The two critical arguments mandated by the CHISQ.INV.RT() function are further clarified below:

• probability: This argument must represent the chosen significance level ($alpha$) for the hypothesis test. For the standard right-tailed Chi-Square test, this value must correspond to the exact area in the right tail that defines the rejection region (e.g., 0.05).
• deg_freedom: This argument specifies the number of Degrees of freedom (DF) that characterize the specific Chi-Square distribution being used. Crucially, this input must be defined as a positive integer strictly greater than zero.

Once these inputs are processed, the function returns the precise Chi-Square critical value—the boundary threshold—from the theoretical distribution curve that aligns with the specified significance level and the degrees of freedom. Utilizing this function guarantees superior precision, often producing values carried out to many decimal places, a level of detail far beyond what is typically achievable through manual interpolation from printed statistical tables.

Practical Application: A Step-by-Step Example and Interpretation

To effectively demonstrate the practical utility of the CHISQ.INV.RT() function, let us consider a typical hypothetical scenario involving a researcher conducting a Chi-Square test for independence. Imagine the analysis of the resulting contingency table indicates that the appropriate number of degrees of freedom is 11. Furthermore, the researcher has responsibly pre-selected the standard significance level of 0.05 ($alpha = 0.05$) to evaluate the outcomes of the Chi-Square test. The immediate goal is to accurately determine the critical value that will serve as the benchmark against which the calculated test statistic will ultimately be judged.

We input these chosen parameters directly into the Excel formula bar, adhering strictly to the required syntax. In an active Excel cell, the user types the following formula: CHISQ.INV.RT(0.05, 11). This command instructs Excel to find the value on the Chi-Square distribution curve (defined by 11 DF) where 5% of the total area lies to the right, marking the threshold for the rejection region.

Upon execution, Excel performs the inverse distribution calculation for the specified inputs. The function immediately returns the value 19.67514. This figure is the exact Chi-Square critical value corresponding to a significance level of 0.05 and 11 degrees of freedom. This single value now establishes the unambiguous decision rule for the entire hypothesis test, providing a clear quantitative guideline for statistical inference.

The interpretation of this numerical outcome is inherently straightforward: if the calculated Chi-Square test statistic derived from the experimental data is numerically greater than 19.67514, the findings are considered statistically significant at the 5% level. This compelling result suggests that the observed relationship between the categorical variables is highly unlikely to have arisen merely through random chance. Conversely, if the test statistic is less than 19.67514, the null hypothesis cannot be rejected, indicating that there is insufficient statistical evidence to conclude that a significant association exists. This comparison provides the foundation for clear, data-driven conclusions regarding the analyzed categorical data.

Precision and Flexibility: Excel vs. Traditional Tables

In the era preceding widespread statistical computing, researchers were exclusively dependent on printed Chi-Square distribution tables to locate the necessary critical value. These tables organized critical values based on varying degrees of freedom (typically listed in rows) and a limited set of standard significance levels (listed in columns). It is important to confirm that the value generated by the Excel function CHISQ.INV.RT() should perfectly align with the value found using a traditional, highly detailed statistical table, thereby confirming the computational validity.

The most substantial advantages of utilizing Excel over archaic physical tables revolve around enhanced precision and exceptional flexibility. Printed tables are inherently restricted to only the most common significance levels (such as 0.10, 0.05, 0.01, and 0.001) and often list only whole-number degrees of freedom up to a certain point. If an analyst required a non-standard significance level (e.g., $alpha = 0.03$) or encountered a degree of freedom not explicitly printed, manual interpolation—the estimation of a value between two known table entries—would be mandatory. This interpolation process invariably introduces the potential for rounding errors and compromises accuracy.

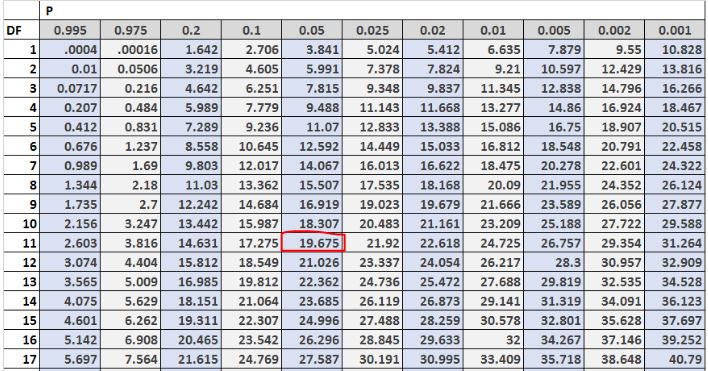

Excel completely eliminates this source of error. It computes the exact Chi-Square critical value for any statistically valid combination of probability and degrees of freedom. For instance, revisiting our earlier example where $alpha = 0.05$ and DF = 11, the Excel calculation yielded 19.67514. A quick review of a standard, high-resolution Chi-Square distribution table confirms this number, typically rounded to 19.68. This perfect correspondence validates the output of the CHISQ.INV.RT() function and firmly demonstrates its reliability as a sophisticated statistical tool, merging conceptual understanding with the required computational precision for rigorous analysis.

Troubleshooting Common Errors in Excel Statistical Functions

While the CHISQ.INV.RT() function is robust and relatively user-friendly, providing improper input arguments is the most common cause of erroneous results or frustrating Excel error messages. A thorough understanding of the specific statistical constraints and input requirements for the function is essential for effective troubleshooting and, most importantly, for maintaining the integrity of the statistical analysis. Analysts must consistently verify that both the probability ($alpha$) and the degrees of freedom (DF) arguments strictly adhere to their mathematical definitions within the context of the Chi-Square distribution.

One of the most frequently encountered issues stems from inputting non-numeric data. The function demands precise numeric values for both arguments. If Excel encounters any argument supplied as text, a logical value (such as TRUE or FALSE), or a reference to a cell containing non-numeric formatting, it will inevitably return the #VALUE! error. To prevent this, always double-check and confirm that the cells referenced for both the significance level and the degrees of freedom contain only correctly formatted numerical data.

Furthermore, the inherent statistical constraints of the Chi-Square probability distribution impose strict boundaries on the valid input values. Errors related to violating these boundaries typically result in the #NUM! error. These specific constraints that govern the function’s arguments include:

• If any argument provided to the function is non-numeric, Excel will return a #VALUE! error.
• The value designated for probability (the significance level, $alpha$) must be a value strictly between 0 and 1 (i.e., $0 < alpha < 1$). A probability that is less than or equal to zero, or greater than or equal to 1, violates the definition of a statistical significance level and will reliably trigger a #NUM! error.
• The value specified for deg_freedom must be a positive integer greater than or equal to 1. Statistically, the degrees of freedom relate to the intrinsic dimensionality of the data, and a valid Chi-Square distribution cannot exist with zero or negative degrees of freedom. Entering an input value less than 1 will consequently result in a #NUM! error.

By diligently verifying these essential constraints—ensuring all inputs are numeric, that the probability lies strictly between 0 and 1, and that the degrees of freedom are 1 or greater—users can confidently and reliably utilize the CHISQ.INV.RT() function to rapidly obtain the accurate Chi-Square critical value required for sound and defensible statistical inference.
