Creating Scatterplots with Regression Lines in Python: A Step-by-Step Guide

Visualizing data is an indispensable practice in statistical modeling, especially when performing Simple Linear Regression (SLR). The fundamental objective of SLR is to quantify the relationship between an independent variable (X) and a dependent variable (Y). To accurately interpret the model, analysts must create a scatterplot. This graph serves as the bedrock of the analysis, illustrating the raw distribution of observed data points and, critically, allowing us to overlay the estimated regression line—often termed the “line of best fit.” This combined visualization is essential for several reasons: it enables immediate visual assessment of the relationship’s linearity, helps in the identification of potential outliers, and provides a clear metric for evaluating how effectively the proposed statistical model captures the true underlying trend within the dataset.

The Python programming language, supported by its rich ecosystem of scientific libraries, offers exceptionally powerful and efficient tools for generating these complex visualizations. This guide will detail two leading methodologies for creating a scatterplot with an integrated regression line. We will first examine the highly versatile, foundational plotting library, Matplotlib, which grants fine-grained control over every plot element. Subsequently, we will explore the high-level statistical visualization library, Seaborn, which abstracts much of the complexity, offering a streamlined, single-function approach. Mastering both Matplotlib, which requires manual calculation of regression parameters, and Seaborn, which handles these calculations internally, ensures you have the necessary flexibility to choose the best visualization strategy based on the required depth of customization and the speed needed for exploratory data analysis.

Preparing the Data for Python Analysis

Before we can proceed with generating any visualizations, defining and structuring our dataset is the primary requirement. We rely on the robust capabilities of the NumPy library, which is the cornerstone for efficient numerical operations and array manipulation in Python. For regression analysis, this involves creating structured arrays for both our independent variable (X), which serves as the predictor or causal factor, and our dependent variable (Y), which represents the outcome we are attempting to model. NumPy arrays are highly optimized for these tasks, forming the essential backbone of almost all modern scientific computing workflows in the Python environment.

The following code block initializes a small, representative dataset. This sample data simulates a straightforward linear relationship, perfect for demonstrating the core principles of linear regression visualization. It is absolutely critical that both the predictor array (X) and the response array (Y) are correctly defined and possess an identical number of elements. This adherence to equal dimensions ensures that the subsequent statistical calculations and plotting functions execute without error. We utilize standard NumPy array creation conventions to prepare the data for immediate processing by both Matplotlib and Seaborn.

import numpy as np

#create data
x = np.array([1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9])
y = np.array([13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33])

This preliminary step effectively stages the data for all subsequent analytical steps. By leveraging the optimized data storage provided by NumPy, we ensure that the process is highly efficient, a benefit that becomes increasingly pronounced when scaling up to analyze massive real-world datasets. Furthermore, the direct accessibility of these arrays facilitates the complex mathematical operations necessary to accurately derive the coefficients of the regression line, which we will now explore in detail using the Matplotlib library.

Method 1: Achieving Clarity with Matplotlib

Our first approach utilizes Matplotlib, recognized as the fundamental and most widely used plotting library within the Python scientific stack. Matplotlib is favored when maximum control over the graphical output is paramount, although this control necessitates a slightly more hands-on, manual process compared to high-level libraries. To successfully integrate a regression line onto our scatterplot, we must first determine the precise statistical parameters that define that line: specifically, the slope ($m$) and the y-intercept ($b$). These coefficients are the essential components of the linear equation $y = mx + b$, which defines the line of best fit.

We efficiently calculate these critical coefficients using the NumPy function np.polyfit. This powerful function is designed to return the coefficients of a polynomial that best fits the data according to the least squares method. Since a straight line is mathematically classified as a polynomial of degree one, we specify the degree as 1 in the function call. The core mechanism involves minimizing the sum of the squared residuals—the vertical distances between the observed data points and the regression line. Once np.polyfit returns the slope ($m$) and the intercept ($b$), we use these values to generate the predicted Y values based on our existing X data, allowing us to plot the continuous line directly over the scatter points.

import matplotlib.pyplot as plt

#create basic scatterplot using 'o' marker
plt.plot(x, y, 'o')

#obtain m (slope) and b(intercept) of linear regression line
m, b = np.polyfit(x, y, 1)

#add linear regression line to scatterplot using the equation y = mx + b
plt.plot(x, m*x+b)

This structured sequence of commands clearly illustrates the distinct steps required by Matplotlib. First, the raw observational data points are rendered as individual circles (indicated by the ‘o’ marker). Second, the statistical estimation is performed via np.polyfit, and the resulting model is then plotted as a continuous line using the derived equation $y = mx + b$. This separation of plotting the raw data and plotting the statistical model is a defining feature of Matplotlib’s workflow, resulting in a highly readable and straightforward visual representation of the linear trend identified by the regression model.

Customizing the Matplotlib Visualization

A significant benefit of utilizing Matplotlib is the unparalleled, granular control it provides over the visual aesthetics of the generated plot. This flexibility allows users to modify virtually every element, including colors, line thicknesses, marker styles, and transparency, ensuring the visualization meets specific presentation standards or rigorous accessibility guidelines. Enhancing the plot’s informational value and visual appeal often begins with distinguishing the raw data points from the fitted regression line through careful color selection. This is achieved by passing standard keyword arguments, such as color='...', directly into the relevant plt.plot() function calls.

To effectively customize the appearance, it is necessary to apply specific aesthetic parameters to the correct plotting layer. The initial plt.plot(x, y, 'o') call controls the appearance of the scatter points, while the subsequent plt.plot(x, m*x+b) call dictates the style of the regression line. By assigning distinct colors to these elements, we immediately improve the graph’s interpretability. For instance, we might select a vivid color like green for the observed data points to ensure they stand out, and a contrasting, emphatic color like red for the regression line to highlight the calculated predicted trend derived from the np.polyfit calculation.

#use green as color for individual points
plt.plot(x, y, 'o', color='green')

#obtain m (slope) and b(intercept) of linear regression line (recalculated for clarity)
m, b = np.polyfit(x, y, 1)

#use red as color for regression line
plt.plot(x, m*x+b, color='red')

This demonstration underscores the strength of Matplotlib’s explicit control model. Although we rely on NumPy for executing the critical statistical mathematics necessary to find the slope and intercept, Matplotlib retains responsibility for the precise rendering and styling of the graphic. This inherent modularity facilitates highly specific aesthetic adjustments, guaranteeing that the final visualization powerfully communicates the statistical findings while adhering to stringent graphical presentation standards.

Method 2: Leveraging Seaborn for Statistical Graphics

For data scientists and analysts who prioritize rapid results and statistical context over the meticulous aesthetic control offered by Matplotlib, the Seaborn library presents an outstanding high-level alternative. Seaborn is purposefully designed as an extension of Matplotlib, specializing in generating visually appealing and statistically informative graphics. A key distinction is that Seaborn integrates the statistical calculation directly into the visualization function. This means that unlike Matplotlib, where scattering points and plotting the line are separate steps, Seaborn handles both the underlying statistical estimation and the graphical rendering concurrently, resulting in a significantly streamlined workflow.

The core function for linear visualization in this library is regplot(), an abbreviation of “regression plot,” which clearly indicates its specialized purpose. When provided with the X and Y data arrays, regplot() automatically calculates the necessary linear regression parameters, plots the original scatter points, and overlays the statistically derived line of best fit. This level of abstraction is immensely beneficial, as the user is completely relieved of the need to manually invoke functions like np.polyfit to determine the slope and intercept; Seaborn manages all internal estimation processes autonomously.

import seaborn as sns

#create scatterplot with regression line, suppressing the confidence interval
sns.regplot(x, y, ci=None)

As demonstrated in the code snippet, generating the complete statistical plot requires only a single function call after the library is imported. Note the introduction of the argument ci=None, which is a critical setting for Seaborn’s regression plots. By default, regplot() includes a shaded band around the regression line, known as the confidence interval. Specifying ci=None directs Seaborn to suppress this shaded area, thereby producing a cleaner, simpler visualization that focuses exclusively on the estimated line of best fit, mirroring the basic output achieved with Matplotlib. This inherent simplicity makes Seaborn an optimal choice for rapid exploratory data analysis where clear, immediate representation of the linear trend is the primary goal.

Understanding Confidence Intervals in Regression Plots

While the calculated regression line effectively illustrates the central tendency of the relationship between X and Y, it is essential for rigorous statistical reporting to acknowledge that this line, derived solely from sample data, constitutes an estimation of the true population relationship. The inherent uncertainty associated with this estimation is formally quantified using a Confidence Interval (CI). When visualized on a scatterplot with a regression line, the CI appears as a shaded band enveloping the fitted line. This band represents the range within which the true regression line is expected to lie, typically calculated at a 95% certainty level.

A key default feature of the Seaborn regplot() function is the automatic inclusion of this confidence band. This feature is statistically invaluable, as it provides crucial context regarding the precision and reliability of the model’s predictions. A broad confidence band is usually indicative of higher uncertainty in the estimate, often stemming from significant data variability (heteroscedasticity) or a small sample size. Conversely, a narrow band suggests a more robust and precise prediction. Understanding the CI allows analysts to communicate not just the trend, but the reliability of that trend.

import seaborn as sns

#create scatterplot with regression line and confidence interval lines (default behavior)
sns.regplot(x, y)

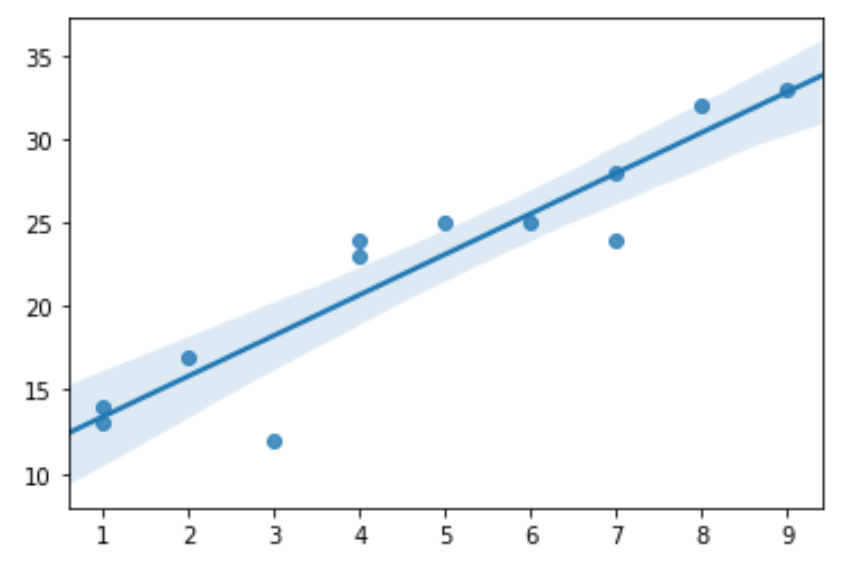

By executing the sns.regplot(x, y) command without modifying the default parameters, we instruct Seaborn to automatically calculate and display the confidence interval. This visual component is a powerful element in effective statistical communication, moving the visualization beyond a simple average trend line to communicate the predictive reliability inherent in the model. Consequently, analysts generally prefer to include the confidence interval in formal reporting unless the primary objective is aesthetic simplicity or the target audience lacks the requisite statistical background to interpret the shaded area accurately.

Conclusion and Further Exploration

We have successfully implemented and contrasted two principal methods within Python for generating a scatterplot enriched with a Simple Linear Regression line. The Matplotlib approach demands explicit control, requiring the manual determination of the slope and intercept coefficients via np.polyfit before the plotting sequence can be executed. This method is highly recommended when complex customizations or deep integration with other Matplotlib features are required. Conversely, Seaborn’s regplot() provides an elegant, rapid, one-step solution that integrates statistical calculation and visualization seamlessly. Its default inclusion of the confidence interval makes it an exceptionally efficient tool for fast, statistically contextualized reporting.

To significantly advance your data visualization expertise, it is beneficial to delve deeper into the advanced functionalities offered by these libraries. For Matplotlib users, exploring techniques for adding dynamic axis labels, comprehensive titles, and legends, or customizing marker size based on a third categorical variable, will greatly enhance plot clarity. For those focusing on Seaborn, investigating specialized statistical plot types such as joint plots, resid plots, or pair plots can extend regression visualization across multivariate datasets. Achieving mastery in both Matplotlib and Seaborn ensures that you are equipped to select the ideal tool tailored for any statistical data visualization task involving linear relationships.

Additional Resources

To solidify your understanding of the foundational concepts and to explore the technical nuances of the tools discussed, we strongly recommend reviewing the official documentation and related tutorials for the following resources:

• Official Matplotlib Documentation: Essential reading for advanced plotting customization and understanding the library’s architecture.

• Official Seaborn regplot() Documentation: A detailed guide covering all available parameters, including options for robust regression methods.

• Advanced Linear Regression Concepts: Resources to explore deeper statistical topics such as residual analysis, model diagnostics, and data transformation techniques.

• NumPy Documentation on np.polyfit: Detailed mathematical explanation of how polynomial fitting, including linear fitting, is executed.
