Understanding and Visualizing Confidence Intervals in R

The Critical Role of Confidence Intervals in Statistical Visualization

A Confidence Interval (CI) stands as a foundational concept within inferential statistics, offering far more value than a simple point estimate. It mathematically defines a plausible range of values that is highly likely to contain the true, unknown value of a population parameter, such as the mean or a regression coefficient. Unlike a single estimate, which provides no indication of its reliability or potential error, the confidence interval quantifies the degree of statistical uncertainty surrounding that estimate, providing a measure of certainty to the analyst and the audience. For example, a commonly used 95% CI implies that if the process of sampling and interval construction were repeated numerous times, 95% of the intervals generated would successfully capture the true population value. This quantification of error is essential for responsible data analysis.

The visualization of these intervals is not merely an optional step but a necessity for effective statistical communication. When results are presented from predictive models, such as linear regression, plotting the confidence bands alongside the fitted line instantly conveys the precision of the model’s predictions. Narrow bands suggest high confidence, while wide bands signal greater uncertainty or higher variability in the underlying data. This tutorial is specifically designed to guide the user through the precise and robust methodology for calculating and plotting confidence intervals for a fitted linear model within the powerful, open-source statistical environment of R.

Our primary goal is to move beyond the limitation of simple point estimation and develop professional-quality graphical representations that clearly display the range of plausible relationships between variables. By mastering the techniques presented here—utilizing R’s base plotting capabilities—you will be able to generate plots featuring transparent and highly interpretable confidence bands, thereby significantly enhancing the quality and trustworthiness of your data analysis reports and presentations.

Establishing a Reproducible Data Environment in R

Before any statistical calculations or visualizations can commence, it is paramount that we establish a dataset and ensure that our analytical workflow is completely **reproducible**. Reproducibility is a non-negotiable cornerstone of scientific computing and data analysis, ensuring that any user running the exact same code, regardless of their machine or time of execution, will arrive at the identical results. In the R environment, this critical step is accomplished by utilizing the set.seed() function, which initializes the internal random number generator to a fixed state. This guarantees that the random data generated in subsequent steps will always be the same.

For the purpose of this demonstration, we will generate a synthetic dataset consisting of 100 observations across two variables, labeled x and y. We define y to have a direct linear relationship with x, augmented by an element of random noise. This setup intentionally simulates a typical scenario encountered in regression analysis, where the dependent variable (y, the response) is modeled as a function of the independent variable (x, the predictor). The introduction of the noise component, added via rnorm(100), is vital as it introduces the inherent, real-world variability that the confidence interval is specifically designed to capture, quantify, and visualize.

The structured process of creating and organizing this generated data into an R data frame is illustrated in the code block below. The data frame is the standard structure for handling tabular data in R, and preparing it correctly is the foundation for all subsequent modeling steps. The output of the head(df) command confirms the data frame’s structure, verifying that it contains 100 observations and the two necessary columns required for the subsequent **linear model** fitting process.

#make this example reproducible
set.seed(0)

#create dataset
x <- rnorm(100)
y <- x*2 + rnorm(100)
df <- data.frame(x = x, y = y)

#view first six rows of dataset
head(df)

           x          y
1  1.2629543  3.3077678
2 -0.3262334 -1.4292433
3  1.3297993  2.0436086
4  1.2724293  2.5914389
5  0.4146414 -0.3011029
6 -1.5399500 -2.5031813

Fitting the Linear Regression Model to the Data

With the data successfully generated and structured, the next necessary analytical step is to fit a **linear regression** model. This modeling step is fundamentally crucial because confidence intervals are not calculated directly from the raw data points but are derived mathematically from the standard errors associated with the model’s predicted values. The primary purpose of the model is to estimate the expected systematic relationship between the predictor variable (x) and the response variable (y). In the R statistical environment, the standard and most widely used function for fitting linear models is the intuitive lm() function.

We define the structure of our model using R’s standard formula notation: y ~ x. This compact yet powerful instruction tells R to model y as a linear function of x. The output of this command, stored in the object named model, is a statistical object containing all the computational information required for rigorous analysis. Critically, this object holds the estimated coefficients, the residuals, and the associated statistical metrics (like standard errors) necessary both for making accurate predictions and for calculating the boundaries of the uncertainty around those predictions. This process efficiently transforms our raw tabular data into a statistically robust object, ready for advanced visualization and interpretation.

Executing the following command achieves the core modeling step, fitting the linear relationship to the synthetic data frame df:

model <- lm(y ~ x, data = df)

Visualizing Uncertainty: The Confidence Band Line Approach

Once the linear model has been successfully fitted, we can immediately proceed to calculate the predicted values across the entire range of our independent variable, x. This calculation must include not only the central fitted values but also the upper and lower bounds of the confidence interval. The core function for this task is predict(), which we call while explicitly specifying the argument interval = 'confidence'. This invocation instructs R to return a matrix where the first column contains the central fitted values, and the subsequent two columns contain the mathematically derived lower and upper limits of the interval, respectively.

To ensure the plotted lines representing the regression fit and the confidence boundaries are smooth and continuous, we first prepare a sequence of finely spaced x values, stored in the variable newx. We then initialize the plot using the command plot(y ~ x, data = df, type = 'n'). The critical argument here is type = 'n', which intelligently sets up the plotting area, defines the axes, and scales the graph, but crucially suppresses the initial display of the individual data points. This allows us to layer the subsequent visual elements cleanly, focusing initially on the model’s output.

The central fitted regression line is added using the highly convenient abline() function, which accepts the entire model object directly as its input. Finally, the **confidence bands** are visually drawn onto the plot using the lines() function, which accesses the specific boundary columns (the second and third columns) of the preds matrix. For effective visual differentiation, we specify dashed line types (lty = 'dashed') and a distinct color, such as blue, for the uncertainty bounds:

#get predicted y values using regression equation
newx <- seq(min(df$x), max(df$x), length.out=100)
preds <- predict(model, newdata = data.frame(x=newx), interval = 'confidence')

#create plot of x vs. y, but don't display individual points (type='n')
plot(y ~ x, data = df, type = 'n')

#add fitted regression line
abline(model)

#add dashed lines for confidence bands
lines(newx, preds[ ,3], lty = 'dashed', col = 'blue')
lines(newx, preds[ ,2], lty = 'dashed', col = 'blue')

The resulting graph provides a clear and intuitive visual depiction, showcasing the estimated relationship (represented by the solid black line) alongside the inherent statistical uncertainty in that estimate (delineated by the dashed blue lines).

Elevating Clarity with Shaded Confidence Regions

While the presentation of the confidence interval using two separate dashed lines is statistically sound and reasonably effective, contemporary data visualization best practices often strongly favor filling the area between these lines with a **shaded region**. This shading technique dramatically improves **visual clarity** and immediately directs the viewer’s attention to the area representing statistical uncertainty, making the plot significantly easier to interpret at a glance. To achieve this sophisticated shaded effect using R’s base plotting capabilities, we employ the versatile polygon() function.

The polygon() function operates by requiring a meticulously ordered sequence of x and y coordinates that define the closed boundary of the area intended for filling. To correctly shade the region between the upper and lower confidence bounds, we must construct a specific perimeter sequence: starting from the left, we trace along the lower bound; then, we reverse the order and trace back from right to left along the upper bound. This careful ordering creates a seamless, closed shape that the polygon() function can accurately fill.

The specific arguments passed to polygon() are constructed by concatenating the newx sequence (for the x-coordinates) and the corresponding predicted values (for the y-coordinates). The use of the rev() function is essential here, as it ensures the necessary tracing reversal for the upper bound, guaranteeing a perfectly closed and seamless shaded band. For aesthetic appeal, we select a neutral fill color, such as ‘grey’, and set border = NA to eliminate the border line, resulting in a clean, professional, and visually appealing representation of the model’s uncertainty.

#create plot of x vs. y
plot(y ~ x, data = df, type = 'n')

#fill in area between regression line and confidence interval
polygon(c(rev(newx), newx), c(rev(preds[ ,3]), preds[ ,2]), col = 'grey', border = NA)

#add fitted regression line
abline(model)

#add dashed lines for confidence bands
lines(newx, preds[ ,3], lty = 'dashed', col = 'blue')
lines(newx, preds[ ,2], lty = 'dashed', col = 'blue')

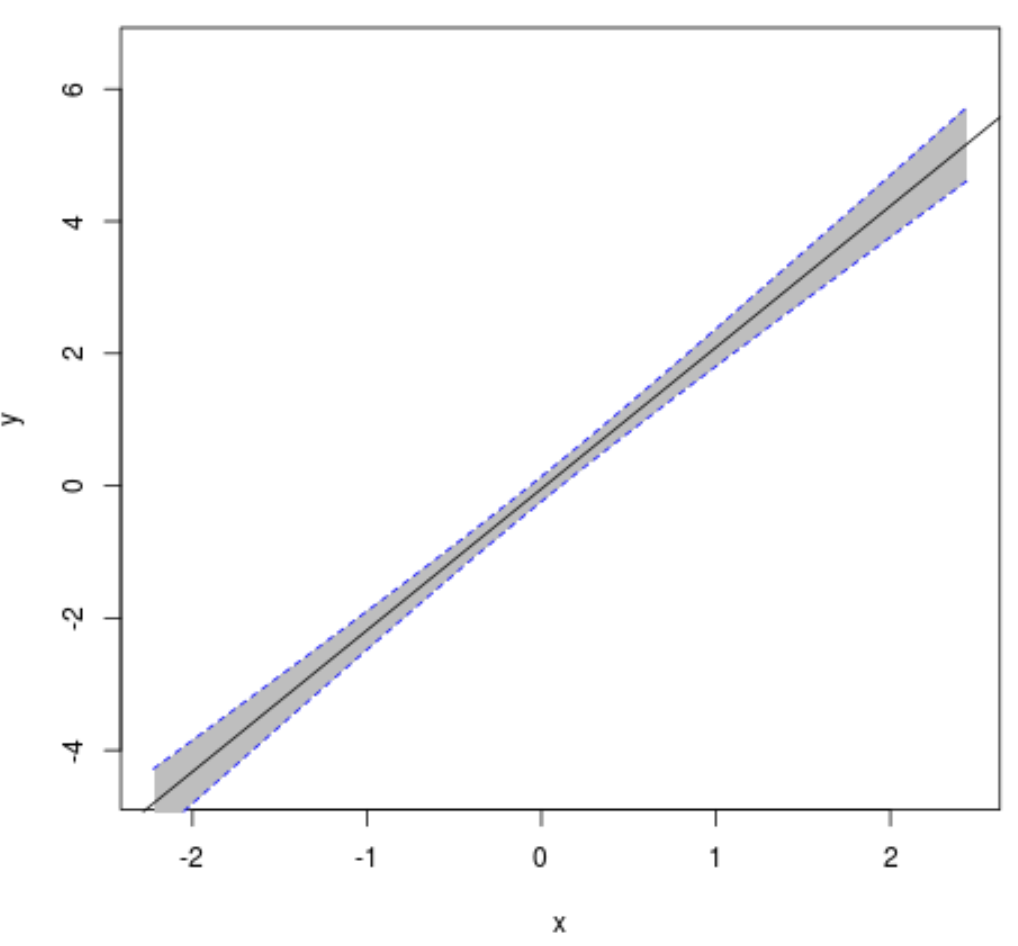

It is important to note the ordering in this revised code block: the polygon() call is executed *before* the abline() (fitted line) and lines() (dashed boundaries) functions. This careful stacking order ensures that the solid black regression line and the distinct dashed blue confidence boundaries are drawn layered on top of the shaded grey area, thereby maximizing both visibility and overall graphical clarity.

Complete, Portable Script for Visualization Workflow

To facilitate immediate application and ensure maximum ease of use for the reader, we consolidate all the individual steps detailed throughout this tutorial into one cohesive and **complete script**. This single, comprehensive **workflow** encapsulates every necessary stage: the initialization for data reproducibility, the synthetic data generation, the fitting of the **linear model**, the calculation of the confidence interval predictions, and the final sophisticated visualization incorporating the enhanced shading technique. Running this script from start to finish will instantly produce the highly detailed plot featuring the shaded confidence region, serving as a full, portable solution.

This entire code block represents a fully self-contained solution for accurately visualizing confidence intervals within the context of a bivariate linear relationship, relying exclusively on standard base R plotting functions. This workflow is highly robust and easily adaptable to real-world datasets where the goal is to communicate model certainty clearly.

#make this example reproducible
set.seed(0)

#create dataset
x <- rnorm(100)
y <- x*2 + rnorm(100)
df <- data.frame(x = x, y = y)

#fit linear regression model
model <- lm(y ~ x, data = df)

#get predicted y values using regression equation
newx <- seq(min(df$x), max(df$x), length.out=100)
preds <- predict(model, newdata = data.frame(x=newx), interval = 'confidence')

#create plot of x vs. y
plot(y ~ x, data = df, type = 'n')

#fill in area between regression line and confidence interval
polygon(c(rev(newx), newx), c(rev(preds[ ,3]), preds[ ,2]), col = 'grey', border = NA)

#add fitted regression line
abline(model)

#add dashed lines for confidence bands
lines(newx, preds[ ,3], lty = 'dashed', col = 'blue')
lines(newx, preds[ ,2], lty = 'dashed', col = 'blue')

Distinguishing Confidence from Prediction Intervals

A nuanced understanding of statistical intervals is paramount for accurate reporting. It is crucial to remember that the **confidence interval** addresses the uncertainty in the prediction of the true *mean* response for a given value of X. In contrast, if your analytical goal is to predict the range for a *single, new observation* (which includes both the model uncertainty and the inherent, irreducible residual error), you must calculate a prediction interval. The prediction interval is mathematically and conceptually distinct from the confidence interval, and it is always substantially wider because it must account for both the uncertainty in the model’s estimated parameters (as captured by the CI) and the residual variability (or noise) of individual data points around the fitted line. Misinterpreting these two intervals is a common pitfall in statistical reporting.

For users looking to deepen their understanding of related R functions, statistical theory, and visualization techniques, we highly recommend exploring the following authoritative resources:

• Detailed explanation of Confidence Intervals and their statistical interpretation.
• Documentation on the abline() function, which is fundamental for efficiently adding straight lines to plots in R.
• Further reading on the polygon() function, which enables the creation of complex, filled shapes for advanced visualization.
