Learn How to Create a Stacked Column Chart in Power BI: A Step-by-Step Tutorial

The stacked column chart stands out as an exceptionally powerful tool within data analysis, designed specifically for comparative reporting that requires insight into both totals and components. This visualization method ingeniously utilizes divided bars to simultaneously convey two crucial pieces of information: the overall magnitude or total of a primary category, and the proportional breakdown of that total across several contributing sub-variables. For professionals leveraging Power BI, Microsoft’s industry-leading business intelligence platform, mastering this chart type is essential for creating nuanced and impactful reports.

This comprehensive guide provides an expert, step-by-step tutorial detailing the exact process of constructing, configuring, and aesthetically customizing a stacked column chart within the Power BI environment. A clear understanding of how to correctly deploy this visual is fundamental for effective data visualization, allowing stakeholders to easily compare aggregates between groups while simultaneously assessing the compositional distribution within each category. We will walk through the entire pipeline, starting with foundational data preparation and concluding with advanced formatting techniques necessary for professional reporting.

Data Prerequisites and Model Preparation Essentials

The success of any visualization hinges entirely on the quality and structured format of the input data. Before initiating the visual creation process in Power BI, it is absolutely critical to verify that your dataset is structured appropriately to support the stacking logic. A stacked column chart typically requires a minimum of three core elements: a primary categorical variable for the X-axis (defining the columns), a secondary categorical variable for the Legend (defining the segments), and an implicit or explicit numerical measure for the Y-axis (which generally represents a count, sum, or average).

For demonstration purposes throughout this tutorial, we utilize a simple flat file containing records for 20 unique participants. The key variables in use are Gender and Favorite Sport. Our analytical objective is twofold: first, to visualize the total frequency count of participants for every sport; and second, to break down those participation totals by gender. This specific data structure, focused on frequency distribution across two categorical dimensions, is perfectly suited for the stacked column chart format, maximizing interpretability and analytical depth.

Establishing a clean and accurate data model is the undisputed foundation of effective reporting in Power BI. It is necessary to ensure that all data types are correctly recognized—for example, confirming that categorical fields are interpreted as text or categories rather than numerical values—to prevent common aggregation errors that can inadvertently skew the final chart output. Proper data modeling ensures smooth operation and reliable results during the subsequent charting steps.

Step 1: Securely Importing the Dataset into Power BI

The initial operational phase involves importing the necessary data source into the Power BI environment. Power BI boasts robust connectivity features, supporting seamless integration with a vast array of sources, including local files like Excel sheets and CSVs, as well as complex database connections. For the purposes of this tutorial, we assume the sample data is readily available for direct ingestion into the desktop application.

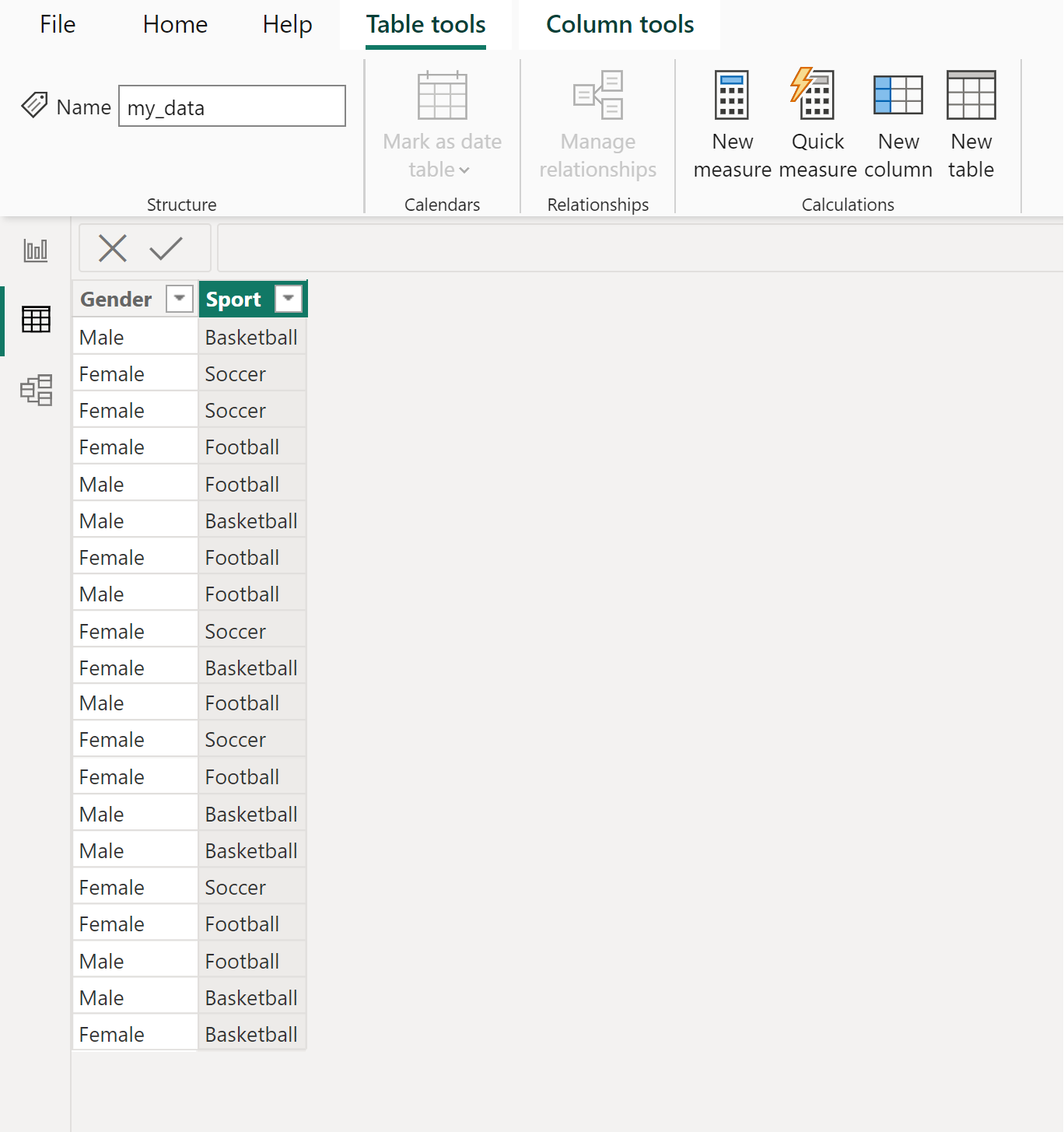

We proceed by loading the following sample dataset, which contains 20 records detailing the preferred sport and gender of each entry. This data will serve as the immediate source for our visualization build:

After successfully utilizing the ‘Get Data’ function to import the file, the corresponding fields will become visible and accessible within the ‘Fields’ pane, which is prominently located on the right-hand side of the main Power BI interface. These fields are now prepared to be dragged and dropped onto the report canvas for visual construction and configuration.

Step 2: Selecting and Placing the Stacked Column Visual

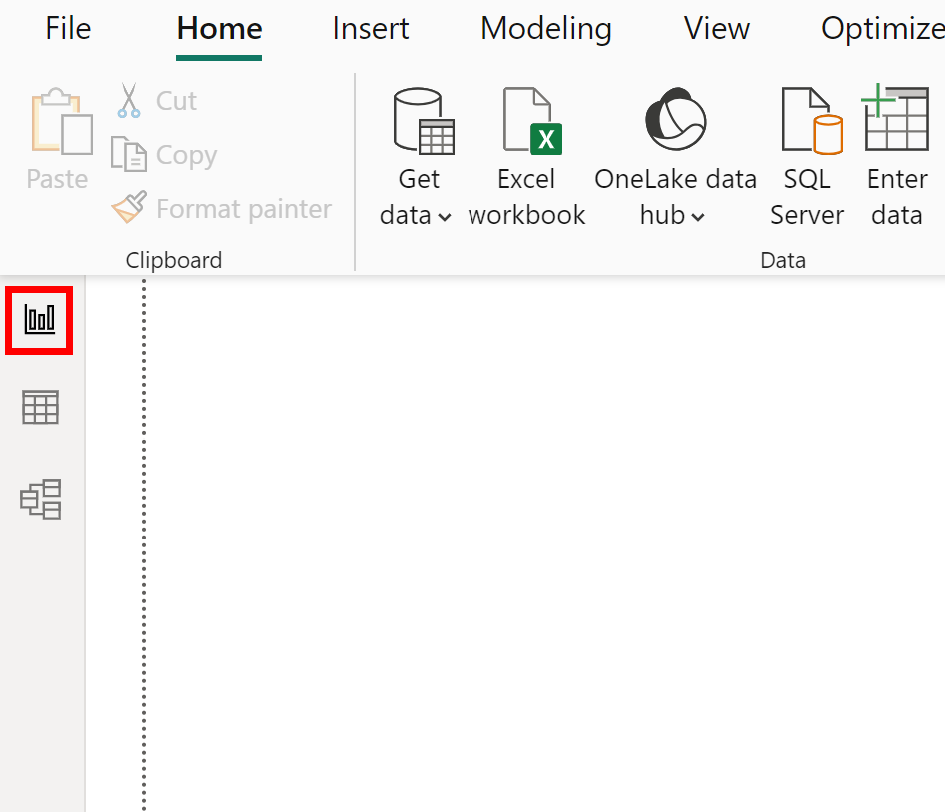

Once the data is loaded and verified in the Fields pane, the next crucial step is to navigate to the report canvas to commence building the visualization interface. This is accomplished by ensuring you are in the Report View, an icon that is conventionally situated in the left navigation panel of the Power BI Desktop application. This view functions as the primary design workspace for creating dynamic and interactive reports.

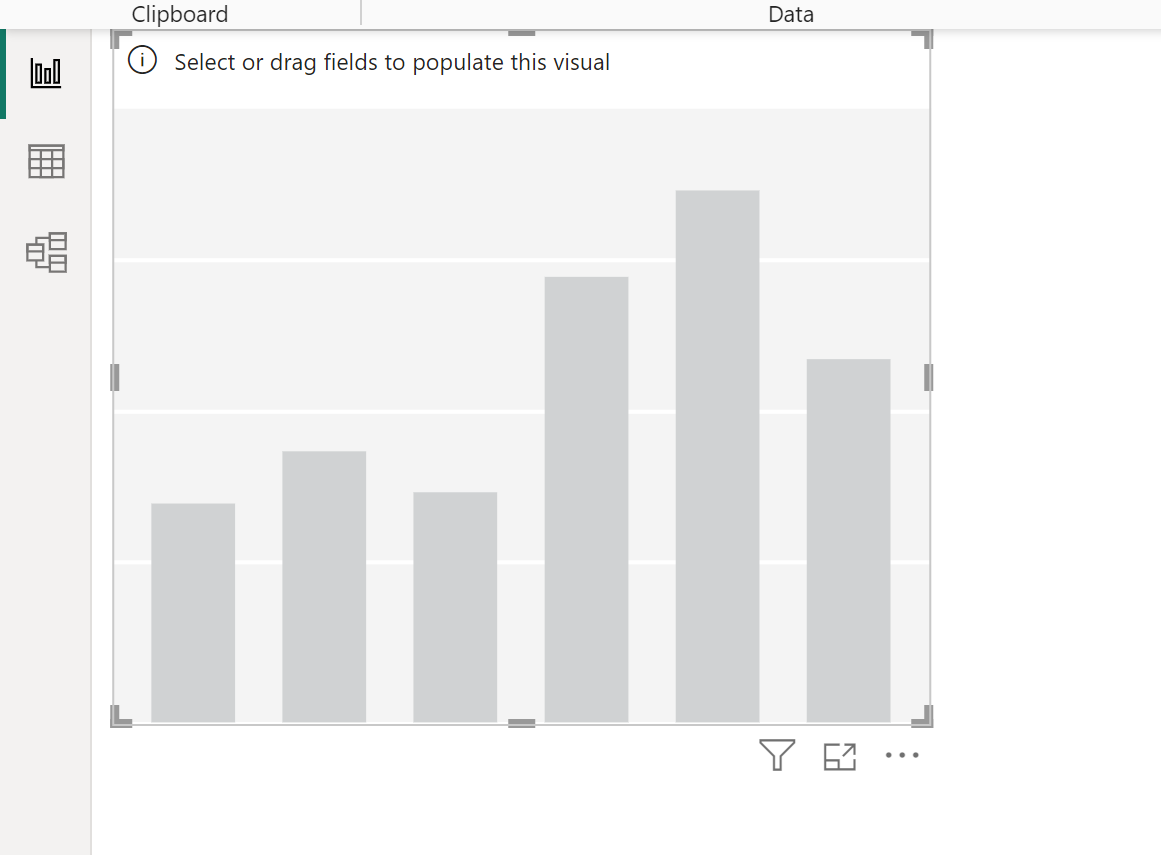

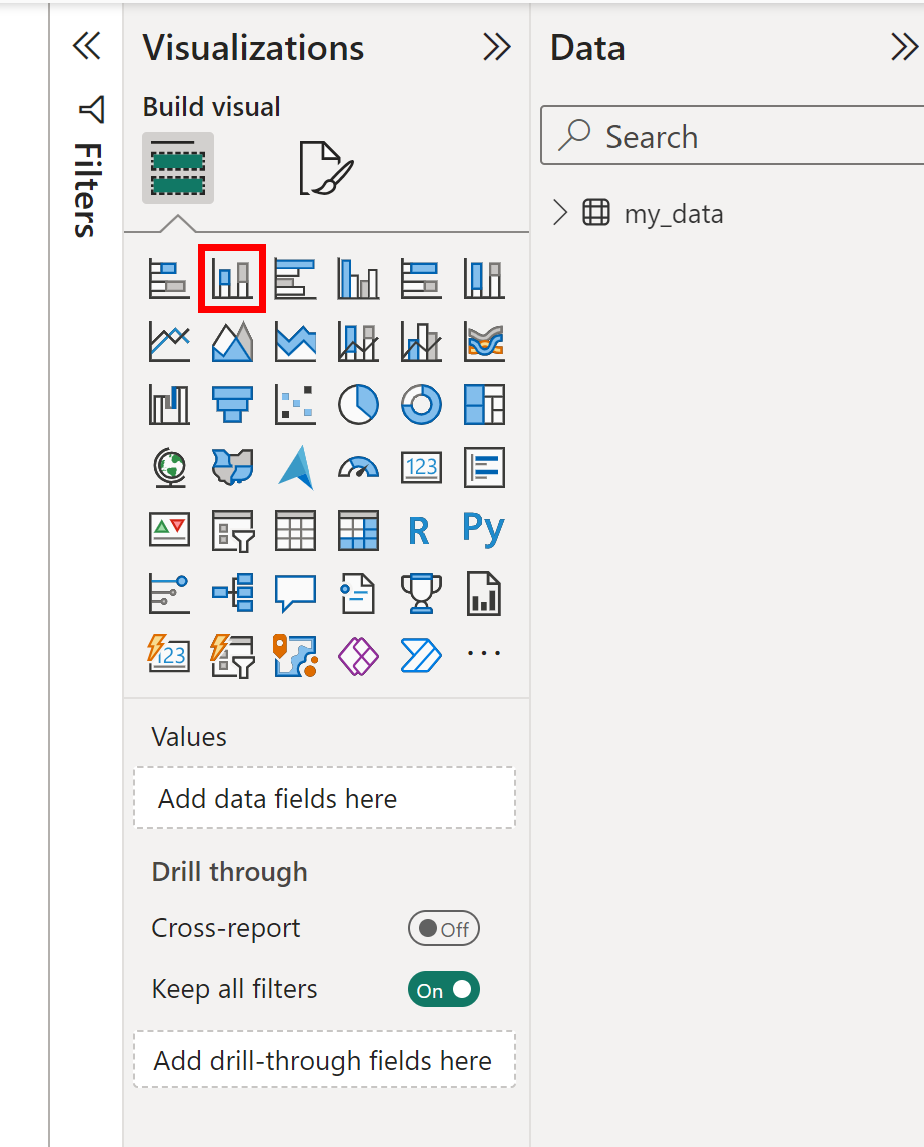

Next, direct your attention to the Visualizations pane, which is positioned on the right side of the screen. This pane houses an extensive gallery featuring both standard and custom visual types. Scroll carefully through the available options and select the icon specifically designated as the Stacked column chart. Executing this selection places an empty, ready-to-fill visual container onto the active report canvas.

This empty visual placeholder represents the framework awaiting the assignment of data fields. It is paramount at this stage to confirm the selection of the correct visual type, as choosing an incorrect variation, such as a clustered column chart, will fundamentally alter the way the data comparison is rendered and lead to misinterpretation of the analytical results.

Step 3: Precise Variable Mapping and Chart Generation

The most critical stage in data visualization creation is the accurate and logical mapping of source fields to the designated visual properties. For the stacked column chart to render the intended comparison, it requires precise input fields for the X-axis (Categories), the Y-axis (Values), and the Legend (Series breakdown).

Utilizing the fields visible in the ‘Fields’ pane, execute the following precise drag-and-drop actions to configure the visual container:

1. Drag the Sport variable from the Fields pane and drop it into the X-axis field well. This action defines the individual categories that will form the base columns of the chart (e.g., Football, Basketball, Tennis, etc.).
2. Drag the Gender variable and drop it into the Y-axis field well. Because Gender is a categorical field, Power BI intelligently defaults its aggregation to Count of Gender (or Count of Rows). This automatic counting measure is precisely what is needed to calculate the frequency distribution across the categories.
3. Drag the Gender variable a second time, placing it under the Legend field well. This step is vital, as it instructs Power BI to define the series, splitting the total count of participants within each column (Sport) into distinct sub-bars based on the gender category (Male/Female).

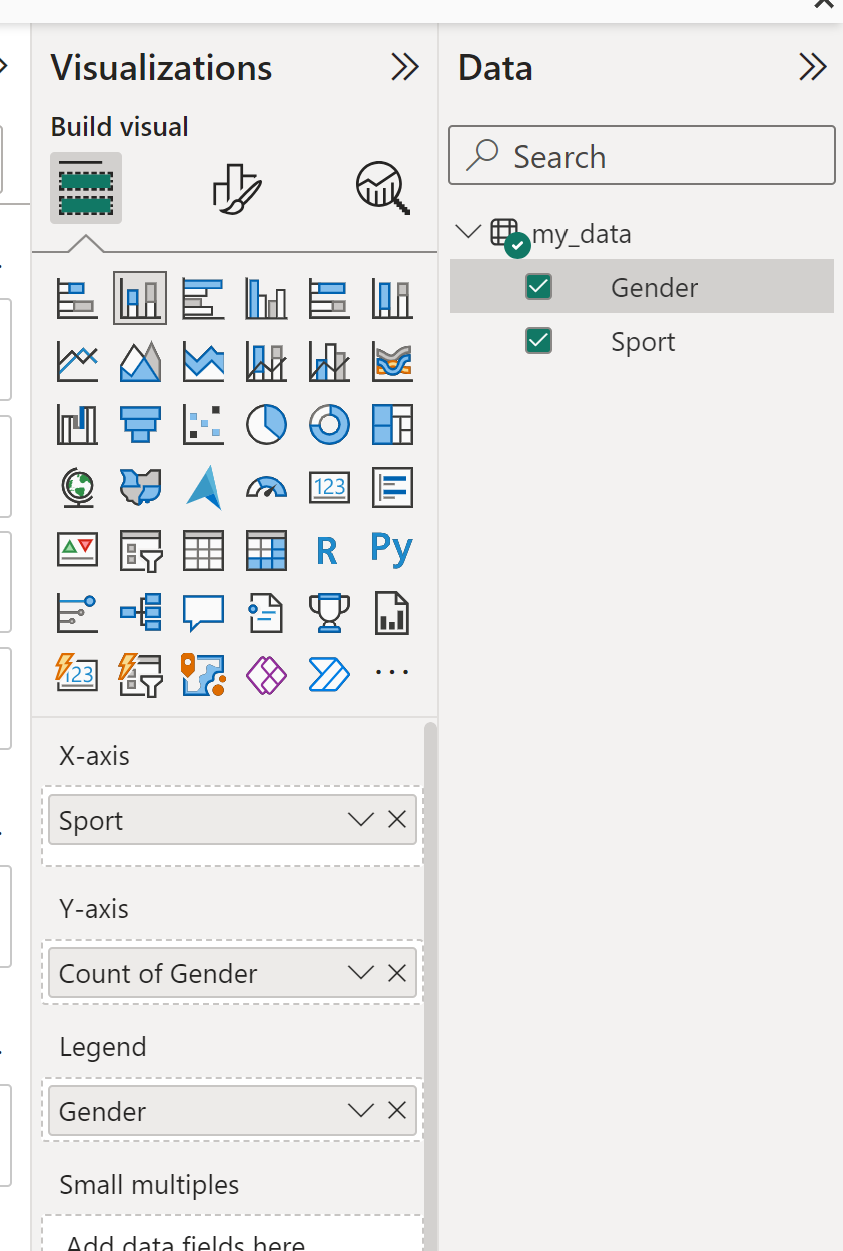

Verify that your variable assignments match the configuration settings illustrated below, ensuring each variable occupies its correct functional role within the visual container:

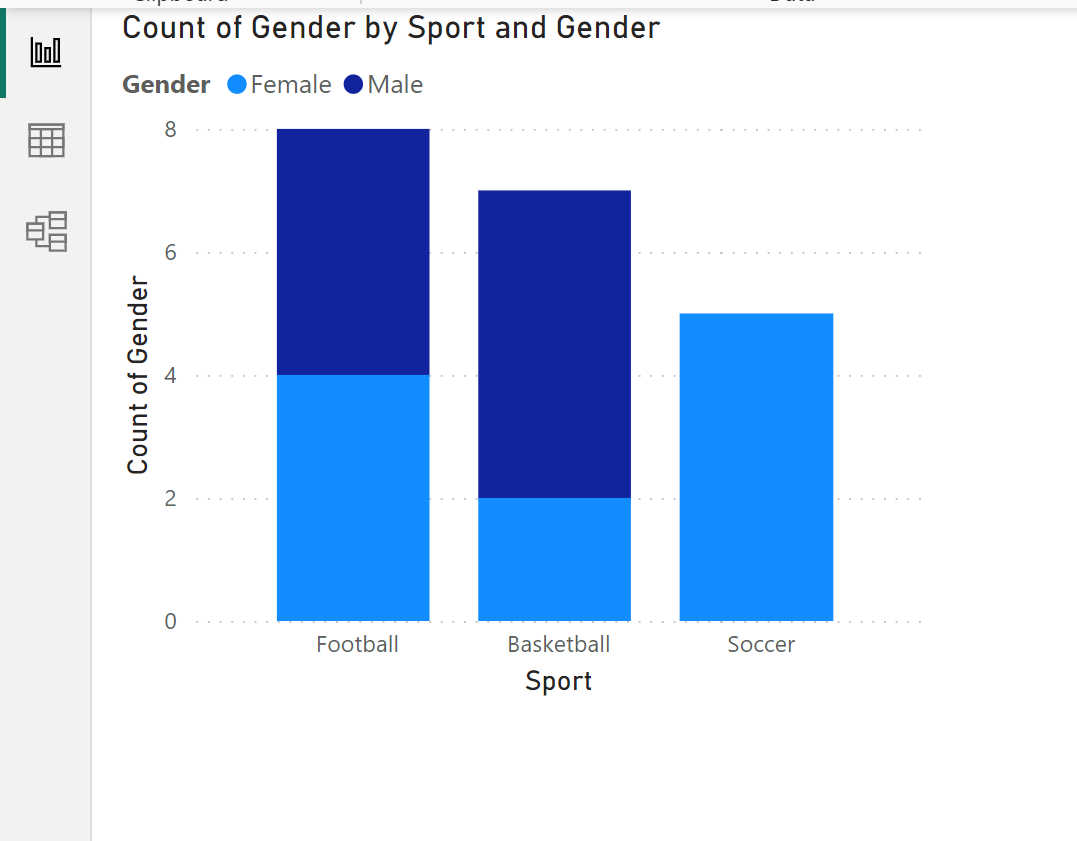

Upon successful field mapping, Power BI immediately renders the complete stacked column chart. The resulting visualization effectively displays the total participation volume for every sport (represented by the overall height of the column) and, simultaneously, the proportional contribution of each gender to that total (represented by the colored segments within the column).

Step 4: Analyzing Insights from the Stacked Column Chart

The primary advantage of the stacked column chart lies in its robust capacity to deliver two complementary analytical insights concurrently. Firstly, a rapid visual assessment of the overall column heights allows analysts to quickly determine which categories—in our case, which sports—exhibit the highest levels of total frequency or participation. This provides a clear, direct comparison of aggregate totals across the categorical X-axis.

Secondly, and highly critical for detailed analysis, the proportional breakdown within each column reveals the internal compositional distribution for that specific category. For instance, if the column representing ‘Football’ is the tallest, indicating high overall participation, the segments within it immediately clarify whether that participation is balanced or heavily skewed toward one gender. If the blue (Male) segment visually dominates that column, it confirms that participation in Football is disproportionately male.

This dual functionality makes the stacked column chart the preferred choice over simpler side-by-side bar charts when the primary analytical objective involves understanding part-to-whole relationships across multiple, distinct categories. It is a highly efficient visualization that maximizes visual space while clearly communicating complex categorical data breakdowns.

Step 5: Advanced Customization and Aesthetic Formatting

Although the chart is now fully functional, professional-grade reports demand meticulous formatting to ensure optimal readability, accessibility, and adherence to organizational branding standards. All aesthetic modifications and adjustments are managed within the dedicated Format visual tab, which is found adjacent to the Data tab in the Visualizations pane.

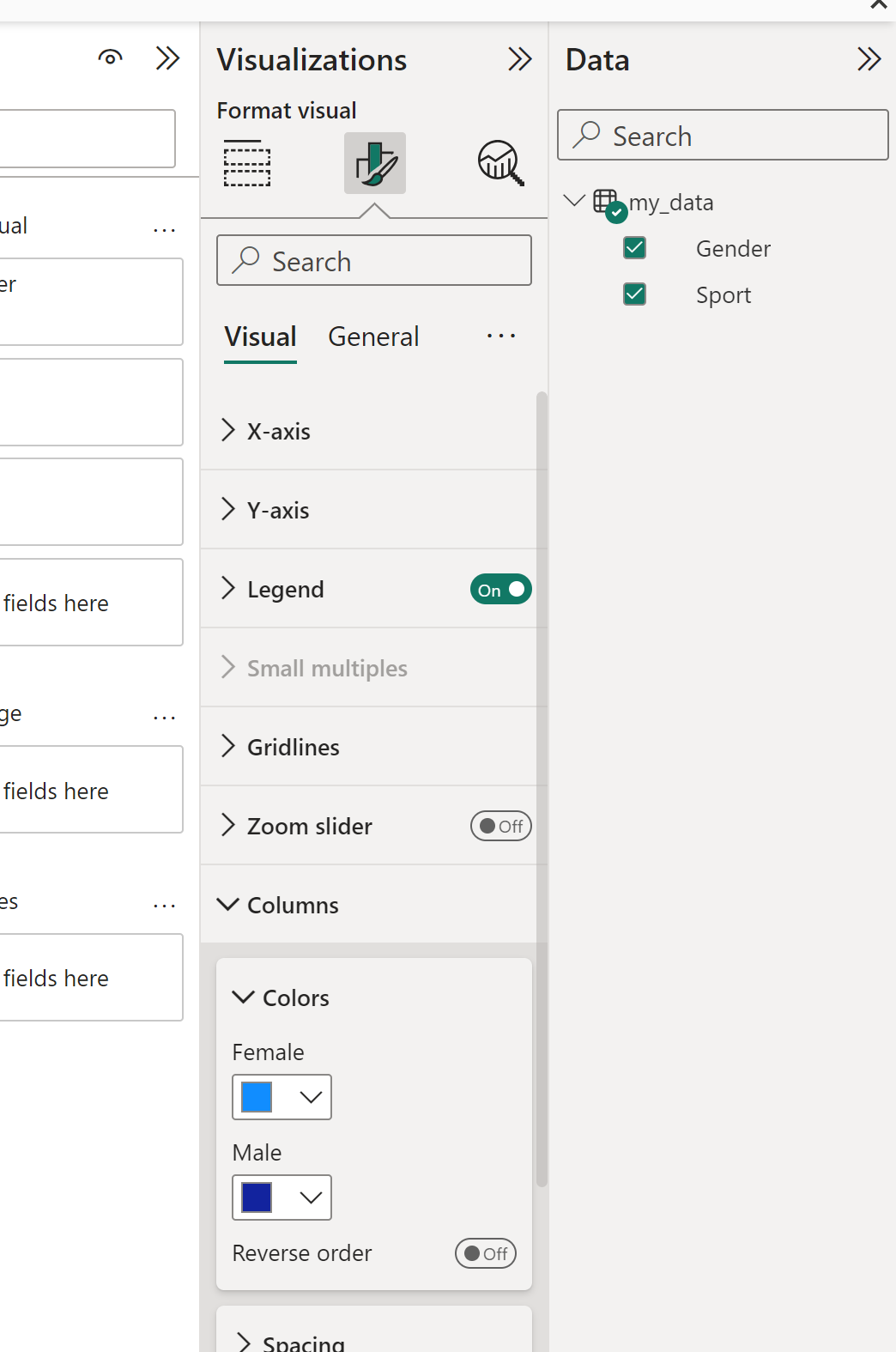

A fundamental customization requirement is often the adjustment of the color scheme to meet specific reporting guidelines or to ensure sufficient contrast. To modify the colors applied to the stacked segments, click the Format visual icon (represented by the paintbrush symbol) and subsequently expand the section titled Columns.

Within the Columns configuration panel, analysts can individually select and assign specific colors to each segment defined by the Legend (e.g., assigning a distinct brand color to ‘Male’ and another to ‘Female’). Thoughtful and deliberate color selection is a core component of effective data visualization, serving to prevent visual confusion and accurately guide the viewer’s interpretation.

The Format visual tab provides comprehensive control over virtually every structural and textual element of the chart. Key customization areas include:

• Axis Controls: Customizing the titles, adjusting font sizes, modifying colors, and setting appropriate scale ranges for both the X-axis and Y-axis to dramatically enhance clarity. For any numerical axis, verifying the correct decimal precision is essential.
• Legend Placement: Adjusting the position, defining the title, and setting the text size of the chart legend to achieve optimal placement and improve overall report readability.
• Data Labels: Enabling and meticulously formatting data labels to display the exact count, sum, or percentage directly on top of each stack segment. This feature eliminates the necessity for the viewer to rely solely on reading the axis lines, improving precision.
• Chart Title: Crafting a descriptive, concise, and professional title that accurately reflects the specific data being analyzed (e.g., “Sports Participation Breakdown by Gender”).

By systematically modifying these default settings, the visualization is transformed from a generic output into a polished, professional report element that is tailored for maximum impact and comprehension across a comprehensive Report View dashboard.

Conclusion and Next Steps for Power BI Mastery

Successfully implementing and customizing the stacked column chart is a fundamental skill, but it represents only one facet of leveraging the full analytical capabilities of Power BI. To further advance your analytical proficiency and explore more sophisticated data preparation techniques, complex modeling, and advanced visualizations, we encourage you to delve into related topics such as DAX formulas, M language in Power Query, and advanced visual interactions.

Continuous learning in this field ensures that you can utilize Power BI not just for basic reporting, but for deep, actionable business intelligence that drives strategic decision-making.
