Learning to Visualize Percentages in Power BI Stacked Column Charts

Enhancing Data Visualization: Displaying Proportional Percentages in Power BI Stacked Column Charts

When developing sophisticated, dynamic reports within Power BI, the standard stacked column chart is an invaluable visual tool. It excels at displaying absolute counts or sums segmented across a chosen category. However, effective data analysis frequently requires more than just totals; analysts must understand relative proportions. Users often need to visualize precisely what percentage each segment contributes to the column’s overall height. Achieving this critical proportional analysis provides immediate context and enables stronger, more meaningful comparisons across different categories within the dashboard.

While Power BI natively handles the display of raw totals, integrating segment percentage contributions requires a strategic approach. This process leverages custom DAX measures and utilizes the often-underestimated power of the Tooltip well. By meticulously defining a custom measure that controls the calculation context, we can ensure that hovering over any specific segment instantly reveals both the raw count for that segment and its corresponding percentage relative to the column’s total population.

This comprehensive, step-by-step tutorial details the exact process for calculating and displaying these essential percentages directly within the visualization environment. The result is a significantly cleaner, more informative, and analytically rich chart, offering a clear view of both absolute and relative metrics, as demonstrated in the final output below:

Step 1: Preparing the Data Model and Importing the Dataset

The foundational stage involves correctly loading and structuring the raw dataset within the Power BI environment. For the purpose of this demonstration, we employ a simplified dataset containing demographic and preference information. This dataset includes two primary categorical variables: Gender, which will serve as our segment field, and Favorite Sport, which will define our column categories (X-axis). The data represents the choices of 20 hypothetical participants.

A clear understanding of the data structure is paramount before attempting complex calculations. Our objective is to calculate the percentage contribution of each segment (e.g., Male or Female) within the total number of individuals who selected a specific category (e.g., Basketball). The segment percentage must always sum up to 100% within each column.

Upon importing the data, the table visualization within the Power BI Data View should resemble the structure shown here, confirming that the data is ready for measure creation:

Step 2: Developing the Dynamic Percentage Calculation Using DAX

The central technical challenge in implementing proportional visualization lies in crafting a dynamic measure that can correctly calculate the segment count divided by the total count for the entire category column. This calculation must intelligently ignore the filter applied by the segmentation field (Gender) while simultaneously respecting the filter context applied by the category field (Sport). This sophisticated requirement necessitates the use of a precise DAX formula.

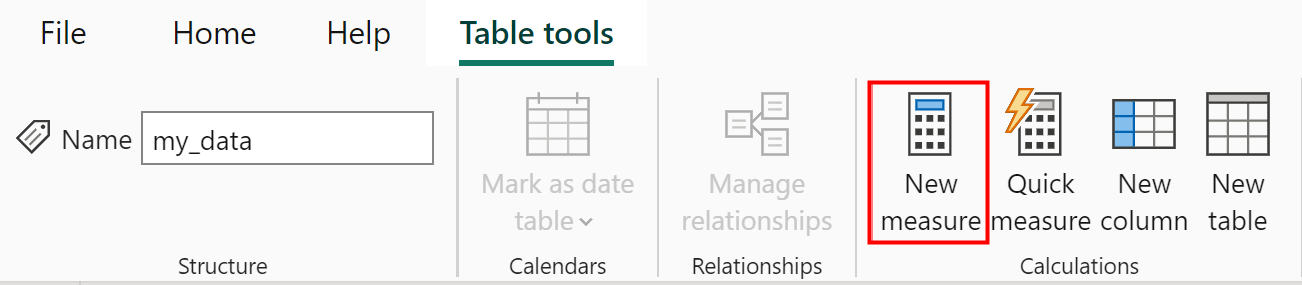

To begin the calculation, navigate to the Table tools tab located on the Power BI top ribbon. Select the New measure icon, which opens the formula bar where we will define the custom percentage logic. This step initiates the creation of the measure that will handle the critical filter context modifications required for accuracy.

The DAX formula employs a combination of powerful functions designed to manage and override the standard filter context applied in visualizations:

1. The Numerator (COUNT): This component simply counts the number of rows (e.g., individuals) currently under the applied filter context. When evaluating a specific bar segment, this returns the count for that segment (e.g., Males who prefer Basketball).

2. The Denominator (CALCULATE and ALLEXCEPT): This is the core mechanism. We utilize the CALCULATE function, which modifies the filter context for its calculation. Inside CALCULATE, the ALLEXCEPT function is applied. ALLEXCEPT removes all filters from the base table (‘my_data’) except for those explicitly defined—in this case, the filter on ‘my_data'[Sport]. This ensures the denominator always returns the total count for the current sport column, irrespective of the Gender segment currently being highlighted.

3. Error Handling (DIVIDE): The entire division is encased within the robust DIVIDE function. This function is essential for gracefully handling scenarios where the denominator might be zero (division-by-zero errors), returning a blank result instead of crashing the report.

Enter the following precise DAX expression into the formula bar to create the crucial measure:

Percent of Total =
DIVIDE (
    COUNT('my_data'[Sport]),
    CALCULATE (COUNT('my_data'[Gender]), ALLEXCEPT('my_data', 'my_data'[Sport]))
)

Step 3: Formatting the Percentage Measure and Initializing the Report View

Once the DAX measure is successfully created, the next vital step is ensuring correct numerical formatting. Since the division operation results in a decimal value (e.g., 0.7143), we must explicitly format the measure as a percentage for proper display within the visualization.

With the new Percent of Total measure selected in the Fields pane, locate the formatting options in the measure tools ribbon. Click the dropdown arrow next to Format and choose Percentage. This simple action converts the decimal output into a user-readable percentage format (e.g., 71.43%). Failure to format the measure correctly will result in decimals appearing in the final Tooltips.

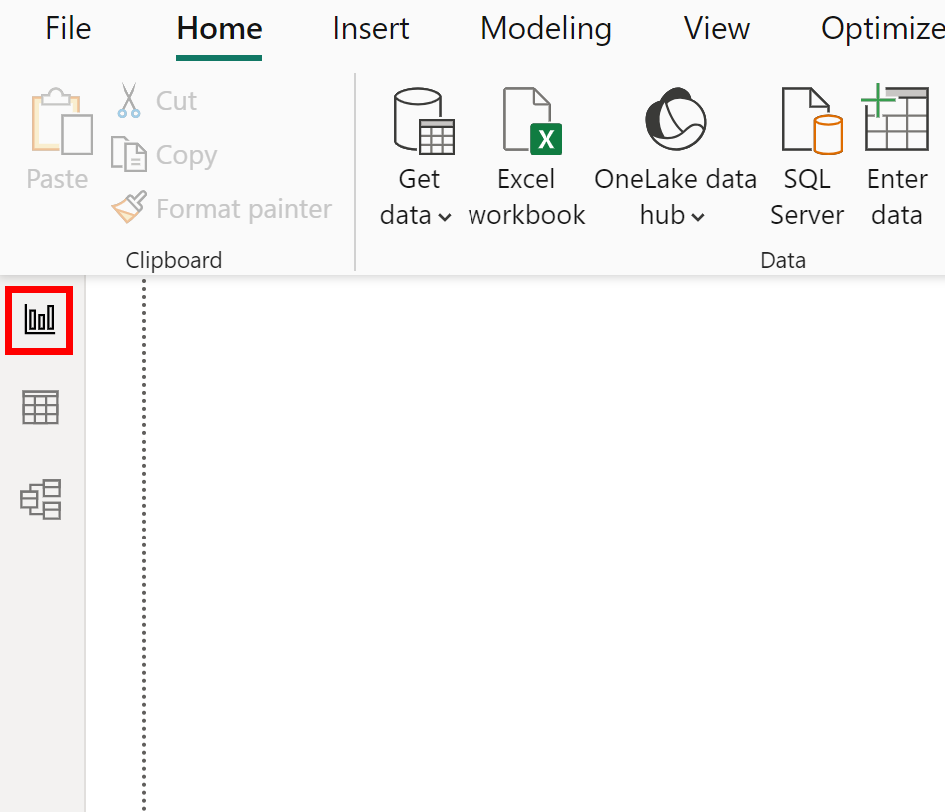

After formatting is complete, we transition to the visualization canvas. Click the Report View icon on the left-hand navigation pane of the Power BI interface to move from the data modeling environment to the visual design space, preparing for chart construction.

Step 4: Configuring the Stacked Column Chart Visual

In the Report View, select the Stacked Column Chart visual from the Visualization pane and place the empty placeholder onto the canvas. This is the container we will populate with our calculated metrics and categorical fields.

The subsequent configuration of the field wells is crucial for mapping the raw counts, the segments, and the newly defined percentage measure correctly. Misplacement of even one field will prevent the desired proportional analysis from functioning.

To construct the chart successfully, assign the variables to their respective wells in the Visualization pane as follows:

• Assign the Sport variable to the X-axis field. This establishes the primary categories that define each column.

• Assign the Gender variable (using Count aggregation) to the Y-axis field. This determines the absolute height of the columns based on the total count of participants for each sport.

• Assign the Gender variable again to the Legend field. This provides the visual segmentation (coloring) that splits the total column height by gender group.

• Crucially, drag the custom Percent of Total measure to the Tooltips field well. This placement ensures that the percentage value is dynamically calculated and displayed only when the user interacts with the visual, avoiding clutter on the main chart area while providing essential context.

Upon completion, the field well configuration should match the structure illustrated below, leading immediately to the generation of the standard stacked column chart visual:

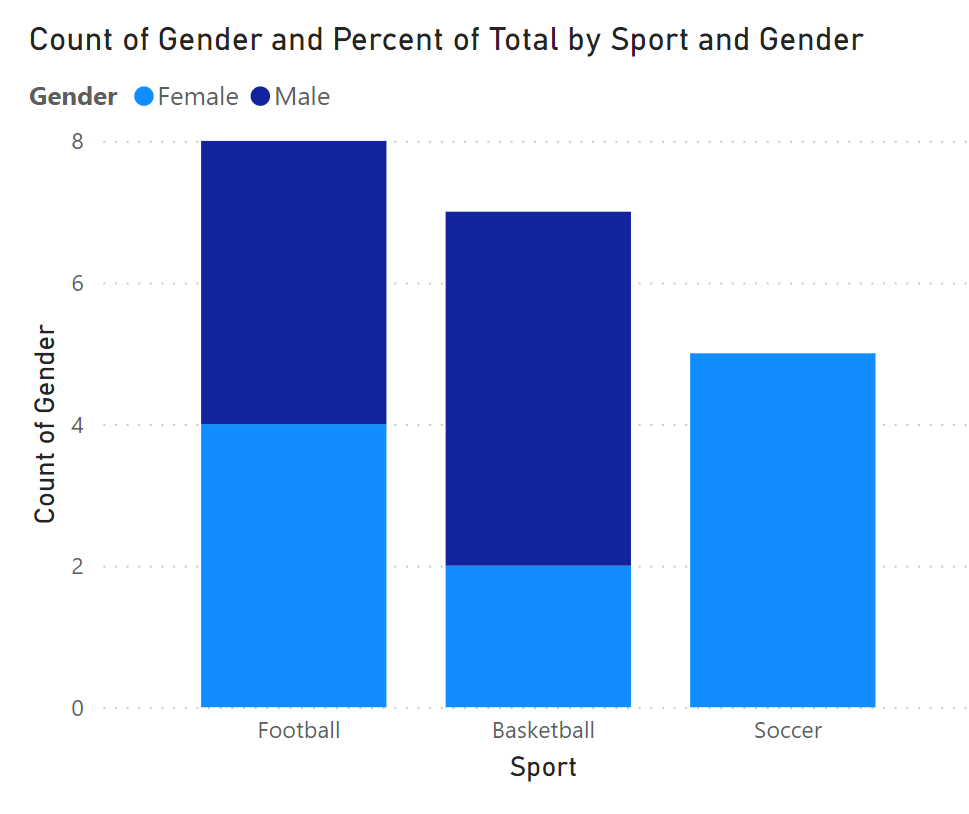

The resulting chart displays the Sports on the X-axis, the total count on the Y-axis, and colors differentiating the segmented gender groups. However, the true analytical power is yet to be unlocked through interaction.

Step 5: Leveraging Tooltips for Proportional Analysis

The final technique delivers enhanced analytical insight through user interaction. When the mouse cursor hovers over any individual segment of the stacked bar, a dynamic tooltip automatically appears. This tooltip displays the absolute count of individuals represented by that segment, alongside the proportional percentage that the gender group constitutes of the total count for the entire sport category.

This integration provides immediate, dual-layered context, allowing report consumers to seamlessly switch their focus between absolute magnitude and relative proportion without requiring any additional visual elements or filters on the report page.

To illustrate this utility, consider the Basketball category shown above. The visual indicates that a total of 7 individuals preferred basketball as their favorite sport.

When we hover specifically over the segment representing the Male group, the tooltip confirms that 5 of these individuals are Males. Crucially, the custom Percent of Total measure dynamically calculates and displays that these 5 individuals represent 71.43% of the total 7 people who preferred basketball. This granular, context-aware detail, powered by the sophisticated DAX measure and delivered via the tooltip, dramatically enhances the analytical depth of the standard stacked column chart.
