Creating Stem-and-Leaf Plots in Excel: A Beginner’s Guide

Introduction to the Stem-and-Leaf Plot

The stem-and-leaf plot, also widely recognized as a stemplot, stands as a cornerstone method within exploratory data analysis (EDA). This fundamental statistical graphic offers a unique dual advantage: it organizes quantitative observations efficiently while simultaneously preserving the integrity of the original raw data points. Unlike histograms, which group data into bins and lose individual values, the stem-and-leaf plot provides a clear, compact visual summary of the data’s distribution, central tendency, and spread.

The efficacy of this chart stems from its systematic approach to data partitioning. Every numerical value within a dataset is divided into two distinct components: the stem (the leading digits) and the leaf (the trailing digit). This structural division allows analysts to quickly assess the shape of the distribution, including identifying potential outliers or significant skewness, insights that are often cumbersome to extract from a simple list of numbers.

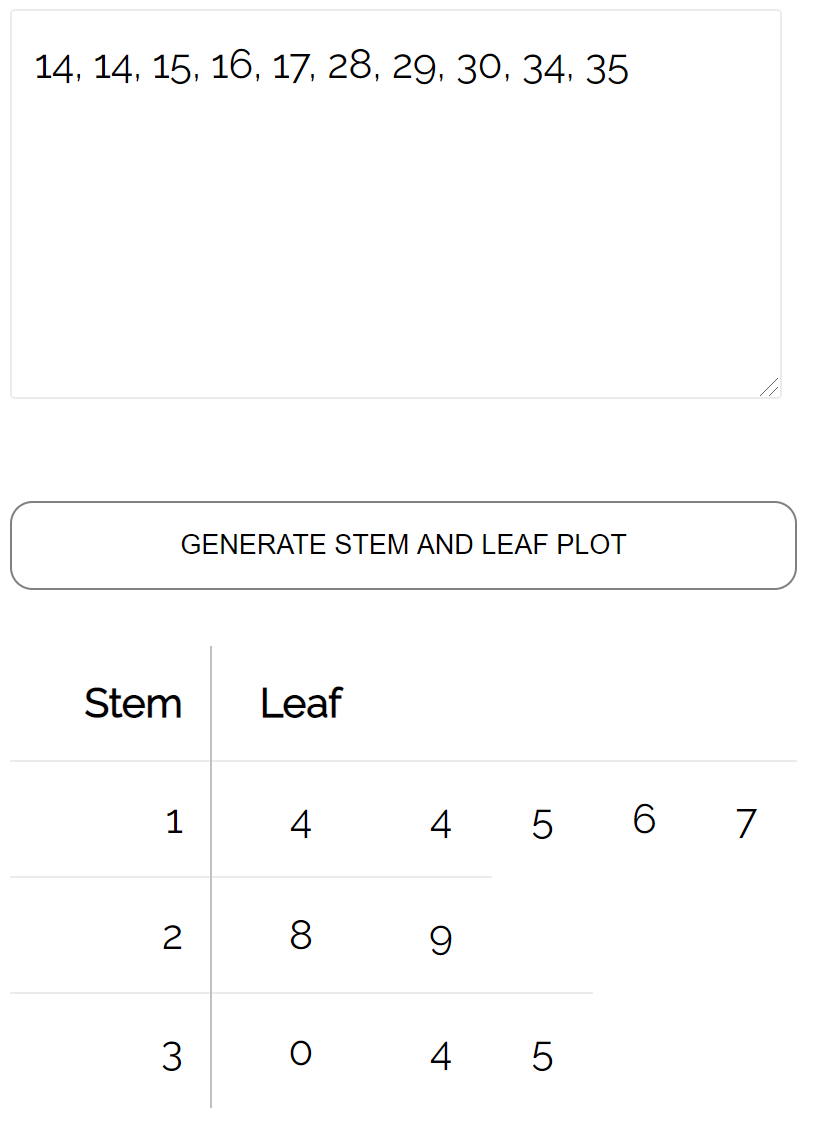

To illustrate this concept, consider the graphical representation below. This example shows how observations are neatly grouped by their leading digits (the stem), with the trailing digits (the leaf) forming a visual bar chart alongside them. While specialized statistical software often generates this output instantly, our objective is to demonstrate a robust, formula-driven methodology to accurately replicate this structure using the powerful capabilities of Microsoft Excel.

Deconstructing the Stem and the Leaf

A proper construction and interpretation of the stem-and-leaf plot hinge entirely on a clear understanding of its two core components. The stem is universally defined as the leading digit or digits of a data value, serving as the categorization mechanism that groups similar observations. Conversely, the leaf is typically designated as the last, or trailing, digit of that value. This partitioning rule is vital because it allows the plot to function simultaneously as an ordered data listing and a graphical frequency distribution.

In practical terms, if we are dealing with two-digit integers, the split is straightforward: the tens digit becomes the stem, and the units digit becomes the leaf. For instance, a data point recorded as 27 yields a stem of 2 and a leaf of 7. For larger numbers, the division may be adjusted based on the required precision; if a data point is 154, the stem might be defined as 15 and the leaf as 4. Crucially, the definition of the stem and leaf must remain consistent across the entirety of the dataset to ensure an accurate portrayal of the data.

While dedicated statistical tools automate this classification and sorting process, generating a stem-and-leaf plot in a spreadsheet environment like Microsoft Excel necessitates a sophisticated, formula-driven approach. The following step-by-step guide details how to leverage advanced functions within Excel to accurately extract, group, and display the leaves for each corresponding stem, overcoming the limitations of standard charting capabilities.

Phase 1: Preparing and Analyzing the Raw Data in Excel

The initial phase of constructing this plot in Microsoft Excel is dedicated to meticulous data preparation and preliminary analysis. This setup is indispensable because the subsequent complex calculations rely entirely on a clean, accurately input range of observations. To begin, open a new Excel worksheet and enter all your data values into a single, contiguous column. For optimal organization and ease of formula referencing, we recommend placing the raw data in Column A, starting from cell A2.

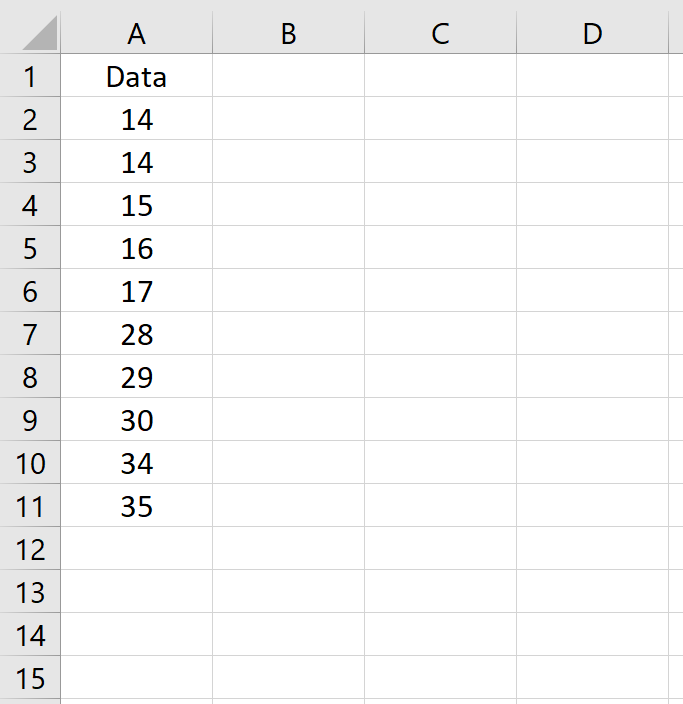

As demonstrated in the image below, maintaining the raw data in a clean, vertical sequence is a prerequisite for the advanced array formulas that will be used later to isolate and sort the leaves. Furthermore, adopting good spreadsheet hygiene, such as labeling Column A as “Raw Data,” will streamline the process of referencing data ranges throughout the calculation stages.

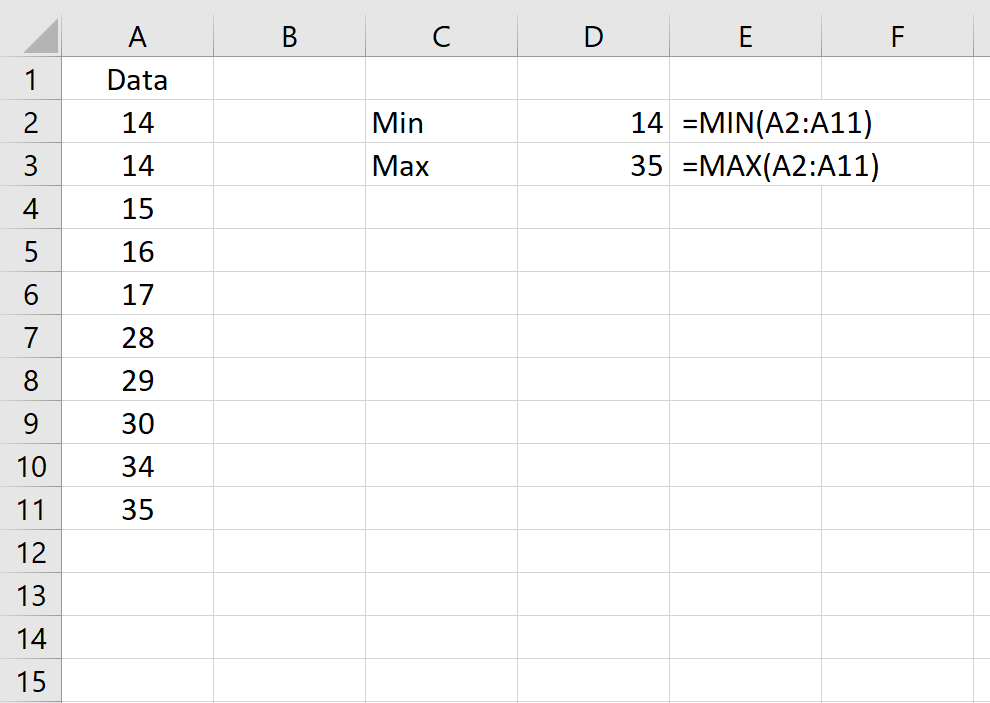

Following data entry, the next critical step involves defining the boundaries of the dataset by identifying the minimum value and the maximum value. These two endpoints are crucial because they dictate the exact sequence of stems that must be manually established for the plot. Utilizing Excel’s powerful built-in functions,

MIN()

and

MAX()

, allows for quick calculation of these critical statistics. For instance, if your data resides in the range A2:A11, you would enter the formulas

=MIN(A2:A11)

and

=MAX(A2:A11)

into separate, clearly labeled cells (e.g., D2 and D3) to summarize the data range effectively.

Phase 2: Defining the Stems Manually

The visual framework of the stem-and-leaf plot is entirely determined by the range established in the preceding preparatory phase. By knowing the absolute lowest (minimum value) and highest (maximum value) data points, we can precisely determine the necessary span of stems required to encompass all observations. Assuming we are working with two-digit numbers, the stem represents the tens digit.

The task now is to manually list every possible tens digit that falls between the stem of the minimum observation and the stem of the maximum observation. This process requires creating a complete, continuous sequence of stems. For example, if the data ranges from 14 to 35, the required stems are 1, 2, and 3. These stem values should be entered into a new, dedicated column, typically Column C, clearly labeled “Stem.”

It is paramount to include all intermediate stems in this sequence, even if there are currently no data points corresponding to a particular stem (meaning that stem row will temporarily have no leaves). Maintaining this adherence to a continuous sequence is essential for ensuring the visual integrity of the plot, as it accurately reveals any significant gaps or clusters within the data distribution. The image below demonstrates the correct manual entry of the continuous stem sequence.

Phase 3: Calculating and Formatting the Leaves Using Complex Formulas

This phase represents the technical peak of the construction process, requiring the deployment of sophisticated array formulas in Microsoft Excel. The primary goal is to efficiently filter the raw data (Column A) and extract only the unit digits (leaves) corresponding to a specific stem (Column C), then aggregate these leaves into a single, sorted text string. This operation simulates the automatic grouping and sorting performed by specialized statistical software.

The complex formula employs a powerful combination of nested functions, including

IF

,

MOD

,

SMALL

,

ROW

, and

TRANSPOSE

, all encapsulated within the

TEXTJOIN

function. Logically, the formula first iterates through the raw data range, checking if the integer division of a data point by 10 matches the current stem value. If this condition is true (i.e., the data point belongs to that stem), the formula extracts the leaf by using the

MOD

function to calculate the remainder when the data point is divided by 10.

The magic of this calculation lies in how the extracted leaves are then sorted and combined. The

SMALL

and

ROW

functions ensure that the leaves are extracted in ascending order, fulfilling a critical requirement of the stem-and-leaf plot. Finally, the

TEXTJOIN

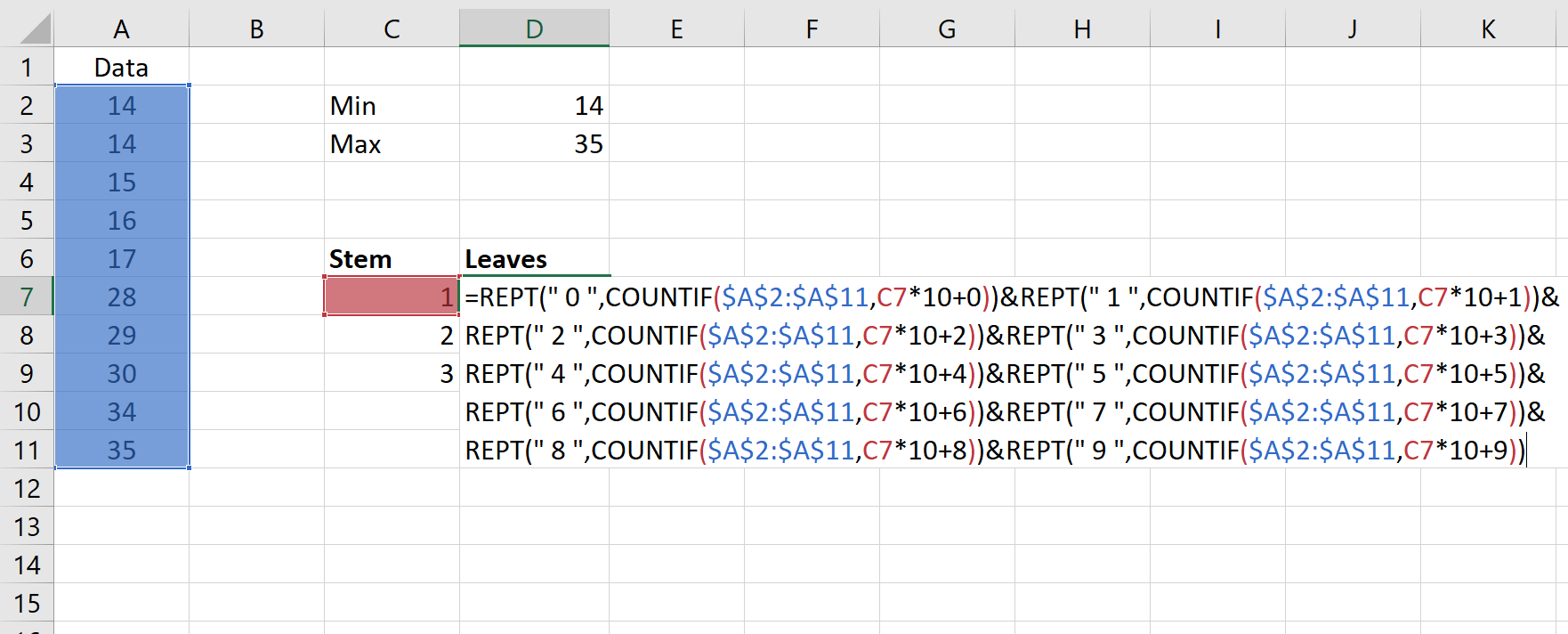

function concatenates all these sorted leaves into a single output cell, using a specified delimiter (such as a space) for visual separation. For the first stem row (e.g., cell D7 for stem ‘1’), enter the comprehensive array formula below. Remember that confirmation using Ctrl + Shift + Enter (or Cmd + Shift + Enter on Mac) is typically required for older versions of Excel to register this as an array calculation.

If the formula is entered correctly, the output cell (D7) will instantly display the sorted leaves corresponding to the stem ‘1’. Based on our example data (14, 15, and 17), the resulting concatenated leaf string will be ‘4 5 7’. This result confirms that the complex formula has successfully isolated the relevant data points, extracted their unit digits, and presented them in the required ascending order.

Phase 4: Completing the Plot and Verification

Once the intricate array formula is successfully implemented and validated for the first stem row, the process of completing the plot is greatly simplified through Excel’s auto-fill mechanism. Click on the cell containing the primary formula (D7 in our demonstration). Locate the fill handle—the small, black square at the bottom-right corner of the cell. Double-clicking this handle will automatically copy the formula down to the adjacent cells (D8, D9, etc.), dynamically adjusting the relative references (specifically the stem value in Column C) for each subsequent row.

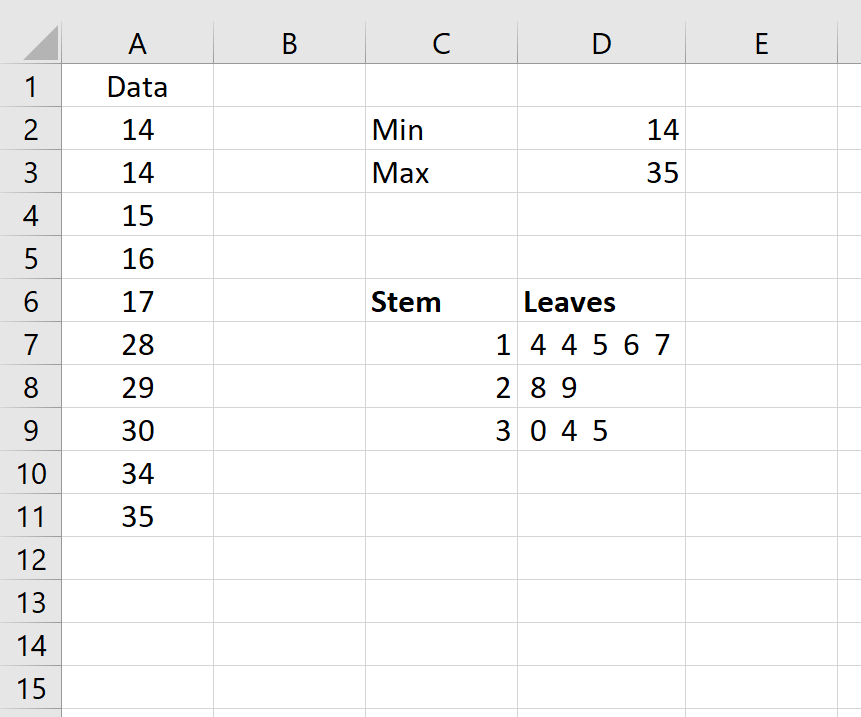

This action yields a fully populated Microsoft Excel plot, where every stem now has its respective leaves concatenated and sorted. The resulting visual arrangement effectively mimics a traditionally drawn stemplot, fulfilling the objective of generating this specific statistical graphic within the spreadsheet environment. However, the complexity of the formulas used necessitates a rigorous verification step to ensure data integrity.

Ensuring Data Integrity: Verification Steps

Given the reliance on complex array formulas, rigorous verification is not optional; it is mandatory to confirm that the constructed stem-and-leaf plot is an accurate and complete representation of the original dataset. Three critical checks must be performed to ensure the validity of the results:

• Count of Observations Verification: The total number of individual leaves displayed across all stem rows must exactly match the total count of observations in your raw data column. If you started with 10 data points, you must visually confirm the presence of precisely 10 individual leaves in the final plot.
• Minimum Value Check: Identify the very first leaf listed in the entire plot. When this leaf is combined with its corresponding stem, the resulting number must be equal to the previously calculated minimum value of the dataset. For our example, the first leaf is ‘4’ alongside the stem ‘1’, confirming the lowest value is ’14’.
• Maximum Value Check: Similarly, inspect the final leaf located in the last stem row. When this leaf is combined with its stem, the resulting value must precisely match the maximum value of the raw data. In this case, the final leaf is ‘5’ with the stem ‘3’, correctly verifying the highest data point is ’35’.

Successfully passing these three verification checks provides the necessary confidence in the accuracy of the final plot, allowing for reliable subsequent interpretations during exploratory data analysis.

Additional Resources and Next Steps

Constructing a stem-and-leaf plot using advanced spreadsheet functions demonstrates a high level of proficiency in data manipulation and formula application within Microsoft Excel. This specific plot is a valuable component of the broader toolkit used in exploratory data analysis, providing foundational insights into data distribution before moving to inferential statistics.

For those seeking to further enhance their statistical visualization capabilities, exploring other manual plotting techniques or integrating advanced charting features within Excel is highly recommended. Understanding the manual methodology detailed here offers indispensable insight into the underlying mathematical structure of data distribution, even when dealing with larger datasets.

However, for managing and analyzing massive datasets, specialized statistical software packages—such as R, Python (with libraries like Pandas/Matplotlib), or Stata—are typically preferred, as they offer dedicated, instant functions for generating these plots and performing more complex analyses efficiently.
