Creating Ogive Graphs in Excel: A Step-by-Step Guide to Cumulative Frequency Analysis

The Ogive, formally recognized as a cumulative frequency graph, stands as an indispensable tool in statistical visualization. Its primary function is to illustrate the running total—or accumulation—of data values within any given dataset. Unlike standard frequency plots, this specialized line graph offers immediate insight into the number of observations that fall either above or below a defined point. Proficiency in generating an ogive is fundamental for accurately determining percentiles and analyzing the overall shape and skewness of quantitative data distributions. This detailed tutorial guides you through the process of leveraging Microsoft Excel, a widely accessible platform, to construct a statistically robust and visually compelling ogive chart efficiently.

Understanding the Ogive and Its Statistical Purpose

The ogive serves as a cornerstone of descriptive statistics, enabling analysts to extract crucial metrics such as the median, quartiles, and various percentiles directly from the plot. A key distinction must be drawn between the ogive and a standard histogram: while a histogram plots the absolute frequency of data points within fixed intervals, the ogive plots the upper boundary of each class interval against the corresponding cumulative frequency. The characteristic S-shaped curve that results immediately clarifies the rate at which the data is accumulating. This immediate visual summary is invaluable for professionals across disciplines—from financial modeling to rigorous quality control—allowing for effective assessment of data distributions.

In practical analytical scenarios, the ogive proves indispensable when handling large volumes of continuous data where the precise percentage or count of values falling below a specific threshold is required. Consider a scenario in quality assurance: an engineer might use an ogive to precisely determine the proportion of manufactured components that fail to meet a minimum tolerance size. Similarly, in educational assessment, an ogive can be used to quickly identify the exact test score below which 75% of students performed. By utilizing the charting capabilities and calculation functions within Microsoft Excel, these complex statistical plots can be generated efficiently, removing the need for specialized statistical software and streamlining routine analytical tasks.

Before initiating the graphical construction process, it is paramount that the underlying data structure is defined with precision. This includes ensuring the raw data is organized correctly and that the class boundaries are clearly delineated. A failure to define a proper starting point or the use of inconsistent class widths will inevitably lead to a misleading cumulative frequency curve. Consequently, the steps outlined below emphasize not only the technical navigation of Excel features but also the statistical rigor required to produce an accurate and reliable ogive. We will commence by securing flawless initial data entry, followed by the systematic calculation of class frequencies and the essential running totals, which collectively form the statistical backbone of this unique visualization.

Step 1: Organizing Raw Data and Defining Class Limits

The foundation for any statistically sound visualization rests upon meticulous data organization. The initial phase requires entering your raw data observations into a single, clean column within the Excel worksheet. This column serves as the critical source array for all subsequent frequency and cumulative calculations. It is essential to verify that the data is accurate, complete, and fully representative of the sample or population under analysis. For the purpose of this tutorial, we will work with a sample dataset comprising 30 distinct observations, such as a set of standardized test scores or physical measurements. Clarity is enhanced by applying a descriptive label to this column, such as ‘Raw Data Values’ or ‘Observations.’

Enter the data values in a single column:

Following the data entry, the next preparatory step involves establishing the structure for the frequency distribution. This necessitates the careful definition of the ‘Upper Class Limits,’ which dictate the boundaries of the intervals used to categorize the raw data. Selecting an appropriate class width is crucial for effective representation; a class width that is too large can obscure vital distribution details, while one that is too small can lead to a chaotic or noisy graph. A common rule of thumb suggests aiming for 5 to 15 classes, depending on the range and volume of the data. In this specific demonstration, we have adopted a class width of 10, initiating the first upper limit at 60.

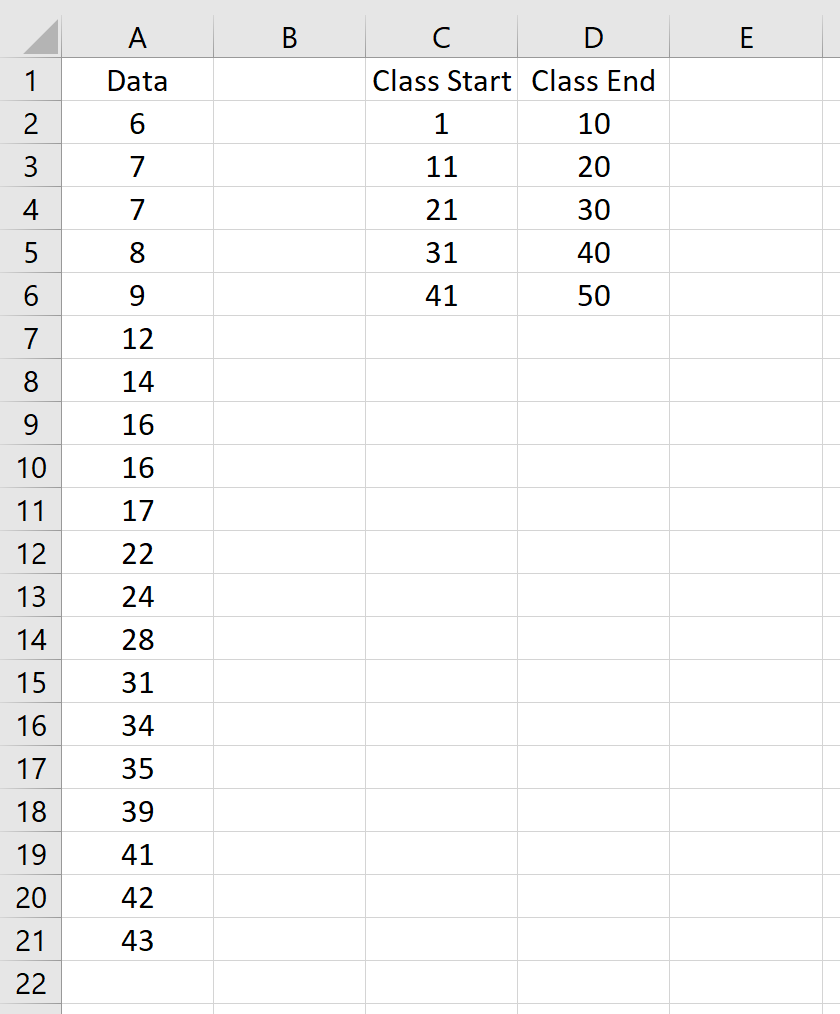

Next, define the class limits you’d like to use for the ogive. I’ll choose class widths of 10:

It is vital to understand that the ogive is defined by plotting cumulative frequency against the upper boundaries; thus, the definition of these class limits must utilize the upper boundary of each class interval. For data that is continuous, a smooth transition requires that the upper limit of one class interval aligns perfectly with the lower limit of the succeeding interval. Organizing these limits cleanly in a dedicated column ensures that the powerful calculation functions within Microsoft Excel, specifically the FREQUENCY array function, operate correctly and produce statistically valid results for the distribution.

Step 2: Calculating Class Frequencies Using the Array Formula

Once the raw data and the upper class limits have been established, the subsequent critical phase involves calculating the absolute frequency—the count of observations that fall within each defined interval. This step harnesses the advanced capabilities of Excel’s built-in statistical suite, specifically the FREQUENCY array function. This function is meticulously designed to categorize a set of values into predefined bins (our upper class limits). Execution of this function requires precise methodology because it is an array formula; it must be entered across the entire intended output range simultaneously by confirming the input with the keystroke combination of CTRL+SHIFT+ENTER after typing the formula.

The required syntax for the FREQUENCY function is straightforward:

FREQUENCY(data_array, bins_array)

In this context, the ‘data_array’ refers to the column containing all the raw observations, and the ‘bins_array’ is the column listing our strategically defined upper class limits. This function performs the complex task of counting all data points that are less than or equal to the corresponding upper limit in the bins array. When calculating these frequencies, it is absolutely essential to first select the entire destination range (all cells where the frequencies will appear) before entering the formula and confirming it as an array function. Failure to utilize the specialized array entry method will result in an incorrect calculation, typically displaying only the frequency count of the very first class interval across all selected cells.

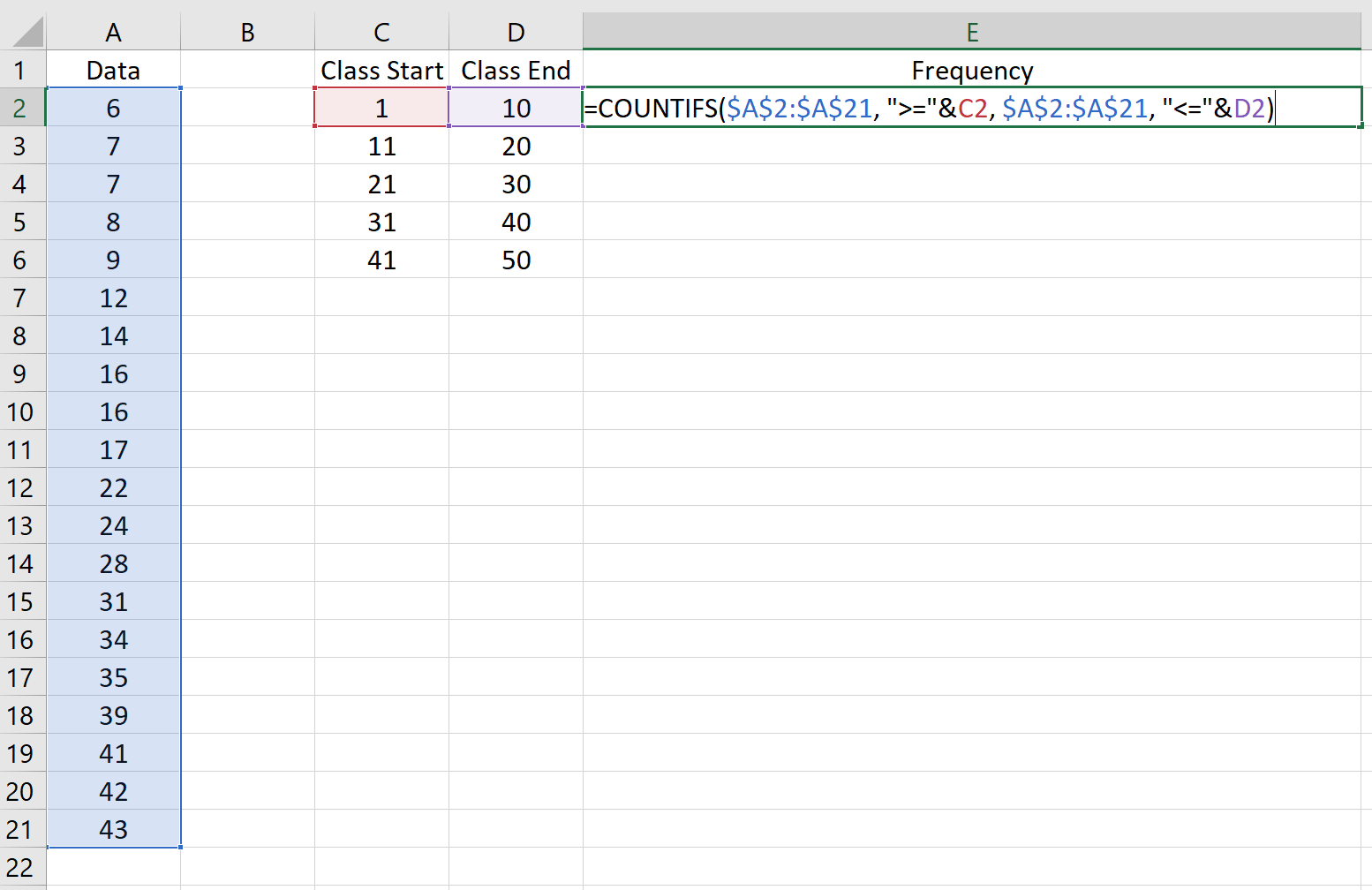

Next, we’ll use the following formula to calculate the frequencies for the first class:

Upon the successful application of the FREQUENCY array function, you will possess a complete and accurate distribution detailing the number of data points residing within each class interval. A mandatory verification step at this stage is to sum the calculated frequencies; this total sum must precisely match the total number of observations (N) present in your raw dataset. This simple but effective check confirms the statistical integrity of the distribution before advancing to the next critical phase: deriving the cumulative frequencies, which form the plotting coordinates for the ogive.

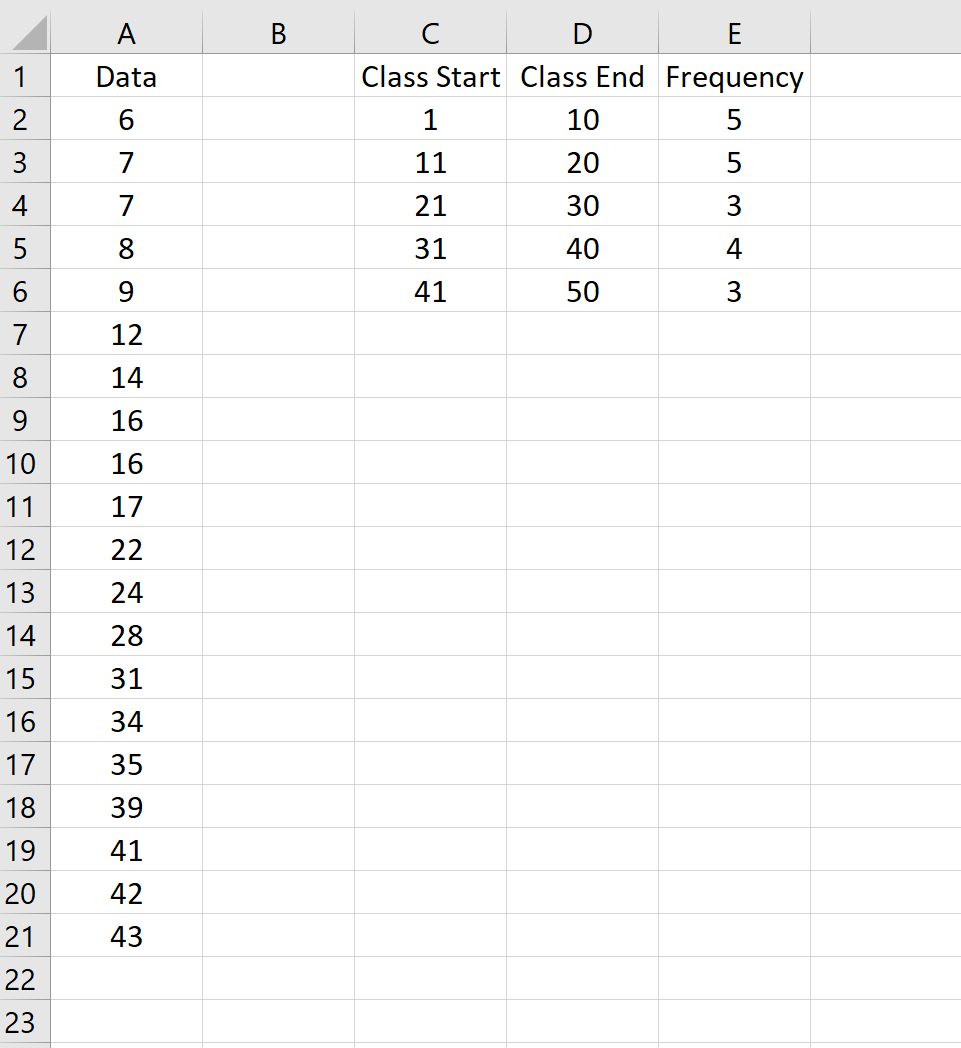

Copy this formula to the rest of the classes:

Step 3: Calculating Cumulative Frequencies

The defining characteristic that distinguishes the ogive from other frequency plots is its reliance on cumulative frequency, rather than the raw counts. Cumulative frequency represents the progressive running total of all absolute frequencies up to the upper boundary of a specific class. This essential metric will be plotted on the vertical (Y) axis against the upper class limits on the horizontal (X) axis. To compute this running total in Excel, we must dedicate a new column, typically titled ‘Cumulative Frequency,’ and systematically apply an iterative summation formula. This column will ultimately supply the Y-coordinates necessary to graph the data’s accumulation pattern.

The calculation sequence is initiated with the first class interval. The cumulative frequency for the first class is mathematically identical to its absolute frequency, given that there are no preceding classes to sum. For every subsequent class, the cumulative frequency is derived by adding the current class’s absolute frequency to the cumulative frequency already calculated for the immediately preceding class. In Excel, this summation is efficiently executed using relative cell referencing. This relative linking allows the formula to be seamlessly dragged down the entire column, automating the complex running total calculation.

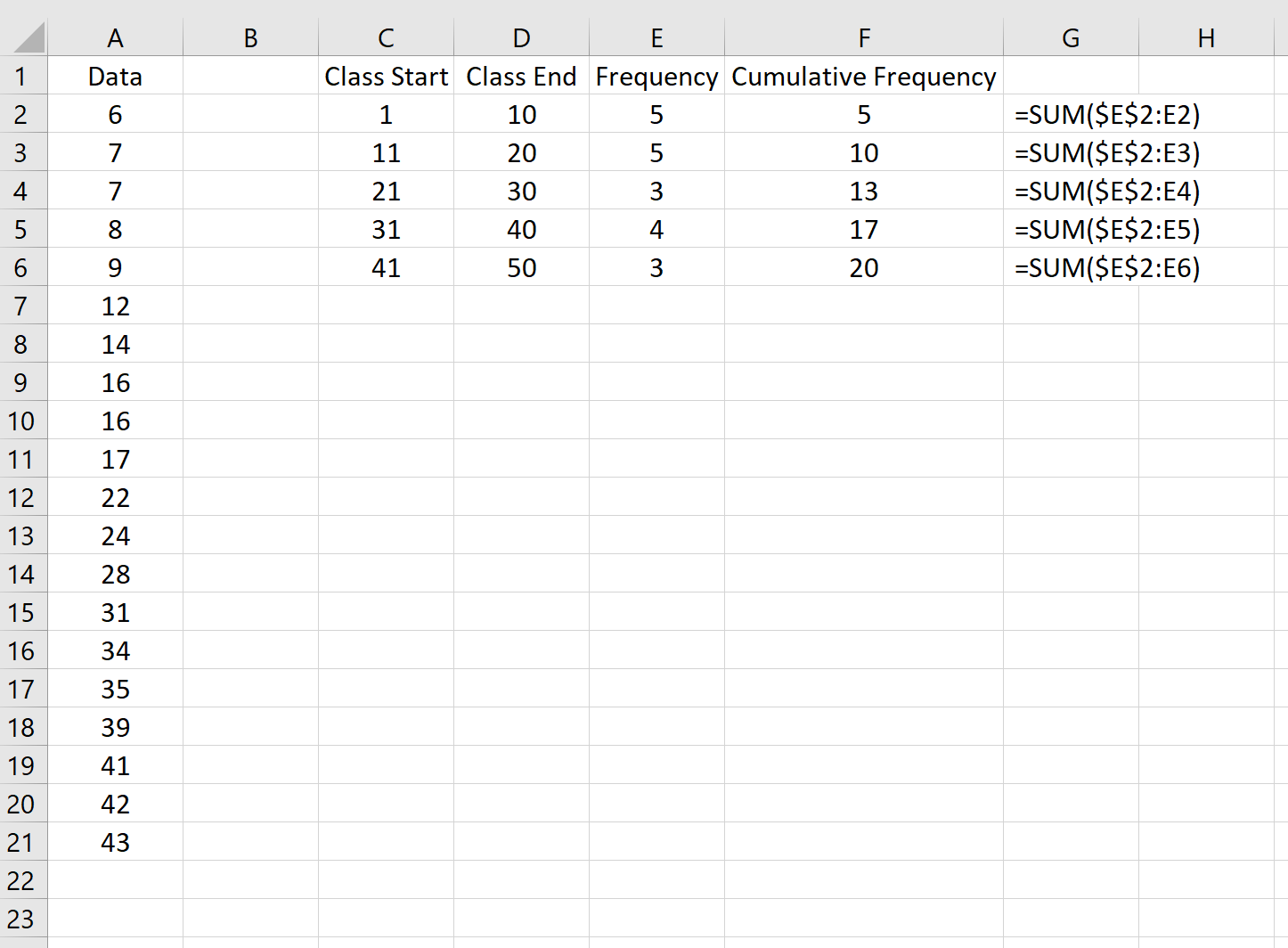

Next, we’ll use the following formulas to calculate the cumulative frequency for each class:

A critical statistical verification step must follow the calculation of the cumulative frequency column: the final value in this column must precisely equal the total number of observations (N) in the original dataset. If this final cumulative number does not match the total count of your raw data, an error exists either in the initial frequency calculation (Step 2) or in the cumulative summation logic (Step 3). Ensuring this exact match is fundamental, as it guarantees that the resulting ogive visualization accurately accounts for 100% of the recorded observations. With these two critical data series—the Upper Class Limits (X) and the Calculated Cumulative Frequencies (Y)—now complete, the data is prepared for graphical representation.

Step 4: Generating the Ogive Using an Excel Scatter Plot

Because the ogive is fundamentally a line graph derived from discrete data points, the Scatter Chart type within Microsoft Excel is the definitive choice for its construction. The scatter plot provides superior control over both the X and Y axes, ensuring that the Upper Class Limits are accurately scaled and aligned with the cumulative totals. The visualization process begins with the careful selection of the two finalized data series: the column listing the Upper Class Limits and the column containing the Calculated Cumulative Frequencies. It is absolutely vital that these two ranges are selected together, maintaining the accurate row-by-row correspondence necessary for plotting.

To select data columns that are not adjacent—for example, selecting the Upper Class Limits in Column D and the Cumulative Frequencies in Column F, skipping the frequency column in E—you must utilize the CTRL key. Hold down the CTRL key while highlighting the first range (X-axis data), and then, while continuing to hold CTRL, highlight the second range (Y-axis data). This simultaneous, non-contiguous selection accurately instructs Excel on which two variables are to be plotted against one another. When the data is selected correctly, the resulting chart’s X-axis will automatically scale to the class limits, and the Y-axis will correctly represent the progressive accumulation of observations.

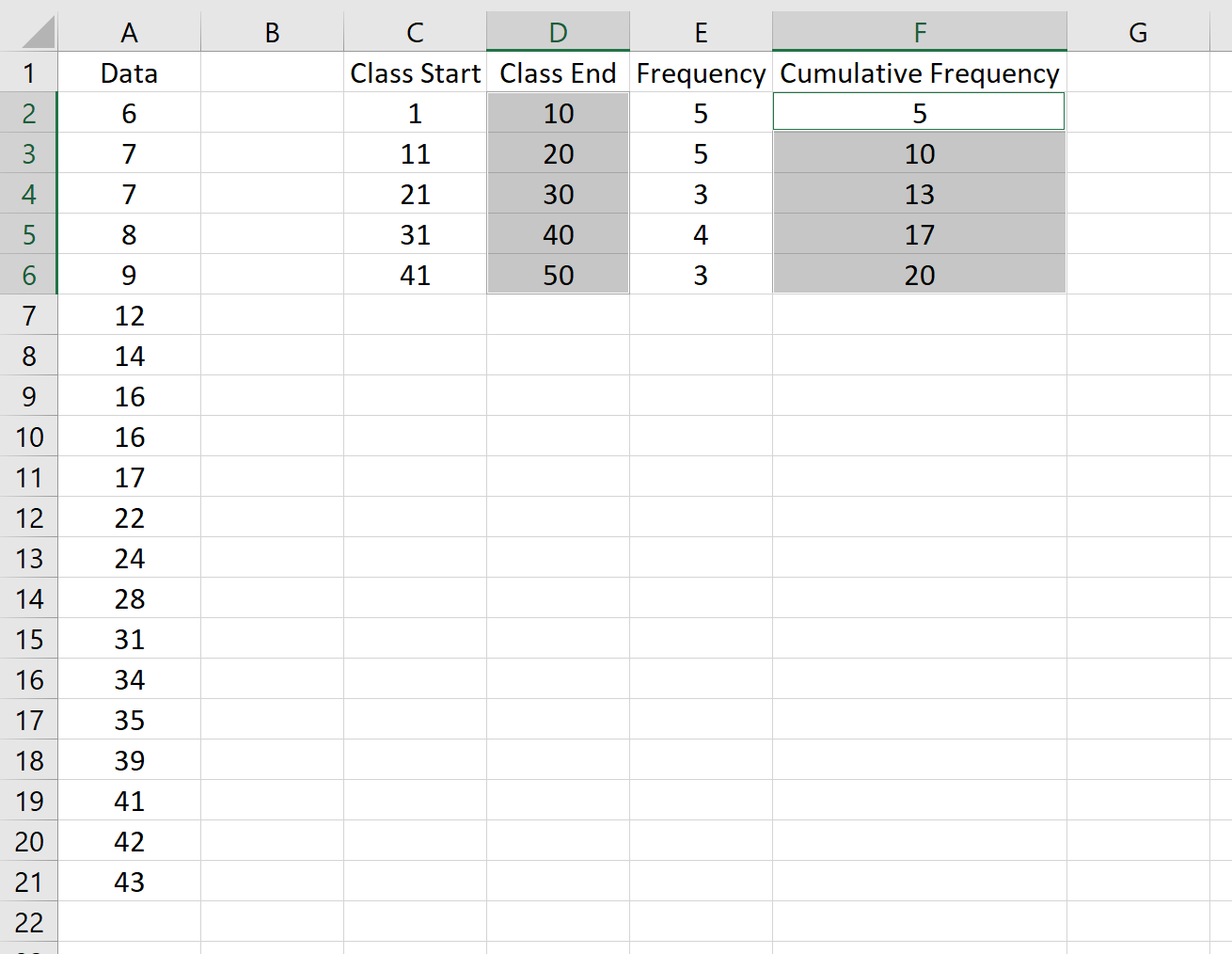

To create the ogive graph, hold down CTRL and highlight columns D and F.

Once the data ranges are highlighted, navigate to the Insert tab located on the Excel ribbon. Within the Charts grouping, locate and click on the Scatter Chart options. You must specifically select the chart subtype labeled Scatter with Straight Lines and Markers. This particular selection is essential because it connects the discrete data points (the markers) using straight line segments, which generates the characteristic continuous, S-shaped curve of the ogive. Excel will immediately generate the initial chart output. If the selection and preparation steps were executed correctly, the resulting graph instantly provides a raw visualization of your data set’s cumulative distribution.

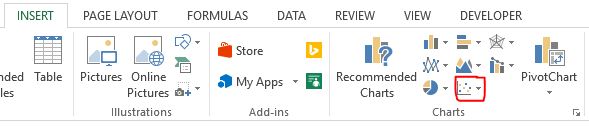

Along the top ribbon in Excel, go to the Insert tab, then the Charts group. Click Scatter Chart, then click Scatter with Straight Lines and Markers.

This will automatically produce the following ogive graph:

Step 5: Refining and Interpreting the Final Ogive Chart

Although Excel generates a functional graph immediately, professional statistical analysis demands a visually polished and comprehensively labeled chart. The final crucial steps involve enhancing the chart elements for optimal clarity and professional presentation. Essential modifications include updating the chart title to clearly reflect the content (e.g., “Ogive of Test Scores”), accurately labeling the X and Y axes, and strategically adjusting the axis scales for better visual representation. The X-axis must be clearly designated as the ‘Upper Class Limits’ or the primary variable (e.g., ‘Observation Value’), while the Y-axis must explicitly state ‘Cumulative Frequency‘ or ‘Cumulative Count,’ confirming the graph displays accumulated totals.

A key refinement for statistical accuracy involves modifying the axis minimums and maximums. By default, Excel might set the X-axis starting point arbitrarily. For a true ogive, it is statistically beneficial to anchor the curve at a zero cumulative frequency point, corresponding to the lower bound of the very first class, even if this specific point was not included in the initial data selection. Similarly, the Y-axis range should span precisely from zero up to the total number of observations (N). Adjusting these bounds eliminates unnecessary visual noise and focuses the viewer’s attention directly on the distribution curve, significantly improving the graph’s readability and analytical power.

Feel free to modify the axes and the title to make the graph more aesthetically pleasing:

The finalized ogive chart is now ready for deep interpretation. To effectively utilize the graph, locate a desired value on the X-axis (the upper limit), trace vertically up to the plotted curve, and then trace horizontally across to the Y-axis. The corresponding Y-value reveals the exact count of data points that fall below that specific X-value. This powerful feature makes the ogive an exceptional resource for estimating percentiles: for instance, to quickly determine the median (the 50th percentile), locate the point on the Y-axis corresponding to N/2, trace horizontally to the curve, and then drop vertically to the X-axis to find the associated median value. Furthermore, the curve’s steepness provides critical visual clues about the concentration of data, helping analysts interpret the distribution’s central tendency and potential skewness. By creating this detailed ogive in Microsoft Excel, raw tabular data is successfully transformed into a dynamic, interpretable statistical summary.
