A Comprehensive Guide to Correlation Matrices in Excel

In the realm of statistical data analysis, gaining insight into the interconnectedness of variables is paramount for informed decision-making. A foundational and highly effective statistical measure used to quantify the strength and direction of the relationship between two distinct variables is the calculation of the correlation coefficient. This standardized metric, typically denoted by the letter r, is specifically designed to capture the degree of linear correlation present within the dataset, providing a clear numerical summary of their association.

The power of the correlation coefficient lies in its standardized scale, which strictly ranges between -1 and 1. This finite range allows researchers and analysts across diverse fields, from finance to social sciences, to rapidly interpret the nature and magnitude of the relationship observed. Understanding this scale is crucial for accurately translating the statistical result into actionable insight:

• A value of -1 signifies a perfectly negative linear correlation. This means that as one variable increases, the other decreases with absolute consistency and predictability.
• A value of 0 indicates the absence of any linear correlation between the variables. Changes in one variable do not provide any predictive power regarding changes in the other in a straight-line manner. It is important to note that a zero correlation does not rule out potential non-linear relationships.
• A value of 1 denotes a perfectly positive linear correlation. This implies that as one variable increases, the other variable increases consistently and proportionally.

The closer the correlation coefficient is to either extreme (+1 or -1), the stronger the linear relationship between the two variables is considered to be. Conversely, values closer to zero indicate progressively weaker linear associations. While calculating a single correlation coefficient is sufficient for simple bivariate analysis, modern datasets frequently involve dozens of interdependent factors, necessitating a more comprehensive approach. This transition from analyzing isolated pairs to managing complex multivariate relationships leads directly to the utility of the correlation matrix.

The Indispensable Role of the Correlation Matrix in Multivariate Analysis

In practical statistical applications, data seldom exists in isolation. We are frequently tasked with assessing the relationships among several variables simultaneously, moving beyond the limitations of analyzing just one pair at a time. Consider a scenario with ten variables; calculating and listing every possible pairwise correlation individually would involve 45 separate calculations (derived from the combination formula). This process quickly becomes cumbersome, error-prone, and exceedingly difficult to interpret or manage effectively as the number of variables grows exponentially.

To overcome this structural complexity inherent in multivariate analysis, statisticians rely on the correlation matrix. This is a highly efficient, square table designed to organize and summarize all the calculated correlation coefficients derived from every possible pairing of variables within a given dataset. The matrix structure offers an immediate, structured visual summary, enabling analysts to identify patterns, redundancies, and strong dependencies across the entire variable set instantly, which is a key advantage over simple lists.

A fundamental property of the resulting correlation matrix is its inherent symmetry. This is because the correlation calculated between Variable A and Variable B is mathematically identical to the correlation between Variable B and Variable A (r(A, B) = r(B, A)). Consequently, analysts often only need to examine the lower or upper triangle of the matrix to glean all necessary insights. Furthermore, the main diagonal of the matrix—where each variable is correlated with itself—will always contain values of 1.00. This tutorial provides a meticulous, step-by-step methodology for efficiently generating and accurately interpreting a correlation matrix using Microsoft Excel, a statistical tool widely accessible across professional and academic settings.

Preparing Data and Enabling the Analysis Toolpak in Excel

To illustrate the process of generating a correlation matrix, we will utilize a practical dataset, specifically drawn from sports statistics. Imagine we have compiled performance data for ten professional basketball players, detailing their average performance across three key metrics: Points, Rebounds, and Assists. Our primary analytical objective is to determine the statistical relationship and interdependence among these three key performance indicators (KPIs).

Before initiating the statistical computation, Excel requires the activation of the Data Analysis Toolpak. This essential add-in provides the specialized functions necessary for complex statistical procedures, including correlation, regression, and ANOVA. Ensure your data is organized into contiguous columns with clear, single-row header labels (like “Points,” “Rebounds,” “Assists”). Once the data is ready, navigate to the Data tab located on the main Excel ribbon. Within the far right Analysis group, you should find and click the Data Analysis option.

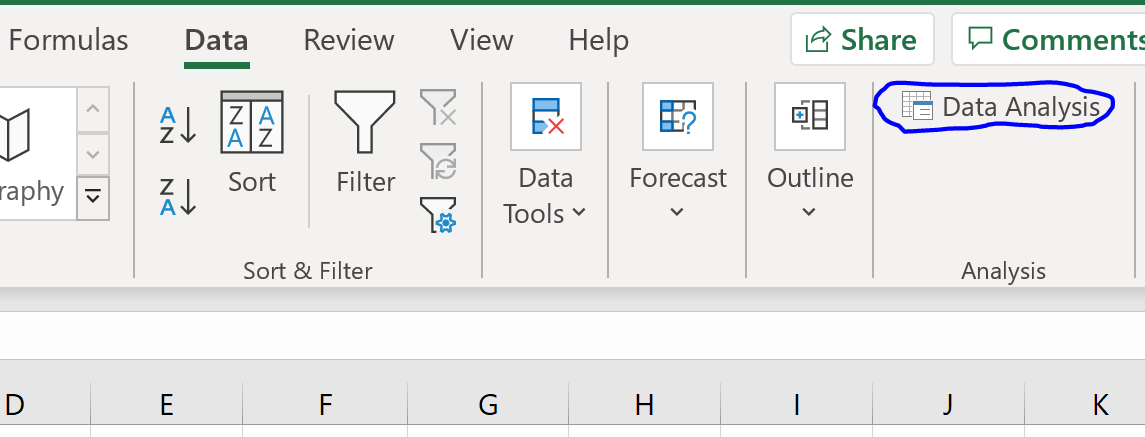

If the crucial Data Analysis button is absent from your Data tab, you must first install or enable the Data Analysis Toolpak. This standard procedure is completed via the Excel Options menu, typically under the Add-ins section, where you select “Excel Add-ins” and ensure the Analysis Toolpak box is checked. After successful activation, return to the Data tab, click Data Analysis, scroll down in the resulting dialog box, choose the Correlation function, and then click OK to proceed to the parameter definition stage.

Defining Parameters and Executing the Correlation Function

The Correlation dialog box serves as the control center, prompting you to precisely define the input data and the required output location. Accurate parameter definition at this stage is absolutely critical for ensuring the generation of a valid and correctly labeled matrix.

The first step involves defining the Input Range. You must carefully select the entire block of cells containing your quantitative data, and it is imperative that this selection includes the first row which holds the variable labels (Points, Rebounds, Assists). Next, ensure that the checkbox labeled Labels in first row is checked. Ticking this box is mandatory as it instructs Excel to use these header names to correctly label the rows and columns in the final output matrix, which dramatically improves the clarity and readability of the results.

Finally, you must specify an empty cell within the Output Range field. This location dictates where the resultant correlation matrix will be displayed. You can choose a cell on the current sheet or specify a new sheet entirely. Once you have verified that all parameters—Input Range, Labels status, and Output Range—are correctly established, click OK. Excel will then execute the calculation algorithm instantly.

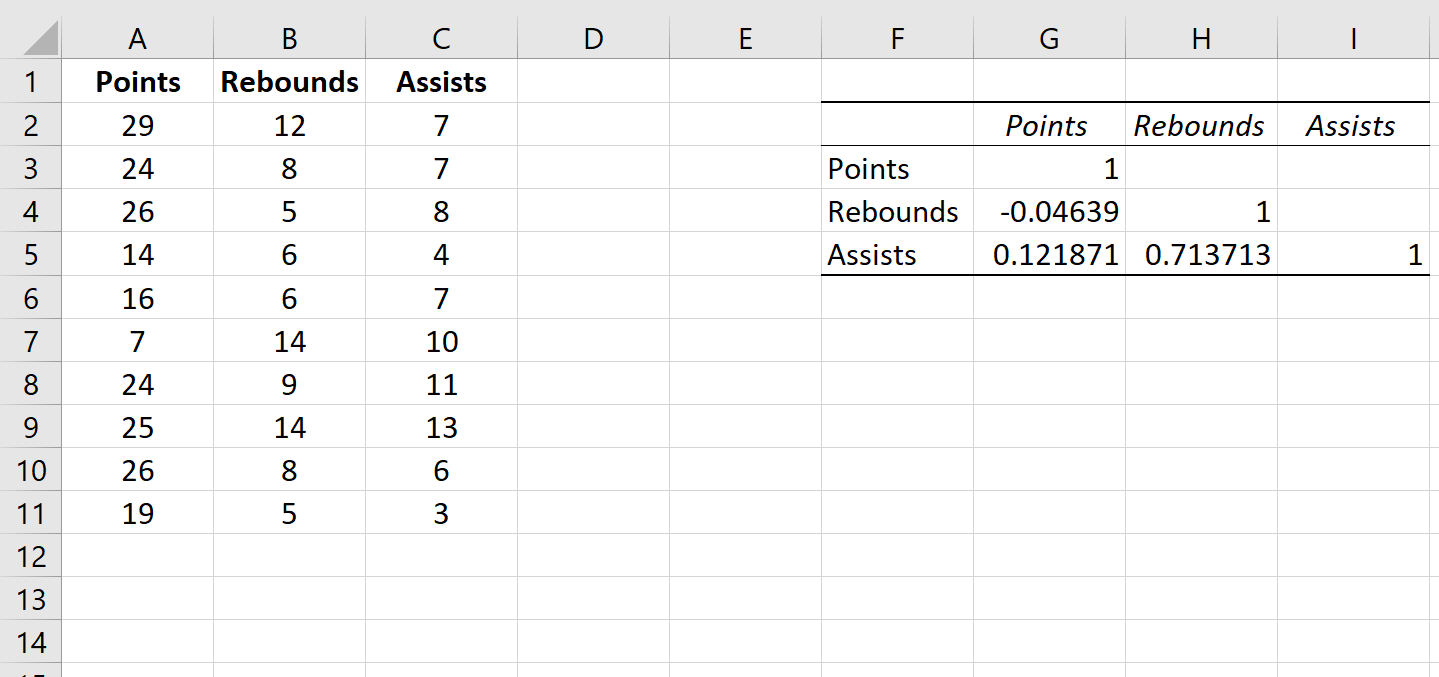

The resulting output displays the calculated Pearson Correlation Coefficient for every unique pair of variables in the designated output area. The underlying mathematical model used by the Data Analysis Toolpak is the standard Pearson method, which measures the linear association between continuous variables. This matrix is now the central artifact for interpreting the multivariate relationships present in your basketball statistics dataset.

Interpreting the Correlation Matrix Results

The critical step following calculation is the interpretation of the numerical values presented in the correlation matrix. Each value represents the strength and specific direction (positive or negative) of the linear relationship between the corresponding row and column variables. By systematically analyzing these coefficients, we can extract meaningful statistical conclusions about the interdependence within the dataset.

Let us analyze the specific pairwise relationships revealed by our basketball performance dataset:

1. Correlation between Points and Rebounds: The matrix reveals a coefficient of approximately -0.04639. This figure is exceptionally close to zero, which unequivocally indicates a very weak negative linear correlation. In practical terms, for this sample of players, a player scoring more points provides almost no predictive information regarding whether they will have fewer rebounds, or vice versa. This near-zero value strongly suggests that these two variables operate largely independently of each other within this group of athletes.
2. Correlation between Points and Assists: Here, the matrix displays a value of 0.121871. While this indicates a slight positive correlation, meaning that there is a marginal tendency for higher-scoring players to also record slightly more assists, the coefficient remains quite close to zero. We must conclude that, statistically speaking, there is insufficient evidence within this data to claim a strong or substantively significant linear relationship between points scored and the number of assists made.
3. Correlation between Rebounds and Assists: The most compelling statistical relationship in our matrix is found in this pairing, with a robust correlation coefficient of 0.713713. This high positive value signals a strong positive linear correlation. This insight suggests a crucial relationship for player analysis: players who excel in achieving a higher number of rebounds also demonstrate a strong, predictable tendency to record a higher volume of assists. Such a finding could be invaluable for scouting, coaching decisions, or constructing predictive statistical models.

As a final verification, observe that the diagonal elements (where a variable correlates with itself) are all exactly 1.000. While mathematically essential, these diagonal values simply confirm that any variable is perfectly correlated with itself and hold no practical interpretive meaning regarding the relationships *between* different variables; thus, they are routinely ignored during the analytical phase.

Enhancing Readability: Visualizing Correlation Strength with Conditional Formatting

Although numerical coefficients provide the necessary statistical precision, interpreting a large correlation matrix involving dozens of variables can quickly become visually demanding and time-consuming. To overcome the cognitive load associated with reading long lists of decimals, a powerful and easily implemented technique is the application of Conditional Formatting, which transforms the numerical data into an intuitive color-coded heatmap. This visualization method dramatically simplifies the rapid identification of strong, weak, and negative correlations.

To apply this essential visualization technique, begin by carefully selecting the range of cells that contain only the correlation coefficients (it is best practice to exclude the header labels). Next, navigate to the Home tab on the Excel ribbon, locate the Styles group, and click on Conditional Formatting. From the subsequent dropdown menu, select the Color Scales option, and then choose a suitable gradient—the Green-Yellow-Red Color Scale is typically the most utilized and intuitive choice for this type of analysis.

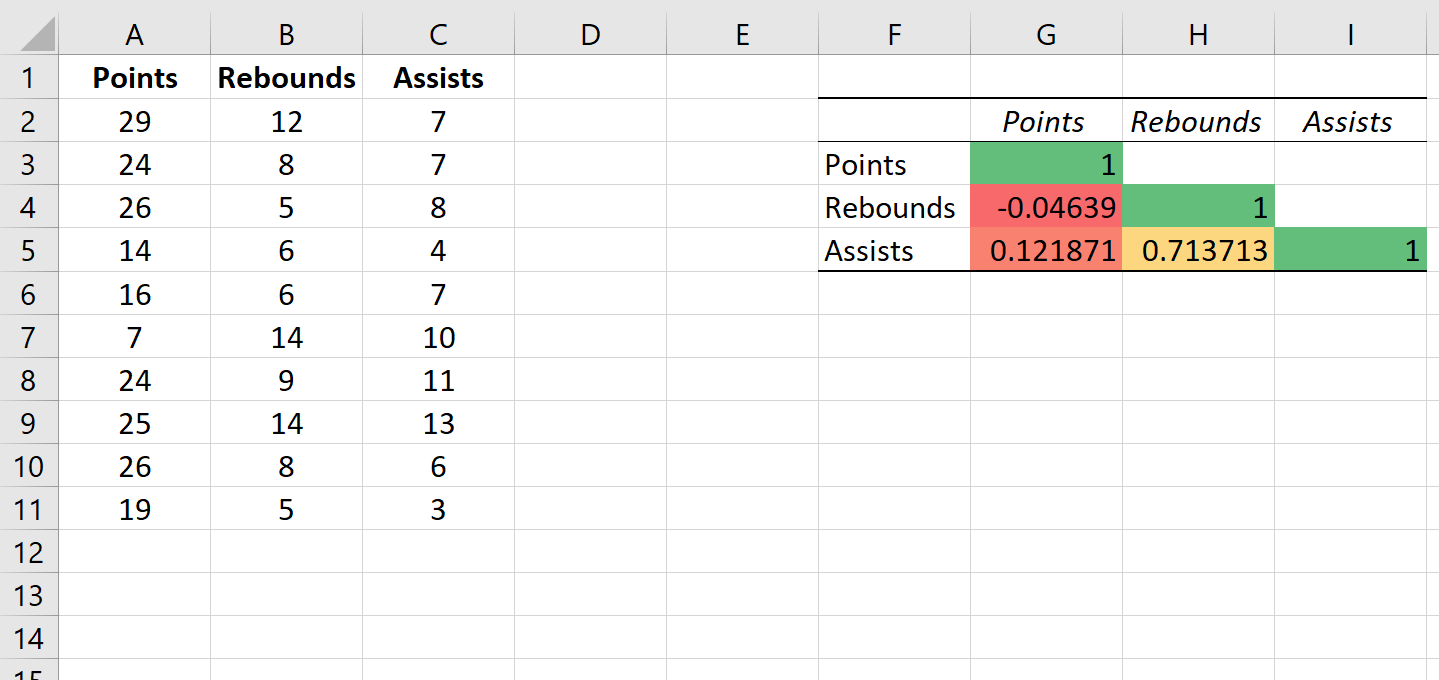

The Green-Yellow-Red scale provides an instant visual shorthand for interpreting the matrix: coefficients representing strong positive correlations (values approaching +1) are highlighted in shades of green; strong negative correlations (values nearing -1) are clearly distinguished in red; and weak correlations (those hovering near zero) are rendered in neutral yellow or amber tones.

This strategic application of Conditional Formatting significantly boosts the speed and accuracy of data interpretation. For professional statistical reviews involving extensive datasets, visual cues are invaluable for quickly and reliably pinpointing the strongest and most relevant linear relationships, thereby guiding subsequent, more sophisticated statistical modeling, such as regression analysis or hypothesis testing.

Related Reading: What is Considered to Be a “Strong” Correlation?

Limitations and Transition to Advanced Statistical Tools

While Microsoft Excel is an excellent and accessible platform for generating foundational statistical measures like the correlation matrix, it is essential to recognize its limitations when dealing with complex data challenges. Specifically, Excel focuses primarily on the descriptive measure of correlation (the coefficient r) but does not automatically provide the p-values or confidence intervals necessary to determine the statistical significance of those correlations. Without these measures, a strong correlation coefficient could potentially be a chance occurrence, especially in a small sample size.

For more rigorous statistical modeling, such as multiple regression, factor analysis, or path analysis, specialized software environments are indispensable. Platforms like R, Python (with libraries like Pandas and NumPy), or SPSS offer far greater flexibility, computational power, and the necessary statistical diagnostics (such as significance testing, handling missing data, and complex model diagnostics) that exceed the standard capabilities of the Excel Data Analysis Toolpak.

Understanding how to calculate and interpret a correlation matrix in Excel is a critical first step in data proficiency. However, data professionals should be prepared to transition to these dedicated statistical programming environments when the analytical requirements move beyond basic descriptive statistics and into inferential analysis. The core principles of correlation interpretation, established using simple tools like Excel, remain foundational regardless of the software platform utilized.
