Learning Matplotlib Subplots: A Guide to Creating Multi-Panel Figures

Mastering Subplots in Matplotlib for Effective Data Visualization

In the realm of advanced data analysis, effective visualization often necessitates the simultaneous display of several related datasets. Presenting these comparisons on a single, unified canvas—what Matplotlib terms a Figure—is vital for comprehensive reporting and compelling data storytelling. While generating a standalone plot is simple, organizing multiple visualizations coherently within one container requires mastering the technique known as subplots. This fundamental skill is indispensable when utilizing the extensive capabilities of the Python ecosystem for scientific plotting.

The core challenge in constructing multi-plot figures lies in managing the precise layout and spatial relationship of the individual plotting areas, which Matplotlib refers to as Axes objects. Ensuring these components fit together logically without visual conflict or overlap is paramount. Fortunately, Matplotlib abstracts this complexity through the highly versatile pyplot.subplots() function. This function expertly handles the necessary object-oriented infrastructure, simultaneously creating both the main container (the Figure) and the required individual plotting regions (the Axes), streamlining the setup process into a single, efficient command.

Developing the ability to generate customized multi-panel figures dramatically enhances the clarity and interpretability of complex analytical results. This comprehensive guide serves as your roadmap, detailing the essential syntax and walking you through four practical, step-by-step examples. We will demonstrate how to strategically arrange your visualizations—whether stacking them vertically, aligning them horizontally, or positioning them in intricate grid patterns—to ensure your findings are communicated with maximum precision and impact.

The subplots() Function: Infrastructure and Syntax

To initiate the creation of any multi-panel figure, the first step involves importing the necessary components from the library. We primarily rely on the pyplot module, which functions as the state-machine interface to Matplotlib and is conventionally aliased as plt. The central function for all subplot configuration is plt.subplots(), which provides a highly functional, object-oriented approach to figure management compared to older methods.

Crucially, the plt.subplots() function consistently returns a tuple containing two primary elements: the Figure object, which acts as the overarching canvas and container for all graphical elements, and the Axes object(s). When a request is made for multiple subplots (i.e., when rows or columns are greater than one), the Axes object returned is transformed into a specialized NumPy array of Axes instances. This array structure is essential because it allows developers to precisely address and manipulate each individual plot within the Figure using standard array indexing techniques.

The fundamental layout structure is determined by two key arguments passed to the function: nrows (defining the desired number of rows) and ncols (specifying the number of columns). For instance, establishing a layout consisting of two plots stacked one above the other requires setting nrows=2 and ncols=1. The basic initialization structure for defining a Figure with this vertical layout is demonstrated in the following code snippet, illustrating how the core Figure and Axes objects are instantiated:

import matplotlib.pyplot as plt

#define grid of plots
fig, axs = plt.subplots(nrows=2, ncols=1)

#add data to plots
axs[0].plot(variable1, variable2)
axs[1].plot(variable3, variable4)

In this foundational setup, the variable fig holds the reference to the entire canvas, while axs is a one-dimensional array. Consequently, axs[0] references the uppermost plot, and axs[1] references the plot directly beneath it. Data is visualized by calling specific plotting methods (such as .plot(), .scatter(), or .hist()) directly on these individual Axes objects. A solid grasp of this object allocation and indexing scheme is absolutely crucial for successfully managing and customizing more intricate visualization layouts.

Example 1: Vertical Stacking for Comparative Analysis (Row Layout)

A common requirement in fields like time series analysis or complex comparative studies is the need to display multiple related variables where the independent variable (the x-axis) is shared, yet the dependent variables (the y-axes) necessitate distinct scaling or ranges. Stacking plots vertically is the optimal layout choice for this scenario, as it maximizes the available vertical dimension for each plot’s unique y-axis details.

To achieve this precise vertical stack, the configuration requires setting the number of rows (nrows) equal to the total count of desired plots, while maintaining the number of columns (ncols) fixed at 1. In the concrete example provided below, we generate three distinct line plots, all aligned perfectly within a single column inside the main Figure container.

Due to the one-dimensional nature of this arrangement (a single column), the Axes object, axs, is indexed linearly, starting at axs[0]. Furthermore, we utilize the fig.suptitle() function to apply a centralized, overarching title across the entire figure. This ensures that the primary analytical objective of the visualization is immediately clear to the audience, regardless of the individual details presented in each subplot.

#create some data
var1 = [1, 2, 3, 4, 5, 6]
var2 = [7, 13, 16, 18, 25, 19]
var3 = [29, 25, 20, 25, 20, 18]

#define grid of plots
fig, axs = plt.subplots(nrows=3, ncols=1)

#add title
fig.suptitle('Plots Stacked Vertically')

#add data to plots
axs[0].plot(var1, var2)
axs[1].plot(var1, var3)
axs[2].plot(var2, var3)

Executing this code results in three clearly separated visualizations detailing the relationships among the sample variables (var1, var2, var3). This structural choice allows each subplot to maintain complete independence in its vertical scaling, which is a critical feature when dealing with datasets where the magnitude of values differs significantly between variables.

Example 2: Horizontal Arrangement for Direct Juxtaposition (Column Layout)

In contrast to the vertical stack, arranging plots horizontally is the preferred convention when comparing visualizations that either share a very similar y-axis scale or when the analytical goal benefits substantially from viewing the plots side-by-side for immediate juxtaposition. This configuration maximizes horizontal screen real estate and is achieved by setting nrows to 1 and explicitly defining the number of columns (ncols) required for the display.

For clarity, we intentionally utilize the identical sample data (var1, var2, var3) used in the previous vertical stacking example. This allows us to isolate and clearly demonstrate the significant visual impact achieved purely by modifying the layout parameters. By simply swapping the values assigned to the nrows and ncols arguments in the subplots function call, Matplotlib automatically reconfigures the plotting canvas to accommodate the new, column-based structure.

It is important to note that the array indexing for the Axes objects remains linear, even though the plots are physically arranged across the horizontal axis. Here, axs[0] refers to the leftmost plot, axs[1] targets the central plot, and so forth. This consistent, single-level indexing simplifies the process of iterating through and manipulating the subplots programmatically, whether the layout is structured vertically or horizontally.

#create some data
var1 = [1, 2, 3, 4, 5, 6]
var2 = [7, 13, 16, 18, 25, 19]
var3 = [29, 25, 20, 25, 20, 18]

#define grid of plots
fig, axs = plt.subplots(nrows=1, ncols=3)

#add title
fig.suptitle('Plots Stacked Horizontally')

#add data to plots
axs[0].plot(var1, var2)
axs[1].plot(var1, var3)
axs[2].plot(var2, var3)

This methodology proves exceptionally effective for generating compact visualization strips, which are frequently employed during exploratory data analysis (EDA) to facilitate rapid, side-by-side comparison of distributions, temporal trends, or relationships across diverse categorical groups.

Example 3: Constructing Detailed Grids (Matrix Layout)

When preparing presentations or reports that require the simultaneous display of numerous variables or multiple analytical perspectives, a true grid layout—a matrix of plots—represents the most space-efficient and sophisticated choice. This structure is activated whenever both the nrows and ncols parameters are set to values greater than 1. In this specific demonstration, we construct a 2×2 grid, thereby generating four independent plots tightly encapsulated within the single Figure object.

A critical distinction arises when defining a multi-dimensional grid: the method required for referencing the individual Axes changes fundamentally. The axs object is no longer a simple one-dimensional array; it transitions into a two-dimensional NumPy array. This transformation mandates the use of matrix-style indexing employing two coordinates: axs[row, column].

For a typical 2×2 grid configuration, the index assignment follows a standard, zero-based matrix convention. It is essential to internalize this indexing scheme for accurate plot assignment:

• The plot located in the top-left corner is addressed as: axs[0, 0]
• The plot in the top-right corner is addressed as: axs[0, 1]
• The plot in the bottom-left corner is addressed as: axs[1, 0]
• The plot in the bottom-right corner is addressed as: axs[1, 1]

Understanding and correctly applying this zero-based matrix indexing is fundamental to assigning the correct data plots to their intended position within the visualization grid. To fully populate all four panels, we introduce a fourth sample variable, var4, expanding our dataset for comprehensive comparison.

#create some data
var1 = [1, 2, 3, 4, 5, 6]
var2 = [7, 13, 16, 18, 25, 19]
var3 = [29, 25, 20, 25, 20, 18]
var4 = [4, 4, 6, 4, 7, 11]

#define grid of plots
fig, axs = plt.subplots(nrows=2, ncols=2)

#add title
fig.suptitle('Grid of Plots')

#add data to plots
axs[0, 0].plot(var1, var2)
axs[0, 1].plot(var1, var3)
axs[1, 0].plot(var1, var4)
axs[1, 1].plot(var3, var1)

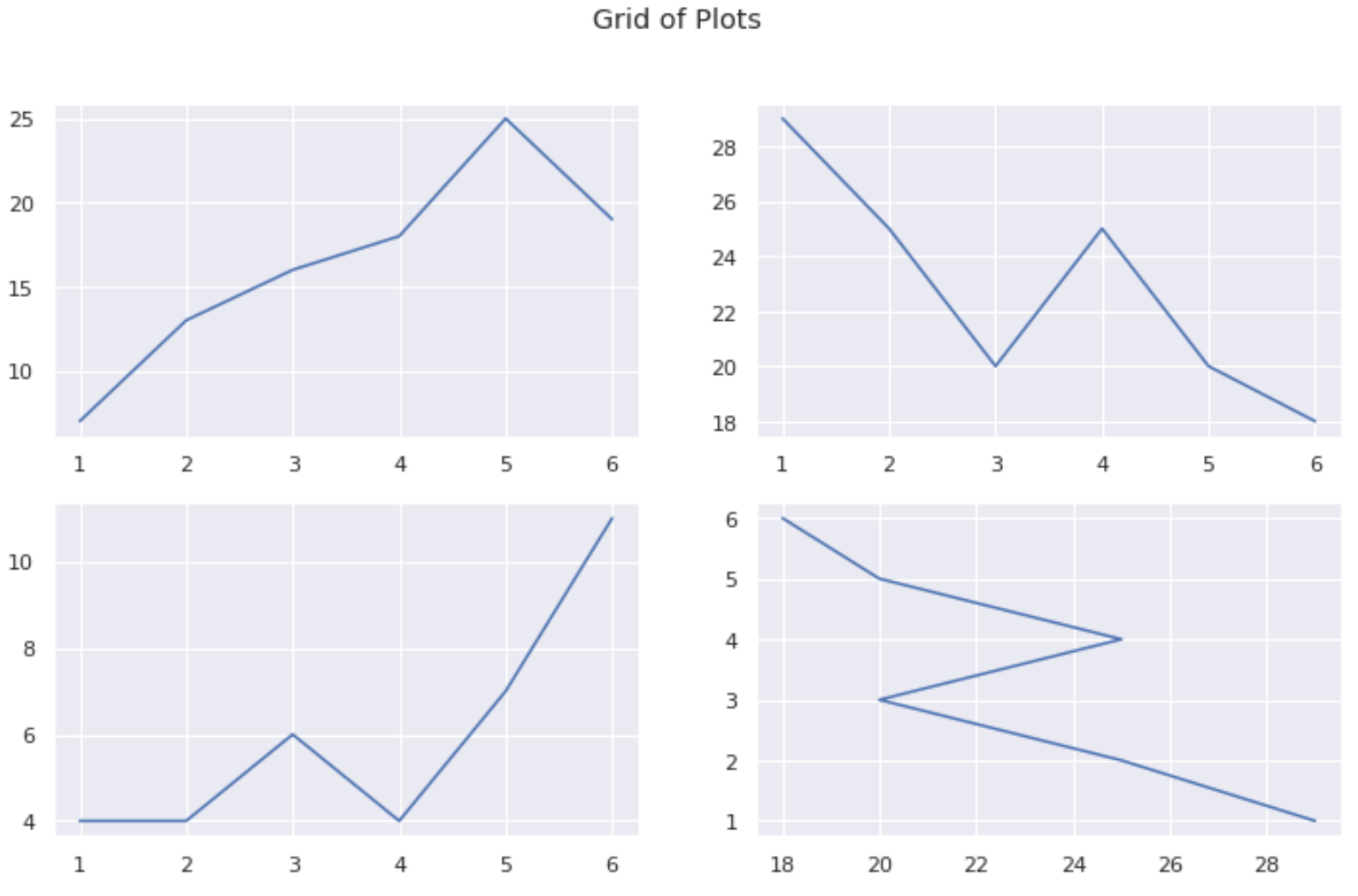

This versatile grid structure, established by setting nrows=2 and ncols=2, forms the essential foundation for generating detailed visual dashboards and for comparing multiple complex model outputs or experimental results side-by-side with high efficiency.

Example 4: Optimizing Visual Readability with Shared Axes

When visualizing highly related data, especially within a tightly organized grid or stack, it frequently becomes mandatory that all subplots utilize an identical scale for one or both axes. If all visualizations cover the identical temporal period or data range, allowing every plot to display redundant axis labels and tick marks can severely detract from the visual flow and complicate crucial cross-comparison efforts.

Matplotlib offers an elegant and powerful solution by enabling developers to pass the optional arguments sharex and sharey directly into the plt.subplots function call. Setting these parameters to True compels all instantiated Axes objects to adopt the exact same axis limits and tick positions. This feature guarantees that any adjustment to the underlying data range or scale is applied uniformly across all subplots, thereby ensuring complete visual consistency across the entire figure.

A significant benefit of utilizing shared axes is that Matplotlib automatically suppresses the redundant tick labels and scales that would otherwise appear on the internal plots. These labels are instead only displayed along the outer edge of the Figure—typically the bottom row for the x-axis and the leftmost column for the y-axis. This intelligent suppression mechanism substantially improves the overall visual cleanliness and helps maintain focus on the plotted data itself.

#create some data
var1 = [1, 2, 3, 4, 5, 6]
var2 = [7, 13, 16, 18, 25, 19]
var3 = [29, 25, 20, 25, 20, 18]
var4 = [4, 4, 6, 4, 7, 11]

#define grid of plots
fig, axs = plt.subplots(nrows=2, ncols=2, sharex=True, sharey=True)

#add title
fig.suptitle('Grid of Plots with Same Axes')

#add data to plots
axs[0, 0].plot(var1, var2)
axs[0, 1].plot(var1, var3)
axs[1, 0].plot(var1, var4)
axs[1, 1].plot(var3, var1)

The application of both sharex=True and sharey=True is a robust technique for standardizing the visual scale across multiple subplots. This standardization renders the direct comparison of trends, relative magnitudes, and volatility immediate and unambiguous. Such visual consistency is invaluable in environments like academic research, scientific publishing, and high-stakes business reporting where accuracy and standardization of presentation are mandatory requirements.

Advanced Customization and Finalizing the Figure

The utility of plt.subplots extends significantly beyond merely defining the initial layout structure. Because the function explicitly returns the Figure and Axes objects, users gain direct and comprehensive access to Matplotlib’s powerful object-oriented API for extensive customization. Once the foundational grid or stack is established, you possess the freedom to customize virtually every aesthetic aspect of each individual subplot. This includes adding unique, descriptive titles (using methods like ax.set_title()), defining distinct axis labels, incorporating individual legends, or applying specific color schemes—all while preserving the highly organized structure provided by the Figure container.

A common pitfall encountered when generating numerous plots, particularly in dense grid arrangements, is the issue of overlapping titles, axis labels, or tick marks, which severely diminishes readability. Matplotlib provides an essential tool to resolve this spacing challenge: the fig.tight_layout() method. This function intelligently analyzes the required space for all text elements (titles, labels, legends) and automatically adjusts the subplot parameters to introduce appropriate padding between them. It is strongly recommended practice to invoke this method immediately before rendering or saving the final figure to guarantee optimal presentation quality and visual clarity.

In conclusion, mastering the proper implementation of subplots is not merely an optional feature, but an essential skill set for anyone engaged in serious data analysis or professional visualization using Python. By effectively leveraging plt.subplots()—paying close attention to the definition of nrows, ncols, and crucial optional parameters like sharex and sharey—you can efficiently construct complex, publication-quality figures that communicate nuanced, multivariate relationships both clearly and persuasively.

Additional Resources for Matplotlib Expertise

To continue developing your expertise in advanced Matplotlib visualization techniques and to explore the full spectrum of available customization options, we highly recommend consulting the official documentation and comprehensive tutorials:

• The Official Matplotlib documentation on Figures and Axes, which offers detailed insight into the object-oriented approach governing all plotting elements and figure construction.
• In-depth tutorials specifically dedicated to the usage and flexibility of the pyplot.subplots function, particularly for achieving highly specific and non-standard subplot specifications.
• Guides focusing on the utilization of the GridSpec functionality, an advanced feature that allows for creating subplots with spans of varying sizes, which is exceptionally useful for constructing highly non-uniform and complex visual dashboards.
