Learning Seaborn: Creating Multi-Panel Figures for Data Comparison

Modern data visualization techniques frequently demand the comparison of distributions or relationships across distinct subsets of data. While simple, standalone plots offer basic insights, the most powerful analytical approach involves displaying these comparisons side-by-side in a consistent grid structure. This technique, commonly known as small multiples, is fundamental for effective comparative analysis. Within the Seaborn library for Python, the FacetGrid() class is the essential utility designed to generate multiple plots efficiently within a single, unified figure.

The FacetGrid() object excels at organizing complex datasets by partitioning the data across rows and columns based on specified categorical variables. This sophisticated mechanism allows data analysts to visualize precisely how a fundamental relationship—for instance, a scatter plot or a histogram—changes when conditioned on a grouping factor like “day of the week” or “gender.” By using this approach, the process of generating comparative plots is significantly simplified, ensuring that the visual consistency, including axis scales and aesthetic styles, remains uniform across all resulting subplots.

To successfully implement a faceted visualization, the user must first define the structure of this grid using the core parameters of FacetGrid(). The following simplified structure illustrates the fundamental steps required to instantiate the grid and then map a specific plotting function onto it:

# Define the grid structure based on grouping variables
g = sns.FacetGrid(data=df, col='variable1', col_wrap=2)

# Add plots (e.g., scatterplot) to each facet in the grid
g.map(sns.scatterplot, 'variable2', 'variable3')

This initial code segment highlights the essential mechanics of faceting. The col parameter is mandatory when partitioning columns, as it dictates the categorical variable used to divide the data subsets and distribute them horizontally across the grid. Equally important is the col_wrap argument, which grants critical control over the visualization’s layout. This parameter determines the maximum count of plots displayed before the grid automatically wraps the subsequent plots to a new row. Mastering the interplay between these two parameters is crucial for achieving a visually balanced, clean, and easily interpretable layout for any faceted visualization.

Mastering FacetGrid: The Engine for Comparative Visualization

The core philosophy behind FacetGrid is establishing a figure-level object that structurally links the organization of the data to the organization of the axes in the final visualization. It is important to note that FacetGrid does not execute the drawing of the statistical or relational plots itself. Instead, its primary function is twofold: first, it meticulously sets up the canvas, which is the grid of synchronized axes; and second, it provides the mechanism, primarily through the .map() function, to consistently apply a user-defined plotting function to every single subset of data defined by the chosen faceting variables. This elegant separation—managing structure versus executing plotting—is the source of Seaborn’s remarkable flexibility and power in creating complex, multi-panel figures.

When selecting the appropriate variable for the col parameter, data analysts must choose a categorical variable that contains a reasonable and manageable number of unique levels. A common pitfall is attempting to facet by a variable with too many distinct categories; this will inevitably result in a figure that is overly dense, visually cluttered, and exceedingly difficult for the viewer to interpret, even when judiciously employing the col_wrap parameter. As a rule of thumb and best practice, faceting is optimally effective for variables containing fewer than ten unique levels, thereby preserving clarity and ensuring the visual comparison remains straightforward.

Although not always necessary for simple comparisons, FacetGrid also supports the row parameter, which allows for vertical partitioning of the data. By combining both row and col, analysts can construct intricate matrix layouts, where each individual cell within the grid represents the unique intersection of two distinct categorical factors. However, for the majority of exploratory data visualizations that aim for simplicity and easy comparison, relying solely on the col parameter in conjunction with the effective use of col_wrap is often the most practical and efficient method for presenting complex data in a compact and highly readable form.

Preparing the Data: Utilizing the Seaborn Tips Dataset

To demonstrate the robust capabilities of FacetGrid() in a tangible setting, we will employ a widely recognized, built-in dataset readily available within the Seaborn library: the ‘tips’ dataset. This dataset is a cornerstone resource for illustrating statistical charting concepts, as it contains a rich mix of both categorical and quantitative variables related to restaurant dining transactions, including the total bill amount, the tip given, and various factors like the day of the week and gender of the patron.

Before we can proceed with any form of visualization, it is mandatory to load this data structure into our working environment using Seaborn’s built-in load_dataset function. This step guarantees that the dataframe is correctly instantiated and structured, making it immediately available for comprehensive statistical analysis. Following the loading process, we inspect the initial rows of the dataframe to gain an immediate understanding of its structure and to identify the relevant variables suitable for faceting, such as day, sex, and time.

# Load the 'tips' dataset using Seaborn's utilities
tips = sns.load_dataset('tips')

# Display the first five observations to verify data integrity
tips.head()

   total_bill	tip	sex	smoker	day	time	size
0	16.99	1.01	Female	No	Sun	Dinner	2
1	10.34	1.66	Male	No	Sun	Dinner	3
2	21.01	3.50	Male	No	Sun	Dinner	3
3	23.68	3.31	Male	No	Sun	Dinner	2
4	24.59	3.61	Female	No	Sun	Dinner	4

The output of the .head() command clearly reveals the relevant quantitative and categorical fields. For our subsequent examples, we will concentrate our efforts on faceting the data by the day variable, which encompasses the four days of service (Thursday, Friday, Saturday, and Sunday). Our analytical objective is to visually compare the distribution of the tip amount across these four distinct temporal categories, which represents an exemplary and ideal use case for a multi-panel visualization orchestrated by FacetGrid.

Example 1: Creating Multi-Panel Distribution Plots (Histograms)

The most fundamental application of FacetGrid() involves systematically generating a series of distribution plots, such as histograms, where the quantitative variable of interest is cleanly partitioned based on a single categorical factor. In this initial example, the goal is to produce four separate histograms, each showing the distribution of the tip amount, with one histogram dedicated to each day of the week present in the dataset.

We begin by initializing the grid, providing data=tips and explicitly setting col='day' to define the horizontal partitioning. Critically, we introduce col_wrap=2. This crucial parameter enforces a layout constraint, ensuring that the figure displays a maximum of two plots on any single row. This prevents excessive horizontal stretching, resulting in a more compact figure that is significantly easier to interpret. After defining this structural framework, we utilize the .map() method to apply the histplot function to the tip variable across all facets simultaneously.

# Define the grid structure, ensuring two plots maximum per row
g = sns.FacetGrid(data=tips, col='day', col_wrap=2)

# Apply the histogram plotting function (histplot) to the 'tip' variable across all facets
g.map(sns.histplot, 'tip')

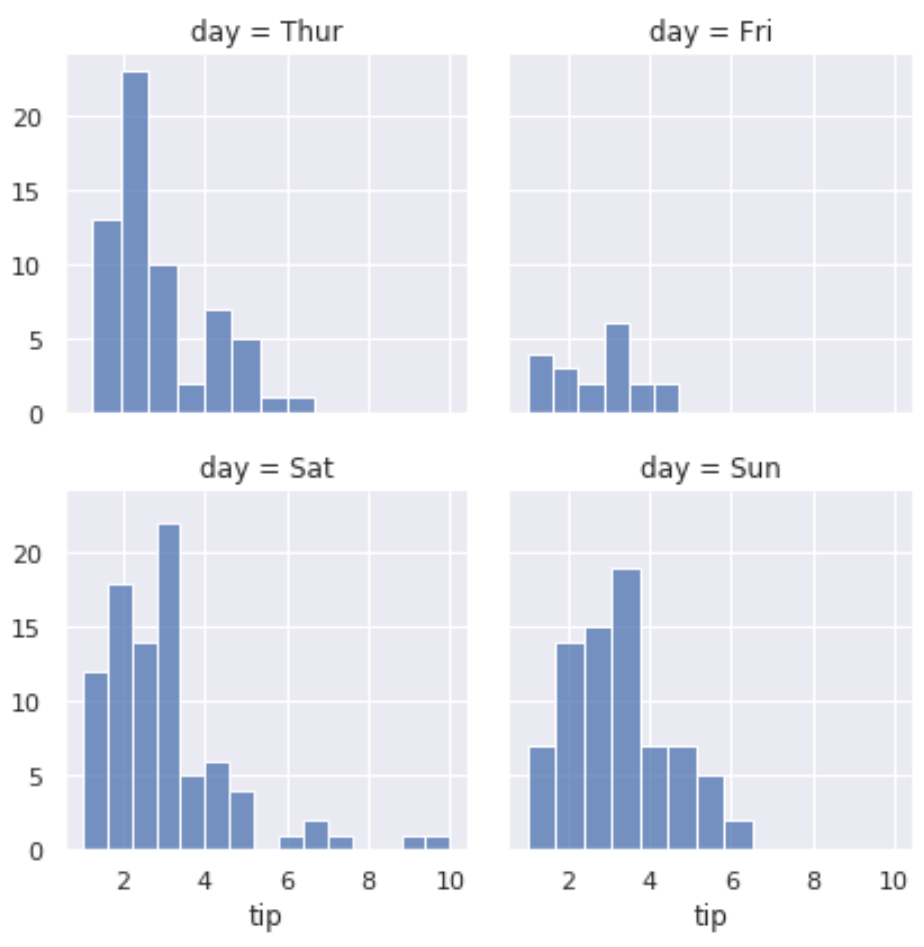

An analysis of the resulting output immediately validates the effectiveness of the FacetGrid architecture. We have successfully generated four distinct and perfectly aligned histograms—one each for Thursday, Friday, Saturday, and Sunday—all contained within a single figure canvas. This efficient sequence of code performed three key actions: first, it specified the grouping variable as ‘day’ using col; second, it controlled the figure’s aesthetic layout by mandating two plots per row via col_wrap; and third, it instructed Seaborn to render a histogram (using histplot) in every individual facet, isolating the distribution of ‘tip’ values specific to that particular day.

Example 2: Fine-Tuning Aesthetics with Height and Aspect Ratio

While the default dimensions generated by FacetGrid are generally functional, complex visualizations often benefit significantly from manual customization of the size parameters. This is particularly true when dealing with intricate distributions or when optimizing the visualization for display on specific publication layouts or screen dimensions. FacetGrid offers the height and aspect parameters specifically to grant fine-grained, independent control over the physical dimensions of the individual subplots within the grid.

The height parameter is used to explicitly control the vertical dimension (in inches) of each individual facet drawn in the grid. Concurrently, the aspect parameter operates as a multiplier, defining the ratio of the width to the height of each facet. For instance, setting the aspect value to 0.75 means that the resulting width of the subplot will be precisely 75% of its defined height. Adjusting these values is an essential step in ensuring that the visual elements are not unnecessarily distorted and that the “data ink” is maximized for clear interpretation.

In the following updated example, we retain the structural definitions from Example 1 but integrate specific values for height and aspect into the grid initialization. We set the height to 4 inches and the aspect ratio to 0.75, which results in individual plots that are noticeably taller and slightly narrower compared to the standard, default dimensions.

# Define the grid, specifying height and aspect ratio for customized subplot dimensions
g = sns.FacetGrid(data=tips, col='day', col_wrap=2, height=4, aspect=.75)

# Map the histogram plot function to the grid
g.map(sns.histplot, 'tip')

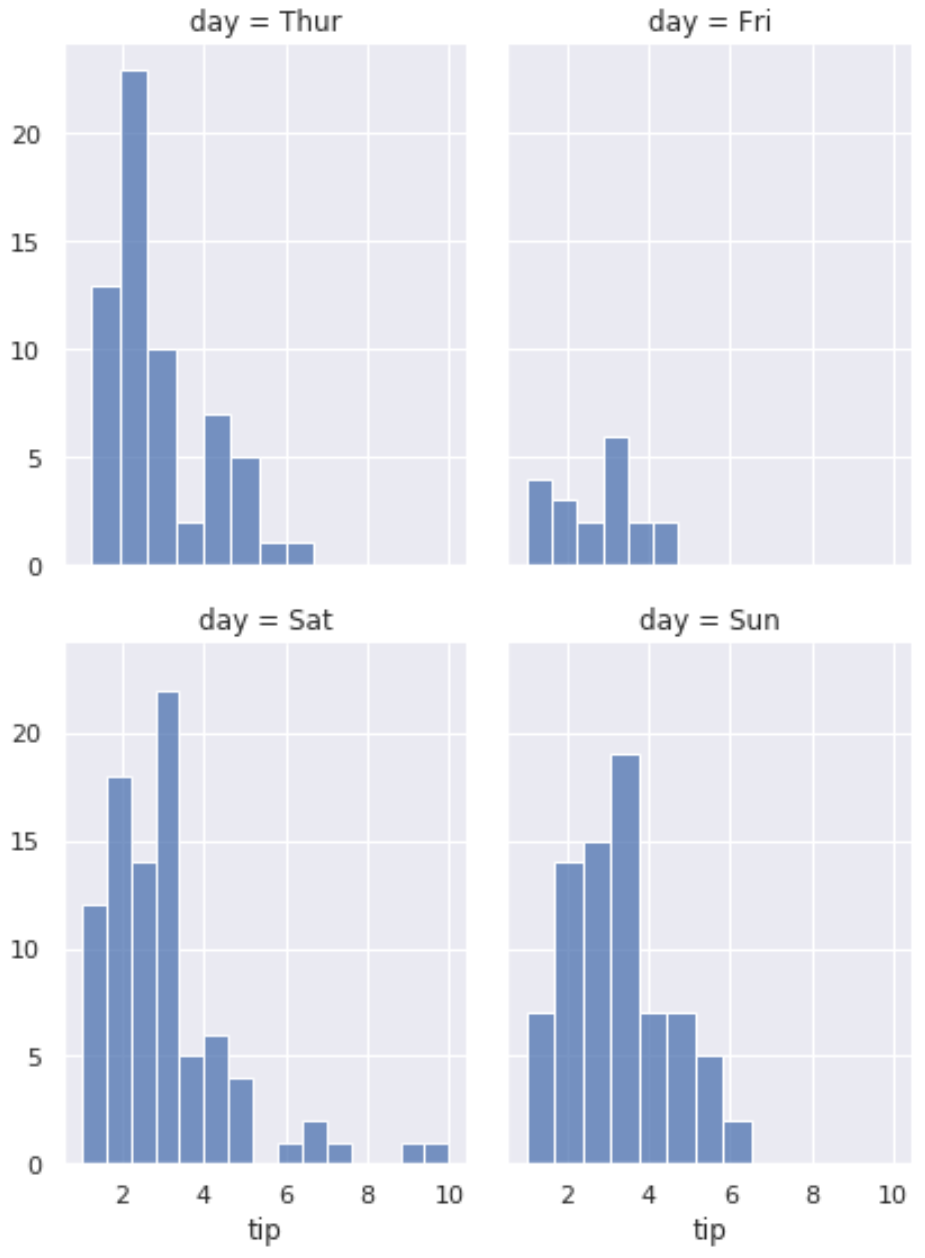

The resulting visualization is conspicuously different in its physical scale. By increasing the height of the individual facets, we grant more vertical space for the histogram bins, which can offer a clearer, less compressed view of the underlying distribution’s shape. This meticulous level of aesthetic control is paramount, ensuring that the generated visualization is not merely statistically accurate but also visually appealing and precisely tailored to the specific comparative analysis being undertaken.

Example 3: Introducing Hue, KDE Plots, and Legends

Faceting proves highly effective for partitioning data based on one categorical variable (e.g., day), but analysts often need to compare a second categorical variable (e.g., sex) simultaneously within each facet. This is precisely where the hue parameter demonstrates its indispensable value. By integrating hue, we introduce a color dimension to the plot, enabling the comparison of distributions across the faceting variable and the hue variable in a single, complex view.

In this advanced configuration, we will facet by day, as previously demonstrated, but we will introduce sex as the defining hue variable. Furthermore, instead of using standard histograms, we will transition to Kernel Density Estimates (KDE) plots, utilizing the kdeplot function. KDE plots are often preferred in detailed comparative analysis because they generate a smoothly continuous representation of the underlying probability distribution, making subtle differences between the groups (defined by the hue) much more visually apparent than discrete bins would allow.

A key technical consideration with FacetGrid is that although it maps the hue variable correctly, the legend is not automatically positioned properly within the figure area. Therefore, it is essential to explicitly invoke the .add_legend() method on the grid object (g) immediately after the plots have been mapped. This crucial step ensures that the color mapping (which is defined by the hue='sex' parameter) is clearly explained and accurately displayed within the final figure.

# Define grid, using 'day' for columns and 'sex' for color (hue)
g = sns.FacetGrid(data=tips, col='day', hue='sex', col_wrap=2)

# Add density plots (kdeplot) to each facet for the 'tip' variable
g.map(sns.kdeplot, 'tip')

# Display the legend based on the 'hue' variable
g.add_legend()

The final generated output represents a sophisticated and highly effective comparative visualization. We are now able to simultaneously observe the distribution of tips across the different days of the week, and within each day, we can directly compare the tipping behavior of male patrons versus female patrons. This powerful technique is extraordinarily efficient for multi-dimensional data exploration, allowing analysts to rapidly identify conditional relationships—for example, noticing that while overall tip distributions may significantly overlap on Sundays, they might exhibit subtle but critical differences between genders on Fridays.

Advanced Applications and Best Practices

While our examples focused on distributional plots—specifically histograms and KDEs—it is important to recognize the profound versatility of the .map() function. This function is designed to accept nearly any standard plotting function available in Seaborn, including relational plots such as scatterplot, or statistical plots like regplot. The intrinsic power of FacetGrid stems from its reliable ability to apply these diverse plotting functions consistently across all defined data subsets, thereby guaranteeing a trustworthy foundation for visual comparison.

For the creation of complex figures, it is absolutely crucial to maintain standardized axes. By default, Seaborn ensures that the axis limits (both X and Y) are shared consistently across all facets within the grid. This shared scaling is a vital feature for accurately comparing magnitudes and distributions across different groups. If, due to specific analytical requirements, independent axes are necessary, one would need to manually adjust parameters like sharex or sharey during the initial grid construction. However, overriding the shared axis default should generally be avoided unless strictly required, as differing scales can inadvertently mislead viewers when they attempt to compare the actual values.

When preparing these visualizations for final presentation, always prioritize the visual hierarchy and clarity of labels. If the automatically generated facet labels (the titles displayed above each plot) become verbose or confusing, consider utilizing the set_axis_labels or set_titles methods provided by the grid object to clean and streamline them. A meticulously structured multi-panel plot—achieved through the careful management of col, col_wrap, and aesthetic controls such as height and aspect—effectively transforms raw data subsets into compelling and actionable comparative insights. Mastering the use of FacetGrid is unequivocally a cornerstone skill for advanced data visualization in Python.

Additional Resources for Data Visualization Mastery

To further deepen your expertise in faceting and the implementation of small multiples within the Python visualization ecosystem, we strongly encourage exploring the official documentation for the primary functions utilized throughout this guide. Continued experimentation with different datasets and various plot types will solidify your capacity to generate complex, yet highly readable, comparative graphics that drive meaningful analysis.

For detailed API references and exploration of more complex examples, please consult the following resources:

• Review the Seaborn Axis Grid Tutorial.
• Explore how to customize colors and themes within Seaborn.
• Learn more about the underlying concepts of Small Multiples in visualization design.
