Learning to Create Progress Bars in Excel: A Step-by-Step Guide

Introduction: Elevating Data Visualization with Dynamic Progress Bars in Excel

In the dynamic world of reporting, achieving immediate clarity through data visualization is essential. Raw numbers, while necessary, often fail to convey status or momentum at a glance. Microsoft Excel, the industry standard for data manipulation and analysis, offers a powerful solution to this challenge: the creation of dynamic progress bars. These visual elements transform simple percentages into compelling graphical indicators, making it instantly clear whether a project is on track, nearing completion, or stalled. Moving beyond static figures, progress bars significantly enhance the interpretability of any spreadsheet or dashboard.

This comprehensive, step-by-step tutorial is designed for expert and novice users alike who wish to harness the visualization power inherent in Excel. We will detail the precise methodology for implementing these visually engaging bars, focusing on Excel’s built-in Conditional Formatting feature. This approach ensures that your visualizations are not only aesthetically pleasing but also fully integrated and responsive to underlying data changes.

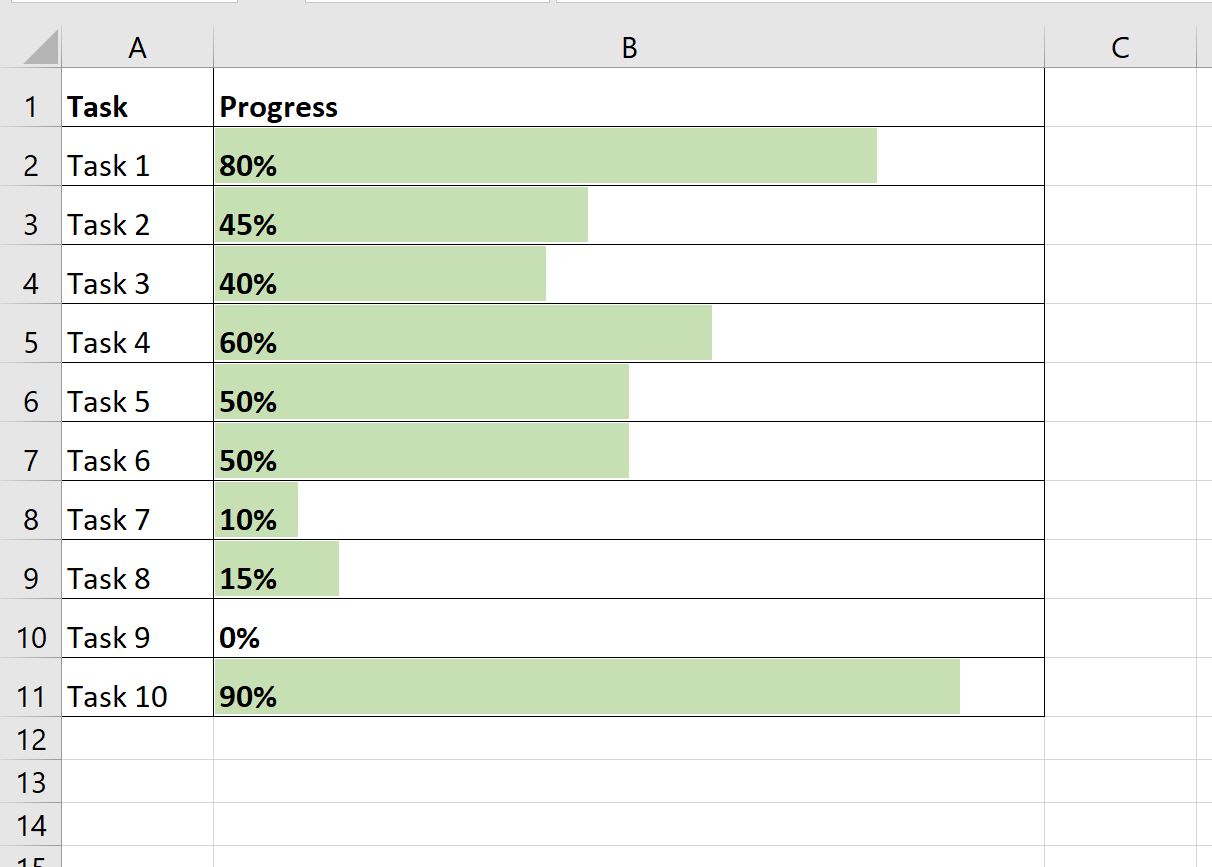

Our guide will move sequentially, starting from organizing source data to customizing the bar appearance, ensuring you gain granular control over the final output. By the conclusion of this reading, you will possess the requisite knowledge to implement highly functional progress indicators across your reports and dashboards. The following illustration provides a preview of the professional, actionable visualization we are aiming to create, offering a clear snapshot of task completion rates.

Step 1: Structuring and Formatting Source Data

The cornerstone of any effective visualization in a spreadsheet environment is meticulously structured data. Before we can render visual progress bars, we must establish a clear set of numerical values that accurately reflect the current completion status of various items or tasks. These values are conventionally expressed as a percentage—representing the portion completed out of a total possible 100%. For optimal compatibility and functionality with Excel’s conditional formatting rules, it is strongly recommended that these values be entered either as decimal figures (e.g., 0.85 for 85%) or as percentages directly formatted within Excel (e.g., 85%).

To initiate the process, open the target Excel workbook and identify the sheet where progress tracking is required. For the purpose of this example, we will track the completion status of a set of ten distinct tasks. A standard setup requires two primary columns: the first dedicated to the descriptive title of the task (e.g., Column A), and the second reserved for the corresponding progress percentage (e.g., Column B). You should populate the task names across cells A2 to A11 and enter the associated percentages into the adjacent range B2 to B11.

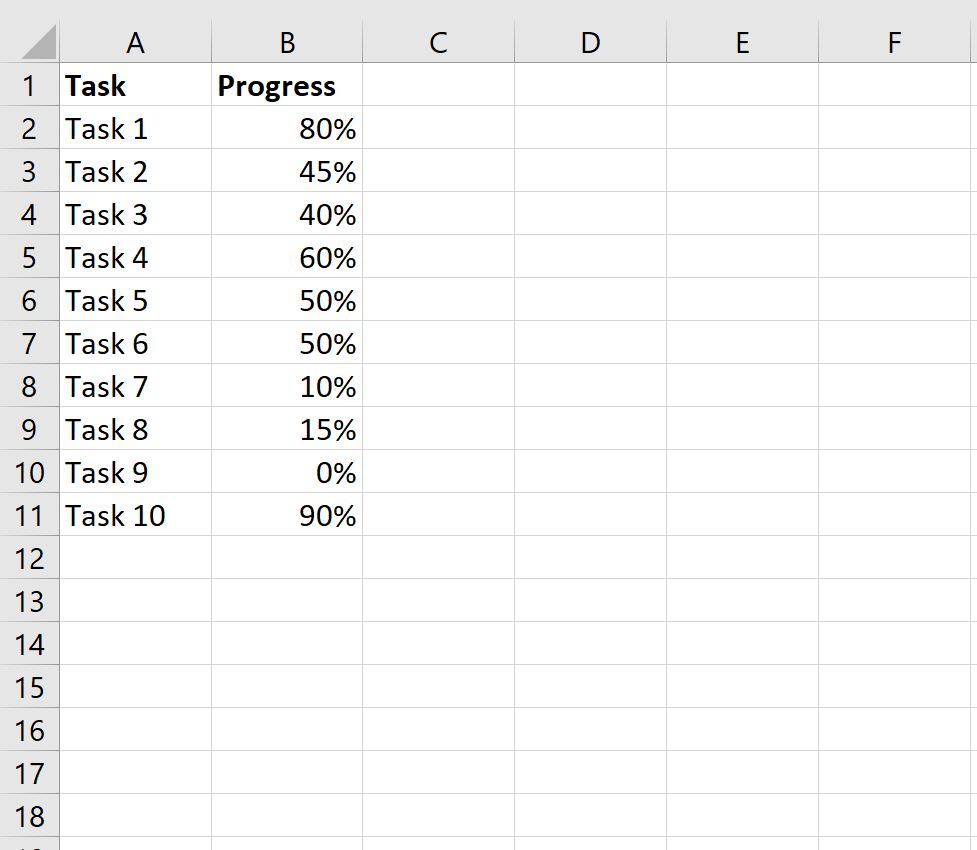

Accuracy in data entry is paramount, as the numerical values in Column B will directly govern the visual length and appearance of the resulting progress bars. For instance, if a task is determined to be 72% complete, the corresponding cell in Column B must contain the value “0.72” or “72%.” This structured and numerical foundation ensures that Excel can correctly interpret the data scale (0 to 1) required for accurate visual representation. The following image demonstrates the correct initial arrangement for your data set, providing a clear starting point for the subsequent visualization steps.

Step 2: Activating Data Bars via Conditional Formatting

Once the source data is meticulously prepared, the next critical phase involves leveraging Excel’s powerful Conditional Formatting feature. This functionality is the engine behind our progress bars, allowing the application of specific visual formats based automatically on the numerical content of a cell. Specifically, we will utilize the “Data Bars” option, which intelligently fills each selected cell proportionally to its numerical value, effectively creating a miniature, in-cell bar chart.

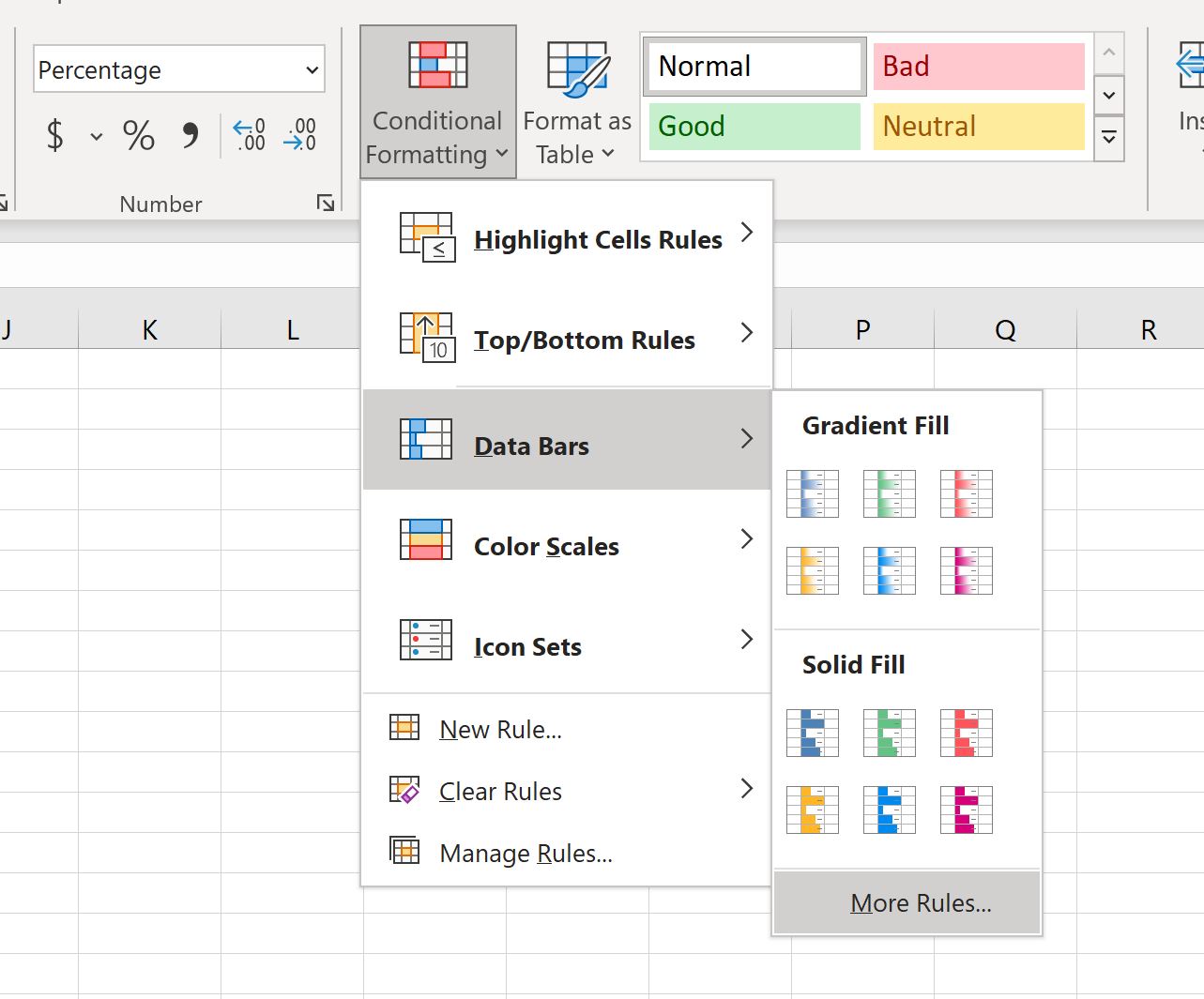

To begin the application process, precisely select the range of cells containing your progress percentages—in our defined example, this is the range B2:B11. After highlighting the range, navigate to the Home tab located on the Excel ribbon. Within the Styles group, locate and click the Conditional Formatting icon. This action will trigger a dropdown menu displaying various formatting options applicable to the selected data.

From this menu, move your cursor over the Data Bars option. A subsequent submenu will appear, presenting a variety of preset color schemes, such as gradient fills and solid fills. While selecting a preset color is possible here, to ensure absolute control over the visualization parameters—especially setting the 0% and 100% bounds accurately—it is imperative that we select More Rules… located at the bottom of the Data Bars submenu. Choosing this option opens the dedicated dialog box, granting the necessary granular control to fine-tune the display parameters of our progress bars.

Step 3: Defining Precision Parameters for Progress Bars

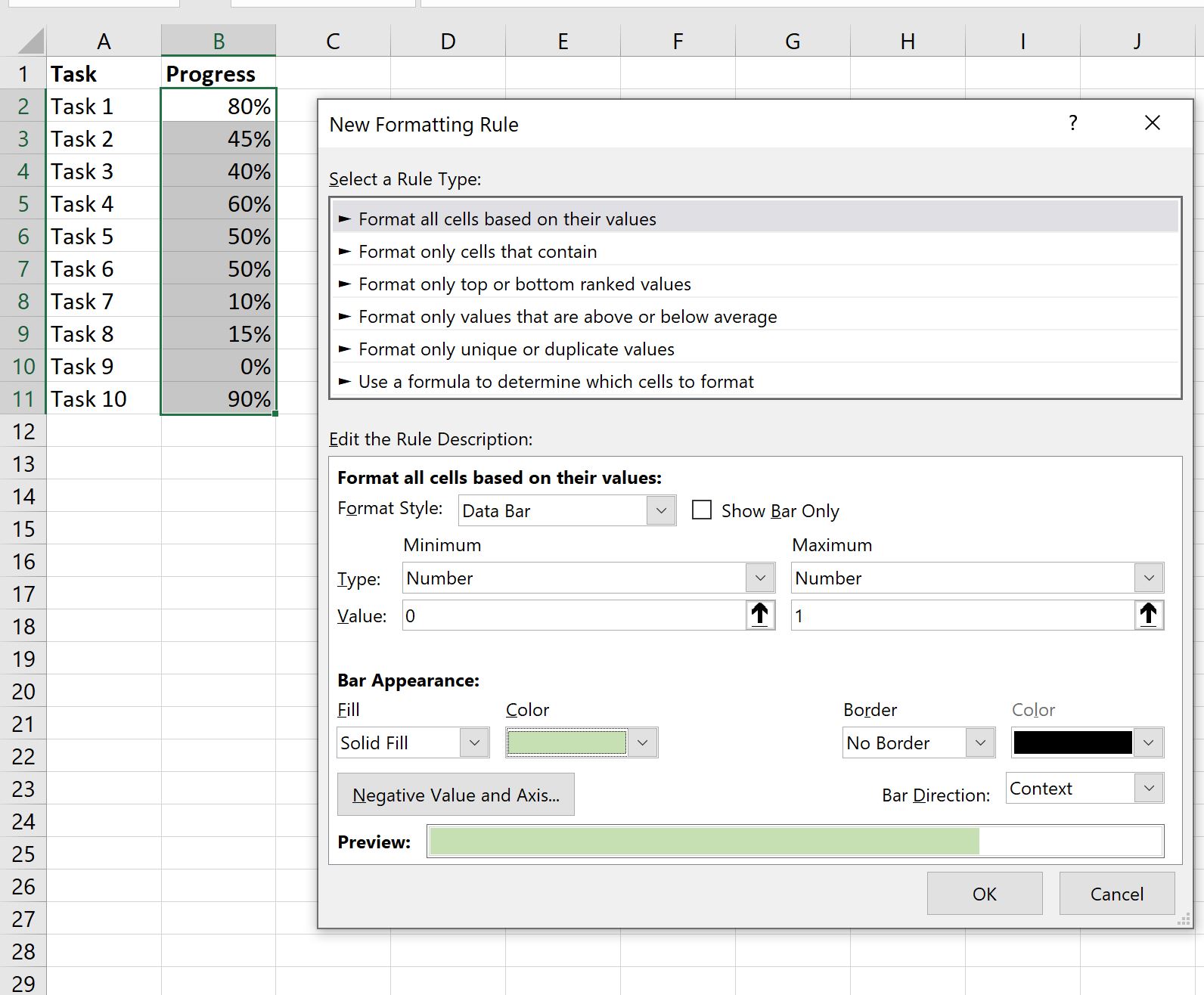

The New Formatting Rule dialog box, accessed in the previous step, is the control center for defining the precise functionality of the progress bars. The default settings often employ “Automatic” minimum and maximum values, which can lead to bars scaling improperly if the data set does not span the full 0% to 100% range. To create a reliable and consistent progress indicator, we must explicitly define the fixed numerical boundaries.

Within the Edit the Rule Description area of the dialog box, locate the Minimum and Maximum configuration settings. For both minimum and maximum, change the Type dropdown selection from “Automatic” to Number. This crucial adjustment allows us to input fixed boundaries that anchor the scale. Set the Value for the Minimum to 0, ensuring that 0% completion results in an empty bar. Subsequently, set the Value for the Maximum to 1. This setting is vital because Excel interprets the value 1.00 as 100% completion, guaranteeing that a fully completed task fills the cell entirely.

Following the boundary definition, you can proceed to customize the visual aesthetics under the Bar Appearance section. Here, select your preferred Fill color for the bar. Choosing a color that aligns with your corporate identity or dashboard theme—such as a vibrant green to signify positive progress—is highly effective. Furthermore, this dialog box allows you to adjust the border style and, critically, decide whether to display the numerical value alongside the bar. While “Show Bar Only” saves space, leaving the number visible often provides maximum clarity. Once these precise settings are locked in, click OK to apply the rule across your selected data range.

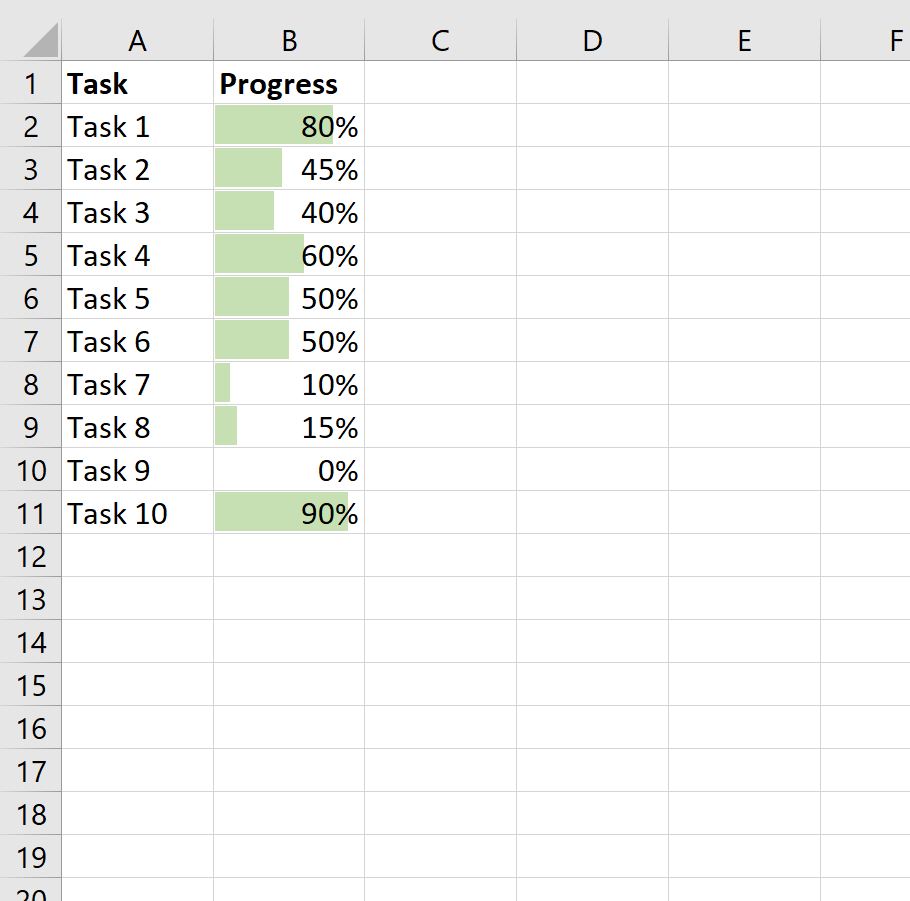

The immediate result of applying this rule is the visual transformation of the selected cells (B2:B11). Each cell now features a progress bar whose length dynamically corresponds to the underlying percentage. This simple yet powerful integration instantly converts a column of dry numerical data into an intuitive and easily digestible visual report, ready for presentation.

Step 4: Enhancing Readability and Visual Impact

While the progress bars are functionally complete, their initial display might be hampered by the default dimensions of the column and row. To ensure maximum visual impact and optimal readability, it is crucial to adjust the size of the cells containing the data bars. A larger bar is inherently easier to interpret and significantly elevates the overall professional quality of the spreadsheet visualization.

The first adjustment involves increasing the column width of Column B (or the column holding the bars). This can be achieved easily by hovering over the boundary line between the column B and column C headers until the resizing cursor appears, and then dragging the boundary to the right. Concurrently, increasing the row height for the relevant data rows (Rows 2 through 11 in our case) can further improve the aesthetic presentation. Experimentation with these dimensions is encouraged until the progress bars are prominently displayed and aesthetically harmonious within the report layout.

This seemingly minor formatting tweak holds major implications for user experience. Providing ample space ensures that stakeholders can quickly and effortlessly grasp the progress status at a single glance, without having to strain to read compressed visual elements. A well-proportioned and prominent visual component is indispensable to the overall effectiveness of your data visualization strategy.

Dynamic Responsiveness and Key Applications

A core advantage of creating progress bars using Conditional Formatting is their inherent dynamism. Unlike static charts or manually drawn elements, these bars are perpetually linked to the source numerical data. This means that any modification made to the underlying percentage values within the cells will trigger an automatic and instantaneous update to the visual length of the corresponding progress bar. This real-time visual feedback loop is critical for maintaining accurate and up-to-date dashboards and project monitoring tools.

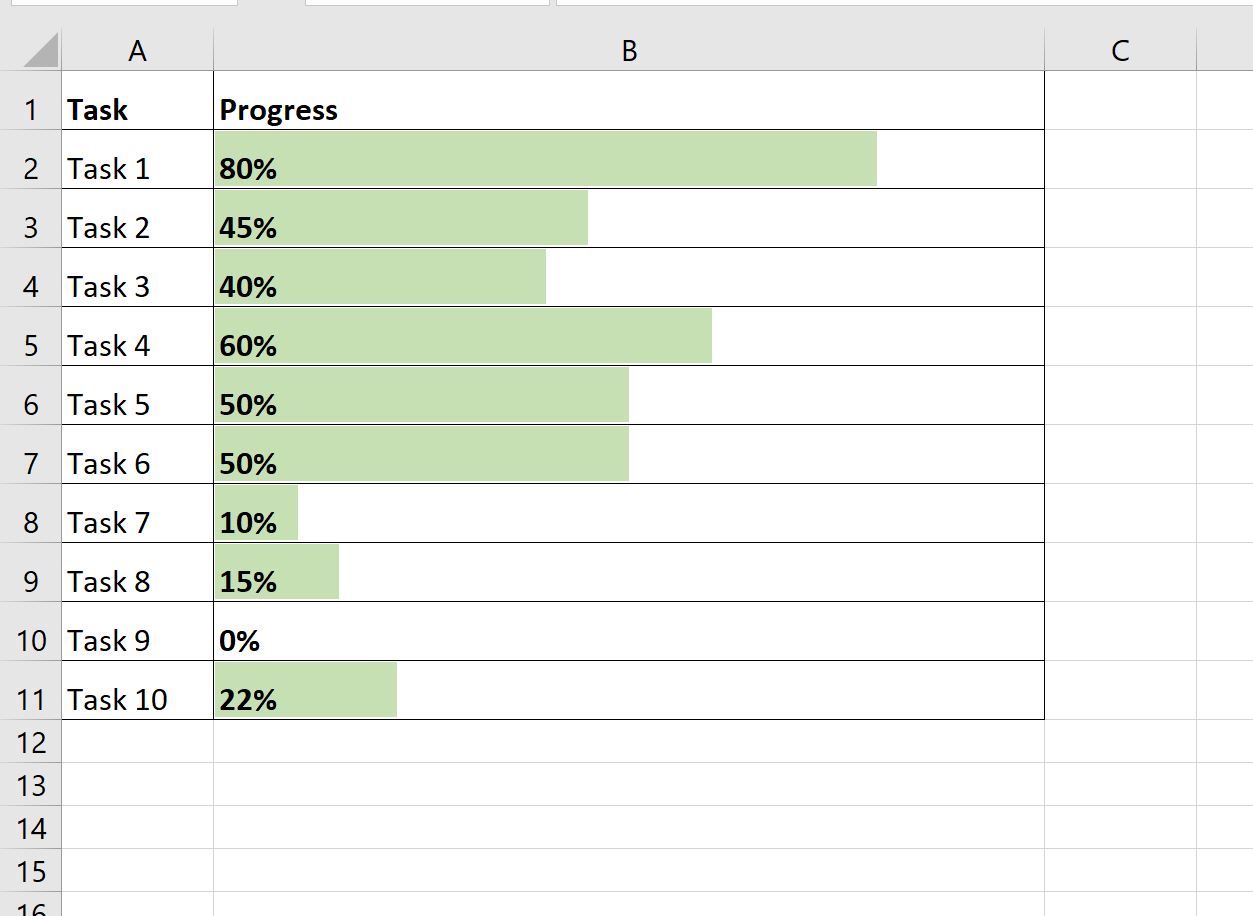

Consider a scenario in a fast-paced environment: if a task status jumps from 45% completion to 88% completion, the progress bar will visibly lengthen immediately upon the data entry. Conversely, if a scope change forces a re-evaluation, resulting in the status dropping from 70% to 30%, the bar will instantly contract to reflect the new reality. This responsiveness eradicates the time-consuming process of manually refreshing or redrawing charts, significantly boosting efficiency and minimizing reporting errors.

The practical applications of these dynamic progress visualizations are extensive. They are invaluable for project management dashboards, providing managers with an immediate health check on numerous deliverables. Furthermore, they are highly effective for tracking budget consumption, monitoring milestones in HR or marketing campaigns, visualizing Key Performance Indicators (KPIs), or simply offering an easy-to-read overview of any process that can be quantified in measurable stages. By embedding these visual cues, you effectively transform a standard Excel sheet into a sophisticated, highly interactive reporting instrument.

Conclusion: Mastering Progress Visualization in Excel

The ability to generate functional and aesthetically pleasing progress bars in Excel is an easily attainable skill with a substantial impact on data presentation quality. By meticulously following this tutorial, you have learned the crucial steps: preparing data as decimals, applying the Data Bar feature, and customizing the Conditional Formatting rules to establish precise 0 to 100% boundaries. The resulting dynamic visualization ensures that your reports are continuously current, offering actionable, real-time insights with minimal ongoing effort.

Adopting advanced data visualization techniques such as these significantly enhances the speed and accuracy with which information is digested and understood by your audience. Whether managing complex project management portfolios or simply tracking personal goals, mastering the visual conveyance of progress is an indispensable skill for any modern Excel professional.

We strongly recommend experimenting further with the customization options—adjusting color schemes, exploring gradient fills, and integrating these bars with other Conditional Formatting rules to create truly bespoke and powerful dashboards. Continuous exploration of Excel’s advanced functionalities will ensure your reports remain at the forefront of clarity and professional presentation.
