Learn to Create Progress Bars in Google Sheets: A Step-by-Step Tutorial

In the dynamic world of Google Sheets, effectively visualizing data is paramount for clear communication and quick insights. Among the many tools available, progress bars stand out as an intuitive and universally recognized method to represent completion rates, project statuses, or task advancement. This comprehensive, step-by-step tutorial will guide you through the precise process of creating visually engaging and highly functional progress bars directly within your spreadsheets, significantly enhancing your data visualization capabilities and transforming static numbers into dynamic indicators.

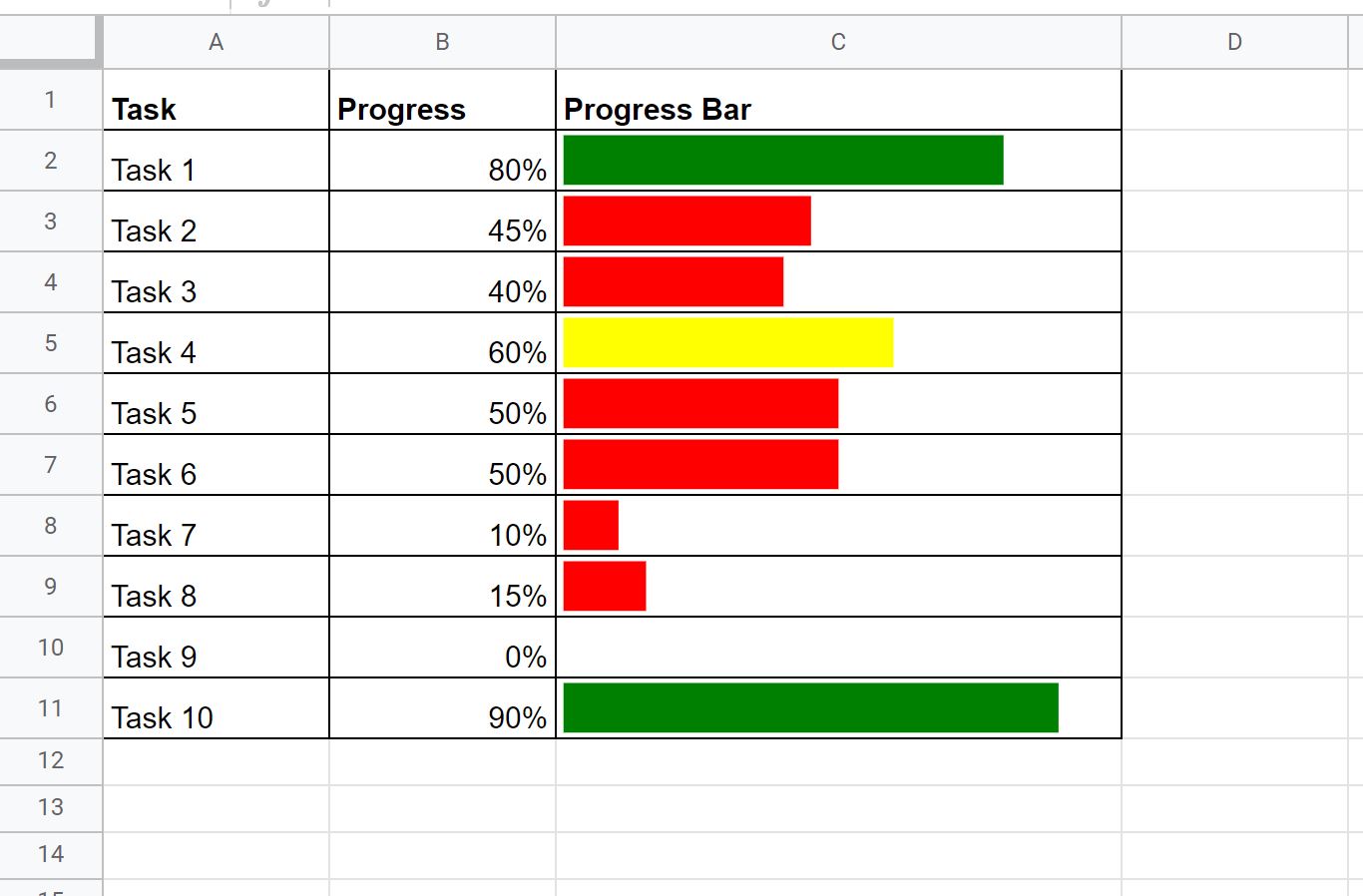

By diligently following the instructions outlined below, you will learn the necessary techniques to transform raw percentage data into clear, graphical representations. This immediate visual feedback is essential for dashboards and reports, allowing stakeholders to grasp complex project statuses at a glance, similar to the professional example shown here:

The Power of the SPARKLINE Function

Before diving into the practical implementation steps, it is fundamentally beneficial to understand the core function that makes these miniature progress bars possible: the SPARKLINE function. A Sparkline is defined as a tiny, in-cell chart that provides a concise visual summary of data trends without requiring the space of a full chart object. This feature is particularly ideal for environments like dashboards and management reports where screen real estate is at a premium but visual impact is crucial for rapid analysis.

The inherent flexibility of the SPARKLINE function allows it to generate various chart types, including lines, columns, win/loss indicators, and, most importantly for our application, horizontal bars. By meticulously configuring its optional parameters—such as charttype, max, min, and color1—we can dictate the precise appearance, range, and color scheme of our progress indicators. This high degree of customization ensures that the resulting visuals perfectly align with diverse corporate reporting standards and user needs.

Mastering the configuration of the optional parameters within the SPARKLINE function is the key to creating sophisticated and informative visual aids. Understanding how to set the maximum (100%) and minimum (0%) values is essential, as this defines the scale against which the progress is measured, ensuring accuracy in the visual representation of completion rates.

Step 1: Data Preparation and Structuring

The foundation of any highly effective data visualization project rests on well-organized and accurate input data. For the creation of dynamic progress bars, this preparation typically involves setting up a list of measurable items or tasks alongside their respective completion percentages. You must begin by structuring your Google Sheets document with clear, descriptive column headings and accurately populated data points.

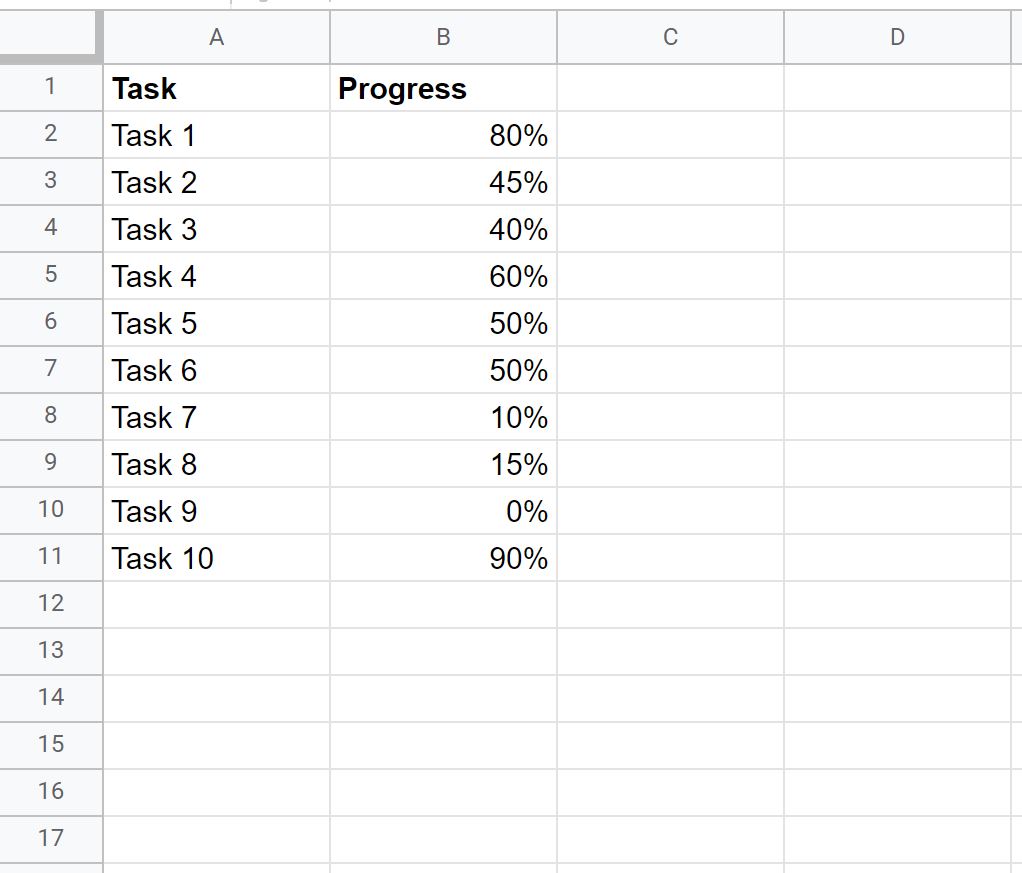

For the purpose of this tutorial, we will utilize a straightforward dataset that illustrates the percentage progress for ten distinct project tasks. It is imperative to ensure that your percentage values are entered into the spreadsheet in a consistent and machine-readable format. While Google Sheets can format cells as percentages, it is often best practice for formula application to treat these values as decimal numbers (e.g., entering 0.75 for 75%). This consistency significantly streamlines the subsequent application of the `SPARKLINE` formula.

Having your data correctly entered and standardized is the critical first step. It directly dictates the accuracy, visual integrity, and reliability of the progress bars you are about to generate. We strongly recommend performing a quick audit of your entries to prevent any subtle discrepancies that could skew the final visual output.

Step 2: Generating Basic Progress Bars with SPARKLINE

Once your prerequisite data is prepared and structured, the next crucial step involves applying the powerful SPARKLINE function to generate the actual visual progress bars. This versatile function will intelligently interpret your decimal percentage values and render them as proportional graphical bars within the confines of individual cells, thus creating immediate visual metrics.

To construct the most basic progress bar for your first task, navigate to the designated visualization cell—for example, cell C2 (assuming your percentage data is located in column B, starting from B2). Enter the following specific formula. This command instructs Google Sheets to draw a bar chart based on the value found in cell B2. Crucially, it sets the maximum possible value (max) to 1 (representing 100% completion) and the minimum (min) to 0, and assigns a default color of green:

=SPARKLINE(B2,{"charttype","bar";"max",1;"min",0;"color1","green"})

After successfully entering and confirming the formula in cell C2, you can efficiently replicate this functionality across all remaining tasks in your list. The standard method involves selecting cell C2, then utilizing the fill handle—the small square located at the bottom-right corner of the cell—and dragging it downwards. This action automatically copies the formula, ensuring that the cell reference adjusts dynamically (B2 automatically becomes B3, B4, and so on), thereby generating an accurate and corresponding progress bar for every data point in column B.

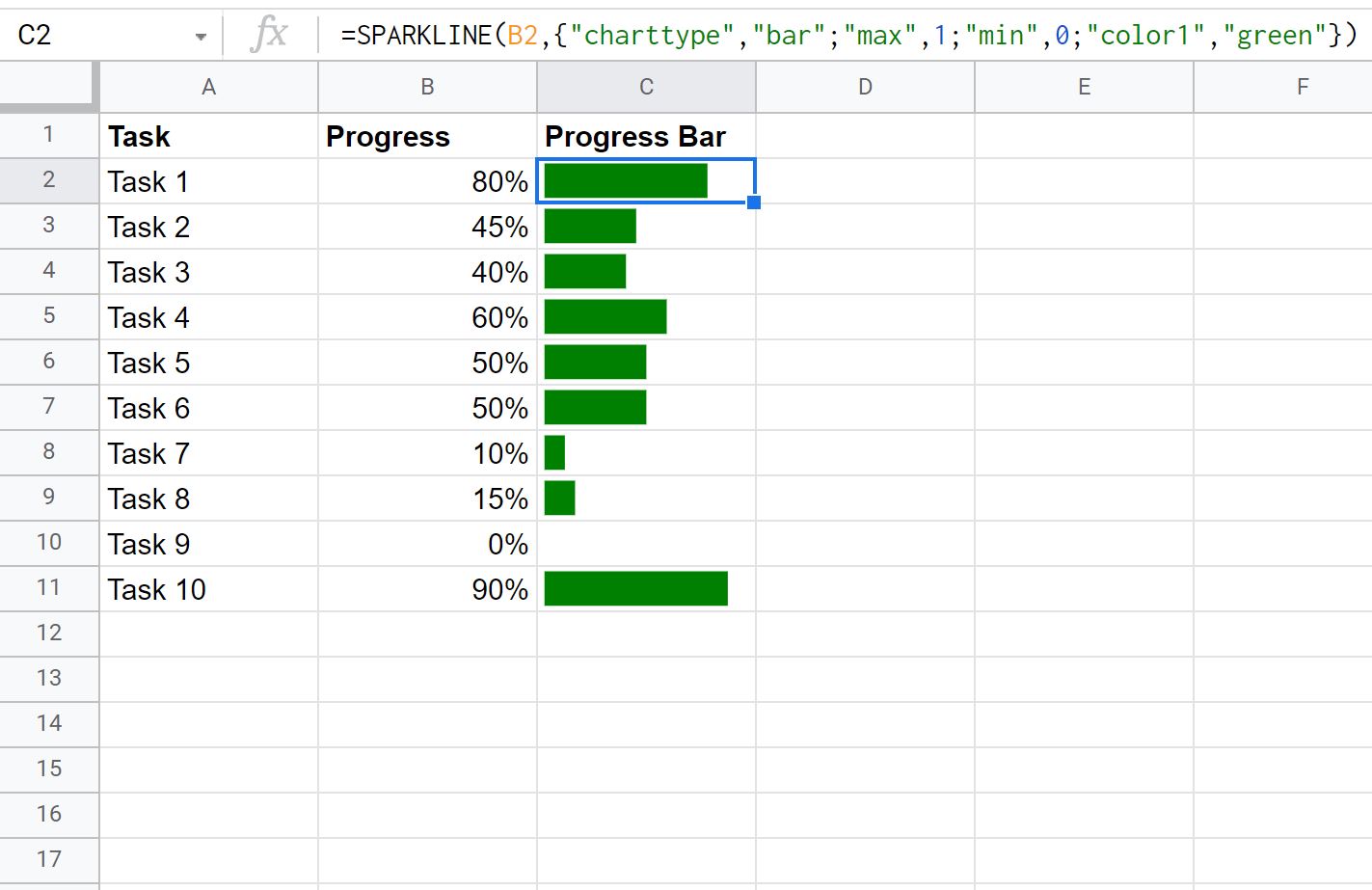

Upon completion of this step, you will immediately observe that the visual length of each progress bar in column C dynamically mirrors the exact percentage value specified in column B. This powerful visual feedback mechanism makes it incredibly simple and fast to interpret the progress status of each task without needing to read the raw numbers individually.

Step 3: Implementing Dynamic Conditional Coloring

While a single-colored progress bar provides essential functionality, the application of conditional formatting can dramatically enhance its interpretability and utility. By programmatically changing the color of the progress bar based on predefined performance thresholds, you can instantly highlight tasks that are successfully on track, those nearing completion, or, critically, those that are falling behind schedule. This dynamic coloring provides a significantly more nuanced understanding of the overall project status.

This advanced effect is achieved by embedding a logical IF function directly within the SPARKLINE formula. This allows the crucial color1 attribute to dynamically change based on the evaluation of the percentage value in the reference cell. For example, a common scheme dictates a green bar for high progress, yellow for moderate progress requiring attention, and red for low progress indicating potential risk. Consider the following enhanced formula, which implements a standard risk-based color scheme:

=SPARKLINE(B2,{"charttype","bar";"max",1;"min",0;"color1",IF(B2>0.7,"green",IF(B2>0.5,"yellow","red"))})

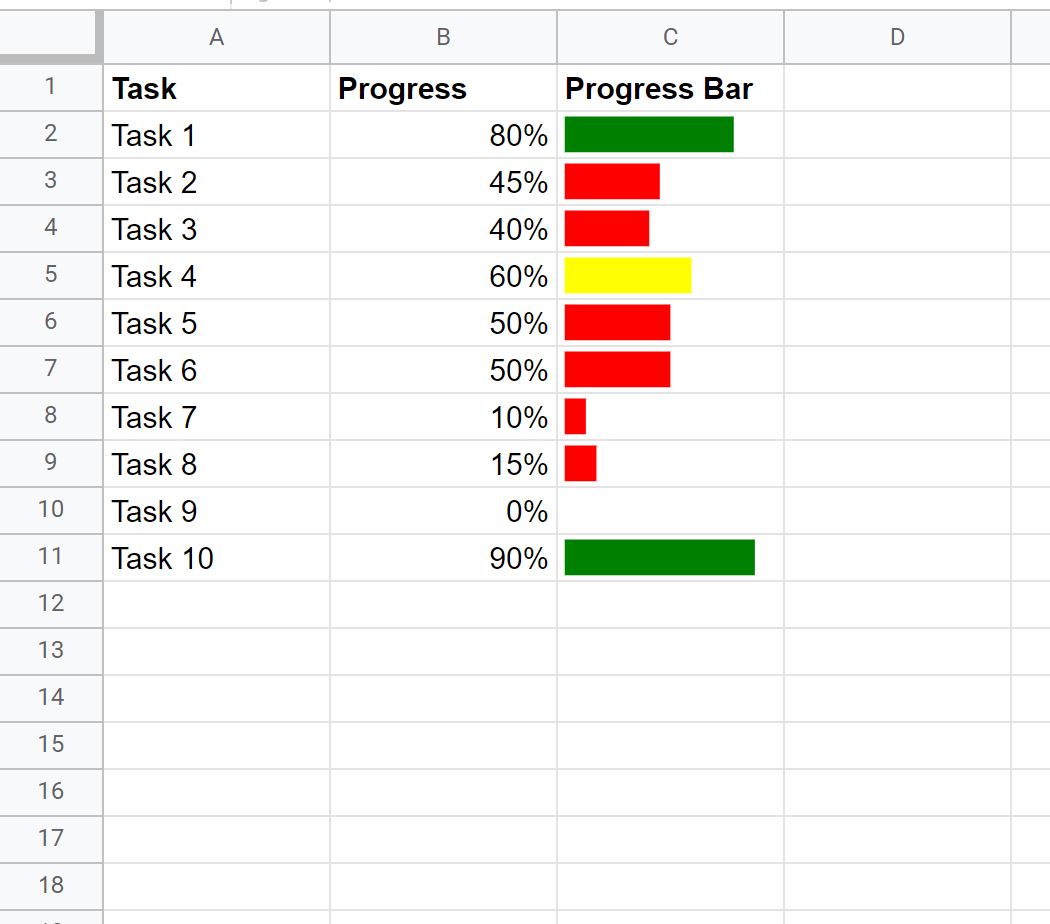

This sophisticated formula utilizes nested IF functions to rigorously check the numerical value contained in cell B2. If the progress percentage is greater than 0.7 (70%), the bar will be rendered in attention-grabbing green. If it fails the first condition but is greater than 0.5 (50%), it defaults to caution yellow. Finally, for any percentage value 50% or below, the bar will be displayed in risk red. The following screenshot clearly illustrates the practical application and visual impact of this conditional formula:

By implementing these strategic conditional colors, your progress bars evolve from simple indicators into immediate visual alerts or affirmations. They powerfully draw the viewer’s attention to specific areas that urgently require intervention or, conversely, celebrate significant achievements.

Advanced Visual Customization Tips

Beyond the critical aspect of conditional coloring, you have the ability to further refine the aesthetic appeal and overall readability of your progress bars through supplementary formatting techniques available in Google Sheets. These seemingly minor adjustments can have a profound impact on how quickly and effectively your audience can interpret the visual data presented.

To ensure your progress bars are maximally prominent and easy to digest, consider thoughtfully adjusting the dimensions of the cells in which they reside. Specifically, increasing the row height and, if necessary, the column width will proportionally enlarge the visual display of the bars. This enhancement improves visibility, particularly when viewing reports on smaller screens or when the density of data is high.

Furthermore, applying a subtle but defined border around the cells containing the Sparkline charts can effectively delineate each progress bar, making the overall presentation significantly cleaner, more professional, and highly organized. Such detailed visual enhancements ensure that your data visualization solution is not only mathematically accurate but also superior in terms of professional presentation and user-friendliness.

Conclusion and Next Steps

Creating dynamic, highly informative, and visually appealing progress bars in Google Sheets is a remarkably straightforward process that fundamentally enhances your data visualization capabilities. By skillfully leveraging the versatile SPARKLINE function and intelligently incorporating conditional logic using the IF function, you can transform otherwise raw numerical data into powerful, instant visual insights, thereby enabling far better project tracking and more informed decision-making.

Regardless of whether your goal is managing complex project timelines, tracking personal development goals, or monitoring critical business metrics, these interactive progress bars represent an invaluable tool for achieving immediate, at-a-glance understanding. We strongly encourage you to experiment with different conditional color thresholds and aesthetic formatting options to create visualizations that perfectly match your specific reporting requirements and organizational standards.
