Learning Curve Fitting Techniques in Excel: A Step-by-Step Guide

In practical data analysis, it is frequently necessary to determine the underlying mathematical equation that best models the relationship between variables within a given dataset. This process, known as curve fitting, transforms raw data points into a powerful predictive tool.

Fortunately, finding this precise equation in Excel is straightforward thanks to the integrated Trendline function. The Trendline tool calculates and displays the regression equation directly on your chart, making complex modeling accessible to all users.

This detailed tutorial provides a step-by-step walkthrough of how to utilize the Trendline feature to fit a customized equation to a curve in Excel, ensuring you select the most appropriate model for your data.

Understanding the Importance of Curve Fitting

Curve fitting is a fundamental technique in statistical and engineering disciplines. Its primary goal is to derive a continuous function that closely approximates the discrete points of observed data. This function allows for key analytical tasks, including interpolation (estimating values within the observed range) and extrapolation (forecasting values outside the observed range).

When working with data in Excel, the choice of fit—whether linear, exponential, or polynomial—is crucial. An appropriate model must accurately reflect the visual pattern of the data without becoming overly complex, a balance we will explore through the use of different polynomial orders.

Step 1: Preparing Your Data for Analysis

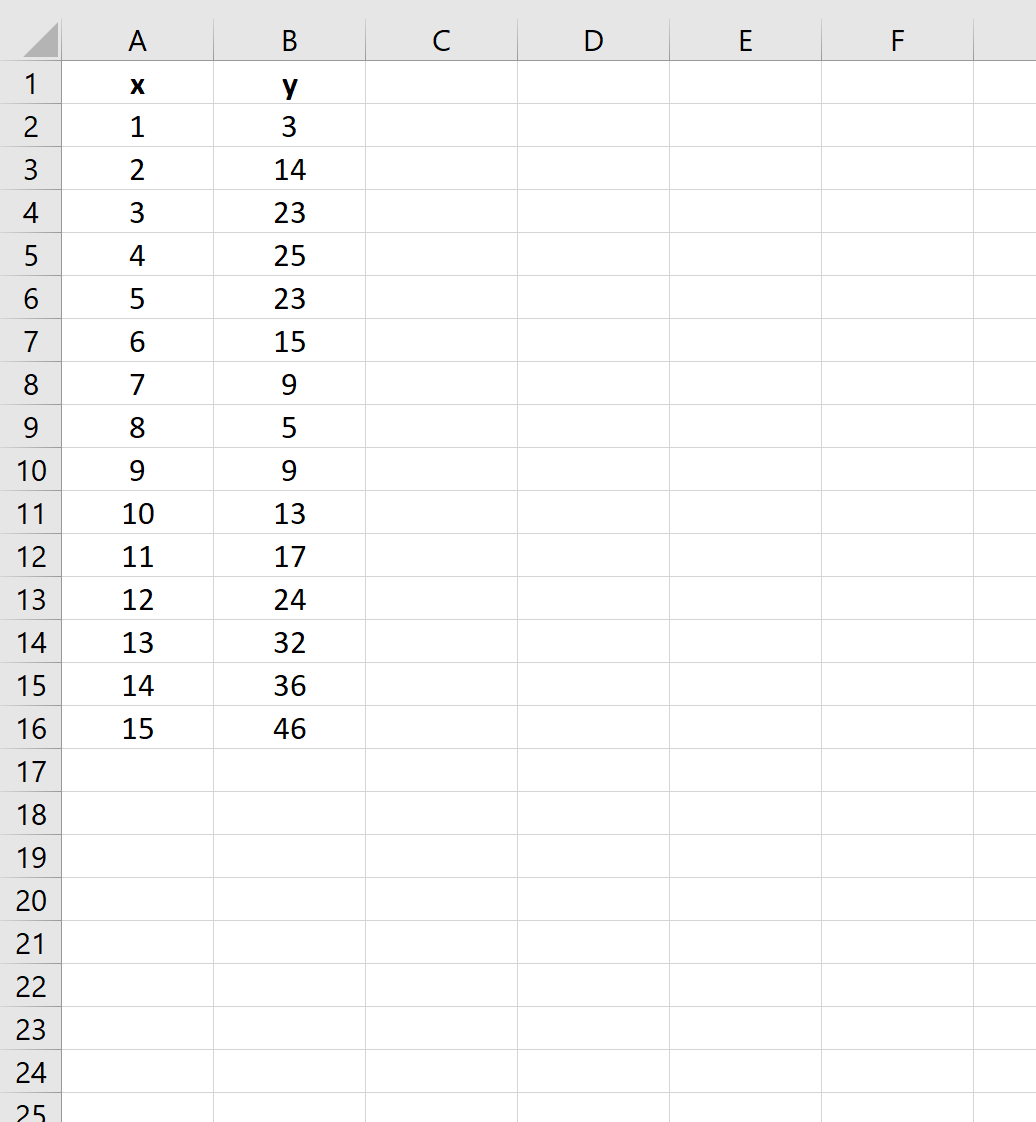

The first essential step is ensuring your data is structured correctly within the spreadsheet. We require two variables: the independent variable (X) and the dependent variable (Y). The independent variable drives the change, while the dependent variable is the outcome we are attempting to predict.

For this tutorial, we will use a sample dataset illustrating a non-linear relationship. Organize your data into adjacent columns, ensuring the X-variable is typically listed first, followed by the Y-variable.

Step 2: Visualizing the Relationship with a Scatterplot

Before fitting any mathematical model, it is crucial to visually inspect the data pattern. A scatterplot is the ideal visualization tool for determining the general shape of the relationship, which guides the subsequent choice of the Trendline type.

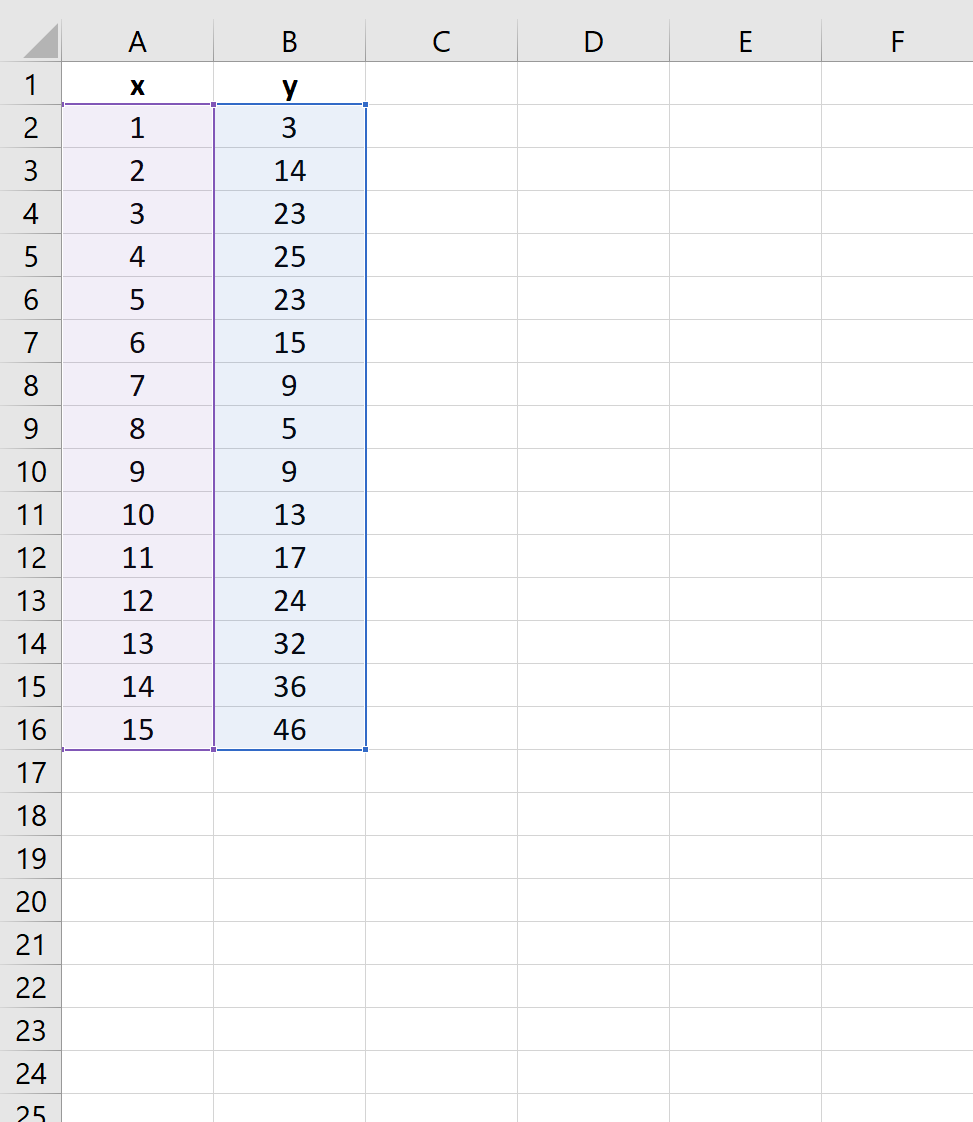

To create the chart, start by highlighting the entire range of your data, including both the X and Y columns. In our example, we select cells A2:B16.

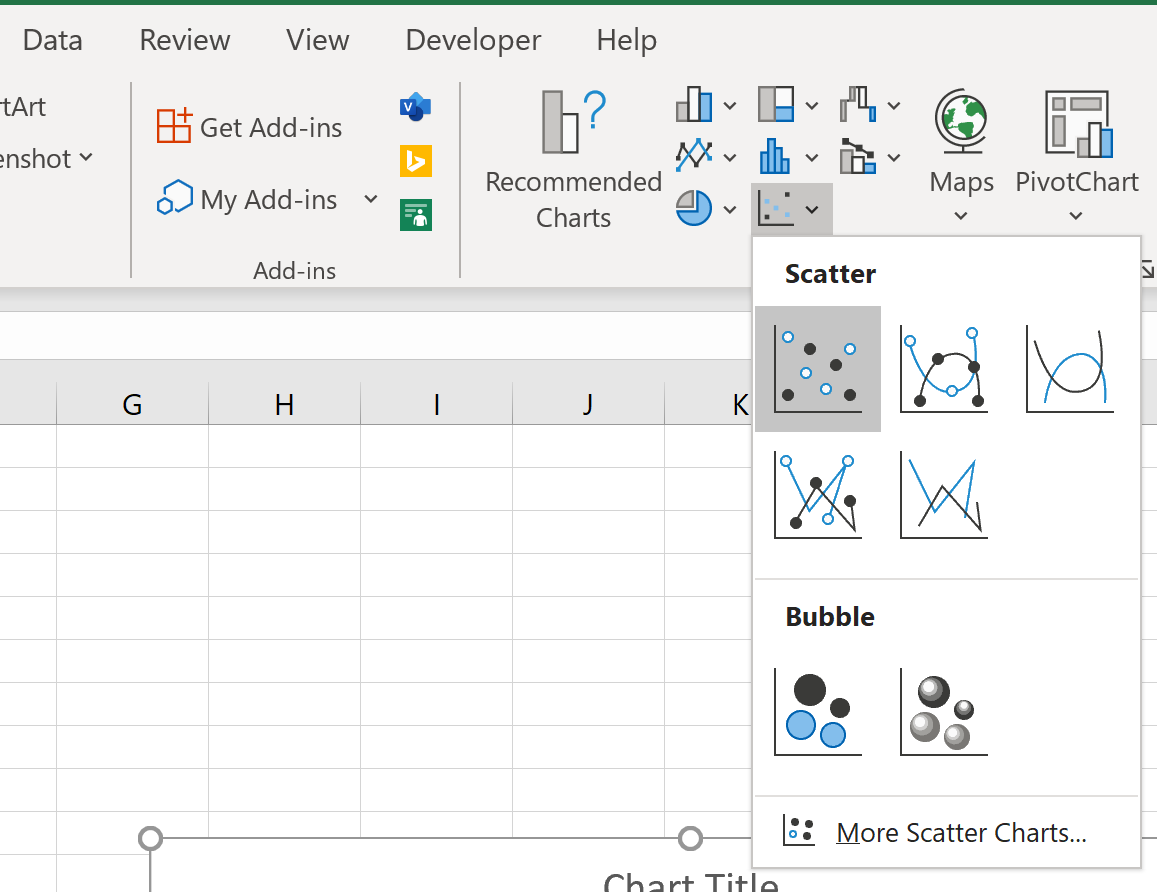

Next, navigate to the Insert tab located on the top ribbon. Within the Charts group, click on the dropdown menu for Scatter charts and select the basic option that plots markers for each data point.

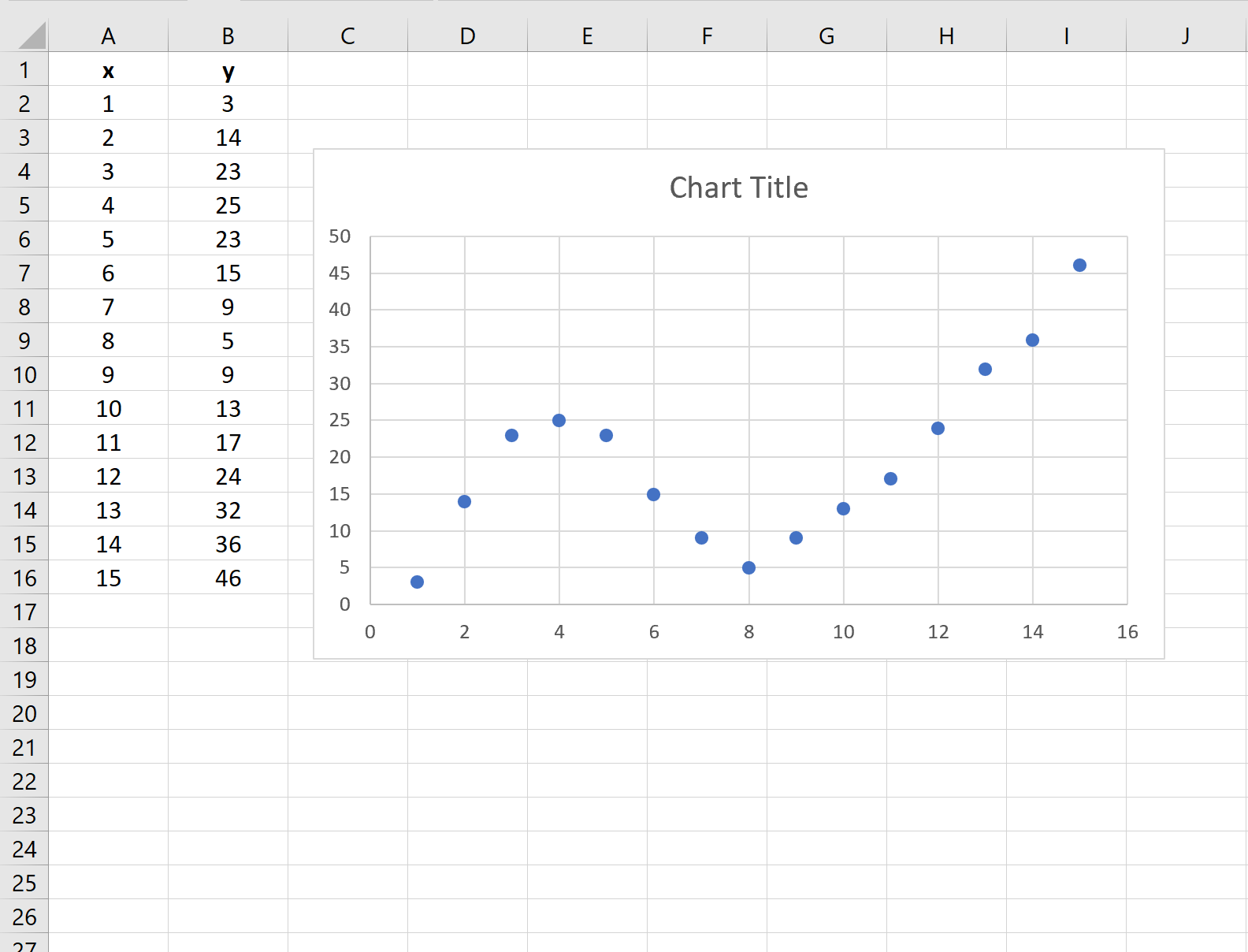

This action generates the initial scatterplot, clearly displaying the non-linear, curved nature of the relationship between the two variables.

Step 3: Adding and Customizing the Trendline

The next step involves applying the fitting algorithm directly to the visual data. Click anywhere on the scatterplot to activate the Chart Tools. Then, click the ‘+‘ sign (Chart Elements) that appears in the top right corner of the chart boundary.

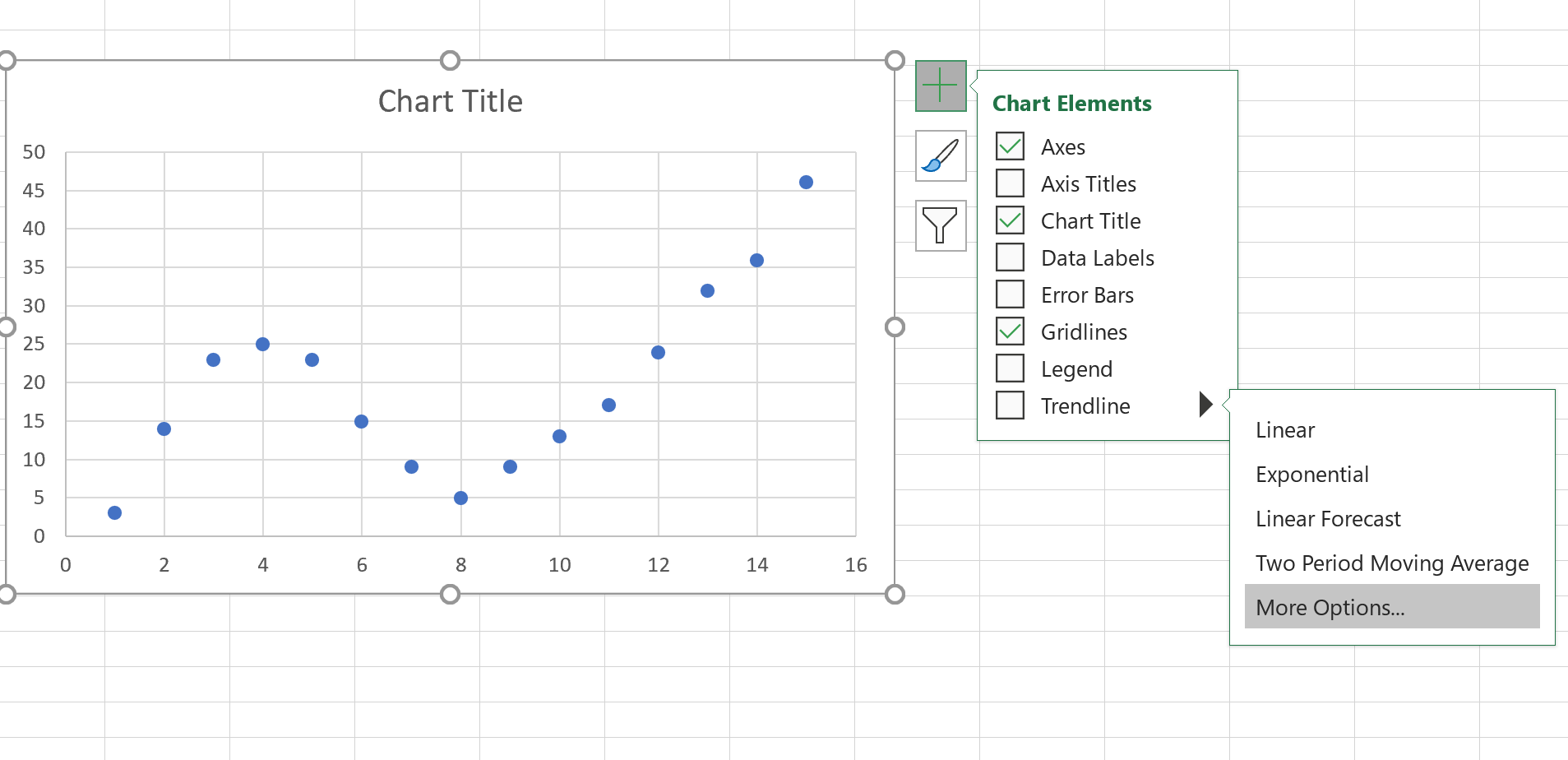

In the list of elements, hover over Trendline, click the adjacent arrow, and finally, select More Options. This crucial step opens the detailed Format Trendline panel on the right side of your screen.

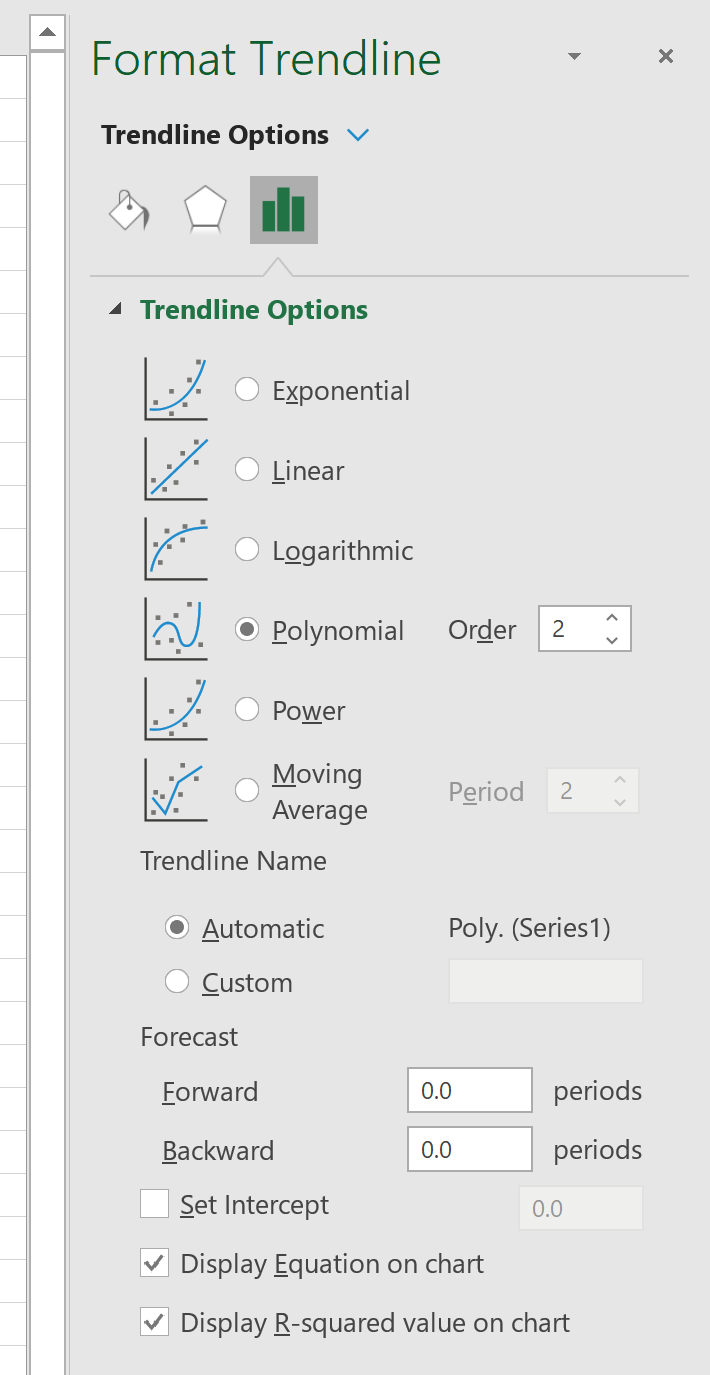

In the Format Trendline pane, since our data is visibly curved, we will select the Polynomial option. By default, Excel sets the order to 2 (a quadratic fit). To properly evaluate the model, you must check the following two checkboxes at the bottom of the panel:

• Display Equation on chart
• Display R-squared value on chart

Analyzing the Initial Polynomial Fit (Order 2)

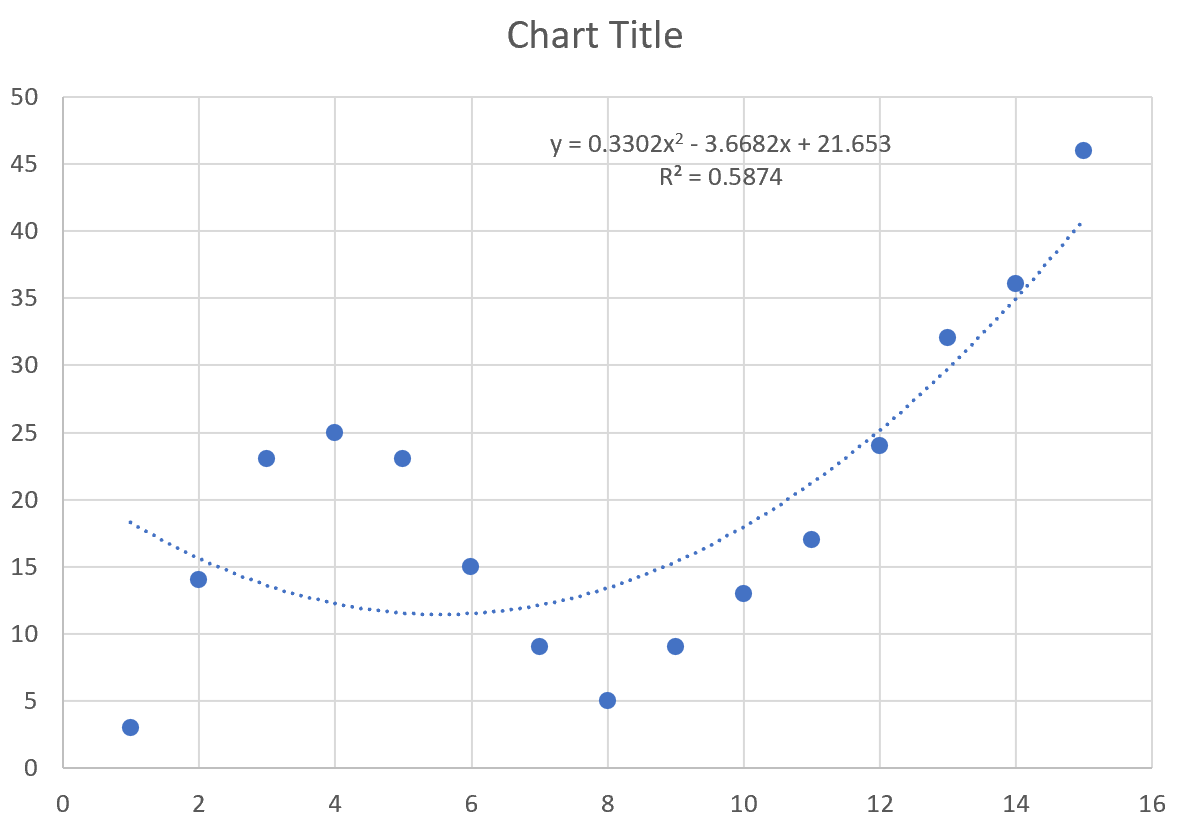

Applying the second-order polynomial immediately produces a fitted curve on the scatterplot, along with the calculated regression equation and the associated goodness-of-fit statistic.

The equation derived from this initial fit is presented as follows:

y = 0.3302x2 – 3.6682x + 21.653

The key metric for evaluating this model is the R-squared value (Coefficient of Determination). This statistic reveals the proportion of the variation in the dependent variable (Y) that can be statistically explained by the independent predictor variables (X). The R-squared for this specific curve is 0.5874. While this shows a correlation, it suggests that a simpler quadratic model may not fully capture the complexity of the dataset.

Step 4: Optimizing the Curve Fit

To improve the fit and enhance the model’s predictive accuracy, we must assess whether a more complex curve is warranted. We can achieve this by increasing the Order of the Polynomial being used. A higher-order polynomial introduces more inflection points, allowing the line to hug the data points more closely.

We will adjust the polynomial order from 2 to 4 in the Format Trendline options. This recalculates the curve, seeking a fourth-order solution that minimizes the residual errors.

This adjustment results in a significantly tighter curve that passes closer to all observed data points, visually confirming a superior fit.

Step 5: Evaluating the Final Model and Prediction

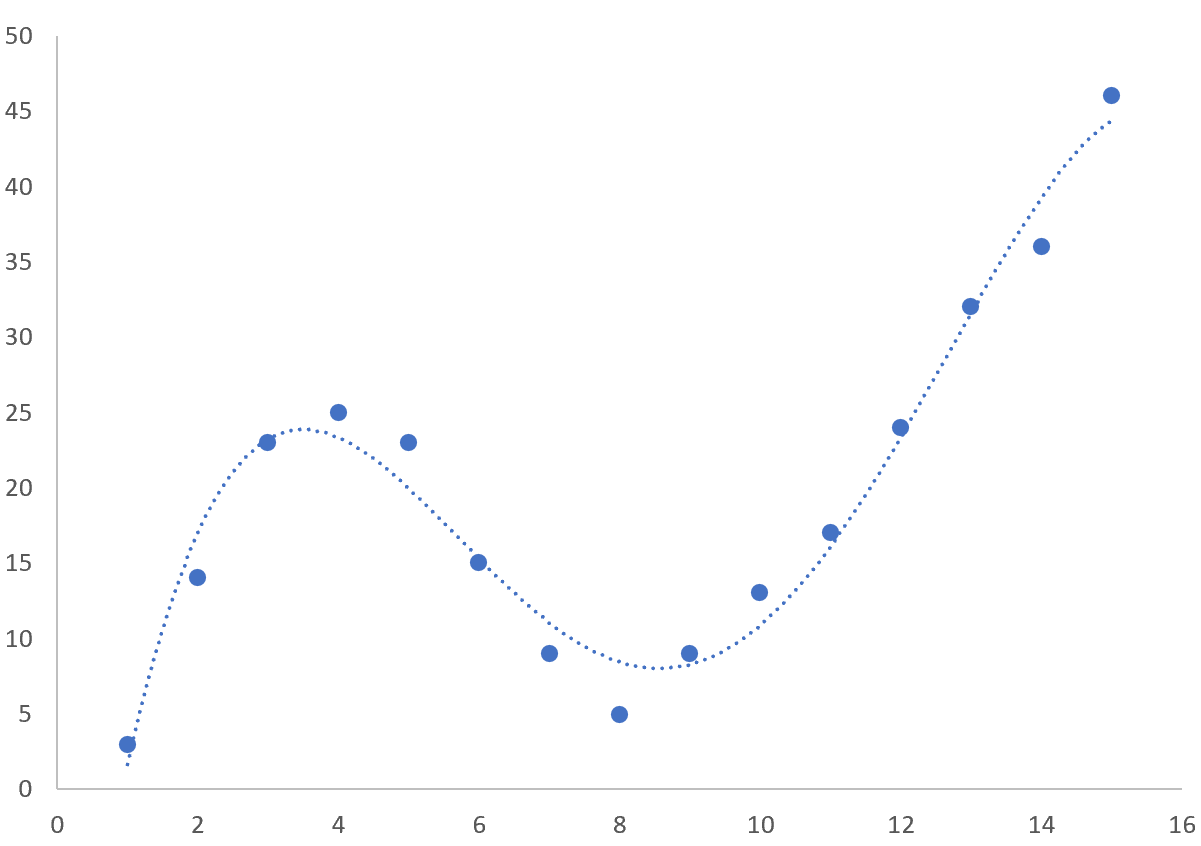

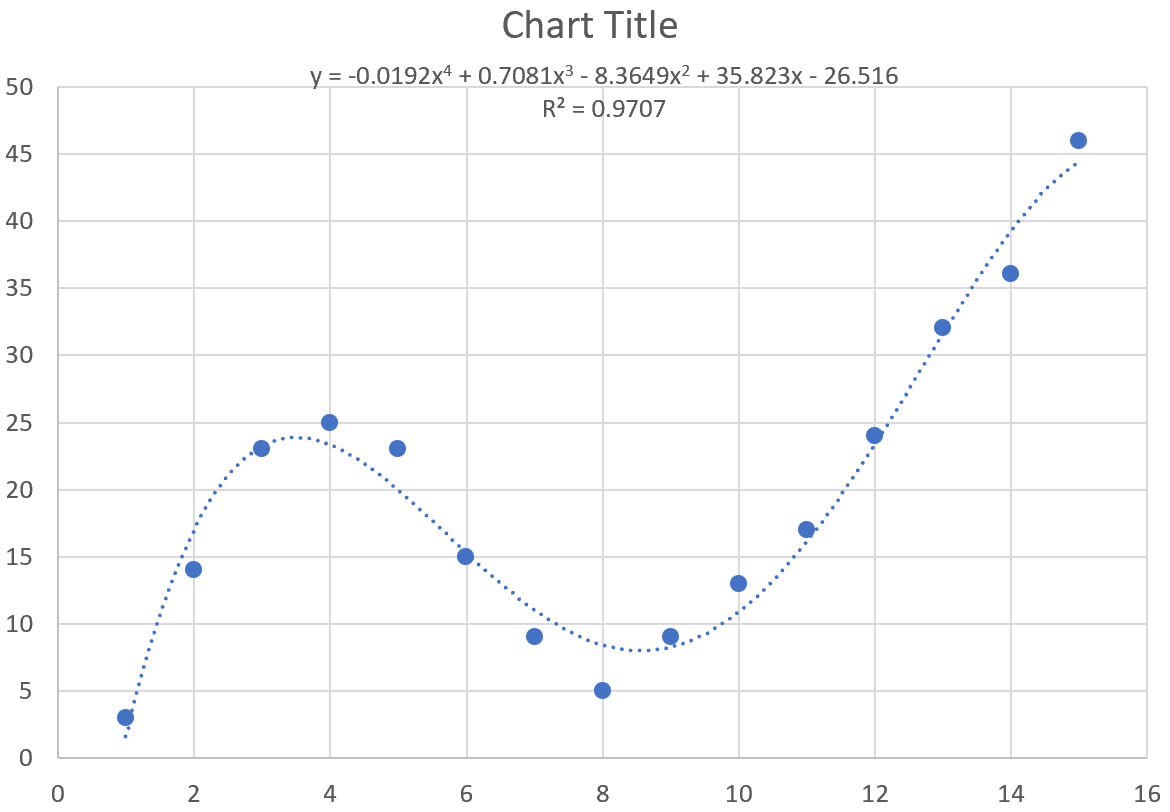

The enhanced model produces a much longer, fourth-order polynomial equation:

y = -0.0192x4 + 0.7081x3 – 8.3649x2 + 35.823x – 26.516

Crucially, the R-squared value for this optimized curve is 0.9707. This dramatic increase indicates that 97.07% of the variability in Y is now explained by the model, confirming that the fourth-order polynomial provides an excellent fit for this specific distribution of data.

The successful curve fit provides us with a valuable mathematical tool for prediction. We can now use this robust equation to calculate the expected value of the response variable based on any input for the predictor variable (x). This process is fundamental to regression analysis and data modeling.

For example, if we wish to predict the value of y when x = 4, we substitute 4 into our derived equation:

y = -0.0192(4)4 + 0.7081(4)3 – 8.3649(4)2 + 35.823(4) – 26.516 = 23.34

The predicted value for y is 23.34, demonstrating the immediate practical application of fitting a customized trendline in Excel.
