Learning Logarithmic Regression with R: A Step-by-Step Guide

Logarithmic regression stands as an essential and sophisticated technique within the realm of statistical modeling, specifically designed to analyze relationships where the inherent rate of change between variables is anything but constant. Unlike simple linear models which assume a steady, uniform increase or decrease, logarithmic models are employed precisely when growth or decay exhibits a rapid and dramatic acceleration initially, followed by a necessary and gradual leveling off or slowing down as the system approaches a theoretical limit. This methodology is critical for accurately capturing complex real-world phenomena that defy linear approximation, providing analysts with a robust framework for prediction and inference in dynamic systems.

This distinct non-linear characteristic—the rapid initial change transitioning into asymptotic behavior—is ubiquitous across diverse scientific and commercial disciplines. For instance, in economics, logarithmic curves are commonly used to model the principle of diminishing returns, where the marginal benefit gained from an input decreases as the amount of input increases. In biology, this model often describes population growth deceleration as resources become scarce, or the effectiveness of certain pharmaceutical doses over time. Recognizing this pattern is the first step in selecting the appropriate modeling tool, ensuring that the statistical representation accurately reflects the underlying mechanism governing the data.

To illustrate this concept clearly, the following plot provides a visual demonstration of classic logarithmic decay, where the response variable dramatically decreases at the start (when the predictor is low) but approaches a steady, asymptotic limit very slowly as the predictor increases. This visual signature immediately signals the necessity of a logarithmic transformation rather than a standard linear fit.

Successfully modeling this unique and curved relationship between an independent variable (X) and a corresponding dependent response variable (Y) requires a robust analytical framework. Logarithmic regression provides this appropriate methodology by transforming one of the variables—specifically, the predictor—using the natural logarithm, thereby linearizing the relationship and enabling the use of powerful, well-established linear regression techniques for estimation and inference.

The Mathematical Foundation of the Logarithmic Model

The mathematical foundation underpinning a logarithmic regression model is surprisingly simple once the necessary transformation is understood. The model is essentially a linear relationship where the independent variable has been substituted by its natural logarithm. This substitution is the core mathematical maneuver that allows the model to capture the rapid initial changes and subsequent tapering off inherent in logarithmic relationships, effectively turning a curve into a straight line in a transformed space.

The core equation defining this model incorporates the natural logarithm function, typically denoted as $ln(x)$, resulting in the following canonical mathematical representation:

y = a + b * ln(x)

Understanding the role of each component within this equation is crucial for both fitting and interpreting the model’s results. The variables and the calculated regression coefficients are formally defined to establish a clear statistical context:

• y: Represents the response variable, which is the outcome or dependent variable whose behavior we are attempting to predict or explain.
• x: Denotes the predictor variable, the independent variable whose log-transformed values drive the prediction of $y$. Note that for the natural logarithm to be defined, $x$ must be strictly positive.
• a, b: These are the regression coefficients, estimated through the least squares method. ‘a’ represents the intercept (the expected value of $y$ when $ln(x)$ is zero, which occurs when $x=1$), and ‘b’ is the slope, quantifying the precise change in $y$ associated with a one-unit change in the natural logarithm of $x$.

The remainder of this comprehensive guide is dedicated to providing a practical, step-by-step tutorial on how to efficiently implement and rigorously interpret logarithmic regression results using the widely adopted statistical programming language, R. By following these steps, you will gain the proficiency required to apply this powerful technique to your own non-linear datasets.

Step 1: Structuring and Preparing the Dataset in R

The foundation of any successful regression analysis lies in meticulously defining and preparing the data structure. Before we can fit the model, we must establish a dataset that clearly embodies the logarithmic pattern we intend to analyze. For demonstration purposes, we will initiate the process by generating a small, synthetic dataset directly within the R environment. This synthetic data is specifically engineered to exhibit the expected logarithmic decay pattern, offering an ideal scenario for validating our model fitting procedure.

In this preparation phase, we define two vectors: x, which serves as our predictor variable and spans from 1 to 15, and y, the response variable, containing values meticulously chosen to follow the characteristic decay curve. The data points for y are deliberately set such that the initial differences between consecutive points are large, but these differences shrink rapidly as x increases, simulating the real-world effect of diminishing returns.

x=1:15

y=c(59, 50, 44, 38, 33, 28, 23, 20, 17, 15, 13, 12, 11, 10, 9.5)

Upon inspection, this dataset structure perfectly mimics the behavior we aim to model using logarithmic regression. The y values drop sharply early on (exhibiting rapid change) but slow significantly toward the end, perfectly aligning with the non-linear relationship defined by the logarithmic function. This pronounced deceleration confirms that a logarithmic transformation will be necessary to achieve a high-quality fit and accurate prediction.

Step 2: Crucial Visualization of the Variable Relationship

A non-negotiable step preceding the fitting of any complex statistical model is the visualization of the raw data. This step is essential because it allows the analyst to visually confirm the assumed functional relationship between the variables, thus justifying the choice of the logarithmic model over alternatives, such as exponential or polynomial models. If the scatter plot does not display the expected curve, the analyst should reconsider the model form before proceeding, potentially saving significant analytical time.

We utilize the powerful and accessible built-in function, plot(), available in R’s base environment. Executing this simple command generates a scatter plot of our x and y vectors, providing an immediate graphical assessment of the data trajectory. This plot serves as the primary visual evidence supporting our model choice.

plot(x, y)

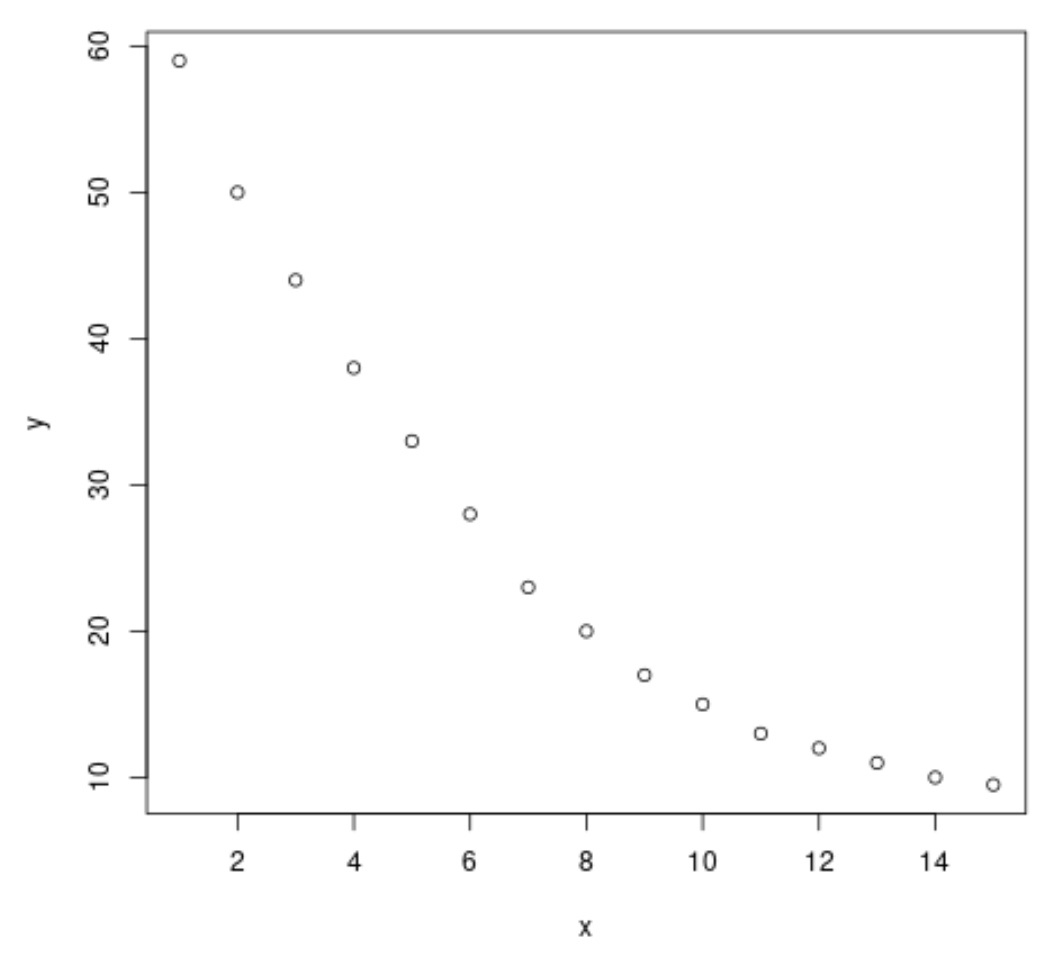

The resulting plot below clearly illustrates the trajectory of the data points, confirming our initial hypothesis about the underlying structure:

As was anticipated during the data generation phase, the scatter plot exhibits a distinct and undeniable logarithmic decay pattern. The magnitude of the response variable, y, demonstrates a steep decline when the predictor variable, x, is small, and crucially, the rate of this decrease dramatically slows down and flattens out as x increases towards 15. This robust visual confirmation validates that a logarithmic regression model is the most appropriate and statistically sound choice for analyzing this specific data structure, providing confidence before proceeding to the fitting stage.

Step 3: Fitting and Rigorously Interpreting the Logarithmic Regression Model

To fit a logarithmic model using standard linear regression tools, specifically R’s powerful lm() function (which is designed for linear models), we must first linearize the non-linear relationship. This crucial step involves applying the natural logarithm function (log() in R) to the predictor variable, x. This transformation allows us to treat the relationship as linear with respect to $ln(x)$, enabling the use of the efficient least squares estimation method.

The following R code snippet executes the model fitting by specifying that y should be modeled as a function of the log-transformed x, and immediately requests a detailed summary of the results, providing all the necessary statistical outputs for subsequent interpretation:

#fit the model: y is modeled as a linear function of log(x)
model <- lm(y ~ log(x))

#view the comprehensive statistical output of the model
summary(model)

Call:
lm(formula = y ~ log(x))

Residuals:
   Min     1Q Median     3Q    Max
-4.069 -1.313 -0.260  1.127  3.122

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  63.0686     1.4090   44.76 1.25e-15 ***
log(x)      -20.1987     0.7019  -28.78 3.70e-13 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 2.054 on 13 degrees of freedom
Multiple R-squared:  0.9845,	Adjusted R-squared:  0.9834
F-statistic: 828.2 on 1 and 13 DF,  p-value: 3.702e-13

The detailed summary output is paramount for evaluating both the overall performance and the statistical significance of the fitted model. Key metrics such as the exceptionally large F-statistic (828.2) and its associated minute p-value (3.702e-13) are crucial indicators. The fact that the p-value is far below the conventional significance threshold of 0.05 definitively indicates that the overall regression model is highly statistically significant, confirming the utility of the logarithmic relationship for predicting y.

Furthermore, the Multiple R-squared value, which measures the proportion of variance in the response explained by the predictor, stands exceptionally high at 0.9845. This powerful metric implies that approximately 98.45% of the total variability observed in the response variable y is systematically accounted for by the logarithmic relationship with x. Such a high value demonstrates an outstanding fit to the observed data, suggesting the model captures nearly all of the systematic variation.

By extracting the estimated regression coefficients—specifically the Intercept (63.0686) and the slope estimate for log(x) (-20.1987)—from the output table, we can precisely reconstruct the final fitted logarithmic regression equation that describes this specific dataset:

y = 63.0686 – 20.1987 * ln(x)

This finalized equation is now a powerful predictive tool. We can use it to predict the response variable, y, for any positive, known value of the predictor variable, x. For example, if we wish to predict the response when x is 12, the calculation is performed by substituting 12 into the natural logarithm function:

y = 63.0686 – 20.1987 * ln(12) ≈ 63.0686 – 50.187 ≈ 12.88.

Step 4: Visualizing the Fitted Logarithmic Regression Curve

The ultimate validation of a regression model involves plotting the calculated regression curve directly onto the original scatter plot of the raw data points. This visual confirmation is indispensable, allowing researchers and analysts to instantaneously and intuitively assess the quality, accuracy, and adherence of the mathematical model across the entire range of the observed data. A good visual fit reassures the practitioner that the model assumptions are largely met and that the model is reliable for interpolation and prediction within the observed range.

To effectively generate a smooth regression curve, we must first create a sequence of densely spaced x values that span the range of our dataset (from 1 to 15). We then leverage the R function predict(), applying our previously fitted model (`model`) to these new, dense x values. This process calculates the corresponding predicted y values, which are then used to draw the smooth, non-linear regression line. We also calculate confidence intervals to illustrate the precision of our estimates.

The R code required to execute this visualization, combining the scatter plot and the fitted curve, is as follows:

#plot original x vs. y data points
plot(x, y)

#define a dense sequence of x-values (1000 points) to create a smooth curve
x=seq(from=1,to=15,length.out=1000)

#use the 'model' object to predict the corresponding y-values for the dense x-sequence
# 'interval="confidence"' calculates the confidence bands around the mean prediction
y=predict(model,newdata=list(x=seq(from=1,to=15,length.out=1000)),
          interval="confidence")

#add the fitted regression line and confidence bands to the existing plot. lwd specifies the line width.
matlines(x,y, lwd=2)

The resulting graphical output below displays both the discrete raw data points (circles) and the smooth, curved line generated by the sophisticated logarithmic model. This visualization serves as a powerful confirmation of the model’s efficacy:

The visualization robustly confirms that the logarithmic regression model has achieved an excellent fit for this specific dataset. The regression line adheres remarkably closely to the observed data points across the entire range of the predictor variable x, from the initial sharp decline to the subsequent gradual leveling off. This successful fitting process validates the decision to use the natural log transformation to linearize the underlying relationship and provides high confidence in the derived coefficients.

Conclusion and Recommended Resources

Logarithmic regression stands as an invaluable and essential analytical tool for modeling non-linear phenomena, particularly those characterized by a period of intense initial activity or growth followed inevitably by the phenomenon of diminishing returns or asymptotic decay. By skillfully employing the natural logarithm transformation on the predictor variable, we successfully managed to convert a complex non-linear relationship into a linear form. This linearization allows the relationship to be analyzed rigorously and effectively using the powerful and widely understood standard linear regression techniques available in statistical environments like R.

This step-by-step guide demonstrates that implementing logarithmic regression in R is straightforward once the principle of transformation is mastered. The resulting model provides high predictive accuracy, as evidenced by the strong R-squared value and highly significant F-test results. Mastery of this technique is essential for anyone dealing with data derived from biological processes, economic analyses, or physical systems exhibiting decay patterns.

To assist with rapid calculations, verification, or exploration of alternative datasets, utilizing external computational resources can be highly beneficial. For those seeking immediate validation of results or requiring automated computation without coding, we recommend the following tool.

Bonus: We encourage you to utilize this online calculator designed to automatically compute the logarithmic regression equation and related statistics for any provided pair of predictor and response variables.

For readers interested in furthering their knowledge of regression analysis, deepening their understanding of statistical inference, or expanding their skills in R programming, the following curated resources are highly recommended for continued study and professional development:

• A detailed examination of the role and interpretation of the R-squared value and its limitations in complex model assessment.
• Comprehensive technical documentation on the specific usage and advanced parameters of the lm() function in R, including handling multiple predictors and interaction terms.
• A foundational guide to interpreting p-values, statistical significance, and the construction of confidence intervals in hypothesis testing.
