Learn to Draw Arrows in Matplotlib for Data Visualization

Visualizing directional information is an absolutely critical aspect of modern data analysis and scientific communication. Whether you are mapping forces in physics, tracking economic shifts, or illustrating the movement of biological populations, the ability to clearly represent magnitude and direction is paramount. Within the powerful Matplotlib visualization library, the dedicated matplotlib.pyplot.arrow function offers a robust and highly flexible method for drawing precise, customizable arrows directly onto your plots. This function is instrumental for illustrating vectors, indicating change over time, or simply annotating key movements within a complex dataset, transforming static graphs into dynamic narratives.

Mastering the use of plt.arrow requires understanding its fundamental geometric requirements. To successfully draw an arrow, you must define four essential parameters that govern its starting position and its resultant displacement. This simplicity ensures that users can quickly integrate directional markers without complex object initialization. The core syntax for this operation, which anchors the visualization, is structured as follows:

matplotlib.pyplot.arrow(x, y, dx, dy)

These four components establish the entire geometry of the arrow, linking an absolute starting point with a relative end point. Understanding these initial coordinates and their relative displacements is the foundational key to mastering accurate arrow placement in any Matplotlib figure:

• x, y: These parameters define the absolute location of the arrow’s base, specifying the exact starting point (the tail) on the plot’s coordinate system. This position is fixed relative to the data.
• dx, dy: These define the relative change in position along the x and y axes, respectively. They determine the length and direction of the arrow head relative to the starting point, effectively defining the vector components.

This comprehensive guide will walk you through several practical, step-by-step examples. We will demonstrate not only how to draw standard directional arrows but also how to customize their orientation, appearance, and context using advanced styling options, ensuring maximum visual impact and clarity in your data representations.

Decoding the Core Syntax and Essential Parameters

The inherent flexibility of the plt.arrow function stems from its clever separation of the starting position, which is absolute, and the directional length, which is relative. By defining the arrow’s base at a specific coordinate pair (x, y), you are anchoring the visual element firmly to a precise data point or location within the chart area. This initial anchor point ensures context and relevance. The subsequent parameters, dx and dy, then function as the components of the displacement vector, defining the magnitude and angle that the arrow head will traverse from that anchor point.

This displacement-based approach is fundamentally superior for dynamic data visualization scenarios where showing movement, flux, or net change from one state to another is required. For instance, when analyzing financial data, (x, y) might represent the initial stock price and time index, while (x + dx, y + dy) represents the final state after a defined interval. The resulting arrow visually encapsulates the net change—both in time (x-axis) and value (y-axis)—over that specific period, making the overall trend instantly discernible to the viewer. This method simplifies the calculation compared to specifying two absolute points, requiring only the starting point and the vector magnitude.

While the four core positional parameters (x, y, dx, dy) are mandatory for defining the arrow’s existence and direction, the matplotlib.pyplot.arrow function accepts a vast array of optional keyword arguments. These optional arguments provide the necessary granular control for detailed customization of the arrow’s visual appearance, including its shaft width, fill color, outline properties, and the precise shape and size of the arrowhead. Effective use of these arguments allows the arrow to seamlessly integrate into the plot’s aesthetic while maintaining high visibility. We will dedicate a subsequent section to exploring these advanced styling options in detail.

Practical Application: Drawing a Single Directional Vector

The simplest and most common application of the plt.arrow function involves drawing a single vector that points diagonally across a visualization. This is frequently utilized in data analysis to connect two related data clusters, highlight a transition between states, or simply indicate a prevailing trend direction within a scatter or line plot. The following Python code snippet demonstrates the foundational structure necessary to initialize a basic scatterplot and subsequently overlay a distinct, clear arrow using only the mandatory x, y, dx, and dy parameters.

In this initial, straightforward example, we begin by defining two arrays, A and B, which serve as the underlying data distribution for our scatterplot. The critical step is the subsequent call to plt.arrow. We anchor the base of the arrow at the absolute coordinates (4, 18). We then define a displacement of 2 units horizontally (dx=2, moving right) and 5 units vertically (dy=5, moving up). Crucially, we introduce the width parameter, setting it to a small but visible value (.08), which ensures the arrow shaft is clearly distinguishable against the background scatter points and the plot axes. This results in the arrowhead pointing toward the coordinate (4+2, 18+5), or (6, 23).

import matplotlib.pyplot as plt

#define two arrays for plotting
A = [3, 5, 5, 6, 7, 8]
B = [12, 14, 17, 20, 22, 27]

#create scatterplot, specifying marker size to be 40
plt.scatter(A, B, s=40)

#add arrow to plot (starts at 4, 18 and extends to 6, 23)
plt.arrow(x=4, y=18, dx=2, dy=5, width=.08)

#display plot
plt.show()

The resulting visualization clearly depicts an arrow pointing both upward and rightward, originating precisely from the specified base coordinates (4, 18). This diagonal representation is the default behavior whenever both the dx and dy displacement values are non-zero. This ability to instantly visualize a resultant vector based on two distinct components (horizontal and vertical change) is what makes plt.arrow an indispensable tool for vector graphics within data analysis.

Achieving Precision: Customizing Orientation (Vertical and Horizontal Arrows)

While diagonal arrows are useful for general trends, many analytical requirements necessitate perfectly straight horizontal or vertical markers. These are frequently required when highlighting precise maxima, minima, inflection points, or established boundaries on an axis. A key advantage of Matplotlib’s displacement system is the ease with which these straight orientations can be achieved: this is done by strategically setting one of the displacement parameters (dx or dy) to zero, thereby eliminating movement along that specific axis.

The logic is simple and highly effective: if you set dx=0, the arrow registers zero horizontal displacement, resulting in a perfectly vertical line segment pointing only up or down, depending on the sign of dy. Conversely, setting dy=0 results in zero vertical displacement, producing a perfectly horizontal arrow pointing left or right, depending on the sign of dx. This method provides unambiguous control over directionality, ensuring that the visual emphasis falls exactly where intended, without any unintentional diagonal bias introduced by small floating-point errors.

For illustrative purposes, let us modify the previous example to create a strong, purely vertical arrow. This adjustment emphasizes upward movement from the base point (4, 18) to highlight a specific peak or outlier along the Y-axis. This technique is particularly effective in time-series data or performance metrics where focusing on a change in magnitude, independent of time change, is crucial. The code modification is minor but results in a significantly different visual impact:

import matplotlib.pyplot as plt

#define two arrays for plotting
A = [3, 5, 5, 6, 7, 8]
B = [12, 14, 17, 20, 22, 27]

#create scatterplot, specifying marker size to be 40
plt.scatter(A, B, s=40)

#add arrow to plot (dx=0 creates a vertical arrow)
plt.arrow(x=4, y=18, dx=0, dy=5, width=.08)

#display plot
plt.show()

This technique provides precise control over the directionality. Furthermore, remember that the direction of the arrow is entirely determined by the sign of the displacement values. A negative value for dx will simply reverse the direction along the horizontal axis (pointing left), and a negative dy value will reverse the vertical direction (pointing down). This flexibility allows for the visualization of complex vectors that move across any quadrant of the plot.

Advanced Styling and Appearance Customization

While default Matplotlib settings generate functional arrows—typically featuring a standard blue fill and a thin black outline—complex visualizations often require aesthetic customization to ensure the arrow stands out or, conversely, integrates seamlessly with the overall design. The matplotlib.pyplot.arrow function is equipped with numerous keyword arguments that allow for granular control over every aspect of the arrow’s appearance, moving far beyond basic geometry.

The most crucial styling arguments relate to color and dimensions. The facecolor argument dictates the solid fill color of both the arrow’s body (shaft) and the arrowhead itself. The edgecolor argument controls the color of the outline surrounding the arrow. Setting edgecolor to ‘none’ is a common practice when aiming for a cleaner, modern look, as it removes the distracting border. Furthermore, users can precisely adjust the arrow’s physical dimensions using width (the thickness of the arrow shaft), head_width (the width of the triangular arrowhead base), and head_length (the length of the arrowhead from tip to base).

The following example illustrates how to drastically change the arrow’s appearance to a bold, solid red color. We achieve this by setting facecolor='red' and intentionally eliminating the outline by setting edgecolor='none'. This results in a cleaner, more vibrant, and often more attention-grabbing visual element, which is critical when highlighting anomalous data points or urgent changes:

import matplotlib.pyplot as plt

#define two arrays for plotting
A = [3, 5, 5, 6, 7, 8]
B = [12, 14, 17, 20, 22, 27]

#create scatterplot, specifying marker size to be 40
plt.scatter(A, B, s=40)

#add arrow to plot, applying custom styling
plt.arrow(x=4, y=18, dx=0, dy=5, width=.08, facecolor='red', edgecolor='none')

#display plot
plt.show()

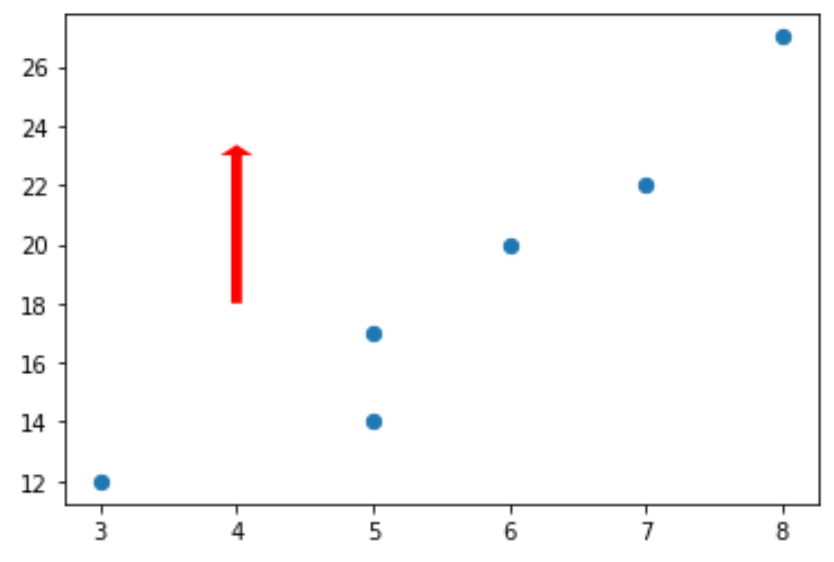

When choosing colors and adjusting dimensions, it is paramount to consider the overall color scheme and the density of the plot. The arrow must provide sufficient visual contrast against the underlying data and background to ensure it is easily legible and does not confuse the viewer. Utilizing a distinctive, high-saturation color, such as the red shown above, often significantly improves the immediate interpretability of the graph by directing the user’s focus instantly to the highlighted vector.

Combining Direction and Context: Integrating Text Annotations

Although an arrow effectively communicates direction and magnitude, it frequently lacks semantic context—the “why” or “what” it represents. Combining the visual power of the arrow with descriptive text annotation is the most effective way to fully explain the meaning of the directional indicator. Matplotlib provides the dedicated plt.annotate() function, which is specifically designed for adding descriptive text labels to coordinates on a plot. In this scenario, we utilize plt.arrow to render the precise visual vector element, and then couple it with plt.annotate to strategically place the accompanying explanatory text.

The plt.annotate function fundamentally requires two main components: the actual text string to be displayed and the coordinates (xy) where this text should be anchored. By placing the annotation strategically near the arrow’s base or tip, we create a cohesive visual explanation that clarifies the arrow’s purpose. In the following code demonstration, we redraw the strong vertical arrow from the previous example, and then add the label “General direction” slightly below the arrow’s base. This ensures that the text provides clarity without obscuring the core data points or the arrow itself.

import matplotlib.pyplot as plt

#define two arrays for plotting
A = [3, 5, 5, 6, 7, 8]
B = [12, 14, 17, 20, 22, 27]

#create scatterplot, specifying marker size to be 40
plt.scatter(A, B, s=40)

#add arrow to plot
plt.arrow(x=4, y=18, dx=0, dy=5, width=.08)

#add annotation
plt.annotate('General direction', xy = (3.4, 17))

#display plot
plt.show()

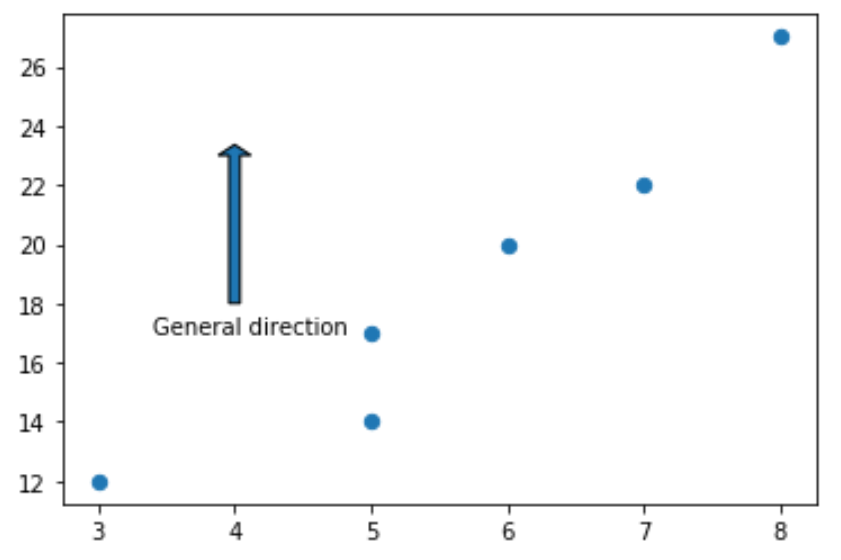

It is important to acknowledge that plt.annotate possesses its own capability to draw arrows using its specialized arrowprops dictionary argument. However, for generating simple, straight vectors defined by clear x and y displacement values, plt.arrow remains the most direct, performant, and semantically appropriate method. Coupling the specialized plt.arrow for the visual vector with plt.annotate for text placement provides the user with the greatest degree of independent control over both elements, ensuring optimal clarity and positioning.

Summary of Key Takeaways

Drawing directional arrows in Matplotlib is fundamental for effective data storytelling. The plt.arrow(x, y, dx, dy) function provides a powerful yet simple interface for vector visualization. By mastering the distinction between the absolute starting point (x, y) and the relative displacement (dx, dy), users can accurately represent complex directional movements. Furthermore, the extensive suite of optional parameters allows for rich customization, ensuring the visual element aligns perfectly with the aesthetic and informational goals of the visualization.

Whether you need a subtle hint of movement or a bold, highly stylized vector highlighting a critical shift, plt.arrow offers the flexibility required. Remember that setting one displacement value to zero (e.g., dx=0) is the quickest way to enforce strict horizontal or vertical orientation, while integrating plt.annotate provides the necessary textual context to make the arrow’s meaning unambiguous.
