Learning to Adjust Line Thickness in Matplotlib Plots

Effective data visualization relies heavily on clarity and visual hierarchy. One of the simplest yet most impactful ways to enhance a plot’s readability is by controlling the thickness of the lines displayed. In Matplotlib, the premier plotting library for Python, line thickness is managed through the dedicated linewidth argument.

When generating a plot using the matplotlib.pyplot.plot() function, the linewidth parameter allows for precise control over the visual weight of the plotted curve. The standard syntax for implementation is:

matplotlib.pyplot.plot(x, y, linewidth=1.5)

By default, the line width is set to 1.5 units, but this value can be adjusted to any positive floating-point number. Understanding how to manipulate this parameter is essential for creating professional and visually informative graphs. This tutorial provides a comprehensive guide, walking through various scenarios from single line adjustments to managing multiple lines and integrating thickness into plot legends.

Fundamentals of the linewidth Parameter

The ability to manipulate line thickness is crucial for emphasizing specific trends or datasets within a graph. A thicker line naturally draws the viewer’s eye, making it an excellent tool for highlighting primary data relative to secondary or background information. The linewidth parameter accepts a numerical value, typically measured in points, which dictates the stroke weight of the line.

Choosing the appropriate line thickness is often a balance between visibility and avoiding clutter. A very thin line (e.g., 0.5) might be suitable for plots dense with data points or for background reference lines, while a thicker line (e.g., 3 or 4) is better for critical results or simple demonstrations. It is important to remember that linewidth must always be a value greater than zero.

While the default value of 1.5 is suitable for standard scientific plots, expert practitioners often customize this setting to align with specific publication standards or aesthetic preferences. Consistency is key; if a specific line weight is used for a key metric, that weight should be maintained across all related visualizations for easy comparison.

Practical Application: Adjusting a Single Line Plot

To demonstrate the basic usage of the linewidth parameter, we will generate a simple damped sinusoidal curve. This example uses the popular NumPy library to efficiently create the necessary array data for the X and Y axes, ensuring we have a smooth, continuous curve suitable for a line chart.

In the code below, we define our X values using np.linspace and calculate the Y values using a combination of sine and exponential decay functions. We then call plt.plot() and explicitly set the linewidth to 3.0, making the resulting line significantly heavier than the default setting. This simple adjustment immediately improves the visual impact of the plot.

import matplotlib.pyplot as plt
import numpy as np

#define x and y values
x = np.linspace(0, 10, 100)
y1 = np.sin(x)*np.exp(-x/3)

#create line plot with line width set to 3
plt.plot(x, y1, linewidth=3)

#display plot
plt.show()

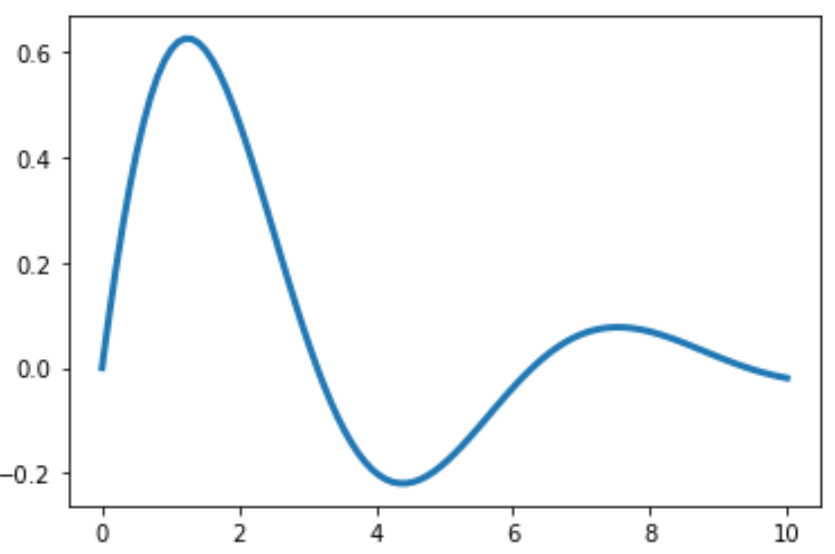

The resulting visualization clearly shows the line emphasized by the increased width, making the trajectory of the data immediately apparent to the reader.

Managing Multiple Datasets and Different Line Weights

When plotting multiple lines on the same axes, using varying line thicknesses is a powerful technique for establishing visual priority and differentiation. If two datasets overlap or are closely related, distinguishing them solely by color may not be sufficient, especially for viewers with color vision deficiencies or when the plot is printed in grayscale. By assigning distinct linewidth values, we introduce an additional visual cue that helps separate the series.

In this example, we define two separate Y datasets, y1 and y2. We then plot both lines individually, ensuring that each call to plt.plot() specifies a unique linewidth value. We choose linewidth=3 for the first series (y1) to make it the dominant focus, and linewidth=1 for the second series (y2), making it a lighter, secondary element.

import matplotlib.pyplot as plt
import numpy as np

#define x and y values
x = np.linspace(0, 10, 100)
y1 = np.sin(x)*np.exp(-x/3)
y2 = np.cos(x)*np.exp(-x/5)

#create line plot with multiple lines
plt.plot(x, y1, linewidth=3)
plt.plot(x, y2, linewidth=1)

#display plot
plt.show()

This technique ensures that even where the lines intersect or run closely parallel, the reader can easily differentiate between the two series based on their visual weight. This is a fundamental concept in designing complex statistical graphics for maximum comprehension.

Ensuring Clarity: Line Thickness and Plot Legends

When presenting multiple datasets with distinct line thicknesses, it is absolutely vital that the plot legend accurately reflects these visual properties. The legend serves as the map for the plot, and if the line samples shown in the legend do not match the lines in the plot area, it leads to confusion and misinterpretation of the data.

Fortunately, Matplotlib automatically handles the transfer of visual attributes, including linewidth, to the legend markers, provided the data is plotted correctly using the label argument. By including label='series_name' within the plt.plot() function, we instruct Matplotlib to associate that specific line style—its color, dash pattern, and thickness—with the corresponding entry in the legend.

import matplotlib.pyplot as plt
import numpy as np

#define x and y values
x = np.linspace(0, 10, 100)
y1 = np.sin(x)*np.exp(-x/3)
y2 = np.cos(x)*np.exp(-x/5)

#create line plot with multiple lines
plt.plot(x, y1, linewidth=3, label='y1')
plt.plot(x, y2, linewidth=1, label='y2')

#add legend
plt.legend()

#display plot
plt.show()

As demonstrated by the output image, the legend successfully displays a thick sample line for ‘y1’ and a thin sample line for ‘y2’. This synchronization between the plotted elements and the legend key is essential for maintaining the visual integrity and accurate interpretation of the data being presented.

Advanced Considerations: Global Styling and Configuration

While setting the linewidth argument directly within the plt.plot() function is effective for individual plots, data visualization projects often require a consistent aesthetic across dozens or hundreds of figures. Manually specifying parameters for every single plot can become tedious and prone to errors. For advanced users, Matplotlib offers robust mechanisms to manage line thickness globally.

The primary method for global styling involves modifying the Matplotlib runtime configuration (rcParams). By accessing plt.rcParams, users can set default parameters that apply to all subsequent plots generated in the session. For instance, to set the default line width for all future plots to 2.0, one would use the following command: plt.rcParams['lines.linewidth'] = 2.0.

Furthermore, for highly customized projects, it is recommended to create and use dedicated style sheets. Matplotlib style sheets are external files that contain predefined collections of rcParams settings. Utilizing style sheets ensures that the entire aesthetic—including line thickness, font sizes, colors, and grid settings—remains cohesive across an entire body of work, significantly improving workflow efficiency and visual consistency. These advanced techniques provide the necessary control for large-scale production of high-quality scientific figures.

Summary and Conclusion

The linewidth parameter is a foundational tool in the Matplotlib ecosystem, offering simple yet powerful control over the visual impact of line plots. Whether you are highlighting a single critical trend, differentiating between multiple overlapping series, or ensuring aesthetic consistency across complex projects, mastering this parameter is key to generating impactful and accessible data visualizations.

We have explored how to apply this setting both to individual plots via direct arguments and its necessity when paired with plot legends to maintain accurate visual representation. By utilizing different line weights alongside color and line styles, users can create complex graphs that are easy to decode and interpret, thus maximizing the communicative power of their data.
