Learning Guide: How to Control Aspect Ratio in Matplotlib Plots

Understanding Aspect Ratio and Geometric Accuracy in Matplotlib

The correct representation of geometric figures is paramount in scientific visualization. When generating plots, the aspect ratio dictates the visual relationship between the physical lengths assigned to the y-axis and the x-axis on the screen. Specifically, it is the ratio of the physical distance representing one unit on the y-axis relative to the physical distance representing one unit on the x-axis. Achieving an accurate ratio is essential; without it, fundamental shapes like circles appear as ellipses, and angles in geometric data are distorted. This fidelity ensures that the visual output truly reflects the mathematical relationships within the data.

The powerful Matplotlib library provides the matplotlib.axes.Axes.set_aspect() method to control this property. However, many users find its initial behavior counter-intuitive. Simply setting set_aspect(1) often fails to produce a visually square plot when the underlying data ranges differ significantly. Understanding why this happens requires a clear distinction between the two primary coordinate systems used by Matplotlib.

This tutorial will meticulously explain the relationship between these systems and provide a robust, reusable Python calculation that guarantees the desired visual aspect ratio, regardless of the numerical limits defined by the dataset. By mastering this technique, you gain precise control over the aesthetic and geometric correctness of your visualizations, ensuring professional-grade output every time.

The Coordinate System Conundrum: Data vs. Display Space

To effectively control the visual output of a plot, we must first recognize the two distinct coordinate systems at play within Matplotlib: the data coordinate system and the display coordinate system. When data is plotted, it exists within the bounds of the numeric values (e.g., x ranging from 0 to 100, y ranging from 5 to 50). This numeric range defines the limits of the data coordinate system.

When you invoke the set_aspect() function, you are fundamentally instructing Matplotlib on how to scale the axes relative to each other within this internal, numeric data space. For example, set_aspect(1) tells the system: “One unit of change along the Y data dimension must correspond to the exact same internal scaling factor as one unit of change along the X data dimension.” This instruction is based purely on the numerical input values, not the physical screen dimensions.

However, what users typically seek to manipulate is the visual output—the physical dimensions of the plot measured in inches or pixels on the screen. This physical representation belongs to the display coordinate system. A fundamental conflict arises because the data range (the span) on the X-axis often differs wildly from the span on the Y-axis. If the X-range spans 10 units and the Y-range spans 20 units, setting the aspect ratio based purely on the data coordinates (ratio = 1) will result in a visually elongated plot, as the axis with the larger span will consume more physical space to maintain the unit-to-unit equivalence. Therefore, to achieve a specific visual aspect ratio, we must introduce a compensatory factor based on the current axis limits.

The core principle of compensation is simple: we must calculate the necessary adjustment value that, when fed into set_aspect(), mathematically cancels out the imbalance caused by differing data spans. The required value is derived from the ratio of the data spans (X range / Y range), multiplied by our desired visual ratio. The following snippet illustrates this crucial compensation technique, which should be applied immediately after the data limits are finalized:

# Define the desired visual ratio (physical y-unit length / physical x-unit length)
ratio = 1.0

# Retrieve the current axis limits to calculate the data spans
x_left, x_right = ax.get_xlim()
y_low, y_high = ax.get_ylim()

# Calculate the required aspect ratio for Matplotlib, compensating for data spans
# Formula: (X_Span / Y_Span) * Desired_Visual_Ratio
ax.set_aspect(abs((x_right-x_left)/(y_low-y_high))*ratio)

Step 1: Establishing the Baseline Plot

To clearly demonstrate the effect of aspect ratio manipulation, we first create a standard, unconstrained plot. This baseline allows us to visualize the default behavior of Matplotlib when data spans are unequal. For this example, we define a simple dataset where the x-axis spans 10 units (from 0 to 10) and the y-axis spans 20 units (from 0 to 20). The ratio of the data spans is 1:2 (X:Y).

The figure and axis objects are initialized using plt.subplots(), and a line is plotted across the defined ranges. Crucially, no aspect ratio constraints are applied at this stage, allowing the figure’s default rendering settings to dictate the shape. This default behavior often produces a visually wider plot due to the inherent dimensions of the Matplotlib figure canvas.

import matplotlib.pyplot as plt

# Define matplotlib figure and axis
fig, ax = plt.subplots()

# Create simple line plot (x: 0-10, y: 0-20). Note the unequal spans.
ax.plot([0, 10],[0, 20])

# Display plot
plt.show()

As shown above, the resulting graph is visibly wider than it is tall. This occurs because the default figure dimensions allow the x-axis, despite having a smaller data range (10 units), to stretch considerably across the horizontal canvas. This output confirms that explicit ratio control is mandatory if precise geometric scaling is required.

Step 2: Misapplication of set_aspect() and Why it Fails

A common pitfall when attempting to achieve a square plotting area is setting the aspect ratio parameter directly to 1.0. This tells Matplotlib that one unit in the data coordinate system for Y should be physically scaled the same as one unit for X.

Since our x-axis ranges 10 units and our y-axis ranges 20 units, setting the aspect to 1.0 forces the y-axis span (20 units) to appear physically twice as long on the screen as the x-axis span (10 units). Consequently, the plot becomes severely vertically stretched. The function set_aspect(1) is only effective for creating a visually square plot if, and only if, the absolute ranges of the X and Y data limits are already equal.

import matplotlib.pyplot as plt

# Define matplotlib figure and axis
fig, ax = plt.subplots()

# Create simple line plot
ax.plot([0, 10],[0, 20])

# Attempt to set aspect ratio to 1 (Incorrect approach for visual squareness)
ax.set_aspect(1)

# Display plot
plt.show()

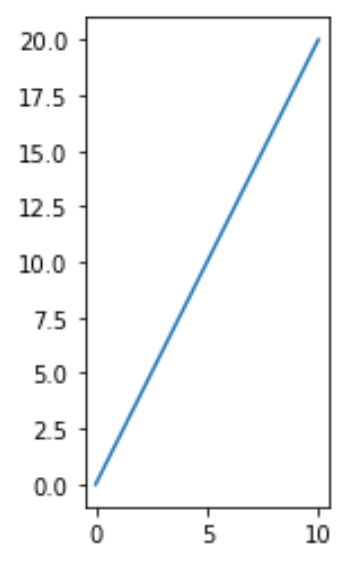

As demonstrated by the output image, this simple call did not produce the square plot we desired. The y-axis is visually much longer than the x-axis because Matplotlib prioritized the data coordinate system ratio over the display coordinate system ratio. To correct this, we must preemptively scale the input to set_aspect() using the known data limits.

Step 3: Implementing the Compensating Formula for Visual Squareness

To correctly achieve a visually square plot—where the physical height equals the physical width, corresponding to a visual aspect ratio of 1.0—we must apply the compensation formula derived earlier. This formula ensures that the internal scaling factor passed to set_aspect() negates the difference in the data spans (X range divided by Y range).

This approach requires dynamic calculation based on the current axis limits, meaning the lines of code retrieving limits (get_xlim() and get_ylim()) must be executed after all plotting commands that might implicitly set or adjust those limits. By multiplying the calculated span ratio by our desired visual ratio (1.0), we produce the exact scaling factor required by set_aspect() to render a square plot area.

import matplotlib.pyplot as plt

# Define matplotlib figure and axis
fig, ax = plt.subplots()

# Create simple line plot
ax.plot([0, 10],[0, 20])

# Set desired visual aspect ratio to 1 (square plot)
ratio = 1.0
x_left, x_right = ax.get_xlim()
y_low, y_high = ax.get_ylim()
ax.set_aspect(abs((x_right-x_left)/(y_low-y_high))*ratio)

# Display plot
plt.show()

With the correct calculation applied, the resulting plot now exhibits the intended aspect ratio of 1.0. The physical lengths of the x-axis and y-axis are visibly equal, despite the underlying data ranges being different (10 units vs. 20 units). This robust method guarantees accurate representation, crucial for visualizations like maps or scatter plots where geometric fidelity is paramount.

Step 4: Customizing Visual Ratios for Diverse Requirements

Once the compensation formula is in place, adjusting the visual ratio is straightforward—simply change the value of the ratio variable. This provides granular control over the output dimensions, allowing the plot to be tailored to specific spatial constraints or presentation emphasis.

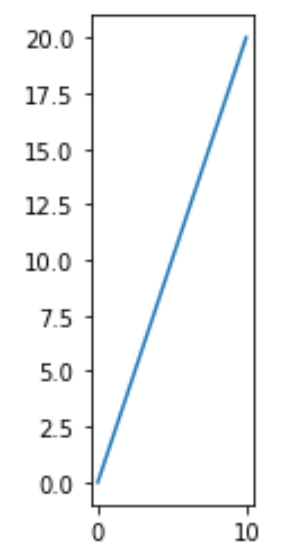

If we want the y-axis to be significantly longer than the x-axis (a taller plot), we specify a ratio greater than 1. Setting ratio = 3, for example, dictates that the plot height should be three times the plot width. This is useful when the data contains complex vertical patterns that require more visual separation.

import matplotlib.pyplot as plt

# Define matplotlib figure and axis
fig, ax = plt.subplots()

# Create simple line plot
ax.plot([0, 10],[0, 20])

# Set desired visual aspect ratio to 3 (Y-axis should be 3 times longer than X-axis)
ratio = 3
x_left, x_right = ax.get_xlim()
y_low, y_high = ax.get_ylim()
ax.set_aspect(abs((x_right-x_left)/(y_low-y_high))*ratio)

# Display plot
plt.show()

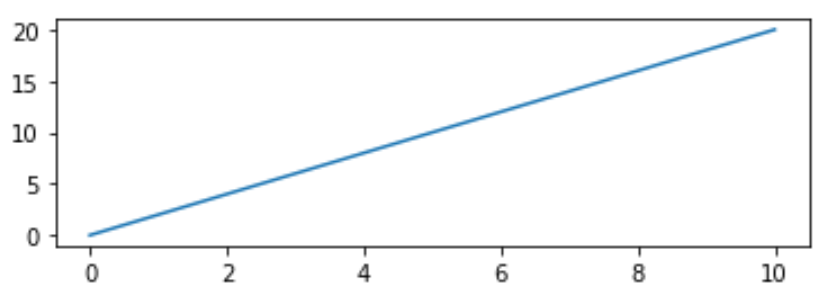

Conversely, if we want the y-axis to be visually shorter than the x-axis (a much wider plot), we specify a ratio less than 1. Setting ratio = 0.3, for instance, maximizes horizontal viewing space, which is often preferred for time-series data or lengthy categorical comparisons.

import matplotlib.pyplot as plt

# Define matplotlib figure and axis
fig, ax = plt.subplots()

# Create simple line plot
ax.plot([0, 10],[0, 20])

# Set aspect ratio to 0.3 (Y-axis should be 0.3 times the length of X-axis)
ratio = .3
x_left, x_right = ax.get_xlim()
y_low, y_high = ax.get_ylim()
ax.set_aspect(abs((x_right-x_left)/(y_low-y_high))*ratio)

# Display plot
plt.show()

Summary and Best Practices for Aspect Ratio Control

Controlling the visual dimensions of plots is a critical skill for effective data visualization, particularly when geometric accuracy is required. Relying on the default behavior of Matplotlib often leads to distorted results because the set_aspect() function prioritizes the numeric constraints of the data coordinate system over the physical requirements of the display coordinate system.

To ensure reliable visual scaling, always calculate the compensation factor using the current axis limits before calling set_aspect(). This calculation, (X_Span / Y_Span) * Desired_Visual_Ratio, is the robust solution that guarantees the resulting plot area adheres precisely to the intended visual aspect ratio, ensuring clarity and professional presentation quality across all your visualizations, irrespective of the initial data ranges.
