A Comprehensive Guide to Understanding Ridge Regression

In the realm of predictive modeling, multiple linear regression serves as a fundamental statistical tool. It aims to model the linear relationship between a set of predictor variables and a single response variable. This process involves fitting a model defined by the equation:

Y = β₀ + β₁X₁ + β₂X₂ + … + β_pX_p + ε

In this formulation, the parameters are estimated using the traditional least square method. This method seeks to minimize the discrepancy between the observed data and the model’s predictions, specifically by minimizing the sum of squared residuals (RSS).

The components of the standard linear regression model are defined as follows:

• Y: Represents the dependent or response variable.
• X_j: Denotes the j^th predictor or independent variable.
• β_j: Represents the average effect on Y of a one unit increase in X_j, assuming all other predictors remain constant. These are the coefficient estimates derived from the fitting process.
• ε: The inherent error term, accounting for variability not explained by the predictors.

The core objective of the least squares method is minimizing the RSS, mathematically expressed as:

RSS = Σ(y_i – ŷ_i)²

Here, Σ signifies the summation across all observations, y_i is the actual response value for the i^th observation, and ŷ_i is the corresponding predicted response value generated by the multiple linear regression model.

The Limitations of Ordinary Least Squares (OLS)

While the Ordinary Least Squares (OLS) method is straightforward and computationally efficient, it faces significant challenges when the predictor variables exhibit high correlation among themselves. This condition, known as multicollinearity, severely compromises the reliability and interpretability of the OLS model.

When severe multicollinearity is present, the coefficient estimates (β values) become highly unstable. Small changes in the training data can lead to drastic fluctuations in the estimated coefficients, resulting in estimates that possess inflated variance. This high variance means the model generalizes poorly to new, unseen data, undermining its predictive utility.

Consequently, when faced with highly correlated predictors, relying solely on OLS often necessitates removing some predictor variables to stabilize the estimates, potentially leading to a loss of valuable information. To circumvent this issue while retaining all variables, alternative regularization techniques are necessary.

Defining Ridge Regression: Addressing Multicollinearity with Shrinkage

Ridge regression is a powerful regularization technique designed specifically to address the problems introduced by multicollinearity. Unlike OLS, ridge regression does not solely focus on minimizing the RSS. Instead, it introduces a penalty term—a constraint on the size of the coefficients—to the minimization objective.

This approach is often referred to as L2 regularization. By adding a penalty for large coefficient values, ridge regression actively shrinks the coefficients toward zero. This shrinkage stabilizes the estimates, significantly reducing their variance at the cost of introducing a small, acceptable amount of bias.

The modified objective function that ridge regression seeks to minimize is the sum of the RSS and the shrinkage penalty term:

RSS + λΣβ_j²

The Mathematics of the Shrinkage Penalty (Lambda)

The key element in the ridge regression formula is the term λΣβ_j², which is defined as the shrinkage penalty. Here, j ranges from 1 to p (the number of predictors), and λ (lambda) is a non-negative tuning parameter that dictates the strength of the penalty.

The value of λ is crucial, as it controls the magnitude of the coefficient shrinkage:

• When λ = 0: The penalty term vanishes, and the ridge regression objective reduces exactly to the OLS objective. In this case, ridge regression produces identical coefficient estimates to the least squares method.
• When λ > 0: The penalty term is active, and the coefficients are shrunk toward zero. Increasing the value of λ increases the influence of the penalty, leading to greater shrinkage.
• When λ → ∞: As λ approaches infinity, the penalty term dominates the RSS. To minimize the overall expression, the coefficient estimates must approach zero.

In general, the predictor variables that contribute least to the model’s predictive power will have their coefficients shrunk toward zero the fastest as λ increases. However, it is important to note that ridge regression can only push coefficients infinitesimally close to zero; it does not perform automatic variable selection by setting them exactly to zero, which is a characteristic distinguishing it from Lasso regression.

The Crucial Role of the Bias-Variance Tradeoff

The underlying benefit of utilizing ridge regression, especially when multicollinearity is present, is its effective manipulation of the bias-variance tradeoff. This tradeoff is fundamental to understanding model performance, particularly in relation to the Mean Squared Error (MSE), which is often used to measure the overall expected prediction error of a model.

The test MSE can be decomposed into three primary components:

MSE = Var(&fcirc;(x₀)) + [Bias(&fcirc;(x₀))]² + Var(ε)

Or, conceptually:

MSE = Variance + Bias² + Irreducible error

The principle of ridge regression is to deliberately introduce a small amount of bias into the model estimates. This intentional increase in bias is compensated by a substantial reduction in the variance of the coefficient estimates, ultimately leading to a lower overall test MSE compared to the high-variance OLS model.

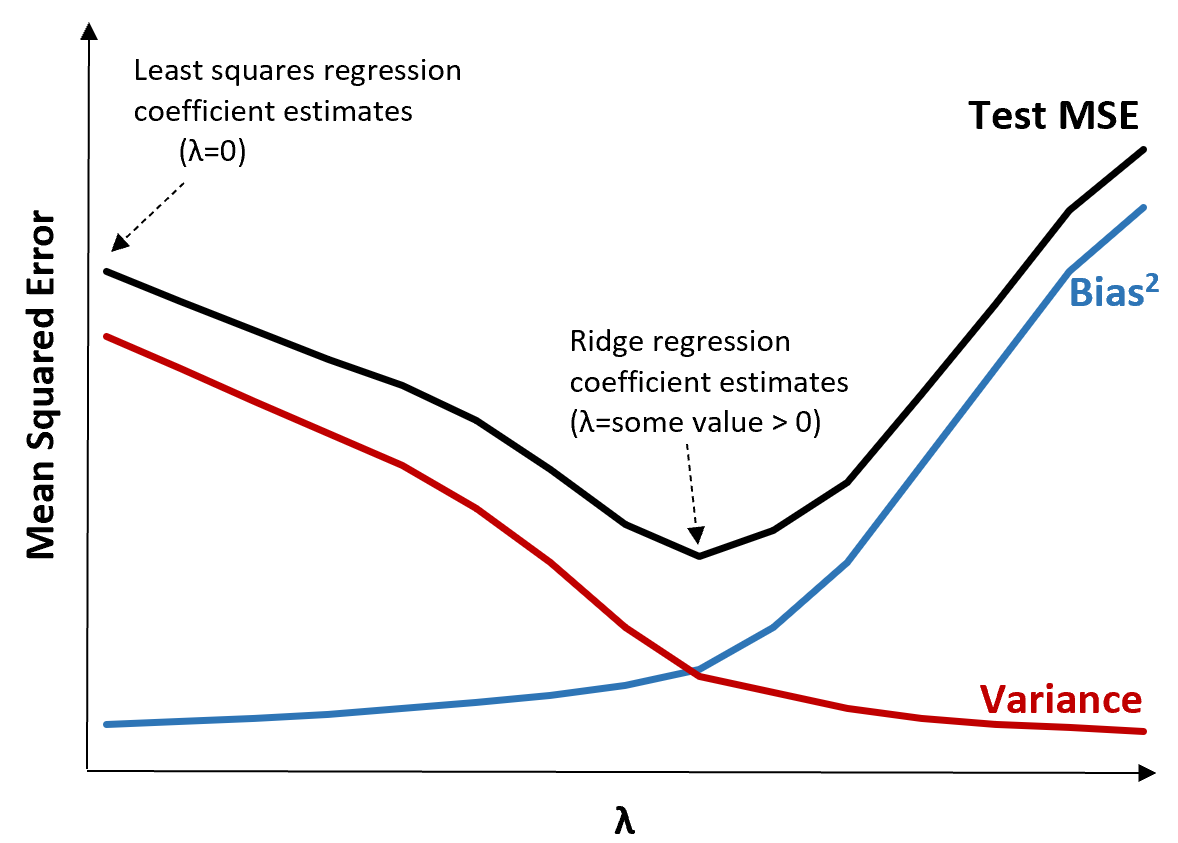

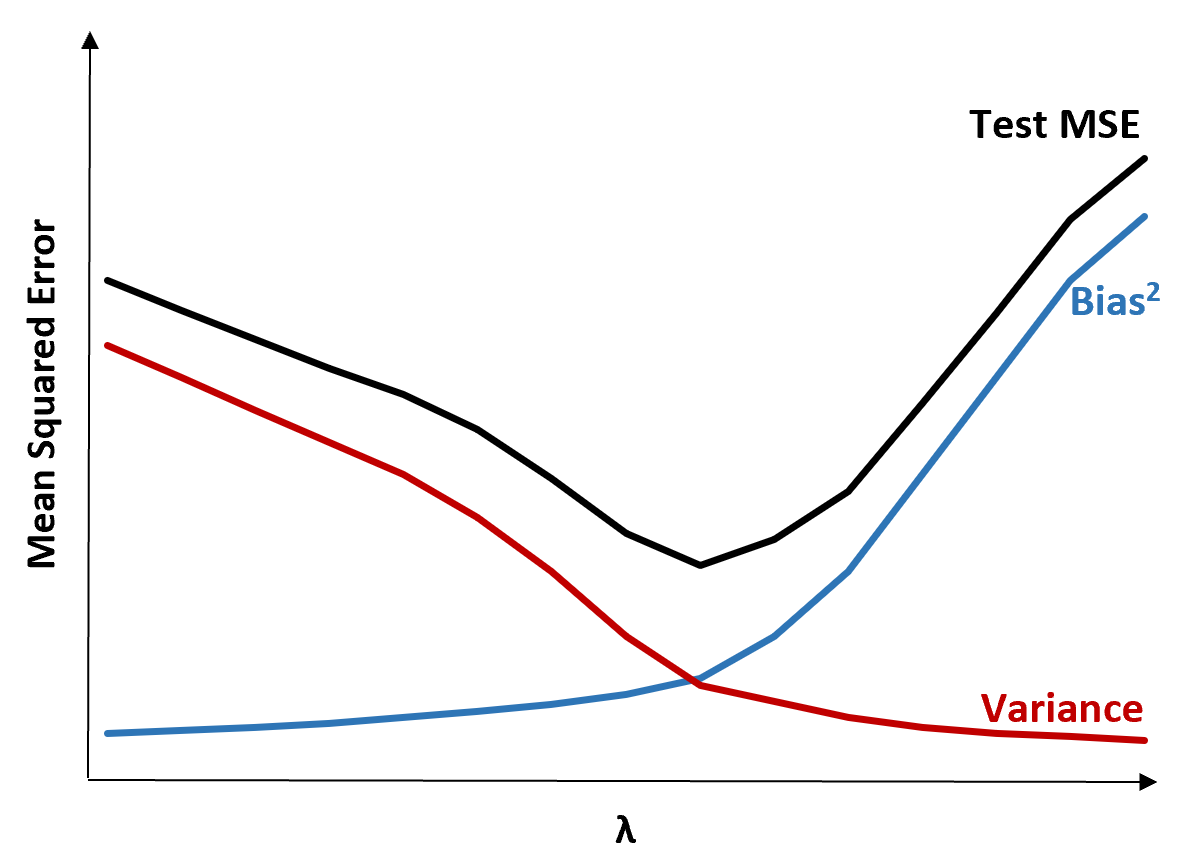

The following chart visually demonstrates this relationship:

As the chart illustrates, initially, as λ increases from zero, the variance drops sharply while the bias increases only marginally. This region yields the optimal model. However, if λ is increased too much, the shrinkage penalty dominates, the coefficients become significantly underestimated, leading to a rapid rise in bias and a deterioration in model performance. The goal is to select a λ that minimizes the test MSE by finding the sweet spot in the tradeoff.

Since increasing λ strategically can reduce the overall test MSE below the level achieved by OLS (where λ = 0), the model fit by ridge regression is often capable of producing superior predictions on new data compared to the standard least squares model.

Practical Implementation Steps for Ridge Regression

Successfully implementing ridge regression requires careful preparatory steps and a systematic method for selecting the optimal tuning parameter, λ. The following sequence outlines the standard procedure used in practice:

Step 1: Assess Multicollinearity using Correlation and VIF.

Before proceeding with ridge regression, it is essential to confirm the presence of significant multicollinearity. This involves generating a correlation matrix to identify highly correlated predictor pairs and calculating the VIF (Variance Inflation Factor) for each predictor variable. High VIF values (commonly defined as exceeding 5 or 10, depending on the context) strongly suggest that ridge regression is an appropriate technique. If no multicollinearity is detected, ordinary least squares regression remains the preferable, simpler choice.

Step 2: Standardize Each Predictor Variable.

Standardization is a mandatory prerequisite for ridge regression. Since the penalty term λΣβ_j² penalizes the magnitude of the coefficients, the scale of the predictor variables must be uniform. If variables are not scaled, a predictor measured in larger units would inherently require a smaller coefficient to achieve the same effect as a predictor measured in smaller units, leading to disproportionate penalization. To prevent this, data must be scaled such that each predictor variable has a mean of 0 and a standard deviation of 1.

Step 3: Fit the Ridge Regression Model and Select λ.

There is no closed-form solution to determine the optimal value for λ. Instead, practitioners employ iterative or graphical methods to find the λ that yields the best predictive performance. Two primary methods are commonly used for selecting λ:

1. Creating a Ridge Trace Plot: This visualization maps the values of the coefficient estimates against increasing values of λ. The trace plot reveals how each coefficient shrinks as the penalty increases. Typically, the optimal λ is selected at the point where the coefficient estimates begin to stabilize and before they are overly biased toward zero.

2. Calculating the Test MSE (or using Cross-Validation): A more robust method involves fitting multiple ridge regression models across a grid of λ values and calculating the test MSE for each model, often using k-fold cross-validation. The value of λ that produces the minimum test MSE is selected as the optimal tuning parameter.

Evaluating Ridge Regression: Advantages and Drawbacks

Ridge regression offers significant advantages in specific modeling scenarios, but it is not without its limitations, particularly concerning model interpretation.

The most significant benefit of ridge regression is its efficacy in reducing prediction error when high multicollinearity is present. By stabilizing the coefficient estimates and substantially lowering their variance, ridge regression can produce a significantly lower test MSE compared to the unstable results of OLS. This makes it highly valuable when prediction accuracy is the paramount concern.

Conversely, the primary drawback of ridge regression stems from its inability to perform intrinsic variable selection. Since the L2 penalty only shrinks coefficients toward zero without forcing them to be exactly zero, the final model retains all predictor variables. Even if a variable is highly irrelevant, its coefficient will remain non-zero (though very small). This inclusion of all variables can complicate model interpretation, making it difficult to definitively identify the subset of predictors that are truly influential.

In summary, ridge regression often yields a model capable of making better predictions, but the resulting model is frequently harder to interpret than a simplified OLS model. The choice between ordinary least squares and ridge regression should therefore be guided by the project’s priority: if prediction accuracy is critical, ridge regression is preferred; if parsimony and clear variable interpretability are essential, OLS (perhaps combined with careful feature selection) might be more suitable.

Further Resources: Ridge Regression in R & Python

For data scientists and analysts, implementing ridge regression is typically done using specialized libraries in leading statistical programming languages. The following tutorials offer detailed, step-by-step guidance on fitting these models:

Ridge Regression in R (Step-by-Step)
Ridge Regression in Python (Step-by-Step)
