Learning Equal Frequency Binning with Python

In the expansive domains of statistics and data science, binning, also formally recognized as data discretization, stands as a fundamental technique within the pipeline of data preprocessing. This essential procedure involves the transformation of continuous numerical variables into a manageable, smaller set of discrete intervals or categories, often termed bins or buckets. The overarching purpose of binning is multifaceted: it simplifies complex data structures, effectively minimizes the influence of minor measurement noise or errors, and crucially, prepares continuous attributes for statistical and machine learning models that specifically necessitate categorical inputs. By converting quantitative raw data into an ordered sequence of categories, binning significantly improves the robustness, interpretability, and often the predictive power of models, particularly when confronting variables characterized by severely skewed distributions or the presence of extreme outliers. Mastering the diverse strategies for binning is indispensable for sophisticated data manipulation, especially when working within the Python ecosystem.

Although the field employs several strategies for partitioning continuous data, two foundational methodologies dominate the landscape of data discretization practice. The first, renowned for its simplicity and directness, is equal-width binning. Under this conventional approach, the entire numerical range spanned by the dataset is partitioned into a predefined number, typically denoted as $k$, of bins, where every resulting interval possesses an identical numerical width. While highly intuitive and computationally inexpensive, a critical drawback of this technique emerges when the underlying data distribution is highly non-uniform, clustered, or heavily skewed: the resulting bins often contain dramatically unequal numbers of observations. This method strictly prioritizes the uniformity of the numerical range, entirely disregarding the actual density or distribution of the data points contained within those boundaries.

The second principal methodology is equal-frequency binning, which is alternatively known as quantile binning or equiprobable binning. This approach stands in direct methodological opposition to the equal-width strategy, focusing instead on segmenting the dataset into $k$ bins such that each bin encompasses an approximately equal number of data points, thus achieving frequency balance. This normalization process ensures that the generated categories are balanced in terms of population count, delivering considerable analytical advantages, particularly when the objective is to construct stable statistical models or conduct rigorous comparative analyses. This detailed tutorial will systematically explore the theoretical underpinnings of equal-frequency binning and provide a practical demonstration of its efficient implementation using the high-performance array capabilities provided by the NumPy library in Python.

The Foundational Difference: Width vs. Frequency

Data binning plays an instrumental role in stabilizing inherent variability and effectively reducing measurement noise within continuous variables. The strategic decision regarding which binning method to adopt must always be guided by a thorough understanding of the data’s distributional properties and the precise requirements of the subsequent analytical or modeling tasks. Equal-width binning, frequently the default setting in standard visualization tools, including basic histograms, guarantees that the numerical interval ($Delta x$) remains constant for every bin. To illustrate, if a variable spans the range from 0 to 100 and we specify 10 bins, each bin will uniformly cover exactly 10 units (e.g., 0-10, 10-20, and so forth). This dedication to uniform numerical scaling ensures that the resulting categories are highly interpretable in relation to the physical range of the variable itself.

However, the limitations of the equal-width approach become strikingly evident when applied to datasets that exhibit severe centralization or multi-modality. Since the width of every bin is fixed, regions corresponding to high data density will inevitably lead to tall, heavily populated bins, while sparsely populated regions, such as the distribution tails containing outliers, will result in short bins holding few or even zero observations. This inherent imbalance in category size can introduce substantial complications into statistical inference and may dilute the overall efficacy of machine learning models that rely on a balanced and equitable representation across all input categories. Fundamentally, while the numerical width remains equal across all bins, the crucial measure of information content—the count of contained data points—is drastically unequal.

In contrast, equal-frequency binning is specifically engineered to resolve this problematic frequency imbalance. By leveraging quantiles (or percentiles) as the definitive dividing lines, this methodology ensures that, regardless of the data’s specific underlying distribution, every single category captures an equivalent proportion of the total observations. This necessitates that the numerical bin width becomes adaptive: intervals will be numerically narrow in areas where the data density is high (such as around the mean of a typical normal distribution) and conversely, numerically wide in areas where the data is sparse. This dynamic width adjustment is exceptionally useful in feature engineering for predictive modeling, guaranteeing that the resulting discrete features exhibit a uniform frequency distribution, which in turn makes all subsequent modeling processes more statistically stable and notably less sensitive to inherent data skewness.

Demonstrating Equal-Width Binning with Synthetic Data

To clearly illustrate the fundamental differences between these two methodologies in practice, we commence by generating a synthetic dataset. We utilize the powerful capabilities of NumPy to create 100 random values drawn from a standard normal distribution. This specific distribution provides an ideal structure—data concentrated centrally with extended tails—for effectively comparing the outputs of the two distinct binning approaches. This preparatory step establishes the necessary context for observing the default behavior inherent in most analytical visualization packages.

The required libraries are first imported, and the random data is subsequently generated and inspected:

import numpy as np
import matplotlib.pyplot as plt

# Set a seed for ensuring reproducible results
np.random.seed(1)
# Generate 100 random values following a standard normal distribution
data = np.random.randn(100)

# Inspect the first 5 generated values
data[:5]

array([ 1.62434536, -0.61175641, -0.52817175, -1.07296862,  0.86540763])

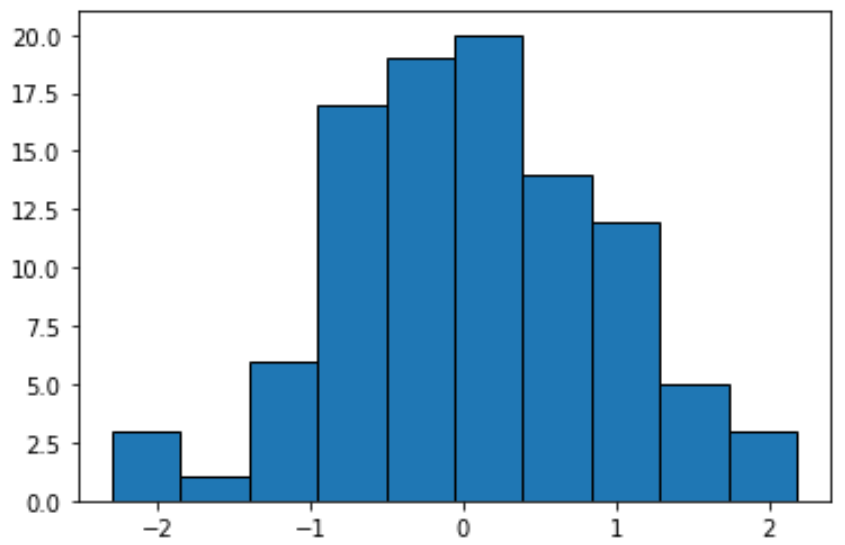

When this generated data is visualized using a standard histogram provided by the Matplotlib library, the resulting plot automatically defaults to utilizing equal-width binning. The plotting function internally computes the entire data range and segments it into intervals of identical numerical size. This procedure immediately yields a visual representation of the data’s density, where the height of each bar is directly proportional to the frequency count of observations residing within that fixed numerical width. The following code executes the standard histogram creation process and then extracts the calculated bin boundaries and their corresponding frequencies for detailed numerical analysis.

We examine how the standard library performs the discretization:

# Create histogram with equal-width bins using Matplotlib defaults
n, bins, patches = plt.hist(data, edgecolor='black')
plt.show()

# Display the calculated bin boundaries and the frequency count per bin
bins, n

(array([-2.3015387 , -1.85282729, -1.40411588, -0.95540447, -0.50669306,
        -0.05798165,  0.39072977,  0.83944118,  1.28815259,  1.736864  ,
         2.18557541]),
 array([ 3.,  1.,  6., 17., 19., 20., 14., 12.,  5.,  3.]))

Analyzing the Imbalance of Equal-Width Results

The numerical output clearly confirms the inherent characteristic of this method: while each of the ten generated bins maintains an identical numerical width (approximately 0.4487 units), the actual number of observations contained within them varies significantly. The bins positioned near the center of the distribution, where the data density is at its maximum, successfully capture up to 20 observations. Conversely, the bins located in the distribution’s sparse tails contain dramatically fewer observations, sometimes as few as 1 or 3. This substantial disparity in frequency starkly highlights the main functional pitfall of equal-width binning: it prioritizes the uniformity of the numerical range at the expense of achieving balance in the underlying population distribution.

• The first bin, spanning from the range -2.3015387 to -1.8528279, captures a mere 3 observations, indicating a notably low data density within this extreme numerical range.
• The second bin, covering the interval from -1.8528279 to -1.40411588, registers the absolute minimum recorded frequency, holding just 1 observation.
• In sharp contrast, the sixth bin, which is tightly centered around the distribution’s mean (zero), captures the maximum frequency of 20 observations, thereby underscoring the high concentration of data in the central region.

This unacceptable unequal distribution of observations mandates the adoption of a frequency-based methodology whenever the analytical goal requires the creation of balanced categories for developing robust statistical models or performing fair comparative analysis. The need for uniform representation across categories drives the implementation of equal-frequency techniques.

Custom Implementation of Equal-Frequency Binning in Python

The governing principle of equal-frequency binning dictates a simple rule: if we possess $N$ total observations and intend to create $k$ bins, then each resulting bin must ideally contain $N/k$ data points. For our current example, where $N=100$ and we choose $k=10$, every bin is required to contain exactly 10 observations. This precise balance is achieved by mathematically identifying the data values that correspond to the cumulative proportions 0.1, 0.2, 0.3, up to 0.9. These values are, by definition, the quantiles.

Since most standard visualization libraries, including Matplotlib, typically do not offer a direct, built-in function for automatically generating quantile-based histogram boundaries, we must rely on a custom implementation leveraging NumPy. The core computational step involves sorting the initial data array and then utilizing linear interpolation to determine the precise values that correspond to the desired percentiles. Specifically, the np.interp function is used for this critical purpose, mapping the required cumulative proportions (which correspond to index ranks 0, 10, 20, …, 100 within the sorted array) onto the actual sorted data values, thereby yielding the exact boundary values necessary to define the equal-frequency bins.

We define the highly reusable utility function equalObs to calculate these essential quantile boundaries. These boundaries are then passed directly into the plt.hist function to generate the final, balanced histogram:

# Define function to calculate equal-frequency bins using quantile interpolation
def equalObs(x, nbin):
    nlen = len(x)
    return np.interp(np.linspace(0, nlen, nbin + 1),
                     np.arange(nlen),
                     np.sort(x))

# Create histogram using the custom calculated equal-frequency bins
n, bins, patches = plt.hist(data, equalObs(data, 10), edgecolor='black')
plt.show()

# Display the new bin boundaries and frequency per bin
bins, n

(array([-2.3015387 , -0.93576943, -0.67124613, -0.37528495, -0.20889423,
         0.07734007,  0.2344157 ,  0.51292982,  0.86540763,  1.19891788,
         2.18557541]),
 array([10., 10., 10., 10., 10., 10., 10., 10., 10., 10.]))

Interpreting the Equal-Frequency Output

The resulting output array for frequencies (labeled n) definitively confirms the successful execution of the equal-frequency binning strategy: every single bin now consistently contains exactly 10 observations. This highly desirable state of perfect frequency balance is attained by permitting the numerical width of the bins to vary considerably, adapting fluidly to the varying density of the underlying data structure. This adaptive width is the defining characteristic and the essential trade-off inherent to the quantile method of discretization.

When scrutinizing the calculated bin boundaries (represented by the bins array), the non-uniformity of the widths is immediately evident. In the central regions where the data is most dense, the bins are numerically compressed and narrow, as only a minimal span is required to accumulate the target 10 observations. Conversely, in the sparsely populated tails characteristic of the normal distribution, the bins are forced to cover a much broader numerical range to successfully capture the mandated 10 data points.

• The initial bin, spanning from the absolute minimum data point (-2.3015387) up to the 10th percentile (-0.93576943), covers a substantial numerical range, yet precisely captures 10 observations.
• The central bins, for instance, the one ranging from -0.37528495 to -0.20889423, demonstrate the tightest boundaries, reflecting the area of highest data density where the numerical space needed to capture 10 observations is minimal.
• Overall, the variation in bin width visually communicates the underlying density structure of the data.

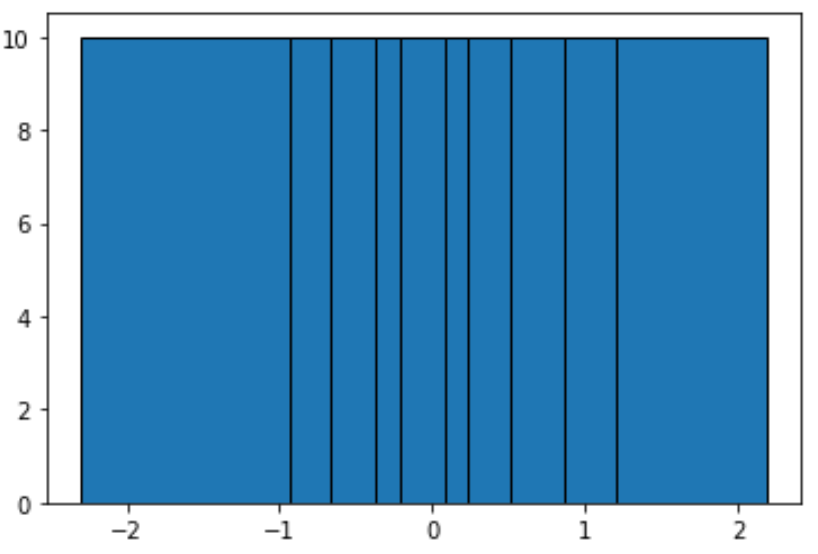

The visual outcome presented in the second histogram (Figure 2) serves as a perfect demonstration of this adaptive mechanism. All histogram bars share the exact same height, which visually confirms the uniform frequency count across all categories. This advanced visualization approach shifts the focus away from bar height (which is constant) and instead leverages the varying numerical width of the bins to convey the data’s intrinsic density structure, offering a powerful and insightful alternative perspective compared to the traditional fixed-width histogram.

Strategic Advantages in Modeling and Feature Engineering

While equal-width binning remains a suitable and simple default for initial data visualization, equal-frequency binning provides compelling and often superior advantages in the context of advanced statistical modeling and machine learning data preprocessing. The primary advantage—the guarantee of an equal number of observations per category—is paramount for mitigating systemic biases that frequently arise from unbalanced feature categories. Models trained using features discretized via the equal-width method risk over-learning from data-dense bins and exhibiting poor performance on sparsely populated ones. Equal-frequency binning directly addresses and resolves this fundamental issue of unequal representation.

This technique proves especially beneficial in feature engineering when preparing data for robust classification and regression models, particularly when dealing with input features that are inherently highly skewed (e.g., measures of income, asset valuation, or highly variable transaction counts). By structurally relying on quantiles, the resulting categories are naturally robust against the influence of outliers, as extreme values are simply accommodated into wider end bins without distorting the definition or scope of the central, information-rich categories. This inherent regularization effect tends to result in more stable, generalized, and reliable model performance across the entire population distribution.

Furthermore, equal-frequency binning is intrinsically linked to percentile analysis, positioning it as the preferred methodology when the analytical objective is to establish balanced ordinal rankings or comparable groups. Practical applications include creating standardized performance tiers (e.g., classifying data into the top 10%, middle 80%, or bottom 10%) or defining risk segments based strictly on relative ranking within the population. Because the resulting bins consistently represent equal portions of the population, they establish a clear, standardized foundation for comparative statistics and subsequent data-driven decisions, offering a more intuitive sense of relative position than categories derived solely from numerical magnitude.
