Learn to Visualize Normal Distributions: A Python Bell Curve Tutorial

The concept of the “bell curve” is arguably the most recognizable symbol in statistics, serving as the colloquial term for the normal distribution. This specific type of probability distribution is fundamental because countless natural and social phenomena—ranging from measurement errors and financial market fluctuations to human characteristics like height and IQ scores—tend to follow its structure. The signature appearance, characterized by perfect symmetry around the mean and gradually diminishing tails, makes it instantly identifiable and a cornerstone of inferential statistics and data modeling.

For data scientists and analysts, the ability to accurately visualize the normal distribution using Python is a critical skill. This visualization provides not only an aesthetic representation but also a powerful analytical tool for understanding data spread, identifying outliers, and performing rigorous hypothesis testing. This comprehensive tutorial is designed to guide you through the process of generating, customizing, and rigorously interpreting the bell curve. We will leverage the foundational scientific libraries of the Python ecosystem to move beyond simple plotting and integrate advanced techniques for highlighting crucial statistical probabilities, thereby transforming raw data into meaningful insights.

We will delve into the mathematical underpinnings that characterize the distribution, detail the essential Python library setup required for statistical accuracy, and provide step-by-step code examples for creating publication-quality figures. Mastery of this visualization technique is indispensable for effective data communication, ensuring that complex statistical concepts are presented with clarity and precision.

Understanding the Parameters of the Normal Distribution

The normal distribution is entirely defined by just two parameters: the mean, denoted by $mu$ (mu), and the standard deviation, denoted by $sigma$ (sigma). The mean acts as the central tendency, positioning the peak of the bell curve on the horizontal axis. It represents the most likely outcome or the average value within the dataset. Any shift in the mean simply translates the entire curve left or right without altering its shape.

In contrast, the standard deviation is the measure of dispersion or spread; it dictates the width and height of the curve. A small $sigma$ results in a tall, narrow curve, indicating that data points are tightly clustered around the mean. Conversely, a large $sigma$ produces a short, wide curve, signifying that the data is widely dispersed. Understanding the interplay between these two parameters is crucial, as they allow statisticians to model virtually any dataset that exhibits a normal tendency.

A particularly important case is the Standard Normal Distribution, where the mean is set to zero ($mu=0$) and the standard deviation is set to one ($sigma=1$). This standardization simplifies comparisons across different datasets, regardless of their original scale or units. Any normal distribution can be transformed into the standard normal distribution using the Z-score calculation, which measures how many standard deviations a raw score is away from the mean. This standardized framework is often employed when performing statistical inference, allowing for the use of universal probability tables.

The Triad of Python Libraries for Statistical Visualization

Accurately rendering a smooth, continuous bell curve requires harnessing the specialized capabilities of three core Python scientific libraries: NumPy, SciPy, and Matplotlib. This powerful combination forms the backbone of almost all advanced numerical and statistical computing in Python, ensuring that the generated visualizations are both mathematically sound and visually compelling.

First, NumPy (Numerical Python) is essential for handling array operations efficiently. When plotting a continuous function like the normal distribution, we need thousands of equally spaced data points (x-values) to ensure the resulting line appears perfectly smooth rather than a series of jagged segments. NumPy‘s np.arange() function provides the ideal tool for defining this fine-grained domain over which the curve will be calculated. It handles the creation of these large, numerical arrays with speed and memory efficiency, which is critical for large-scale data analysis.

Second, SciPy (Scientific Python) provides the mathematical muscle for statistical calculations. Specifically, we rely on the scipy.stats module. Within this module, the norm class encapsulates all functions related to the normal probability distribution. The single most important function for plotting the bell curve is norm.pdf(). The Probability Density Function (PDF) returns the height of the curve (the y-coordinate) for any given x-value, based on the specified mean and standard deviation. This mathematical precision ensures the curve accurately represents the theoretical distribution.

Finally, Matplotlib is the industry standard for creating static, interactive, and animated visualizations in Python. It takes the calculated x and y coordinates (generated by NumPy and SciPy, respectively) and renders them as a sophisticated line graph. Beyond simple plotting, Matplotlib offers extensive customization capabilities, allowing users to fine-tune every visual aspect, including axis labels, titles, grid lines, and plot styles. The synergy between these three libraries enables the efficient generation of complex statistical graphs suitable for academic publication or professional reporting.

Step-by-Step Guide to Creating the Basic Bell Curve

The foundational step in generating the bell curve involves initializing our environment by importing the necessary libraries and defining the parameters for the standard normal distribution. We aim to plot the curve over a wide enough range to cover the vast majority of the probability space, ensuring the tails are visible and the curve is visually complete. For a standard normal distribution ($mu=0, sigma=1$), plotting the range from -4 to +4 standard deviations is conventional, as this interval encompasses 99.99% of all potential observations.

Our process begins with using NumPy‘s np.arange() to define the domain. We choose an increment, such as 0.001, to ensure a high density of points, guaranteeing the plotted line is smooth and continuous. Once the x-values are established, we pass them to the norm.pdf() function from SciPy, explicitly setting the mean (0) and standard deviation (1). The resulting array of y-values represents the height of the PDF at each corresponding x-point.

The final step involves visualization using Matplotlib. We first create a figure and an axes object using plt.subplots(), which provides a flexible structure for customization. The ax.plot(x, y) command then draws the curve. To enhance readability, we apply the 'fivethirtyeight' style sheet, a popular aesthetic choice that adds grid lines and a clean appearance. This systematic approach ensures that the output is not only accurate but also immediately ready for presentation.

The following code demonstrates how to create a basic standard bell curve using the numpy, scipy, and matplotlib libraries:

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import norm

#create range of x-values from -4 to 4 in increments of .001
x = np.arange(-4, 4, 0.001)

#create range of y-values that correspond to normal pdf with mean=0 and sd=1
y = norm.pdf(x,0,1)

#define plot
fig, ax = plt.subplots(figsize=(9,6))
ax.plot(x,y)

#choose plot style and display the bell curve
plt.style.use('fivethirtyeight')
plt.show()

The output of this code is the classic, symmetrical bell shape, perfectly centered at x=0. This foundational visualization is the starting point for nearly all advanced statistical graphing involving the normal distribution, confirming the setup and the successful integration of the three core libraries.

Visualizing Probability: Shading the Area Under the Curve

The true power of the bell curve visualization lies in its ability to communicate probability. Unlike discrete distributions, where probability is defined at specific points, the probability of a continuous outcome falling within a certain range is represented by the total area under the Probability Density Function (PDF) curve for that range. Graphically shading this area provides an immediate and intuitive understanding of complex statistical concepts such as confidence intervals, critical regions for hypothesis testing, and the empirical rule.

To achieve this shading, we must define a new, constrained array of x-values that precisely covers the area of interest. For instance, if we want to illustrate the famous 68-95-99.7 rule (the empirical rule), we might choose to shade the region between $x=-1$ and $x=1$, which represents approximately 68.2% of all data points in the standard normal distribution. This restricted x-range (x_fill) is then used to calculate a corresponding restricted set of y-values (y_fill) using the same norm.pdf() function.

The shading itself is implemented using Matplotlib‘s ax.fill_between() function. This function requires the defined x-range, the y-values that form the ceiling of the shaded area (y_fill), and the baseline (0 in this case). Key parameters for customization include alpha, which controls the transparency of the shading (allowing grid lines or underlying plot elements to show through), and color, which defines the hue. This graphical isolation of statistical regions is invaluable for educational purposes and for clearly communicating the results of statistical models.

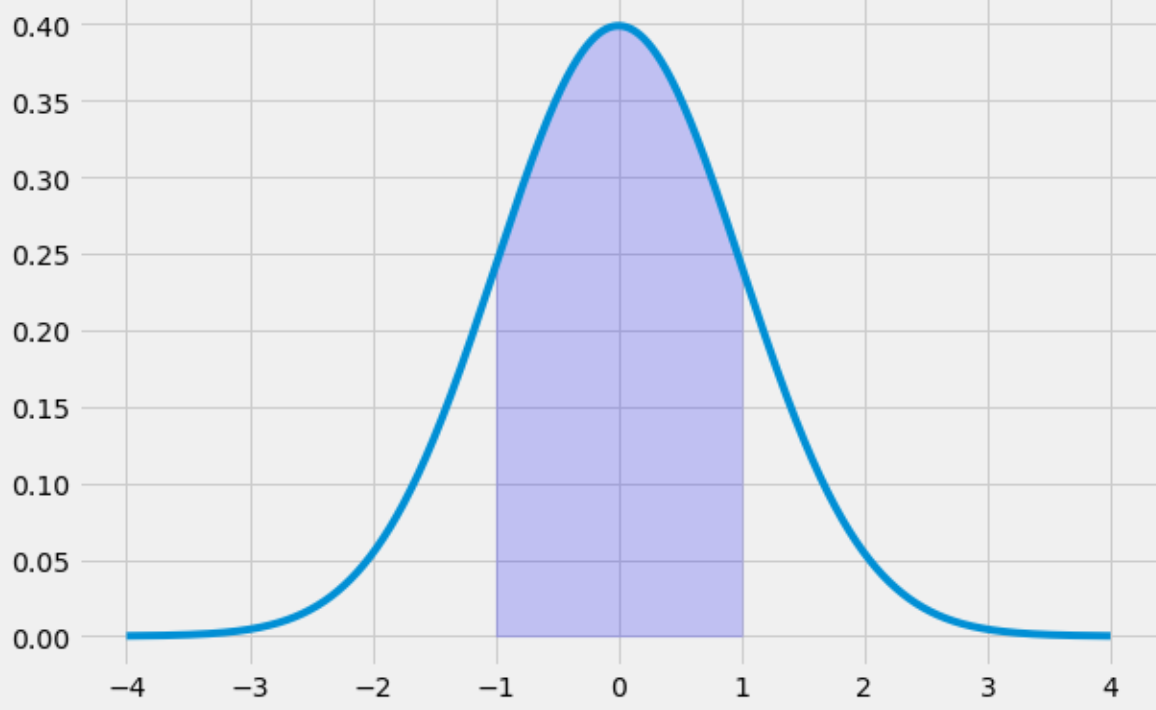

The following code illustrates how to fill in the area under the bell curve ranging from -1 to 1, representing one standard deviation from the mean:

x = np.arange(-4, 4, 0.001)
y = norm.pdf(x,0,1)

fig, ax = plt.subplots(figsize=(9,6))
ax.plot(x,y)

#specify the region of the bell curve to fill in
x_fill = np.arange(-1, 1, 0.001)
y_fill = norm.pdf(x_fill,0,1)
ax.fill_between(x_fill,y_fill,0, alpha=0.2, color='blue')

plt.style.use('fivethirtyeight')
plt.show()

Customizing Aesthetics with Advanced Matplotlib Styling

While mathematical accuracy is essential, the effectiveness of any data visualization hinges on its aesthetic presentation. Matplotlib offers unparalleled flexibility for customization, allowing developers to move beyond default settings and produce plots that align with specific branding, academic standards, or personal preferences. Customization options extend far beyond simple color changes; they encompass line styles, marker types, font choices, axis formatting, and the application of global style sheets.

Choosing the right style sheet can dramatically alter the mood and readability of a plot. For instance, while the ‘fivethirtyeight’ style is excellent for journalistic data visualization, a more traditional report might necessitate a lighter theme with crisper lines. Matplotlib’s style sheets provide a mechanism for rapid, holistic transformation of the plot’s appearance, ensuring consistency across multiple figures.

The example below demonstrates how to integrate a different style sheet and simultaneously coordinate the color palette of the curve and the shaded area. We switch to the 'Solarize_Light2' theme, which is characterized by a high-contrast, light background. We then explicitly set a vibrant green color for both the line plot and the fill area. This practice ensures visual harmony and emphasizes the critical regions of the curve effectively. This flexibility is crucial for creating graphics that integrate seamlessly into documents, presentations, or digital dashboards.

x = np.arange(-4, 4, 0.001)
y = norm.pdf(x,0,1)

fig, ax = plt.subplots(figsize=(9,6))
ax.plot(x,y, color='green')

#specify the region of the bell curve to fill in
x_fill = np.arange(-1, 1, 0.001)
y_fill = norm.pdf(x_fill,0,1)
ax.fill_between(x_fill,y_fill,0, alpha=0.2, color='green')

plt.style.use('Solarize_Light2')
plt.show()

The strategic use of plt.style.use() is a powerful feature that allows statistical visualization to become a form of visual storytelling. By mastering the available customization options, users can ensure their bell curves not only convey statistical truth but also meet stringent requirements for visual quality. For those seeking complete control over their plot’s appearance, exploring Matplotlib‘s documentation on style sheets and custom configuration files is highly recommended.

You can find the complete style sheet reference guide for Matplotlib here.

Summary and Advanced Applications

Visualizing the bell curve in Python effectively synthesizes the computational power of NumPy, the statistical accuracy of SciPy, and the rendering capabilities of Matplotlib. This process allows analysts to move beyond theoretical understanding and engage with the normal distribution as a dynamic, interpretable model for real-world data. The ability to accurately plot the normal distribution and dynamically highlight regions corresponding to critical probabilities is a foundational skill in data science.

Key technical takeaways include defining a sufficiently dense range of x-values using NumPy‘s np.arange() to guarantee curve smoothness, utilizing SciPy‘s norm.pdf() function for precise calculation of the PDF values, and strategically employing Matplotlib‘s ax.fill_between() to shade meaningful statistical areas. Furthermore, leveraging style sheets via plt.style.use() ensures that the final output maintains a professional and coherent visual identity.

Mastering these techniques sets the stage for more complex statistical visualizations, such as comparing two different normal distributions, plotting confidence intervals derived from sample data, or illustrating the concept of statistical significance (P-values) through precise tail shading. The bell curve, when properly visualized, is not merely a graph; it is a clear statement about the uncertainty and expected variability inherent in the data under analysis.
