Learning to Apply Dynamic Alternate Row Coloring Based on Group Changes in Excel

In the realm of professional datasets analysis and sophisticated reporting, presenting vast quantities of information in a digestible format is paramount. While simple alternating row colors (zebra stripes) can enhance general readability, a far more powerful and frequently requested technique is applying dynamic color segmentation based on group changes within the data itself. This methodology ensures that all related records belonging to a singular entity—be it a specific project, an individual employee, or a common category—are visually unified by sharing the same background color, thereby creating clear and immediate segmentation for the user.

Imagine working within Microsoft Excel to track comprehensive performance statistics. Instead of the color flipping every single row, the requirement dictates that the row color should only change when the value in a designated grouping column, such as “Player” or “Department,” shifts to a new entity. This granular control over visual presentation significantly improves data comprehension, allowing analysts and viewers to quickly discern where one group ends and the next begins. The subsequent steps detail the precise, sophisticated method required to achieve this superior visual segmentation, culminating in a result similar to the one illustrated below:

This comprehensive, step-by-step tutorial demystifies the process for dynamic group-based coloring. We will utilize a core combination of two essential Excel features: a tailored Helper Column designed to identify group boundaries, and powerful Conditional Formatting rules to apply the desired visual style. Mastering this technique is crucial for anyone looking to produce clean, professional, and highly readable data reports within Microsoft Excel.

Step 1: Structuring the Data Environment and Input

The successful execution of this dynamic coloring technique is fundamentally dependent upon the correct structure and input of the raw data. We must first establish the foundation by entering the sample dataset into the Microsoft Excel spreadsheet. For instructional purposes, this example utilizes basketball statistics, tracking points scored across various games for a collection of multiple players.

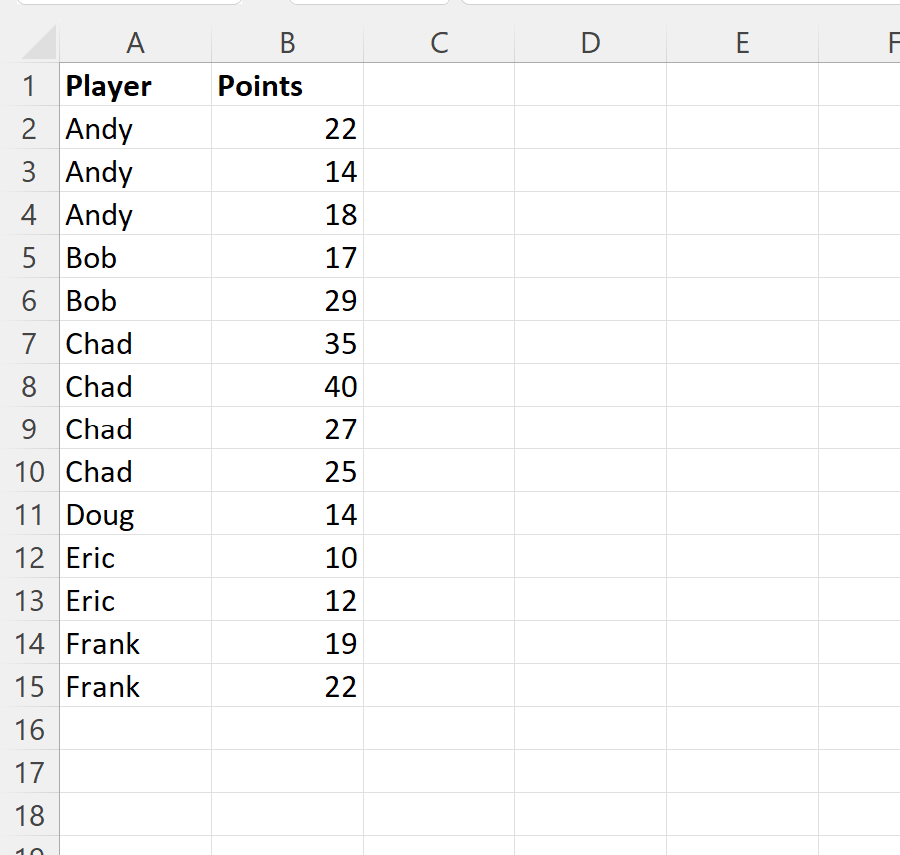

A critical prerequisite for simplifying the subsequent grouping logic is to ensure that your data is logically sorted by the primary grouping variable. In this demonstration, the “Player” name acts as the grouping variable and should ideally reside in the leftmost column (Column A). This arrangement allows for straightforward comparison between sequential rows, which is necessary for detecting group changes. Our initial table setup, typically beginning in cell A1, should strictly resemble the structure shown in the following image:

Once you have accurately populated the data range and confirmed that the grouping column is correctly sorted, we can transition to the essential mathematical step: devising the logic that precisely detects and flags every instance where a new group boundary is encountered.

Step 2: Establishing Group Boundaries with the Helper Column

To enable the application of alternating colors based exclusively on group transitions, Microsoft Excel requires a distinct, sequential mechanism that assigns a unique identifier to each group. This identifier must effectively “flip” or increment whenever the value in the primary grouping column changes. This mechanism is realized through the implementation of a dedicated Helper Column, which will subsequently serve as the essential criteria for defining our visual Conditional Formatting rule.

We designate Column C for this new calculation, labeling it descriptively as “Group ID.” The primary objective is to generate a numerical value that only increments when the player’s name shifts from the preceding row, thus assigning the same ID to all rows belonging to the same player. Follow these precise steps to construct the core logic:

1. Begin by initializing the first row of data. In cell C1, which corresponds to the first player entry, simply enter the numerical value 0. This establishes the necessary starting baseline for the recursive formula.

2. In the subsequent row, cell C2, we must input a powerful formula that leverages the IF function. This formula is designed to compare the current grouping value (A2) directly against the grouping value in the preceding row (A1).

The necessary formula structure, which you must input into cell C2, is as follows:

=IF(A2=A1,C1,C1+1)

The underlying logic of this IF function is highly intuitive: if the player name in the current row (A2) is perfectly identical to the player name in the row above (A1), we instruct Excel to simply retain the existing Group ID value from C1. Conversely, if a discrepancy is detected, signifying the start of a new player group, the formula must increment the previous Group ID value by 1 (C1 + 1). Crucially, this formula must then be accurately copied and applied to every remaining cell throughout Column C, ensuring that every data record is assigned its correct, sequential group number.

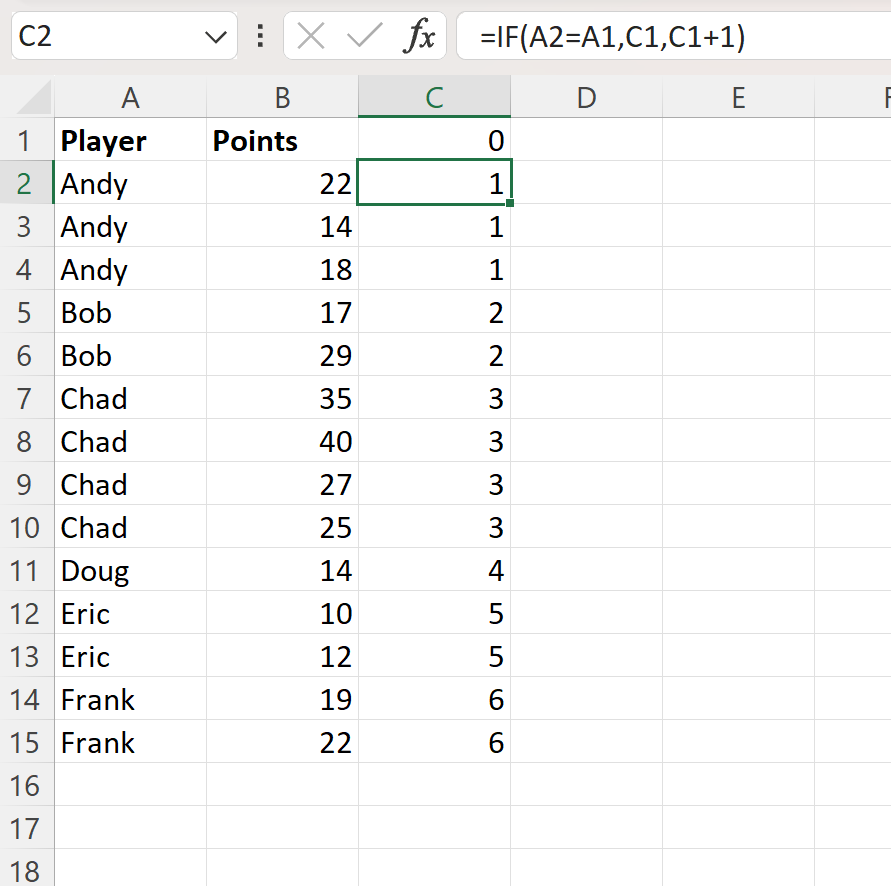

Upon successful completion of this step, you will observe that all rows corresponding to the same player share an identical Group ID number, and this ID increments only when a new player appears. These generated numerical identifiers (0, 1, 2, 3, and so on) form the fundamental, non-visual basis for the subsequent row alternation.

Step 3: Implementing Visual Rules via Conditional Formatting

With the Helper Column now fully populated with accurate Group IDs, the subsequent and final phase is to harness Conditional Formatting to apply the visual styling. The core principle of the visual logic is elegantly simple: we only want to apply a color fill to rows whose Group ID is either an odd number or an even number, thus creating the alternating effect. We achieve this highly specific check using the mathematical function MOD (Modulo), which returns the remainder of a division operation, allowing us to flawlessly determine the parity (odd or even) of the Group ID.

To initiate the application of the formatting rule, adhere strictly to the following procedures:

• First, meticulously highlight the entire range of data intended for formatting, ensuring you deliberately exclude the header row. In the context of our example, this selection corresponds to the range A2:C15.

• Next, navigate to the Home tab located within the Microsoft Excel ribbon interface. Locate the Conditional Formatting dropdown menu, click on it, and then select the option labeled New Rule.

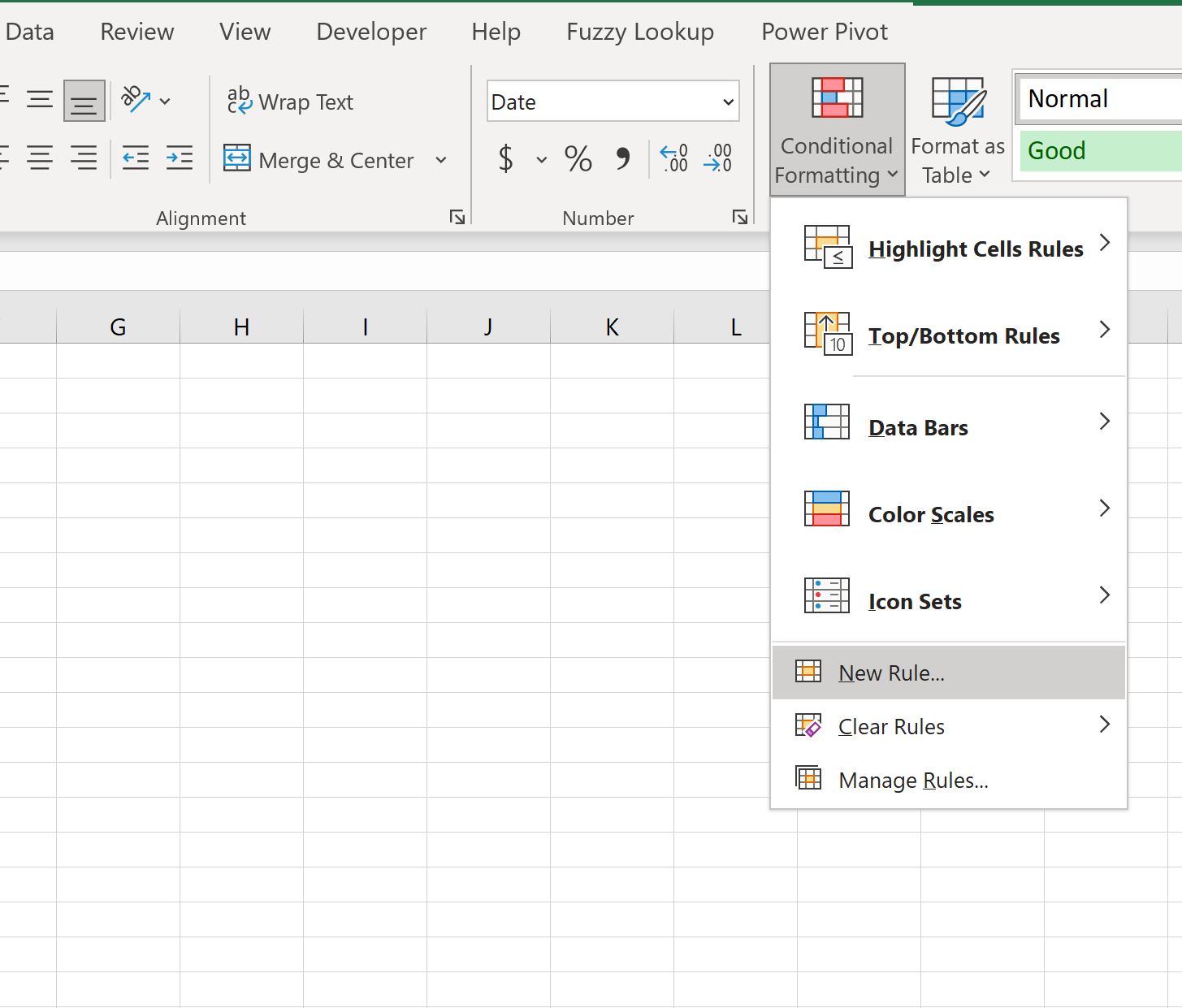

This sequence of actions will promptly launch the Conditional Formatting Rule Manager dialogue box, providing the interface necessary for defining custom visual logic, as specifically illustrated in the image below:

Step 4: Defining the Modulo Formula for Alternation

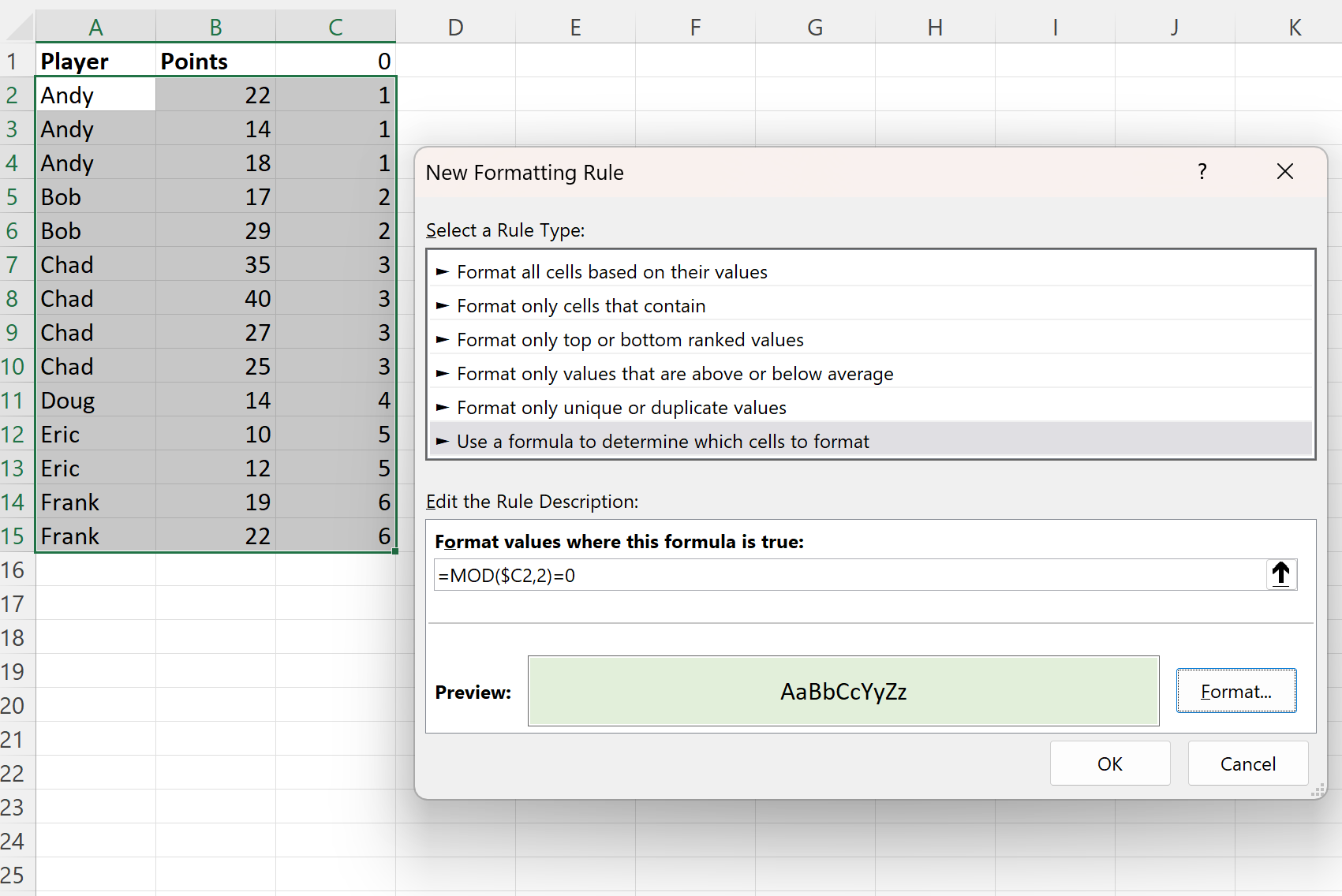

Within the “New Formatting Rule” dialogue box, you must select the crucial option: “Use a formula to determine which cells to format.” This selection is where we integrate the specific mathematical logic that relies on our calculated Group ID column. The formula’s purpose is to check if the remainder resulting from dividing the Group ID by 2 is equal to 1, which confirms that the number is odd. A critical element here is the use of appropriate cell referencing: we must use absolute referencing for the column (e.g., $C2) to ensure the rule consistently checks Column C regardless of the horizontal position, but maintain relative referencing for the row (e.g., C2) so that the check correctly adjusts as it moves down through the selected range.

Enter the following precise formula into the designated field:

=MOD($C2,2)=1

Once the formula has been accurately entered, click the Format… button. This allows you to select the desired color fill, font style, or border effect for the alternating rows. For this specific demonstration, a light green background fill was chosen to provide a clear contrast. After confirming your chosen format, click OK to save and apply the new Conditional Formatting rule.

Step 5: Reviewing Results and Customization Options

Immediately after pressing OK to finalize the Conditional Formatting rule, the alternating row colors will instantly apply across the entire selected range (A2:C15). The resulting visual segmentation is successfully complete: every row associated with an odd-numbered Group ID is colored, while those assigned an even Group ID remain uncolored, thus creating the desired dynamic alternation. This sophisticated formatting approach drastically improves the clarity of the group-based dataset, making tracking and analysis significantly more intuitive and visually engaging.

Customization and Flexibility: It is important to note that while this example utilized a light green fill for demonstration purposes, the aesthetic choices are entirely flexible and customizable. You possess the freedom to select any desired color, font effect, or border style within the Conditional Formatting dialog box to match corporate branding or reporting standards. Furthermore, if your preference were to color the even-numbered groups instead of the odd ones, you could simply modify the Modulo rule to =MOD($C2,2)=0 (which checks for even numbers) instead of the initial =MOD($C2,2)=1 (which checks for odd numbers).

Finally, while the Helper Column (Column C) is mathematically essential for generating the group calculation, it is typically not required for the final display of the report. To ensure a clean, professional appearance in the final output while preserving the underlying grouping logic, you can safely hide Column C from view.

Further Learning and Advanced Techniques

Developing mastery over dynamic formatting techniques in Microsoft Excel is a vital skill for creating professional and easily navigable data presentations. The ability to apply visual styling based on complex, calculated criteria—rather than simple fixed rules—opens the door to highly sophisticated data visualization. If you are interested in exploring other advanced applications of these powerful visual tools and extending your formatting expertise, the following tutorial provides valuable insights into related tasks, such as applying rules based on text content:

Excel: Apply Conditional Formatting if Cell Contains Text
