Learning to Alternate Column Colors in Excel: A Comprehensive Tutorial

Enhancing Data Readability with Alternating Column Colors

In professional data management and analysis, clarity is paramount. When working with large datasets in Excel, viewing extensive rows and columns can lead to visual fatigue and increased error rates. A highly effective technique to mitigate these issues is the implementation of visual aids, specifically alternating column colors. This process transforms dense spreadsheets into highly readable tables, ensuring that the eye can easily track data points across the sheet without confusion.

Alternating column colors, often referred to as “banding,” provides a distinct visual separation between adjacent data fields. Unlike alternating row colors—a commonly utilized feature—alternating columns requires a specific application of Conditional Formatting rules based on mathematical functions related to the sheet’s inherent structure. Achieving this sophisticated visual arrangement is crucial for reports destined for presentation or detailed audit, establishing a strong foundation for data integrity and interpretation.

The core objective is to ensure that every second column adopts a specific background color, while the columns in between remain uncolored (or adopt a different shade). This method is particularly useful when dealing with wide tables where vertical comparisons and cross-column data linking are frequently necessary. The following comprehensive guide provides a step-by-step methodology using powerful built-in Excel functions combined with the flexibility of Conditional Formatting.

For instance, observe the visual improvement achieved when column colors are alternated across a range of data, providing immediate structural clarity:

The Foundational Role of Conditional Formatting

The key to successfully automating the alternation of column colors lies in leveraging Conditional Formatting. This feature allows users to apply specific formatting—such as fill color, font style, or borders—only when a defined criteria is met. Unlike manual formatting, Conditional Formatting is dynamic, meaning the colors will automatically adjust if columns are inserted, deleted, or rearranged, thereby maintaining the integrity of the visual banding pattern across the entire dataset.

To initiate this process, we must accurately define the scope of the formatting. Suppose, for the purposes of this illustration, we intend to apply alternating background colors across columns A through H of a specific worksheet. This range selection is the critical first step, as the Conditional Formatting rule will only be evaluated against the cells that are initially highlighted. Any cell outside this selection will remain unaffected by the rule we are about to create.

It is important to remember that when applying formula-based Conditional Formatting, the formula must be written relative to the top-left cell of the selected range. However, because we are formatting entire columns based on their sequential column number, the formula structure will inherently reference the absolute column position rather than relative cell positions within the selection. This powerful technique provides maximum flexibility and scalability when dealing with expanding datasets in Excel.

Step-by-Step Guide to Implementing Column Banding

The following sequence of steps details the exact process required to apply the desired column banding effect to your selected data range. This implementation relies entirely on configuring a new rule within the Conditional Formatting manager.

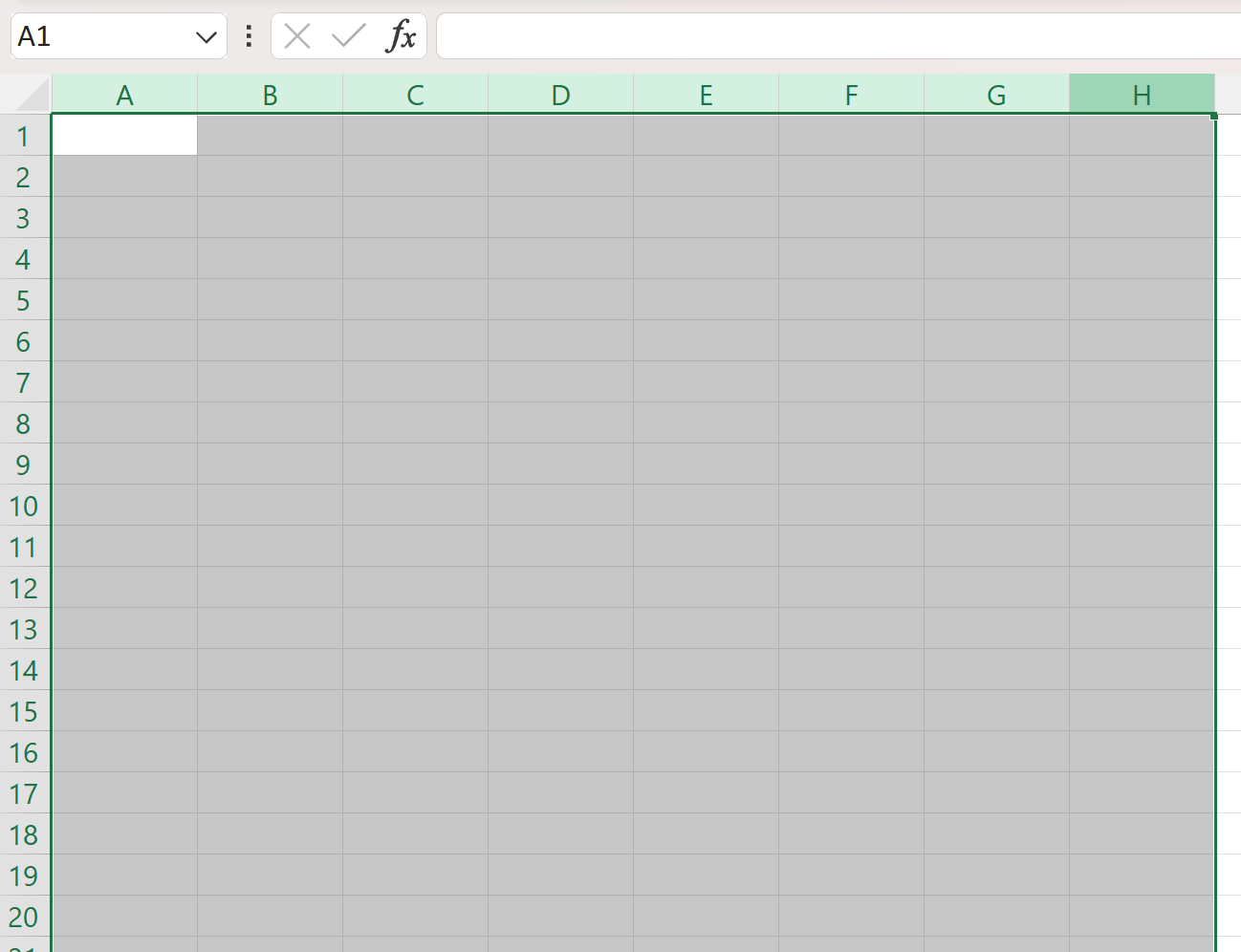

1. Select the Target Range: First, accurately highlight the columns you wish to format. In our example, we select the entire range spanning columns A through H. It is generally advisable to select entire columns by clicking the column headers (A, B, C, etc.) to ensure the formatting applies consistently, regardless of how many rows are eventually populated or hidden.

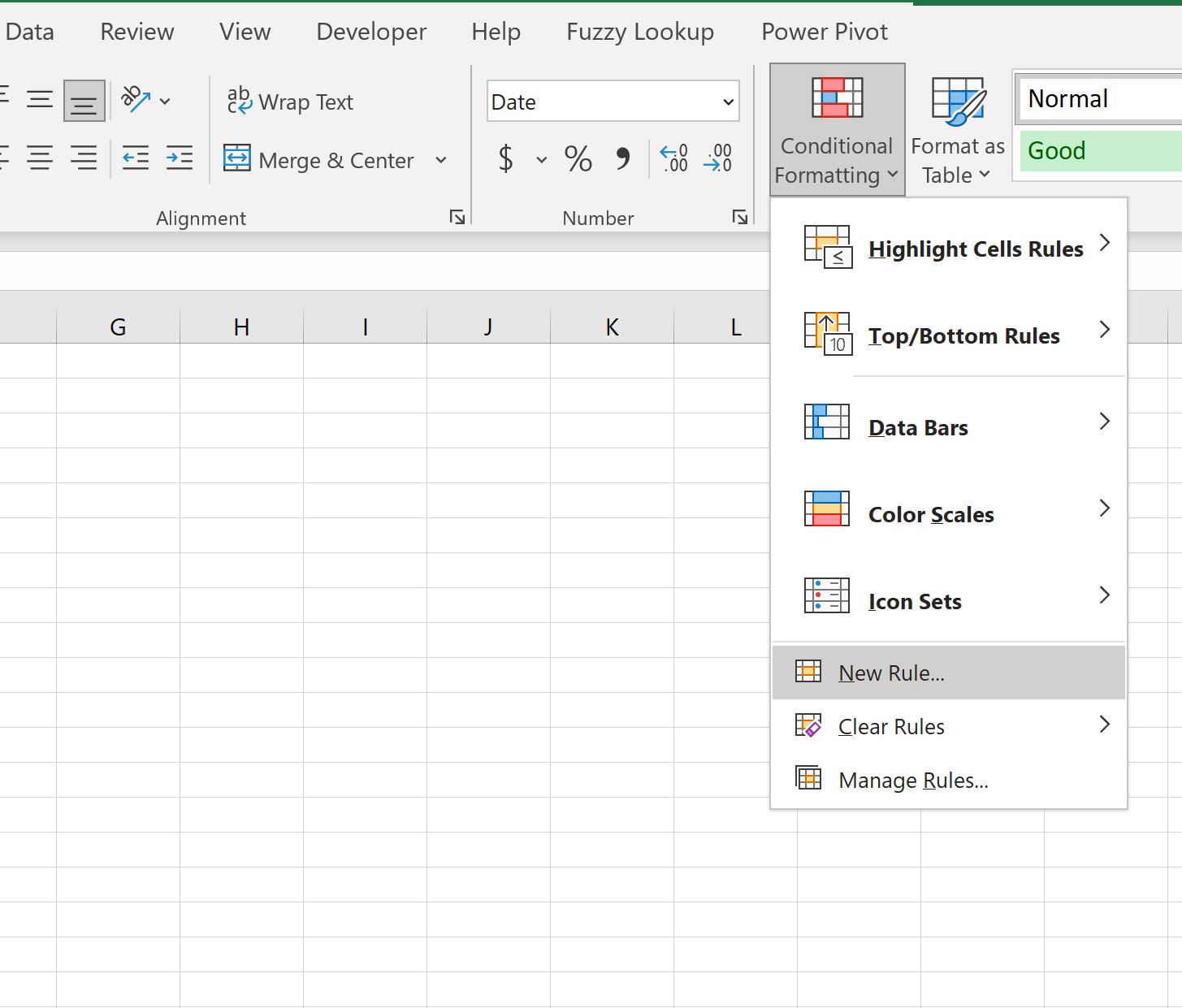

2. Access the Conditional Formatting Menu: Navigate to the Conditional Formatting dropdown menu, located on the Home tab of the Excel ribbon. After clicking the menu, select New Rule from the options presented. This action opens the ‘New Formatting Rule’ dialog box, where the core logic will be defined.

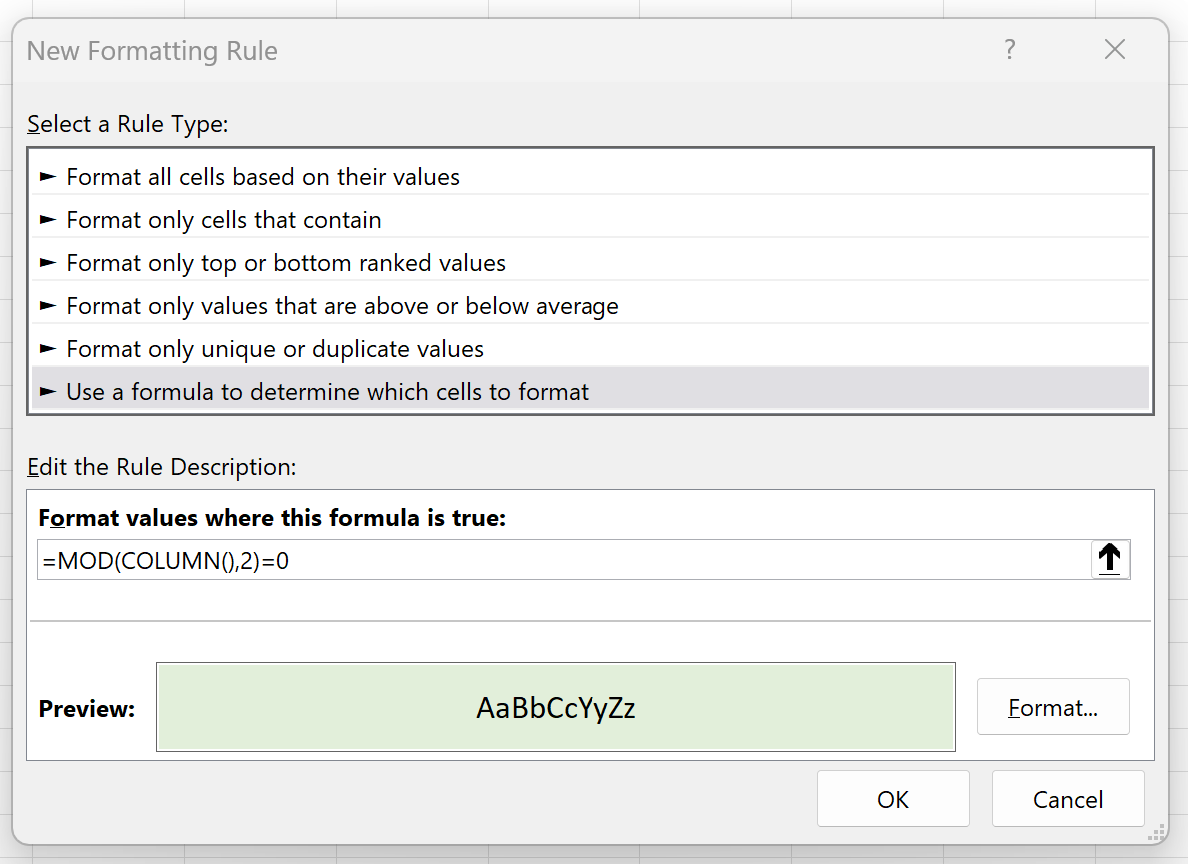

3. Define the Formula and Format: In the ‘New Formatting Rule’ dialog box, select the final rule type option: Use a formula to determine which cells to format. This is where the core mathematical logic is implemented. Type the following precise formula into the input box: =MOD(COLUMN(),2)=0.

After successfully entering the formula, click the Format button. This opens a secondary ‘Format Cells’ dialog box. Here, navigate to the Fill tab and choose the desired background color for your alternating columns. The choice of color is fully customizable, allowing you to match corporate branding or simply choose a shade that offers adequate contrast. For instance, selecting a light green shade provides a subtle yet effective visual distinction. Once the color is chosen, click OK to confirm the format, and then click OK again in the ‘New Formatting Rule’ dialog to finalize and apply the rule to the selected range.

Upon successful execution, the columns will immediately alternate between the chosen background color (e.g., light green) and the default background color (no fill).

Note: The selection of color and style is completely flexible within the Conditional Formatting settings, allowing users to apply various borders, font colors, and patterns to enhance the visibility of the data structure.

Deconstructing the Mathematical Formula

The successful application of column banding is directly dependent on understanding the logic embedded within the formula: =MOD(COLUMN(),2)=0. To master this technique, it is essential to analyze how each component of this function operates within the context of Conditional Formatting and the inherent spreadsheet structure.

The overall formula relies on two primary built-in Excel functions: COLUMN() and MOD(). The ultimate purpose of the entire expression is to return a Boolean value (TRUE or FALSE). If the formula evaluates to TRUE for a given cell, the formatting is applied to that cell; if it evaluates to FALSE, the formatting is skipped.

1. The COLUMN() Function: When used without arguments, COLUMN() returns the numerical position of the column in which the formula is currently being evaluated. For example, if this formula is checked in column A, COLUMN() returns 1. In column B, it returns 2, and so on. This provides the essential sequential numerical identifier needed to perform the parity check.
2. The MOD() Function: The MOD() function performs the Modulo operation, which calculates the remainder after a number (the dividend) is divided by a divisor. The syntax is MOD(number, divisor). In our formula, the number is the column index, and the divisor is 2.
3. The Parity Check and Result: The expression MOD(COLUMN(),2) checks whether the column number is evenly divisible by 2. If the column number is even (2, 4, 6, 8, etc.), the remainder is 0. If the column number is odd (1, 3, 5, 7, etc.), the remainder is 1. The final comparison =0 ensures the formula evaluates to TRUE only for even columns (B, D, F, H, etc.), applying the format precisely where intended.

Advanced Customization for Different Banding Patterns

The inherent flexibility of using the MOD() function means that users are not restricted to the default even-column banding. The formula can be slightly modified to achieve various visual results, such as coloring odd columns instead of even ones, or creating patterns that repeat every three or four columns.

If you prefer to highlight the odd-numbered columns (A, C, E, G…), you simply modify the comparison operator at the end of the formula. Instead of checking if the remainder is equal to zero (=0), you check if the remainder is equal to one (=1). The revised formula becomes: =MOD(COLUMN(),2)=1. This is highly beneficial if your data begins in column A and you want the very first column to be visually banded.

Furthermore, users can create more complex, multi-color banding patterns. If your report requires a repeating pattern every four columns (e.g., Color 1, Color 2, Color 3, No Color), you can utilize the Modulo function with a divisor of 4. This requires setting up multiple Conditional Formatting rules applied to the same range:

• For Color 1 (Columns 1, 5, 9…): The formula would be =MOD(COLUMN(),4)=1.
• For Color 2 (Columns 2, 6, 10…): The formula would be =MOD(COLUMN(),4)=2.
• For Color 3 (Columns 3, 7, 11…): The formula would be =MOD(COLUMN(),4)=3.
• For No Color (Columns 4, 8, 12…): This column receives no explicit formatting rule, as the default cell style applies when MOD(COLUMN(),4)=0.

You must define separate Conditional Formatting rules for each color needed in the sequence. When setting these rules, ensure that none of them have the ‘Stop If True’ box checked unless you intend for a higher-priority rule to intentionally block subsequent rules. This demonstrates the robust power and versatility of combining structural functions like COLUMN() with mathematical functions like MOD() in Excel.

Summary and Additional Resources

Implementing dynamic column banding using Conditional Formatting is a highly effective, dynamic way to improve the visual structure and readability of complex spreadsheets. By utilizing the COLUMN() function to retrieve the column index and the MOD() function for parity checking, users can create sophisticated, self-adjusting visual patterns that significantly enhance data analysis and presentation quality.

Mastering this technique provides a professional edge in data reporting, ensuring that your data presentation is both visually appealing and functionally efficient. Always remember the fundamental requirements for successful implementation: accurate range selection, the correct mathematical parity formula, and mindful management of multiple Conditional Formatting rules.
