Learning to Graph One-Way ANOVA Results in Excel

The Analysis of Variance, universally recognized by the acronym ANOVA, stands as a cornerstone statistical methodology used extensively across empirical research fields. Its primary function is to rigorously test whether a meaningful, statistically significant difference exists when comparing the means of three or more independent groups. While the numerical output—typically presented in a dense ANOVA summary table—is essential for reaching precise, data-driven conclusions, it frequently lacks the immediate visual clarity necessary for effective communication and rapid understanding of the underlying data distribution.

Gaining a comprehensive interpretation of the results from a one-way ANOVA relies heavily on complementing the statistical metrics with robust graphical representations. Visualization techniques provide researchers and data analysts with an invaluable tool to instantly discern the magnitude, direction, and variability associated with the differences between the group means. This enhances the overall data narrative, moving beyond simple hypothesis rejection to reveal the practical implications of the findings. This expert guide meticulously outlines the precise methodology for conducting a one-way ANOVA calculation within Microsoft Excel and, more importantly, demonstrates the crucial steps required to generate highly informative visualizations of these results.

The Core Statistical Framework: Understanding One-Way ANOVA

The one-way ANOVA test is specifically designed for scenarios involving a single continuous dependent variable (the measurable outcome) and one categorical independent variable (the factor) that is composed of three or more discrete levels or groups. The foundational objective of this test is centered on evaluating the central tendency of these groups. This evaluation requires testing the null hypothesis (H₀) which posits that all population means are mathematically equal, against the alternative hypothesis (H_A), which asserts that at least one population mean is distinctly different from the others.

Relying exclusively on the calculated F-statistic and the resulting P-value is standard practice in statistical reporting, yet this approach only confirms the existence of a difference; it fails to illuminate the distribution characteristics of the data within each specific group. Furthermore, it does not immediately identify which specific groups are responsible for driving the observed variance. Consequently, relying solely on tabular data can mask crucial insights, such as the presence of outliers or extreme skewness within a group’s scores.

To overcome these limitations, graphical methods are indispensable tools for both post-analysis review and professional presentation. Grouped visualizations, such as boxplots, offer a standardized, non-parametric view of the data’s spread, central location, and shape across the different categories. By integrating these visual aids, analysts can provide a more nuanced and practically meaningful interpretation of the formal statistical conclusions derived from the ANOVA.

Establishing the Data Structure in Excel: A Practical Example

To illustrate the application of the one-way ANOVA, consider a typical educational research scenario. A university professor seeks to quantify the differential impact of various studying methodologies on student performance in a standardized final examination. The professor designs an experiment where 30 students are randomly assigned to utilize one of three distinct studying interventions: Method 1, Method 2, or Method 3. Random assignment helps ensure that pre-existing differences among students are distributed across the intervention groups.

The resultant exam scores, meticulously categorized according to the assigned studying method, are compiled and organized within a dedicated Excel spreadsheet. This structured data arrangement is critically important for running the statistical test correctly: each column must represent an independent group, and the scores within that column constitute the observations for that group. The overarching research goal is to utilize the one-way ANOVA to statistically determine if the average exam scores exhibit equivalence across all three intervention groups, or if one or more methods lead to significantly different outcomes.

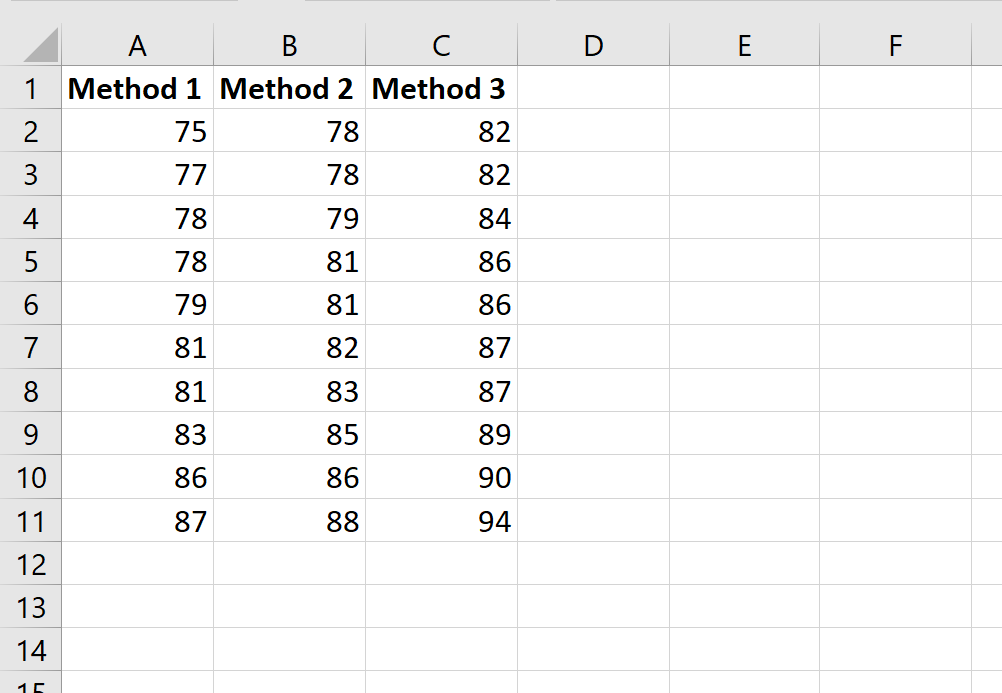

The following visual representation demonstrates the necessary organization of the raw collected data within the Excel worksheet, illustrating the columnar structure required for the subsequent analysis:

Executing the One-Way ANOVA Test using Excel’s Analysis ToolPak

To perform the one-way ANOVA calculation successfully within Microsoft Excel, users must first ensure they have access to the platform’s robust statistical computation capabilities. This process necessitates the activation of the specialized Analysis ToolPak add-in, which provides the necessary functions for running complex statistical analyses, including regression, t-tests, and the Analysis of Variance.

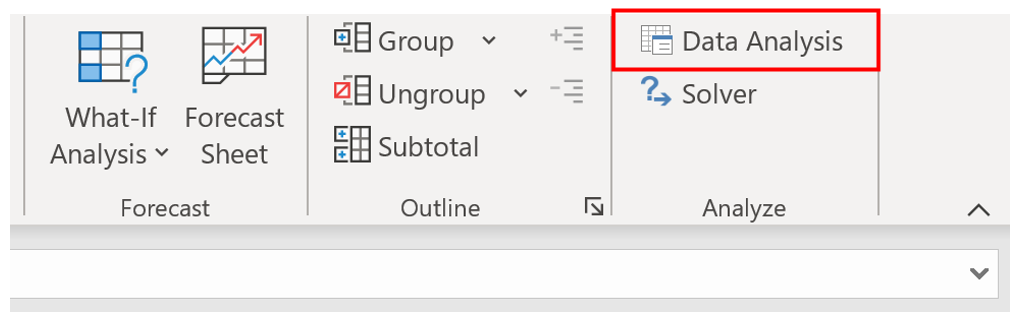

To initiate the analysis, navigate to the Data tab situated on the top ribbon of Excel. Within the far-right Analyze group, select the Data Analysis option. If this option is not immediately visible in the ribbon, it is a strong indication that the free Analysis ToolPak must be loaded and enabled first via Excel’s Add-Ins menu (File > Options > Add-Ins).

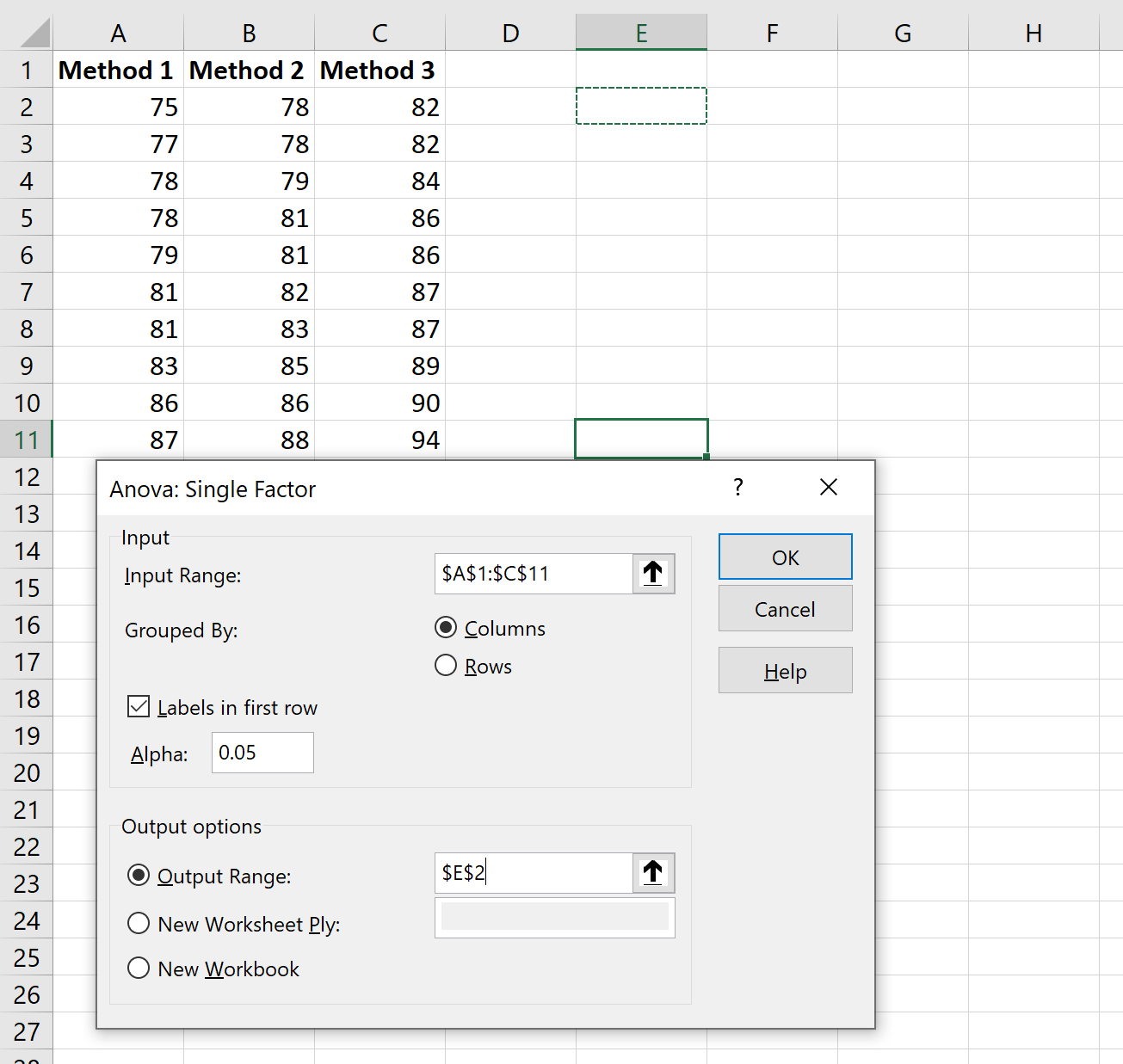

Once the ToolPak is active and the Data Analysis menu is opened, a dialogue box will appear, listing various statistical tests. Select Anova: Single Factor and click OK. In the subsequent configuration window, it is vital to specify the following parameters accurately to ensure the test is executed against the correct dataset and assumptions:

• Input Range: Carefully select the entire range that encompasses all the data, including the column headers (e.g., A1:C11).
• Grouped By: Select Columns, since the scores for our three studying methods are arranged vertically in distinct columns.
• Labels in First Row: Ensure this box is checked, confirming that the first row of the selected input range contains descriptive names for the studying methods.
• Alpha: Define the desired significance level, which is conventionally set to 0.05 for most academic and scientific research.

Interpreting the Statistical Output and Decision Making

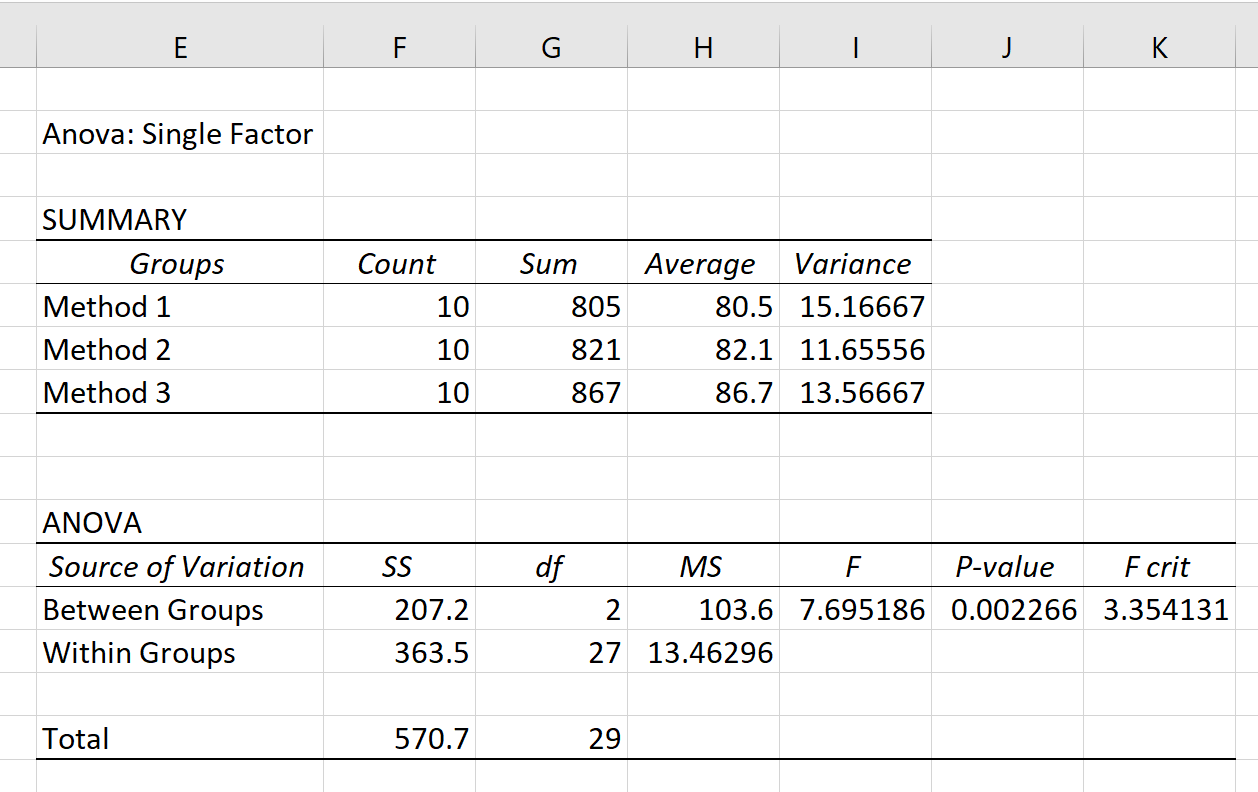

After the parameters are configured and OK is clicked, Excel rapidly generates a comprehensive ANOVA summary table, typically placed on a new worksheet. This output is divided into two main sections: summary statistics (counts, sums, and averages per group) and the core statistical test results, including the sum of squares, degrees of freedom, the F-statistic, and the critical values.

The single most critical piece of information for formal decision-making derived from this table is the P-value. In this specific analysis, the calculated P-value is 0.002266. To correctly interpret this result, we must directly refer back to our established formal hypotheses:

• H₀ (Null Hypothesis): The population means for all three studying method groups are equal (μ₁ = μ₂ = μ₃).
• H_A (Alternative Hypothesis): At least one of the population group means is not equal to the others.

Our standard decision rule mandates that if the calculated P-value (0.002266) is less than the predetermined significance level (α = 0.05), we must reject the null hypothesis. Since 0.002266 is substantially smaller than 0.05, we confidently reject H₀. The conclusion is that a statistically significant difference exists among the average exam scores yielded by the three distinct studying methods. In practical terms, this result suggests that the interventions do not all lead to the same average performance level, warranting further investigation into which specific method is driving this effect.

Visualizing the Results: Generating Grouped Boxplots

While the ANOVA definitively confirms that a difference exists somewhere among the groups, it provides no insight into the nature of that difference—specifically, it does not specify which method is superior or inferior. To visually map the distribution of scores for each method and pinpoint the source of the significant variance, generating grouped boxplots is the ideal next step. Boxplots are exceptionally effective for comparative data analysis because they simultaneously display the central tendency, data spread (variability), and potential skewness across multiple categories using a standardized graphical format.

To construct this essential visualization in Excel, follow these step-by-step instructions precisely:

1. Highlight the entire cell range containing the raw scores for all groups, ensuring the column headers are included (e.g., A1:C11).
2. Click the Insert tab located on the top ribbon interface.
3. Navigate to the Charts group and click on the specific icon designated for the Box and Whisker chart type. This action instantly generates the preliminary grouped boxplot visualization, plotting each studying method side-by-side.

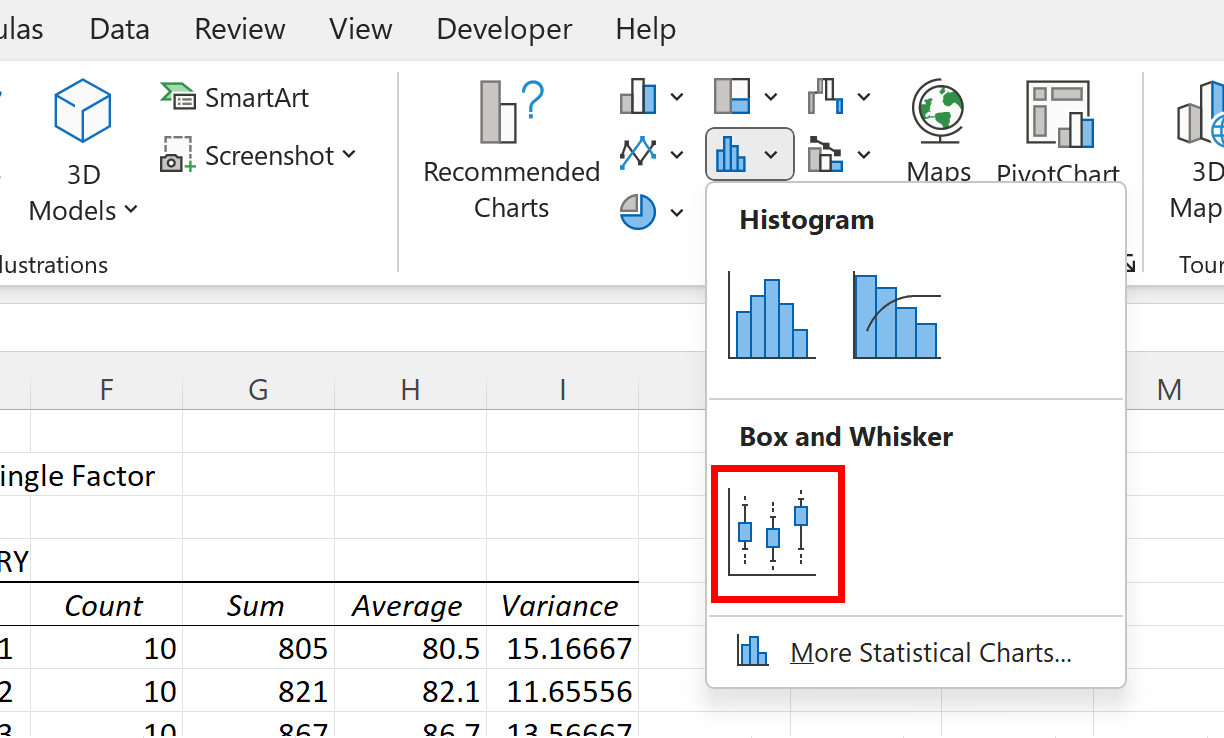

The chart insertion process, demonstrating the selection of the correct chart type, is illustrated below:

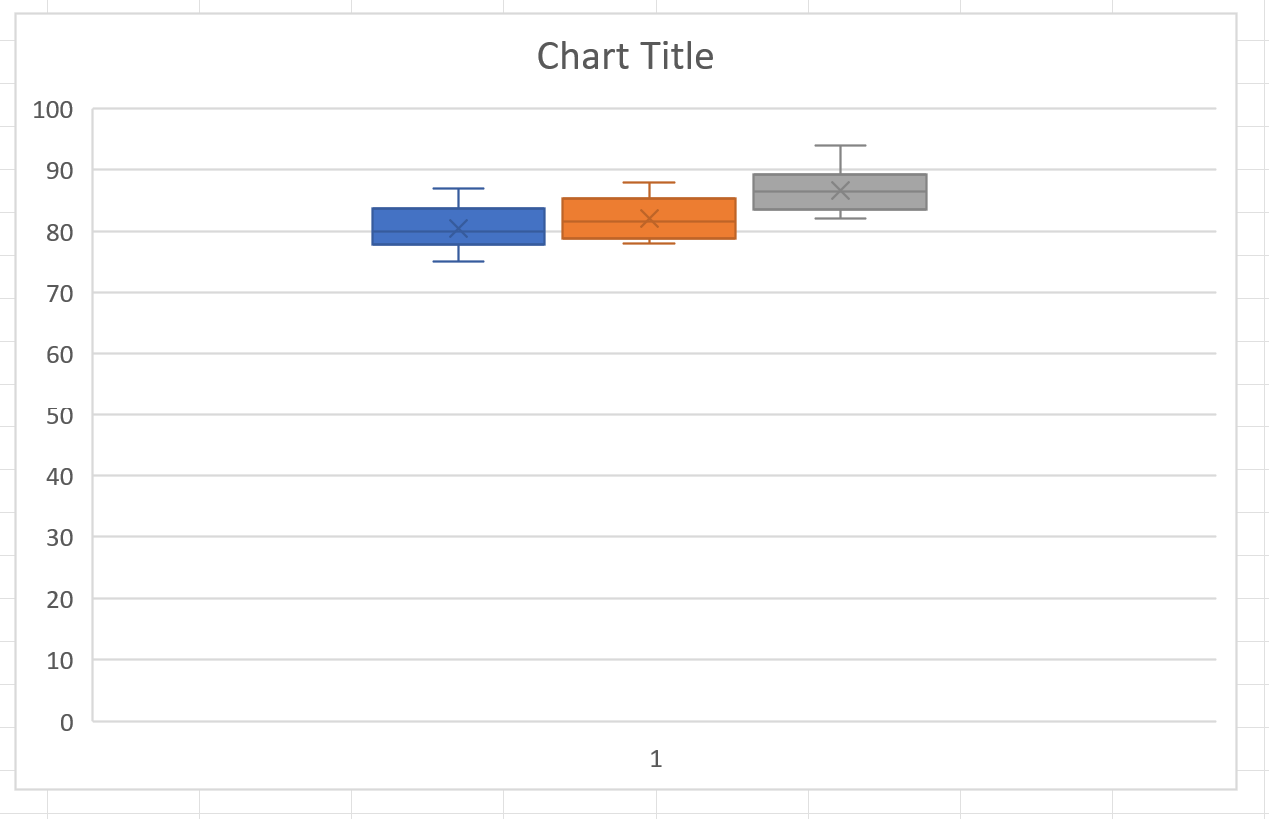

Excel will immediately produce the initial chart output based on your data selection:

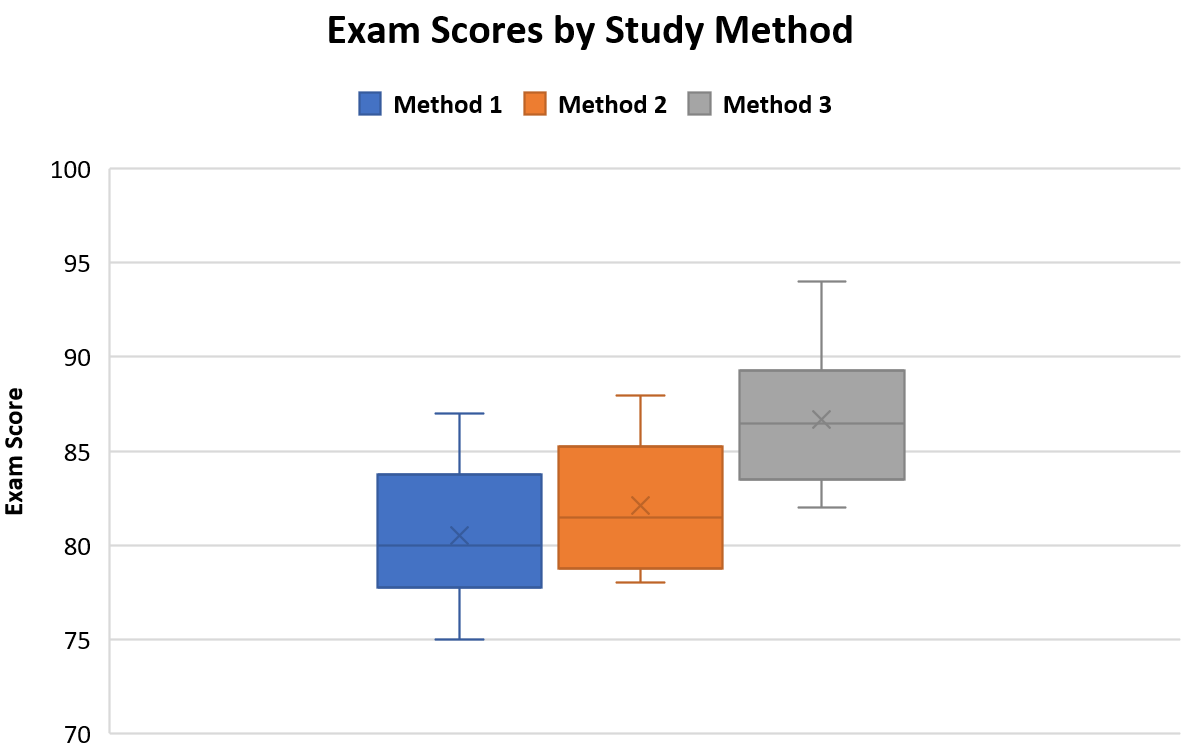

For professional reporting and improved audience comprehension, customization is strongly recommended. Adjusting the vertical y-axis range to focus tightly on the score variation and adding clear, descriptive axis titles and a formal legend significantly enhances the chart’s readability and interpretability.

Deep Analysis of the Graphical Evidence

Each finalized boxplot in the resulting chart serves as a concise visual summary of the distribution of exam scores for its corresponding studying method. Interpreting the core components of the boxplot provides essential, practical insights that supplement the numerical ANOVA results:

• The horizontal line segment traversing the interior of each box signifies the median (50th percentile) exam score for that method.
• The small “x” mark positioned within the box represents the average (mean) exam score, a key point of comparison for the ANOVA test itself.
• The bounding edges of the box define the Interquartile Range (IQR), showing where the central 50% of the data points reside.
• The extending lines, or whiskers, capture the overall variability and range of the scores outside the central IQR.

A direct visual examination of the finalized graph immediately validates the statistical conclusion. Specifically, the boxplot representing Studying Method 3 is positioned noticeably higher on the score axis compared to the distributions for Method 1 and Method 2. Both the median line and the mean ‘x’ for Method 3 suggest a substantially superior central tendency and performance level. Conversely, Method 1 appears to have the lowest mean score and the narrowest distribution, indicating consistent but low performance.

This powerful visualization clearly demonstrates the underlying reason why the P-value from the statistical test was confirmed as statistically significant: the three studying methods do not share a common average value. By creating and analyzing these grouped boxplots, we successfully transition beyond the simple formal declaration of difference (rejecting the null hypothesis) and gain an immediate, practical understanding of which specific group is performing differently and the precise extent of that difference relative to the others.
