How to Conditionally Format the Second Highest Value in Excel: A Step-by-Step Guide

Unlocking Advanced Data Visualization with Custom Formulas

Microsoft Excel is recognized globally as an indispensable tool for data analysis, offering powerful features designed to transform raw numbers into meaningful insights. Central to this capability is Conditional Formatting (CF). While most users rely on predefined rules—such as highlighting values above average or marking the top 10 items—the full potential of CF is realized through the implementation of custom formulas. These formulas enable the application of formatting based on dynamically calculated criteria, moving beyond static thresholds to address sophisticated analytical challenges, including identifying specific outliers, tracking complex rankings, or, as detailed here, isolating the Nth largest value within a selected range.

The pathway to defining a formula-driven rule begins within the Home tab of the Excel ribbon. Users must navigate to the Conditional Formatting dropdown menu and select the New Rule option. This sequence of actions is the necessary gateway for defining criteria that far exceed the limitations of Excel’s built-in presets. By choosing to use a custom formula, we instruct Excel to perform a calculation on the entire range of data and then apply a specific visual style only to those cells that satisfy the computed result, offering unparalleled precision in data visualization.

This guide focuses specifically on the precise methodology required to identify and format the second highest value within any given numerical column. Achieving this task necessitates a sophisticated integration of Excel’s statistical functions with a meticulous understanding of how cell references operate within the dynamic environment of formatting rules. The capacity to correctly structure this formula, especially concerning the interplay between fixed and floating references, is the single most critical factor determining the accuracy and reliability of the formatting across the selected range.

Mastering the Core Components: LARGE Function and Reference Management

The technical foundation for identifying the Nth largest value relies entirely on the LARGE function. This powerful statistical function is specifically designed to retrieve the k-th largest numerical value from an array or range. The function’s syntax, LARGE(array, k), is straightforward: array represents the range of numerical values to be analyzed, and k dictates the rank position being sought. For example, setting k equal to 1 returns the maximum value, while setting k equal to 2, which is our immediate objective, accurately isolates the second highest score, irrespective of the overall size or distribution of the dataset.

When constructing a formula for Conditional Formatting that spans multiple cells, the management of Relative and Absolute References becomes paramount. The custom formula is evaluated by Excel sequentially for every single cell within the designated selection (e.g., B2:B13). If we fail to secure the array reference (B2:B13) using dollar signs ($), the calculation range will “float” or shift as the rule is checked down the column, leading to inconsistent and erroneous results. Consequently, the array reference supplied to the LARGE function must always be absolute (e.g., $B$2:$B$13 or $B2:$B13, depending on movement constraints), ensuring that the comparison is consistently made against the same, fixed pool of numbers.

Conversely, the cell reference representing the current value being tested must remain relative. When we initiate the formula using the top-left cell of the selection (B2), we use the relative reference B2. As Excel moves to check cell B3, the formula automatically updates to B3=LARGE(…); when checking B4, it becomes B4=LARGE(…), and so on. This dynamic movement ensures that each individual cell is compared against the single, constant target value calculated by the locked LARGE function, forming the critical equality comparison (the Boolean test) that determines whether the formatting is applied.

Practical Application: Setting Up the Ranking Scenario

To effectively demonstrate this advanced technique, we will employ a practical scenario involving sports statistics. Imagine we possess a dataset detailing points scored by several players across various basketball games. Our objective is to visually and immediately identify the player who achieved the second highest score recorded, requiring the conditional formatting to apply exclusively to that cell.

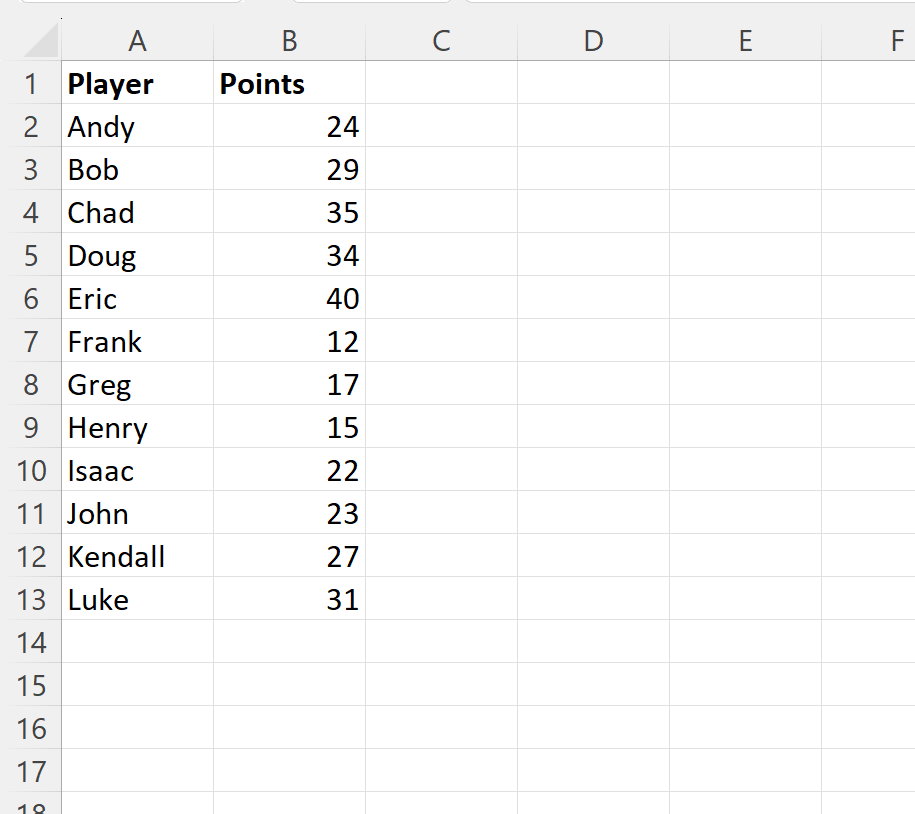

The sample data is structured such that Player Names occupy one column and their corresponding Points are in the adjacent column, specifically within the range B2:B13. This range of scores is simultaneously the area we must analyze to determine the second highest score and the target area where the formatting rule will be applied. It is a fundamental requirement that the user selects this entire target range (B2:B13) before initiating the process of rule creation.

Once the range B2:B13 is highlighted, the stage is set for rule definition. Selecting the range beforehand informs Excel precisely which cells require evaluation and potential formatting. Failure to select the range first can result in the custom formula being interpreted incorrectly relative to the starting cell, leading to the misapplication of the desired visual style.

Constructing the Dynamic Comparison Formula

The custom formula serves as the analytical core of this procedure, specifically engineered to generate a TRUE or FALSE result for every cell in the selected range. The formatting is applied only when the formula evaluates to TRUE. Our logic must concisely ask: “Does the numerical value contained within this specific cell exactly match the second largest value calculated across the entire B2:B13 range?”

The precise formula syntax required to accomplish this identification objective is: =B2=LARGE(B$2:B$13,2).

This critical formula is composed of three distinct yet synergistic elements:

• =B2: This is the first argument in the equality comparison. As the selection begins at B2, this relative reference ensures that the comparison point dynamically shifts as Excel checks subsequent rows (B3, B4, B5, etc.), always referencing the current cell’s value.
• =: This is the equality operator, which executes the Boolean comparison, returning TRUE if the two sides are identical and FALSE otherwise.
• LARGE(B$2:B$13,2): This nested component calculates the target value. The absolute references ($) are essential, locking the range B2:B13 so that every cell is compared against the single, constant value of the second highest score in the entire dataset. The value 2 explicitly defines the rank we are targeting.

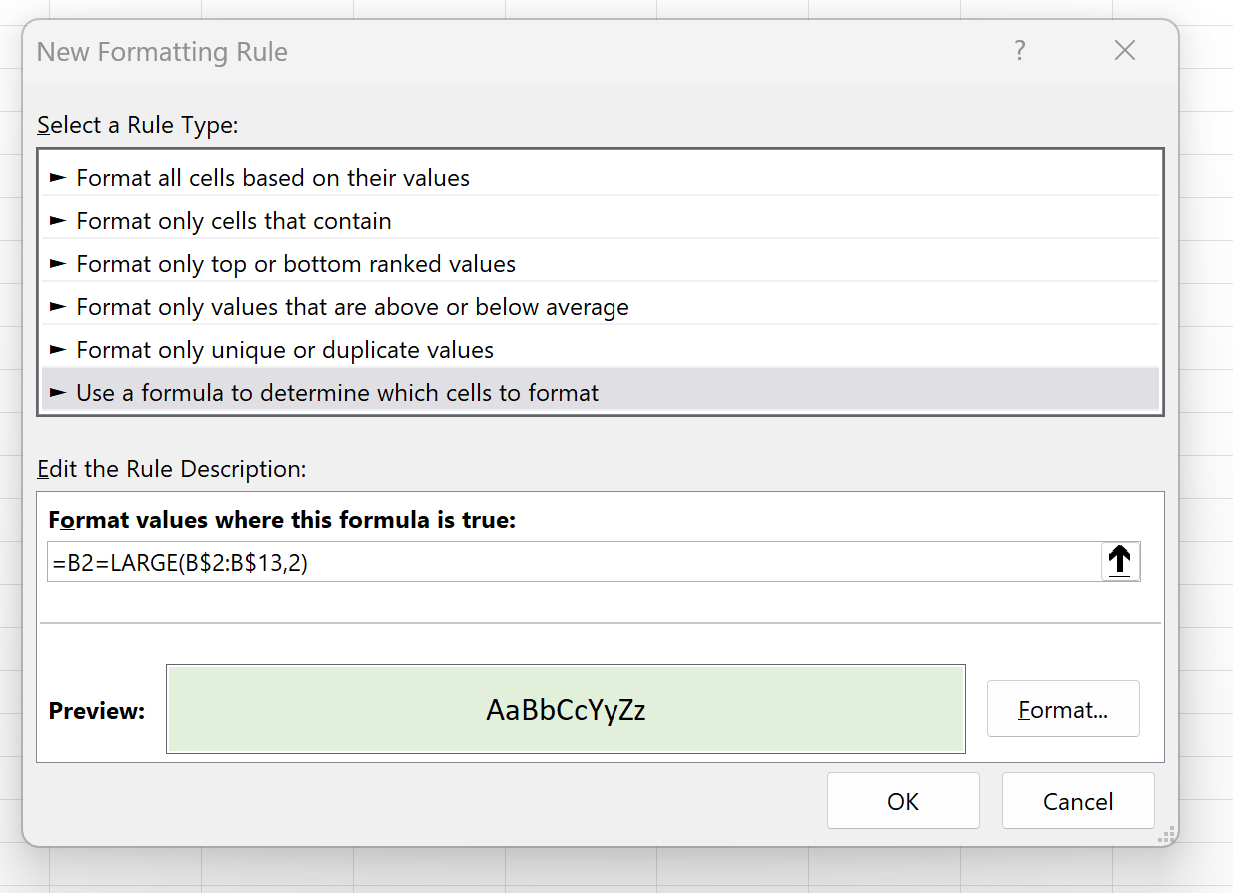

To implement this logic, ensure the range B2:B13 remains selected. Access the Conditional Formatting dropdown menu on the Home tab, click New Rule, and within the subsequent dialog box, select the option labeled Use a formula to determine which cells to format. This action reveals the necessary input field where the carefully constructed formula derived above must be entered with exact precision.

Execution, Verification, and Scalability

With the formula option selected, the input field is ready to receive the custom logic. Enter the formula: =B2=LARGE(B$2:B$13,2). Accuracy regarding capitalization and the placement of the dollar signs ($) is critical; any error in reference type will cause the rule to fail or produce inconsistent results across the range.

Once the formula is entered, the next obligatory step is defining the desired visual output. Click the Format button within the New Formatting Rule window. This opens the Format Cells dialog box, allowing users to customize the appearance of the identified target cells. While any combination of font, border, or number format can be applied, utilizing a distinct fill color, such as a light green or yellow, typically provides the most immediate and clear visual indicator. For demonstration purposes, we will select a light green background fill.

A final review of the formula and the chosen formatting is recommended before confirmation. The formula field must clearly demonstrate the logic equating the relative cell value to the constant second highest value. Clicking OK in the Format Cells dialog box, followed by clicking OK in the New Formatting Rule dialog box, immediately applies the defined rule to the pre-selected range (B2:B13).

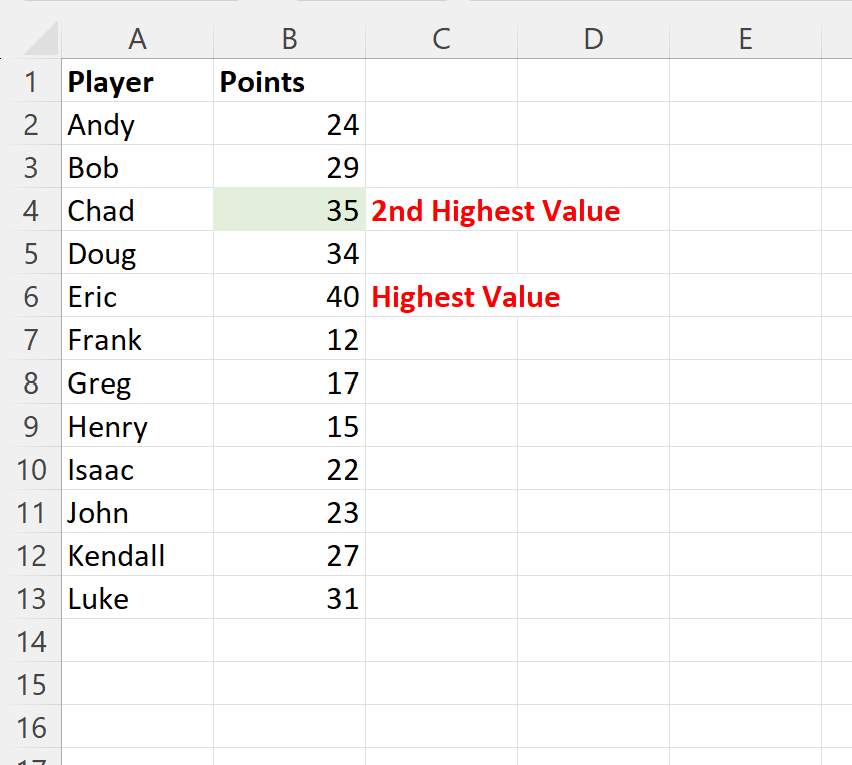

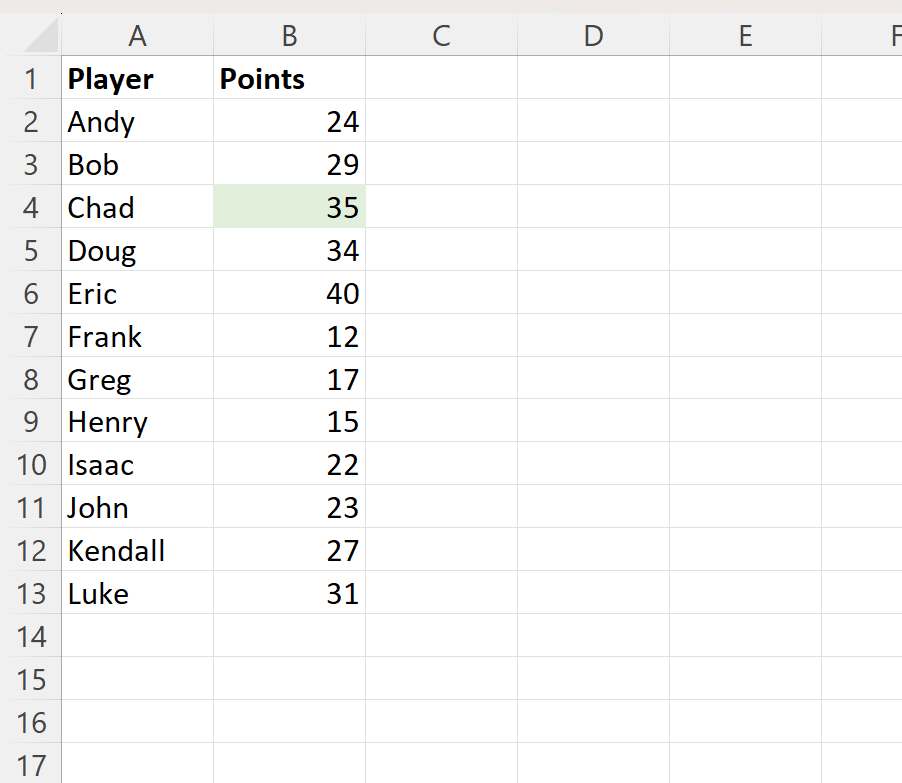

Upon successful implementation, the Conditional Formatting rule instantly highlights the cell corresponding to the second highest value in the Points column. In our example dataset, the score of 35 is highlighted with the chosen light green background, demonstrating correct identification.

Verification is a crucial final step to ensure formula accuracy. A quick manual inspection of the Points column confirms that the highest value is 40, establishing 35 as the undisputed second highest value in the list. This confirms that the combination of the LARGE function and the structured Boolean comparison has correctly targeted and formatted the required cell based on the dynamic ranking requirement.

This methodology offers significant flexibility and scalability. To format the third highest value, users need only modify the k value within the LARGE function from 2 to 3 (i.e., =B2=LARGE(B$2:B$13,3)). Furthermore, it is important to note that this formula is designed to handle duplicate values robustly: if multiple cells contain the calculated second highest score (e.g., two players scored 35 points), the rule will highlight every single instance, as the fundamental logic is an exact equality match against the target value. This flexibility makes formula-based rules indispensable for dynamic ranking analysis in complex spreadsheets.
