Conditional Formatting for Boolean (Yes/No) Data in Excel: A Step-by-Step Guide

Harnessing Boolean Logic for Visual Data Analysis in Excel

Effective data analysis hinges on the rapid visual identification of key outcomes, particularly when working with binary or Yes/No values. While simple filtering provides a functional way to isolate these categories, leveraging Conditional Formatting (CF) offers a superior method for enhancing readability, allowing users to instantly detect critical trends or exceptions within extensive datasets. This powerful tool, which is readily accessible via the Home tab in Excel, enables the dynamic application of specific styles—such as colors, fonts, or borders—to cells that meet precisely defined criteria. Applying these rules to binary data is remarkably efficient, provided the user correctly establishes the rule logic using the New Rule function. This methodology ensures that the visual representation of the spreadsheet dynamically updates in real-time as the underlying values are modified, creating a highly responsive and professional workbook.

To initiate this powerful visualization process, you must first navigate to the Home tab, locate the Conditional Formatting dropdown menu, and then select New Rule. Unlike the predefined options designed for numerical ranges or identifying duplicate values, color-coding cells based on specific text strings like “Yes” or “No” typically necessitates the utilization of a custom formula. This approach grants the highest degree of flexibility and precision, ensuring that the visual format applies exclusively when the cell content matches the exact expected text string. The subsequent sections will detail the precise, sequential steps required to implement two distinct, yet complementary rules—one specifically for “Yes” and one for “No”—to visually segment any column containing binary data.

Preparing the Dataset and Defining Visualization Goals

To effectively demonstrate the practical application of this conditional formatting technique, we will employ a common analytical scenario involving a sample sports dataset. Imagine we are tasked with tracking various professional basketball players and require an immediate visual signal to indicate whether or not each player has achieved the prestigious All-Star status during their career. This crucial status is recorded in a dedicated column using the binary text values of “Yes” or “No.” Our central objective is clear: apply a vibrant green background to cells containing “Yes” (signaling achievement) and a contrasting red background to cells containing “No” (signaling non-achievement or ineligibility). This visual segmentation is vital for allowing stakeholders to rapidly and accurately assess the composition and success metrics of the roster.

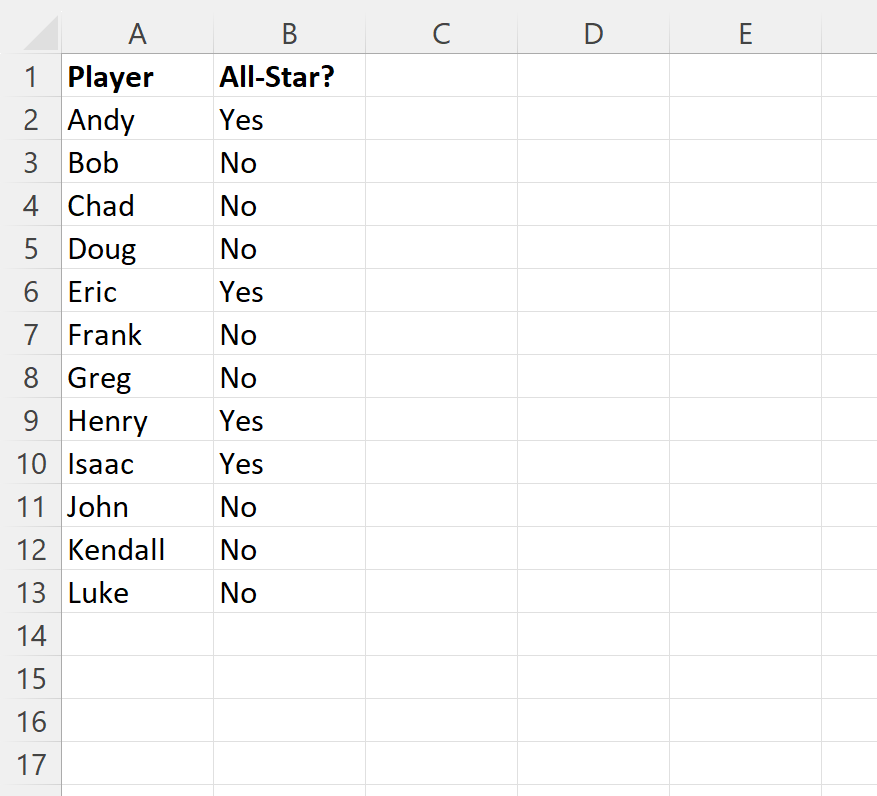

The sample Excel data structure, presented below, illustrates the exact layout we will be utilizing. The primary focus area for our formatting exercise is the “All-Star” column, which spans the cell range of B2:B13. It is essential to ensure that the data entry for both the “Yes” and “No” values remains absolutely consistent throughout this designated column. While conditional formatting rules are often case-sensitive by default, the formula-based technique we will employ is designed to reliably handle these specific text strings and ensure accurate application across the entire range.

Our solution requires the creation of two entirely independent rules that must operate simultaneously on the selected range. The first rule will specifically target the positive outcome (“Yes”) and apply a green highlight, while the second rule will target the negative outcome (“No”) and apply the red highlight. This necessary dual-rule approach is employed because a single conditional format rule cannot efficiently manage two mutually exclusive text-based conditions—each requiring a different formatting style—without complex nested logic. Utilizing distinct, simpler rules, managed effectively through the Conditional Formatting Manager, is the preferred and most robust technique.

Step-by-Step Implementation: Defining the ‘Yes’ Rule (Rule 1)

The first critical step in establishing our visual formatting scheme is defining the rule for the positive outcome. Begin by precisely highlighting the entire range of data that requires formatting, which in our scenario is B2:B13. With the range actively selected, navigate back to the Home tab, click the Conditional Formatting dropdown menu, and then select the New Rule option. This action will open the central dialog box where the formatting logic is carefully constructed.

Within the New Formatting Rule dialog box, it is essential to select the final option labeled Use a formula to determine which cells to format. This selection permits the input of a Boolean expression that Excel will evaluate independently for every single cell within the selected range. Crucially, you must use a relative reference in the formula input box, referring only to the first cell of the selected range without any absolute dollar signs ($). Type the following formula into the designated field: =B2=”Yes”. This formula instructs Excel to check if the value of cell B2 (and subsequently B3, B4, and all other cells in the range due to the relative reference) is exactly equal to the text string “Yes”.

Once the formula is entered, click the Format button to specify the desired visual style. In the subsequent formatting window, navigate directly to the Fill tab and choose a vibrant green color that clearly signals achievement. After the color is selected, confirm your choices by pressing OK in the Format Cells window and then OK again in the New Formatting Rule window. Upon successful execution, all cells within the range B2:B13 that contain the text value “Yes” will instantly be highlighted with the specified green background, providing immediate visual confirmation of the data point.

Implementing the Contrast: Defining the ‘No’ Rule (Rule 2)

With the positive “Yes” values successfully formatted in green, the next essential step involves creating a completely separate rule to format the negative outcomes, or the “No” values, in a contrasting red color. It is vital to recognize that the first rule was designed solely to evaluate for “Yes” and did not inherently define how to treat the “No” values. Therefore, we must repeat the entire process to rigorously define the second, contrasting rule. Start once again by highlighting the exact same range, B2:B13. Then, navigate to Conditional Formatting on the Home tab and click New Rule.

As was done previously, select Use a formula to determine which cells to format. This time, the formula must be minimally modified to accurately target the alternative text string. Input the following formula into the box: =B2=”No”. This Boolean expression ensures that only cells containing the precise text “No” within the selected range will satisfy this specific condition. The continued use of relative referencing (B2, without dollar signs) remains absolutely critical for the rule to apply correctly across all rows of the selection.

Click the Format button, but on this occasion, choose a red fill color from the Fill tab to signify a negative or non-achieved status. After confirming the red color and closing both format dialogs, the two distinct Conditional Formatting rules will be fully active simultaneously on the range B2:B13. The cells containing “No” will now appear with a red background, thus completing the professional visual distinction between the positive and negative outcomes in the binary dataset. This efficient dual-rule method provides clear, immediate feedback on the status of each entry, significantly accelerating data interpretation.

Exploring Advanced Customization and Rule Management

Once these foundational rules are successfully established, users gain access to the robust customization options available within Excel‘s conditional formatting framework. The Format button, accessed during the creation or editing of any rule, is not restricted merely to applying fill colors. Users have the capability to dramatically modify the font style (e.g., making text bold, changing the font color for better contrast), applying specific number formats (though less relevant for text strings), or defining unique border styles for the qualifying cells. For example, you might opt to apply a thick green border to all “Yes” cells while simultaneously changing the font color to white to ensure maximum visibility against a dark green fill. This high level of customization facilitates highly specific visual branding and communication of data segments.

Furthermore, understanding and managing the order and priority of rules is paramount, particularly when dealing with potentially overlapping or competing criteria. In our specific case, because “Yes” and “No” are inherently mutually exclusive, the order in which the rules are listed does not affect the final outcome. However, if rules were based on numerical ranges that could overlap (e.g., one rule for values greater than 50 and another distinct rule for values greater than 75), the order of execution becomes absolutely critical. All established rules for a workbook or specific sheet can be reviewed, edited, or deleted via the Manage Rules option, which is conveniently located under the Conditional Formatting dropdown menu. This manager provides a centralized, hierarchical view of all active formats and allows the user to adjust their respective priorities using the up and down arrows.

A best practice often advocated by data professionals for handling binary data is emphasizing consistency. While this tutorial meticulously focused on the text strings “Yes” and “No,” many analysts prefer to use numerical representations such as 1 for “Yes” and 0 for “No.” If you opt to use numerical binary data, the conditional formulas are notably simplified to =B2=1 and =B2=0, respectively. This numerical approach frequently improves calculation speed and significantly reduces the potential for errors related to text case sensitivity. Regardless of whether text strings or numerical values are used, defining clear, precise, and concise formatting rules using the New Rule feature ensures professional and effective data presentation across all scenarios.

Conclusion and Next Steps for Data Visualization

Applying conditional formatting to binary data, such as standard “Yes/No” values, is a fundamental and essential technique for drastically improving the visual analysis capabilities of spreadsheets in Excel. By expertly utilizing the New Rule option and defining custom formulas based on relative cell references, users can construct dynamic color-coding schemes that instantly highlight important categories within any substantial dataset. This comprehensive process requires the creation of at least two distinct rules—one specifically for the positive outcome and one for the negative outcome—followed by the application of the desired visual styles through the integrated formatting panel. Mastering this technique is vital for anyone who regularly presents, analyzes, or manages categorical data within a spreadsheet environment.

For those seeking to further expand their proficiency in sophisticated data visualization and automation within spreadsheets, numerous advanced operations can be successfully built upon the foundation of Conditional Formatting demonstrated here. Exploring advanced techniques such as icon sets, data bars, and more complex formula applications can further enhance the utility, interactivity, and professional appeal of your Excel workbooks.
