Excel Tutorial: Highlighting Even and Odd Numbers Using Conditional Formatting

Introduction: Mastering Parity Checks with Conditional Formatting

The ability to dynamically customize the appearance of data based on defined logic is arguably one of the most transformative capabilities within Microsoft Excel. Among the extensive suite of formatting options available, applying rules based on the parity of numerical values—that is, identifying whether numbers are even or odd—offers a sophisticated mechanism for enhancing data visualization. This technique is indispensable for immediate quality assurance, streamlined visual inspection, and significantly improving the overall readability and analytical depth of complex spreadsheets.

To implement this dynamic visualization, users initiate the process by navigating to the Home tab within the ribbon interface. From there, accessing the Conditional Formatting dropdown menu and selecting the New Rule option opens the dedicated environment for rule creation. The critical step involves implementing a custom formula, which serves as the logical foundation for parity-based formatting. By harnessing Excel’s powerful built-in functions, we can precisely instruct the software to highlight individual cells or even entire rows that satisfy specific even or odd criteria.

This comprehensive guide is designed to dissect two primary, yet distinct, applications of parity-based Conditional Formatting. Our first focus will be on the granular level: formatting individual cells based solely on the numerical value they contain. The second scenario will demonstrate a broader application: creating visually appealing, alternating row highlights, commonly known as “zebra-striping,” by basing the formatting rule on the row number itself. Mastering these techniques empowers you to elevate your data presentation from static tables to dynamic, visually intuitive data visualizations.

Core Functions for Parity Identification in Excel

Implementing conditional formatting rules that hinge on parity requires the construction of specialized Excel formulas designed to return a clear logical outcome: TRUE or FALSE. For straightforward parity checks, Excel provides the dedicated functions ISEVEN() and ISODD(). The ISEVEN() function evaluates the numerical input and returns TRUE if the number is perfectly divisible by two (i.e., even), and FALSE otherwise. Conversely, the ISODD() function performs the complementary check. Within the Conditional Formatting framework, any formula that evaluates to TRUE signals to Excel that the cell should receive the specified formatting style.

A more versatile and often preferred technique for parity checks involves the fundamental MOD function, which is essential for advanced spreadsheet work. The MOD(number, divisor) function calculates and returns the remainder after the initial number is divided by the specified divisor. To test for parity, we utilize MOD(number, 2). If the result of the calculation is 0, the number is even; if the result is 1, the number is odd. Consequently, a conditional formatting rule requiring a value to be even would utilize the powerful formula structure: =MOD(CellReference, 2) = 0. This robust mastery of core functions is critical for sophisticated data analysis and targeted visualization within spreadsheets.

For the second primary application—creating alternating row highlights—a third crucial function is introduced: ROW(). The ROW() function simply returns the numerical index of the row in which it is executed. When deployed within a conditional formatting formula applied across an entire dataset, ROW() dynamically returns the current row number for every cell being evaluated. By strategically combining ROW() with parity-checking tools like MOD(), users can effectively target and format every alternate row. This establishes the desired visual banding that drastically improves data readability, particularly in extensive tables that stretch across many rows.

Scenario 1: Highlighting Cells Based on Even or Odd Values

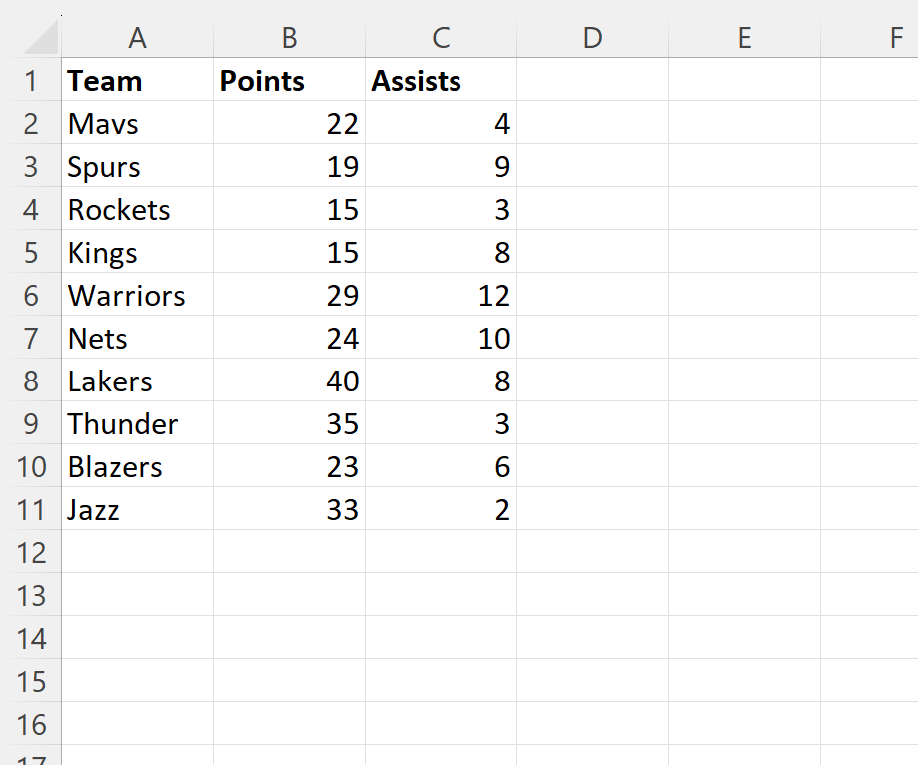

Imagine working with a detailed dataset, such as basketball player statistics, where key metrics like Points and Assists are recorded numerically. Our primary goal is to immediately distinguish all data points that are represented by an even number. This visual flagging allows for rapid identification of specific data properties, a perfect application for custom conditional formatting rules based on numerical parity.

The initial step in executing this cell-based formatting is to accurately define the specific range of data that needs to be evaluated. In our running example, we select the numerical range containing the performance metrics, typically spanning B2:C11. With the range highlighted, we navigate to the Home tab, click Conditional Formatting, and select the New Rule option. Within the subsequent dialog box, the crucial selection is Use a formula to determine which cells to format. This selection permits us to input a logical test that Excel will apply iteratively across every individual cell within the selected range.

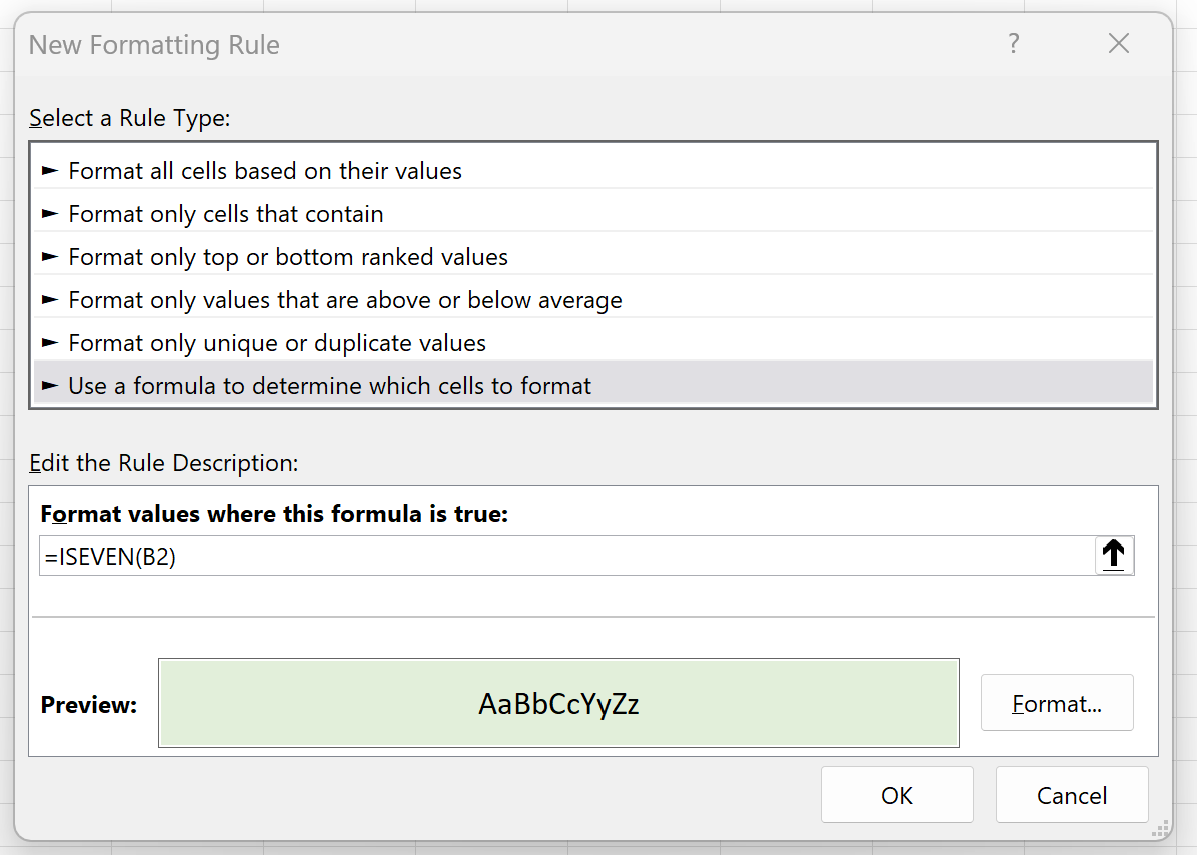

To highlight all even numbers, we must enter the formula =ISEVEN(B2) into the designated formula field. It is absolutely essential that the cell reference (B2) points specifically to the top-left cell of the selected range, and critically, that this reference remains relative (i.e., without absolute dollar signs like $B$2). This relative referencing instructs Excel to automatically adjust the formula for the subsequent cells (B3, C2, C3, and so on) throughout the entire range. After inputting the logical test, click the Format button to select the desired aesthetic properties, such as a light green background fill, and finalize the rule by clicking OK.

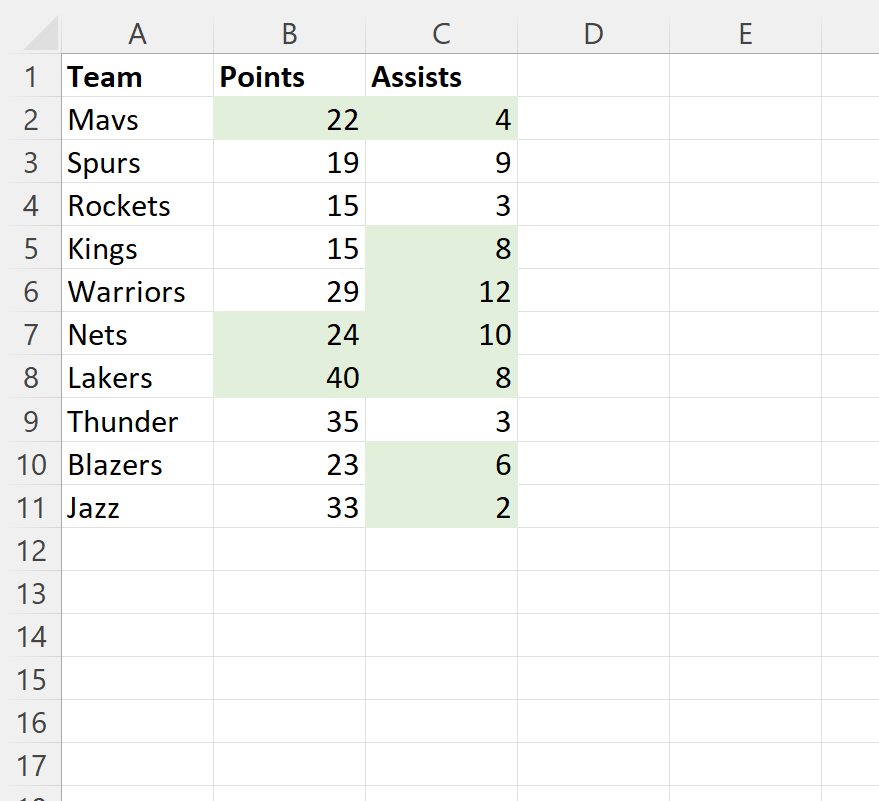

Upon successful application, every cell within the specified range B2:C11 that contains an even number will instantly display the chosen highlight color. This immediate visual segmentation makes it exceptionally straightforward to identify and analyze the distribution of parity across the performance scores. Should the objective shift to highlighting odd numbers instead, the formula only requires a minor adjustment, switching to =ISODD(B2), demonstrating the inherent flexibility of these logical functions in targeting specific numerical characteristics within any dataset.

Alternative Parity Formulas and Relative Referencing

While the ISEVEN() function offers conciseness, many advanced users and professionals prefer the MOD function for parity checks. This preference stems from the MOD() function’s greater utility, compatibility across various spreadsheet environments, and its foundational role in complex calculations. As previously established, the core application of the MOD() function here is to test for perfect divisibility by two. The formula =MOD(B2, 2) = 0 yields a logical result identical to =ISEVEN(B2), returning TRUE exclusively when the value contained in cell B2 is even.

The true advantage of utilizing the MOD function becomes apparent when the complexity of the criteria increases. For example, if the requirement evolves to highlighting values divisible by three, the formula can be immediately adapted to =MOD(B2, 3) = 0 without needing a new specialized function. This inherent flexibility establishes the MOD() function as a cornerstone of advanced custom Conditional Formatting. To specifically target odd numbers using this method, the formula is simply adjusted to check for a remainder of one: =MOD(B2, 2) = 1. Mastering both the dedicated parity functions and the versatile MOD() function ensures the user can address virtually any numerical criteria requirement in their data analysis tasks.

Crucially, understanding the mechanism of relative referencing is vital for successful application. When a range like B2:C11 is selected and the rule is defined using the formula referencing B2, Excel does not rigidly test B2 repeatedly. Instead, the software dynamically interprets the formula relative to the current cell being evaluated. When the rule reaches cell C5, the formula automatically becomes =ISEVEN(C5). This dynamic, relative application of the logical test is what allows a single, simple rule to effectively govern the formatting across a large, multi-column range with precision.

Scenario 2: Creating Banded Rows Using Parity Checks (Zebra Stripes)

A frequent design challenge in large spreadsheets involves maintaining visual alignment and focus across lengthy data lists. Banded rows, commonly known as “zebra stripes,” offer an elegant and widely adopted solution by highlighting alternate rows with a background color. This technique dramatically improves readability by guiding the user’s eye horizontally across the data record. Unlike the previous scenario, this formatting relies not on the content within the cell, but rather on the sequential position of the row within the worksheet.

To commence the creation of banded rows, the user must select the entire dataset, including any headers (e.g., the range A1:C11). Selecting the full width of the data is mandatory to ensure the formatting spans across all relevant columns. The navigation path remains consistent: access the Home tab, click Conditional Formatting, and then select New Rule. Once more, select Use a formula to determine which cells to format to input the specific logic required for row parity checking.

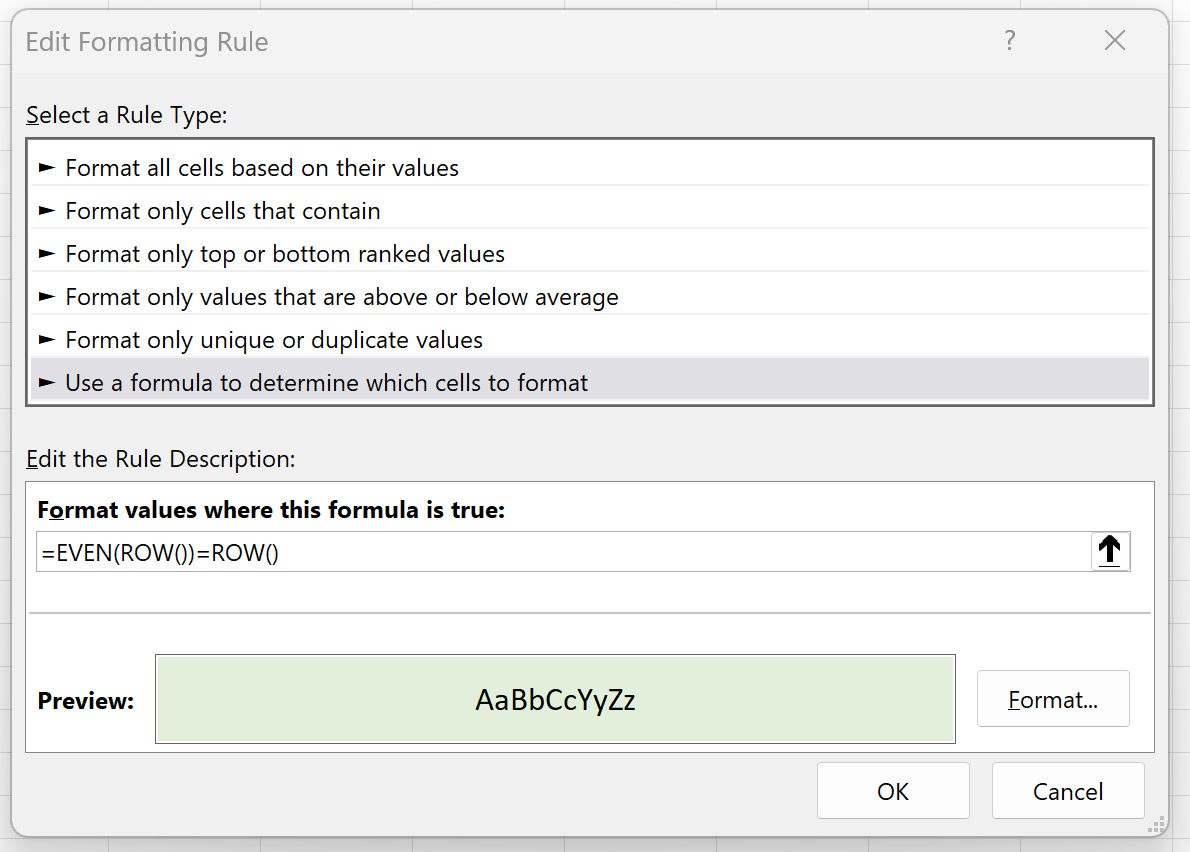

To highlight all even-numbered rows, we construct a formula that tests the current row number against the even parity condition. Although the formula =EVEN(ROW())=ROW() is functional, it can be slightly opaque. This formula works by checking if the row number (returned by ROW()) equals the row number rounded up to the nearest even integer (returned by EVEN()). If the current row is 4, 4=4 (TRUE). If the current row is 5, 6=5 (FALSE). After inputting this or a similar formula, select a distinct fill color, such as a light shade of gray or blue, and apply the rule.

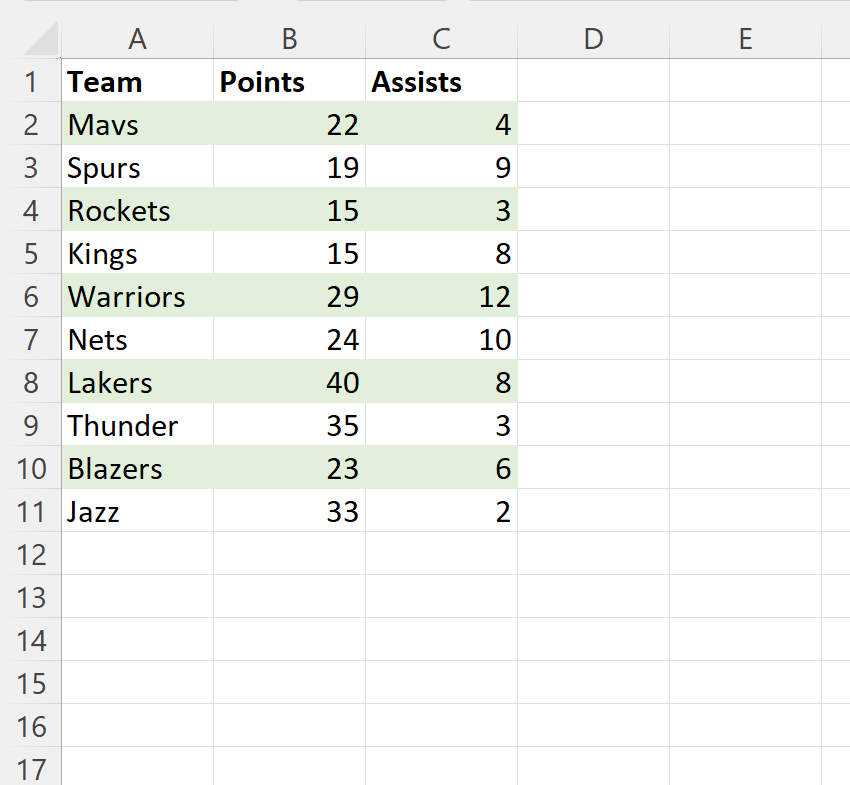

The result is the immediate application of the chosen formatting style to every even-numbered row within the selected range, successfully establishing the sought-after banded row effect. This visual enhancement is entirely non-destructive to the underlying data and possesses a significant advantage: the formatting automatically updates if rows are added, deleted, or sorted. This dynamic capability renders conditional formatting a vastly superior and more efficient method compared to manually applying colors to rows for ongoing data analysis projects.

The Preferred Logic for Row Banding: Utilizing MOD(ROW(), 2)

While various methods exist for row banding, the most robust, versatile, and commonly recommended technique leverages the combined power of the MOD function and the ROW() function. This alternative approach is generally considered cleaner and more intuitive, particularly for users familiar with programming and logical operators. The standard formula for highlighting even rows using this preferred methodology is =MOD(ROW(), 2) = 0.

This preferred formula operates by taking the current row number (provided by ROW()), dividing it by two, and then checking if the remainder is exactly zero. If the remainder is zero, the row is definitively even, and the formula returns TRUE, thereby activating the conditional formatting rule across the entire row. Conversely, if the user intended to highlight odd rows instead, the logical comparison would be minimally adjusted to check for a remainder of one: =MOD(ROW(), 2) = 1. This technique offers high stability and seamlessly adapts to changes in the spreadsheet layout, ensuring the banded structure remains intact regardless of data modifications.

A critical detail when applying any row banding rule is that the formula must be entered without any absolute references ($). Since the rule is applied across the entire defined range (e.g., A1:C11), the use of the simple ROW() function ensures that every cell in a given row receives the identical logical test result. This unified output is what guarantees that the entire row is colored uniformly, rather than just the first cell. This adherence to relative referencing based on row or column indices is a fundamental requirement for effective range-wide formatting within Excel, ensuring that the visual structure enhances, not hinders, the data presentation.

Conclusion: Automating Visual Organization

Conditional Formatting based on parity provides an elegant, powerful, and automated solution for dramatically enhancing data visibility and organization in Microsoft Excel. Whether the objective involves granular, value-based analysis by highlighting specific numerical results using functions like ISEVEN() or MOD(), or improving overall spreadsheet readability through the application of dynamic banded rows using MOD(ROW(), 2), these techniques automate the visual organization process. By defining custom logical formulas, users achieve precise and dynamic control over how numerical properties are instantly translated into visual cues.

The cornerstones of successful implementation are the precise selection of the target range, the mandatory use of relative cell references for cell-value checks (e.g., B2), and the deployment of the ROW() function when the formatting must be governed by the row’s position rather than its content. While we utilized simple fill colors in these demonstrations, remember that conditional formatting allows for complete customization of font color, borders, and complex fill patterns, enabling you to tailor the visual output exactly to your reporting requirements and aesthetic standards.

We strongly encourage continued experimentation with these formulas and their logical variations to unlock the full potential of dynamic formatting in your data presentations. The ability to automatically structure and highlight data based on parity is a crucial skill for efficient spreadsheet management and sophisticated data analysis in any professional setting.
