Learn How to Convert Degrees, Minutes, and Seconds to Decimal Degrees in Excel

The Necessity of Converting Angular Measurement Systems

When initiating work with geospatial data, particularly coordinates expressed as latitude and longitude, the initial challenge often lies in data standardization. Historically, and still commonly in raw datasets, geographic coordinates are presented using the Degrees Minutes Seconds (DMS) system. This system is founded upon the ancient sexagesimal (base-60) structure, where one degree is precisely divided into 60 minutes, and each minute subsequently subdivided into 60 seconds. While the DMS format offers high precision and carries historical significance in navigation and cartography, it presents significant hurdles for modern computation.

The primary limitation of the DMS format is its inherent incompatibility with contemporary analytical tools. Most Geographical Information Systems (GIS) software, advanced mapping applications, and statistical platforms require simplified numerical input. These systems are designed to process coordinates in the unified Decimal Degrees (DD) format. The DD format expresses geographic location as a single, straightforward numerical value, drastically simplifying calculations and facilitating seamless integration across various digital platforms. For instance, a complex DMS reading like 48° 51′ 52.9776″ is efficiently represented as the single number 48.86472 in the DD format.

To successfully bridge this formatting gap, converting DMS readings to DD is essential. Performing this conversion manually across large geographic datasets is prohibitively time-consuming and inherently prone to error. Consequently, Microsoft Excel emerges as the ideal environment for automating this process. However, the conversion is not a simple arithmetic task because the DMS components (degrees, minutes, seconds) are typically stored together as a single text string, interspersed with unique symbols (delimiters). This complexity necessitates sophisticated text parsing techniques to isolate the numerical components before any mathematical operations can be applied.

Constructing the Core Excel Conversion Formula

The most streamlined and effective approach for converting coordinates from the DMS format—where all angular components reside within a singular cell—to the DD format involves leveraging a powerful combination of specialized text manipulation functions now available in modern versions of Excel (such as Microsoft 365). This method relies on identifying the specific geographic symbols—the degree symbol (°), the minute symbol (‘), and the second symbol (“)—as fixed markers to accurately segment and extract the numerical values.

The formula below is engineered to handle a DMS value located in cell A2. It systematically extracts the degrees, minutes, and seconds, applies the necessary mathematical scaling factors (division by 60 for minutes and 3600 for seconds), and then sums these adjusted components to yield the final decimal result. This formula is a masterpiece of string manipulation, designed to robustly handle the mixed data type:

=TEXTBEFORE(A2, "°")+TEXTBEFORE(TEXTAFTER(A2, "°"), "'")/60+TEXTBEFORE(TEXTAFTER(A2,"'"),"""")/3600

By implementing this technique, the degrees component remains the whole number, the minutes are correctly scaled down by dividing by 60, and the seconds are proportionately scaled by dividing by 3600 (60 * 60). The addition of these three parts results in the precise decimal degrees equivalent. For example, if cell A2 contains the Paris coordinate string 48° 51′ 52.9776″ N, this conversion formula will accurately strip away the directional indicator and return the numerical value 48.86472.

A clear understanding of this formula’s reliance on the sequence and nature of delimiters is critical for its successful application. If your source data uses alternative symbols or, more commonly, omits the seconds component entirely, the formula must be carefully adjusted to match the new delimiter sequence. The following section provides a practical, step-by-step guide illustrating how to deploy this formula against a real-world geographic dataset in Excel.

Step-by-Step Application with Geospatial Data

To fully grasp the utility of this conversion method, let us walk through a practical implementation using a typical geographical dataset. Imagine you have a spreadsheet where raw latitude and longitude values are stored in the raw DMS format in columns A and B, respectively. Our objective is to generate the numerical DD equivalents in adjacent columns D and E, preparing the data for further analysis or integration into a GIS.

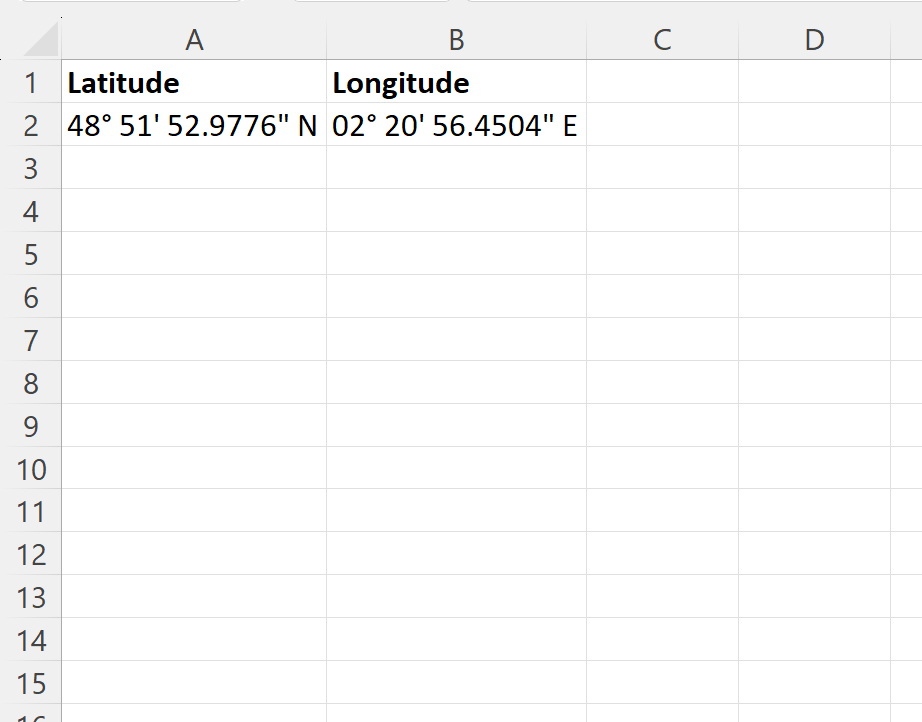

Consider the following initial arrangement of data within your spreadsheet environment:

We initiate the process by converting the Latitude value found in cell A2. We place the standard conversion formula into cell D2. Crucially, we ensure the formula references cell A2, directing the text functions to parse the exact string containing the latitude reading. This process ensures the degrees, minutes, and seconds are accurately isolated, preparing them for the essential numerical calculation.

=TEXTBEFORE(A2, "°")+TEXTBEFORE(TEXTAFTER(A2, "°"), "'")/60+TEXTBEFORE(TEXTAFTER(A2,"'"),"""")/3600

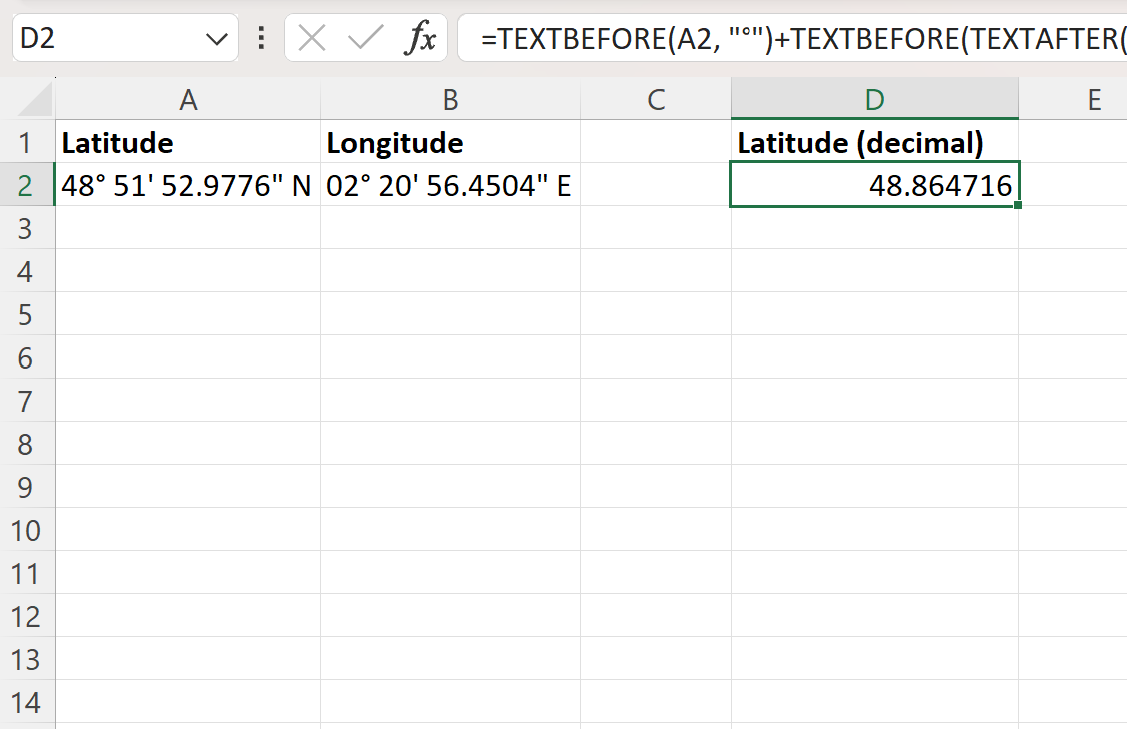

Upon execution, this formula immediately transforms the complex DMS text string into a single decimal number, as demonstrated in the resulting screenshot. This instantaneous calculation dramatically minimizes the manual labor traditionally associated with coordinate transformation.

As clearly shown, the formula successfully yields the decimal equivalent for the latitude, returning 48.864716.

We then apply the identical logical structure to convert the Longitude data, which is housed in cell B2. The only modification required is the crucial change in the cell reference from A2 to B2. This revised formula is entered into cell E2 to complete the conversion for the second coordinate:

=TEXTBEFORE(B2, "°")+TEXTBEFORE(TEXTAFTER(B2, "°"), "'")/60+TEXTBEFORE(TEXTAFTER(B2,"'"),"""")/3600

The resulting calculation for the longitude confirms the successful conversion of the coordinate component. Once the formula is correctly established for the inaugural row, it can be efficiently copied and dragged down to process extensive lists containing thousands of coordinate pairs, ensuring high efficiency and accuracy.

The longitude formula correctly returns 2.349014, thereby completing the accurate conversion of both DMS coordinates into the required DD format.

Detailed Breakdown of the Text Parsing Logic

A deeper examination of how the conversion formula leverages Excel’s text manipulation functions reveals its fundamental robustness and adaptability. Let us re-examine the example string in cell A2, which contained 48° 51′ 52.9776″ N, and analyze the formula structure used for processing it:

=TEXTBEFORE(A2, "°")+TEXTBEFORE(TEXTAFTER(A2, "°"), "'")/60+TEXTBEFORE(TEXTAFTER(A2,"'"),"""")/3600

The formula is constructed as an additive sequence of three distinct stages, each corresponding to the degrees, minutes, and seconds components. The initial stage handles the degrees: TEXTBEFORE(A2, “°”). The modern TEXTBEFORE function is utilized here to extract all characters in cell A2 that precede the degree symbol (°). Since the degree value serves as the primary integer, this function successfully isolates the value 48. This component requires no division and forms the base integer part of the final decimal degree result.

The second stage is dedicated to extracting and converting the minutes: TEXTBEFORE(TEXTAFTER(A2,”°”),”‘”)/60. This is a crucial nested operation. First, the inner TEXTAFTER function isolates the remainder of the string following the degree symbol, yielding ” 51′ 52.9776″ N”. Next, the outer TEXTBEFORE function analyzes this newly isolated string and extracts everything appearing before the minute symbol (“‘”). This process accurately isolates the minutes value, 51. Critically, this extracted numerical value is immediately divided by 60, converting 51 minutes into its proportional decimal degree equivalent (51/60 = 0.85).

The third stage extracts and converts the seconds: TEXTBEFORE(TEXTAFTER(A2,”‘”),””””)/3600. This stage follows a similar nested logic. The inner TEXTAFTER function isolates the portion of the string following the minute symbol (“‘”), resulting in ” 52.9776″ N”. The outer TEXTBEFORE then isolates the text before the double quote, which represents the seconds symbol. It is important to note the required use of four double quotes `”””` to correctly designate the quote delimiter within the Excel formula environment, isolating the seconds value 52.9776. This value is then divided by 3600 (60 minutes multiplied by 60 seconds), yielding the decimal contribution of the seconds (52.9776/3600 ≈ 0.014716).

Finally, the three precisely calculated components are summed: 48 (degrees) + 0.85 (minutes in DD) + 0.014716 (seconds in DD), resulting in the final, highly accurate decimal degrees result of 48.864716. This systematic, three-part conversion ensures precise and reproducible results, provided the input DMS format is standardized.

Addressing Data Variations and Compatibility Limitations

While the provided formula is exceptionally efficient for clean, standardized DMS data (e.g., 48° 51′ 52.9776″ N), users must remain vigilant regarding potential complications stemming from data variations, especially those related to directional indicators (N, S, E, W). Although the current formula successfully ignores the trailing ‘N’ in the examples because the seconds symbol (“) is the final delimiter parsed, coordinates located in the Southern or Western hemispheres require additional logical handling.

For coordinates where the direction is South (S) or West (W), the corresponding decimal degree value must be represented as a negative number to correctly position it within the global coordinate system. Since the text parsing functions utilized (TEXTBEFORE/TEXTAFTER) only extract positive numerical values, the base conversion formula must be augmented with a conditional statement. This typically involves using an IF function combined with a SEARCH operation to detect the presence of ‘S’ or ‘W’. If these indicators are found, the final numerical output must be multiplied by -1. This crucial step ensures mathematical accuracy for all four geographic quadrants.

Furthermore, a significant practical limitation is the reliance of this solution on the availability of the modern TEXTBEFORE and TEXTAFTER functions. This restricts the usability of the formula to users operating Microsoft 365 or post-2021 versions of Excel. For users running older versions, a more intricate, legacy solution is necessary. This alternative involves complex nesting of `MID`, `FIND`, and `LEFT` functions to manually determine the starting position and length of the degrees, minutes, and seconds substrings based on the exact character location of the delimiter symbols.

Conclusion and Further Resources

Mastering advanced string manipulation techniques is fundamental for efficient data cleaning and geographical analysis within the Excel environment. By successfully automating the conversion of Degrees Minutes Seconds to Decimal Degrees, you effectively streamline the preparation of geographical data. This standardized format is instantly ready for use in advanced analytical models, mapping applications, and integration into specialized databases.

The following resources provide complementary documentation and instructional materials to enhance your data processing capabilities and address the variations mentioned above:

• Tutorials explaining how to use MID, LEFT, and FIND for text parsing in older versions of Excel to achieve similar results.
• Documentation focused on converting various time and date formats, which often rely on similar sexagesimal arithmetic principles.
• Guides for importing and exporting geospatial data, detailing common formatting requirements and best practices for GIS software.
