Calculating Standard Deviation for Frequency Distributions in Excel: A Step-by-Step Guide

Calculating the standard deviation (SD) for a frequency distribution is a necessary skill for conducting rigorous statistical analysis on aggregated datasets within Excel. This powerful statistical metric provides a quantitative assessment of the spread or variability inherent in grouped data, which is particularly vital when the original, individual raw data points are no longer accessible. Mastering this specific calculation method is fundamental for generating comprehensive and statistically sound reports.

A frequency distribution serves as a tool to organize and simplify extensive datasets by classifying observations into defined ranges or intervals, listing the count (frequency) of values falling within each range. Since this aggregation process sacrifices the precision of individual scores, analysts must employ specialized, approximate techniques to accurately estimate core statistical parameters, such as the mean and the standard deviation, from the grouped information.

This detailed guide offers an exhaustive, step-by-step methodology designed to accurately derive the standard deviation from summarized, grouped data utilizing the advanced formula capabilities available in Microsoft Excel. We will systematically construct the calculation process, ensuring crystal-clear instructions for every required component and its precise implementation within the spreadsheet environment.

To illustrate this technique, consider a typical statistical scenario where raw data has already been condensed into a frequency distribution, as shown in the image below. This structure organizes observations based on defined class limits and their corresponding observed counts or frequencies. Our primary objective is to calculate the overall dispersion of this summarized dataset using only the class information provided.

Theoretical Foundations of Grouped Data Analysis

The standard deviation stands as the principal measure of variability, quantifying the average distance that data points typically fall from the central tendency, or mean. A small standard deviation implies that the data is tightly clustered around the average, suggesting high consistency. Conversely, a large standard deviation indicates that data points are widely scattered, signifying greater heterogeneity or inconsistency. This metric is absolutely essential for rigorous comparative statistical analysis and informed decision-making processes.

A frequency distribution systematically maps the frequencies of various outcomes within a collected sample. By grouping values into defined ranges, known as class limits, this method greatly simplifies the management and initial handling of exceedingly large datasets. However, because the exact individual scores are inevitably obscured during this grouping process, we are compelled to rely on accurate approximations when calculating summary statistics, which necessitates a more complex calculation procedure than simply analyzing raw data points.

When performing analysis on grouped data, we must substitute the unknown, underlying individual values with the midpoint of the respective class interval. This fundamental approximation allows us to successfully apply established mathematical frameworks of statistics to these summarized tables, thereby providing a robust estimate of the true standard deviation for the underlying population or sample. Recognizing and understanding this trade-off between data aggregation and the precision of the approximation is paramount for correctly interpreting the final statistical result.

Step 1: Organizing the Frequency Distribution in Excel

The initial and perhaps most critical stage of this entire analysis is the accurate structuring of the data within your Excel spreadsheet. Meticulous data entry provides the bedrock for all subsequent calculations; ensuring reliability at this stage prevents propagation errors that could ultimately compromise the validity of your statistical conclusions. We must precisely organize the class limits and their corresponding frequencies into clearly defined, sequential columns.

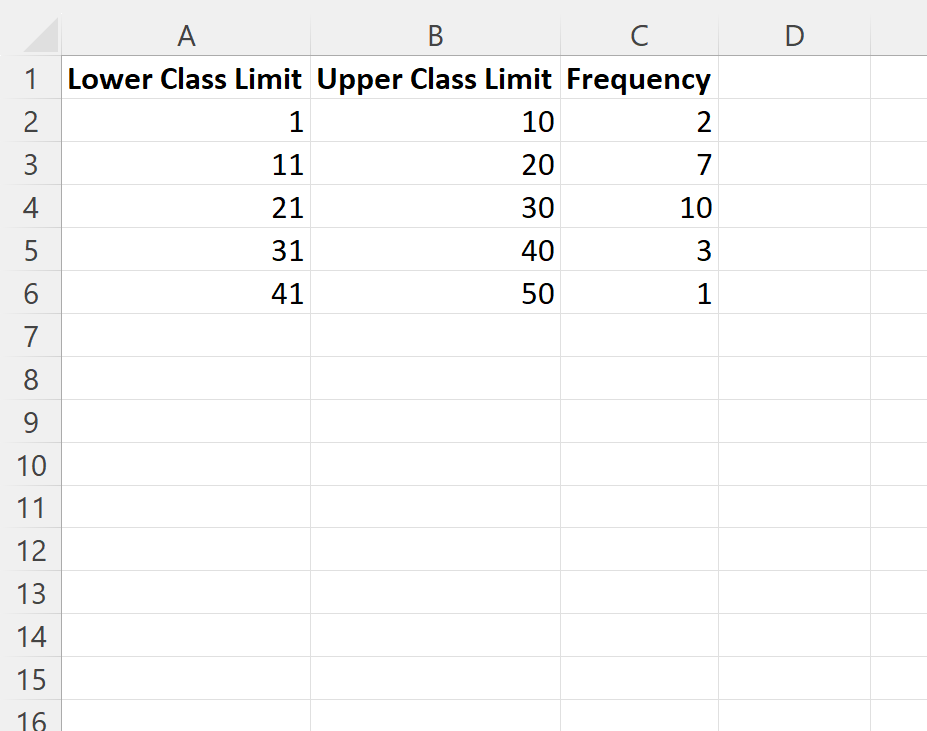

To properly begin, you should designate separate columns for the lower class boundary, the upper class boundary, and the observed frequency for each class interval. Following our visual example, we will assign columns A, B, and C respectively for these components. For instance, if the first grouping covers the numerical range of 0 to 5 and records an observed count of 4, you would enter ‘0’ in cell A2, ‘5’ in B2, and ‘4’ in C2.

This precise, columnar arrangement makes the data highly accessible for subsequent formula creation and manipulation. Before proceeding to the calculation stages, it is imperative to rigorously verify all your initial entries to prevent minor errors from drastically distorting the final estimates of the mean and standard deviation. Once the initial values are correctly populated and verified, you are fully prepared to advance to the next critical stage: calculating the representative values for each class.

Step 2: Calculating the Class Midpoints (mi)

Since we are operating without access to the raw individual observations, the midpoint (mi) of the class interval must function as the single, representative value for all data points aggregated within that particular range. This representative value is fundamentally important because it is utilized in two key areas: the calculation of the estimated mean and the computation of the final standard deviation for the grouped data.

The process for calculating the midpoint is arithmetically simple: sum the lower and upper limits of the interval, and then divide the resulting sum by two. In the Excel environment, this task can be executed efficiently using the built-in AVERAGE function. For the purpose of our ongoing example, in cell D2, you should enter the formula: =AVERAGE(A2:B2). This formula precisely calculates the average of the class boundaries specified in cells A2 and B2.

After successfully inputting the initial formula in D2, you can leverage Excel’s fill handle (the small square located at the bottom-right corner of the cell) to quickly drag the calculation down the entire column D. Excel intelligently adjusts the cell references automatically for each subsequent row, thereby generating the correct midpoint for every single class interval. This essential step effectively converts the boundaries of your grouped data into usable single points, preparing the data for advanced statistical computation.

Step 3: Estimating the Weighted Mean (μ)

Before attempting to calculate the measure of data spread, we must first accurately establish the distribution’s center. The estimated mean (μ) for grouped data is determined by a weighted average calculation, where each class midpoint is weighted proportionally by its associated frequency. The formal formula used for estimating the mean of grouped data is: μ = Σ(mini) / N.

To ensure clarity, here is a detailed breakdown of the components required for implementing this weighted calculation in Excel:

• mi: Represents the calculated midpoint of the ith class interval.
• ni: Represents the frequency (count) observed in the ith class.
• N: Represents the total sample size, which is equivalent to the sum of all class frequencies (Σni).

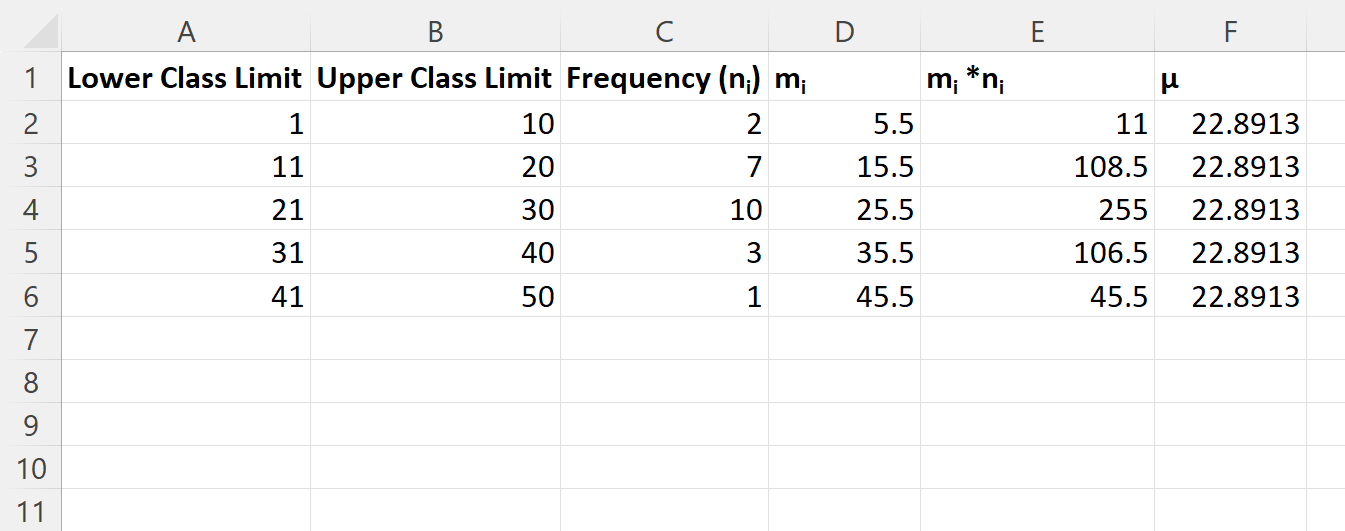

To calculate the necessary numerator (Σmini), you must first compute the product for each individual row. In cell E2, input the formula =D2*C2, which multiplies the class midpoint by its corresponding frequency. Drag this formula down column E to apply it across all classes. Subsequently, calculate the overall estimated mean by dividing the grand sum of column E by the total sample size, which is the sum of column C.

In cell F2, enter the final, complete mean calculation: =SUM($E$2:$E$6)/SUM($C$2:$C$6). Notice the strategic and crucial use of absolute references (indicated by the dollar signs). This ensures that the denominator (the total N) remains perfectly constant when this formula is copied or dragged down, correctly yielding a single, stable estimated mean value across all rows, as demonstrated in the visual aid below.

Step 4: Understanding the Standard Deviation Formula for Grouped Data

The calculation of the sample standard deviation for grouped data necessitates the use of a modified formula compared to the standard calculation used for raw, ungrouped data. This specific formula is adapted to account for the fact that we are working exclusively with midpoints representing entire class intervals, and these midpoints must be appropriately weighted by their associated frequencies. This essential adaptation allows us to generate a proper estimate of the data dispersion despite the initial loss of individual data points. The standard formula for calculating the sample standard deviation (s) of grouped data is:

Standard Deviation (s): √Σni(mi-μ)2 / (N-1)

It is beneficial to clearly break down the essential components of this formula to understand their specific roles during the Excel implementation:

• (mi-μ)2: This term calculates the squared deviation of the class midpoint from the estimated distribution mean. Squaring the difference achieves two goals: it ensures that all resulting values are positive, and it places greater emphasis on larger deviations.
• ni(mi-μ)2: This multiplies the squared deviation by the class frequency, effectively weighting the deviation. This step reflects the collective impact of that specific class on the distribution’s overall spread.
• Σni(mi-μ)2: The sum of all weighted squared deviations, which collectively represents the total unnormalized variance of the grouped dataset.
• N-1: This is the total sample size minus one, a correction factor used specifically when we are estimating the sample standard deviation. This correction ensures the resulting estimate is unbiased and more accurately reflects the population parameter.

Step 5: Implementing Weighted Squared Deviations in Excel

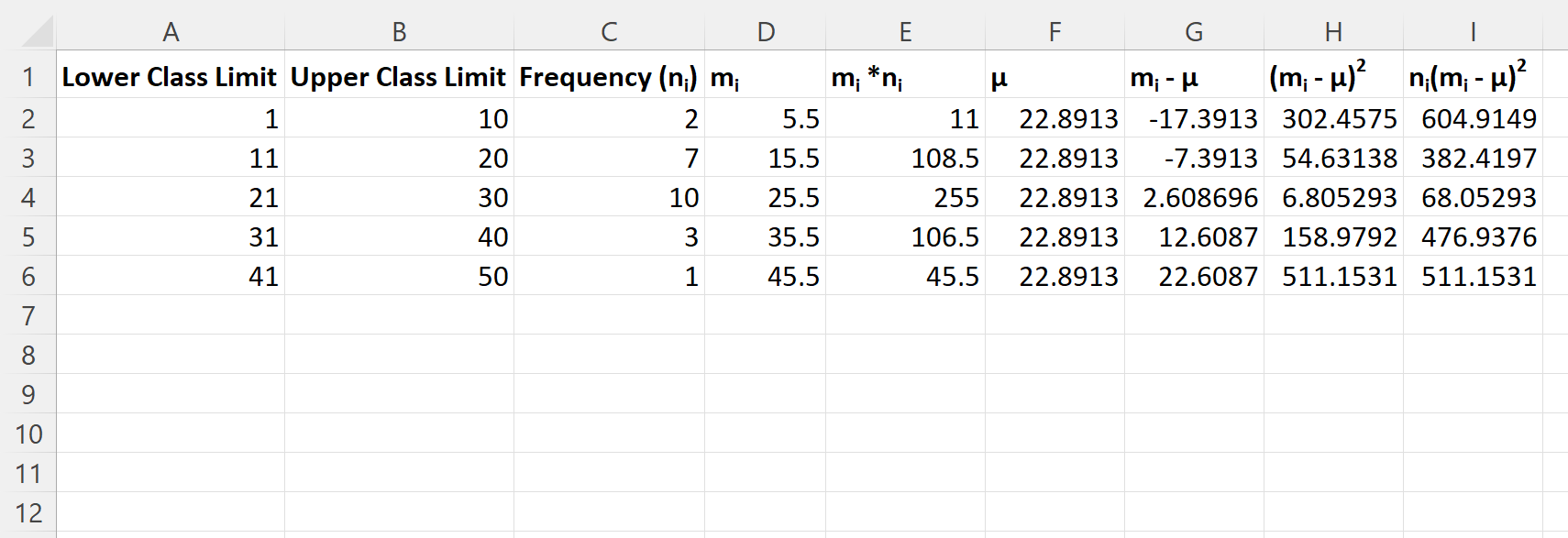

We are now ready to implement the numerator portion of the standard deviation formula by systematically calculating the deviation, squaring the result, and finally weighting it by the class frequency. This preparatory step requires the creation of three new intermediate columns within the spreadsheet, which are used to systematically build the necessary computational components.

First, calculate the deviation of each midpoint from the previously estimated mean (mi-μ). In cell G2, enter the formula =D2-F2. Since cell F2 contains the constant estimated mean (a value held constant by using absolute references), dragging this formula down column G correctly calculates the raw deviation for every single class interval.

Next, square these calculated deviations (mi-μ)2 to remove any negative signs and prepare the values for summation. In cell H2, input the formula =G2^2. The result stored here represents the squared difference between the class’s representative value and the distribution’s central measure. Extend this formula down column H.

Finally, weight the squared deviation by the class frequency (ni(mi-μ)2). In cell I2, type the formula =C2*H2. This resulting final value accurately reflects the total contribution of that specific class interval to the overall estimated variance. Drag this formula down column I to successfully complete this preparatory step for all classes in your dataset.

Step 6: Finalizing the Standard Deviation Calculation

After meticulously calculating all the required intermediate components, we are now fully prepared to aggregate these results and assemble the final formula needed to determine the sample standard deviation. This conclusive step involves summing the total weighted squared deviations, applying the necessary correction based on the total sample size, and executing the final square root operation.

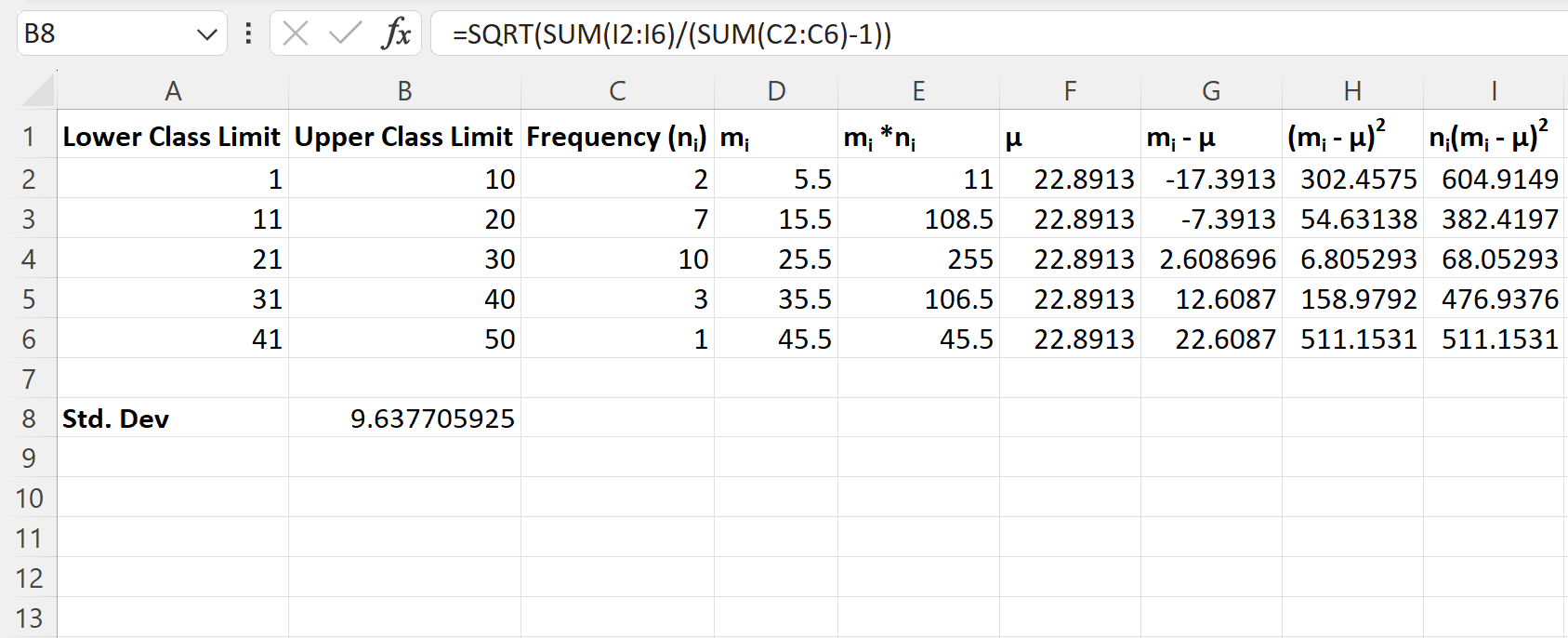

To successfully complete the calculation, utilize Excel’s SQRT function. In an empty designated cell (for example, B8), enter the following consolidated formula:

=SQRT(SUM(I2:I6)/(SUM(C2:C6)-1))

The SUM(I2:I6) segment calculates the numerator (the total weighted squared deviation). The denominator, SUM(C2:C6)-1, calculates the corrected degrees of freedom, N-1, where N is the total sample size. This division step yields the estimated variance, and the surrounding SQRT function converts that result back into the original units of measurement, providing the final standard deviation figure.

Executing this precise formula yields a final standard deviation of 9.6377 for this specific grouped dataset. This result signifies that, on average, the observations represented within these classes deviate by approximately 9.64 units from the estimated mean. This powerful value serves as a robust and essential measure of the inherent variability and consistency within the collected data, offering crucial context that extends far beyond the utility of a simple average.

Conclusion and Next Steps in Statistical Analysis

Successfully calculating the sample standard deviation for a frequency distribution using Microsoft Excel, while involving multiple stages, represents a highly valuable and advanced analytical skill. This structured, methodical approach empowers data professionals to accurately extract crucial metrics of variability from summarized data, allowing them to move beyond basic averages to gain a deeper understanding of data consistency, risk, and reliability.

By diligently following the prescribed steps—from accurately defining class limits and calculating class midpoints, to estimating the weighted mean and implementing the complex standard deviation formula—analysts can confidently interpret summarized datasets. This process clearly demonstrates Excel’s powerful adaptability in performing advanced statistical computations that are not natively supported by single, dedicated functions for grouped data.
