Learning VBA for Excel: A Comprehensive Guide to AutoFilter with Multiple Criteria

Effective data filtration stands as a critical requirement in modern data analysis, serving as the gateway to transforming large datasets into focused, actionable subsets. While Microsoft Excel provides robust built-in tools for basic filtering, tackling complex, automated, or highly customized multi-criteria scenarios demands a programmatic solution. This is where Visual Basic for Applications (VBA), Excel’s powerful integrated scripting language, becomes indispensable. By mastering the AutoFilter method within VBA, power users and developers can construct sophisticated filtering logic capable of applying multiple conditions across single or multiple columns with exceptional speed and precision. This comprehensive guide details the syntax, parameters, and practical implementation of the AutoFilter method, enabling you to move beyond rudimentary operations and address advanced data manipulation challenges.

Deconstructing the AutoFilter Method in VBA

The AutoFilter method is foundational to dynamic data management when scripting in VBA. It is designed to be executed directly upon a Range object, offering the capability to programmatically impose, modify, or clear filtering rules across a designated block of cells. Achieving successful automation requires a deep understanding of its syntax and associated parameters. The method’s general structure is defined as: expression.AutoFilter(Field, Criteria1, Operator, Criteria2, VisibleDropDown). Every component serves a vital function in constructing the overall filtration logic, dictating precisely which rows remain visible.

Two core parameters define the filtering action. First, the Field parameter is a Long integer that specifies the column targeted for filtration. Importantly, this count is relative to the far left of the initial defined Range, not the worksheet column index. For instance, if your data scope is defined as A1:C11, filtering the data in column B would necessitate setting Field:=2. Second, the Criteria1 parameter accepts a Variant data type, which is remarkably flexible: it can hold a single matching value, an Array of multiple values, or a string representing a comparative condition, such as ">100" for numerical data or "<>Manager" for exclusions.

The optional Operator parameter utilizes the XlAutoFilterOperator enumeration to define how criteria are linked. While operators like xlAnd allow for linking Criteria1 and Criteria2 (e.g., filtering numbers greater than 100 AND less than 200), the most crucial operator for selecting multiple discrete values within a single field is xlFilterValues. Utilizing VBA for filtration provides substantial advantages over manual processes, ensuring absolute consistency, eliminating the risk of human error, and facilitating highly customized conditional logic that may be impossible or impractical using Excel’s standard interface alone.

Method 1: Implementing Logical OR Filtering within a Single Column

A common analytical requirement involves isolating records within a specific column that satisfy any one of several defined values. For example, a user might need to view all transactions where the ‘Region’ is “North,” “South,” or “West.” VBA efficiently manages this logical OR scenario by combining the AutoFilter method with two specific elements: passing a Variant Array to the Criteria1 parameter, and setting the Operator to xlFilterValues. This powerful combination instructs Excel to display rows where the target field matches any of the values contained in the array.

Sub FilterMultipleCriteria()

With Range("A1:C11")
    .AutoFilter Field:=1, Criteria1:=Array("A", "C"), Operator:=xlFilterValues
End With

End Sub

In this exemplary macro, we first establish the targeted Range as A1:C11. The subsequent .AutoFilter command is executed on this range. The argument Field:=1 directs the filter operation to the very first column of the selected range. Critically, Criteria1:=Array("A", "C") dynamically constructs an Array containing the two desired values, “A” and “C.” Finally, Operator:=xlFilterValues signals to Excel that it must reveal only those rows where the value in the target field matches *any* of the values specified in the Criteria1 array, thereby implementing the required logical OR.

The utility of the xlFilterValues operator when executing OR logic cannot be overstated. It is uniquely engineered to process array inputs, providing a highly scalable and flexible means of incorporating dozens or even hundreds of criteria within a single column filter operation. This methodology is vastly superior to attempting to use multiple, sequential AutoFilter calls on the same field, a configuration that Excel’s standard filter mechanism is not designed to support for OR conditions, often resulting in complex workarounds or errors if attempted.

Method 2: Implementing Logical AND Filtering Across Multiple Columns

Beyond filtering a single column, analysts often need to constrain a dataset based on conditions that must be simultaneously satisfied across multiple, distinct columns. This necessitates a logical AND operation: a row must meet the criterion in Column 1 AND the criterion in Column 2 to be displayed. VBA handles this powerful combination by applying successive AutoFilter calls to the identical data Range. Each subsequent filter action operates exclusively on the visible subset of data generated by the preceding filters, cumulatively narrowing the results until all criteria are met.

Sub FilterMultipleCriteria()

With Range("A1:C11")
    .AutoFilter Field:=1, Criteria1:="A"
    .AutoFilter Field:=2, Criteria1:="Guard"
End With

End Sub

The provided code snippet clearly demonstrates the sequential application of criteria across different fields. Within the With Range("A1:C11") block, the first command filters the initial column (Field:=1) to include only rows where the value is exactly “A.” Immediately following this, the second command filters the second column (Field:=2) to retain only rows where the value is “Guard.” The crucial concept here is that this second filter does not reset the first; it operates exclusively upon the data that successfully passed the first filter. Consequently, a row must satisfy the condition in Field 1 AND the condition in Field 2 to remain visible to the user.

This sequential filtering mechanism is inherently designed to create a cumulative, logical AND operation. The strength of this approach lies in its simplicity and versatility, allowing for precise data drilling where records must meet a complex confluence of conditions simultaneously. This makes sequential AutoFilter application an indispensable technique for executing highly specialized data queries within VBA, ensuring that only the most relevant information is presented for analysis.

Establishing the Context: Our Sample Dataset

To offer a clear, practical demonstration of VBA‘s AutoFilter method, we will utilize a small, easily digestible sample dataset. This example simulates a standard roster or performance tracking scenario, detailing sports team members, their designated positions, and an associated performance metric (Score). While the dataset is concise, its structure is ideal for unambiguously illustrating how multi-criteria filtering effectively extracts specific data subsets based on precise demands.

As depicted in the image above, our sample data spans the Range A1:C11. It is systematically organized into three distinct columns: ‘Team’, ‘Position’, and ‘Score’. The ‘Team’ column uses categorical values (A, B, C), the ‘Position’ column defines specific roles (Guard, Forward, Center), and the ‘Score’ column contains numerical performance data. This straightforward arrangement ensures that the precise impact of each subsequent VBA macro execution is easily traceable and verifiable against the intended filtering outcome.

Example 1: Logical OR Filtering for Teams “A” or “C”

We now apply the principles of Method 1 (single-column, multiple criteria) to our sample dataset. Our defined objective is to isolate all records where the ‘Team’ column (Field 1) corresponds to either Team “A” or Team “C.” This is a fundamental operation in analysis, often required when focusing attention on specific, non-contiguous groups or segments of data within a larger whole. Rather than relying on error-prone and tedious manual filter selections, we achieve this automation using a focused VBA macro.

To execute this task, you must first open the VBA Editor (usually Alt + F11 in Excel), insert a new Module (Insert > Module), and then paste the necessary code snippet below. Running this Macro (F5 or clicking the Run button) will instantly refine the visible dataset according to the multiple criteria we have specified.

Sub FilterMultipleCriteria()

With Range("A1:C11")
    .AutoFilter Field:=1, Criteria1:=Array("A", "C"), Operator:=xlFilterValues
End With

End Sub

Upon successful execution, the dataset is instantly updated. You will observe that only those rows where the ‘Team’ column contains either “A” or “C” remain visible, while all other rows are efficiently concealed. The seamless combination of the Array function and the xlFilterValues operator provides a clean, repeatable, and highly efficient application of the logical OR condition within a single filter call, simplifying the process of isolating data based on a list of acceptable values.

The visual output confirms that the dataset has been precisely filtered to exclusively display records where the ‘Team’ column matches either “A” or “C.” This outcome validates the intended functionality and powerfully demonstrates how VBA’s AutoFilter method robustly handles multi-value selection on a single field. It is important to remember that although we used only two values in our Array for this illustration, the method is inherently flexible and can accommodate an extensive number of criteria as demanded by complex data-slicing tasks.

Example 2: Logical AND Filtering Across Two Distinct Columns

We now transition to filtering based on simultaneous conditions across multiple fields. Consider the requirement to identify only those team members who belong to Team “A” AND whose assigned position is “Guard.” This targeted query is essential in analytical work, requiring highly specific data extraction based on a logical AND relationship between distinct data attributes. This example will clearly illustrate how sequential AutoFilter calls elegantly achieve this cumulative restriction.

As with the previous example, the following macro should be inserted into a Module within the VBA Editor. This code snippet leverages our understanding of applying individual filters to create a combined effect. The effectiveness of this strategy stems from its iterative refinement: each successive line of .AutoFilter processes the result set generated by the preceding filters, progressively narrowing the visible records until they meet all specified criteria concurrently.

Sub FilterMultipleCriteria()

With Range("A1:C11")
    .AutoFilter Field:=1, Criteria1:="A"
    .AutoFilter Field:=2, Criteria1:="Guard"
End With

End Sub

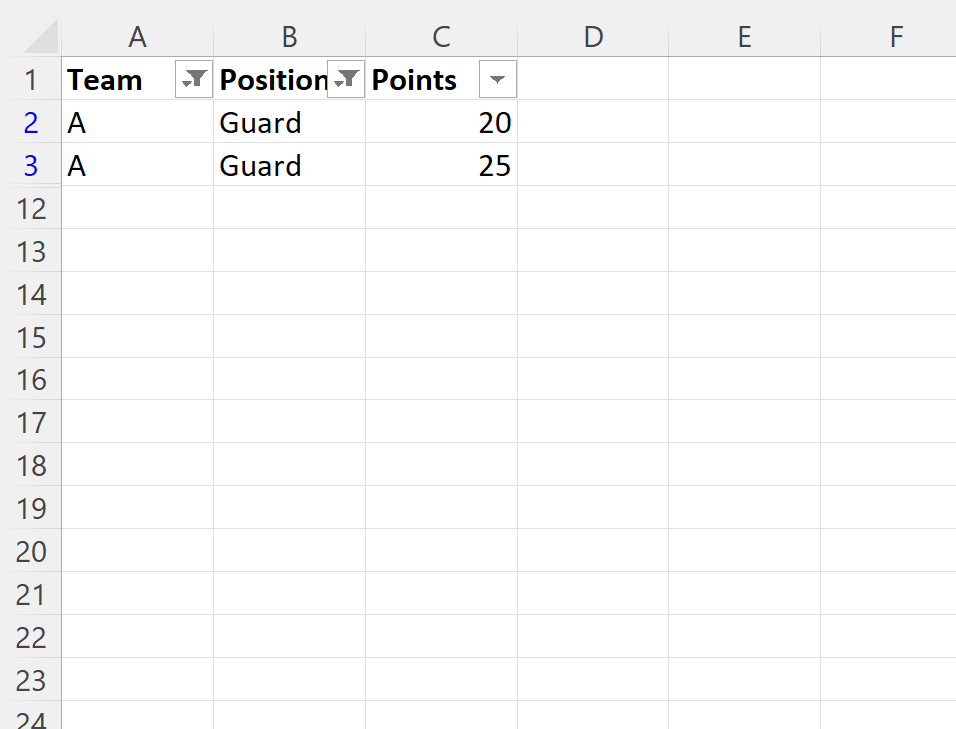

Once this macro is executed, the dataset will display only those rows where the ‘Team’ column is exactly “A” and, simultaneously, the ‘Position’ column is exactly “Guard.” This visual result directly confirms the successful application of the logical AND applied through sequential filtering operations. This methodology is incredibly valuable for detailed data exploration, allowing users to isolate highly specific subsets based on a complex combination of attributes that must all hold true.

The resulting output confirms that the dataset has been precisely filtered to show only rows where the ‘Team’ value is “A” AND the ‘Position’ value is “Guard.” This outcome firmly establishes the principle that applying multiple sequential AutoFilter calls across different fields results in an AND relationship between the respective criteria. This capability is crucial for analysts who require data that satisfies a precise intersection of conditions, providing a reliable and repeatable foundation for advanced data queries in Microsoft Excel.

Advanced Considerations and Best Practices for Robust VBA Filtering

While understanding the core implementation of AutoFilter with multiple criteria is straightforward, adopting several best practices is essential for developing robust, efficient, and maintainable VBA solutions suitable for real-world application. A primary consideration involves the systematic management of the current filter state. Before applying any new filtering logic, particularly in macros intended for repeated use or varying datasets, it is strongly recommended to clear all previously active filters. This is achieved by checking if filtering is active (If ActiveSheet.AutoFilterMode Then) and then executing the command ActiveSheet.ShowAllData, which guarantees a clean slate before the new criteria are imposed.

Another crucial aspect of creating resilient code is handling dynamic data sizing. Hardcoding ranges, such as A1:C11, makes a macro fragile and prone to failure if the dataset expands or shrinks. A superior, more adaptable approach involves dynamically determining the extent of the data using methods like the CurrentRegion property (e.g., Range("A1").CurrentRegion) or the UsedRange property. Furthermore, when dealing with extensive datasets, macro efficiency can be dramatically enhanced by temporarily suppressing visual updates (Application.ScreenUpdating = False) and event processing (Application.EnableEvents = False) at the start of the VBA routine, ensuring they are correctly re-enabled at the conclusion. This technique prevents Excel from wasting resources on screen redraws during the intensive filtering process.

Finally, professional-grade VBA code must incorporate comprehensive error handling. Complex filtering scenarios, such as attempting to apply a filter to a sheet without recognizable header rows or operating on an entirely empty data range, can lead to runtime errors. Implementing simple error traps, typically using On Error GoTo statements, allows the macro to gracefully manage unexpected situations, providing the user with informative feedback instead of an abrupt program crash. These advanced considerations are vital for creating filtering solutions that are not only functional but also reliable and user-friendly.

Conclusion: Mastering Data Filtration with VBA

The capability to harness programmatic filtering is an indispensable skill in any data-heavy environment. Our detailed exploration has firmly established that VBA‘s AutoFilter method is a versatile and potent tool for automating complex data filtration tasks within Microsoft Excel. We have successfully navigated two fundamental techniques: implementing logical OR conditions within a single column using the Array function and xlFilterValues, and employing sequential filtering across multiple columns to enforce a logical AND condition.

By mastering these methodologies, users gain the ability to transcend the inherent limitations of manual filtering, establishing custom, repeatable automation that dramatically reduces processing time and minimizes human error, thereby enabling deeper and more reliable data insights. A thorough understanding of the AutoFilter parameters, coupled with the adoption of essential best practices for code robustness and efficiency, will unlock an entirely new level of control over your Excel data assets.

We strongly encourage you to apply these techniques to your own unique datasets, experiment with varying criteria combinations, and continue to explore the extensive capabilities that VBA offers for sophisticated data management and analysis. For comprehensive details and advanced usage guidelines regarding the AutoFilter method, please consult the official Microsoft documentation.
